Warrior Ninja 400 Winch Hoist

 0 Reviews  Ask a Question
SKU: 45EWHST12

12v Model
Voltage: 12v
Sale price£278.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • NEW! – The popular Warrior Ninja 400 is now available as a 900lb hoist!
  • HIGH POWER – Features a powerful high torque 1.95hp motor.
  • WEATHER PROTECTED – Made with HD waterproof contactors and features full steel planetary gearing for long-lasting, rust-free running.
  • FULL LOAD BRAKE – Cool-down periods are done safely thanks to the full load holding brake.
  • MOUNTING PLATE – Features a mounting plate as standard for quick installation.

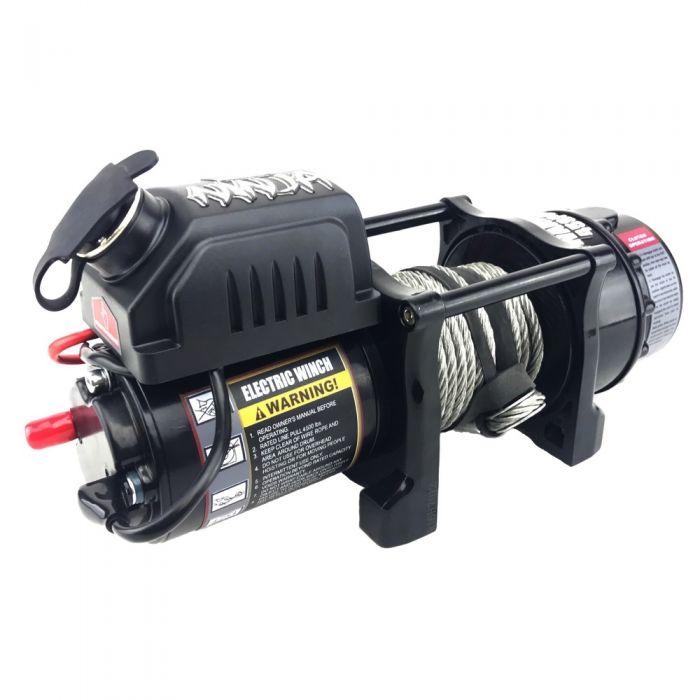

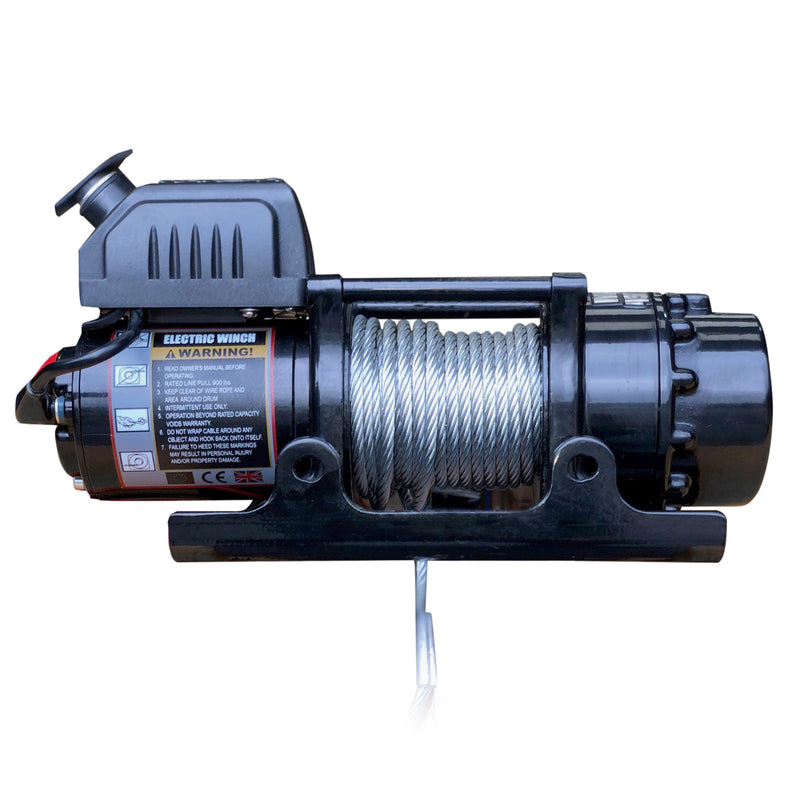

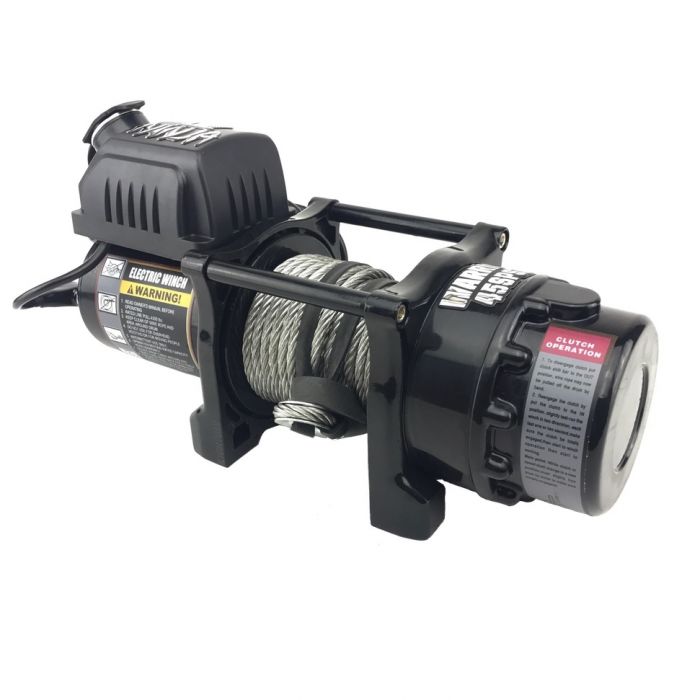

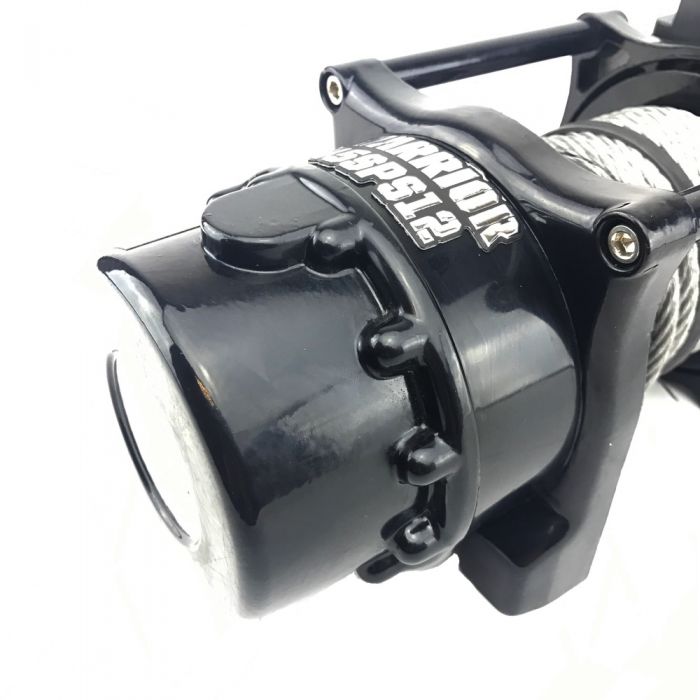

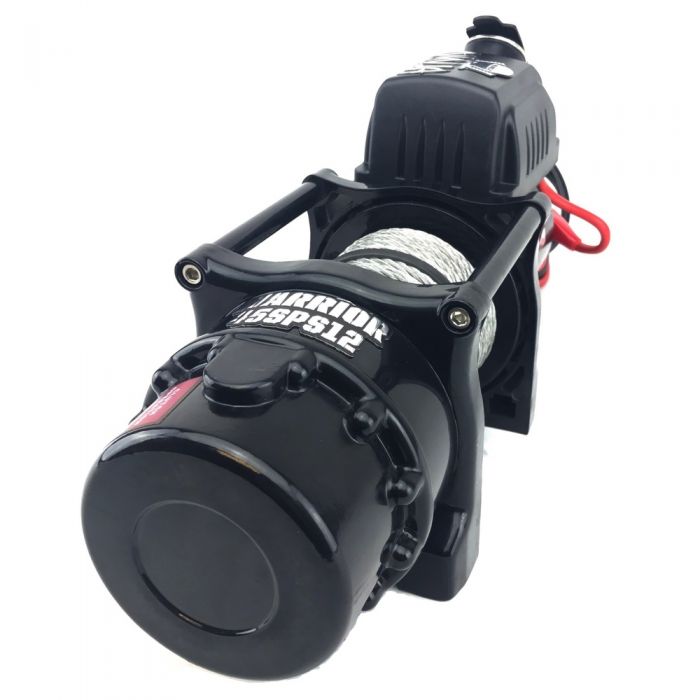

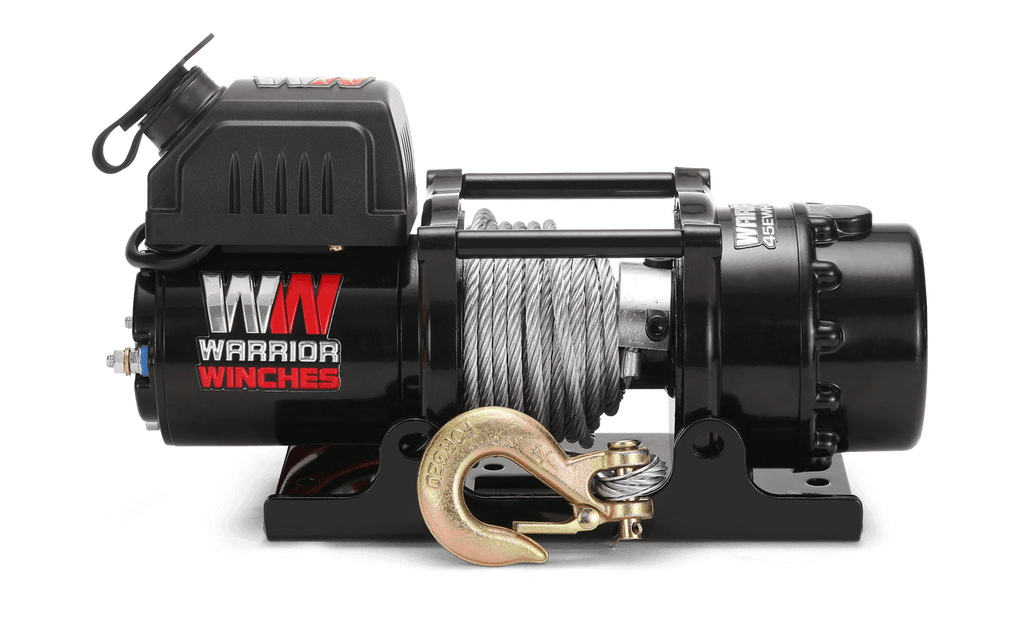

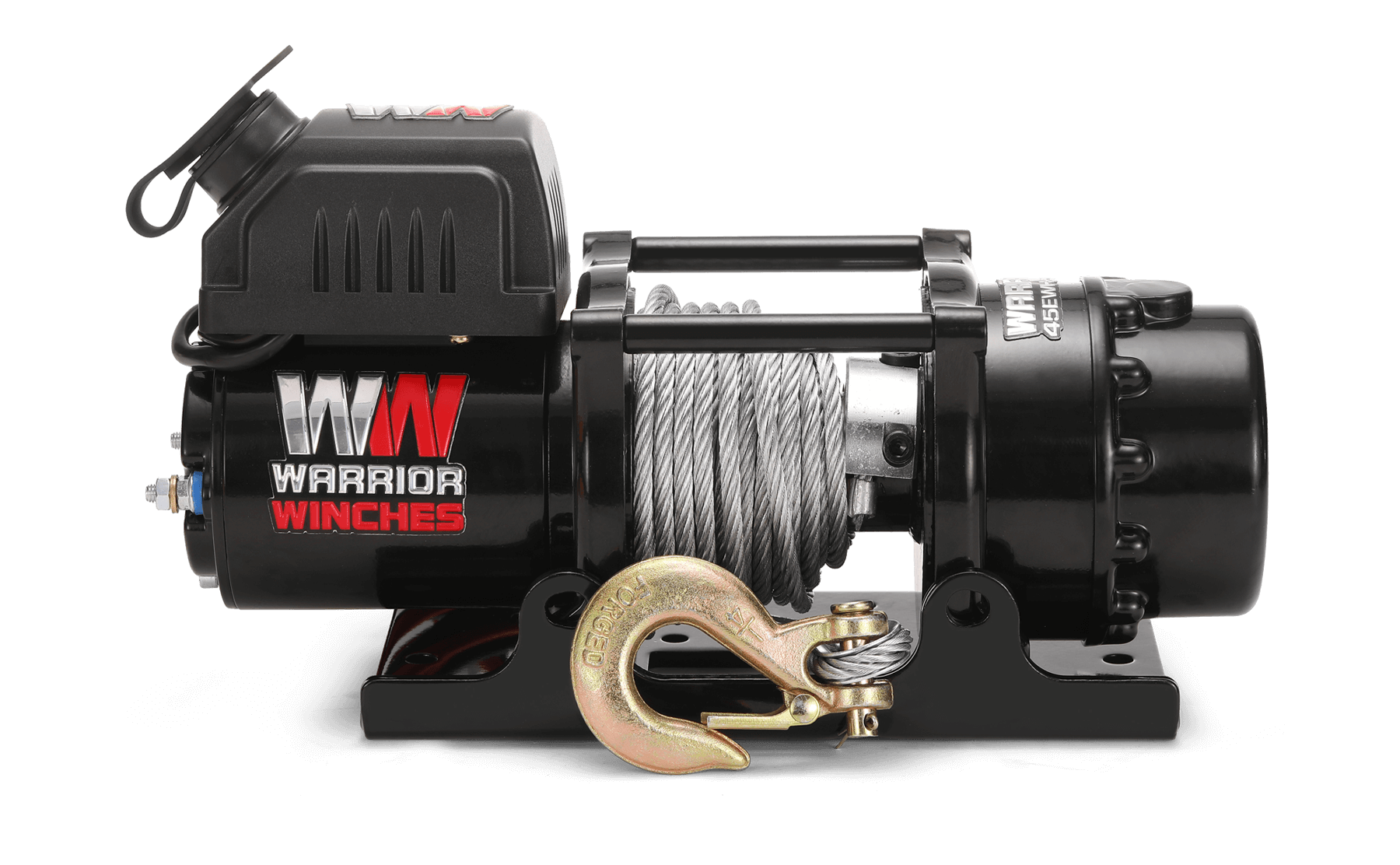

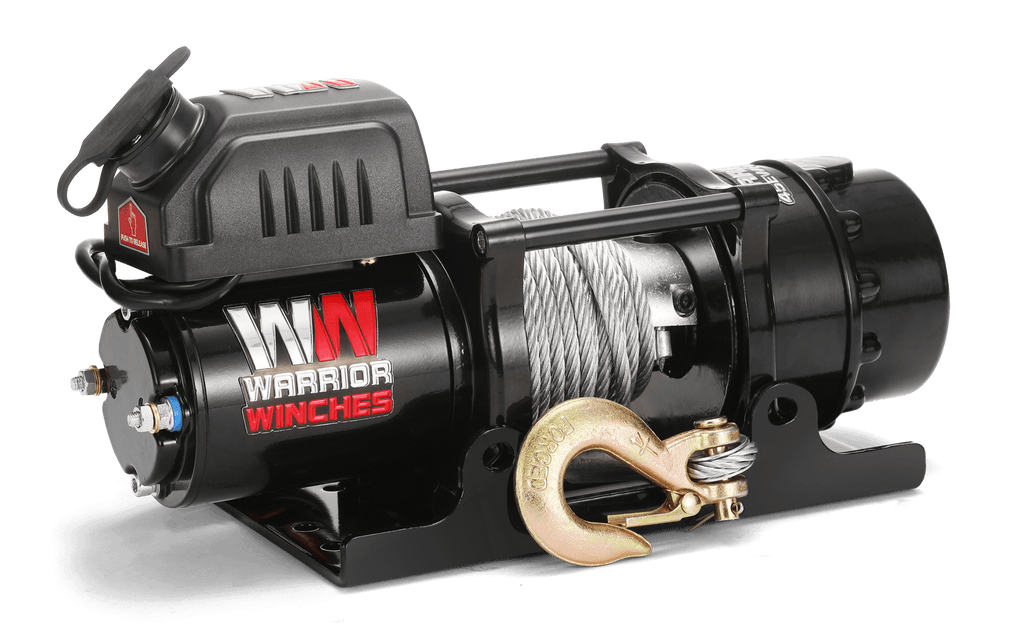

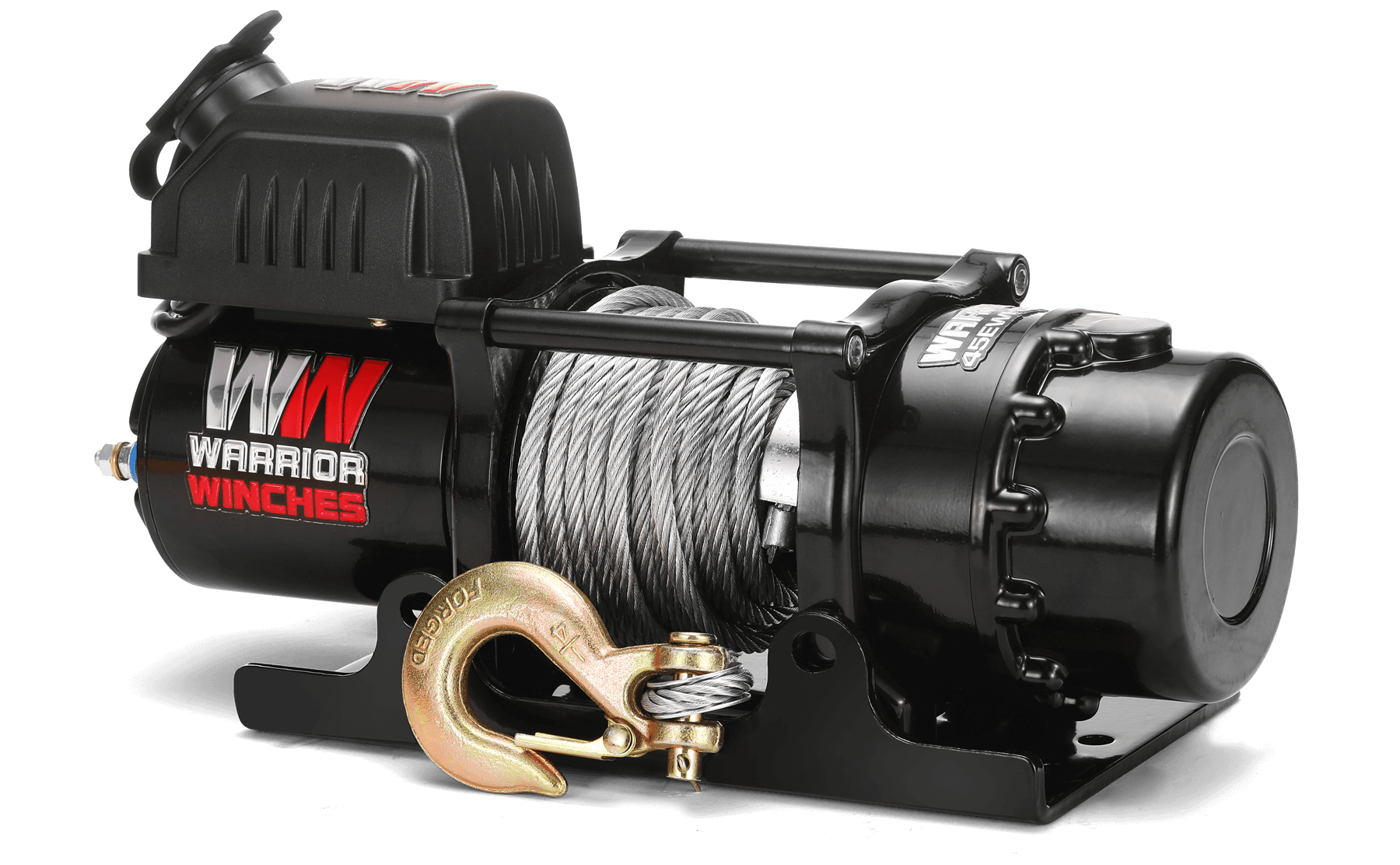

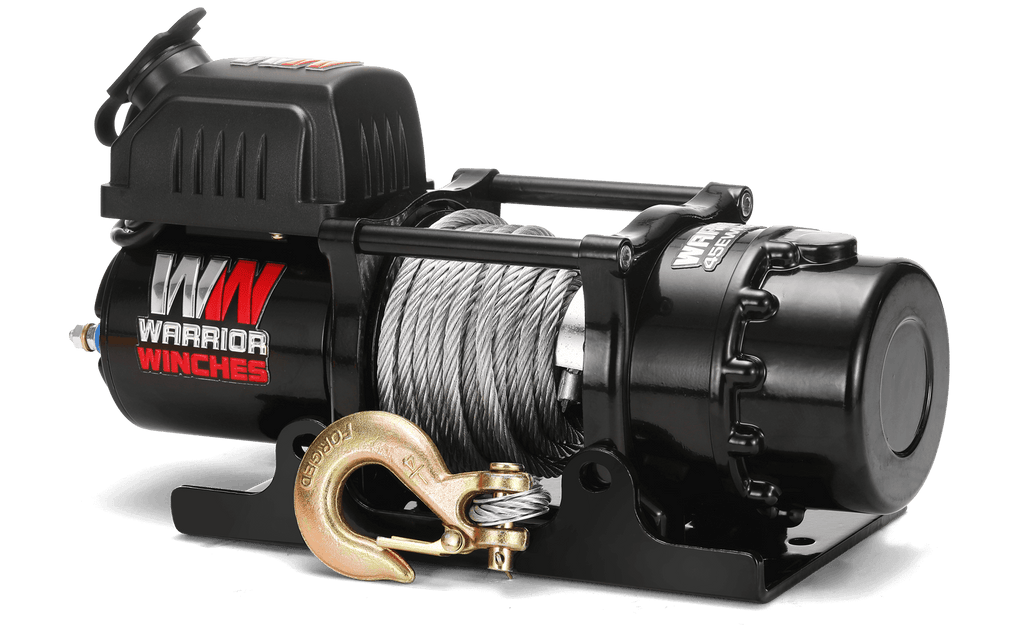

Warrior Ninja 400 Electric Winch - Hoist

Levelling up the extremely popular Warrior Ninja 400, meet the next-gen! Now available as a 900lb hoist, the variation of jobs you can get done just doubled. Featuring a high-power 1.95hp motor, you can get work done with ease.

Designed for a long-life, the HD waterproof contactors and full-steel planetary gearing ensure rust-free running. The high-quality gear system also ensures this is one of the quietest and smoothest hoists on the market!

Allowing for safe cool-down breaks, the full load brake can easily hold the full 900lb load for secure pauses. While the included mount plate makes getting up and running a breeze with simple installation.

The Winch Hoists are designed to supplement a lifting solution. For dedicated lifting solutions please view our electric or scaffold hoists.

Standard Features:

♦ Line Capacity: 900lb (408kg)
♦ Rope: 14.5m of 6.4mm Steel Cable with Clevis Hook
♦ Motor: Permanent Magnet - Powers In and Out
♦ Gearbox: Full Steel Planetary Gearing
♦ Warranty: 12 Months Return to Base Cover

Accessories:

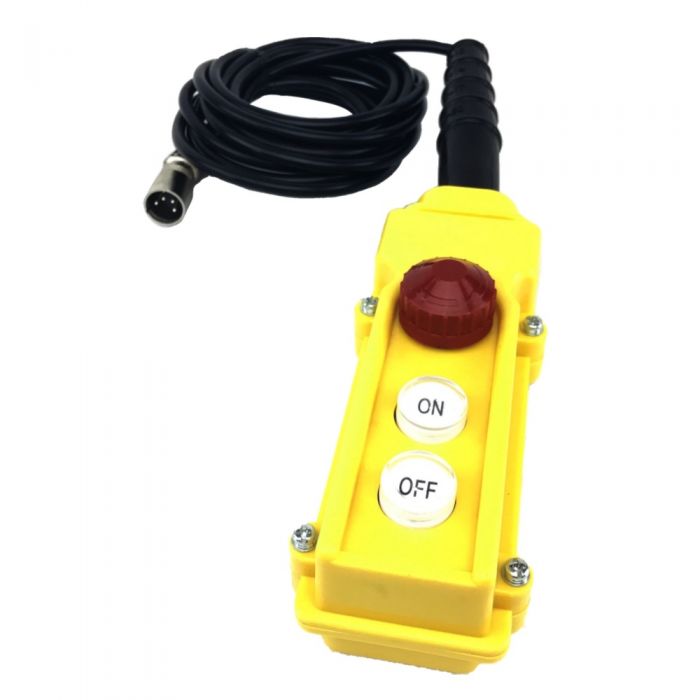

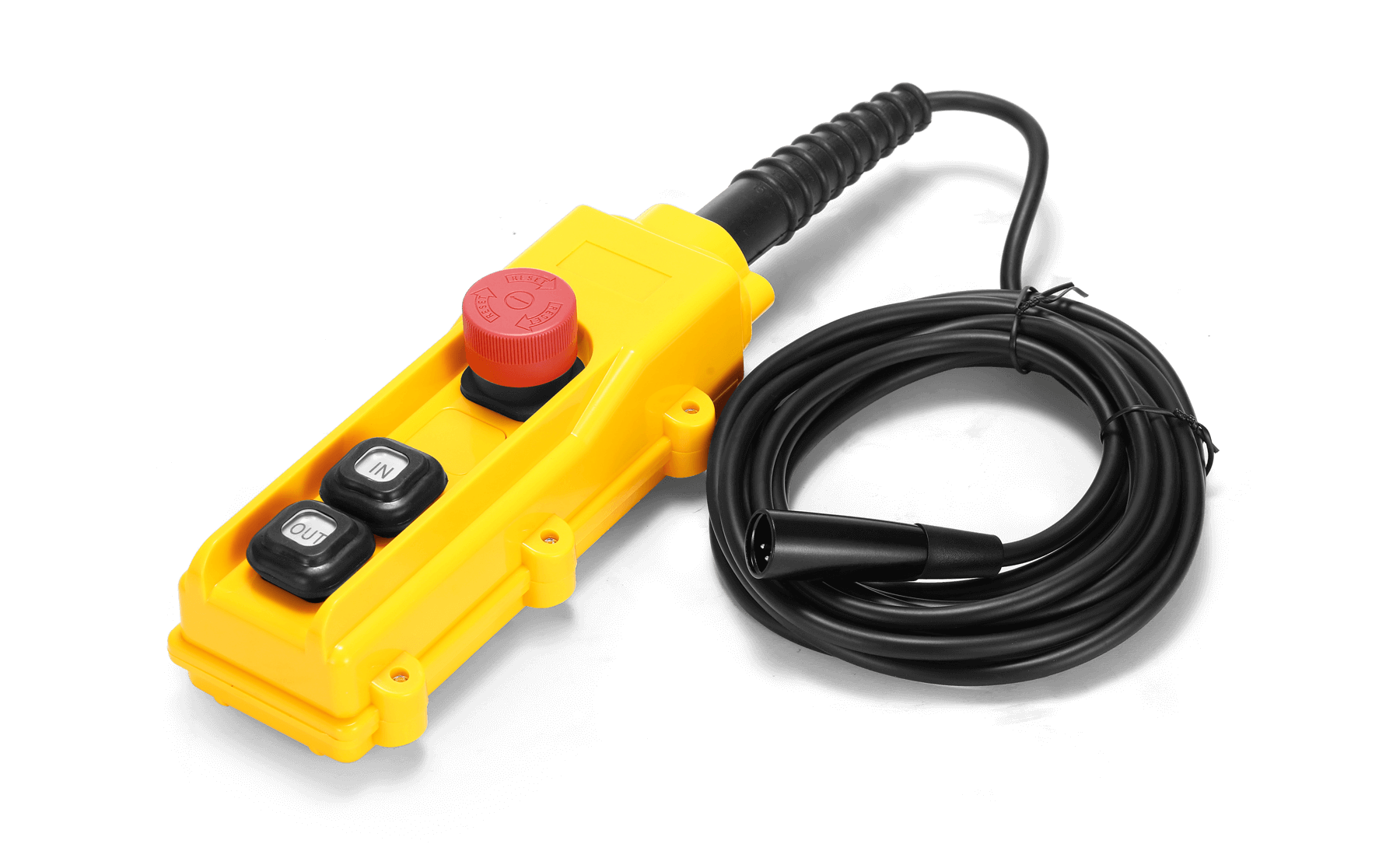

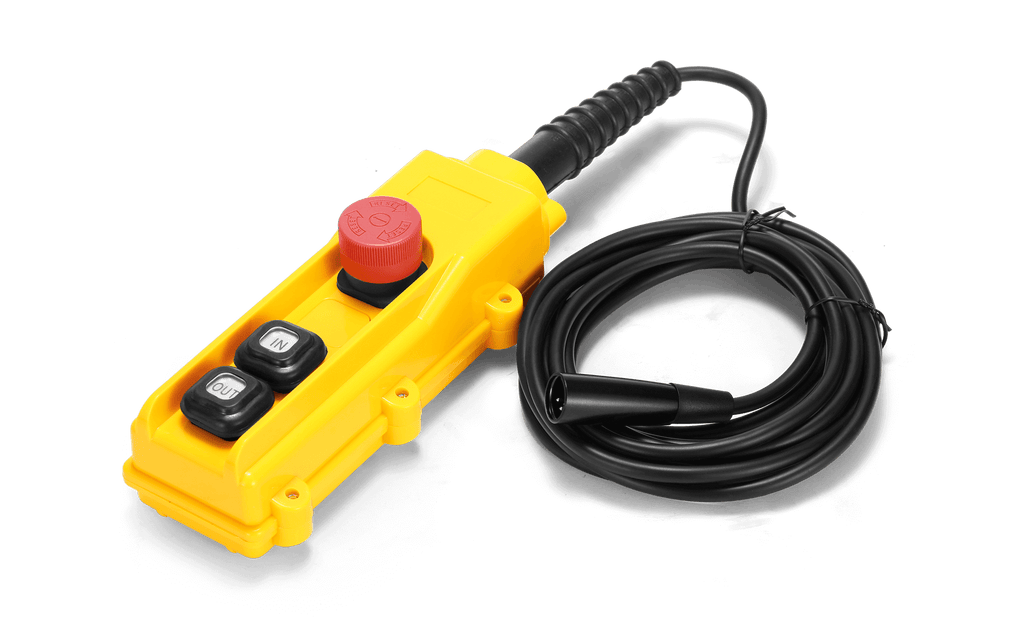

♦ Wired Hand Control: Hand control with Emergency Stop
♦ Wireless Control: Available as an optional extra

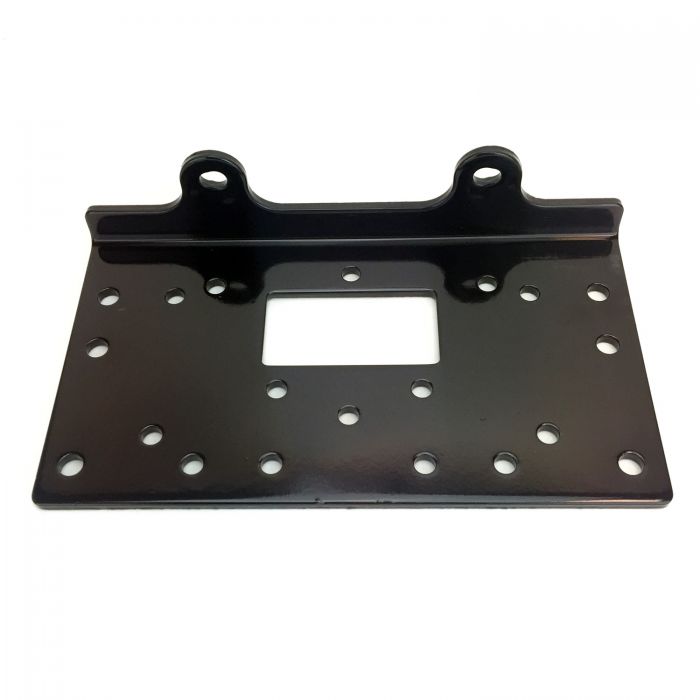

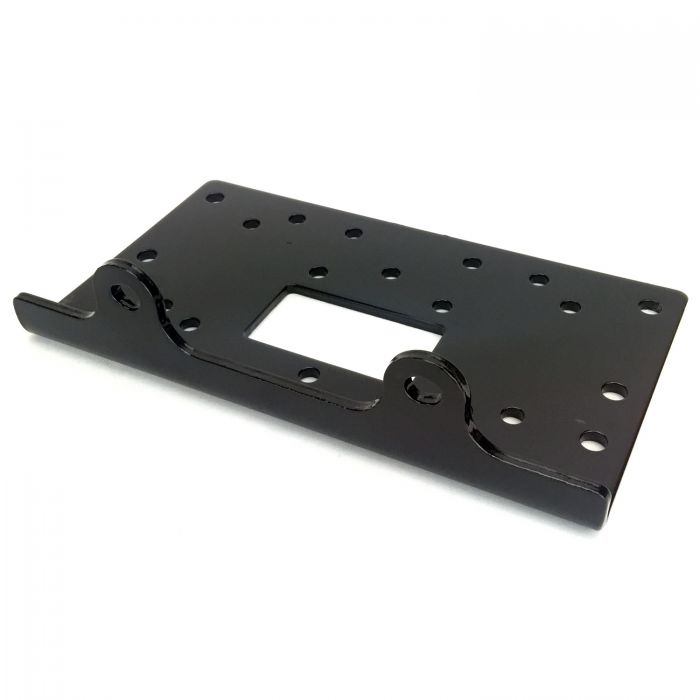

♦ Mounting Plate: Included
♦ Fairlead: Not Included
♦ Mounting Bolts: Included for standard installations

Also Includes:

♦ Heavy Duty Battery Cables (May need extending dependent on application)
♦ Instruction Manual

Other Information:

♦ Dimensions: 360mm L x 126mm D x 165mm H
♦ Mounting Bolt Pattern: 129mm x 96mm
♦ Approx. Shipping Weight: 13kg
♦ Line Pull - No Load: 3.6 m/min (20 Amps)
♦ Line Pull - Full Load:  1.5 m/min (200 Amps)




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Voltage 12 or 24v
Max Load 408kg (900 lb)
Lift Height 14.5 - 7.25m (48 - 24ft)
Lift Speed 11.6 - 5.8m (38 - 19ft) p/min
Power 1370 watts
Cable 6.4mm x 14.5m (0.25 in x 48 ft)
Weight 13 kg (29 lbs)
Certification CE certified

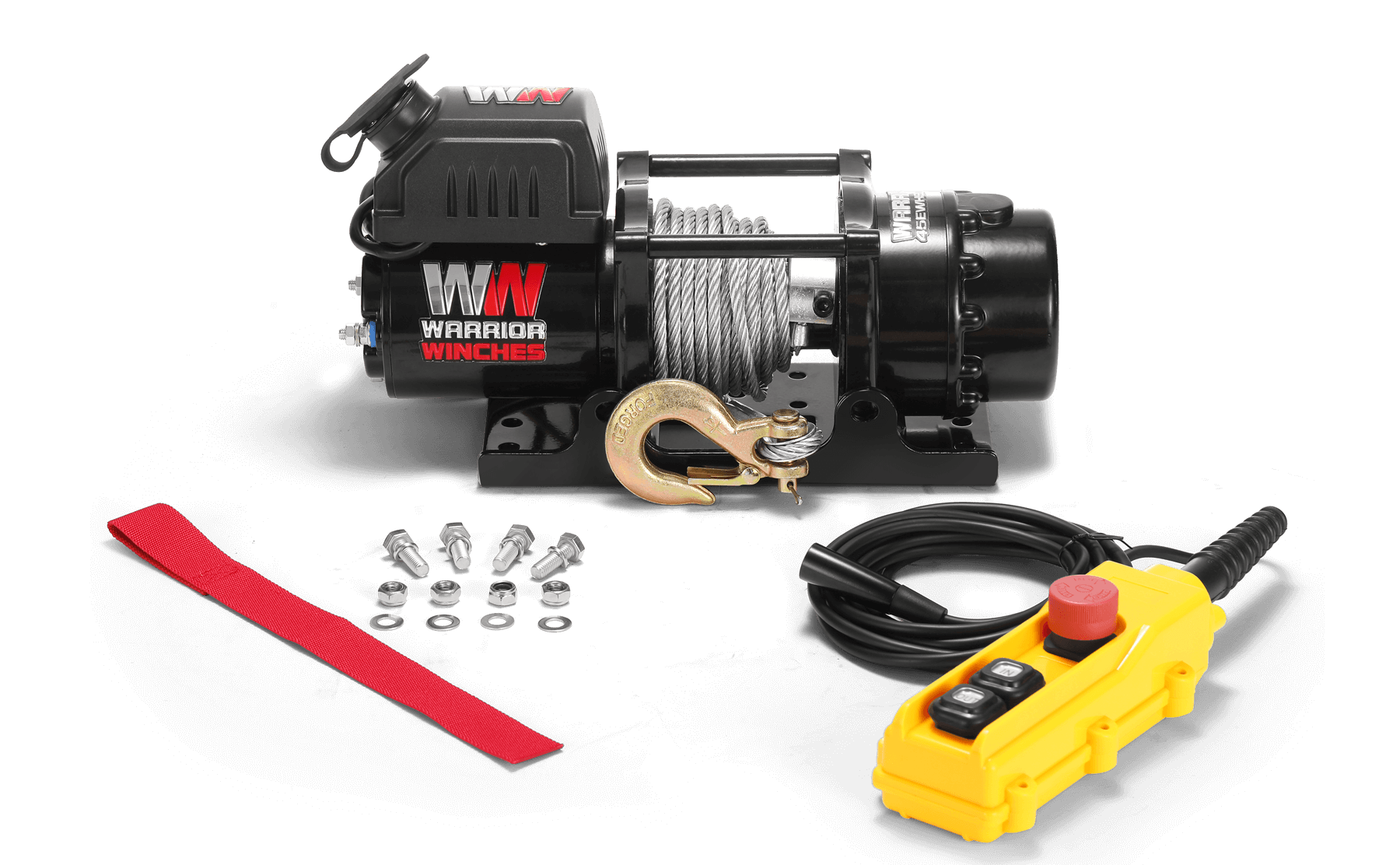

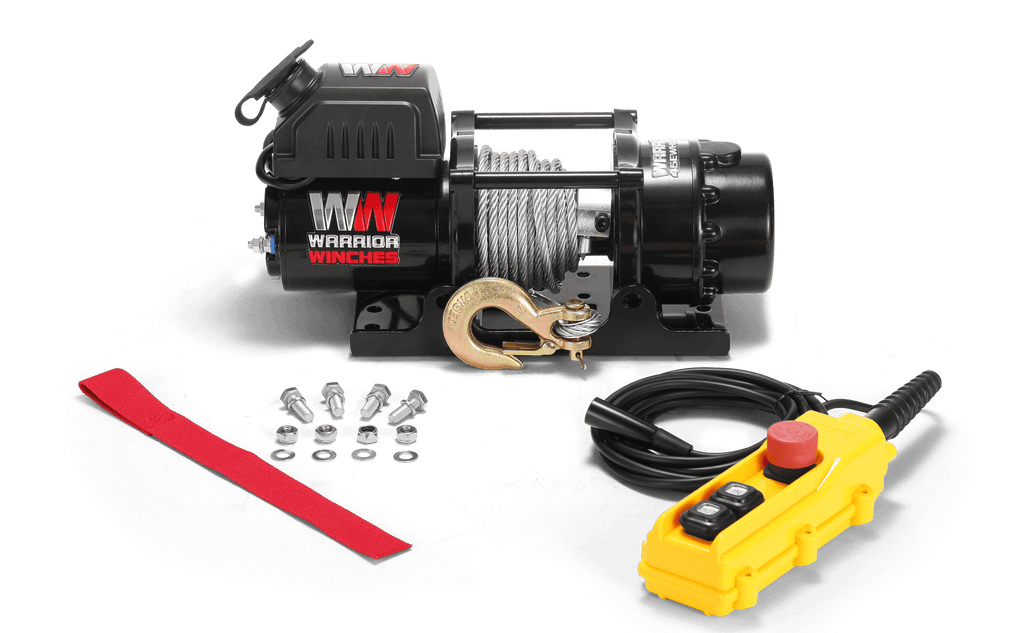

What's in the box:

  • 1/4 Hook
  • Hand Remote Handset with Emergency Stop
  • Steel Rope
  • Mounting Tray
  • Mounting Hardware
