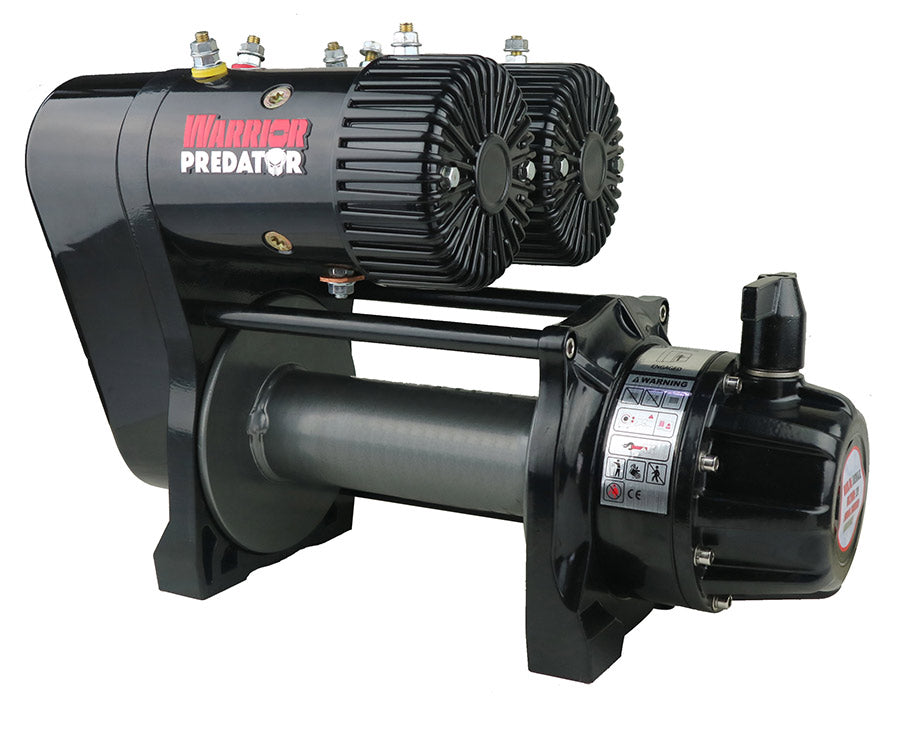

Warrior Predator Twin Motor Winch

 0 Reviews  Ask a Question
SKU: 10EWA12

Includes Synthetic Rope
Rope: Synthetic Rope
Sale price£1,652.99
In stock (Delivery in 1-2 working days)

Features

  • HARDCORE DESIGN – Designed for even the most extreme off-road punishment.
  • TWIN POWER – Powered by two 7.2HP sealed motors..
  • INCREDIBLE POWER – Line capacity of 10,000lb or 4,536kg.
  • GEAR BOX – Features a 108:1 ratio 3 stage planetary gearbox.
  • OFF ROAD ABILITY – Off road line speeds from 20m per minute!

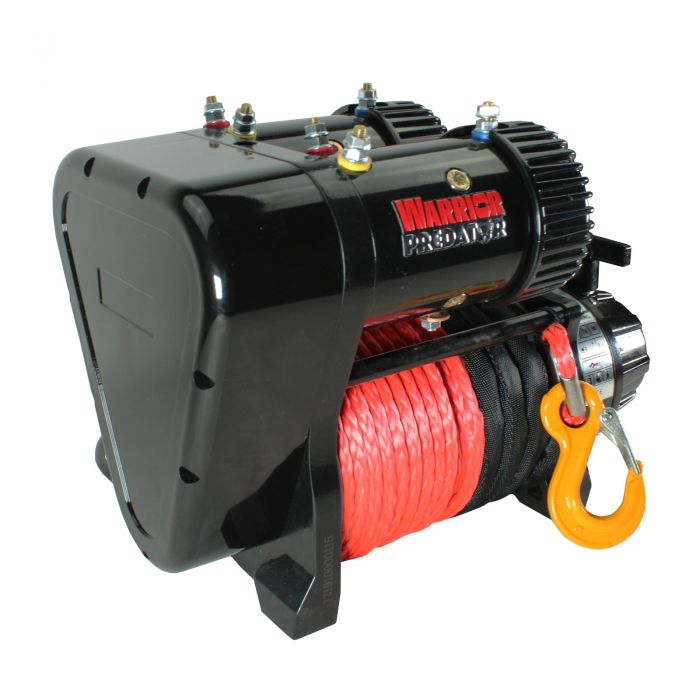

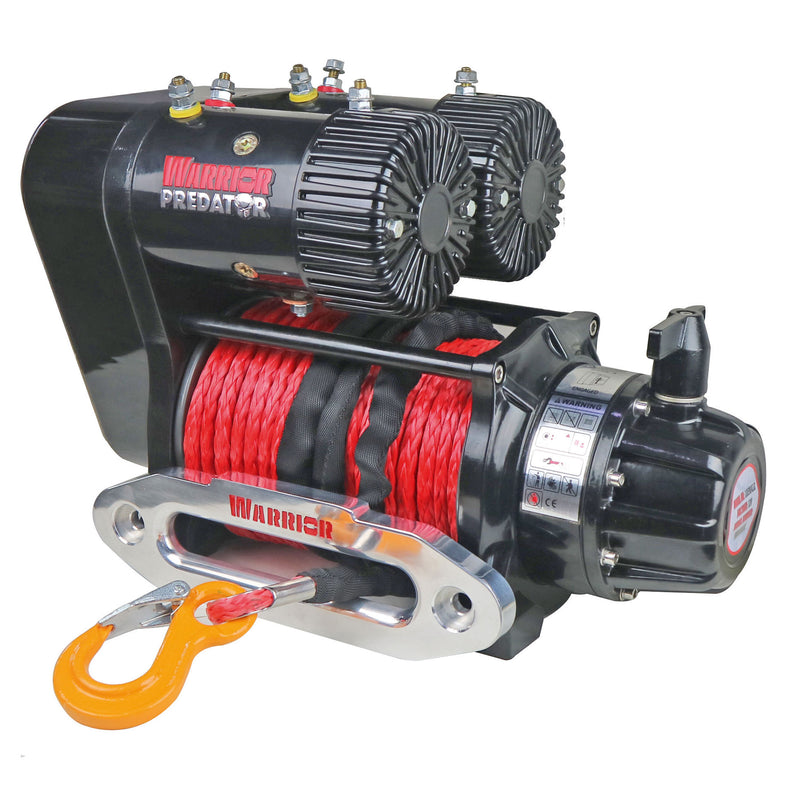

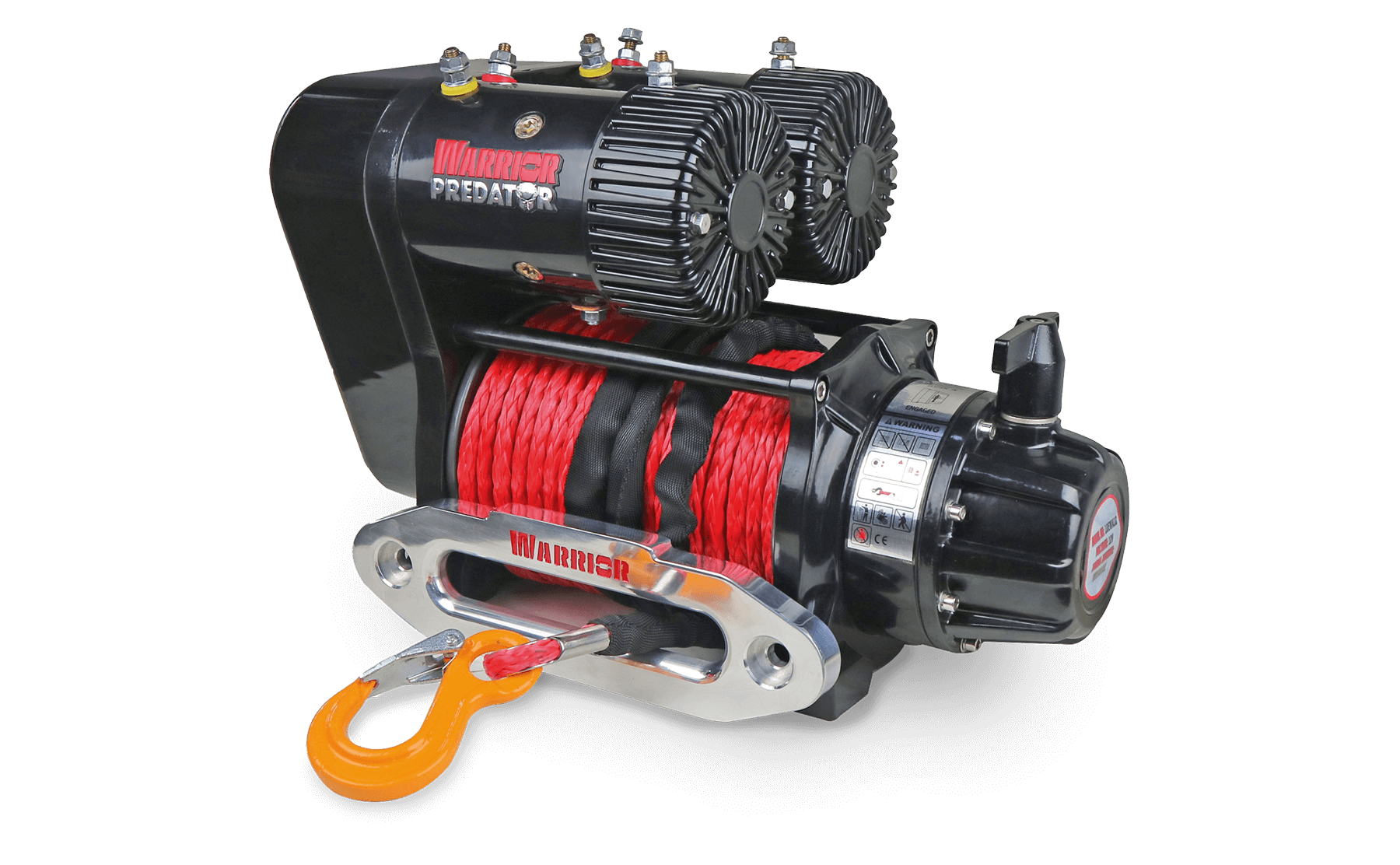

Warrior Predator 12v Twin Motor Winch with Synthetic Rope


Giving you power like nothing else, the Predator 10,000LB Dual Motor Electric Winch is designed for hard-core competition. Powered by not one, but two 7.2HP sealed motors, the twin motors provide out of this world power unlike any other winch on the market.

Paired with a 108:1 ratio 3 stage planetary gearbox, this winch can handle even the most extreme off-road punishment – allowing you to get the job done in even the harshest conditions.

With an impressively low draw of only 140 amps at no load, the Predator also contains an innovative “multi stop” 10% ratchet brake design, which provides zero drag when returning the cable in. Situated away from the drum to prevent any heat transferring, it’s totally safe for use with synthetic rope. Also featuring alloy carbon gears, they’re heat treated and tempered to a 62HRc rating for extra strength and safety.

There’s a reason for its name. The Predator offers power unlike anything else, hunting down the opposition and dominating the market. 10kg lighter than it’s nearest competitions and with off-road line speeds from 20m per minute – it’s at the top it’s food chain. A truly unbeatable offering.

Standard Features:

♦ Line Capacity: 10,000lb (4,536kg)
♦ Motor: Twin 7.2hp 12v Series Wound Motors - Powers In and Out
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 12 Months Return to Base Cover

Accessories:

♦ Wired Hand Control: 3m Wired Handset
♦ Wireless Control: Included
♦ Mounting Plate: Not Included
♦ Fairlead: One Peice Aluminium Hawse Fairlead Included
♦ Mounting Bolts: Included for standard installations
♦ Heavy Duty Battery Cables (May need extending dependant on application)
♦ Instruction Manual

Other Information:

♦ Dimensions: 479mm L x 262mm D x 355mm H
♦ Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
♦ Line Pull - No Load: 20 m/min (140 Amps)
♦ Line Pull - Full Load:  3.2 m/min ( 790 Amps)

Note: The synthetic rope supplied with this winch (if chosen) will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 10000 lbs (4536kg)
Motor 12v : 7.2hp / 5.4kw
Gearing 108:1
Braking Action Auto in the drum
Drum Size - Dia x L 72 x 214mm
(2.83 x 8.43 in)
Cable - Dia x L (If chosen) 9mm x 38m
(0.35 in x 125 ft)
Dimensions 479 x 262 x 355mm
(18.86 x 10.3 x 14 in)
Mounting Pattern 254 x 114.3 mm
(10 x 4.5 in)
Weight kg 45 kg (99 lbs)
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 18.4 (5.6)
2 8153 (3698) 41.0 (12.5)
3 6881 (3131) 68.9 (21)
4 5953 (2700) 101 (30.8)
5 5245 (2379) 131.2 (40)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 66 (20) 140
4000 (1816) 19.7 (6.0) 400
6000 (2722) 16.7 (5.1) 560
8000 (3629) 13.1 (4.0) 690
10000 (4536) 10.5 (3.2) 790

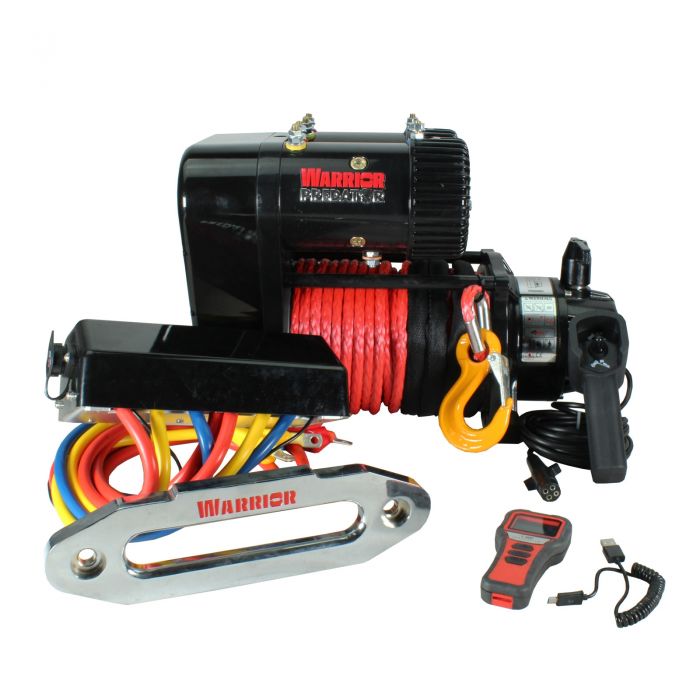

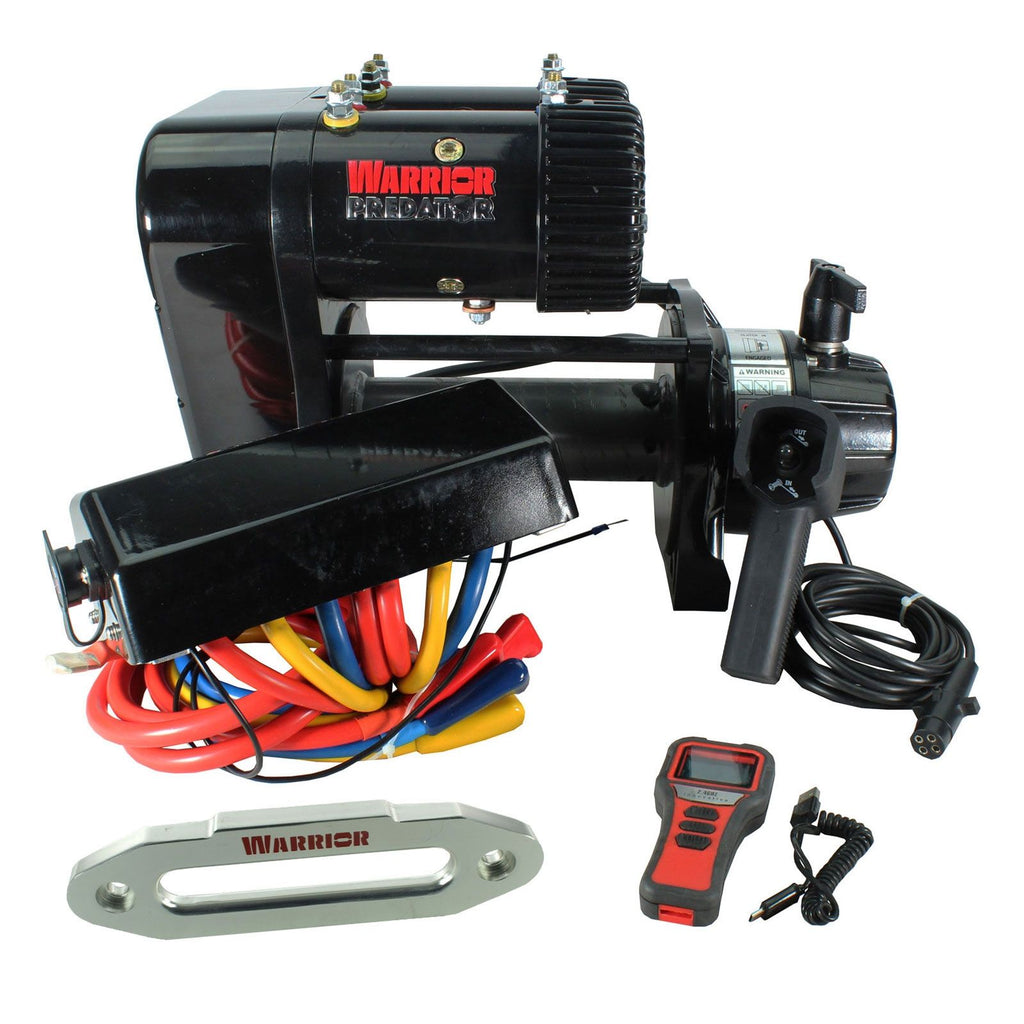

What's in the box:

  • 12 ton Competition Hook
  • Aluminium Fairlead
  • Supplied with or without Synthetic Rope

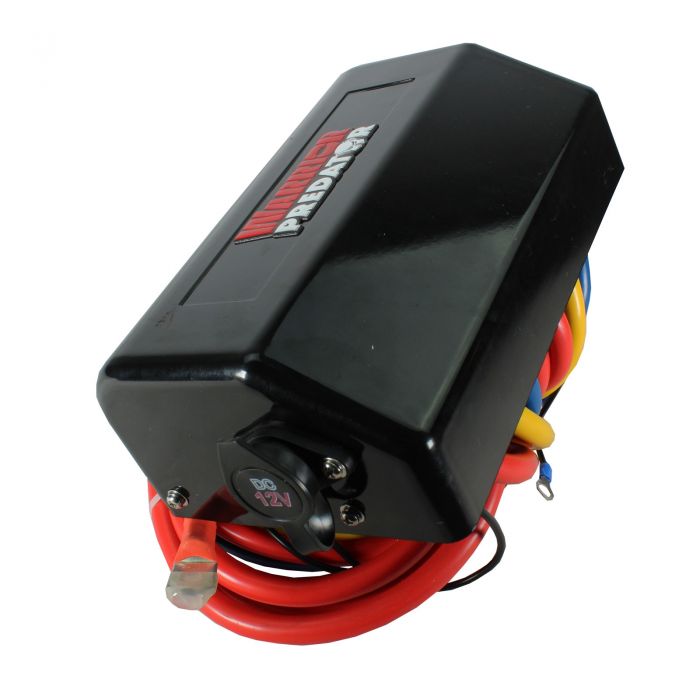

  • Predator Contactor Pack

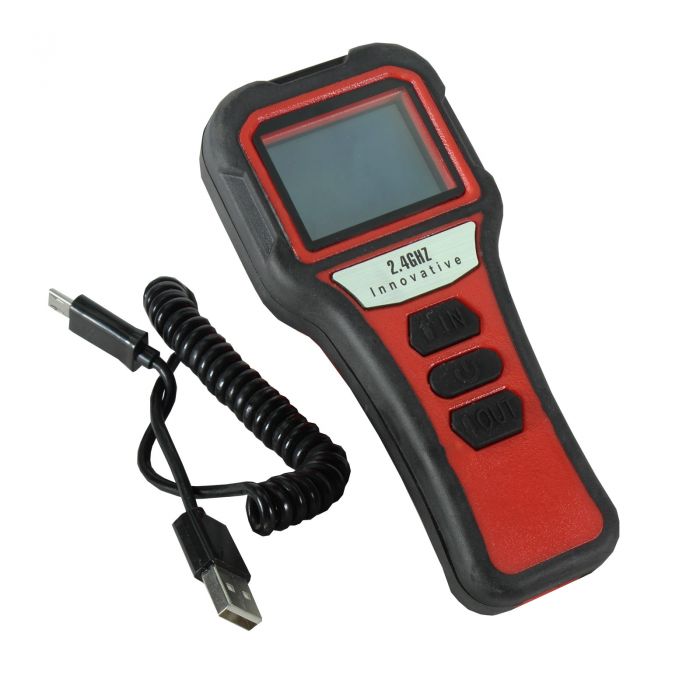

  • Wireless Remote with LCD Display

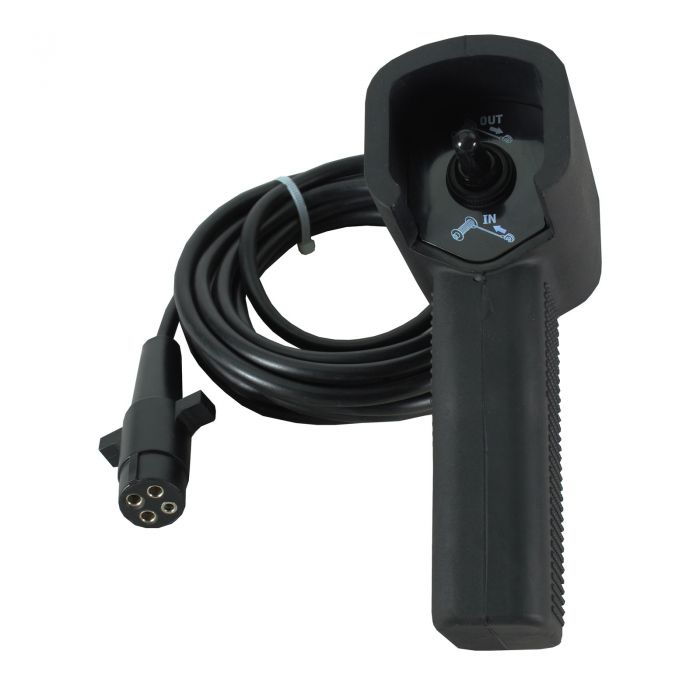

  • Heavy Duty Wired Remote

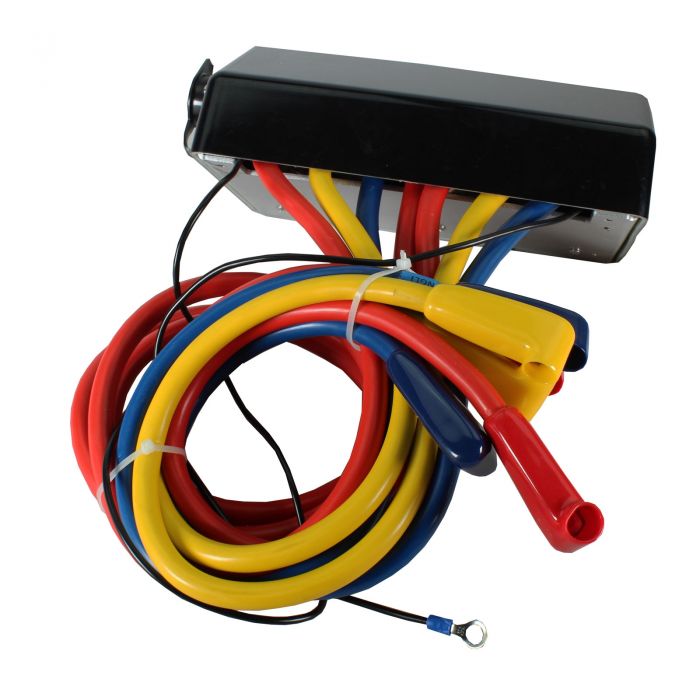

  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
