Warrior Samurai 17500lb Winch - 12v Synthetic Rope

£1,155.99
Delivery in 1-2 working days

Features

  • CORROSION FREE – All brass series wound motor is protected against corrosion.
  • DOUBLE SEALED – Features a double sealed motor, sealed waterproof contactor and double sealed drum for extra protection.
  • LINE CAPACITY – 17,500LB (7938KG)

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

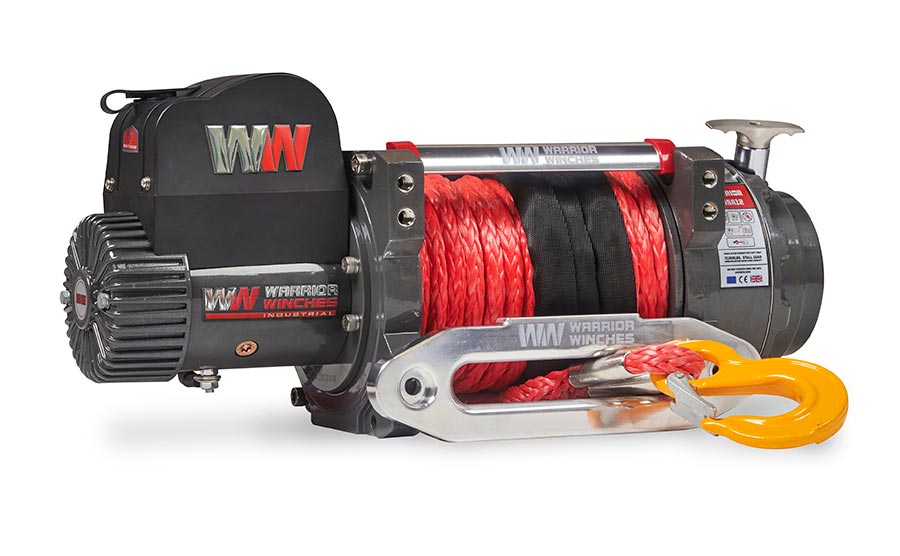

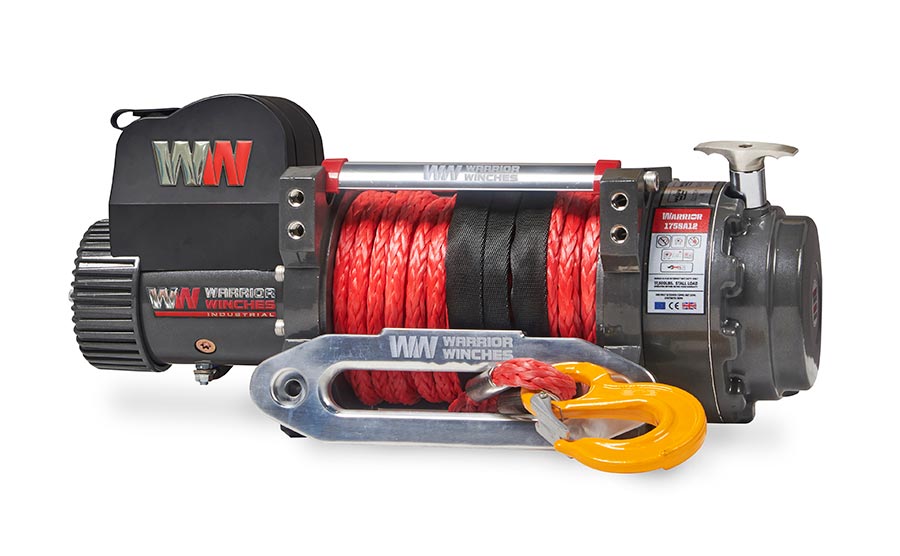

Warrior Samurai 17500 Winch - 12v Synthetic Rope

If you’re looking for high power at low price, the Samurai S175000 offers the best £ for lb value on the market.

With a huge 17,500lb line capacity, this super-strong winch will get any job done with ease thanks to the line pull of 1.2m per minute at full load.

Protected against corrosion, the all-brass series wound motor is designed for long-life. Also including a double sealed motor and drum, as well as a sealed waterproof contactor, the Samurai 175000 winch is protected and prepared for all weathers.

Heavy-duty, super-strong and long lasting, the efficient full steel planetary gearing is the cherry on top of a high quality winch that won’t break the bank.


Standard Features:

  • Line Capacity: 17500lb (7938kg)
  • Motor: Series wound motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover

Accessories:

  • Wired Hand Control: 3m Wired Hand Control
  • Mounting Plate: Available as an optional extra
  • Mounting Bolts: Included for Standard installations
  • 1.5m Heavy Duty Battery Cables (May need extending depending on application)
  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual

No wireless control is supplied with this winch.

Other Information:

  • Dimensions: 610mm L x 216mm D x 254mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Line Pull - No Load: 6.8 m/min (100 Amps)
  • Line Pull - Full Load: 1.2 m/min (450 Amps)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

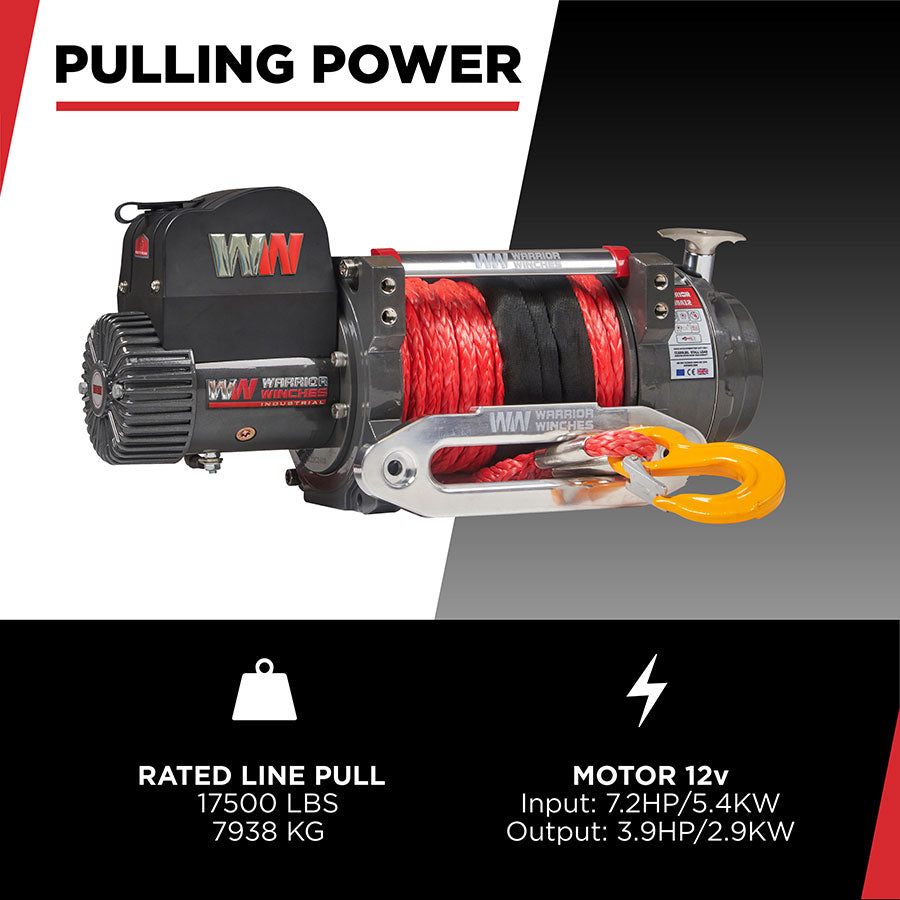

Rated Line Pull17500 lbs
Motor Type12V: Input: 7.2hp / 5.4 kW; Output: 3.9hp / 2.9 kW
Gearing430:1
ClutchManual
Braking ActionAuto in the drum
Drum Size (Dia x L)89 x 217 mm
Cable MaterialSynthetic
Cable – Dia x LSynth: 12mm x 25m
Mounting Pattern254 x 114.3 mm;254 x 165.1 mm mm
Dimensions620 x 214 x 282 mm
Weight56kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 17500 (7938)
2 14000 (6364)
3 12500 (5682
4 10000 (4545)
5 6000 (2728)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 22.3 (6.8) 100 60
6000 (2728) 9.84 (3.0) 220 130
10000 (4545) 9.8 (2.0) 320 170
12500 (5682) 5.8 (1.7) 350 220
17500 (7938) 3.9 (1.2) 450 290

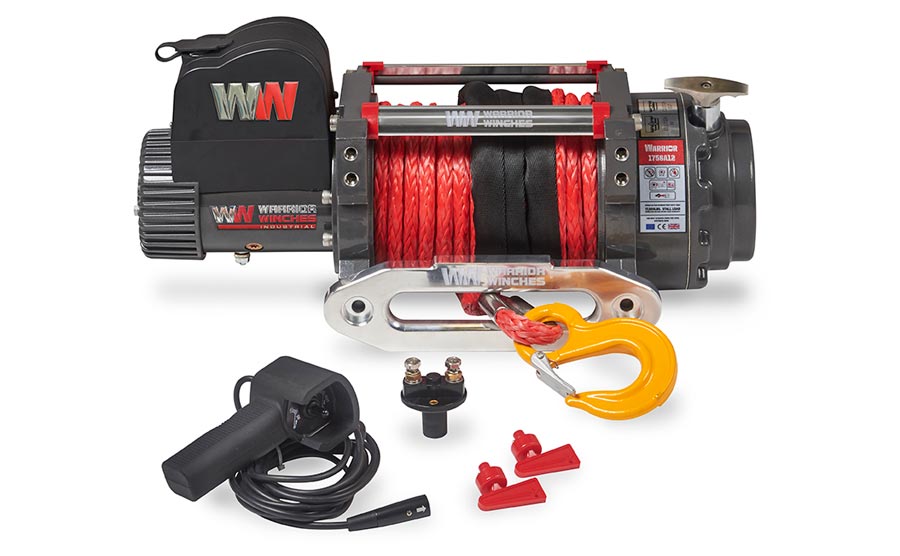

What's in the box:

  • 3.8m Remote Handset
  • 3/8 Hook
  • Aluminium Fairlead
  • Synthetic Rope
  • Isolation Switch
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware

Downloads:

User Manual Download
Brochure Download

Videos:

Load Test


Brake Test


How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 5 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
  • Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

 To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • Hi I need to pull a 1.5 ton scissor lift onto my IFOR WILLIAMS lt166. Considering it has to be pulled up the ramps, could you please give me some guidance on what winch this needs. Also how to power winch. I have a Ford ranger 3.2. Your help would be very much appreciated Thanks

    A warrior samurai 9500 synthetic rope would be more than up to the job, it would also suit the vehicle and be useful on a recovery front if ever needed too! there are plenty of mounts availble to suit the ranger that would hold this winch.

    Winch is powered by the battery.

  • hello, I’m looking to purchase Samurai 17500 lbs 12V (synthetic rope ) winch for Navara NP300. Mange to buy mounting plate design for my truck (fits behind standard bumper) was wandering if winch above requires specific mounting plate ? Thanks Maciej

    Hello,

    Yes this will need a specific mounting bracket to be fabrictaed to suit the vehicle and the winch.

  • I have a Warrior Samurai 17500lb Winch with a steel rope, can I replace the steel rope with a synthetic rope?

    Yes, the drums are the same, you would also need to replace the roller fairlead with a hawse fairlead at the same time
