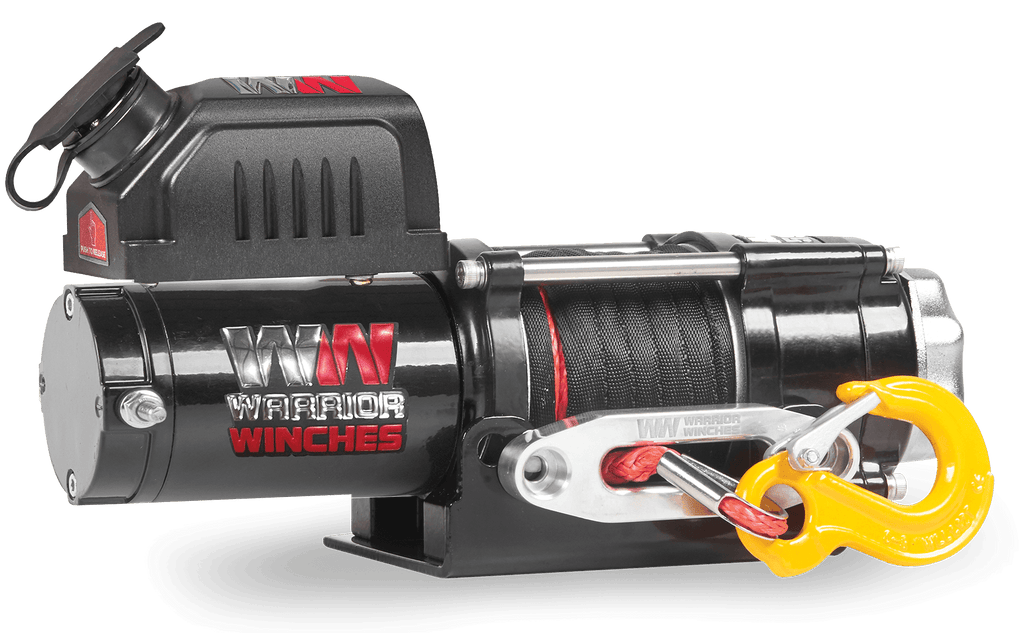

Warrior Ninja 3500lb Winch - 24v Synthetic Rope

£173.99
Sold out

Features

  • HIGH POWER – Ideal for large ATVs and small trailers.
  • POWERFUL + PROTECTED – High-powered motor sealed for protection.
  • HEAVY DUTY – Features full steel planetary gearing and a strengthened steel drum.
  • ALL WEATHER – With watertight contactors and controller socket.
  • LINE CAPACITY – 3500LB OR 1588KG capacity.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

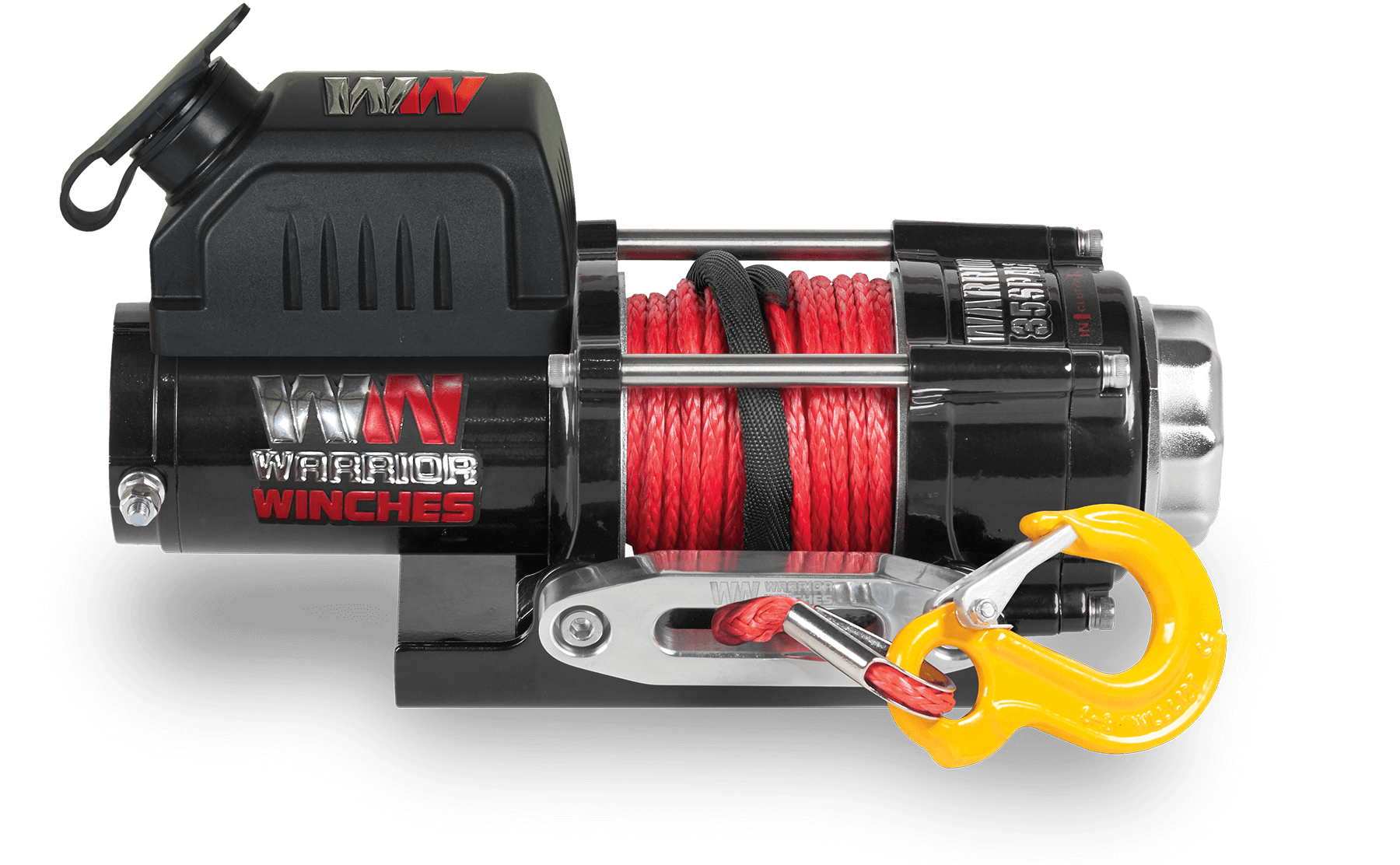

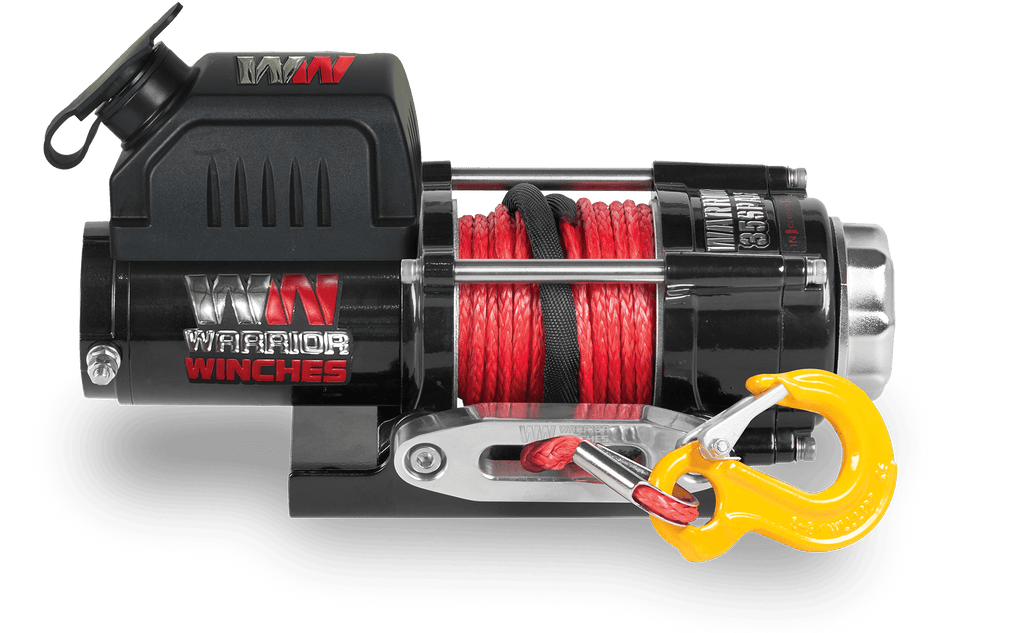

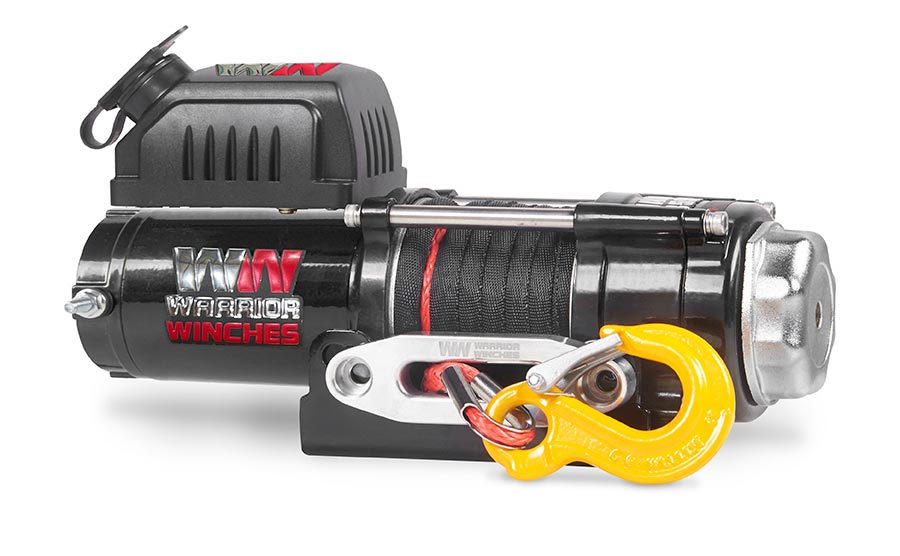

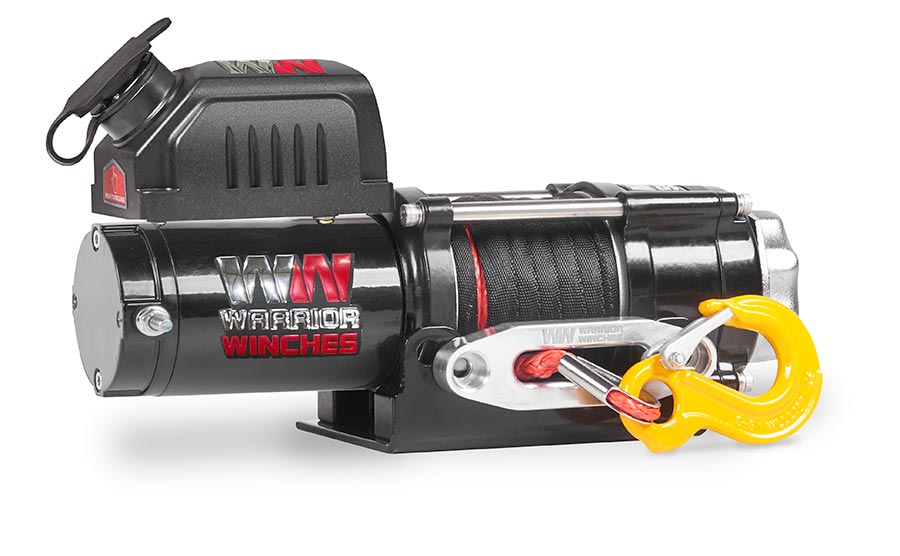

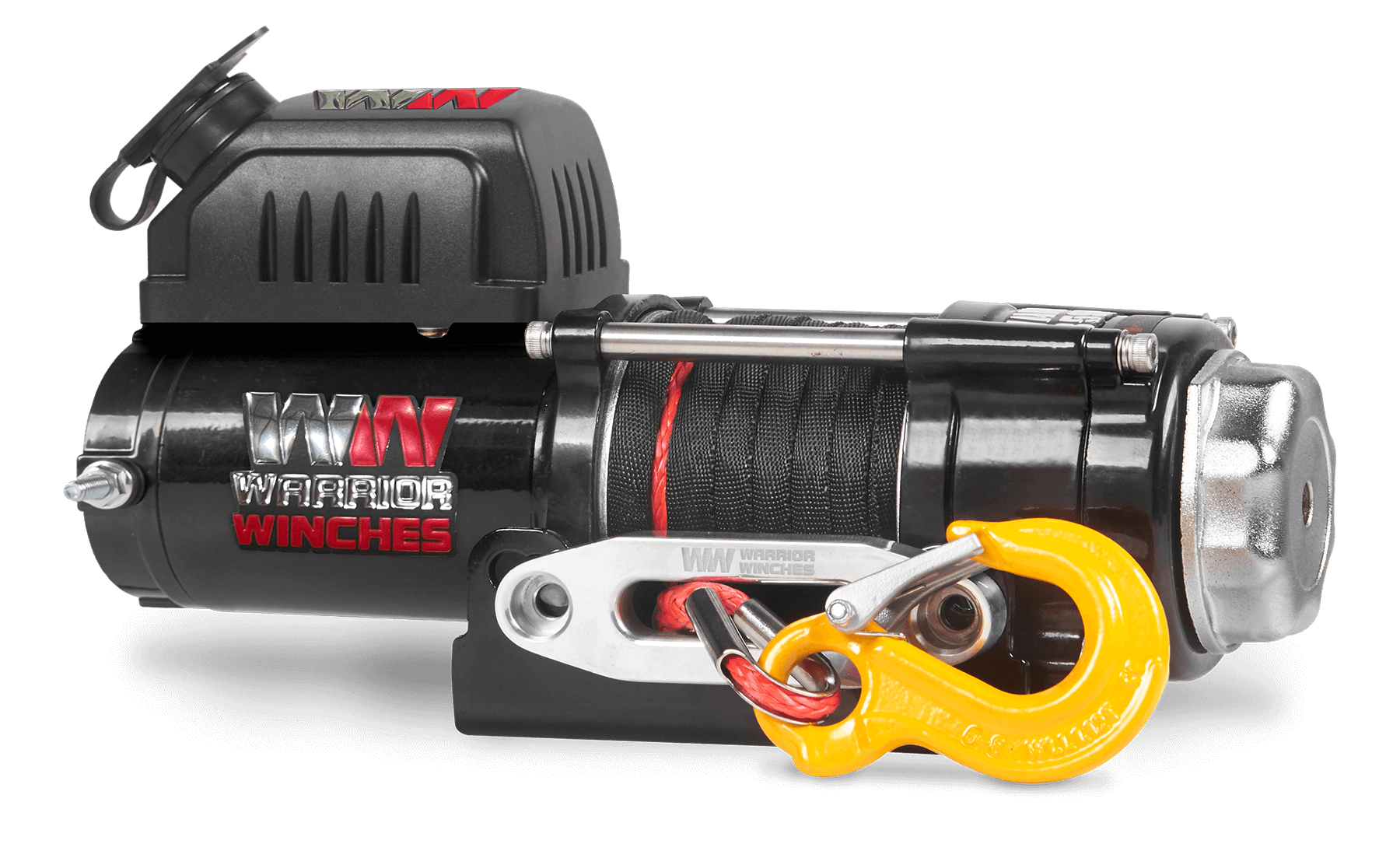

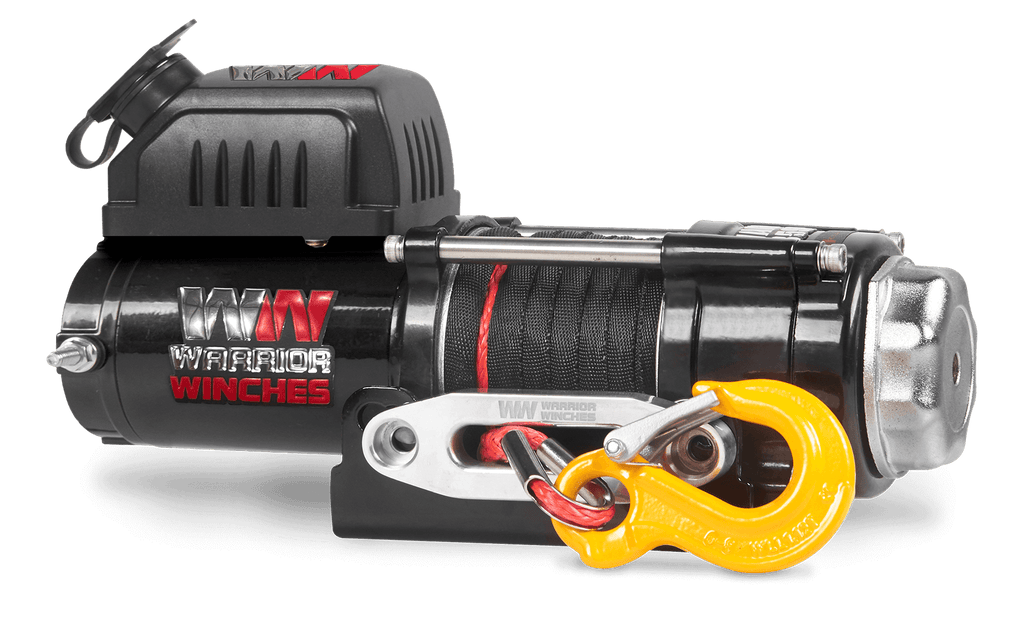

Warrior Ninja 3500lb Winch - 24v with Synthetic Rope

With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its heavy-duty clutch and huge 1.95hp motor. Ideal for large ATVs and small trailers, it’s unbeatable in strength.

Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor and allowing you the choice of steel or synthetic rope without any compromise on strength, you can rely on this heavy-duty winch.

Complete with a mount plate for flat bed mounting, the Ninja can also be fitted to a portable tow ball attachment for ease and versatility.

With a line capacity of 3500lb or 1588kg, and a pull of 1.4m per minute at full load – you can get the job done with ease.


Standard Features:

  • Line Capacity: 3,500lb (1588kg)
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12-month return to base warranty

 Accessories:

  • Wired Hand Control: 3m Wired Hand Control
  • Wireless Control: Available as an optional extra
  • Mounting Plate: Included for standard installations
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending depending on application)
  • 2t Hook Type Pulley Block
  • Instruction Manual

Other Information:

  • Dimensions: 340mm L x 116mm D x 165mm H
  • Mounting Bolt Pattern: 124 x 76mm
  • Line Pull- No Load: 3.2 m/min (45 Amps)
  • Line Pull - Full Load:  1.4 m/min (200 Amps)

Note: For the majority of applications the synthetic rope  supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Rated Line Pull3500 lbs
Motor Type 24V: Input: 3.9hp / 2.9 kW; Output: 1.6hp / 1.2 kW
Gearing170:1
ClutchManual
Braking ActionDynamic
Drum Size (Dia x L)37 x 80 mm
Cable MaterialSynthetic
Cable – Dia x LSynth: 5mm x 14m
Mounting Pattern124 x 76 mm 2-M8 mm
Dimensions346 x 116 x 188 mm
Weight8.2kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 3500 (1588)
2 2789 (1265)
3 2319 (1052)
4 1984 (900)
5 1733 (786)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 10.5 (3.2) 45 25
1000 (454) 8.9 (2.7) 75 40
2000 (907) 7.5 (2.3) 130 75
3500 (1588) 4.6 (1.4) 200 120

What's in the box:

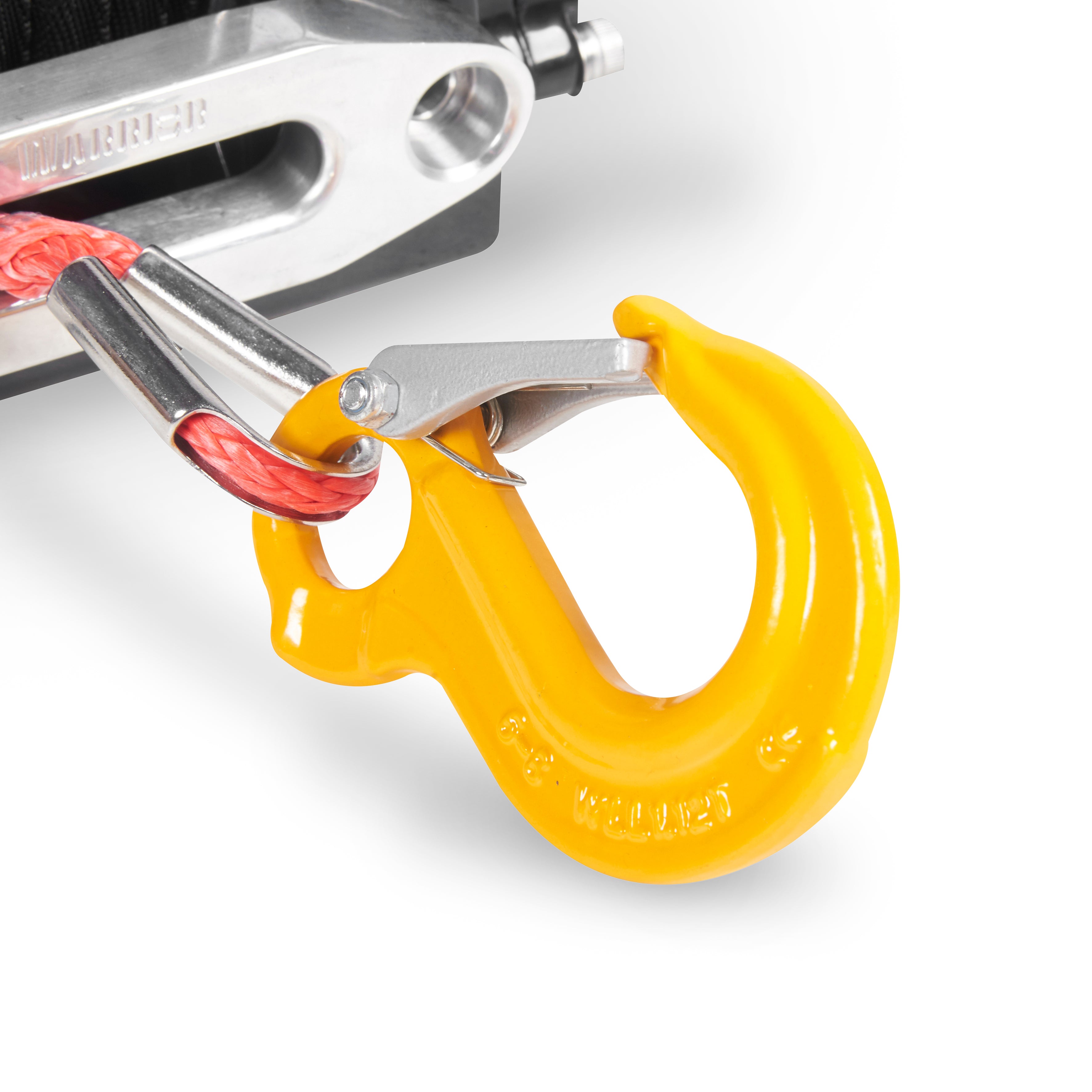

  • 1/4 Hook
  • 2 Tonne Pulley Block
  • 3.8m Ninja Wired Remote Handset
  • Aluminium Fairlead (Synthetic)

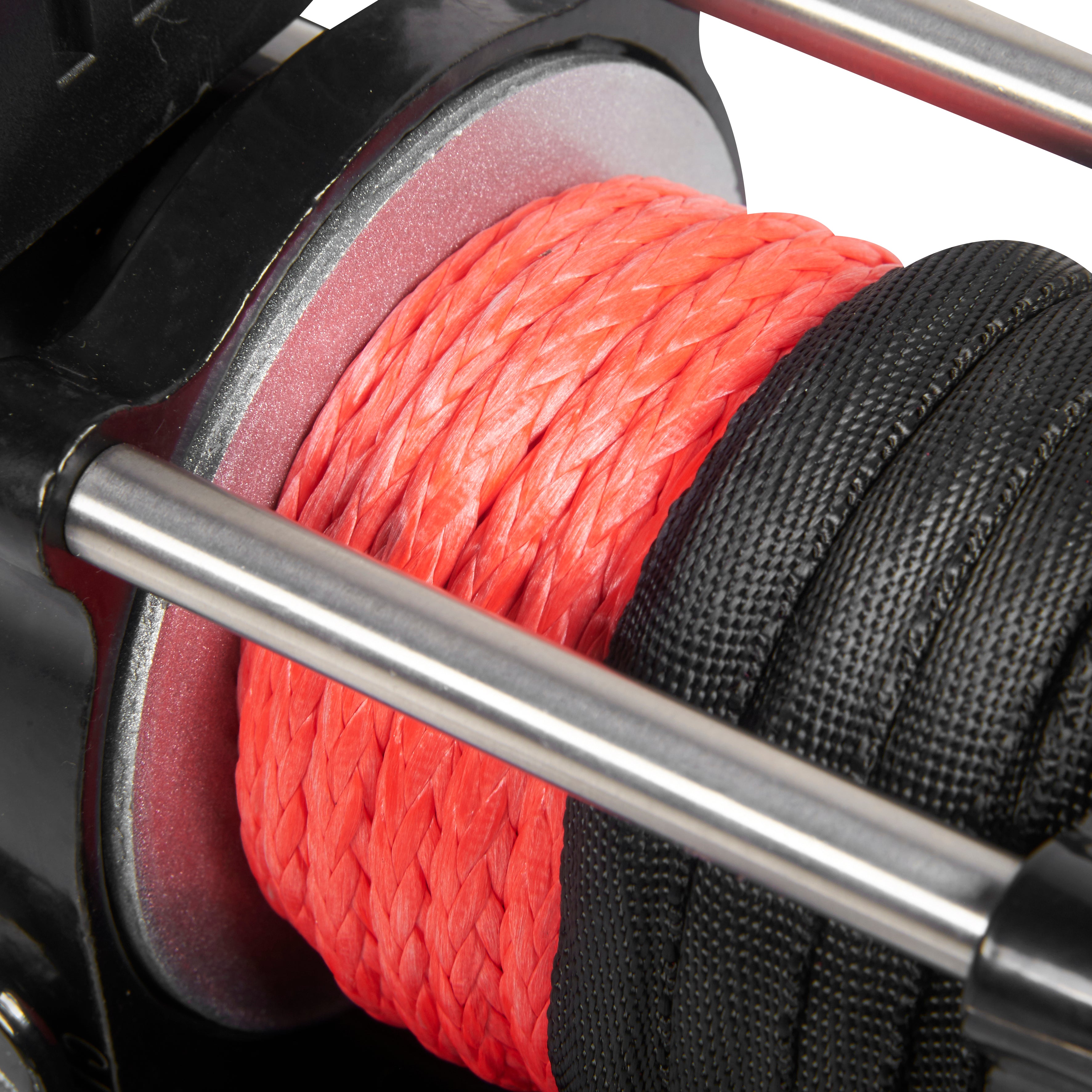

  • Synthetic Rope
  • Mounting Tray
  • Mounting Hardware
  • Heavy Duty Battery Leads

Downloads:

User Manual Download
Brochure Download

Videos:


How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 3 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.- Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the
  • Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • please you confirm the length of synthetic rope on the 35spa12

    Rope: 14m x 5mm Synthetic Rope with Hook and Handsaver Strap

  • Does this winch power both in and out?

    Hello,

    Thanks for the question!

    The winch does power both in and out.

    Thanks

    James.
