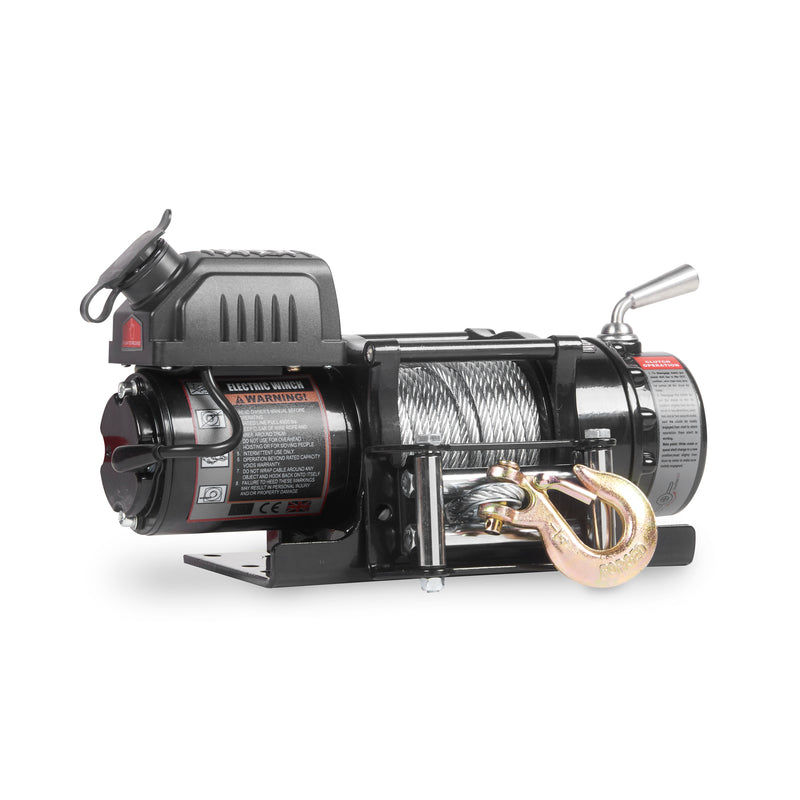

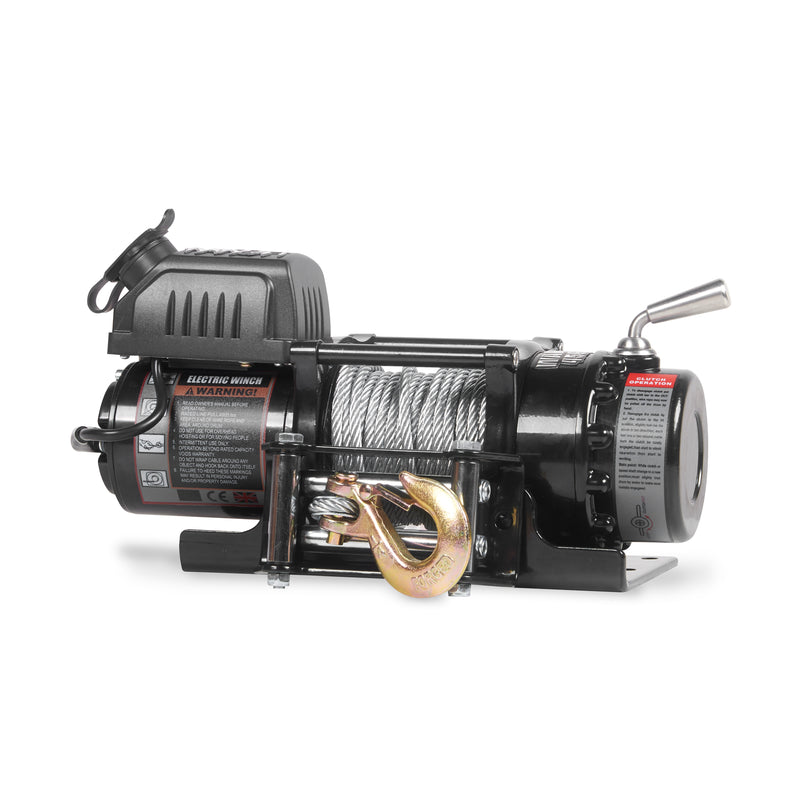

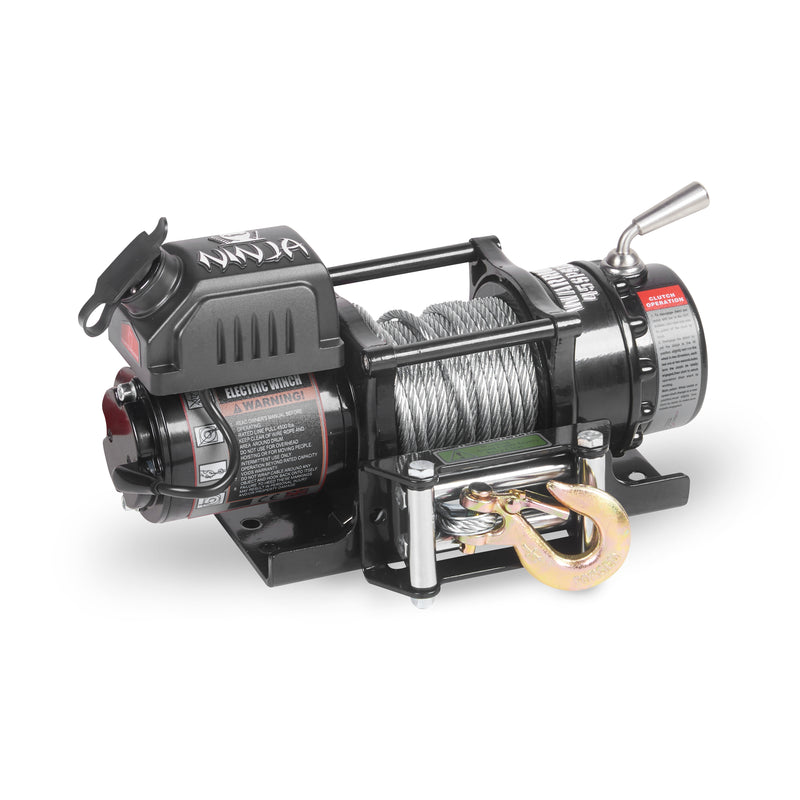

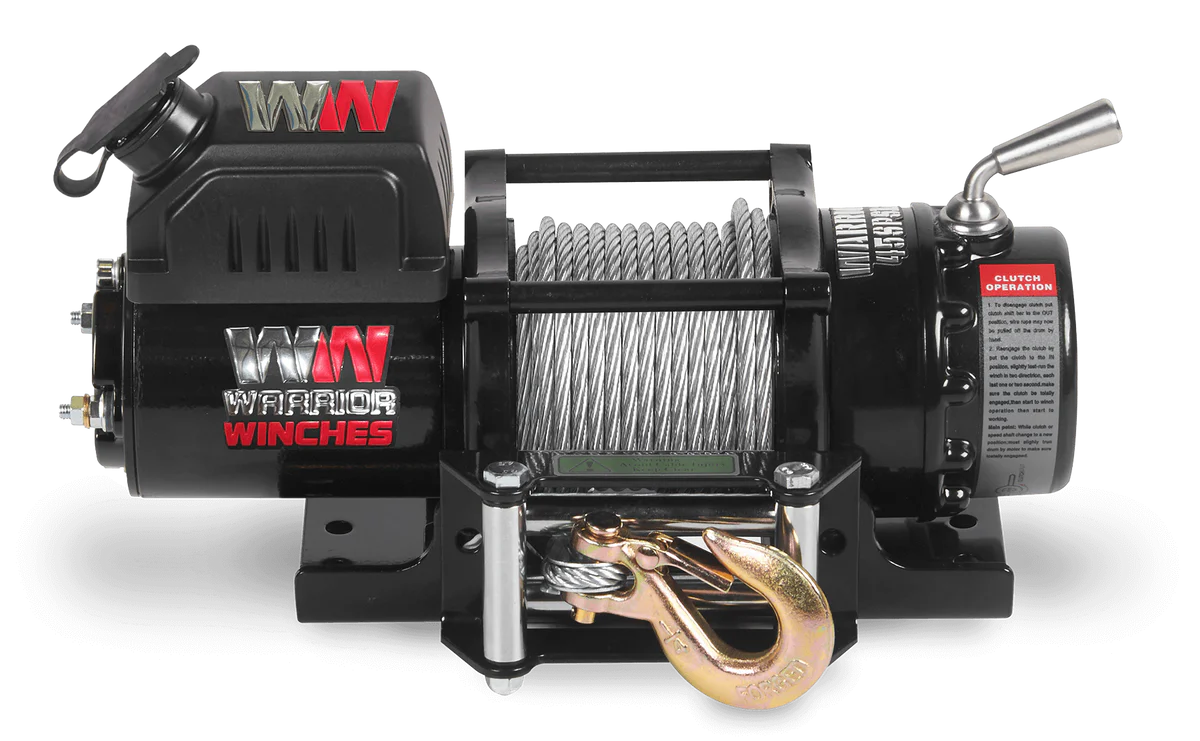

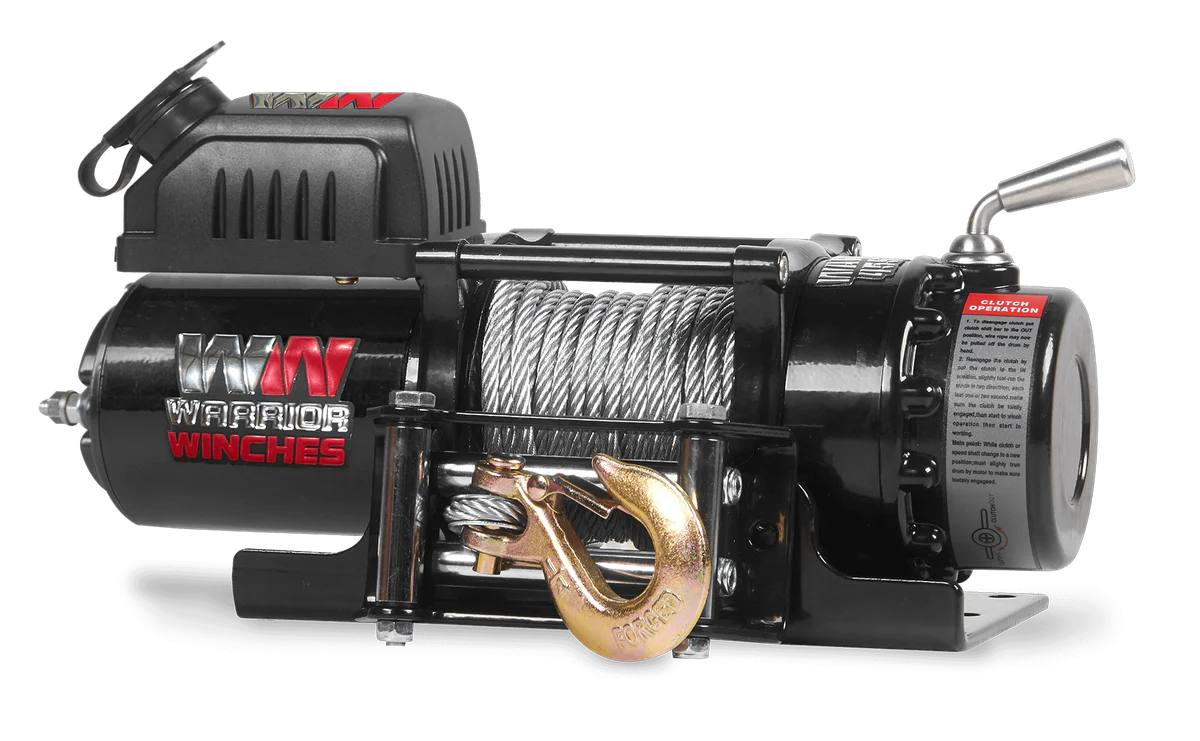

Warrior Ninja 4500lb Winch

1 Questions Answered
SKU: 45SPS12

12v Steel Rope
Voltage: 12v
Rope: Steel Rope
Sale price£224.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • NEWLY UPGRADED – The popular Warrior C4500 EWX has been upgraded.
  • POWERFUL + PROTECTED – High-powered motor sealed for protection.
  • HEAVY DUTY – Features full steel planetary gearing and a strengthened steel drum.

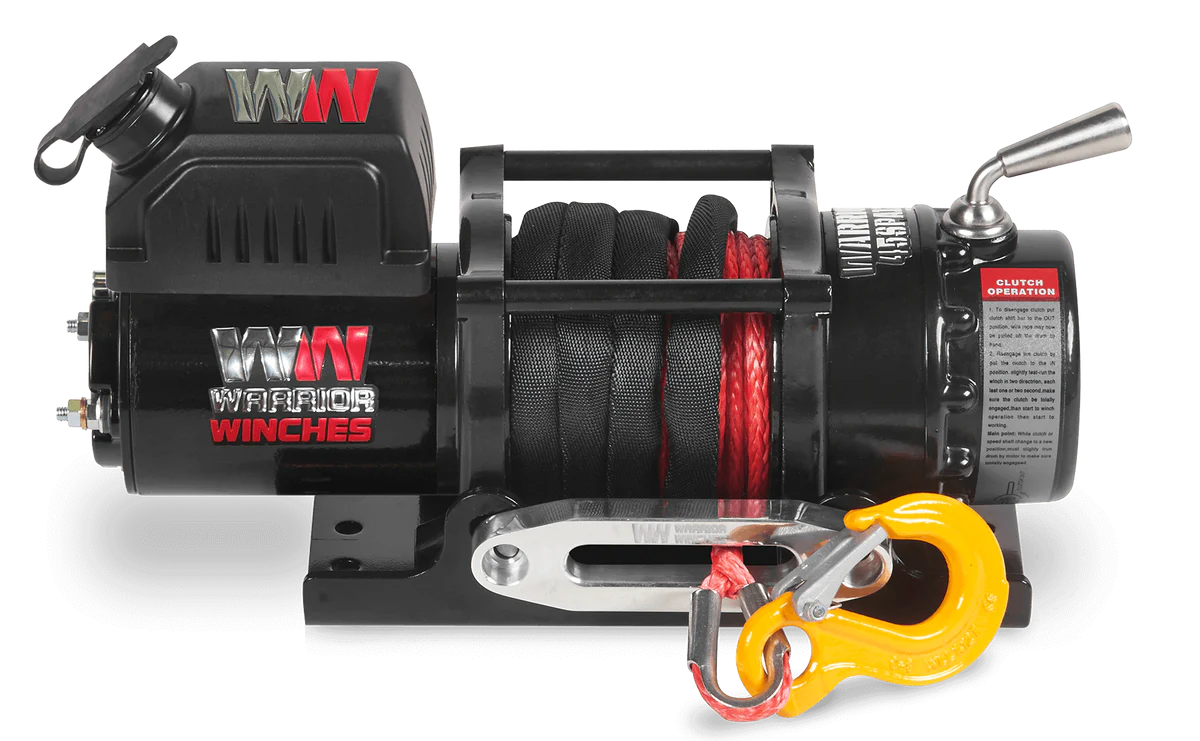

  • ROPE CHOICE – Available with steel or synthetic rope.
  • ALL WEATHER – With watertight contactors and controller socket.
  • LINE CAPACITY – 4500LB OR 2041KG capacity.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

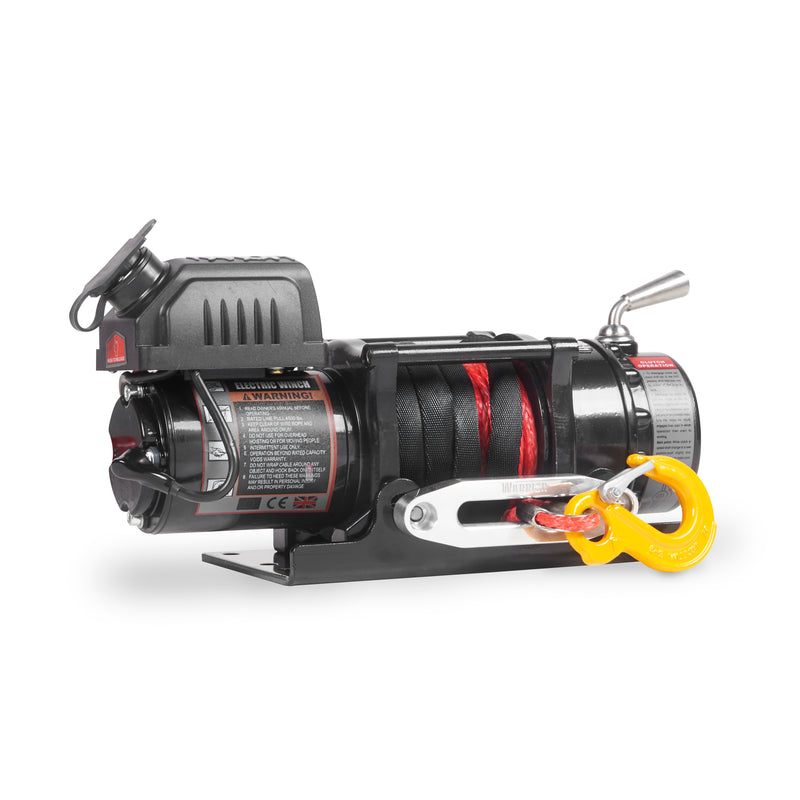

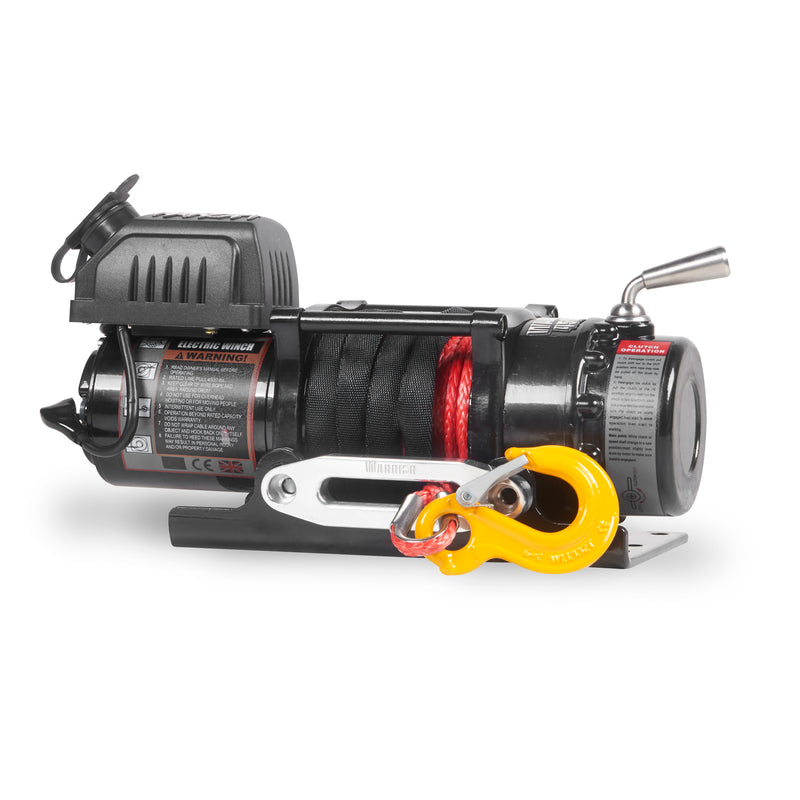

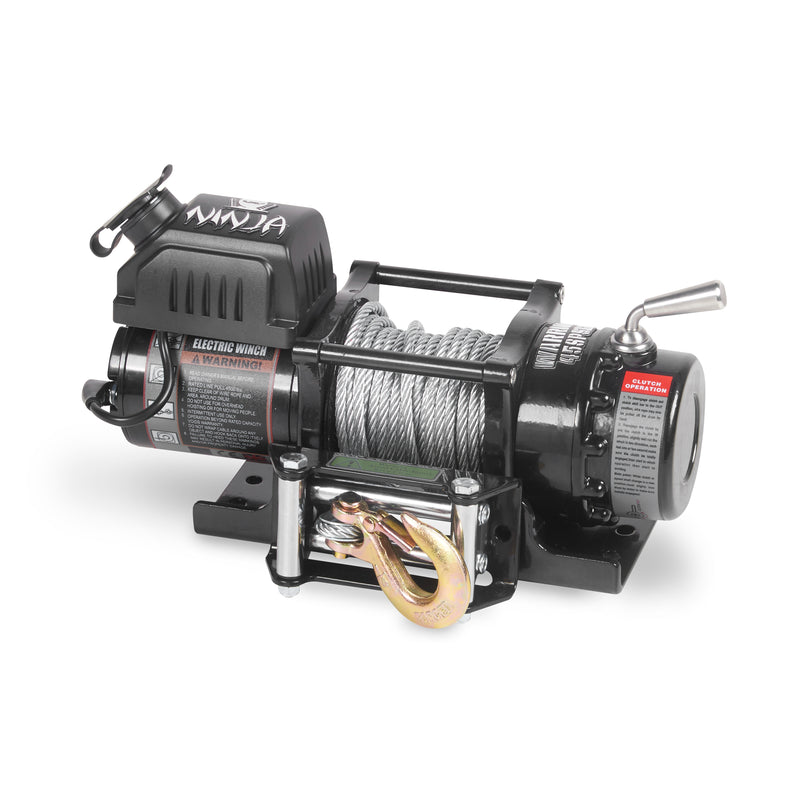

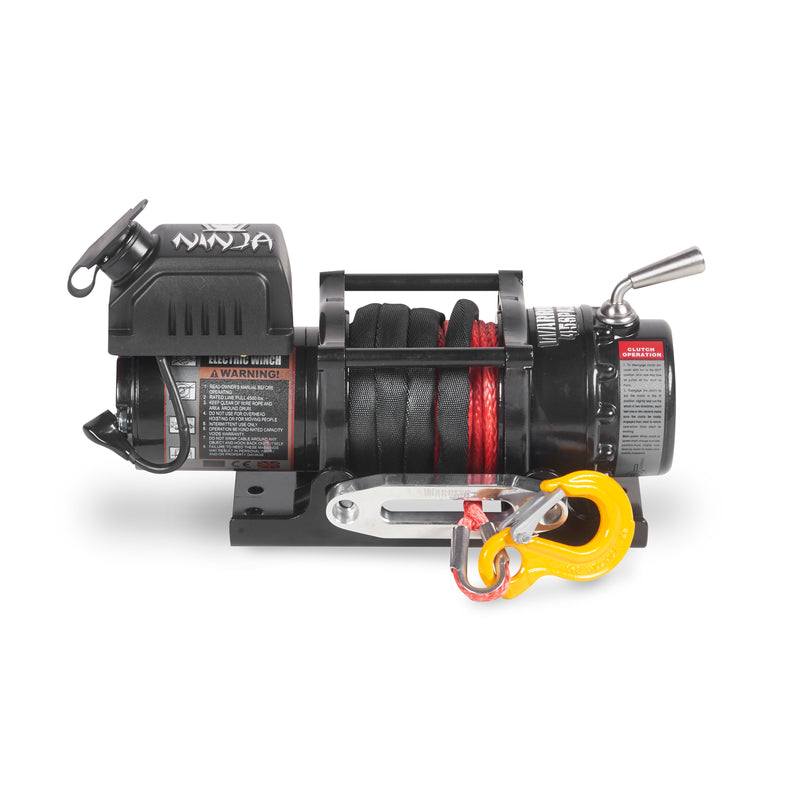

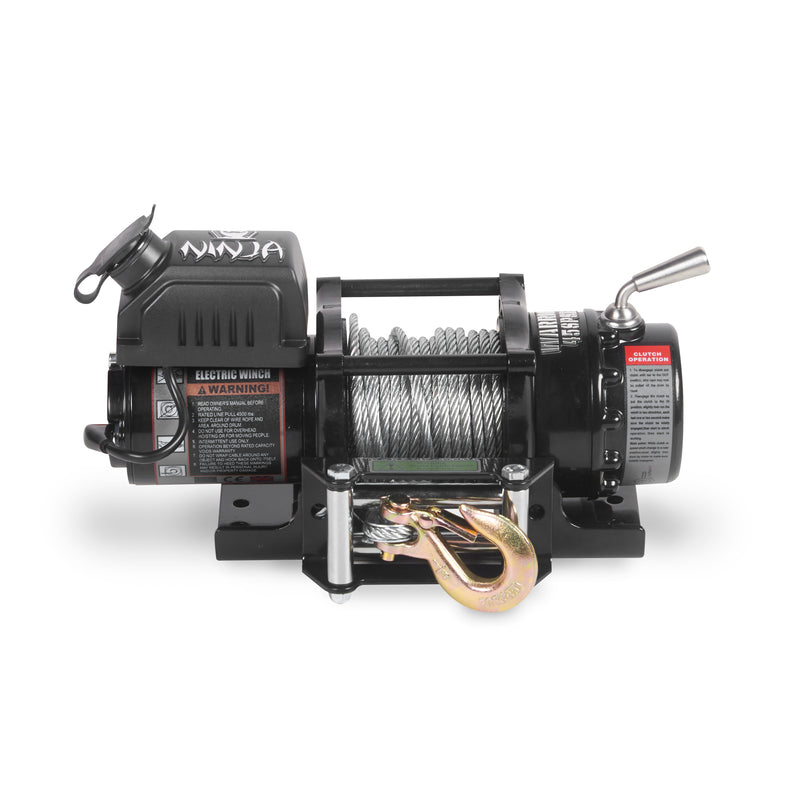

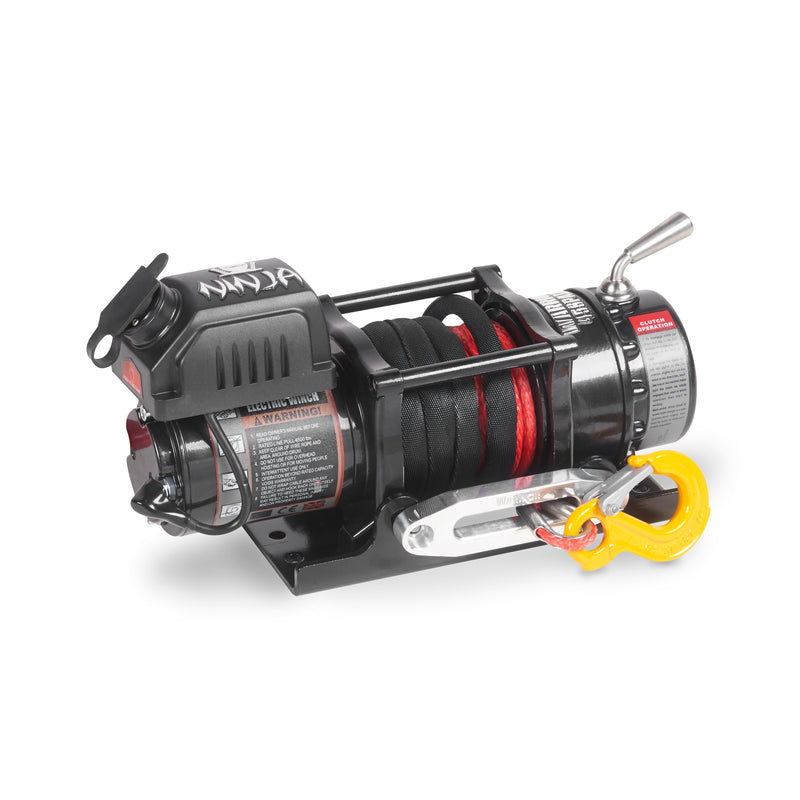

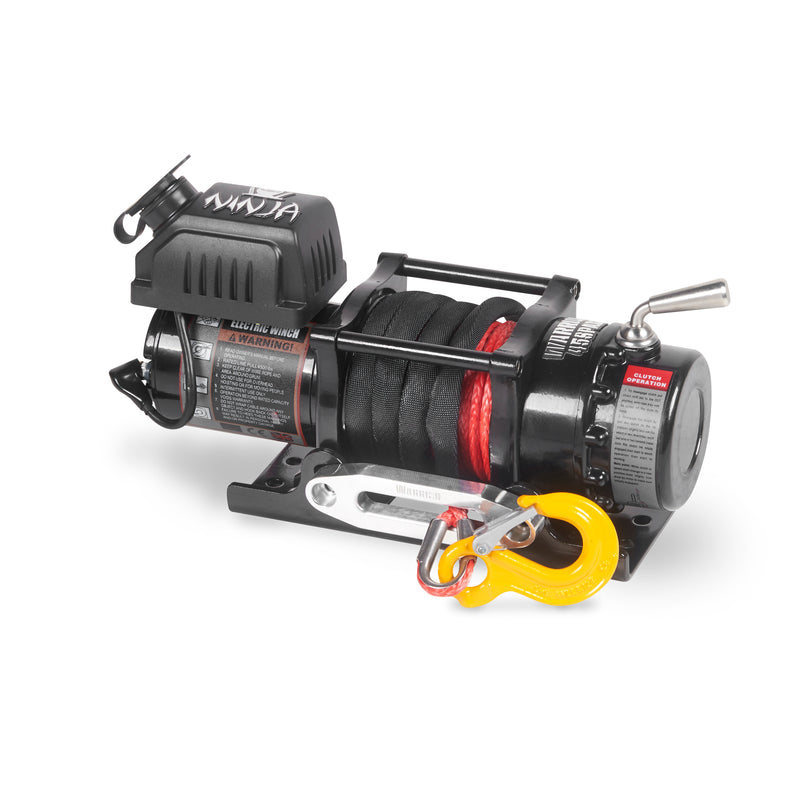

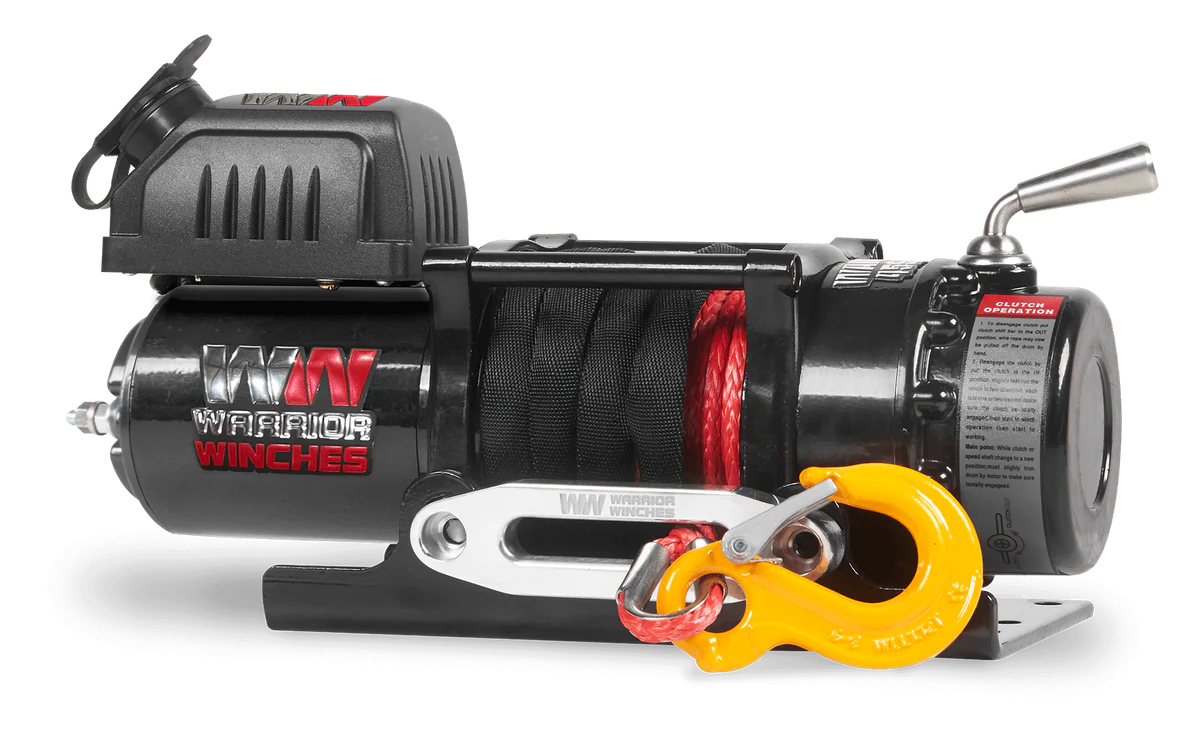

Warrior Ninja 4500lb Winch

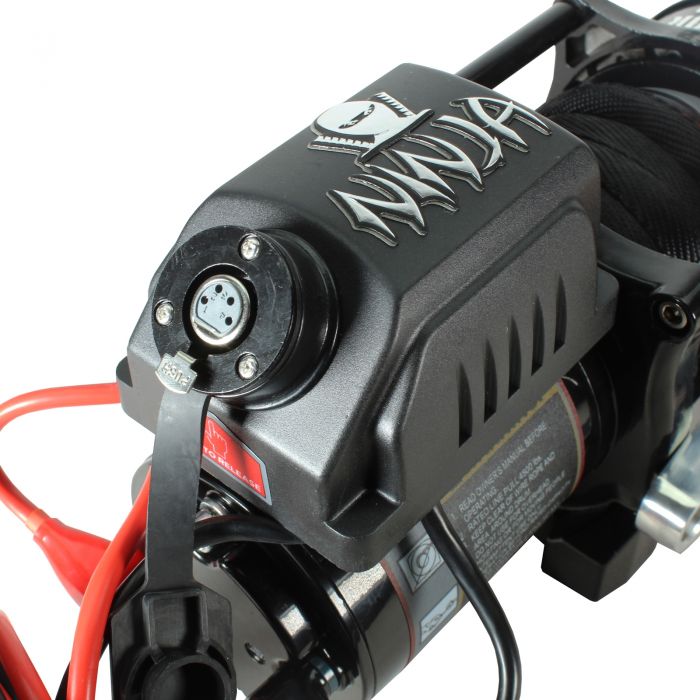

Newly upgraded to be even better, the popular C4500 EWX has been relaunched as the Warrior Ninja 4500. Still with the same high-quality features, the new Ninja is even better. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its heavy-duty clutch and recently added 4 pin Air Socket and redesigned solenoid control pack.

Built to last, the Ninja is packed with life-lengthening, strengthening features such as chip-resistant paint, strengthened steel drum and full steel three-stage planetary gearing which makes this one of the smoothest and quietest winches on the market.

Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor and allowing you the choice of steel or synthetic rope without any compromise on strength, you can rely on this heavy-duty winch.

With a huge line capacity of 4500lb or 2014kg, and a pull of 1.5m per minute at full load – you can get the job done with ease.


Standard Features:

  • Line Capacity: 4,500lb (2041kg)
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12-month return to base warranty



Accessories:

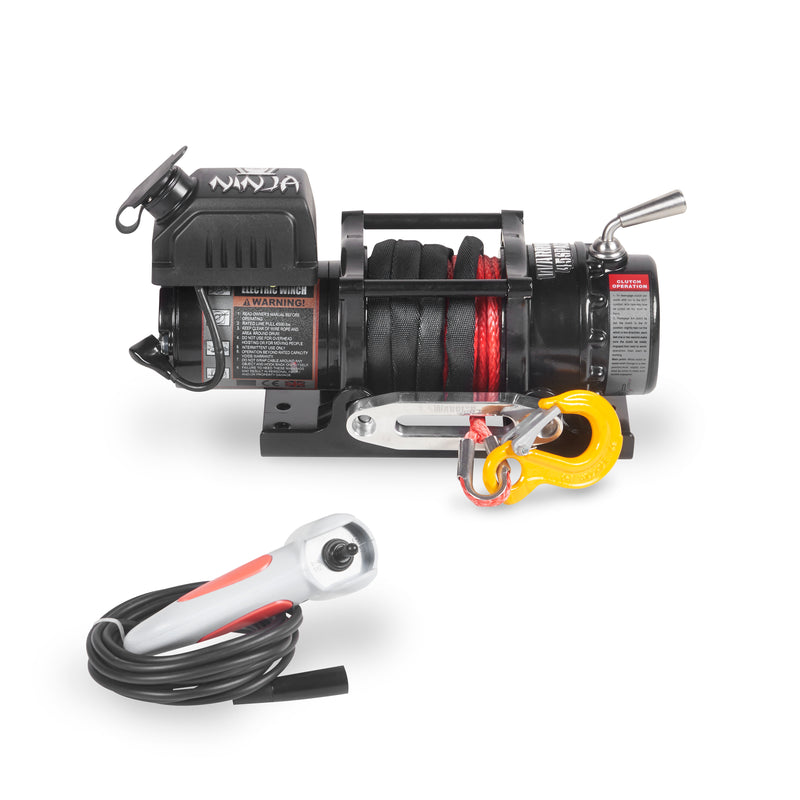

  • Wired Hand Control: 3m Wired Hand Control with air socket style plug
  • Wireless Control: Available as an optional extra
  • Mounting Plate: Included for standard installations
  • Mounting Bolts: Included for standard installations
  • Heavy Duty Battery Cables (May need extending depending on application)
  • Instruction Manual

Other Information:

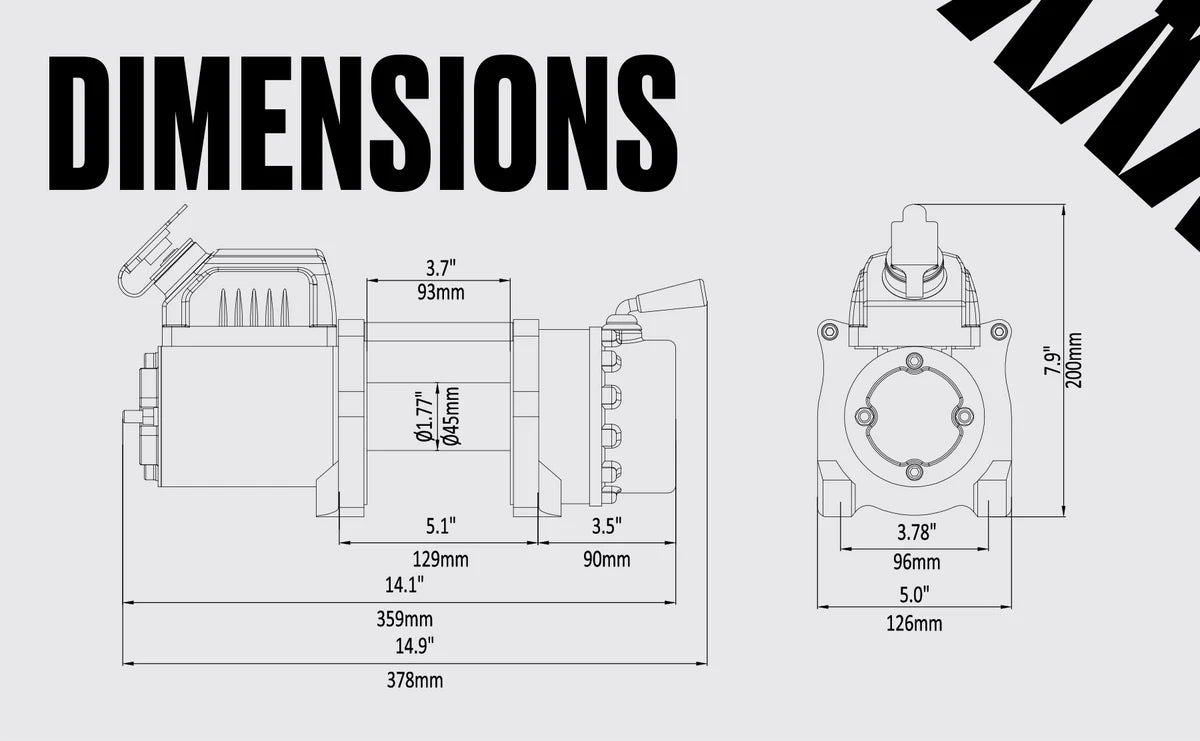

  • Dimensions: 360mm L x 126mm D x 165mm H
  • Mounting Bolt Pattern: 129 x 96mm
  • Line Pull- No Load: 3.6 m/min (20 Amps)
  • Line Pull - Full Load:  1.5 m/min (200 Amps)


Note: For the majority of applications the synthetic rope  supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 4500 lbs (2041 kg)
Motor 12v: 2.4kw/3.2hp 24v: 2.9kw/3.9hp
Gearing 172:1
Braking Action Auto in the drum
Drum Size - Dia x L 45 x 97mm (1.77 x 3.82 in)
Cable - Dia x L Steel: 6.4mm x 14.5m (0.25 in x 48 ft)
Synthetic: 6mm x 15m (0.24 in x 49 ft)
Dimensions 360 x 126 x 165mm(14.17 x 5 x 6.5 in)
Mounting Pattern 129 x 96 mm(5.08 x 3.8 in)
Weight kg Steel: 16 kg (35.2 lbs)
Synthetic: 13 kg (29 lbs)
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs)
1 4500 (2041)
2 3642 (1652)
3 3060 (1388)
4 2638 (1196)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 11.6 (3.6) 20 15
1500 (680) 9.2 (2.8) 70 40
2500 (1134) 7.8 (2.4) 100 65
3500 (1587) 6.6 (2.0) 140 80
4500 (2041) 4.9 (1.5) 200 130

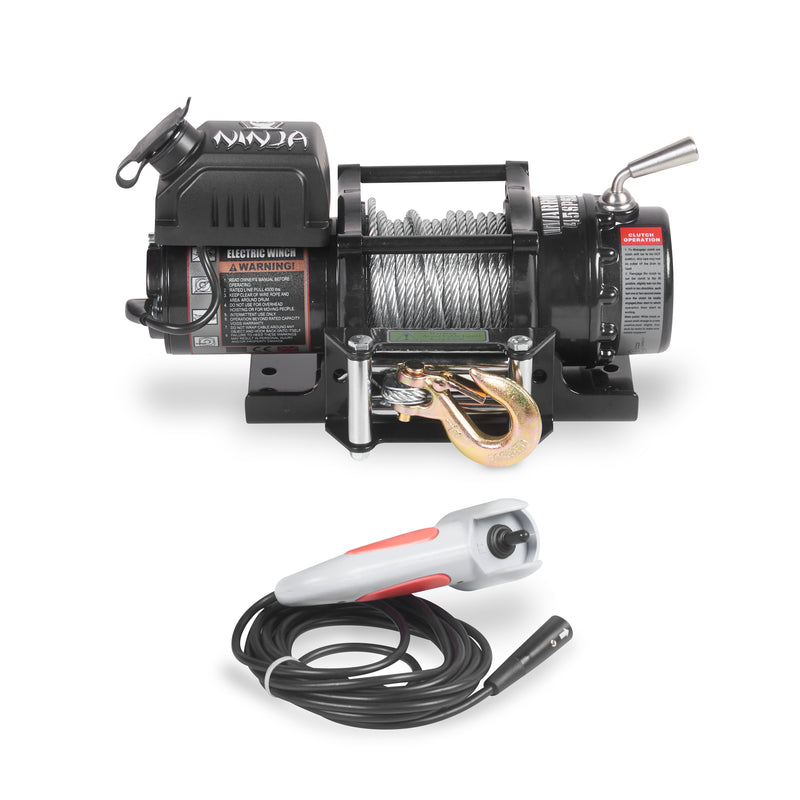

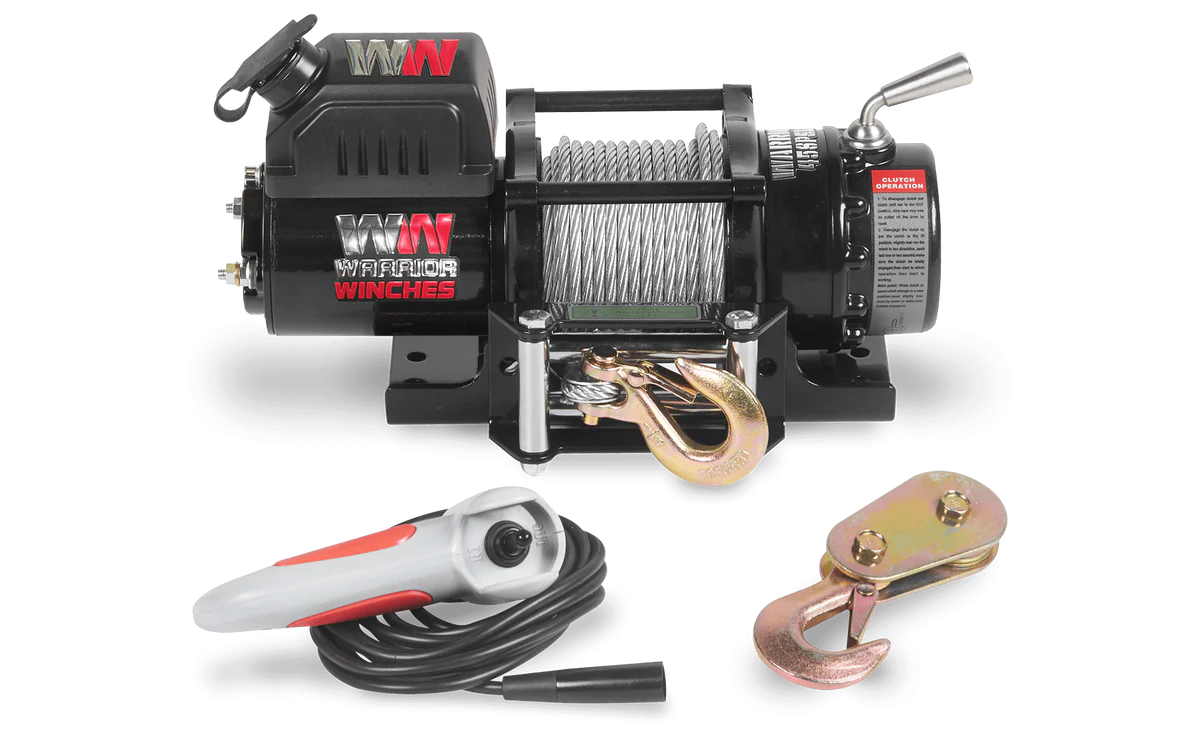

What's in the box:

  • 1/4 Hook
  • 3.8m Ninja Wired Remote Handset
  • Heavy Duty Roller Fairleads (Wire) OR Aluminium Fairlead (Synthetic)
  • Wire or Synthetic Rope
  • Mounting Tray
  • Mounting Hardware
  • Heavy Duty Battery Leads

Reviews and Q&A

  • What length of rope is on winch

    Hello,

    Thanks for the question!

    Steel: 6.4mm x 14.5m (0.25 in x 48 ft)
    Synthetic: 6mm x 15m (0.24 in x 49 ft)

    Thanks

    James.
