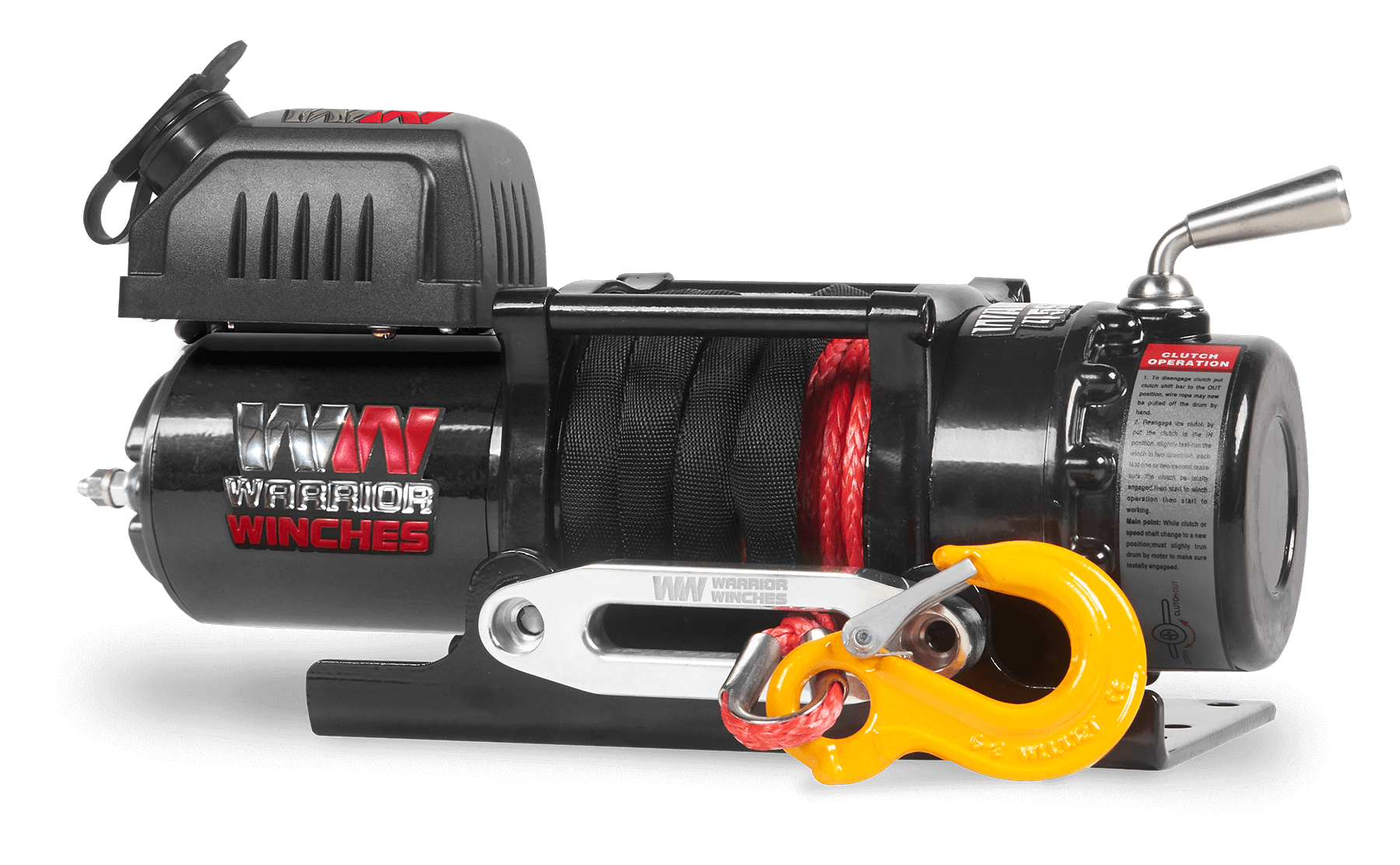

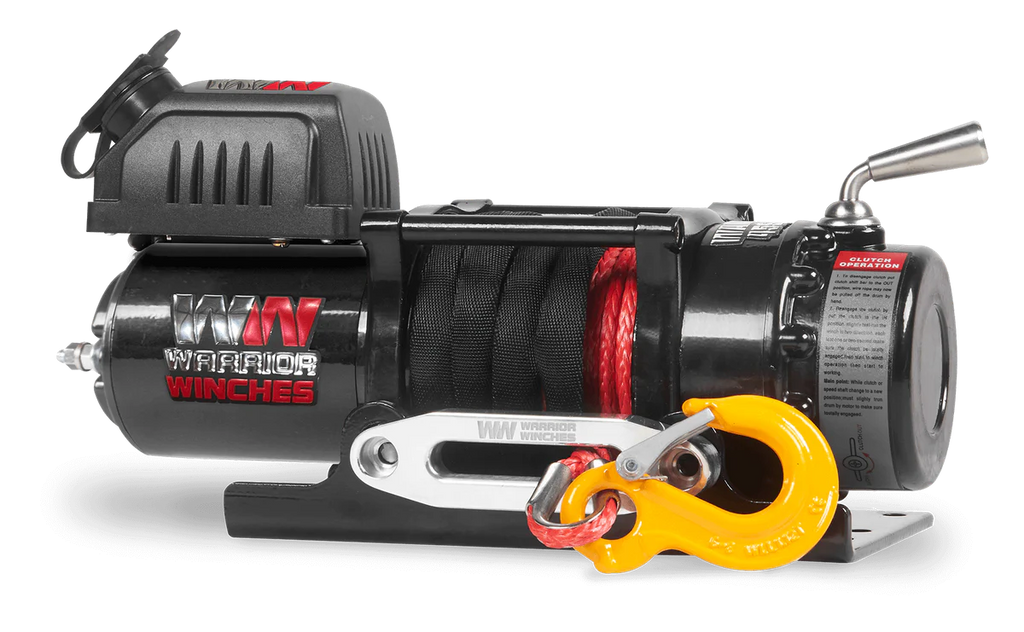

Ninja 4500 Electric Winch - 12v Synthetic Rope

£285.99
Sold out

Features

  • Power In and Power Out: Provides efficient and reliable winching both in and out.
  • High Torque Motor: Delivers maximum pulling power for tough tasks.
  • HD Waterproof Contactors: Ensures durability and reliability in all weather conditions.
  • Full Steel Planetary Gearing: Offers strong, long-lasting performance under heavy loads.
  • Full Load Holding Brake: Provides secure load control, preventing slippage during operation.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

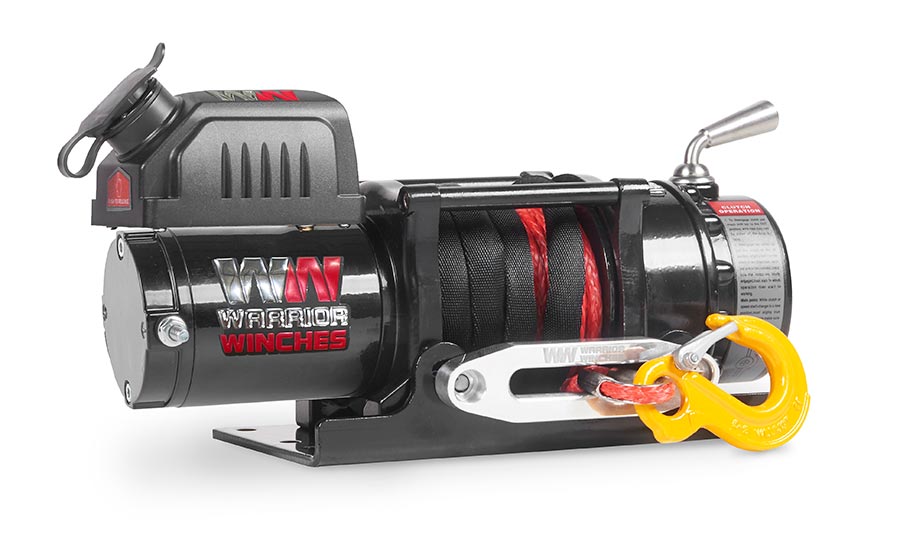

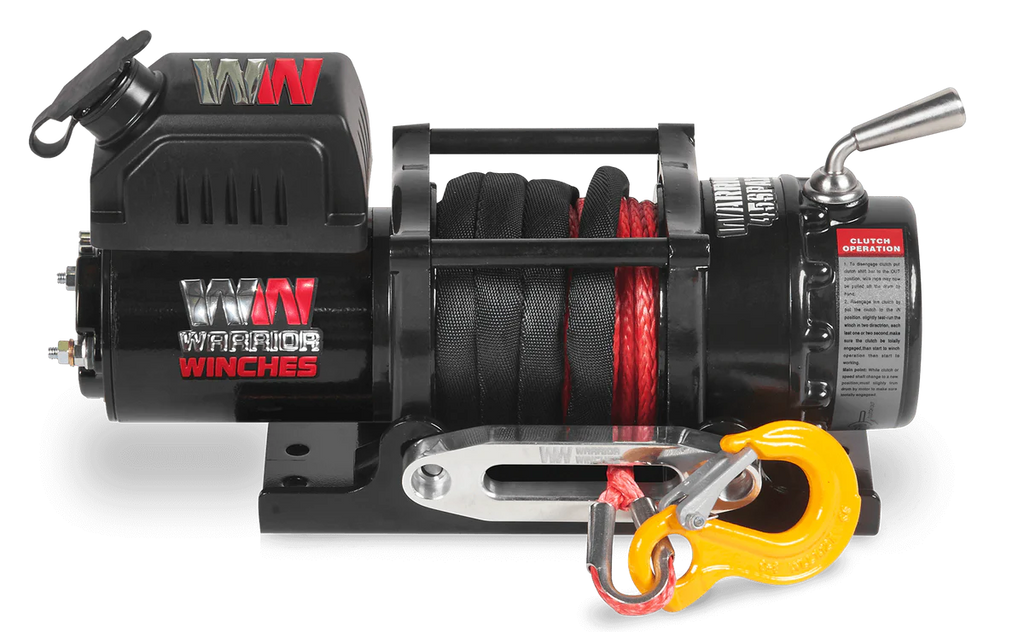

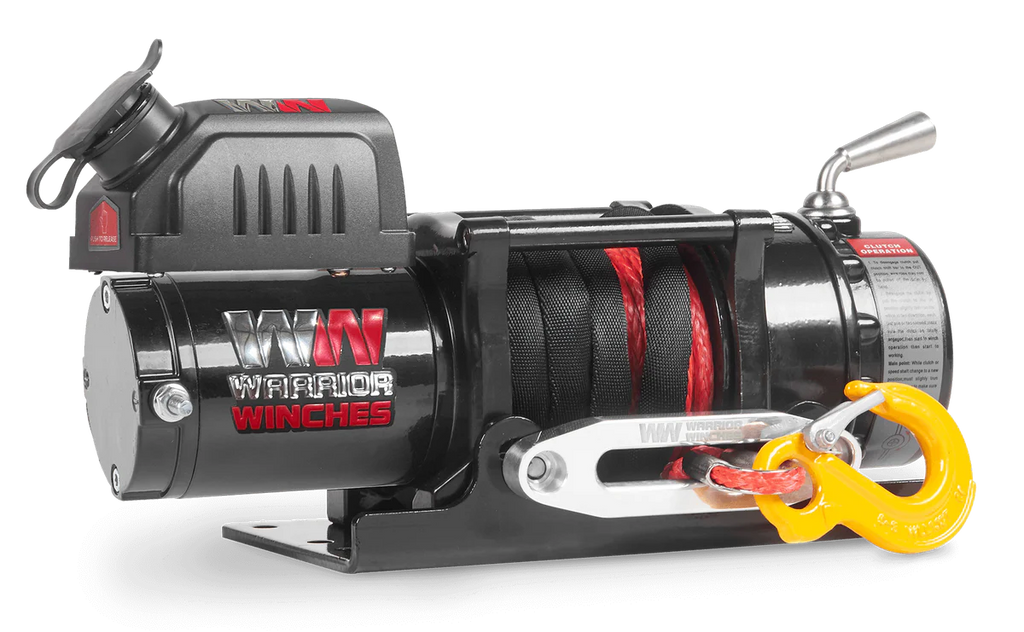

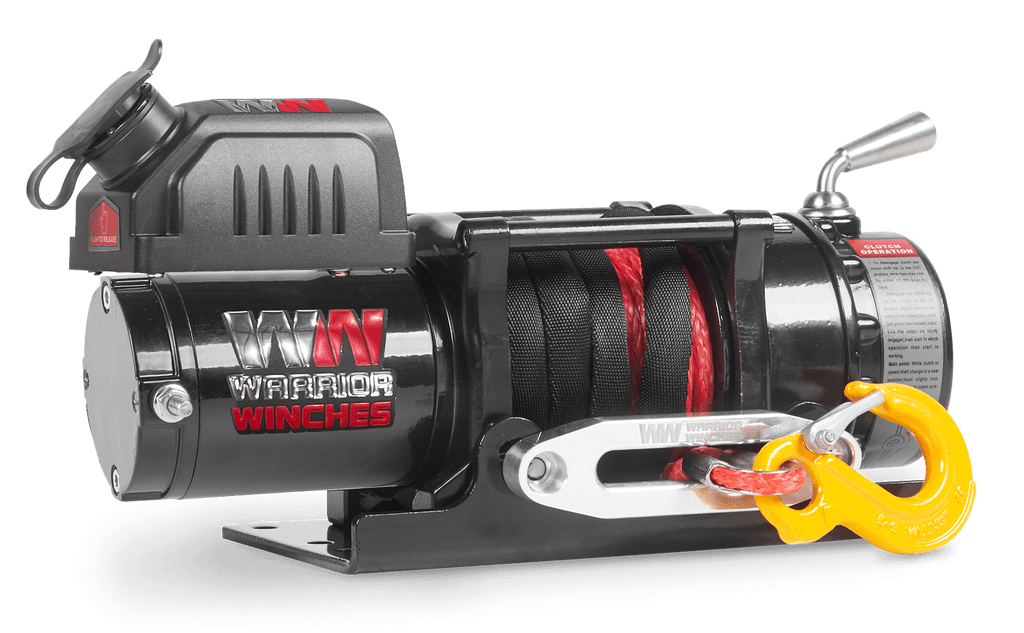

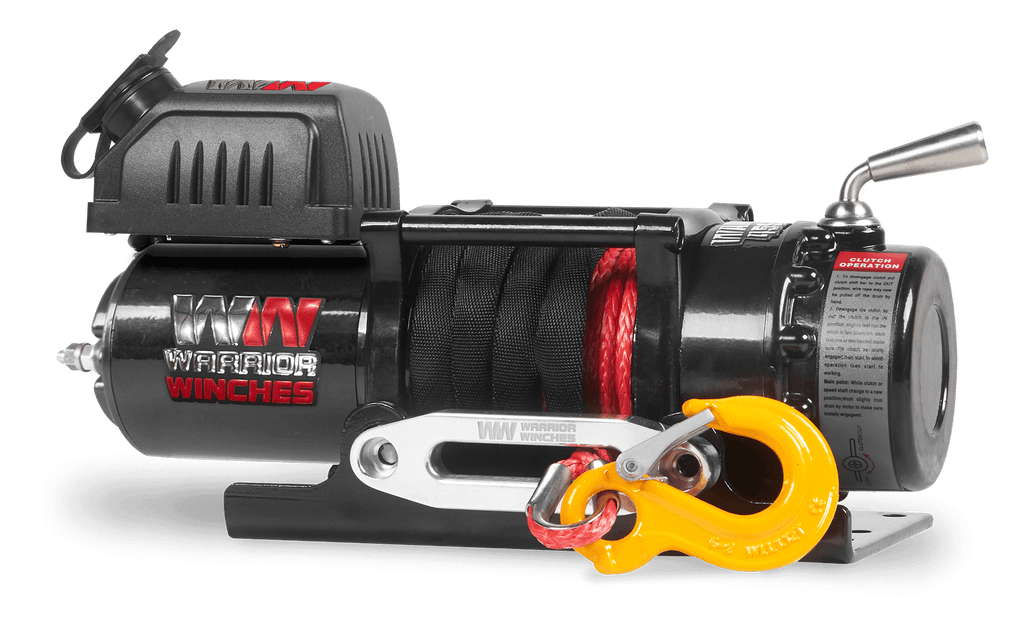

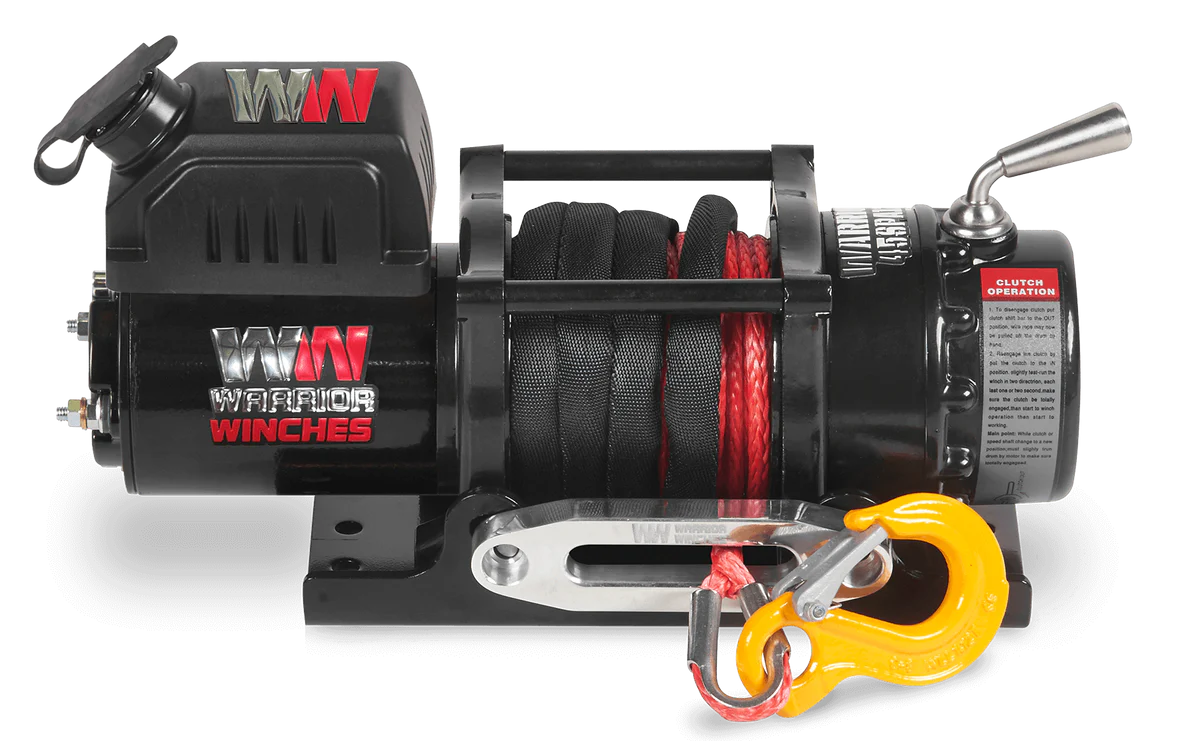

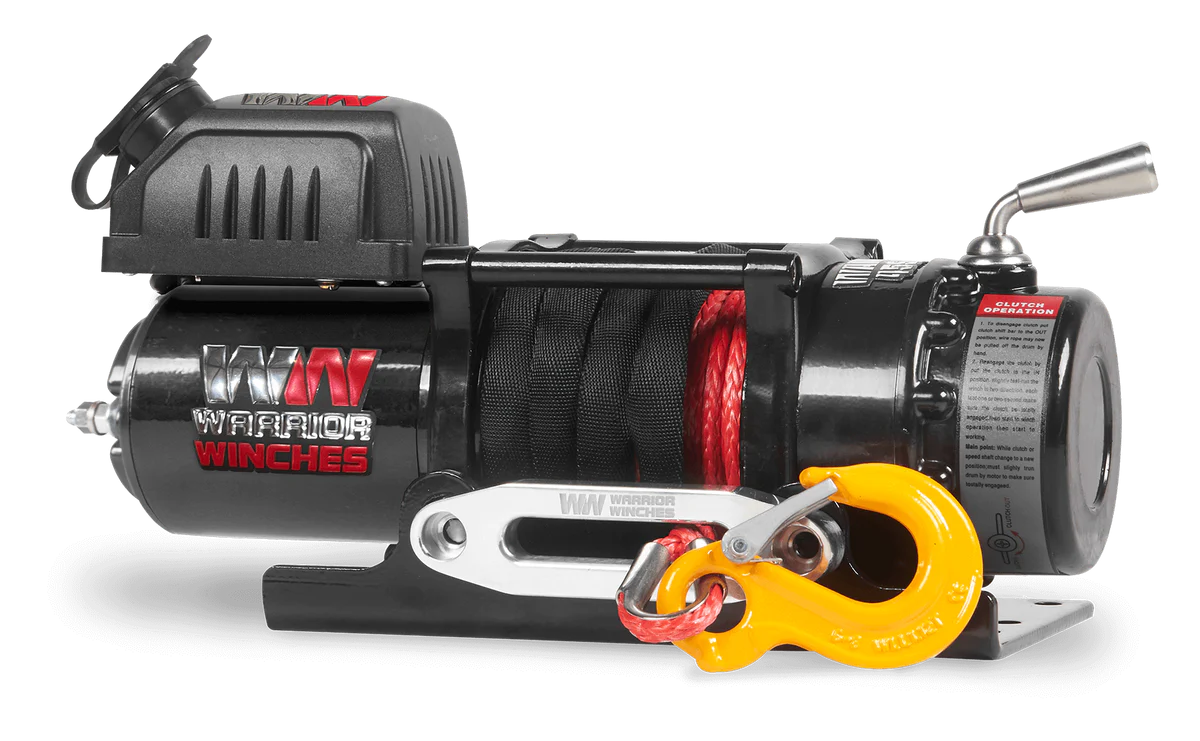

Warrior Ninja 4500lb Winch - 12v with Synthetic Rope

Newly upgraded to be even better, the popular C4500 EWX has been relaunched as the Warrior Ninja 4500. Still with the same high-quality features, the new Ninja is even better. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its heavy-duty clutch and recently added 4 pin Air Socket and redesigned solenoid control pack.

Built to last, the Ninja is packed with life-lengthening, strengthening features such as chip-resistant paint, strengthened steel drum and full steel three-stage planetary gearing which makes this one of the smoothest and quietest winches on the market.

Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor with a huge line capacity of 4500lb or 2014kg, and a pull of 1.5m per minute at full load – you can get the job done with ease.

Standard Features:

  • Line Capacity: 4,500lb (2041kg)
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12-month return to base warranty



Accessories:

  • Wired Hand Control: 3m Wired Hand Control with air socket style plug
  • Wireless Control: Available as an optional extra
  • Mounting Plate: Included for standard installations
  • Mounting Bolts: Included for standard installations
  • Heavy Duty Battery Cables (May need extending depending on application)
  • Instruction Manual

Other Information:

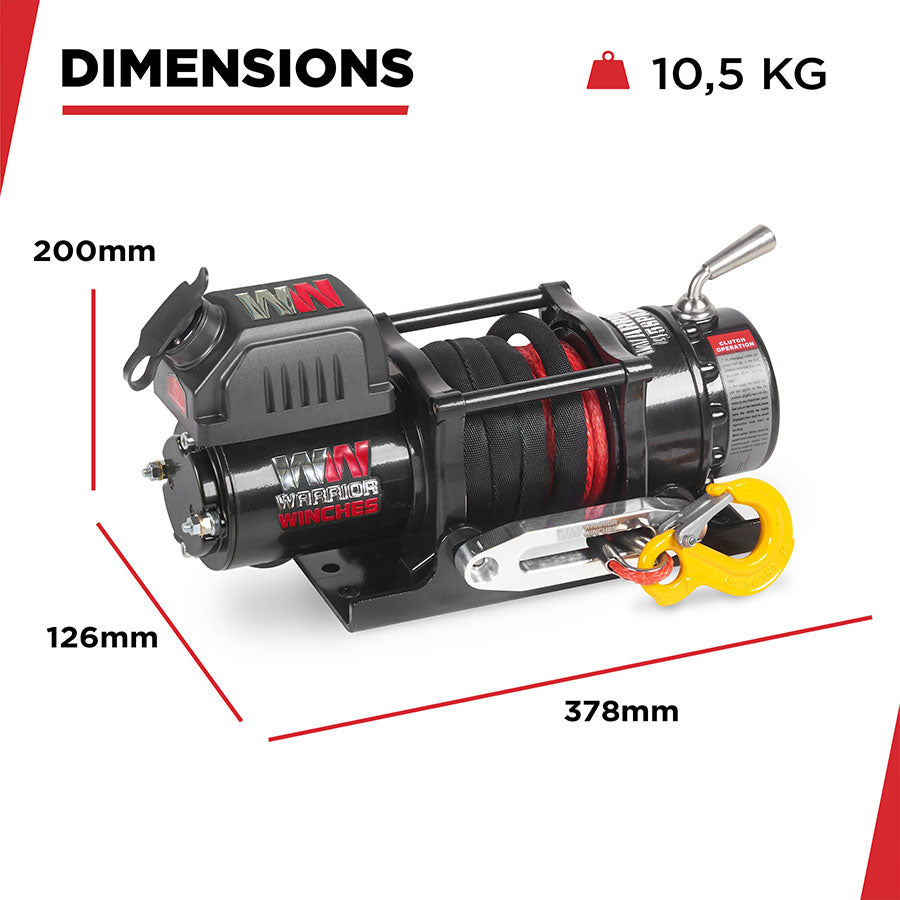

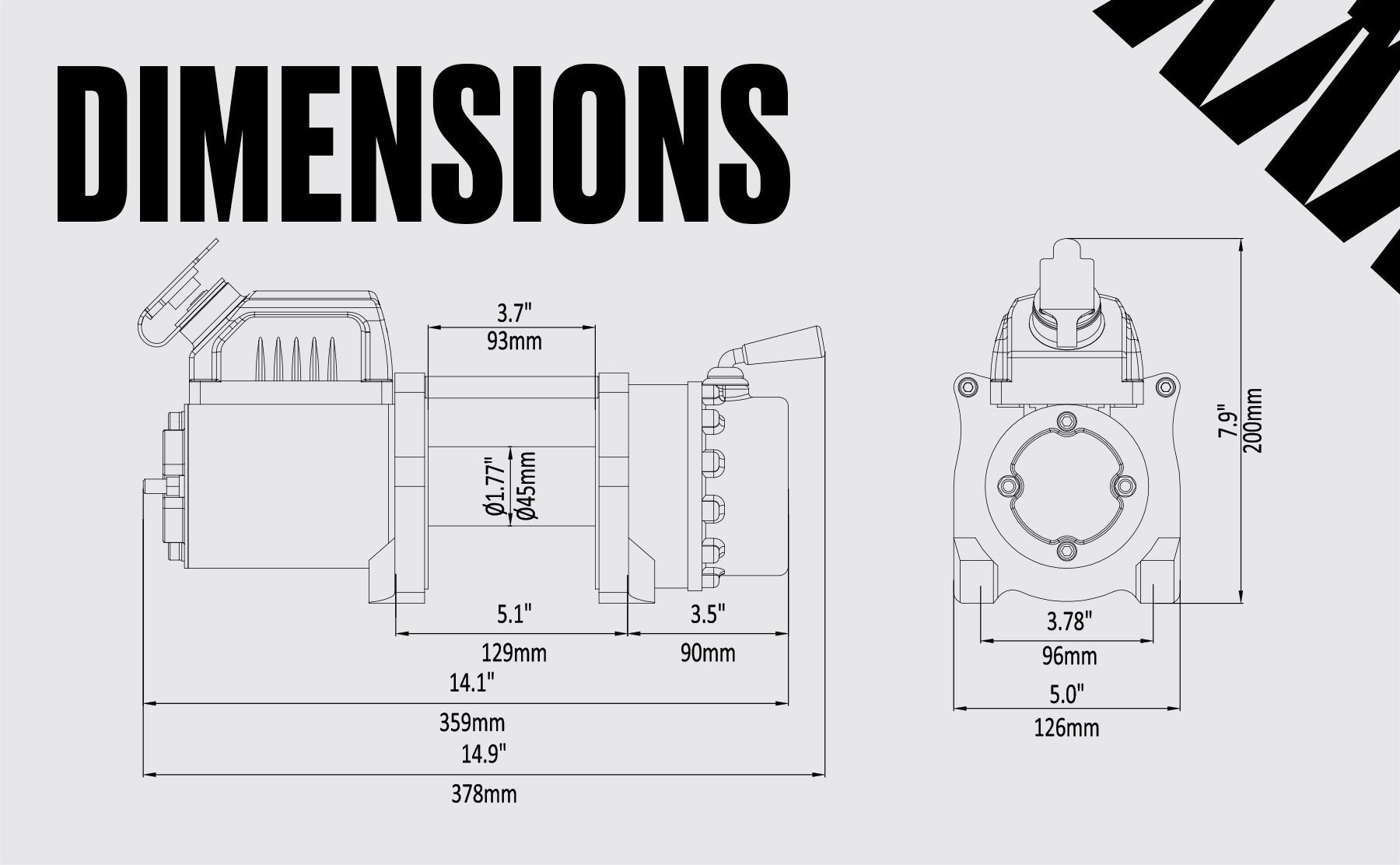

  • Dimensions: 360mm L x 126mm D x 165mm H
  • Mounting Bolt Pattern: 129 x 96mm
  • Line Pull- No Load: 3.6 m/min (20 Amps)
  • Line Pull - Full Load:  1.5 m/min (200 Amps)


Note: For the majority of applications the synthetic rope  supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku45SPA12
EAN5060423980612

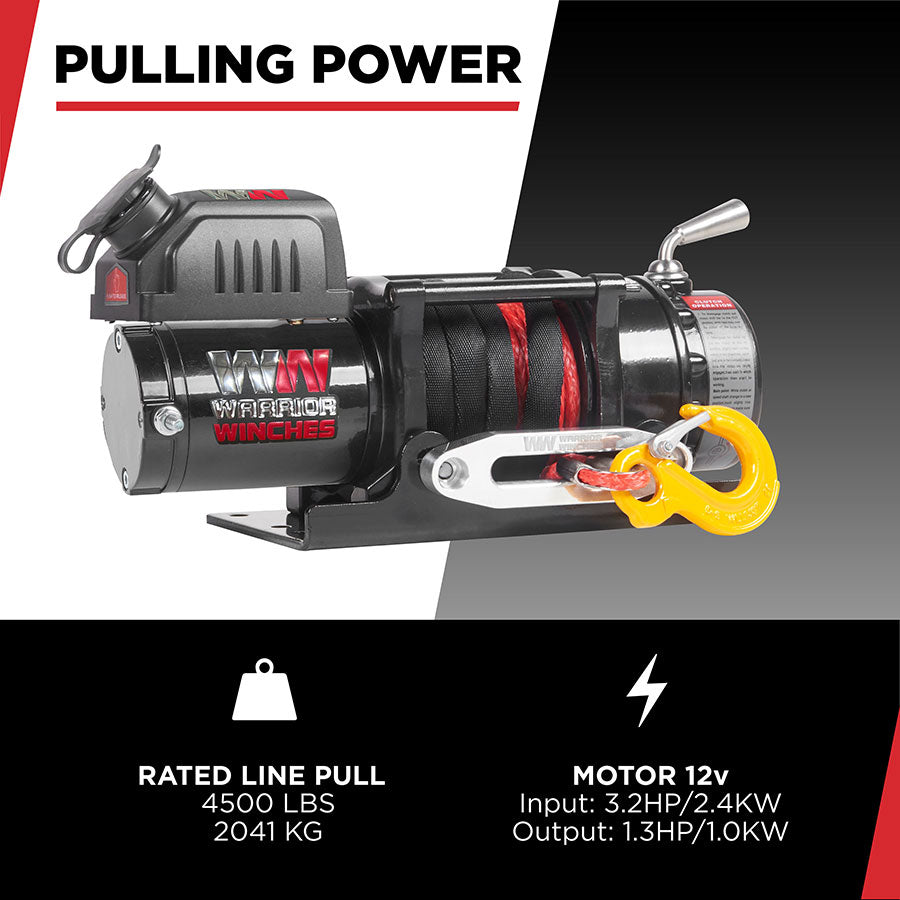

Rated Line Pull4500 lbs
Motor Type12V: Input: 3.2hp / 2.4kW; Output: 1.3hp / 1.0kW
Rated Volt12
ClutchManual
Gearing172:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)45 x 93 mm
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length)6mm x 15.0m
FairleadHawse
Mounting Pattern129mm × 96mm
Dimensions378 x 126 x 200 mm
Weight10.5 kg
Warranty3 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 4500 (2041)
2 3642 (1652)
3 3060 (1388)
4 2638 (1196)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 11.6 (3.6) 20 15
1500 (680) 9.2 (2.8) 70 40
2500 (1134) 7.8 (2.4) 100 65
3500 (1587) 6.6 (2.0) 140 80
4500 (2041) 4.9 (1.5) 200 130

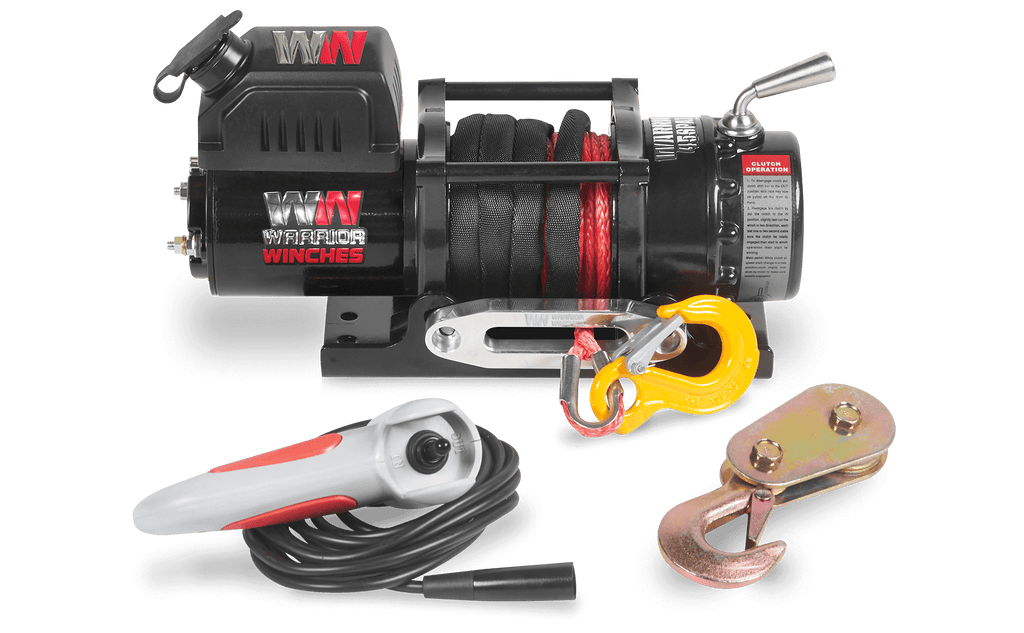

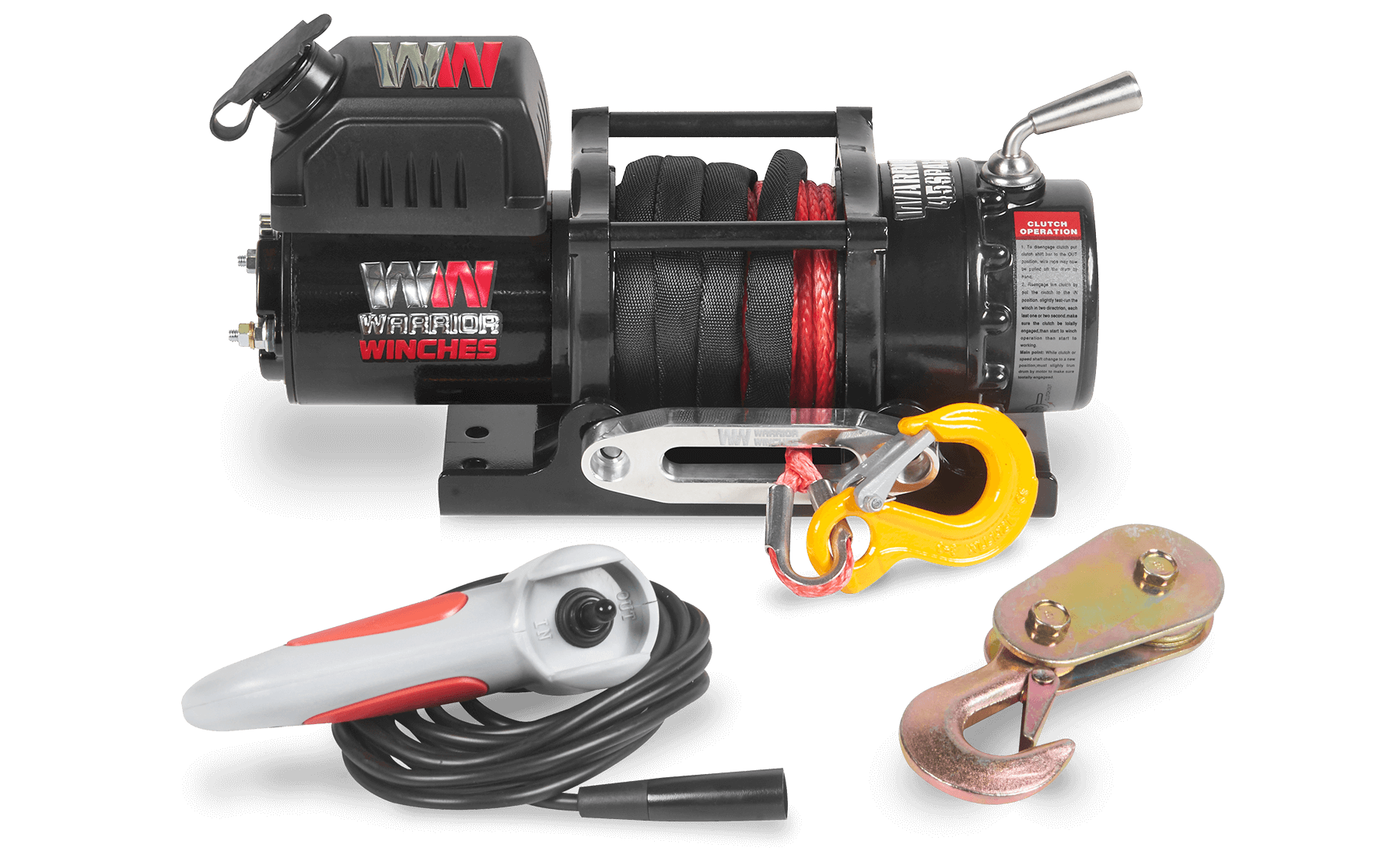

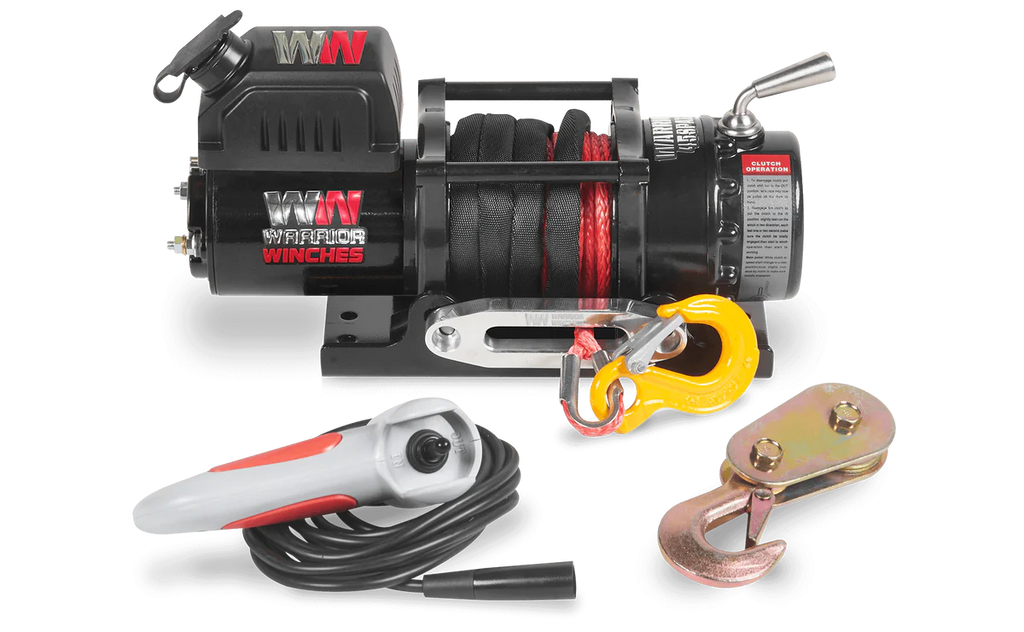

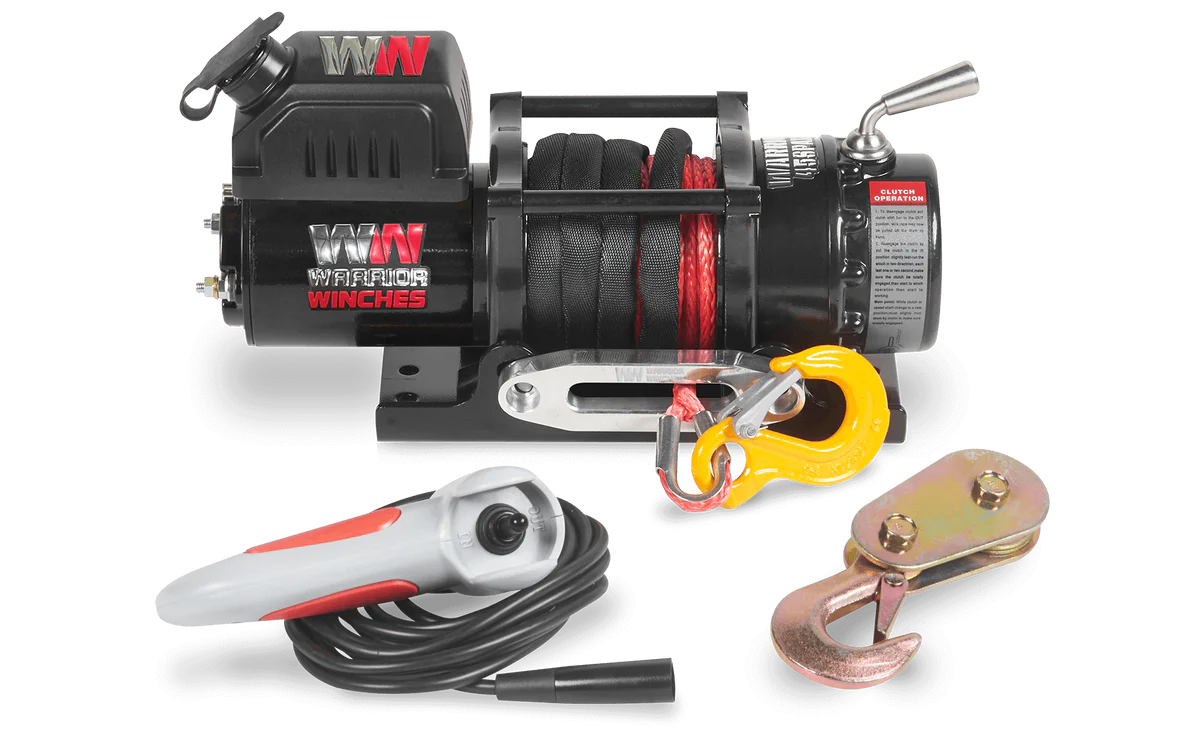

What's in the box:

  • Ninja Winch
  • Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • Mounting Plate
  • Mounting Hardware

Downloads:

User Manual Download
Brochure Download

Videos:

Load Test


How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 3 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.- Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the
  • Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • Installation will be on a (small) ship. Is a fabric rope better against salt water?

    Hello,

    Yes the synthetic rope would be the better option for this application.

    thanks

    James.

  • I have recently purchased a Warrior 45SPS12 winch & I need to know what size electric cables to run from van battery to power the winch. I will need cable length of around 9 metres.Also I assume it will need to be fused somewhere. Thanks

    Hello,

    The warrior ninja comes with 16mm2 battery cables as standard.

    We are not trained auto elecrtitians however as a general rule anything over 5 metres we would say it may be worth jumping up to 35mm2 and fitting an isolater switch.

    Thanks

    James.

  • What length of rope is on winch

    Hello,

    Thanks for the question!

    Steel: 6.4mm x 14.5m (0.25 in x 48 ft)
    Synthetic: 6mm x 15m (0.24 in x 49 ft)

    Thanks

    James.
