Features
- PROFESSIONAL DESIGN – Built for the professional operator meeting the requirements of EN 14492:1.
- ROPE:DRUM – Wire rope to drum ratio of 10:1 with twin hole rope fixing.
- HARD-WEARING DESIGN – Features full sealing, stainless steel fairleads and fittings for long-lasting power.
- ROPE GRADE - 2160N/mm2 Rope grade with 2:1 rating.
- SMART FEATURES – Comes with an emergency stop remote handset for smart usage.
- POWERFUL BRAKE – Features a full load holding brake.

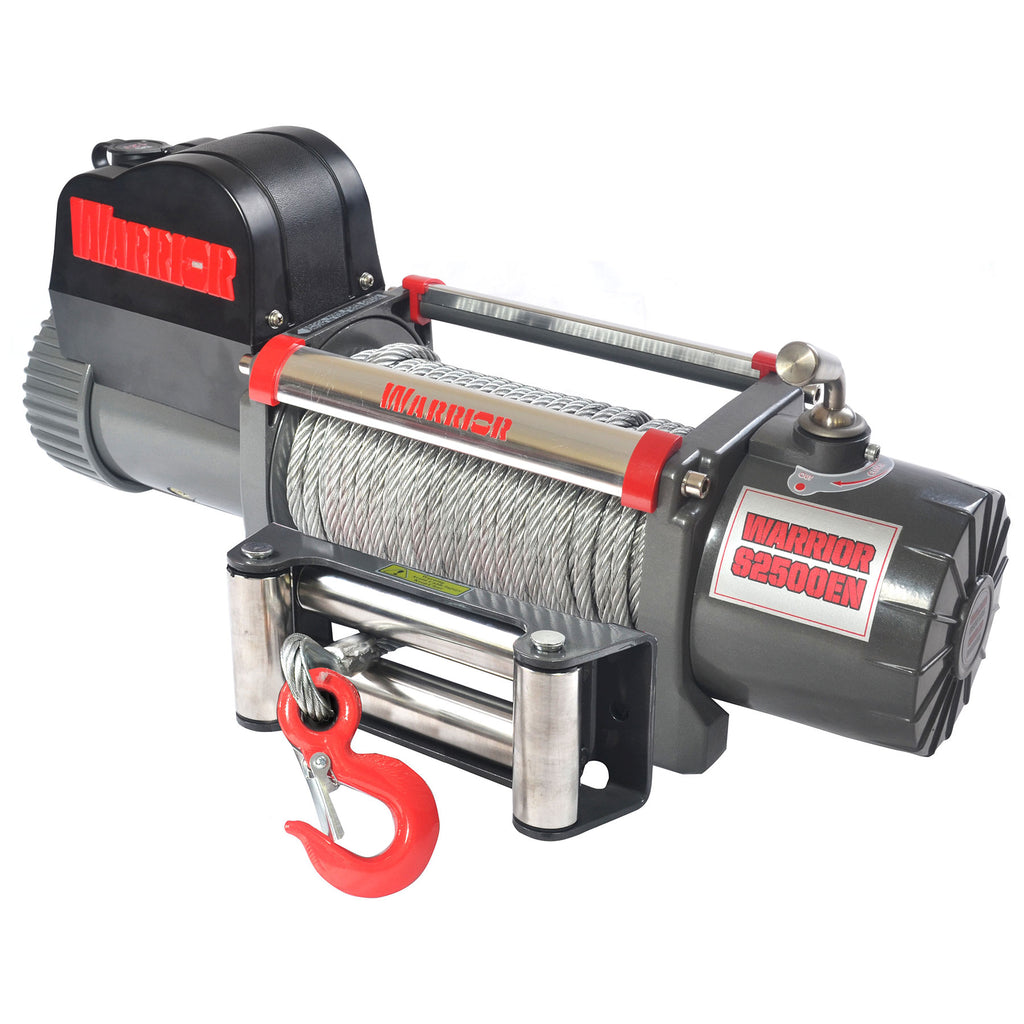

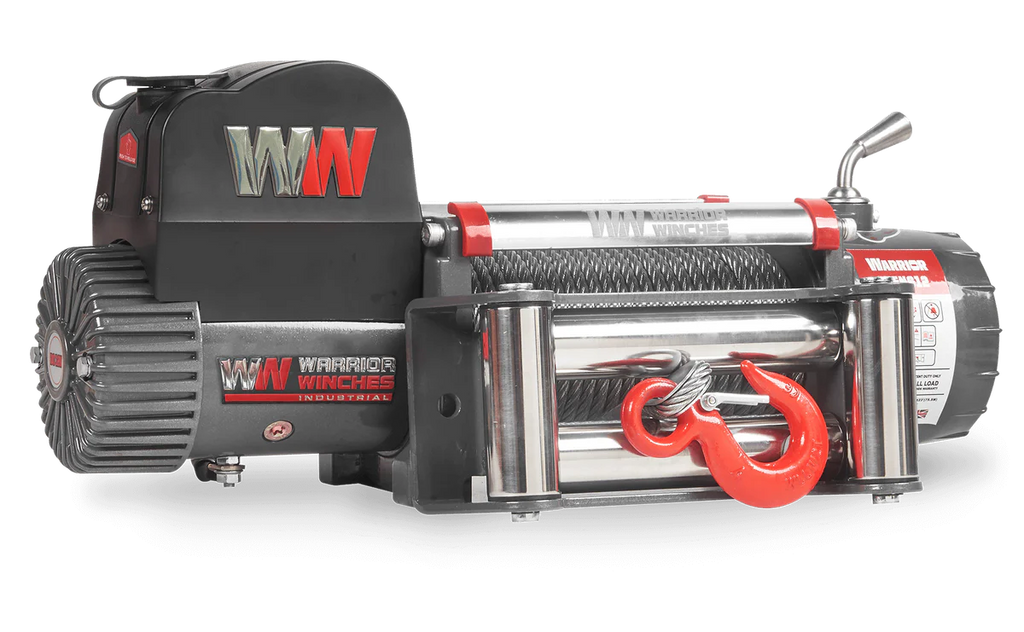

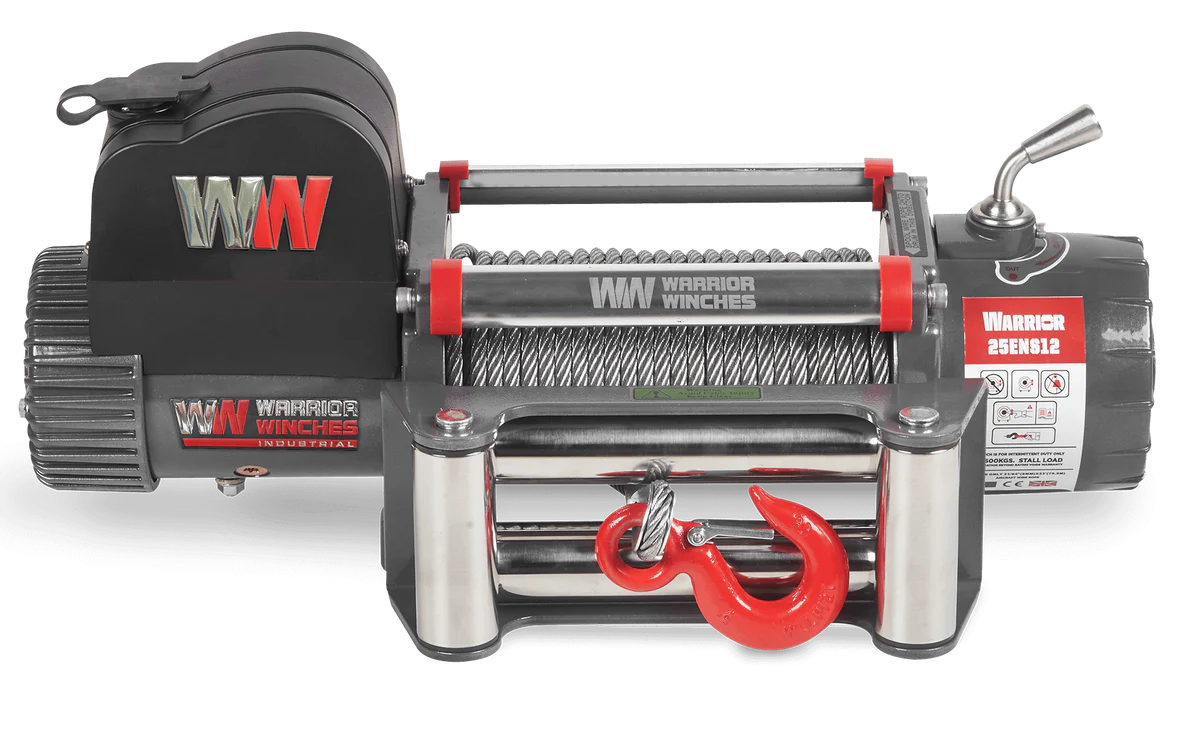

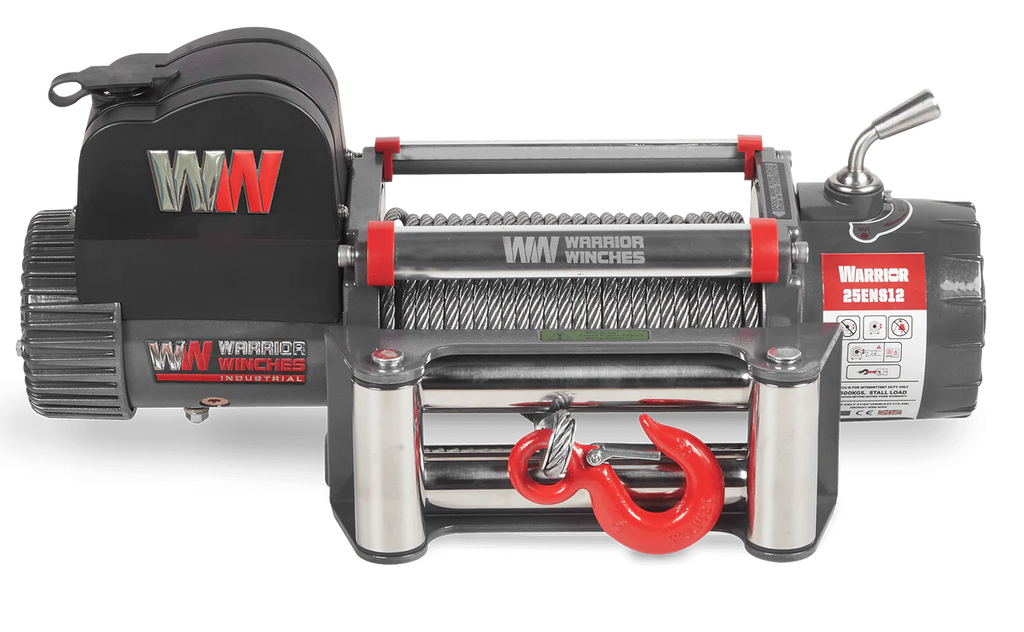

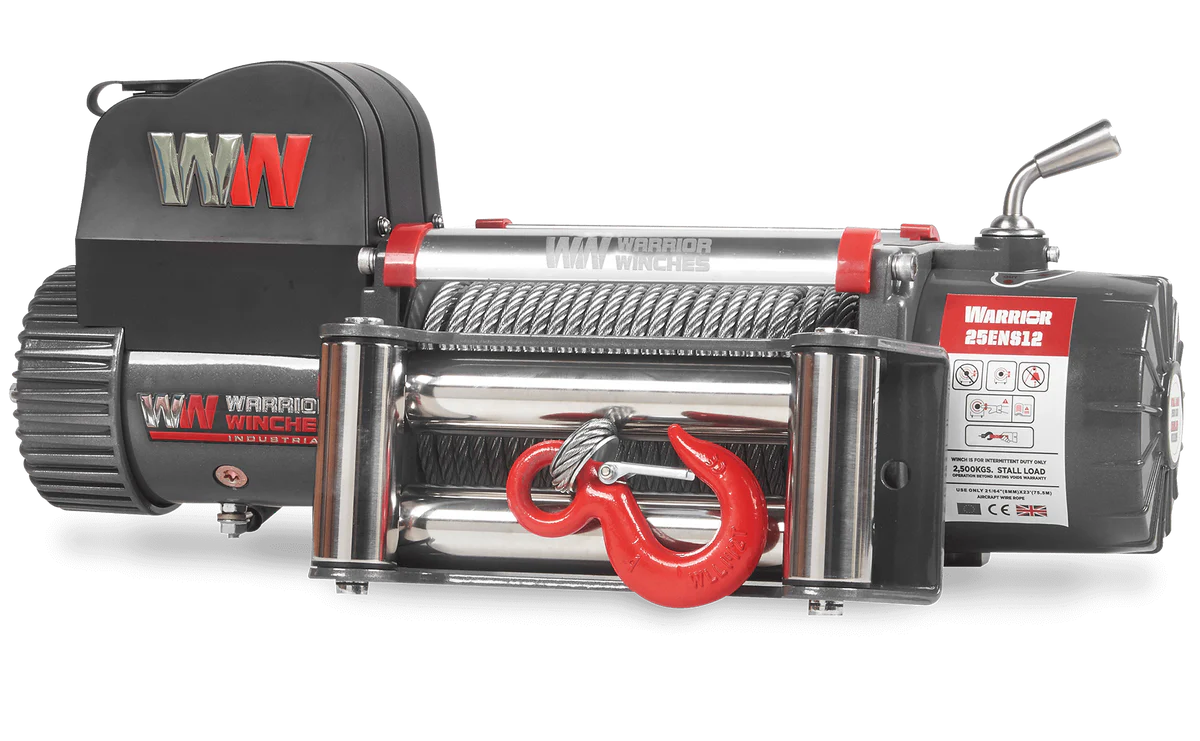

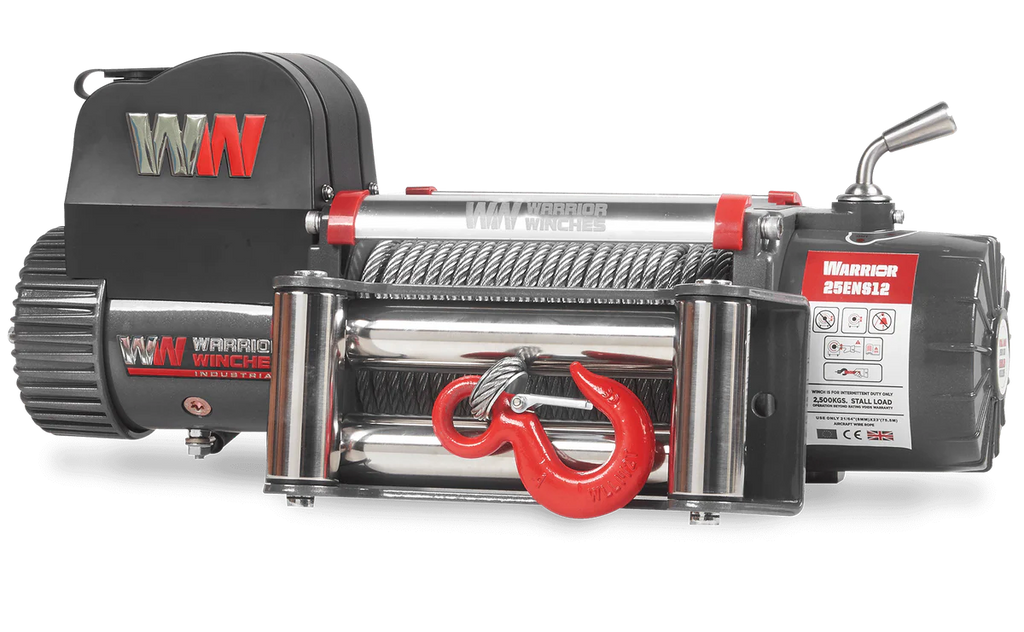

Warrior 2500EN Electric Winch with Steel Cable
Designed and developed for the professional operator, the EN series winches are the highest of quality. Ensuring they meet the requirements of EN 14492:1, they seamlessly fit into an installation solution for any job.
Featuring a wire rope to drum ratio of 10:1, it also benefits from twin hole rope fittings. The 2160N/mm2 rope itself is graded with a 2:1 rating to ensure strength and quality.
Built to last, like all Warrior winches, the 2500EN is heavy-duty and hardwearing. Reinforced with full sealing, stainless steel fairleads and fittings for reliable power whatever the conditions.
All this with a line capacity of 5511lb or 2500kg, a 12v high-power motor, and a brake capable of holding the full load – you’re guaranteed to enjoy high-quality, reliable power.
Standard Features:
♦ Line Capacity: 5,511lb (2,500kg)
♦ Rope: 8mm x 26m Steel Rope
♦ Motor: 12v
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 12 Month Return to Base Warranty
Accessories:
♦ Wired Hand Control: 4m Remote Handset
♦ Wireless Control: Available as an optional extra
♦ Mounting Plate: Available as an optional extra
♦ Roller Fairlead: Heavy Duty Stainless Steel
♦ Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Leads (May need extending dependant on application)
♦ Instruction Manual
Other Information:

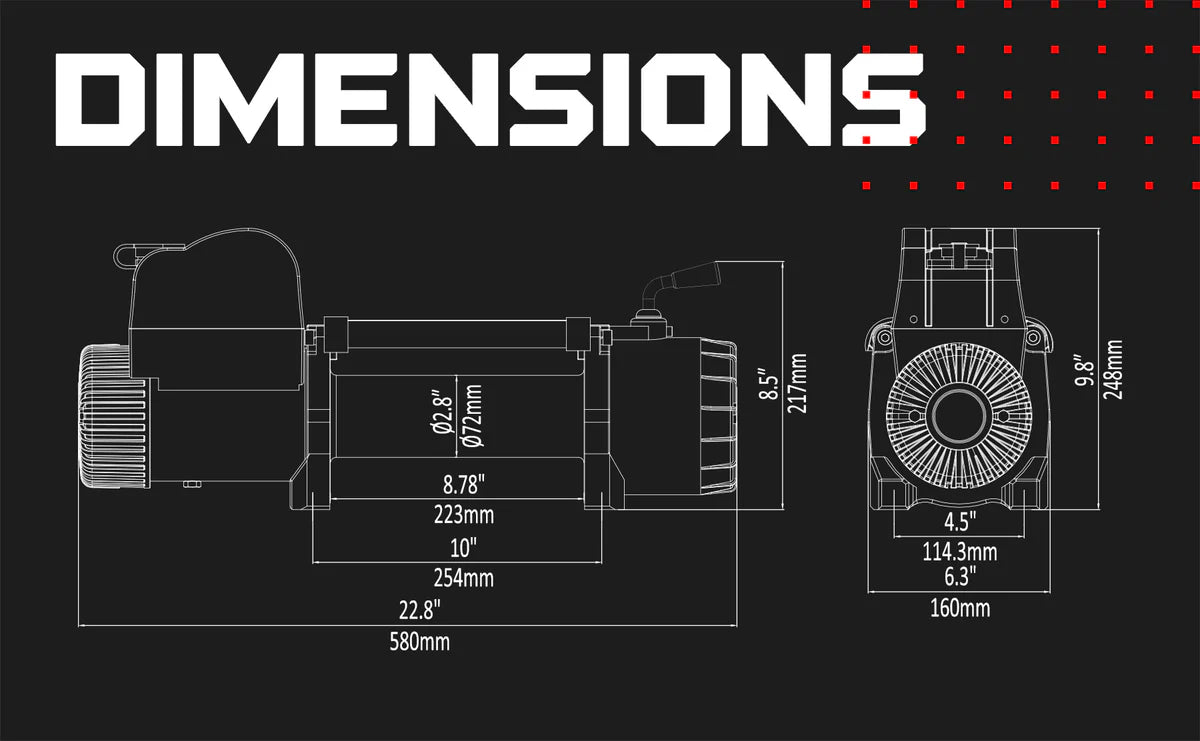

♦ Dimensions: 580mm L x 160mm D x 219mm H
♦ Mounting Bolt Pattern: 254 x 114.3mm
♦ Approx. Shipping Weight: 40kg
♦ Line Pull - No Load: 26.2 m/min (70 Amps)
♦ Line Pull - Full Load: 7.9 m/min (260 Amps)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
| Rated Line Pull | 5511 lbs (2500 kg) |
|---|---|
| Motor | 12v : 6.5hp / 4.6kw |
| Gearing | 230:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 72 x 223mm (2.83 x 8.78 in) |
| Cable - Dia x L | 8mm x 26m (0.31 in x 85 ft) |
| Dimensions | 580 x 160 x 219mm (22.83 x 6.3 x 8.6 in) |
| Mounting Pattern | 254 x 114.3 mm (10 x 4.5 in) |
| Weight kg | 40 kg (88 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 5500 (2495) |
| 2 | 4311 (1955) |
| 3 | 3544 (1608) |
| Line Pull lbs (kgs) |
Line Speed
12v ft/min (m/min) |
Amp Draw 12v |
|---|---|---|
| 0 | 26.2 (8.0) | 70 |
| 2500(227) | 12.8 (3.9) | 180 |
| 4500 (2041 | 9.5 (2.9) | 220 |
| 5500 (2495) | 7.9 (2.4) | 260 |

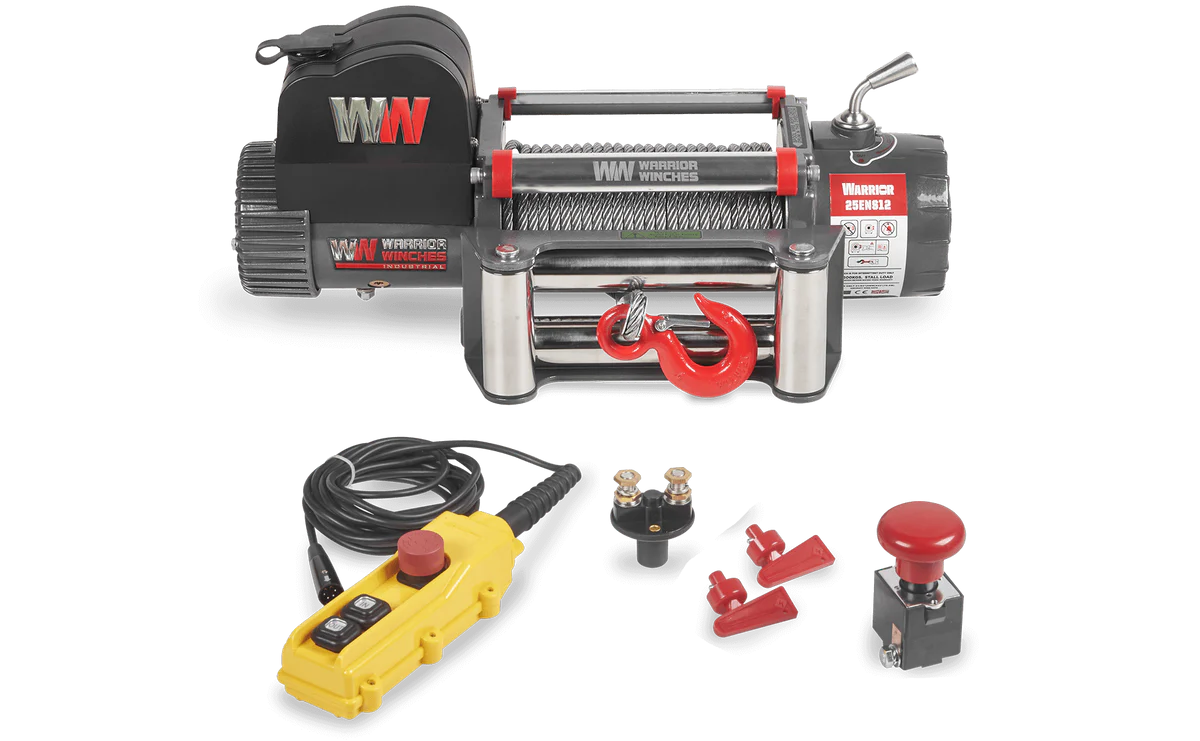

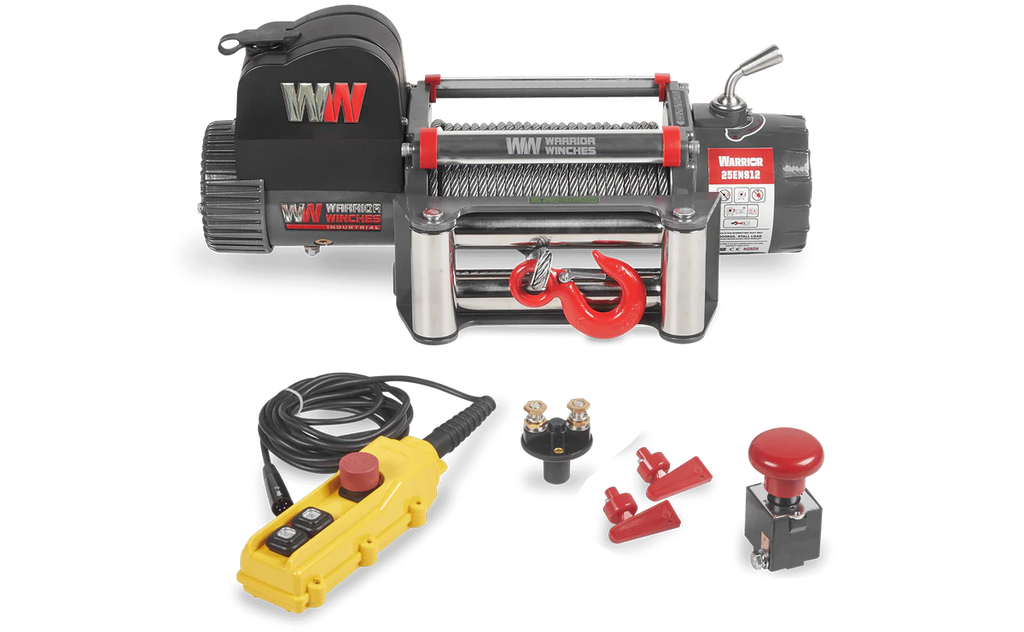

What's in the box:

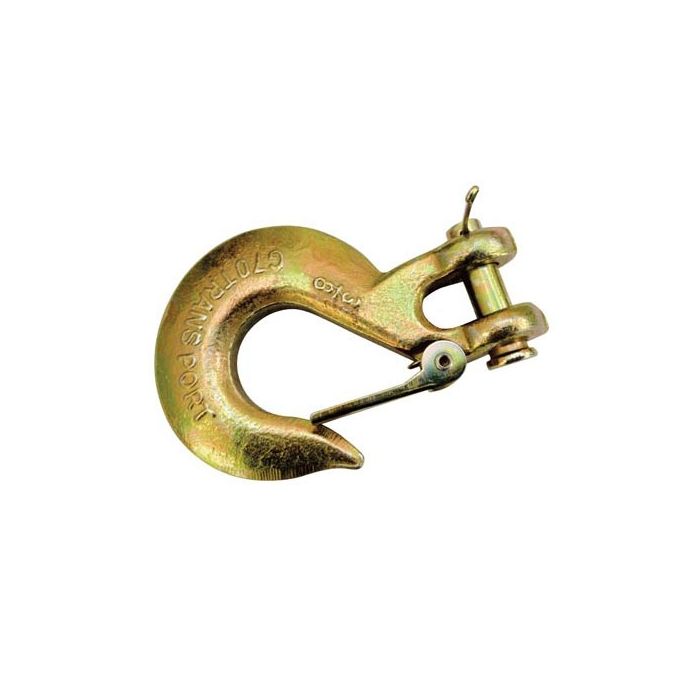

- 3/8 Hook

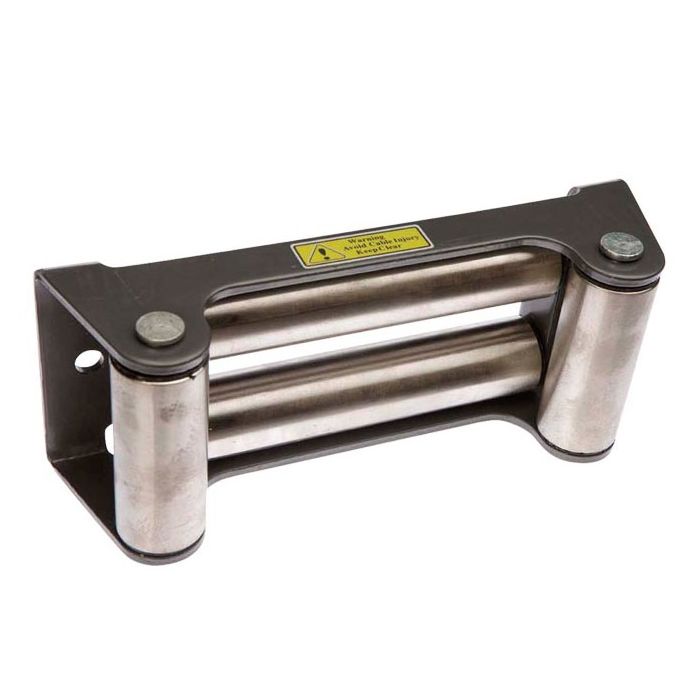

- Heavy Duty Stainless Steel Roller Fairlead

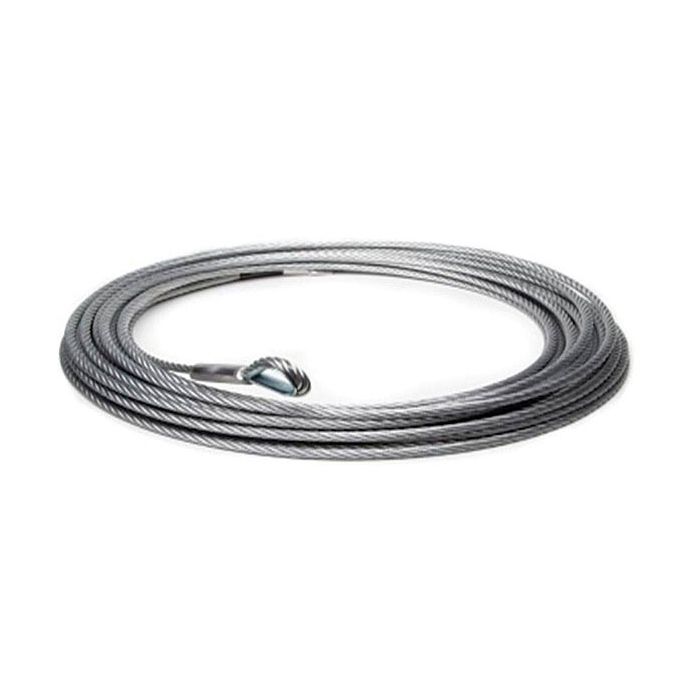

- Steel Rope

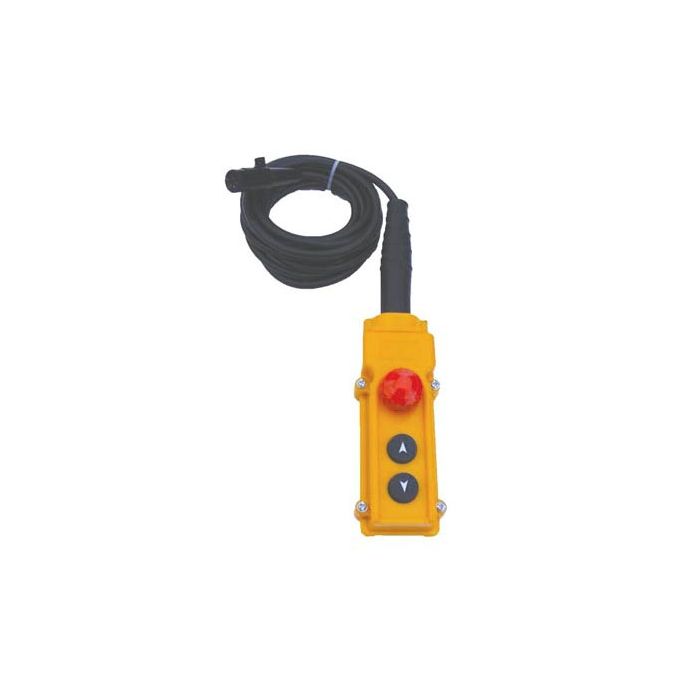

- 3.8m Remote Handset

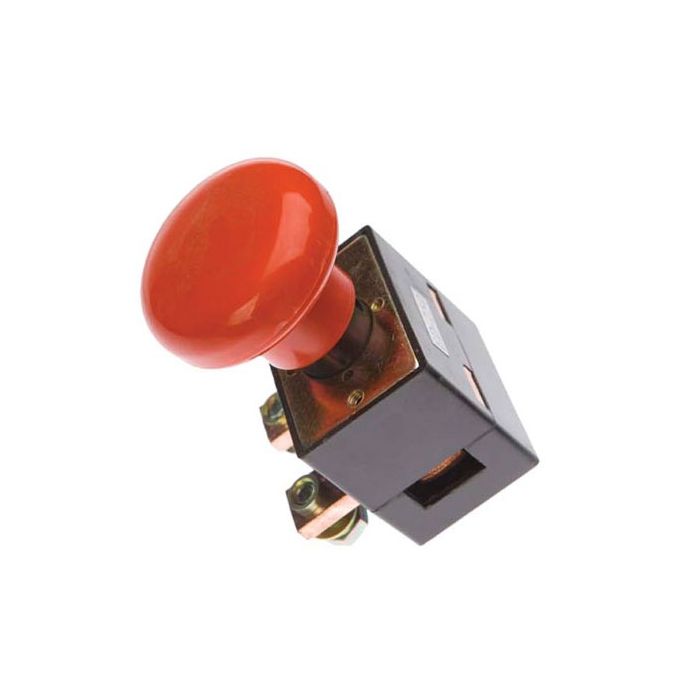

- Emergency Stop Button

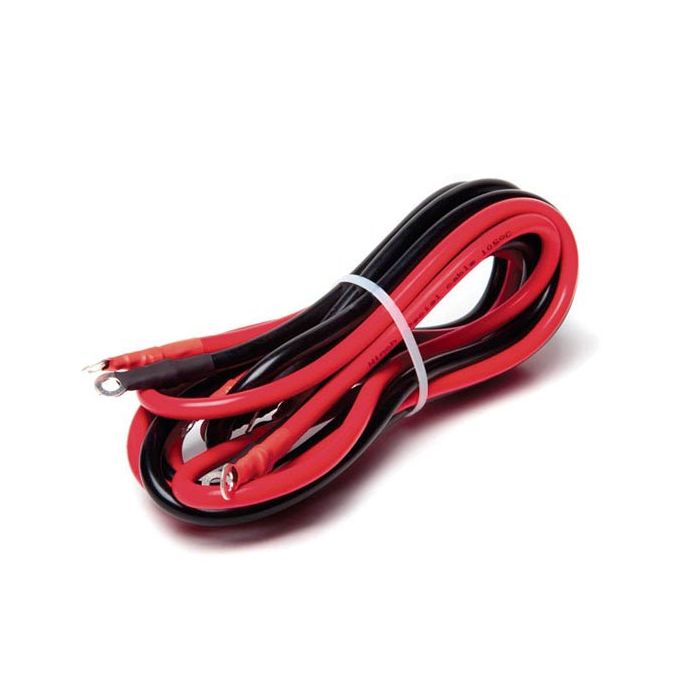

- Heavy Duty Battery Leads

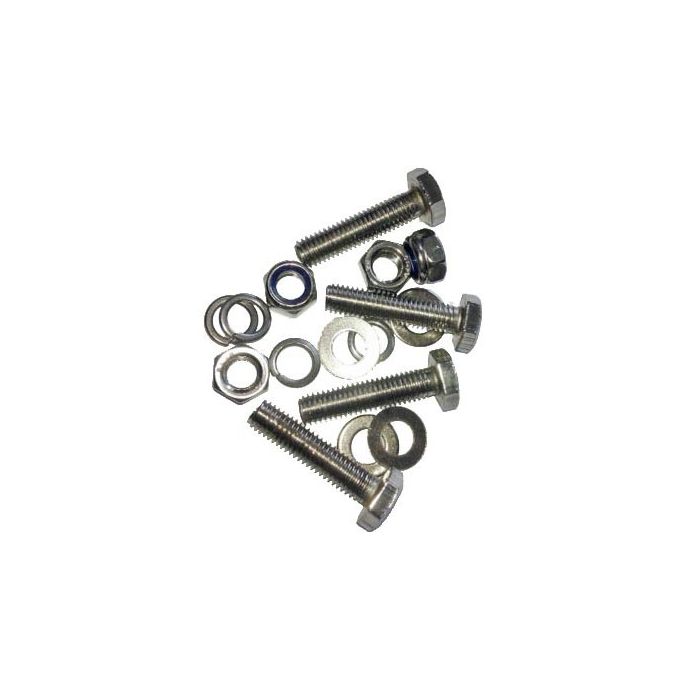

- Stainless Steel Mounting Hardware
