Warrior 12v 2500EN Winch

| Ask a Question SKU: 25ENS12

Price:
Sale price£636.99
In stock (Delivery in 1-2 working days)

Features

  • PROFESSIONAL DESIGN – Built for the professional operator. Conforms to part of BS EN 14492-1:2006+A1:2009
  • ROPE:DRUM – Wire rope to drum ratio of 10:1 with twin hole rope fixing.
  • HARD-WEARING DESIGN – Features full sealing, stainless steel fairleads and fittings for long-lasting power.
  • ROPE GRADE - 2160N/mm2 Rope grade with 2:1 rating.
  • SMART FEATURES – Comes with an emergency stop remote handset for smart usage.
  • POWERFUL BRAKE – Features a full load holding brake.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Warrior 12v 2500EN Electric Winch with Steel Cable

Designed and developed for the professional operator, the EN series winches are the highest of quality. Conforms to part of BS EN 14492-1:2006+A1:2009. They seamlessly fit into an installation solution for any job.

Featuring a wire rope to drum ratio of 10:1, it also benefits from twin hole rope fittings. The 2160N/mm2 rope itself is graded with a 2:1 rating to ensure strength and quality.

Built to last, like all Warrior winches, the 2500EN is heavy-duty and hardwearing. Reinforced with full sealing, stainless steel fairleads and fittings for reliable power whatever the conditions.

All this with a line capacity of 5511lb or 2500kg, a 12v high-power motor, and a brake capable of holding the full load – you’re guaranteed to enjoy high-quality, reliable power.

Standard Features:

  • Line Capacity: 5,511lb (2,500kg)
  • Rope: 8mm x 26m Steel Rope
  • Motor: 12v
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12 Month Return to Base Warranty

Accessories:

  • Wired Hand Control: 4m Remote Handset
  • Wireless Control: Available as an optional extra
  • Mounting Plate: Available as an optional extra
  • Roller Fairlead: Heavy Duty Stainless Steel
  • Mounting Bolts: Included for Standard installations
  • 1.5m Heavy Duty Battery Leads (May need extending dependent on application)
  • Instruction Manual

Other Information:

  • Dimensions: 580mm L x 160mm D x 219mm H
  • Mounting Bolt Pattern: 254 x 114.3mm
  • Approx. Shipping Weight: 40kg
  • Line Pull - No Load: 26.2 m/min (70 Amps)
  • Line Pull - Full Load: 7.9 m/min (260 Amps)



Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull5500 lbs
Motor Type12V: Input: 6.5HP/4.6kW Output: 3.6HP/2.7kW
Rated Volt12
Gearing230:1
ClutchManual
Braking ActionAuto in the drum
Drum Size (Dia x L)72 x 223 mm
Cable MaterialSteel
Cable – Dia x L8mm x 26m
Mounting Pattern254 mm x 114.3 mm mm
Dimensions580 x 160 x 248 mm
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 5500 (2495)
2 4311 (1955)
3 3544 (1608)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 26.2 (8.0) 70
2500(227) 12.8 (3.9) 180
4500 (2041 9.5 (2.9) 220
5500 (2495) 7.9 (2.4) 260

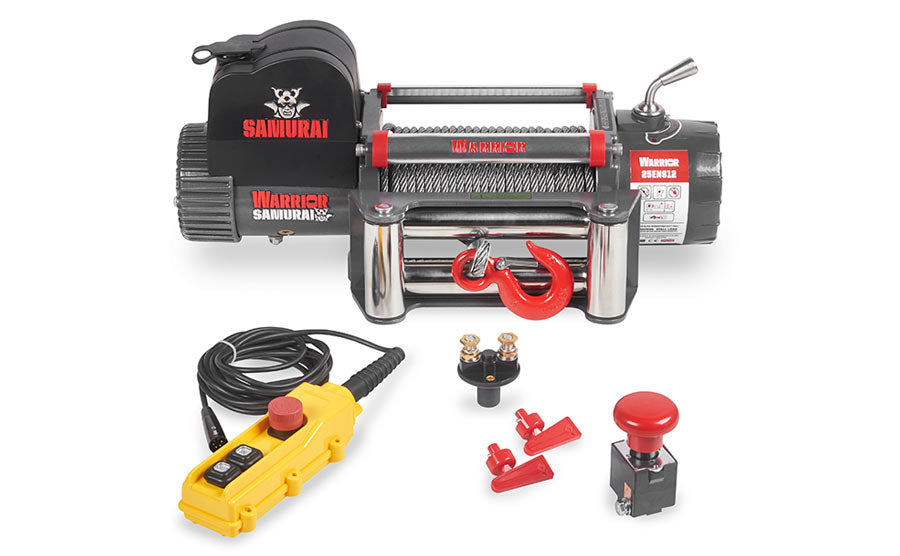

What's in the box:

  • 3/8 Hook
  • Heavy Duty Stainless Steel Roller Fairlead
  • Steel Rope
  • 3.8m Remote Handset
  • Emergency Stop Button
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
User Manual Download
Brochure Download
