Features
- CORROSION FREE – All brass series wound motor is protected against corrosion.
- DOUBLE SEALED – Features a double sealed motor, sealed waterproof contactor and double sealed drum for extra protection.
- LINE CAPACITY – 20,000lb (9072KG)
- STEEL OR SYNTHETIC ROPE – Choice of Stainless Steel 4 Way Fairleads or Aluminium Fairlead
Pay in 3 interest-free payments
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.
- Choose Paypal at checkout to pay later with Pay in 3.
- Complete your purchase with the first payment today.
- Remaining payments are taking automtically.
Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

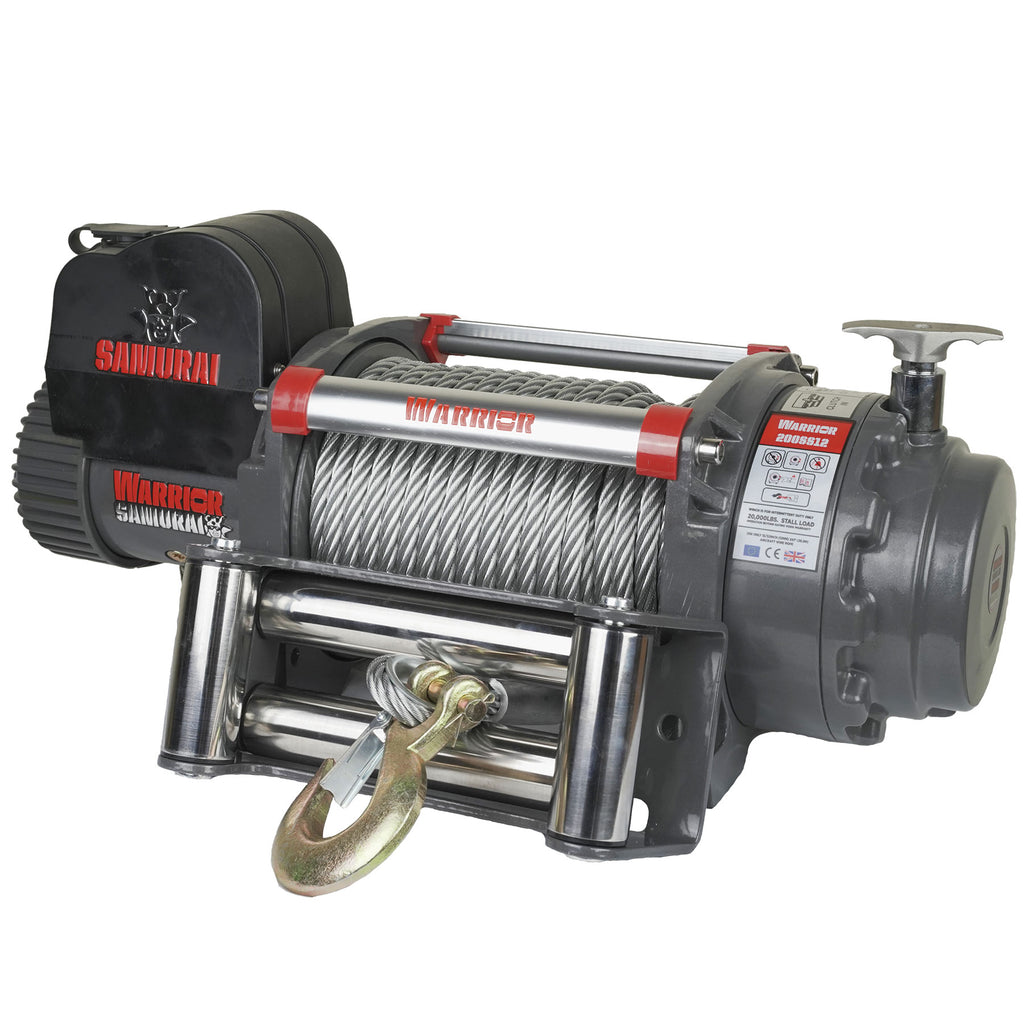

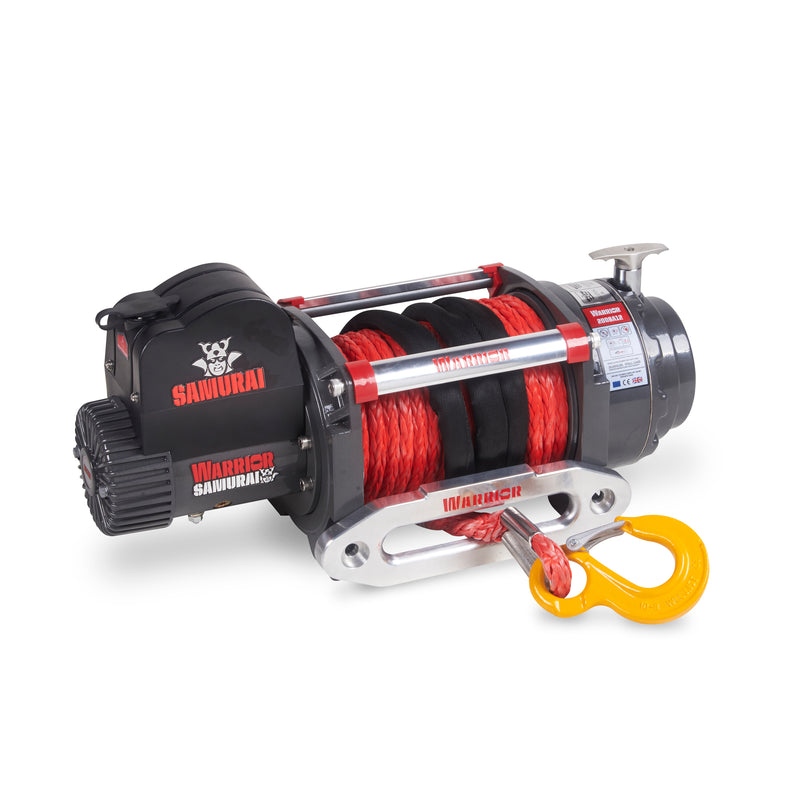

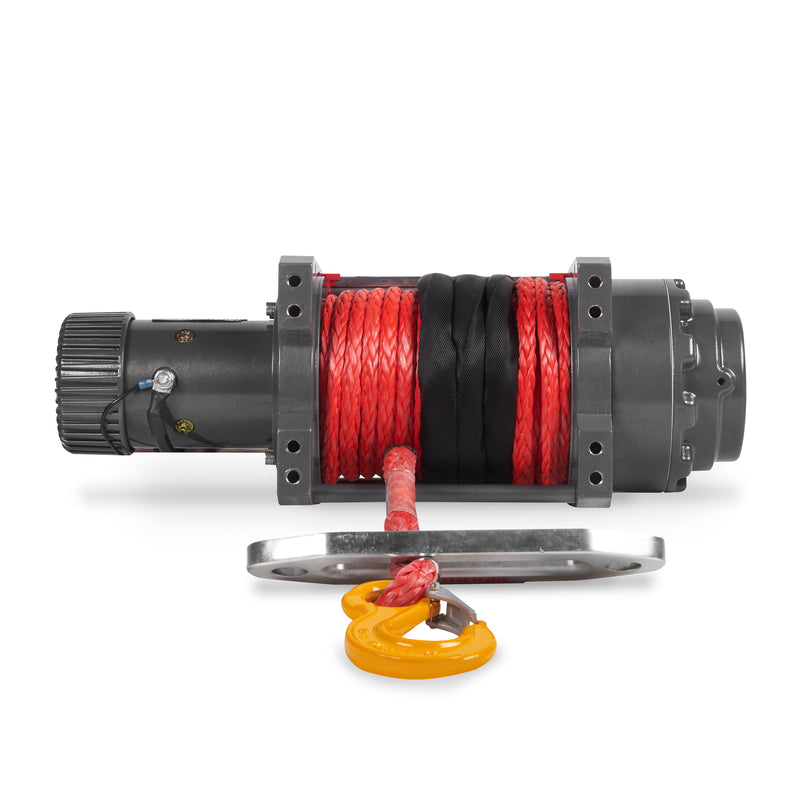

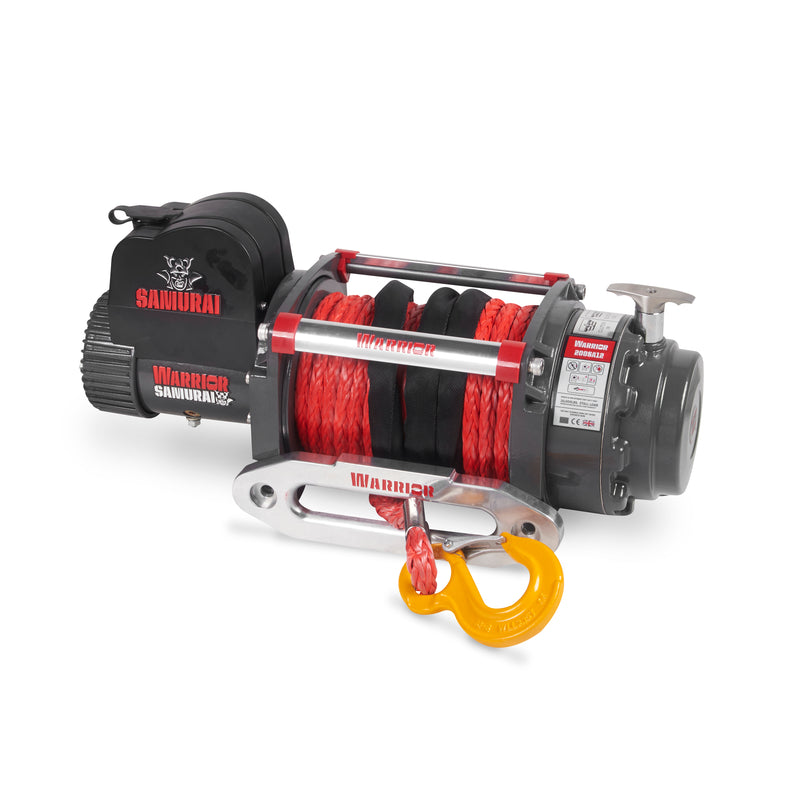

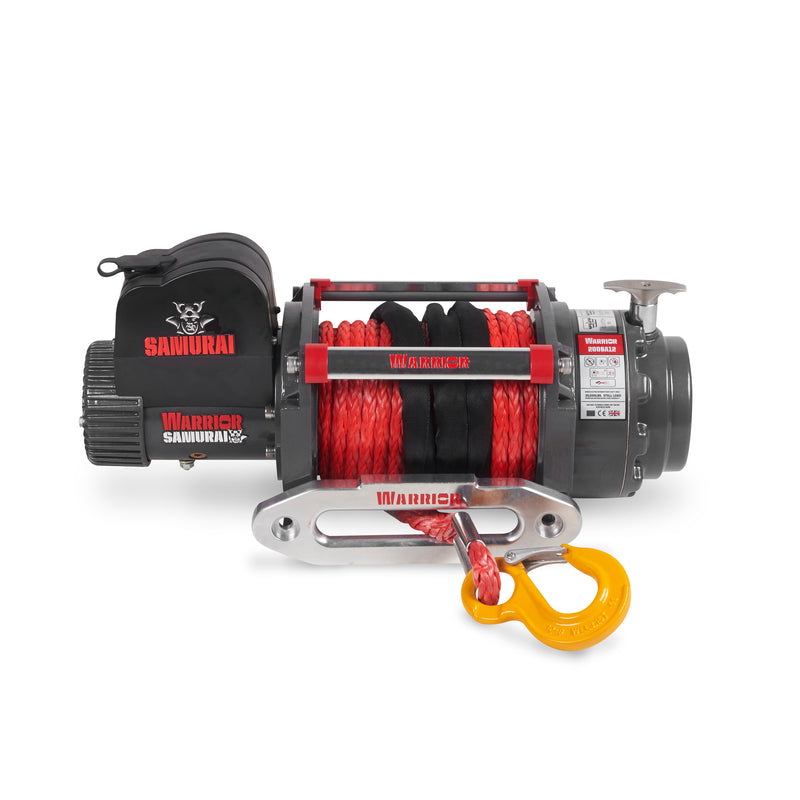

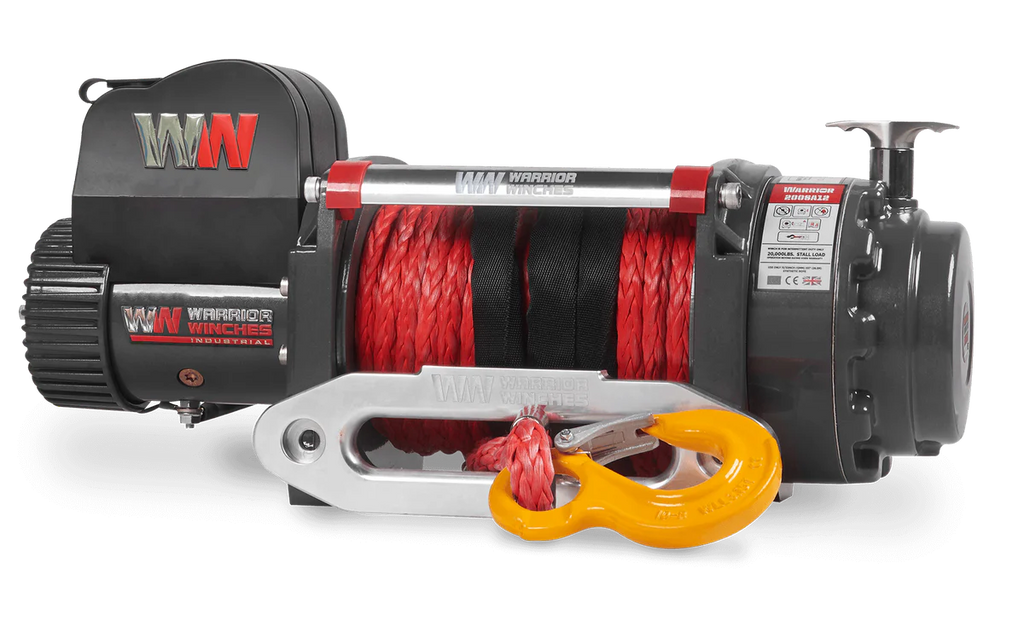

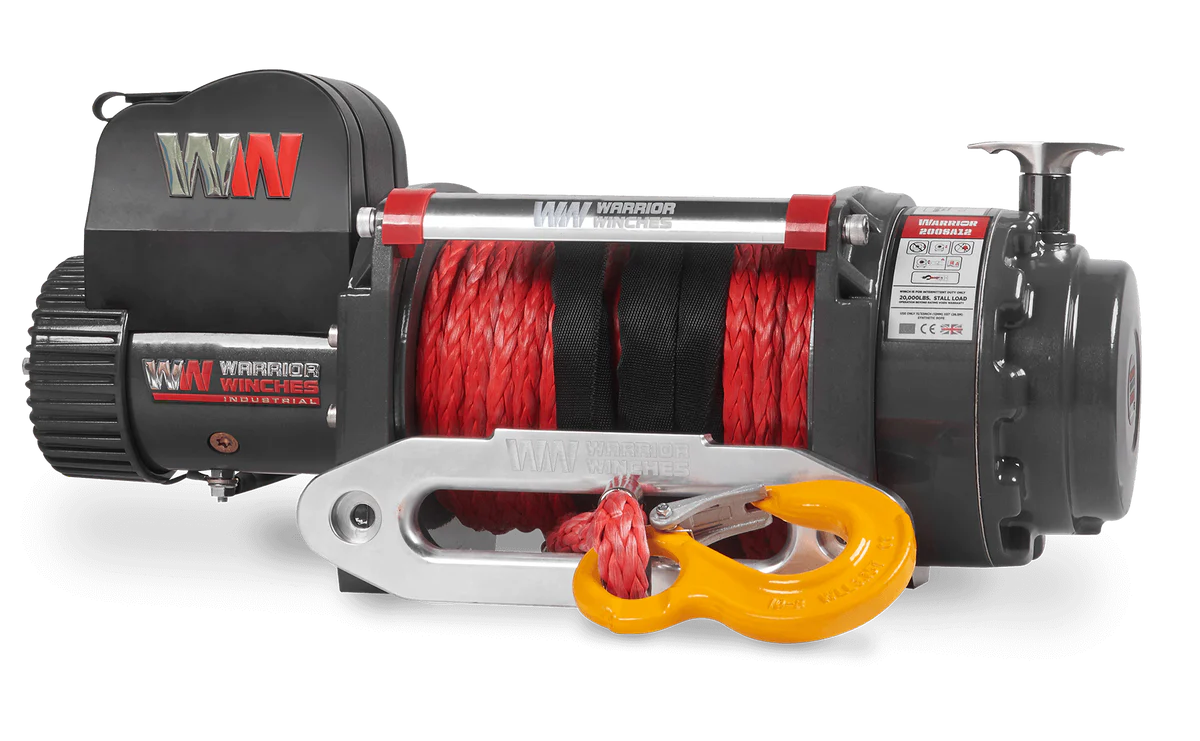

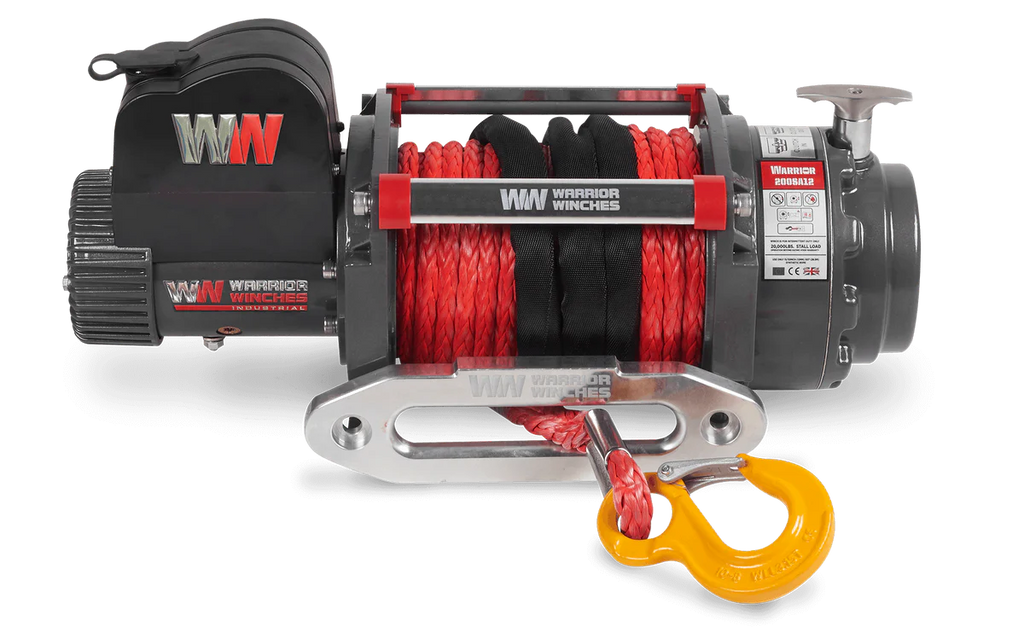

Warrior Samurai 20000 Winch
If you’re in need of incredible pulling power – look no further. Boasting a line capacity of a huge 9000kg, the Samurai S20000 offers one of the best £ for lb ratio on the market right now.
Getting any job done with ease, this winch has a line pull of 0.9m per minute at full load. With you a choice of either steel or synthetic rope, there’s no compromising on power.

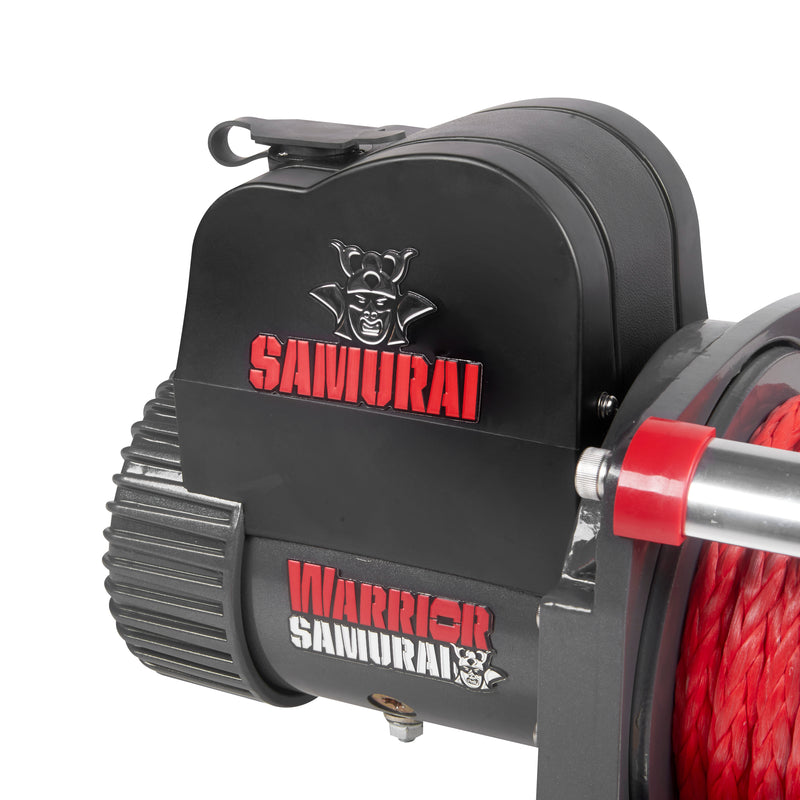

Protected against corrosion, the all-brass series wound motor is designed for long-life. Also including a double sealed motor and drum, as well as a sealed waterproof contactor, this Samurai winch is protected and prepared for all weathers.
Heavy-duty, super-strong and long lasting, the efficient full steel planetary gearing is the cherry on top of a high-quality winch that won’t break the bank.
Standard Features:
- Line Capacity: 20000lb (9072kg)
- Motor: Series Wound Motor - Powers In and Out

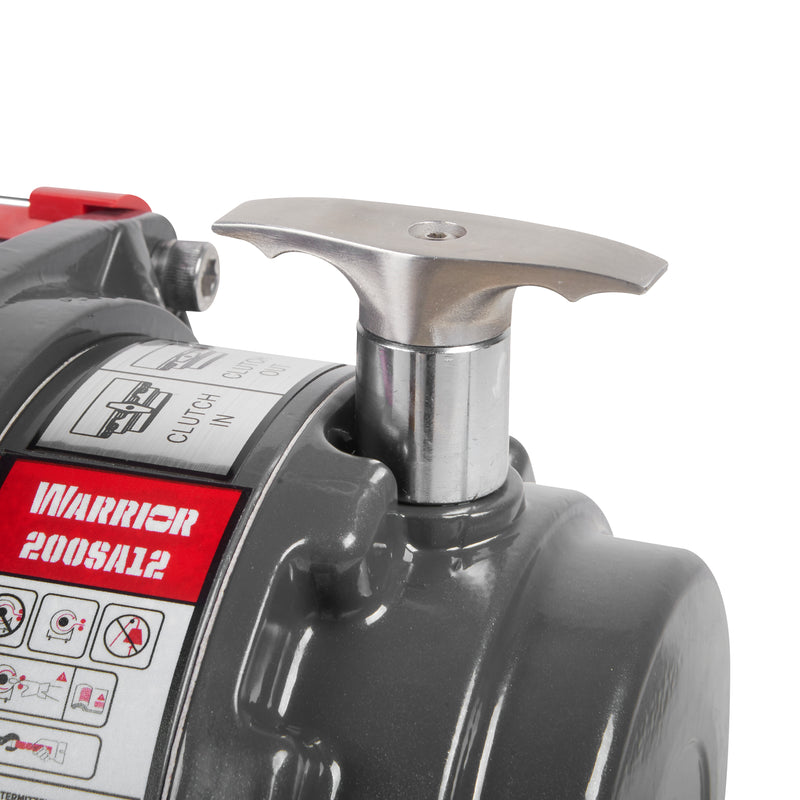

- Gearbox: Freespooling Clutch - Allows cable to be unwound manually
- Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover
Accessories:
- Wired Hand Control: 3m Wired Hand Control
- Mounting Plate: Available as an optional extra
- Mounting Bolts: Included for Standard installations
- 1.5m Heavy Duty Battery Cables (May need extending depending on application)
- Battery Isolation Switch (Failure to fit will invalidate warranty)
- Instruction Manual
Other Information:
- Dimensions: 610mm L x 218mm D x 272mm H
- Mounting Bolt Pattern: 254mm x 114.3mm and 254mm x 254mm x 165.1mm
- Line Pull - No Load: 6.0 m/min (100 Amps)
- Line Pull - Full Load: 9 m/min (480 Amps)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
| Rated Line Pull | 20000 lbs (9072 kg) |
|---|---|
| Motor | 12v : 7.8hp / 5.8kW 24v : 8.6hp / 6.4kW |
| Gearing | 430:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 89 x 217mm (3.5 x 8.5 in) |
| Cable - Dia x L | Steel: 12mm x 26.5m (0.47 in x 87 ft) Synthetic: 12mm x 25m (0.47 in x 82 ft) |
| Dimensions | 610 x 214 x 282mm (24.4 x 8.4 x 11.1 in) |
| Mounting Pattern | 254 x 114 mm (10 x 4.5 in) |
| Weight kg | Steel: 72 kg (158.7 lbs) Synthetic: 70 kg (154.3 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 20000 (9072) |
| 2 | 16160 (7330) |
| 3 | 13557 (6149) |
| 4 | 11677 (5297) |
| Line Pull lbs (kgs) |
Line Speed
12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 21.3 (6.5) | 19.7 (6.0) | 100 | 40 |
| 6000 (2728) | 7.2 (2.2) | 7.9 (2.4) | 220 | 100 |
| 10000 (4545) | 5.6 (1.7) | 5.9 (1.8) | 320 | 140 |
| 12500 (5682) | 4.9 (1.5) | 5.2 (1.6) | 350 | 180 |
| 14000 (6350) | 4.6 (1.4) | 4.6 (1.4) | 380 | 200 |
| 17500 (7938) | 3.0 (0.9) | 3.9 (1.2) | 450 | 250 |
| 20000 (9072) | 3.0 (0.9) | 3.3 (1.0) | 480 | 265 |

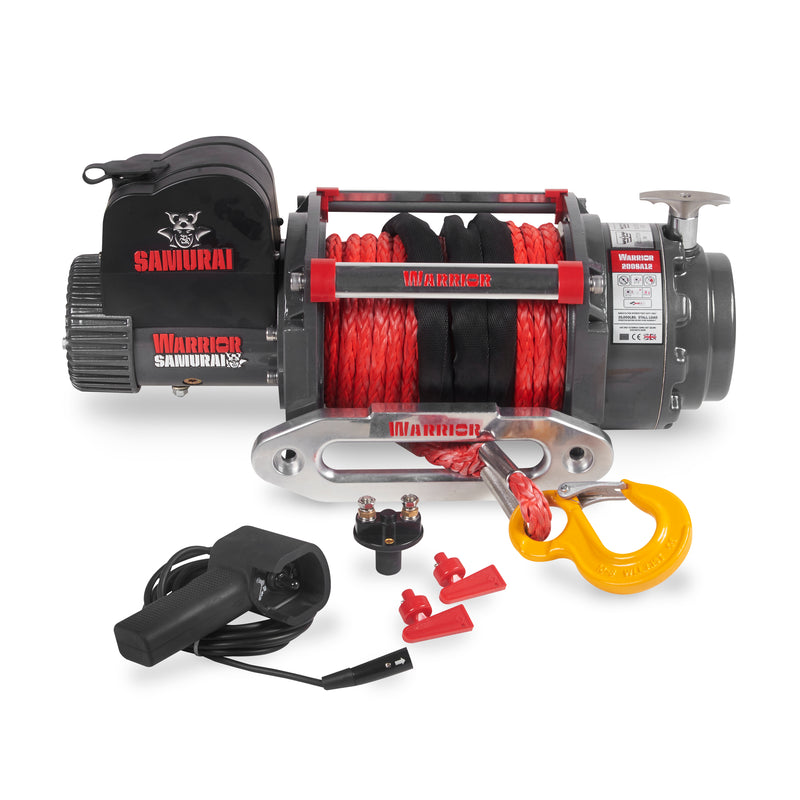

What's in the box:
- 3.8m Remote Handset

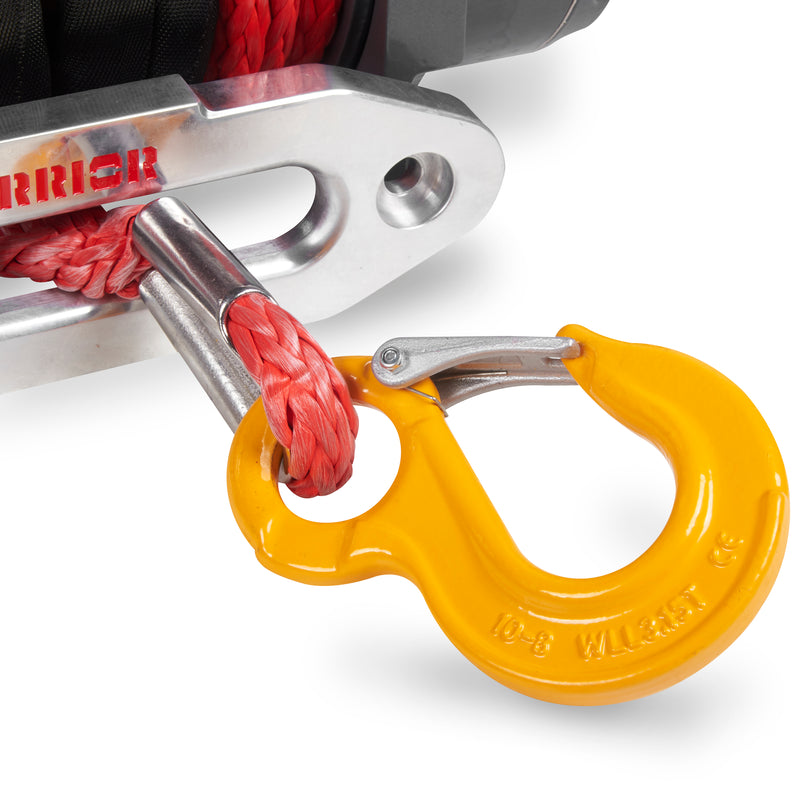

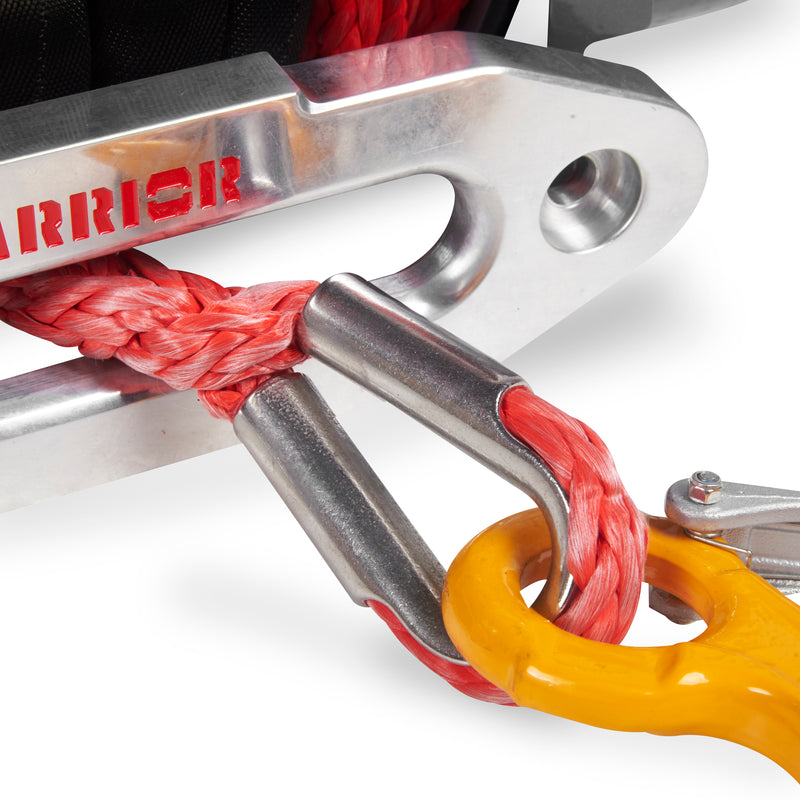

- 3/8 Hook

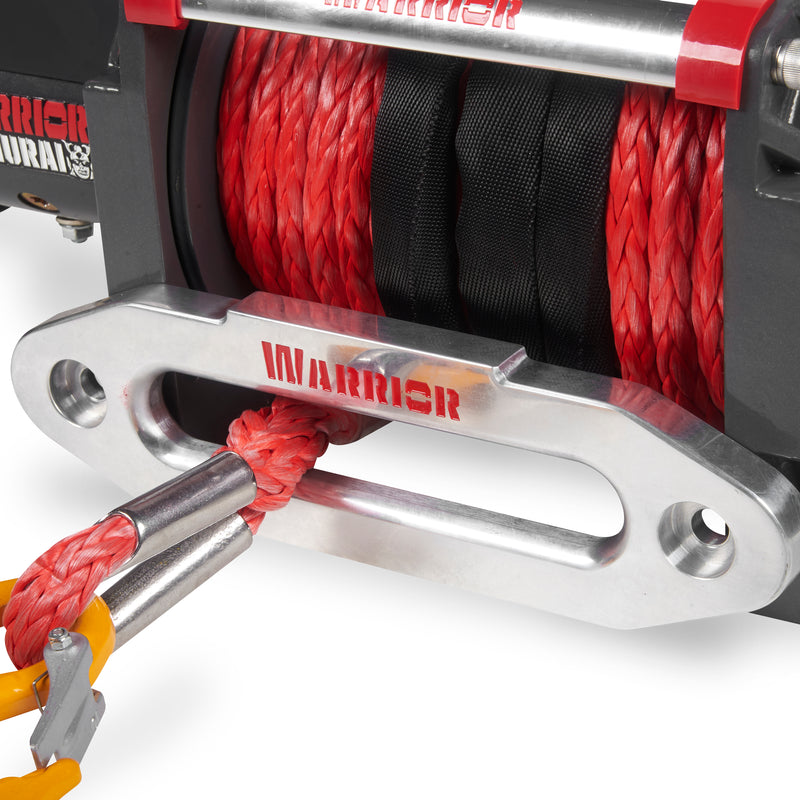

- Heavy Duty Stainless Steel Roller (Steel) or Aluminium Fairlead (Synthetic)

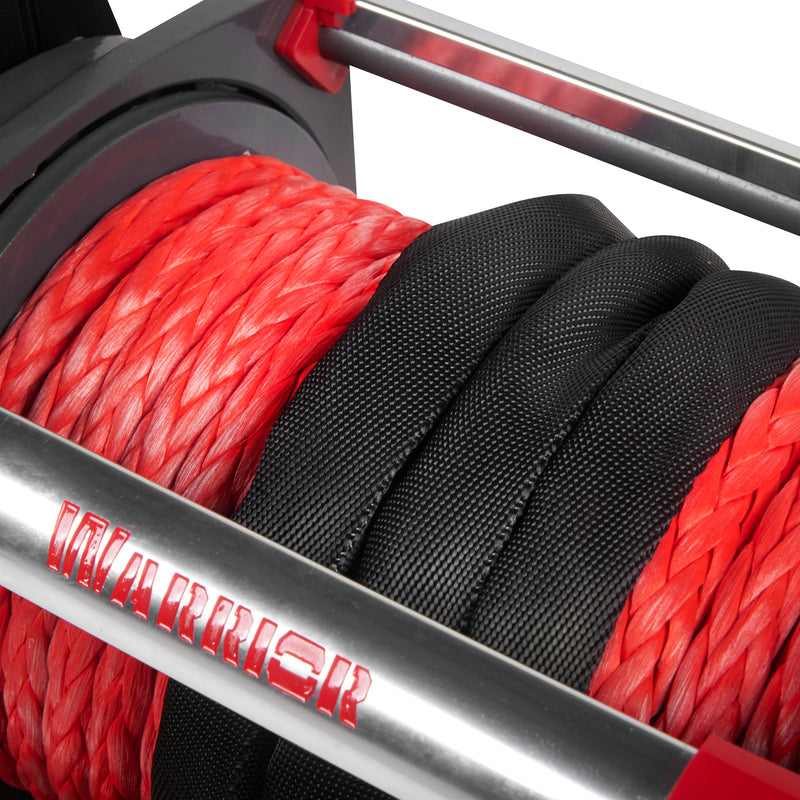

- Steel or Synthetic Rope
- Isolation Switch
- Heavy Duty Battery Leads
- Stainless Steel Mounting Hardware
Reviews and Q&A
-
what hp motor does this winch have
Motor 12v : 7.8hp / 5.8kW
24v : 8.6hp / 6.4kW -
how long is the rope that comes with the winch thanks
Cable - Dia x L Steel: 12mm x 26.5m (0.47 in x 87 ft)
Synthetic: 12mm x 25m (0.47 in x 82 ft)
