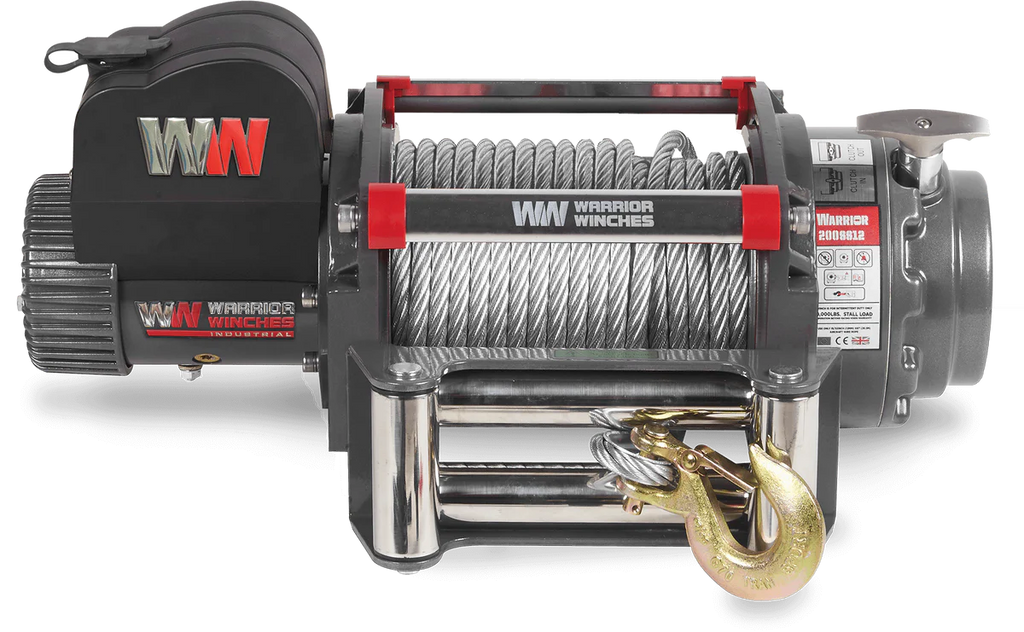

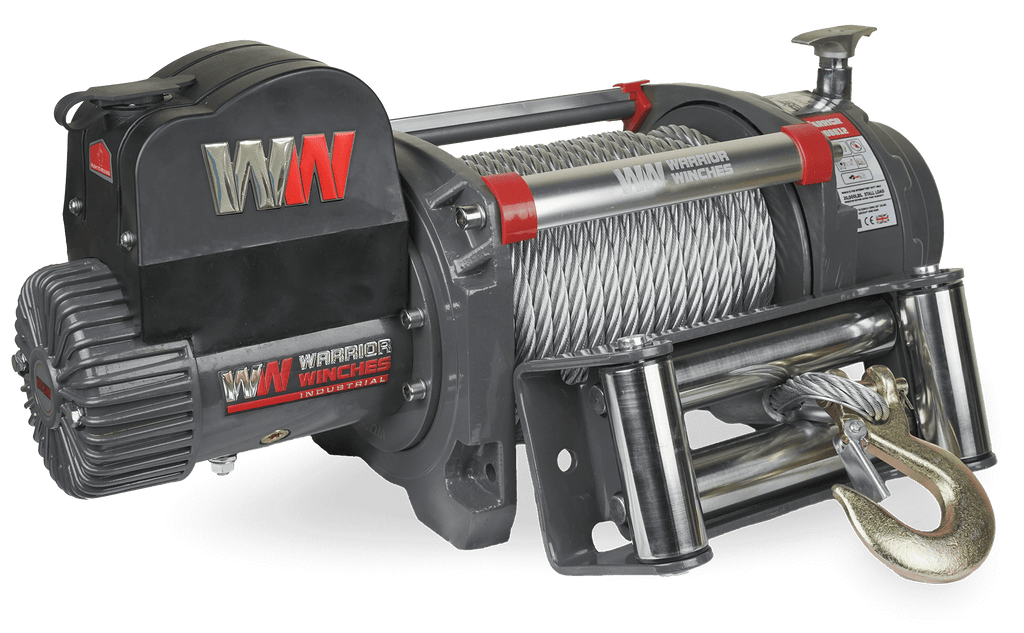

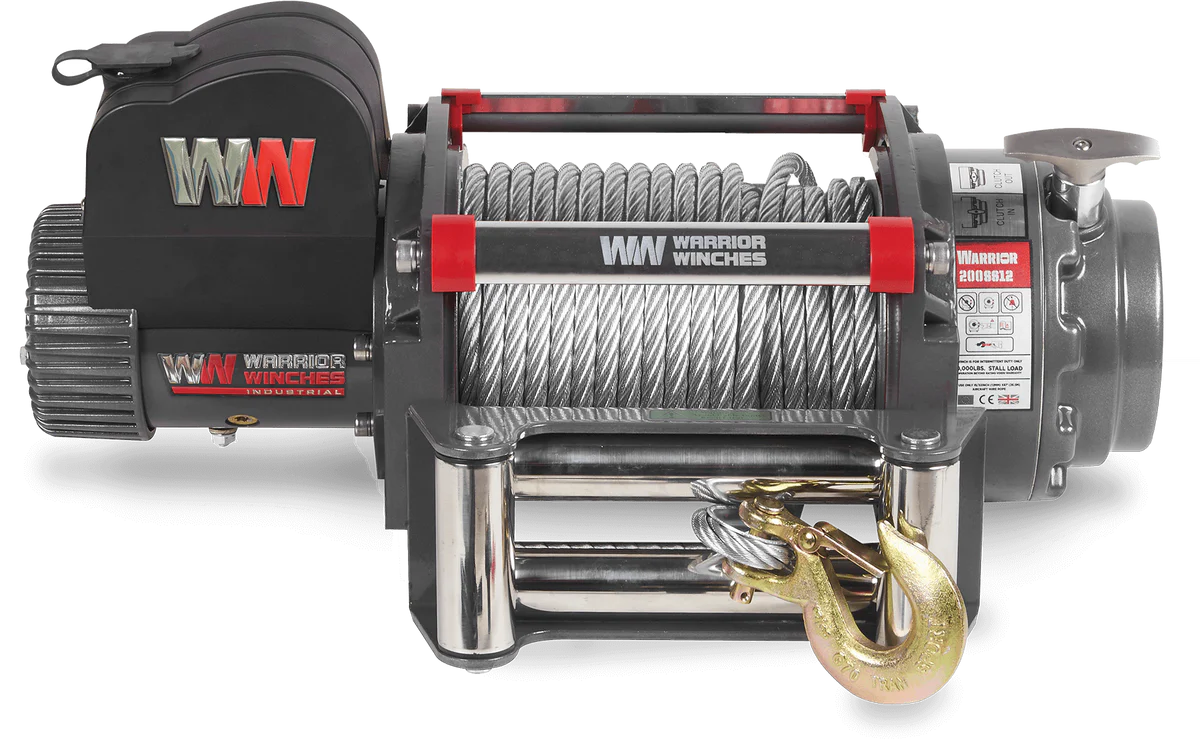

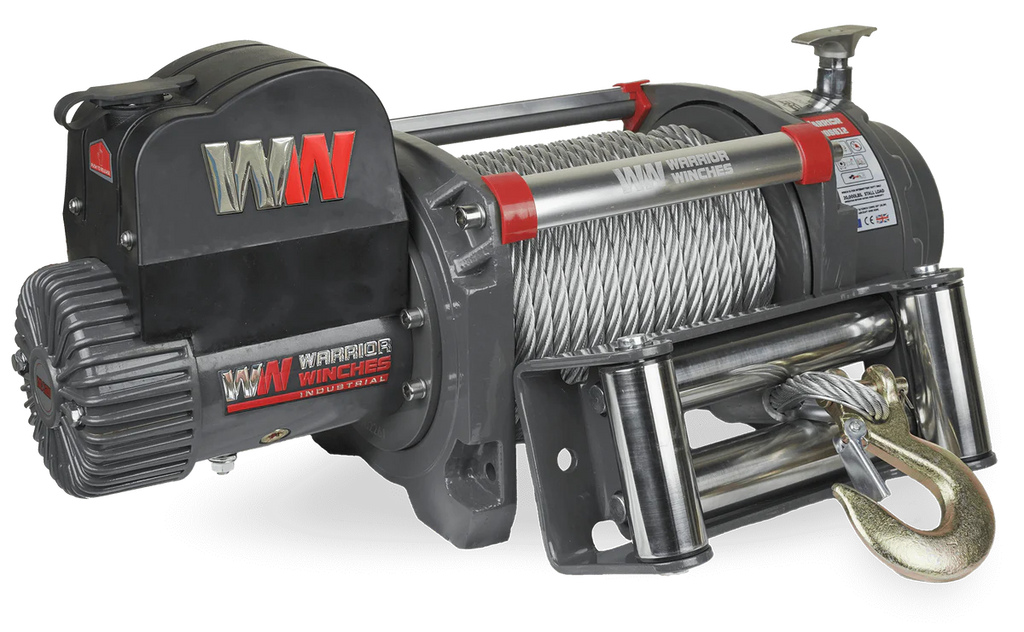

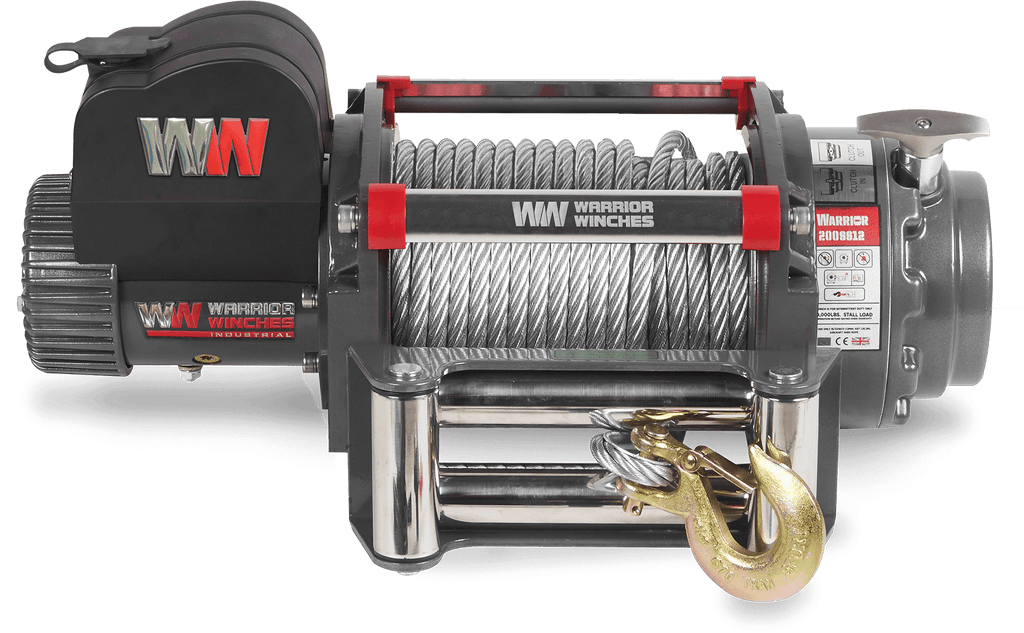

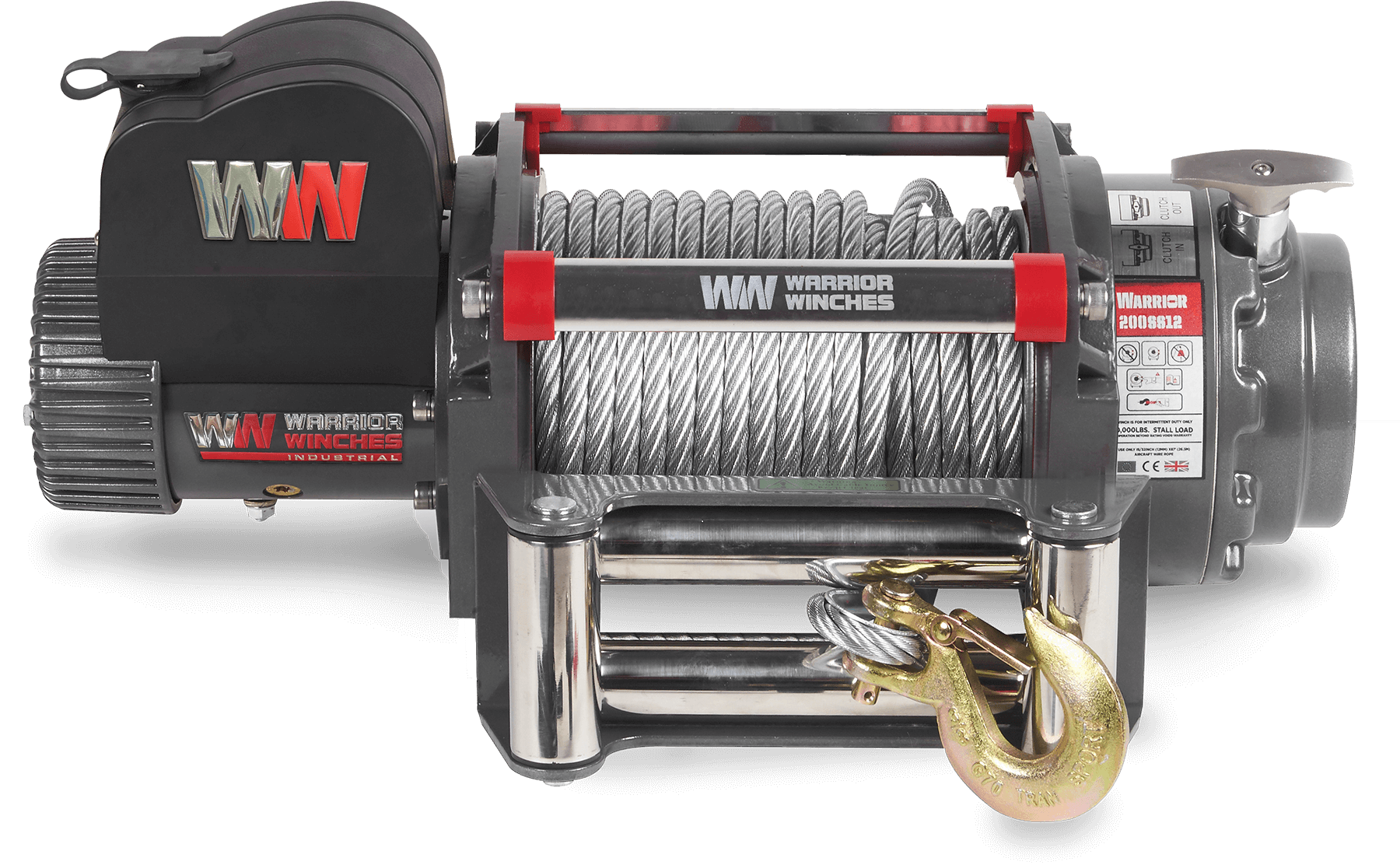

Samurai 20000 Electric Winch - 24v Steel Rope

£1,129.99
Delivery in 1-2 working days

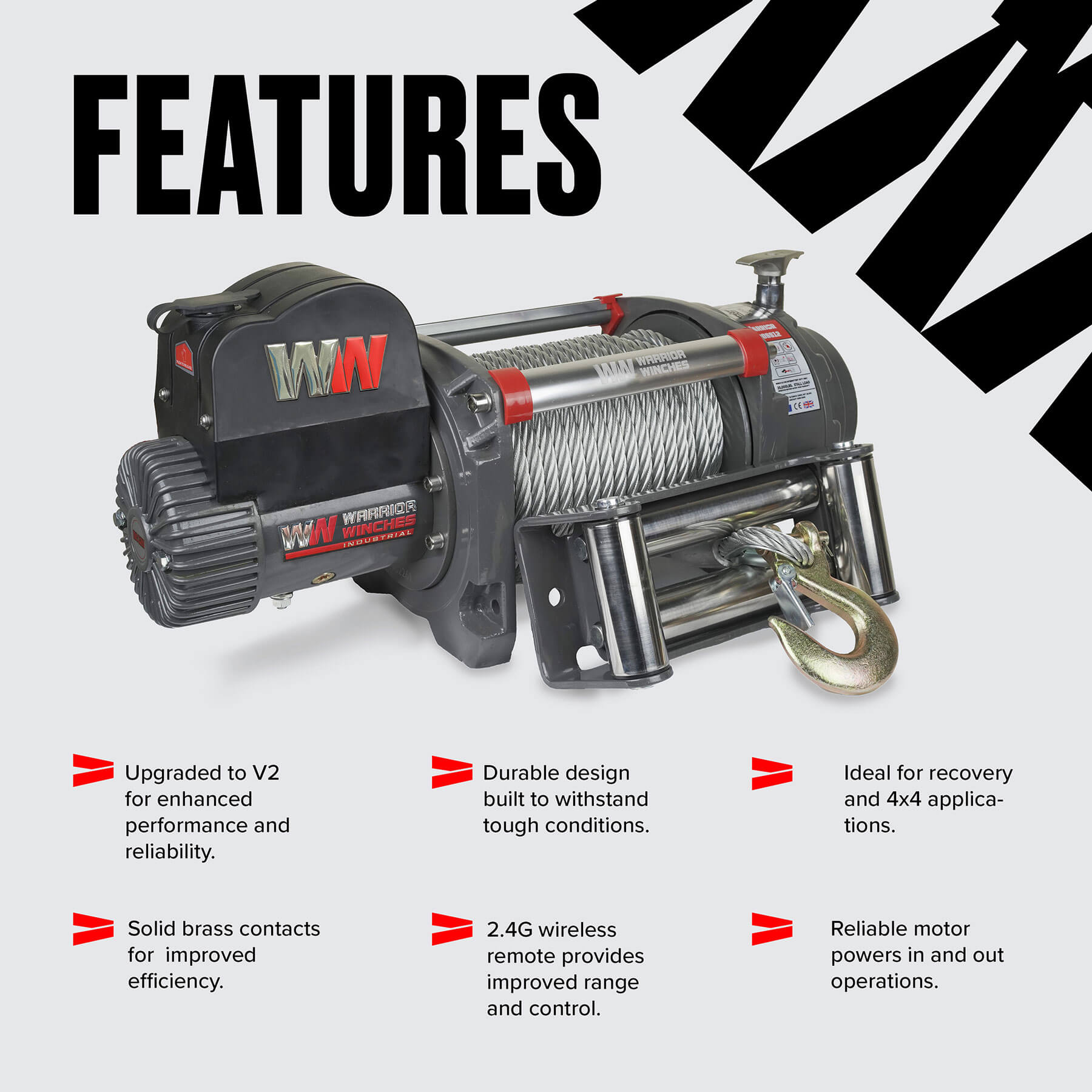

Features

  • All Brass (no corrosion) Series Wound Motor
  • Double Sealed Motor
  • Sealed Waterproof Contactor
  • Sealed 3 Stage Planetary Gears
  • Contactor Cover for Added Protection

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Warrior Samurai 20000 Winch - 24v With Steel Rope

If you’re in need of incredible pulling power – look no further. Boasting a line capacity of a huge 9000kg, the Samurai S20000 offers one of the best £ for lb ratio on the market right now.

Getting any job done with ease, this winch has a line pull of 0.9m per minute at full load. With you a choice of either steel or synthetic rope, there’s no compromising on power.

Protected against corrosion, the all-brass series wound motor is designed for long-life. Also including a double sealed motor and drum, as well as a sealed waterproof contactor, this Samurai winch is protected and prepared for all weathers.

Heavy-duty, super-strong and long lasting, the efficient full steel planetary gearing is the cherry on top of a high-quality winch that won’t break the bank.

Standard Features:

  • Line Capacity: 20000lb (9072kg)
  • Motor: Series Wound Motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover

Accessories:

  • Wired Hand Control: 3m Wired Hand Control
  • Mounting Plate: Available as an optional extra
  • Mounting Bolts: Included for Standard installations
  • 1.5m Heavy Duty Battery Cables (May need extending depending on application)
  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual

Other Information:

  • Dimensions: 610mm L x 218mm D x 272mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm and 254mm x 254mm x 165.1mm
  • Line Pull - No Load: 6.0 m/min (100 Amps)
  • Line Pull - Full Load: 0.9 m/min (480 Amps)




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku200SS24
EAN5060423980759
Rated Line Pull20000 lbs
Motor Type24V: Input: 8.6hp / 6.4kW; Output: 4.4hp / 3.3kW
Rated Volt24
ClutchManual
Gearing430:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)89 x 217 mm
ControlsWired Remote
Cable MaterialSteel
Cable Size (Diameter x Length)12mm x 26.5m
FairleadRoller
Mounting Pattern254mm x 114.3mm / 254mm x 165.1mm
Dimensions620 x 214 x 282 mm
Weight72.0 kg
Warranty5 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 20000 (9072)
2 16160 (7330)
3 13557 (6149)
4 11677 (5297)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 21.3 (6.5) 19.7 (6.0) 100 40
6000 (2728) 7.2 (2.2) 7.9 (2.4) 220 100
10000 (4545) 5.6 (1.7) 5.9 (1.8) 320 140
12500 (5682) 4.9 (1.5) 5.2 (1.6) 350 180
14000 (6350) 4.6 (1.4) 4.6 (1.4) 380 200
17500 (7938) 3.0 (0.9) 3.9 (1.2) 450 250
20000 (9072) 3.0 (0.9) 3.3 (1.0) 480 265

What's in the box:

  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 3/8 Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)

Downloads:

User Manual Download
Brochure Download

Videos:

Load Test


Brake Test


How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 5 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
  • Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

 To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • what hp motor does this winch have

    Motor 12v : 7.8hp / 5.8kW
    24v : 8.6hp / 6.4kW
