JR 10 Tonne Industrial Hydraulic Winch

£3,254.99
Delivery in 1-2 working days

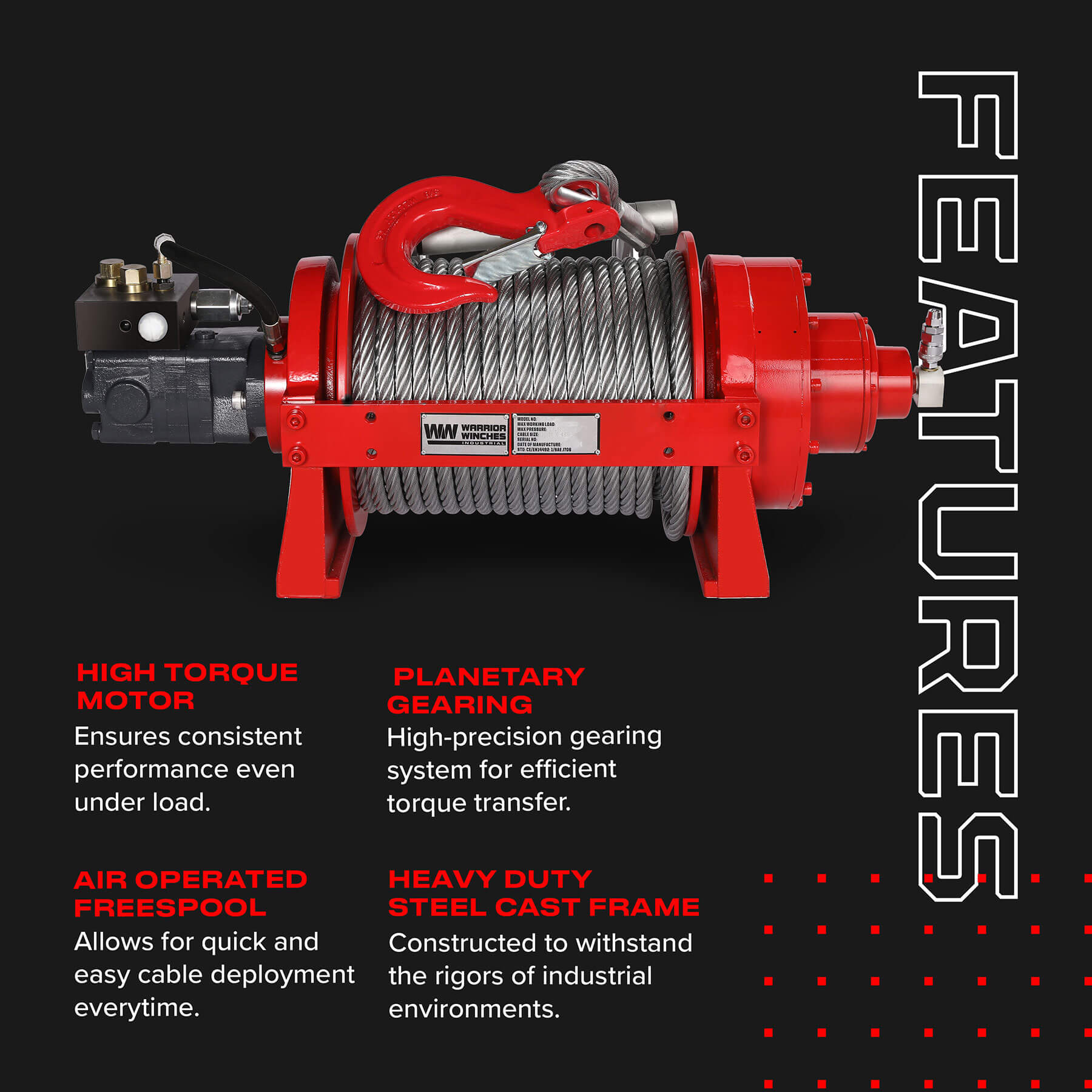

Features

  • Rugged High Torque Motor: Designed to handle heavy-duty tasks, ensuring consistent performance under load
  • 2-Stage Planetary Gearing: High-precision gearing system for efficient torque transfer and smooth operation.
  • Air Operated Freespool: Allows for quick and easy cable deployment, enhancing operational efficiency.
  • Heavy Duty Steel Cast Frame: Constructed to withstand the rigors of industrial environments, ensuring durability and longevity.
  • Complete with Balance Valve: Ensures smooth and controlled lowering of the load, enhancing safety during operations.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

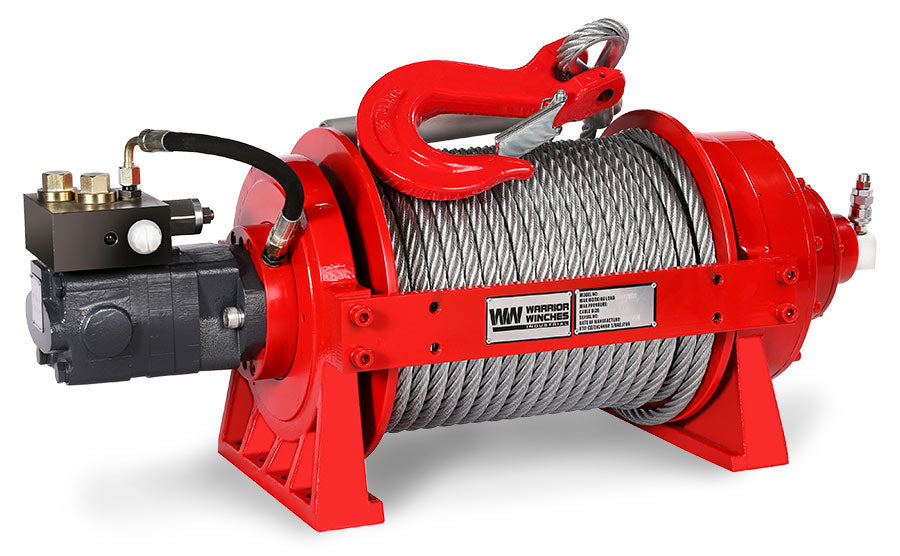

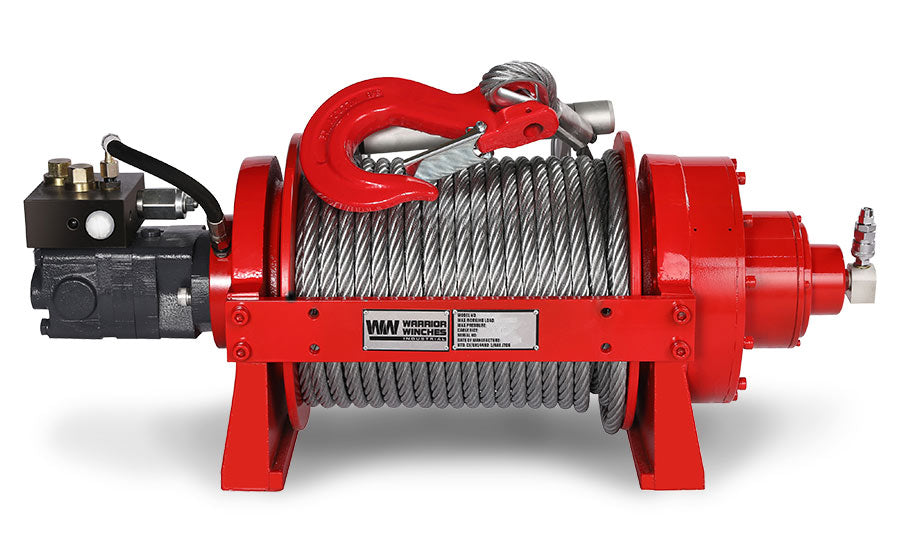

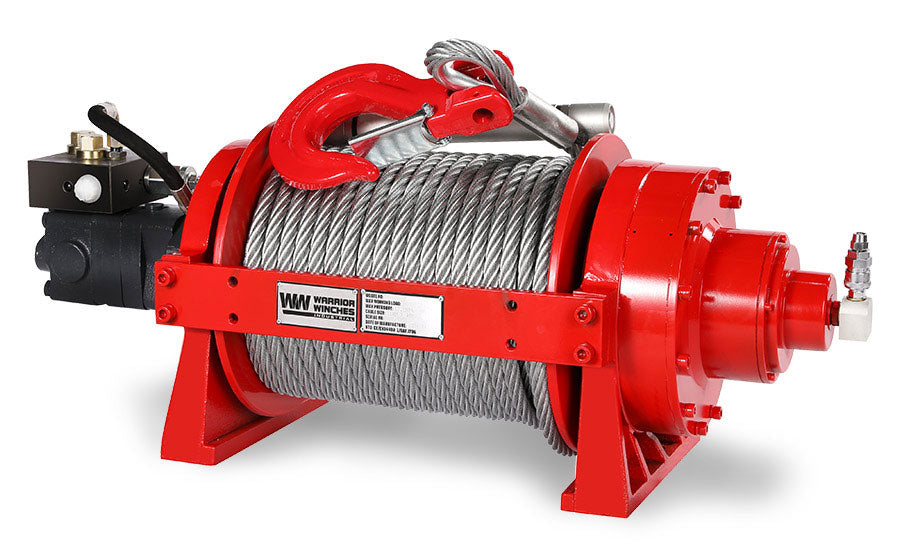

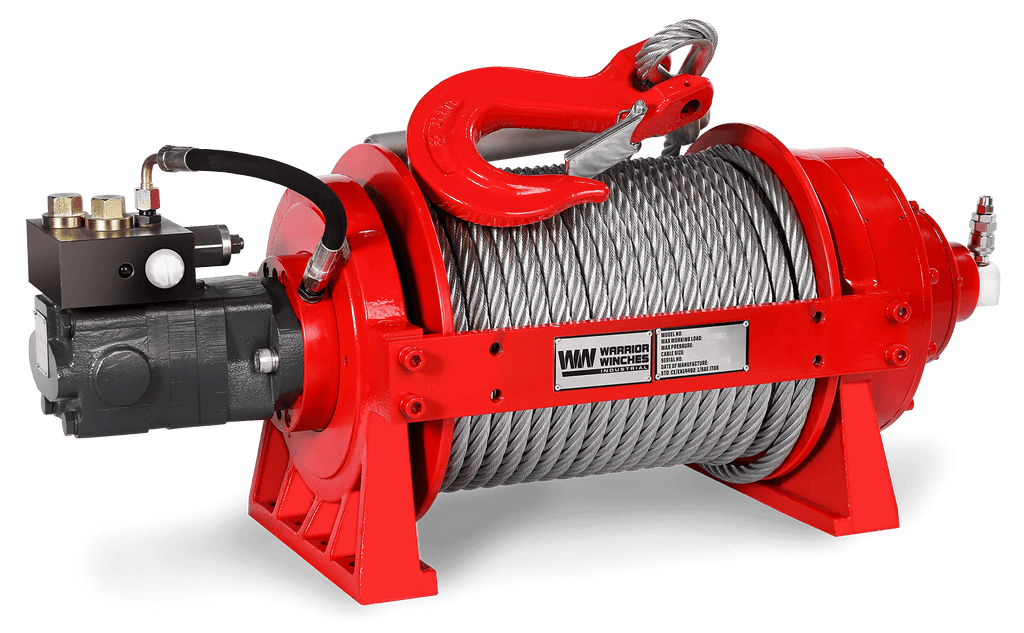

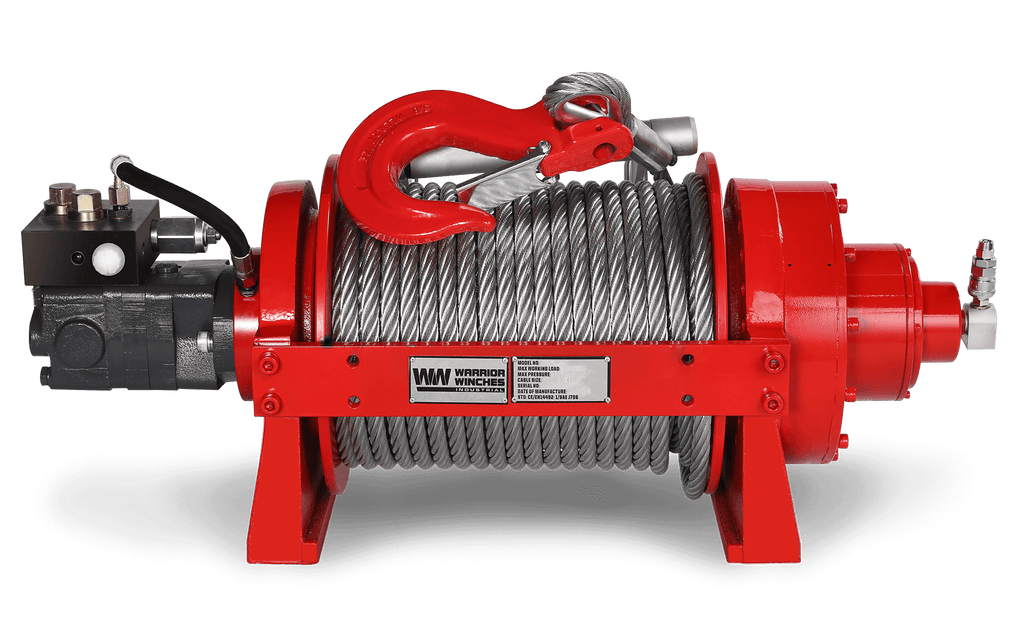

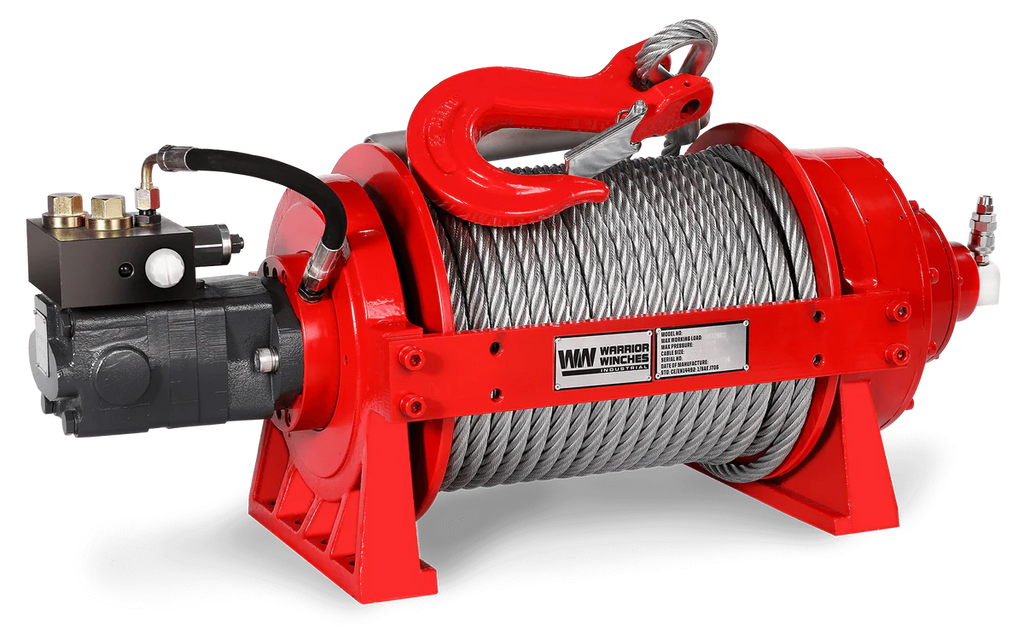

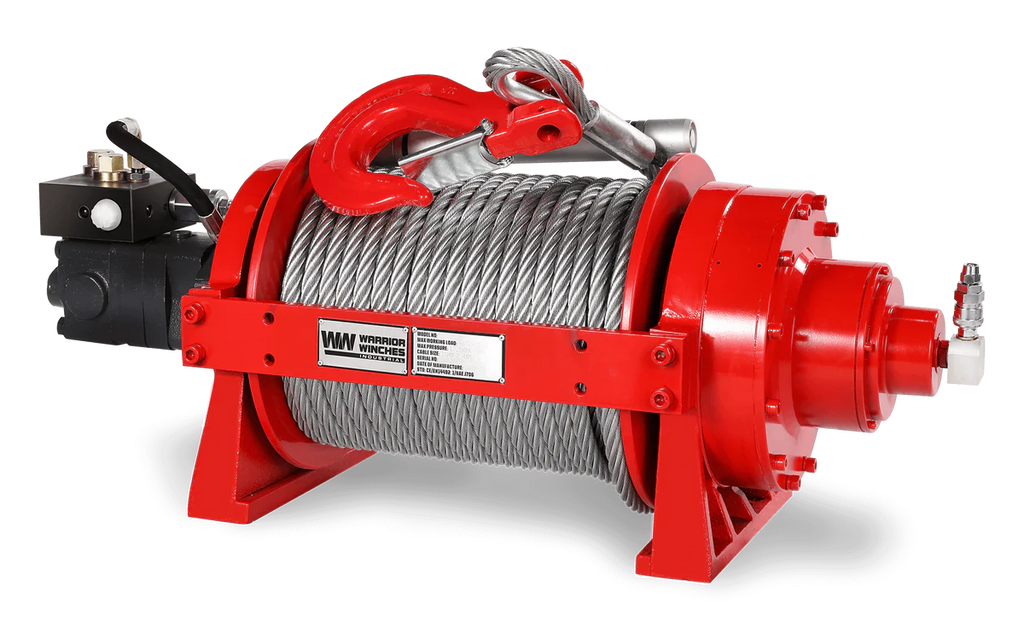

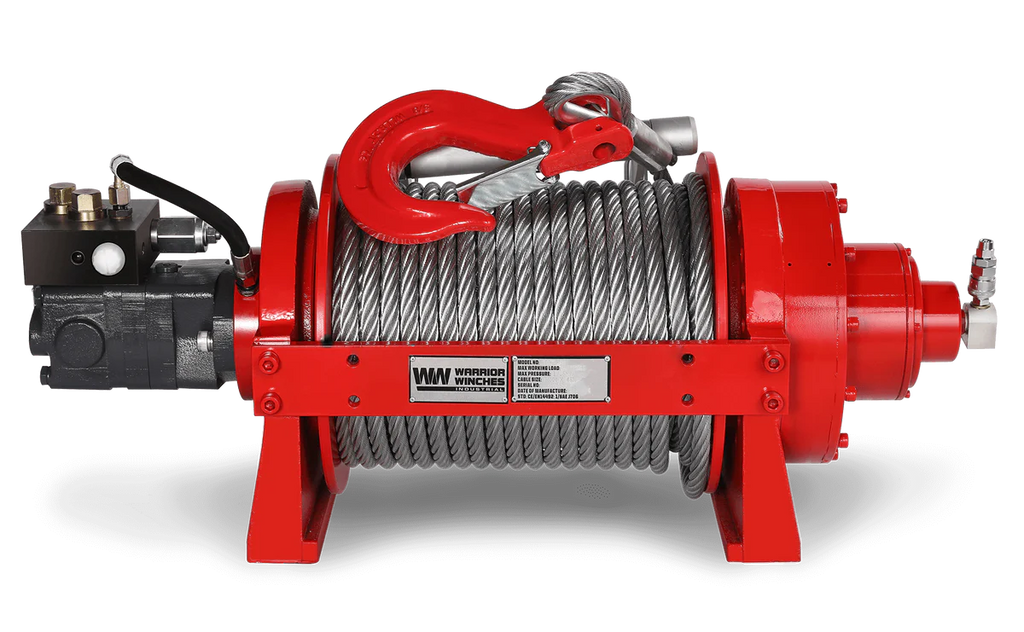

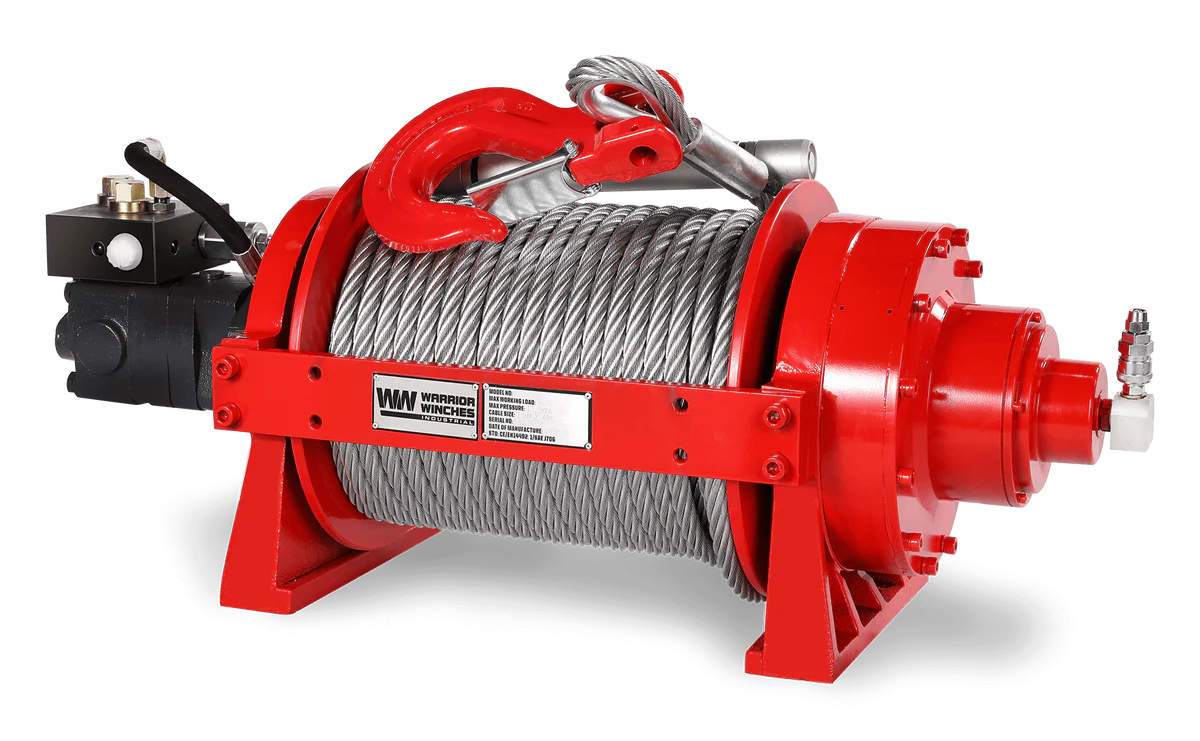

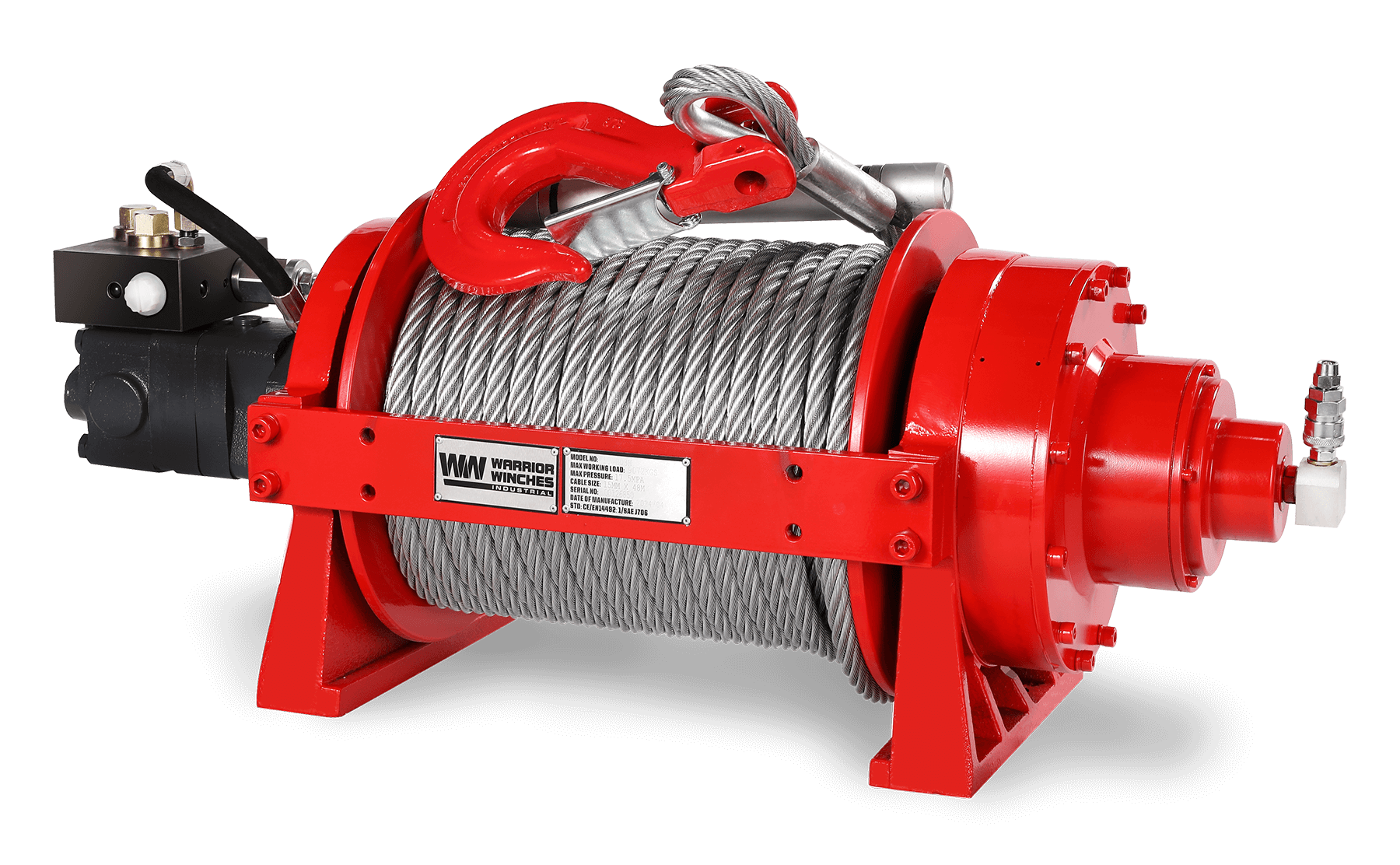

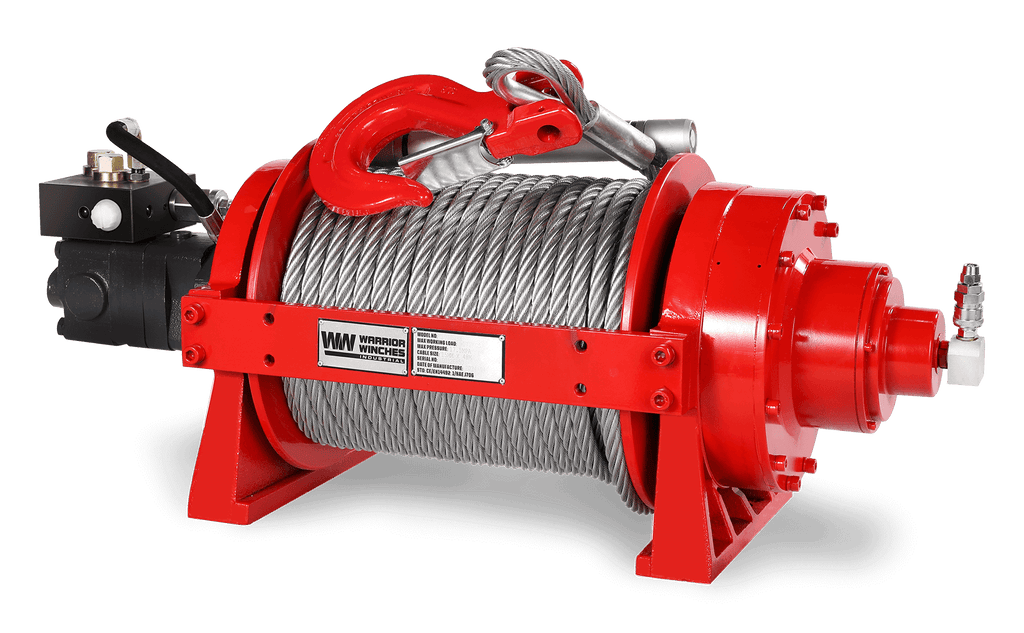

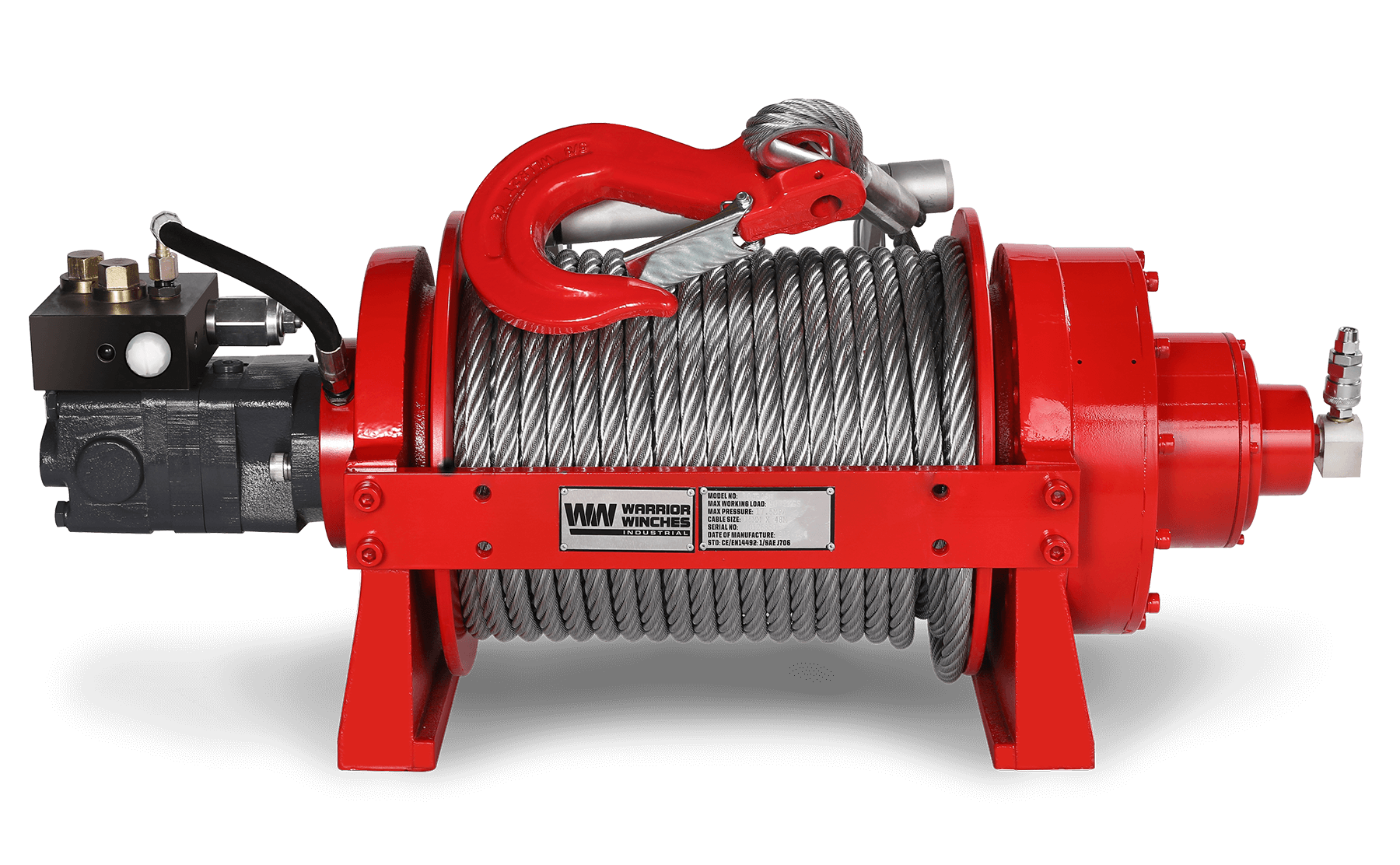

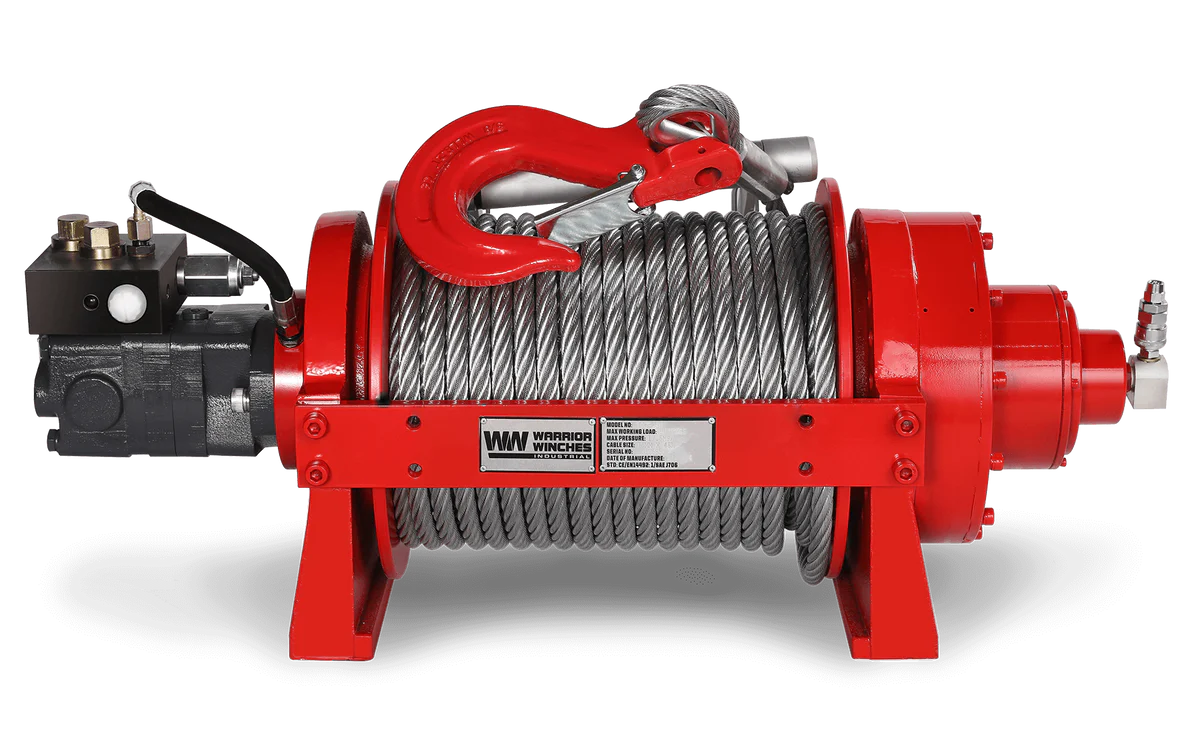

Warrior 10JR Industrial 10 Tonne Hydraulic Winch

The complete Package. A superb heavy duty winch supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.

Standard Features:

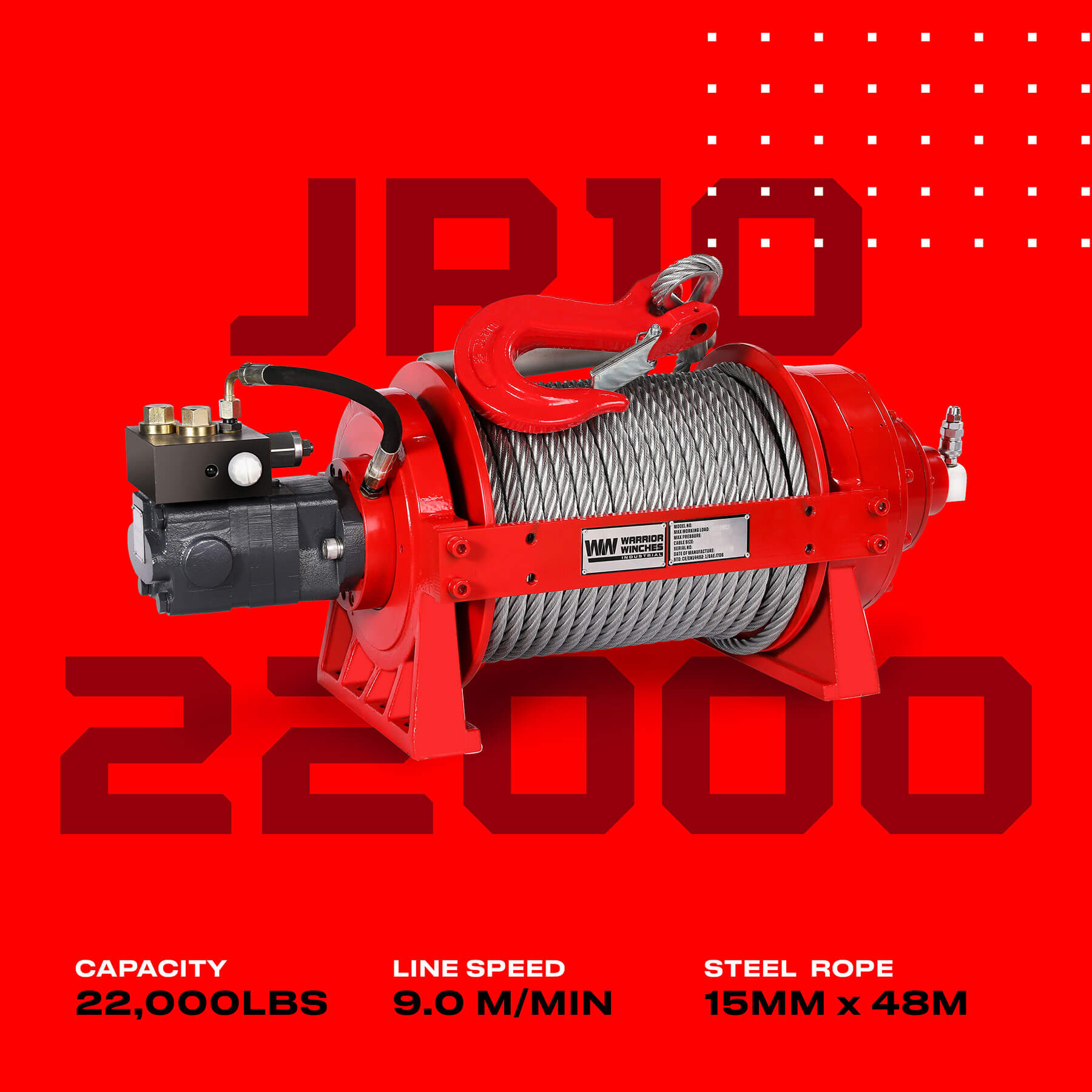

♦ Line Capacity: 22,000lb (10,000kg)
♦ RopeSteel cable 15mm x 48m
♦ MotorHydraulic
♦ Gearbox: 39:01:00
♦ Warranty: Limited Five Year Mechanical

Accessories:

♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Fairlead: Roller Fairlead optional extra (RF2000)
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Balance Valve
♦ Cable Tensioner
♦ Instruction Manual

Other Information:

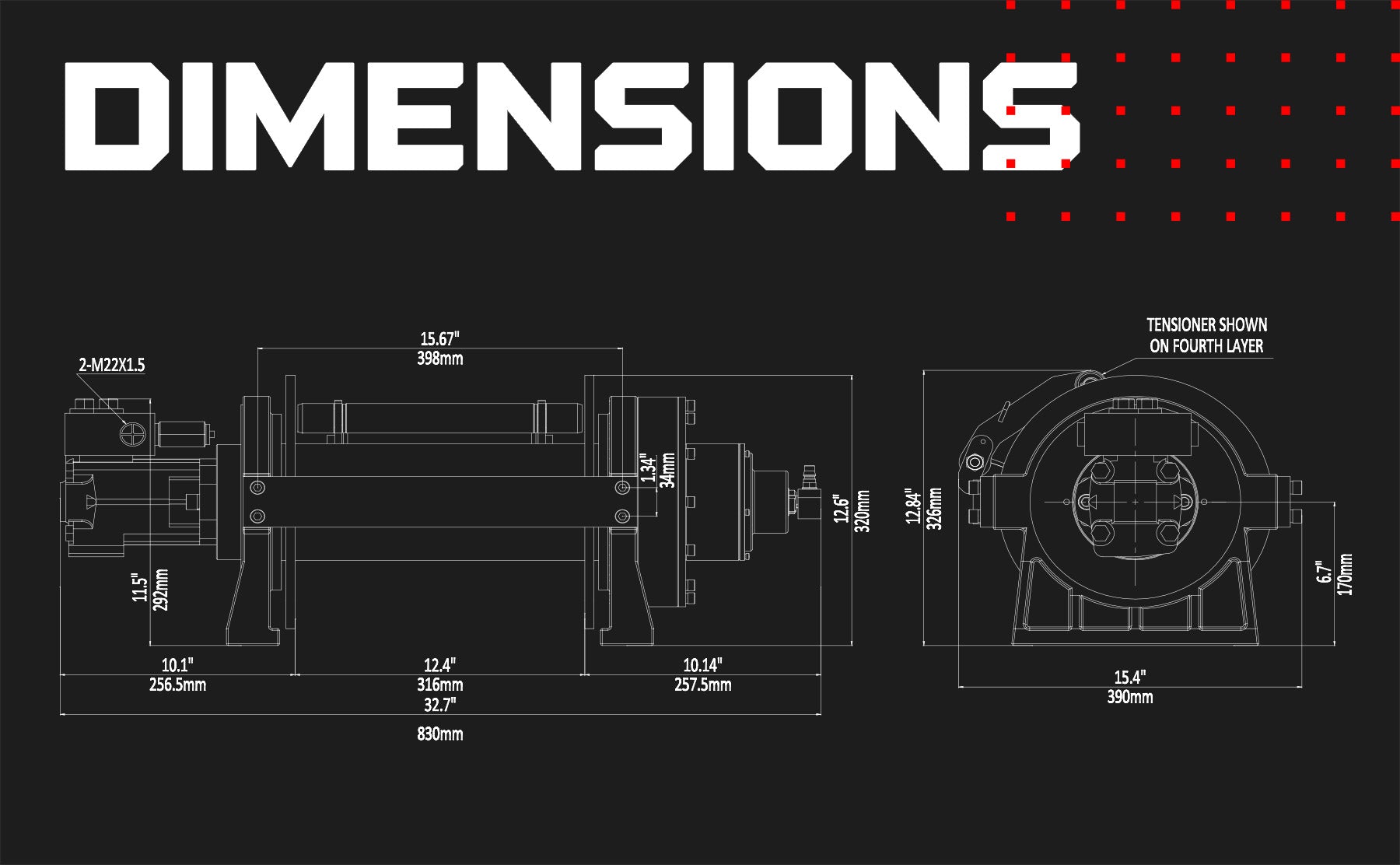

♦ Dimensions: 830mm L x 390mm D x 320mm H
♦ Mounting Bolt Pattern: 431mm x 192mm
♦ Approx. Shipping Weight: 165kg




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku10JR03H
EAN5060966746577
Rated Line Pull22000 lbs
Max Flow L/Min75 L/Min
Max Pressure MPA20.0 Bar
Motor TypeHydraulic Sauer Danfoss OMS 100
ClutchAir Clutch
Gearing39:1
Gearing SystemPlanetary
Braking ActionAuto Hydraulic
Drum Size (Diameter x Length)138 x 316 mm
ControlsN/A
Cable MaterialSteel
Cable Size (Diameter x Length)15mm x 48.0m
FairleadN/A
Mounting Pattern431mm × 64mm × 192mm
Dimensions830 x 390 x 320 mm
Weight165.0 kg
Warranty5 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 22046 (10000)
2 16889 (7661)
3 14615 (6630)
4 12881 (5843)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 5.9 (1.8) 15 25
4000 (1814) 11.7(3.6) 30 42
8000 (3629) 19.6 (6.0) 50 85
15000 (6804) 23.6 (7.2) 60 140
22046 (10000) 29.7 (9.0) 75 175

What's in the box:

  • JP Hydraulic Winch
  • Steel Winch Rope
  • 22 Ton Hook
  • Balance Valve
  • Tensioner

Downloads:

User Manual Download
Brochure Download

Videos:

Load Test


How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 5 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
  • Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

 To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • Hi I’m after a pulling winch that can pull at least 6 ton. What extra things do I need to make this work. Ie oil tank, power requirements (plug type etc). Anything else ? It will bolt down onto steel

    In order to offer a full repsonse, it would be great if you could contact our sales team to discuss this.  We would need to know if the 6t is a dead weight or a rolloing load and if there is any incline in order to be able to respond with any accuracy.
