Stealth 4500lb Winch

|   6 Questions Answered
SKU: 45STA12

12v Synthetic Rope
Rope: 15m Synthetic Rope
Price:
Sale price£169.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • SUPER STRONG –Pulling power of 4500lb or over 2000kg!
  • HARDWEARING – Built with full steel gearing and a sealed solenoid for durability.
  • SYNTHETIC OR STEEL ROPE – With your choice of a synthetic or steel rope.
  • WIRELESS CONTROLS – Includes two wireless remote controls.
  • MOUNTING PLATE INCLUDED – Allows a more permanent instalment.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

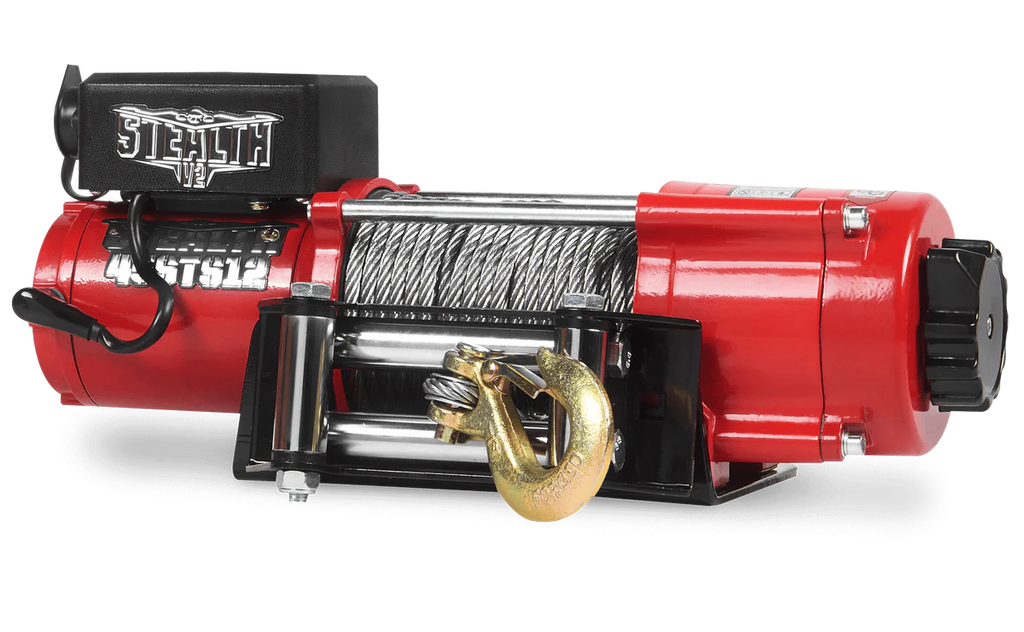

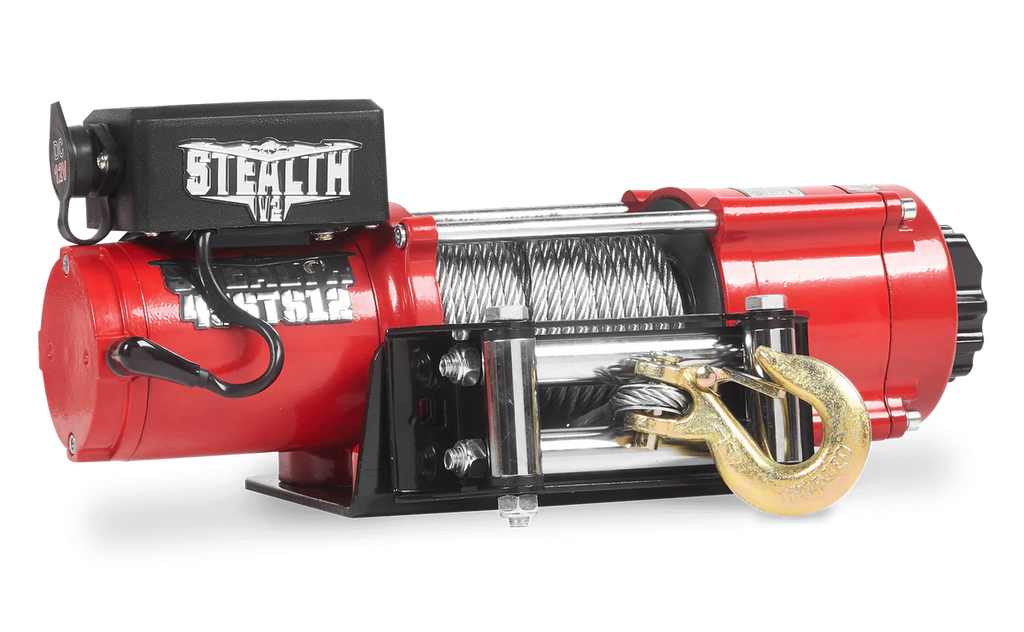

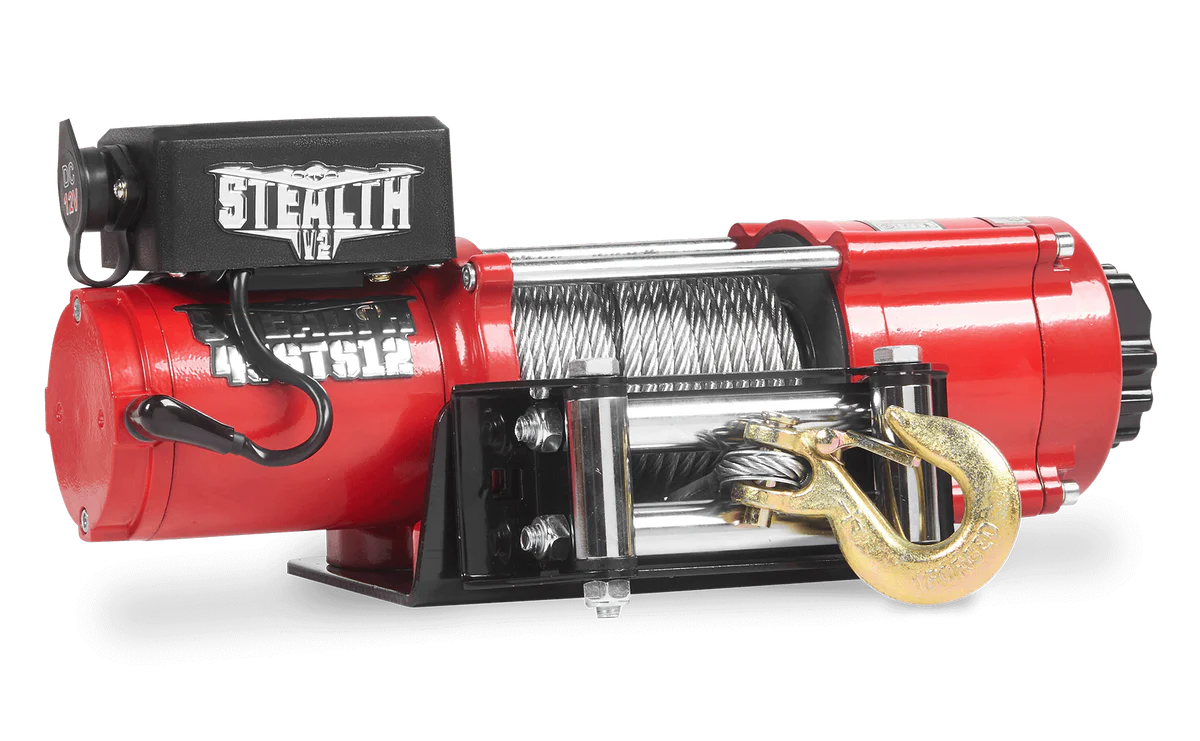

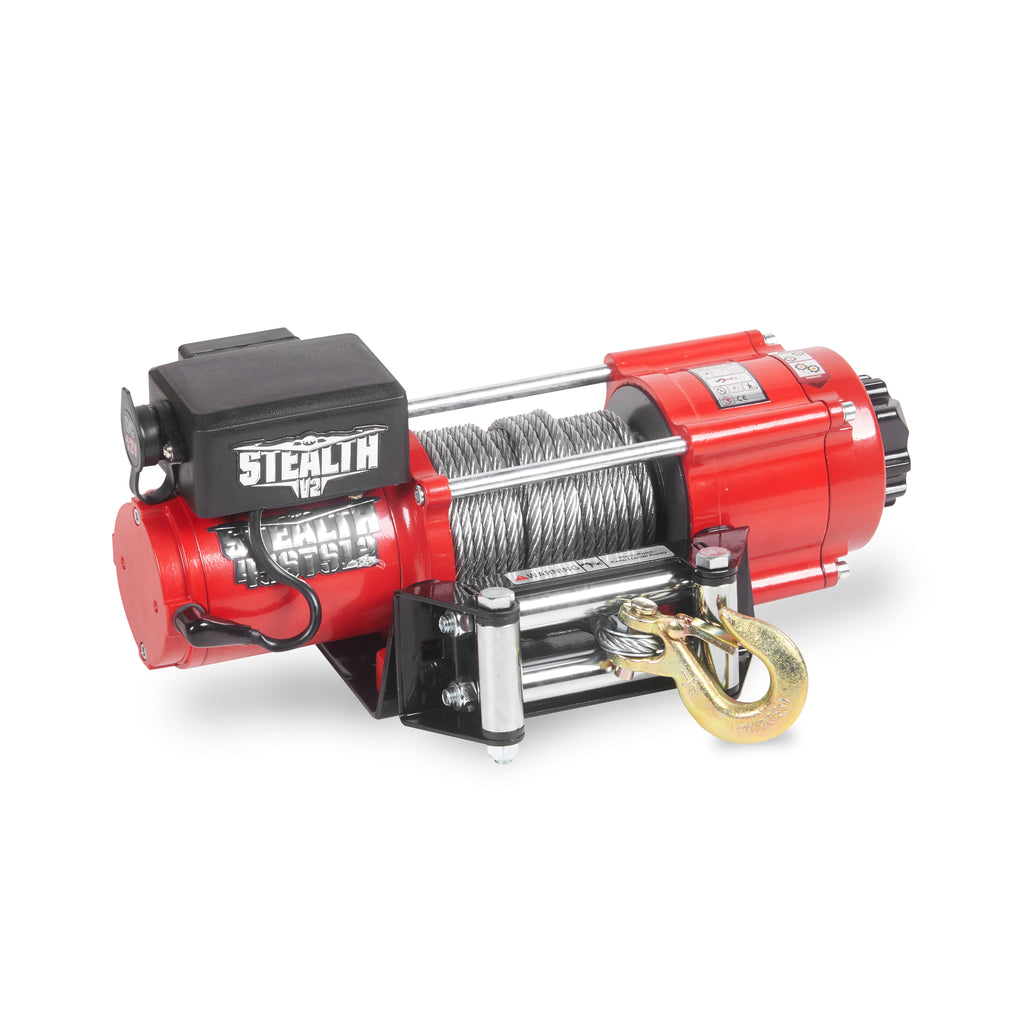

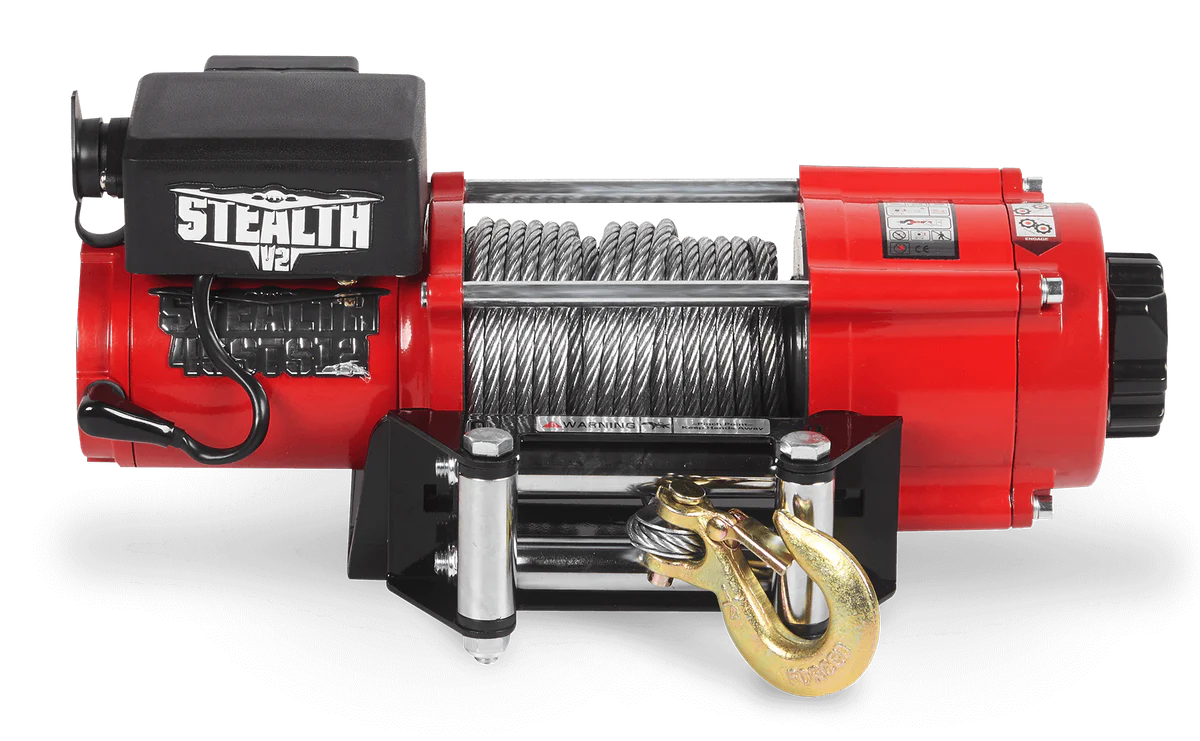

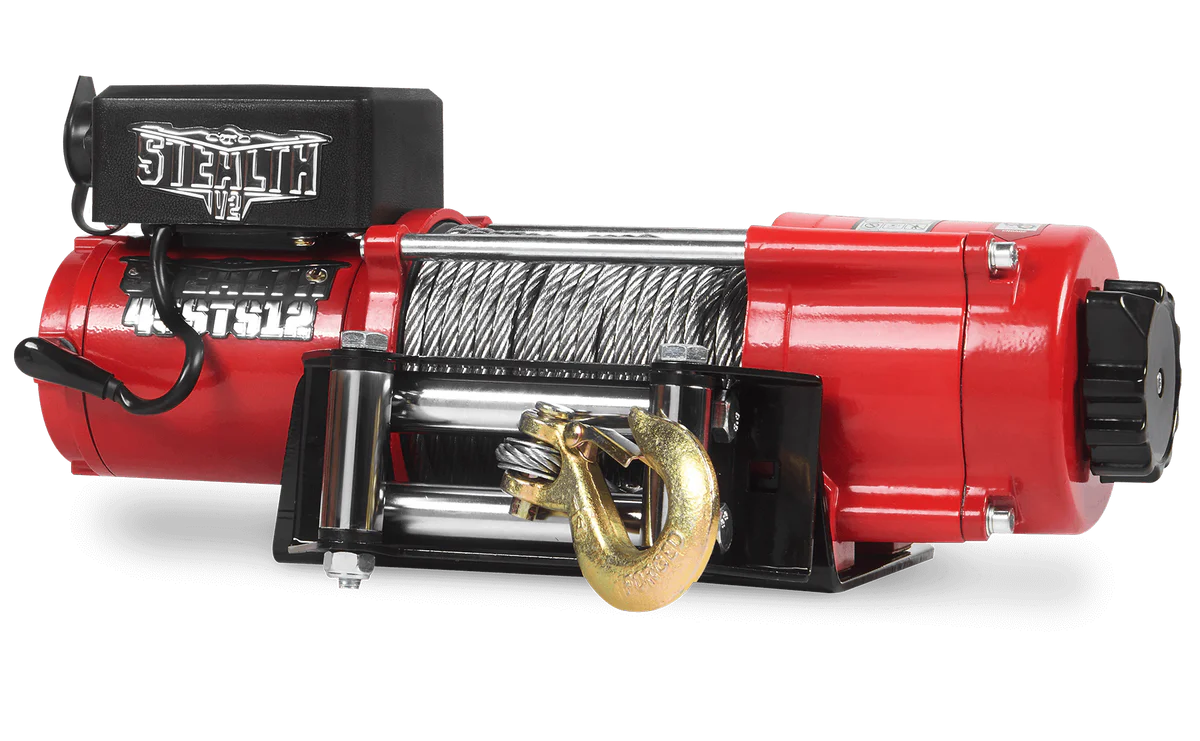

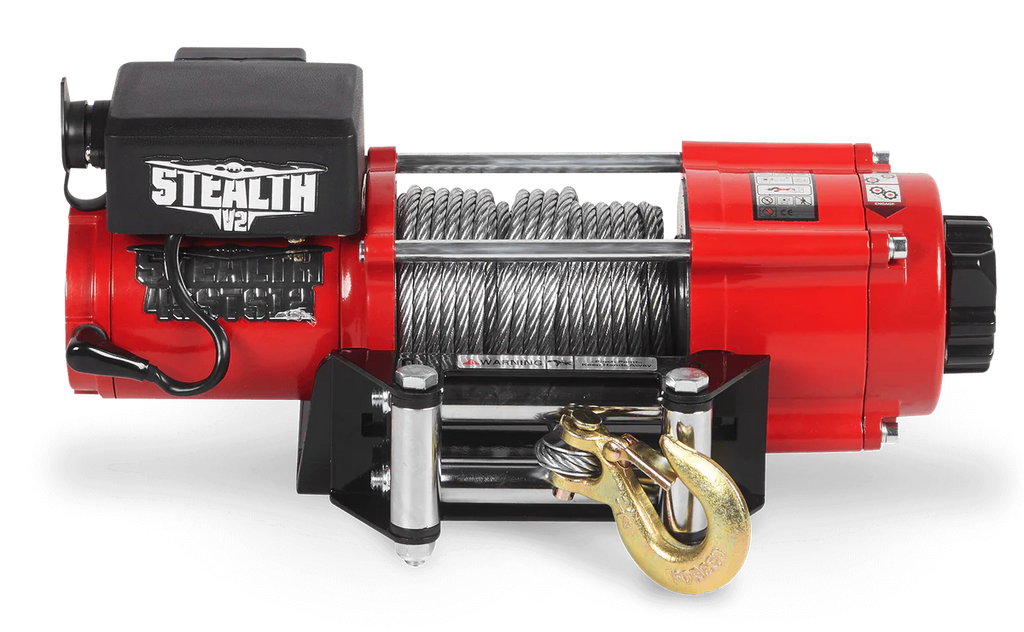

Stealth 4500lb Electric Winch

Since their launch, Stealth winches have been known for being the best budget option for 3.5t recovery and 4x4 use. Now extended far beyond that, the Stealth 4500lb winch gives you all the power in a smaller package, ideas for a broader range of uses such as utility, ATV, boat trailers and beyond.

Designed for long-lasting power, the hard-wearing designed is reinforced with a sealed solenoid, full steel gearing and features a powerful coper wound motor. Including two wireless remotes, the heavy-duty design is matched by smart additions to get the job done easily. Also allowing you the choice of synthetic or steel rope – you can have all the power without any compromise.

With a line capacity of 4500lb or 2041kg, the line pull of 1.4m per minute at full load will have the work done in no time.

Standard Features:

Line Capacity: 4,500lb (2,041kg)
Motor: Reversible 1.4hp 12v Permanent Magnet Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 12 Month Return to Base

Accessories:

Wired Hand Control: Includes 3.7m Wired Hand Control
Wireless Control: Included - with TWO Handsets
Mounting Plate: Included for flat mount applications
Mounting Bolts: Included for Standard installations
♦ Heavy Duty Battery Cables (May need extending dependant on application)
♦ Instruction Manual

Other Information:

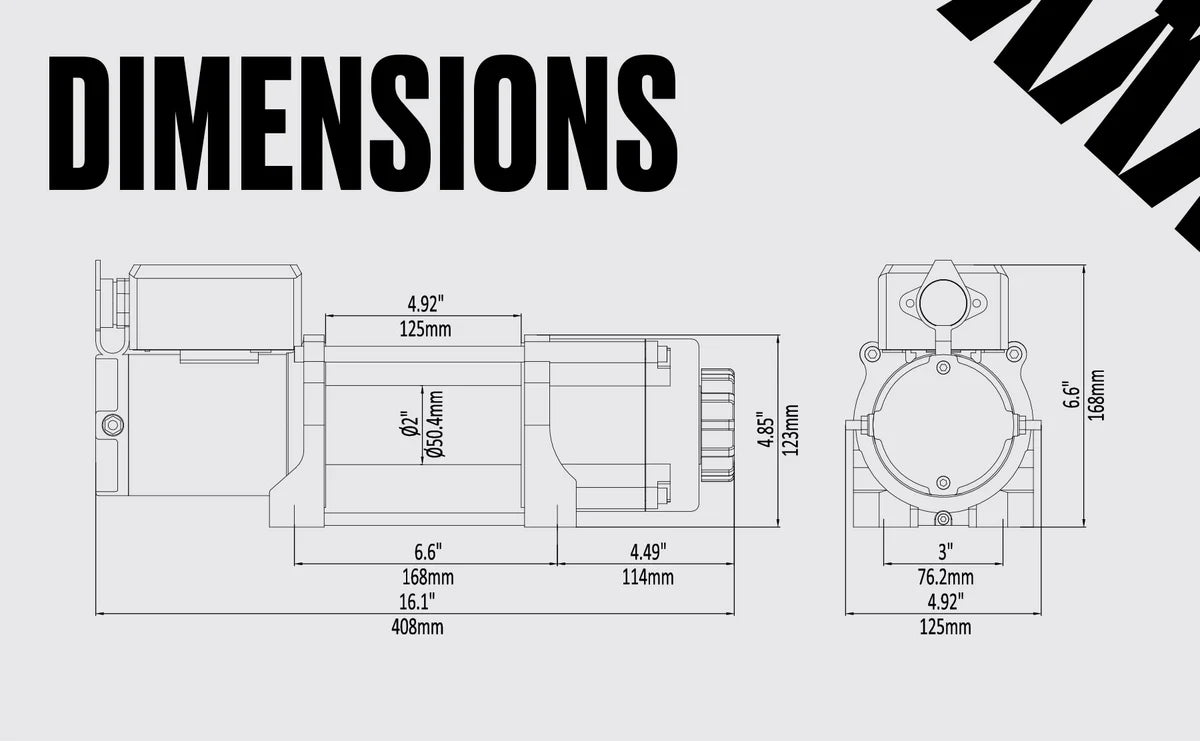

Dimensions: 408mm L x 125mm D x 168mm H
Mounting Bolt Pattern: 168mm x 76.2mm
Line Pull - No Load: 3.9 m/min (28 Amps)
Line Pull - Full Load: 1.4 m/min (220 Amps)


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 4500 lbs (2041 kg)
Motor 12v : 1.4hp
Cable - Dia x L Steel: 6mm x 14.5m
Synthetic: 5.6mm x 15m
Dimensions 408 x 125 x 168mm
Mounting Pattern 168mm x 76.2mm
Weight kg Steel: 16 kg
Synthetic: 13.5 kg



Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 12.8 (3.9) 28
4500 (2041) 4.6 (1.4) 220

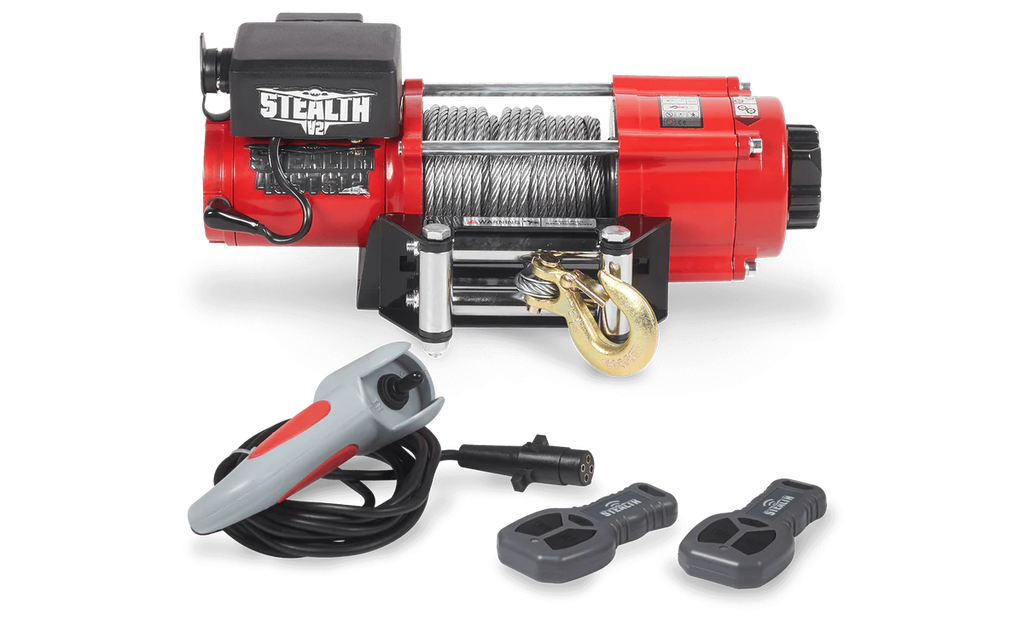

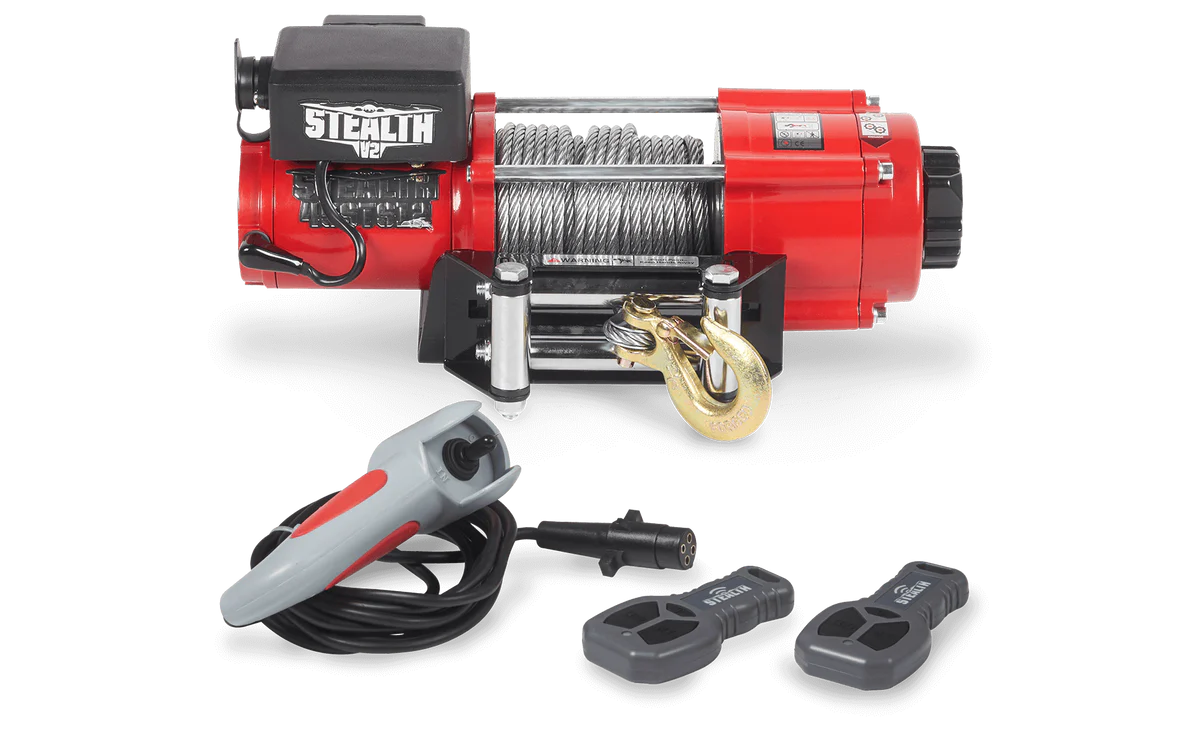

What's in the box:

  • Wired Hand Control: Includes Wired Hand Control
  • Wireless Control: Included - with TWO Handsets
  • Mounting Plate: Included for flat mount application
  • Fairlead: 4-Way Roller Fairlead OR Hawse Fairlead (for Synthetic Rope)
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependent on application))
  • Instruction Manual
User Manual Download

Reviews and Q&A

  • Hello, What is the size of the Synthetic Rope, lenght/thickness

    Rope: 15m of 6mm Synthetic Rope with Clevis Hook and Handsaver Strap

  • How long is the cable on the Stealth 4500lb Winch

    Hello,

    ♦ Rope: 14.5m of 6mm Steel Cable with Clevis Hook and Handsaver Strap

  • Hi, I'm looking at the stealth 4500lb winch, is the 4500lb pull a rolling or static load, will it pull a car about 1300kg onto a trailer? Thanks

    Thanks for your enquiry.

    The max. pulling capacity for this winch is 2041kg. With the car handbrake released the winch will have no issue pulling the car onto the trailer.

  • What rampage does this winch draw at full load? Can it be connected to a live feed on my 4x4?

    Thanks for your enquiry.

    It will draw 200 amps at max. capacity.

  • I wish to use 2 winches in close proximity. Will the wireless remotes not interfere with each other? And what length of wire is on the wired remote?

    Hello,

    The wireless controls are paired with the recievers on the winch and would not control both winches at the same time .

    Thanks

    James.

  • Do you know the range of the wireless handset? We need something to start the winch while we are still in the boat!

    Thanks for your enquiry.

    The range is as follows:

    80-100ft
