Stealth 4500lb Winch - 12v Steel Rope

£149.99
Delivery in 1-2 working days

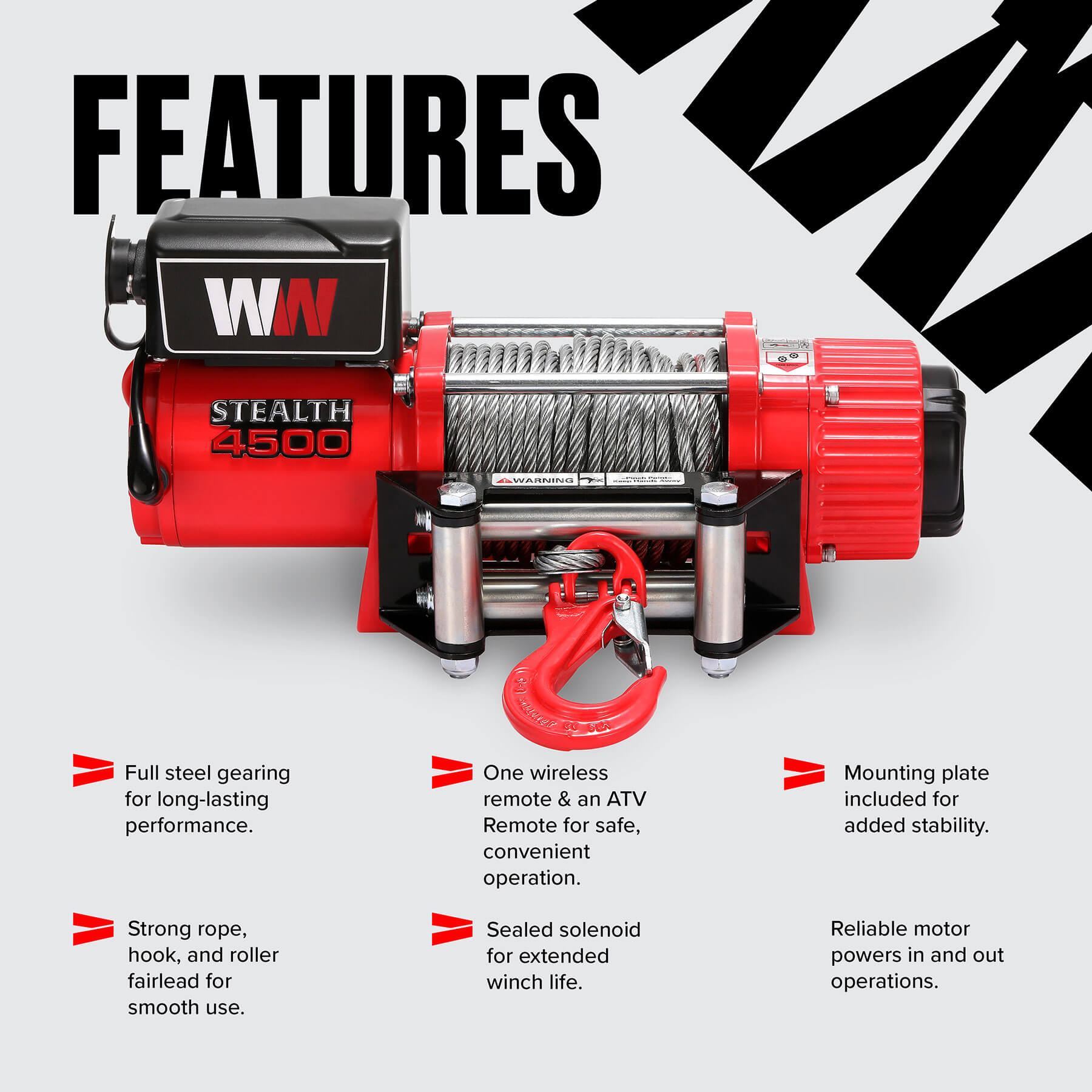

Features

  • SUPER STRONG –Pulling power of 4500lb or over 2000kg!
  • HARDWEARING – Built with full steel gearing and a sealed solenoid for durability.
  • WIRELESS CONTROLS – Includes two wireless remote controls.
  • MOUNTING PLATE INCLUDED – Allows a more permanent instalment.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

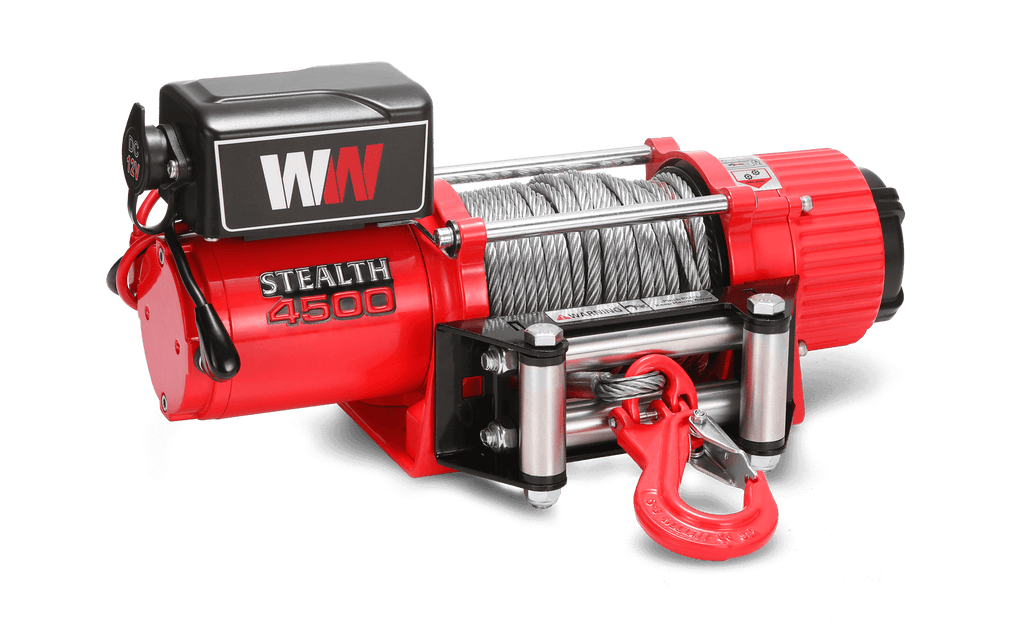

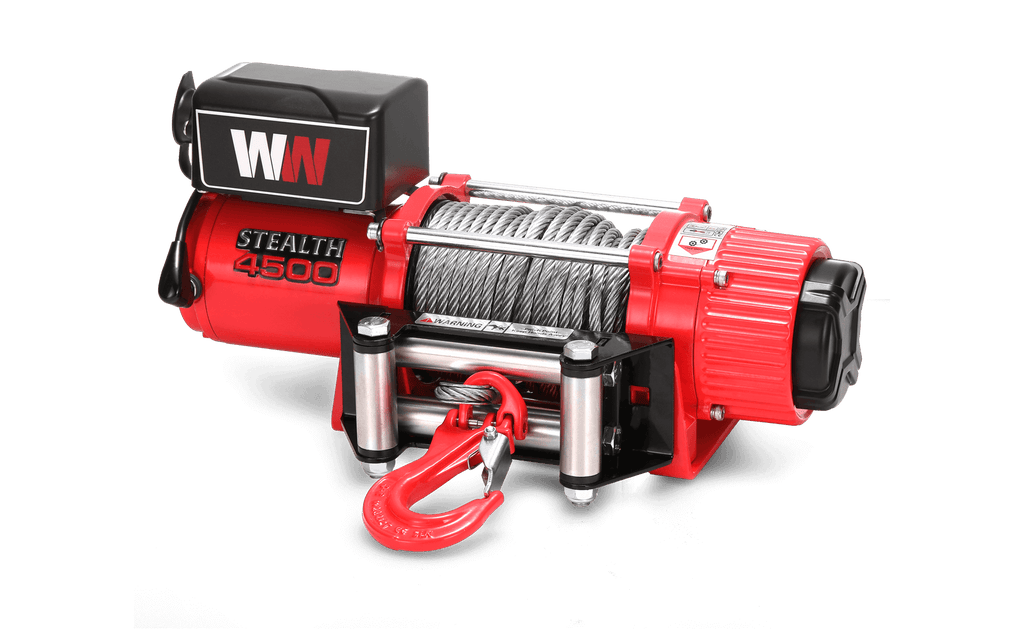

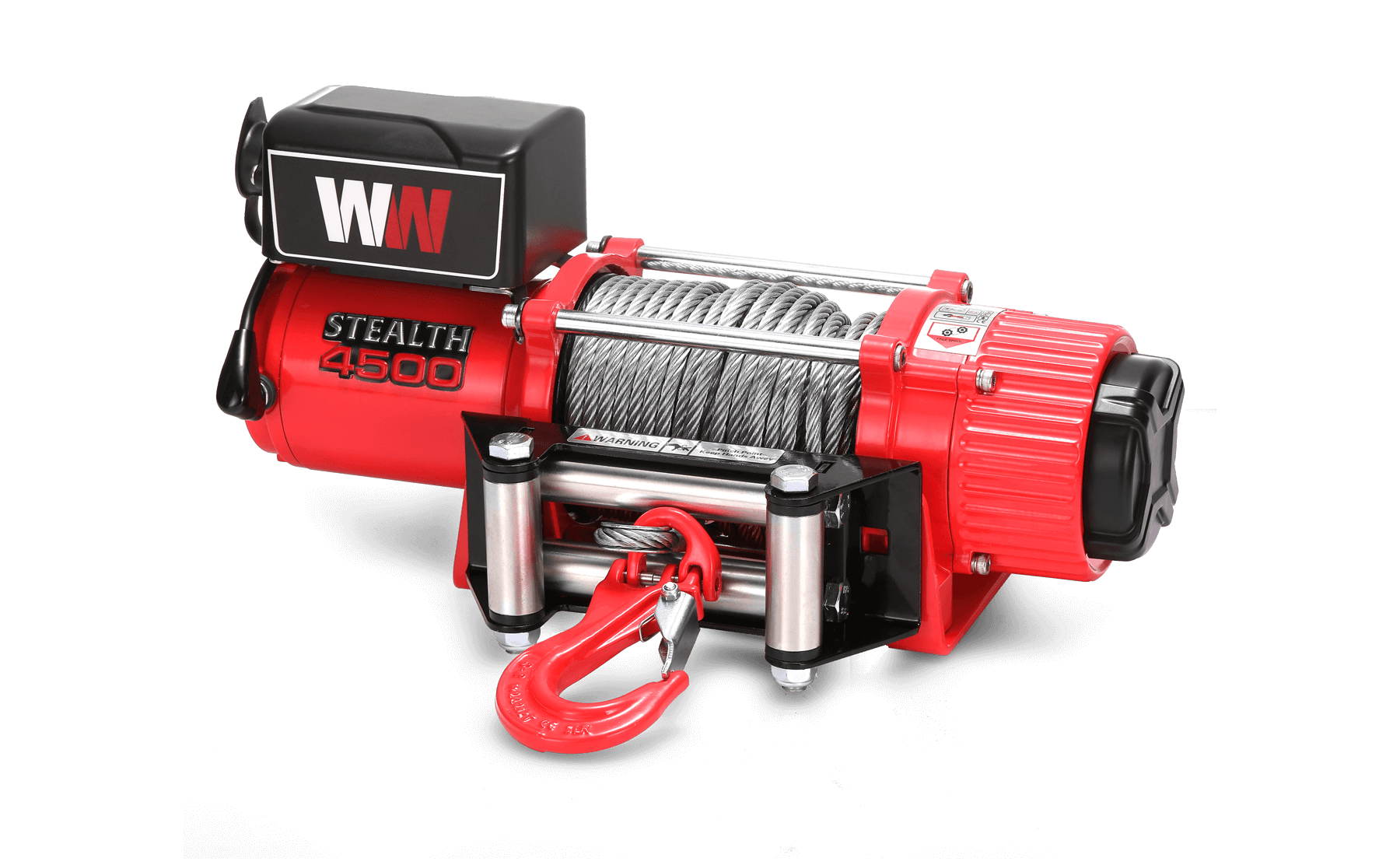

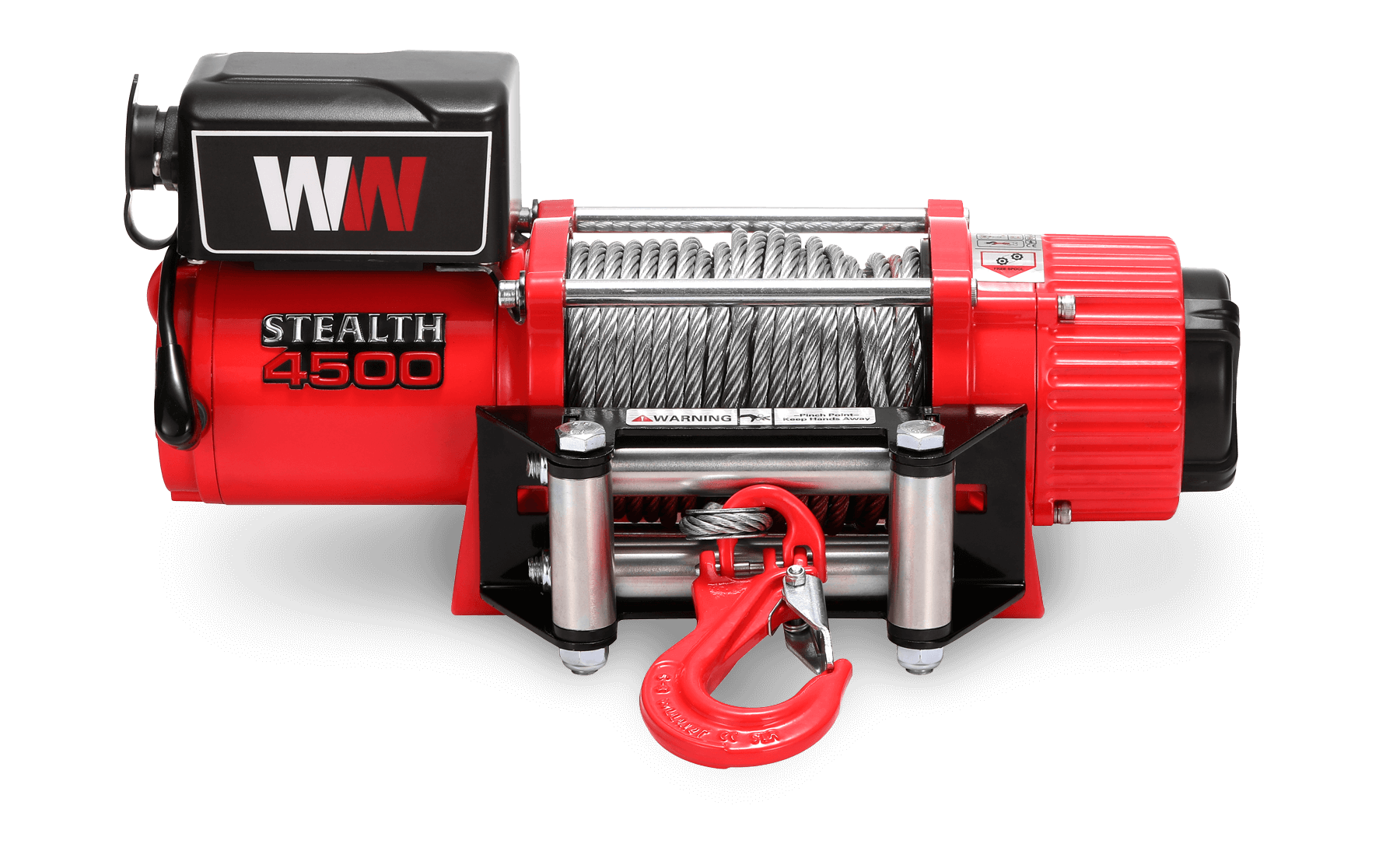

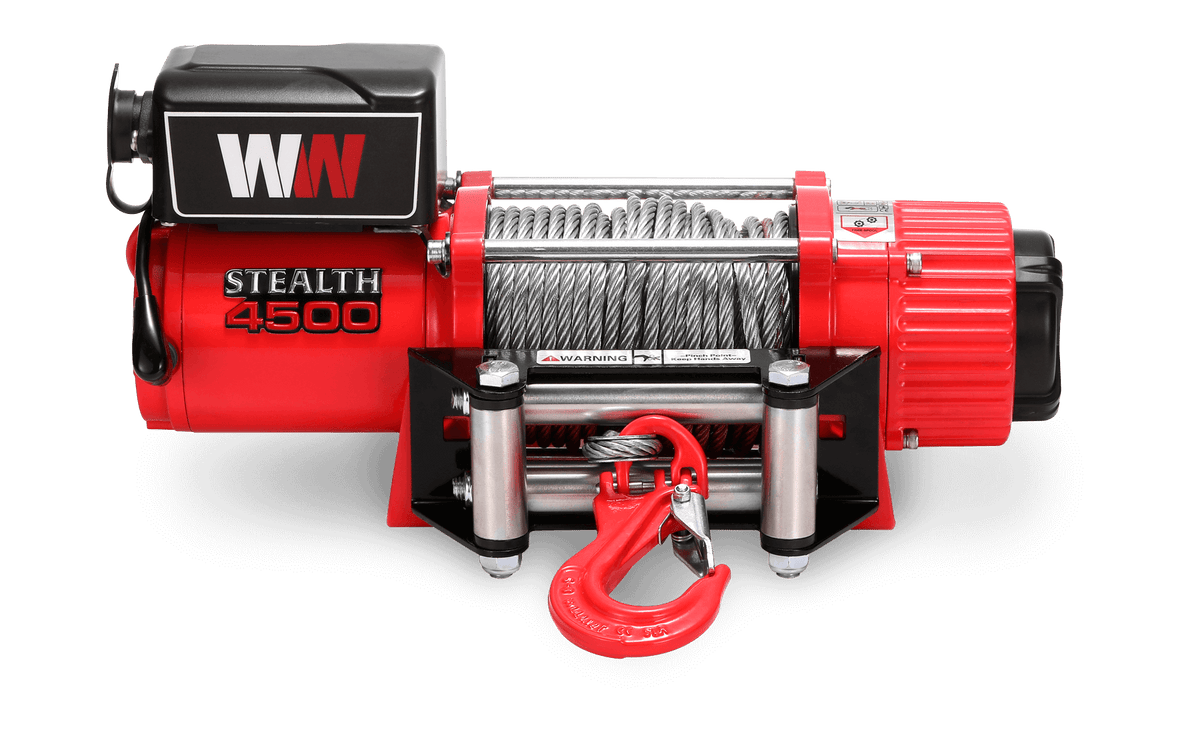

Stealth 4500lb Electric Winch

Since their launch, Stealth winches have been known for being the best budget option for 3.5t recovery and 4x4 use. Now extended far beyond that, the Stealth 4500lb winch gives you all the power in a smaller package, ideas for a broader range of uses such as utility, ATV, boat trailers and beyond.

Designed for long-lasting power, the hard-wearing designed is reinforced with a sealed solenoid, full steel gearing and features a powerful copper wound motor. Including two wireless remotes, the heavy-duty design is matched by smart additions to get the job done easily.

With a line capacity of 4500lb or 2041kg, the line pull of 1.4m per minute at full load will have the work done in no time.

Standard Features:

Line Capacity: 4,500lb (2,041kg)
Motor: Reversible 1.4hp 12v Permanent Magnet Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually

Accessories:

Wired Hand Control: Includes 3.7m Wired Hand Control

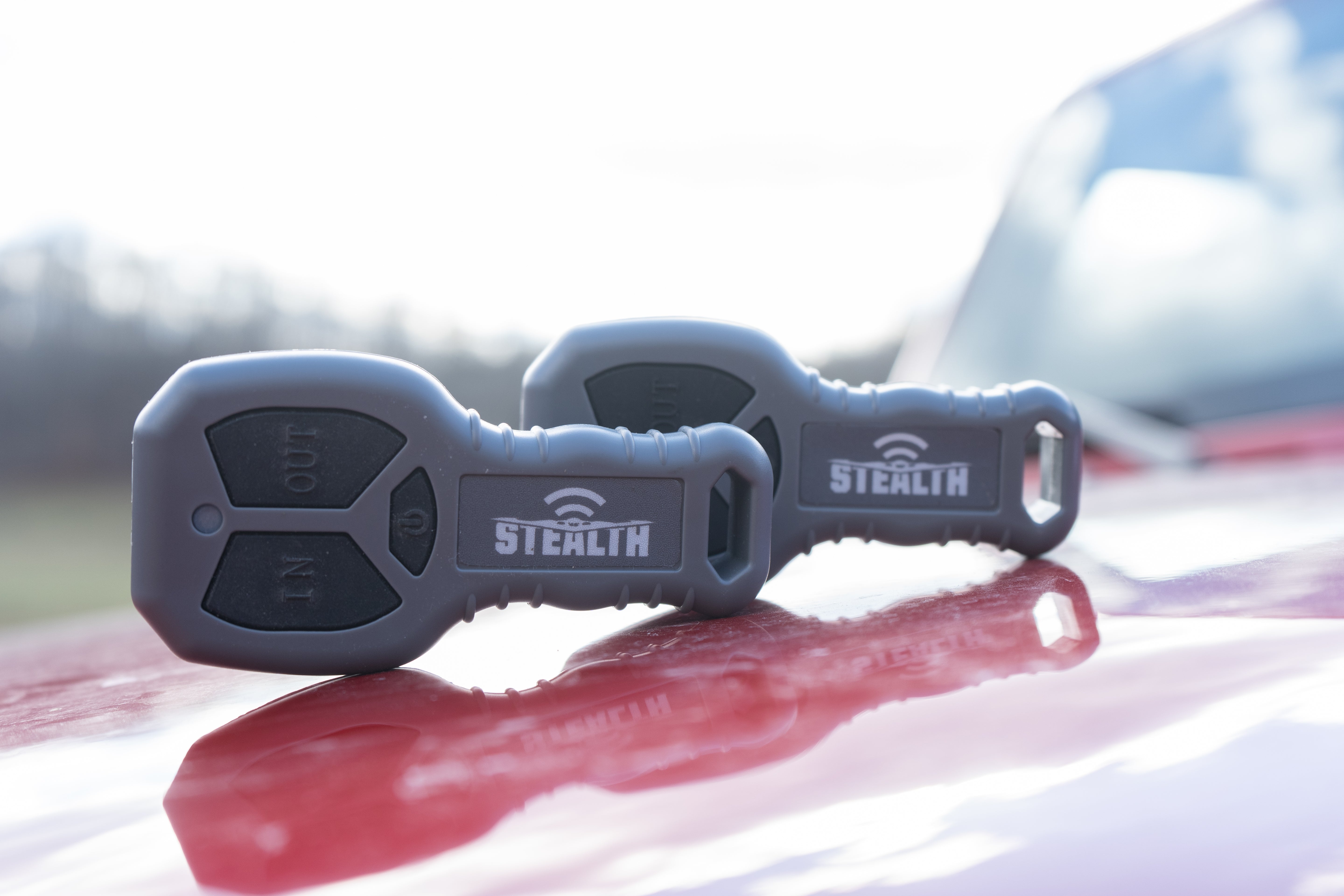

Wireless Control: Included - with TWO Handsets
Mounting Plate: Included for flat mount applications
Mounting Bolts: Included for Standard installations
Heavy Duty Battery Cables (May need extending dependant on application)
♦ Instruction Manual

Other Information:

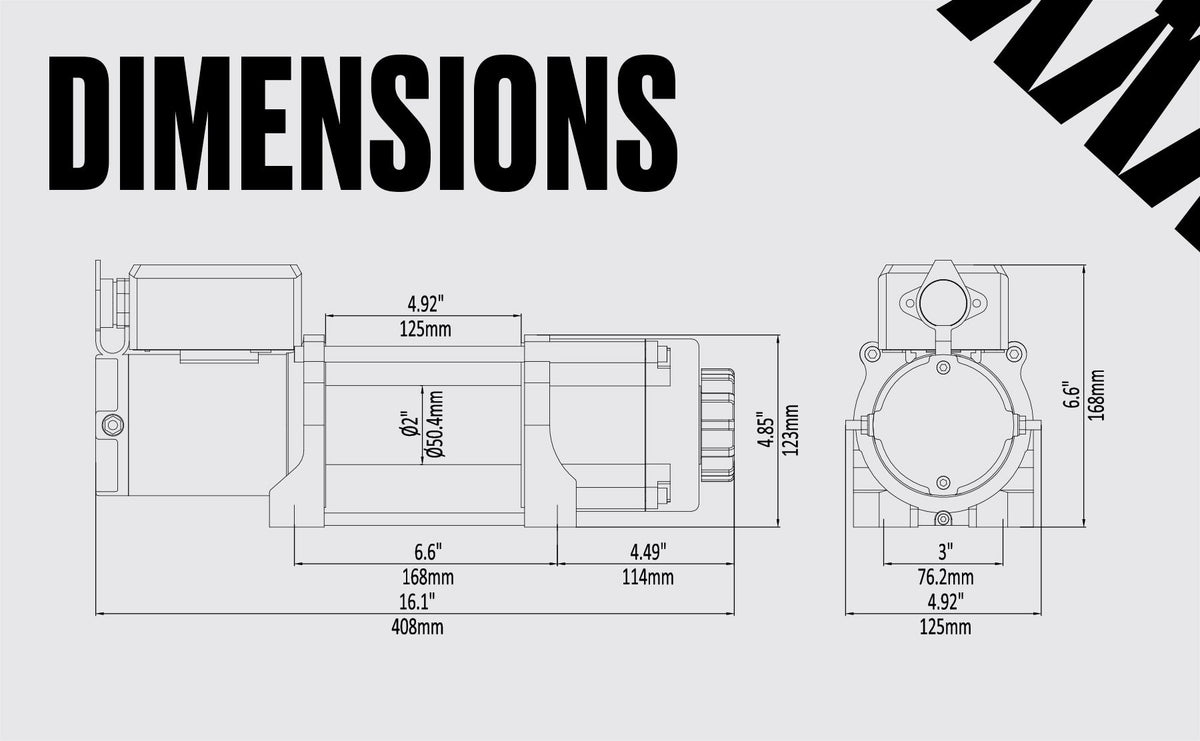

Dimensions: 408mm L x 125mm D x 168mm H
Mounting Bolt Pattern: 168mm x 76.2mm
Line Pull - No Load: 3.9 m/min (28 Amps)
Line Pull - Full Load: 1.4 m/min (220 Amps)


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

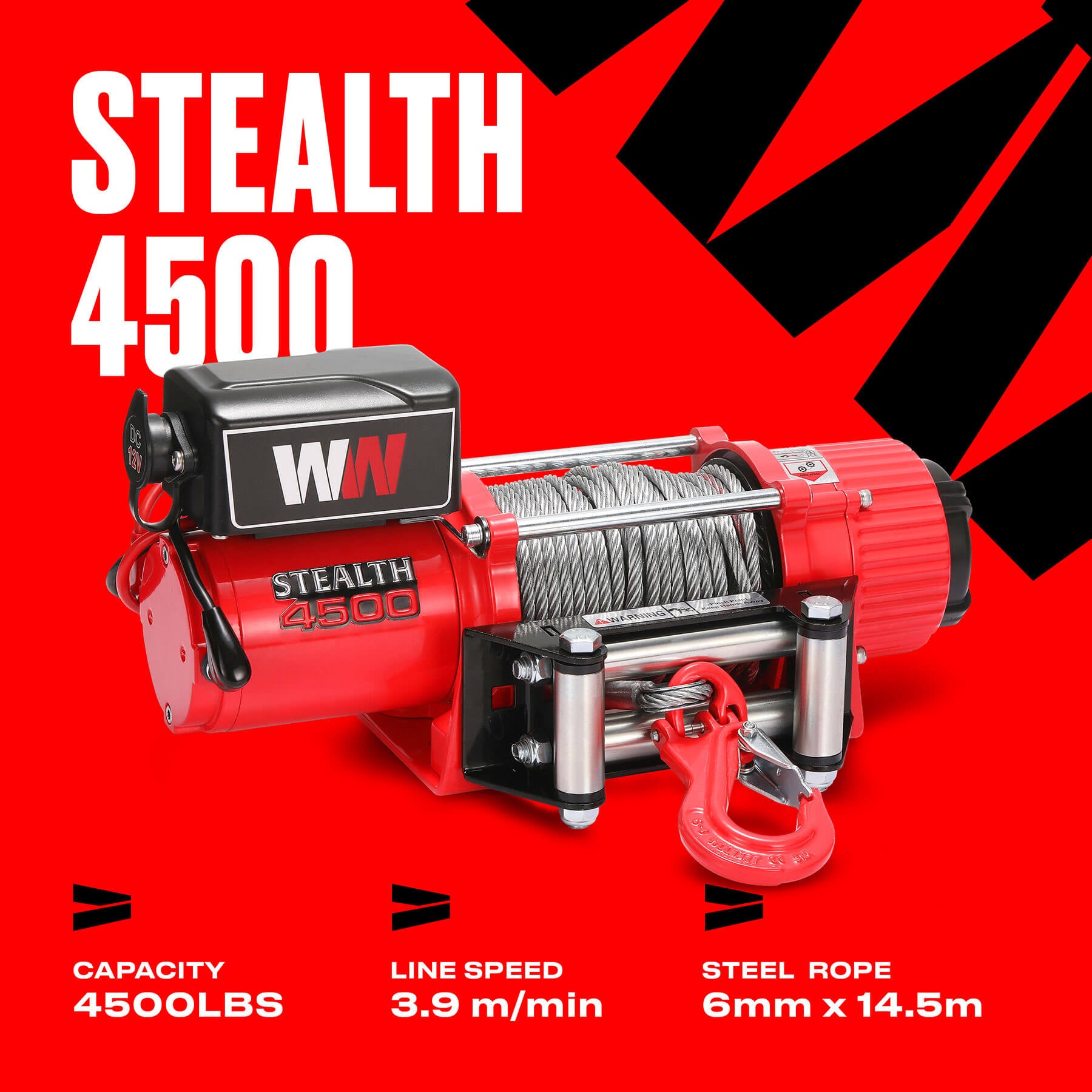

Specifications:

Rated Line Pull 4500 lbs (2041 kgs)
Motor 12V: Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
Gearing 166:1
Drum Size - Dia x L 50 x 125mm
Cable - Dia x L Steel: 6mm x 14.5m
Dimensions 408 x 125 x 168mm
Mounting Pattern 168mm x 76.2mm
Weight kg 15.5 kg
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 4500 (2041) 12.2 (3.7)
2 3841 (1742) 26.2 (8.0)
3 3310 (1501) 41.9 (12.8)
4 2907 (1319) 47.6 (14.5)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 12.8 (3.9) 28
1000 (454) 9.8 (3.0) 80
2000 (907) 8.5 (2.6) 120
3000 (1361) 6.9 (2.1) 160
4500 (2041) 4.6 (1.4) 220

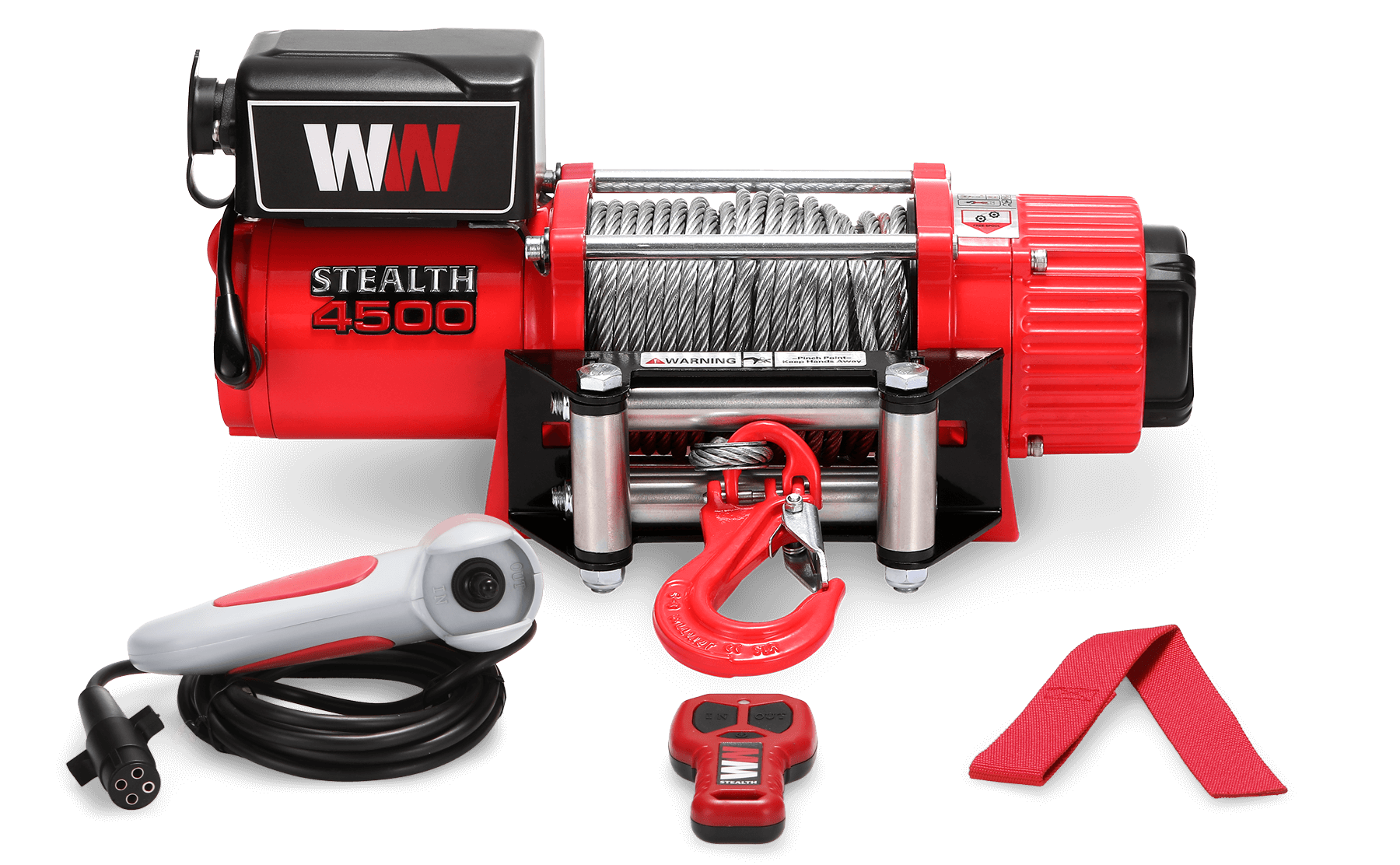

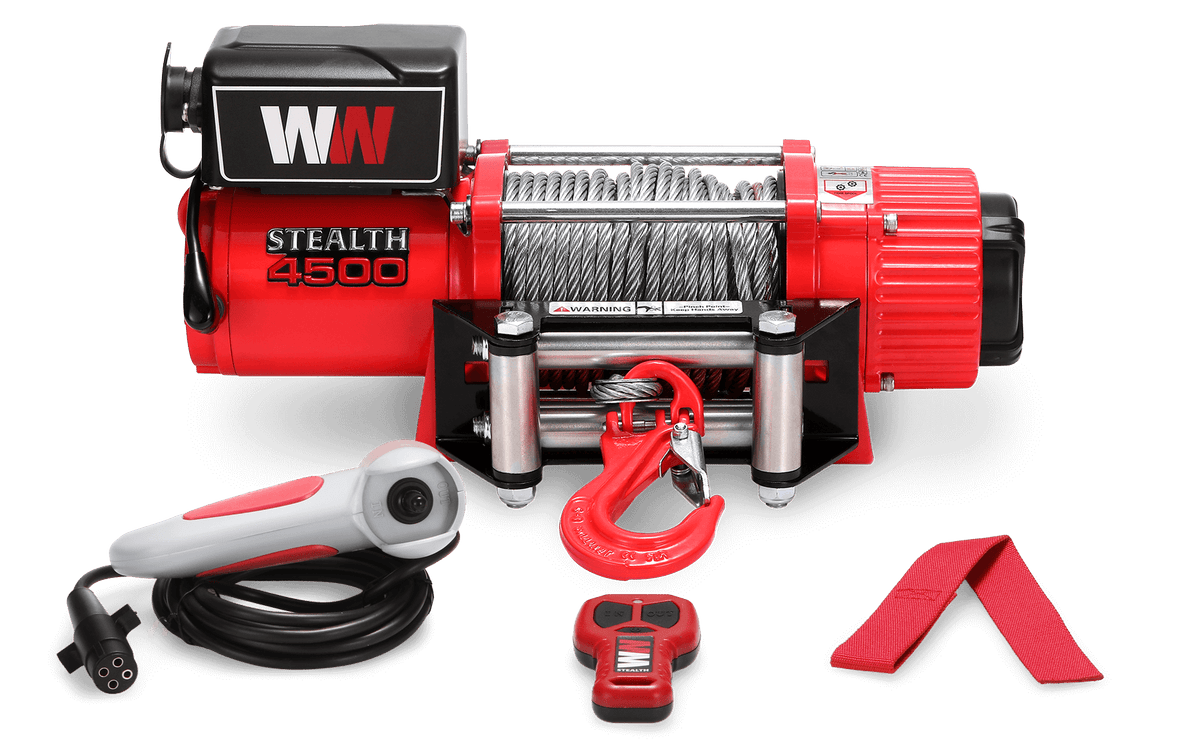

What's in the box:

  • Wired Hand Control: Includes Wired Hand Control
  • Wireless Control: Included - with TWO Handsets
  • Mounting Plate: Included for flat mount application
  • Fairlead: 4-Way Roller Fairlead
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependent on application))
  • Instruction Manual

Downloads:

User Manual Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This winch has a 3 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.- Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the
  • Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.



Questions & Answers:

  • How long is the cable on the Stealth 4500lb Winch

    Hello,

    u2666 Rope: 14.5m of 6mm Steel Cable with Clevis Hook and Handsaver Strap

  • Hi, I'm looking at the stealth 4500lb winch, is the 4500lb pull a rolling or static load, will it pull a car about 1300kg onto a trailer? Thanks

    Thanks for your enquiry.

    The max. pulling capacity for this winch is 2041kg. With the car handbrake released the winch will have no issue pulling the car onto the trailer.

  • I wish to use 2 winches in close proximity. Will the wireless remotes not interfere with each other? And what length of wire is on the wired remote?

    Hello,

    The wireless controls are paired with the recievers on the winch and would not control both winches at the same time .

    Thanks

    James.

  • How long is the cable on the Stealth 4500lb Winch

    Hello,

    Rope: 14.5m of 6mm Steel Cable with Clevis Hook and Handsaver Strap
