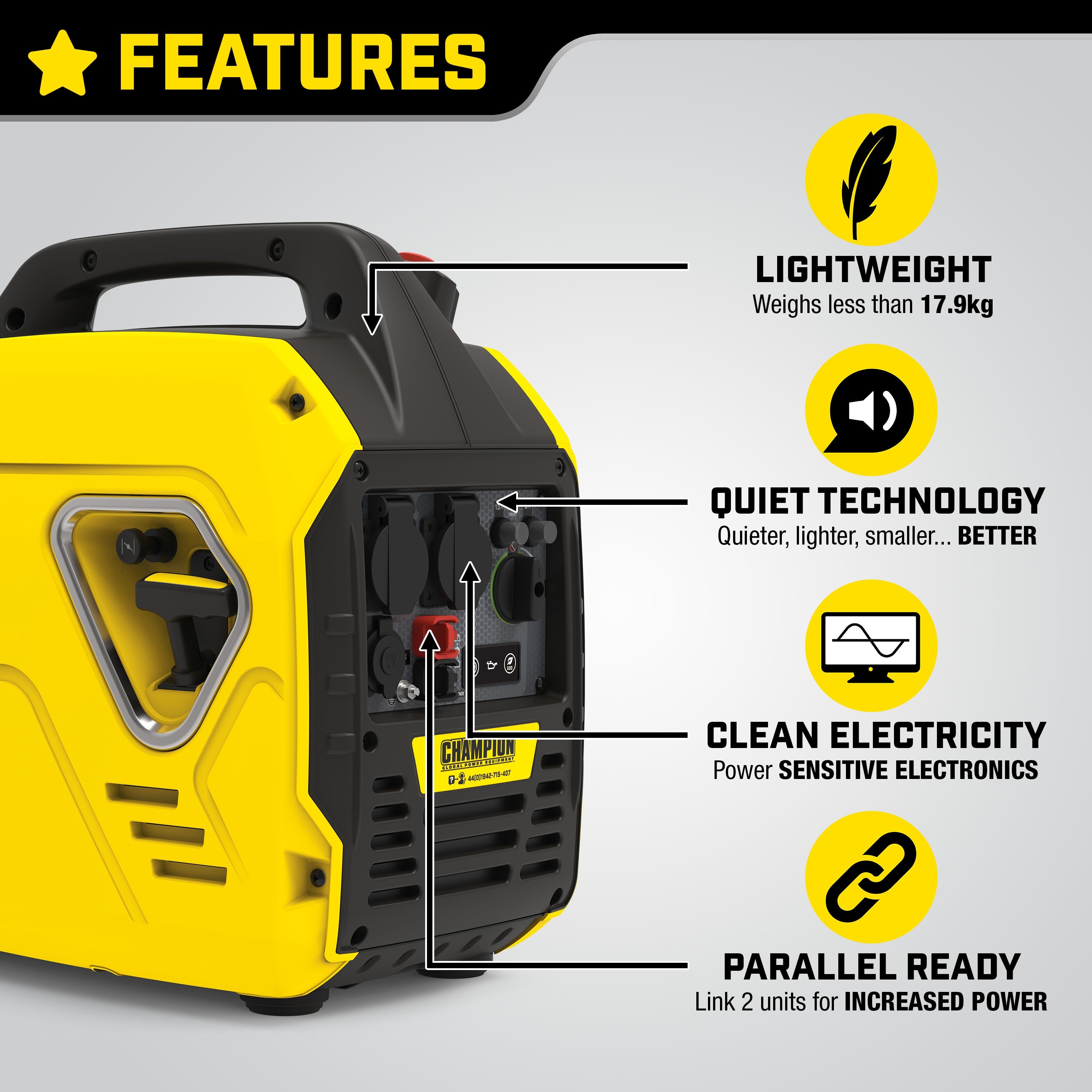

Features
- Weighs only 17.6Kg! The Mighty Atom is the World's lightest 2kW Inverter generator.
- Petrol powered 79cc engine with up to 10.5 hours of run time (at 25% load)
- Confidently connect your electronics with true sine wave technology (< 3% THD)
- Reliable Champion engine produces 2200 Maximum Watts, 1900 Running Watts

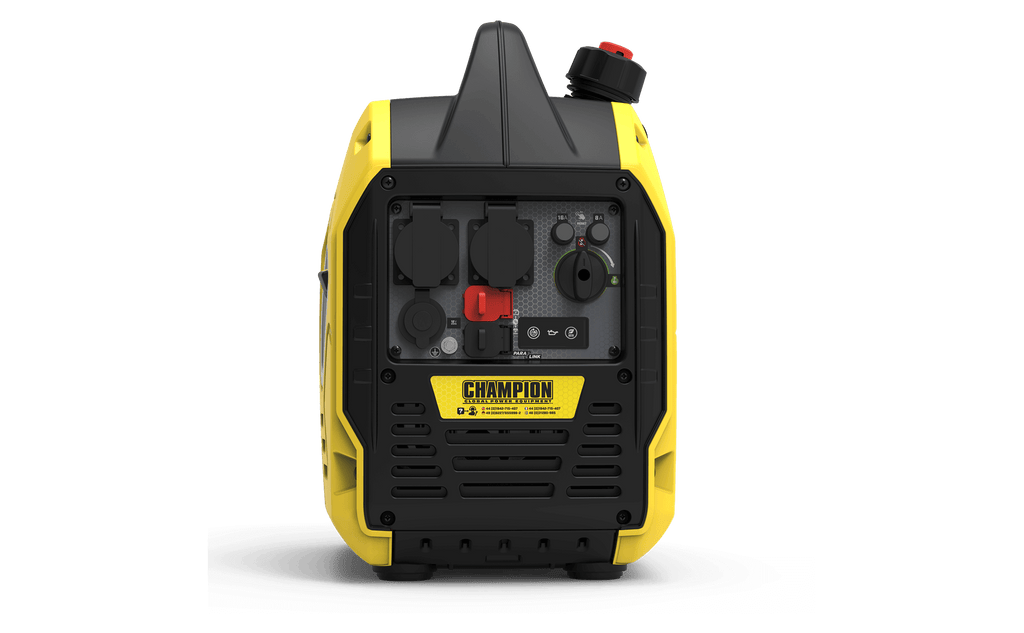

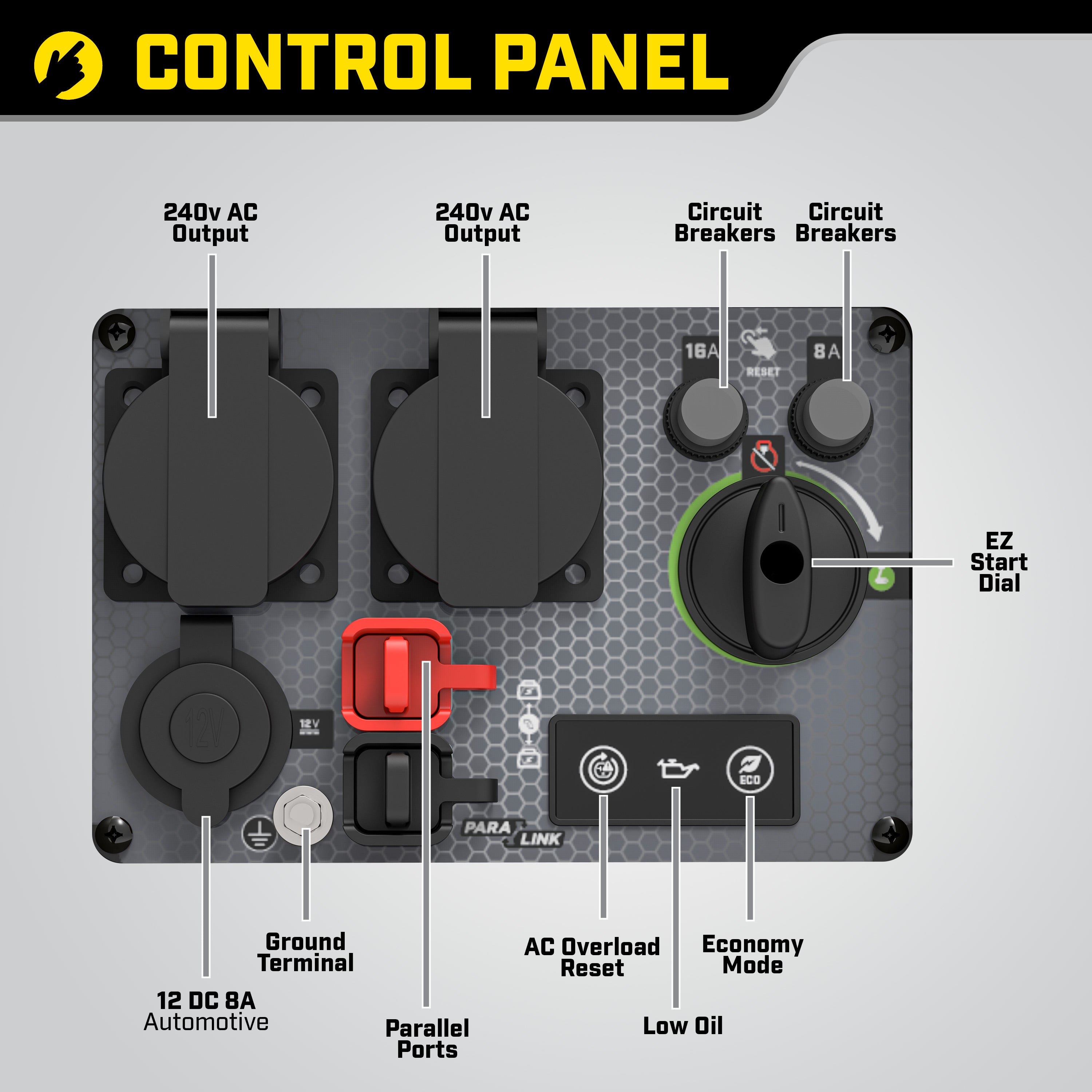

- Muliple outlets including two 240V 13A outlets and a 12V DC outlet
- Quiet operation at only 58 dBA. (See Noise Level Information)
- LED Indicators and an economy mode to save fuel
- Designed with a low oil shut-off sensor, this inverter has a 500ml oil capacity
- Connect this inverter with another Champion 2200-watt inverter for 30 amps of power (with the optional ParaLINK Parallel Kit)

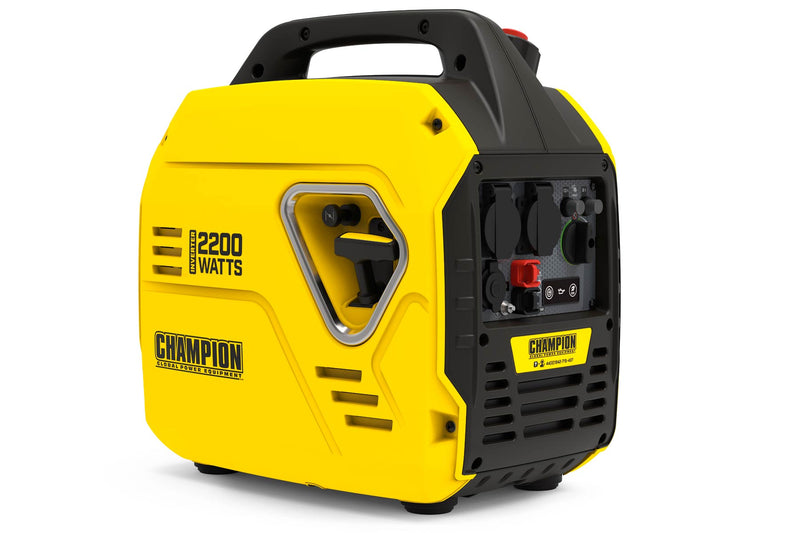

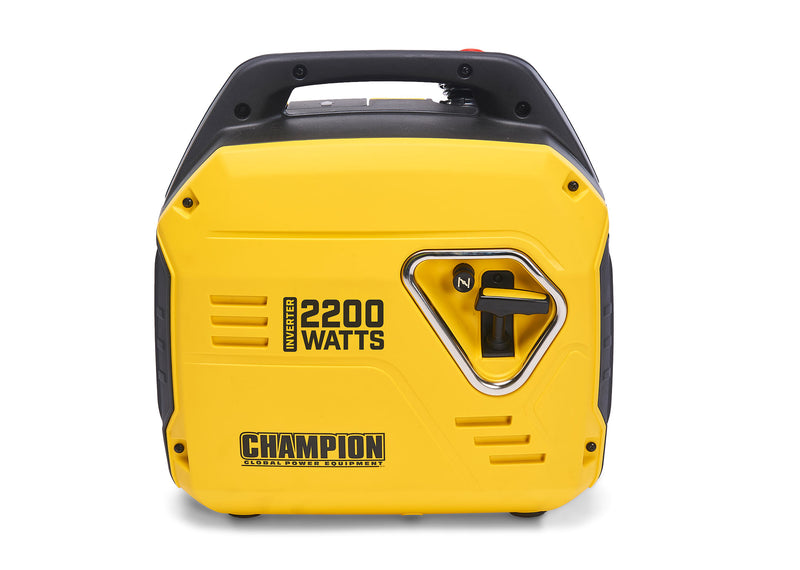

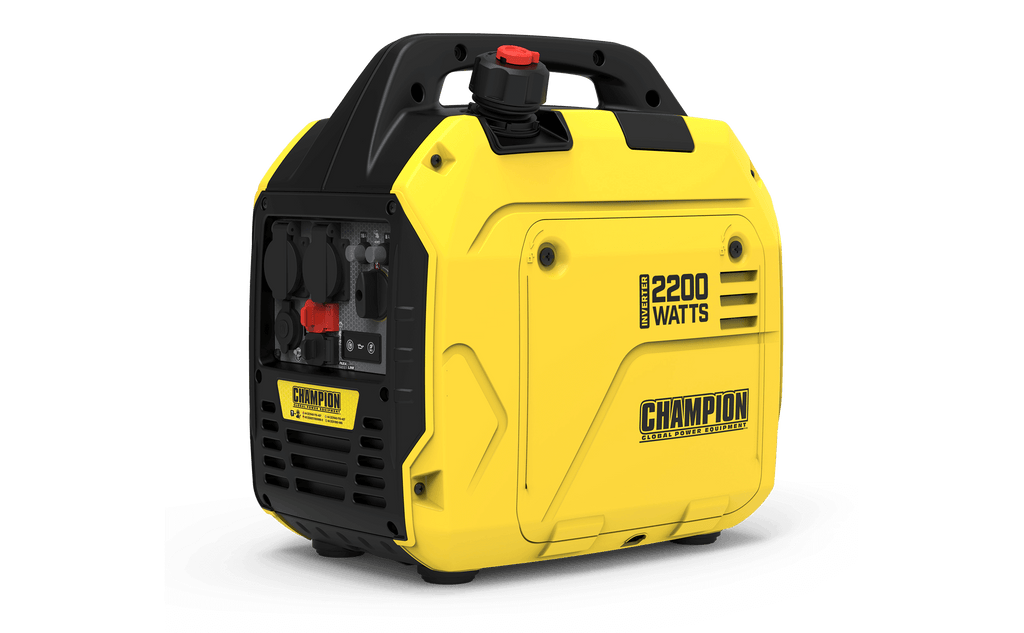

At only 17.6kg (38.8 lb) the 2.2 kW Mighty Atom is even lighter than the lightest 2000 Watt Inverter generator currently on the market*!
Now portable power and lightweight design are yours with the Champion 2200-watt inverter generator. Rely on the 79cc engine and enjoy a quiet 58 dBA for up to 10.5 hours of run time (at 25% load).

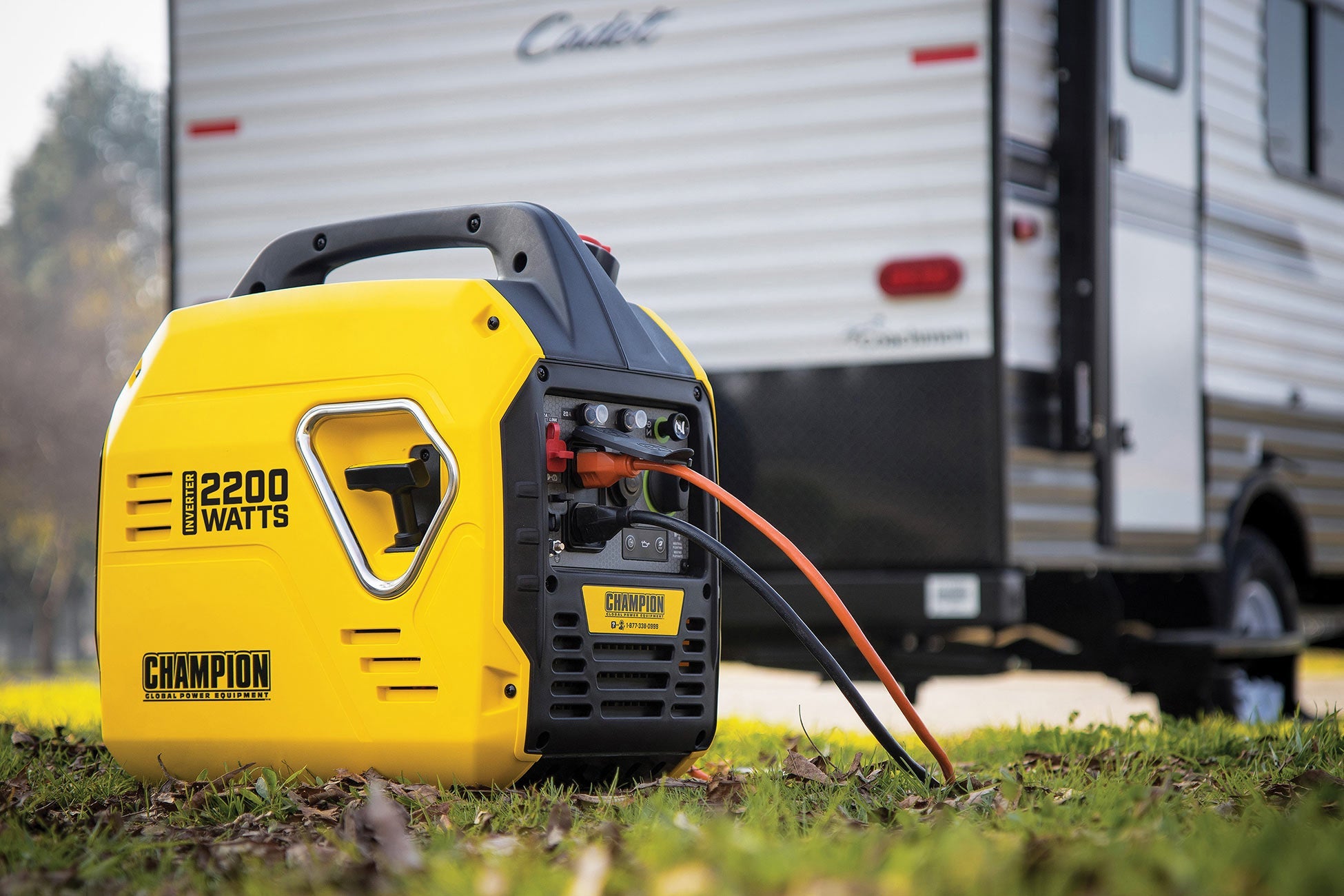

True Sine Wave inverter technology makes this generator ideal for sensitive electronics such as computers, laptops and TV. Perfect for your next camping trip or powering small household items like fridges/freezers, power tools, lighting units & garden equipment. This inverter has parallel capability allowing you to pair up with other Champion Inverters using an optional Parallel Kit.
Backed with a 3 year warranty, you can be assured of quality and support.
*At time of launch July 2020. Weight shown excludes fuel.
All newly manufactured products are EU Stage V Compliant.
| Starting Watts | 2500 |
|---|---|
| Max Watts | 2200 |
| Rated Watts | 1900 |
| AC Load | 2 x 240V 13 Amp |
| Phase | Single |
| Power Factor | 1 |
| RPM | Automatic (Based on load) |
| Engine | 79cc |
| Fuel Capacity | 4.0 Litres |
| Oil | 10W-30 |
| Oil Capacity | 0.5 Litres |
| Start Type | Recoil |
| Low Oil Shutoff | Automatic |
| Noise Level @ 7m | 58 dBA |

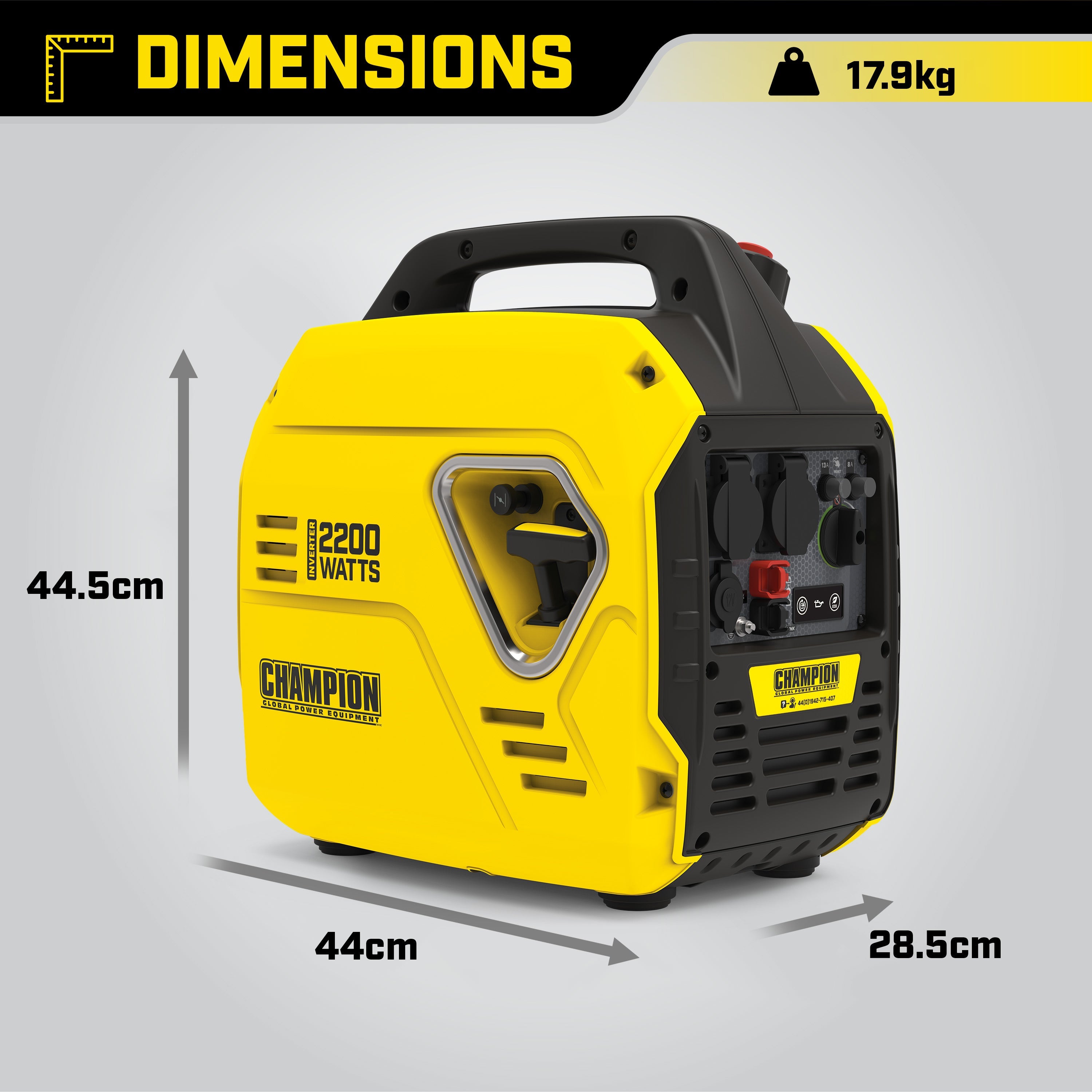

| Dimensions L*W*H (Fully Assembled) | 44 x 28.5 x 44.5 cm |
| Weight | 17.6kg (38.8 lbs) |
| Operation at 25% (Eco Mode) | 10.5 hours |
| Overload Protection | Yes |
| Cold Start | Yes |
| Parallel Connectivity | Yes |
| Certification | CE EU Stage V E10 Petrol Compliant |
| Warranty | 3 Year Limited Warranty |

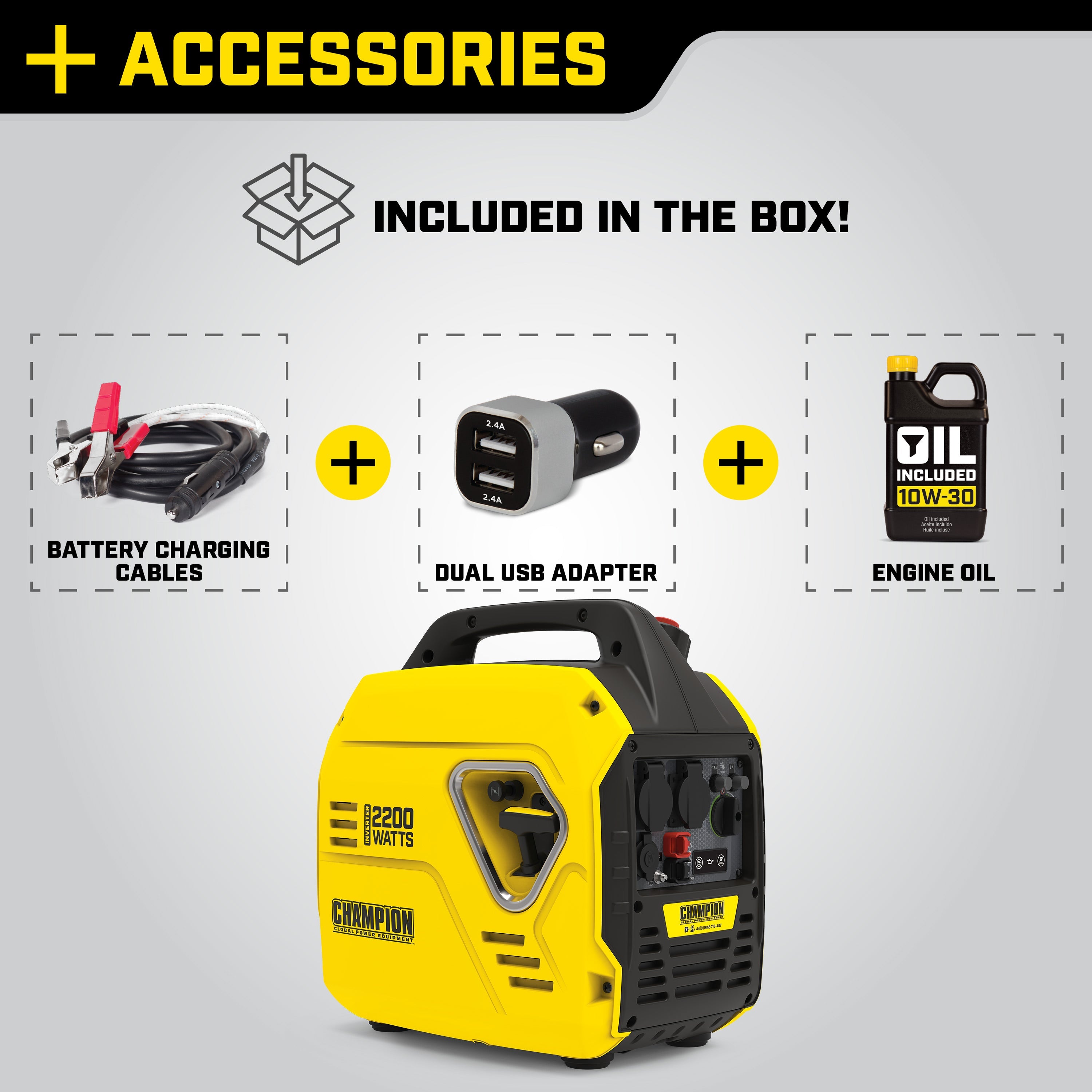

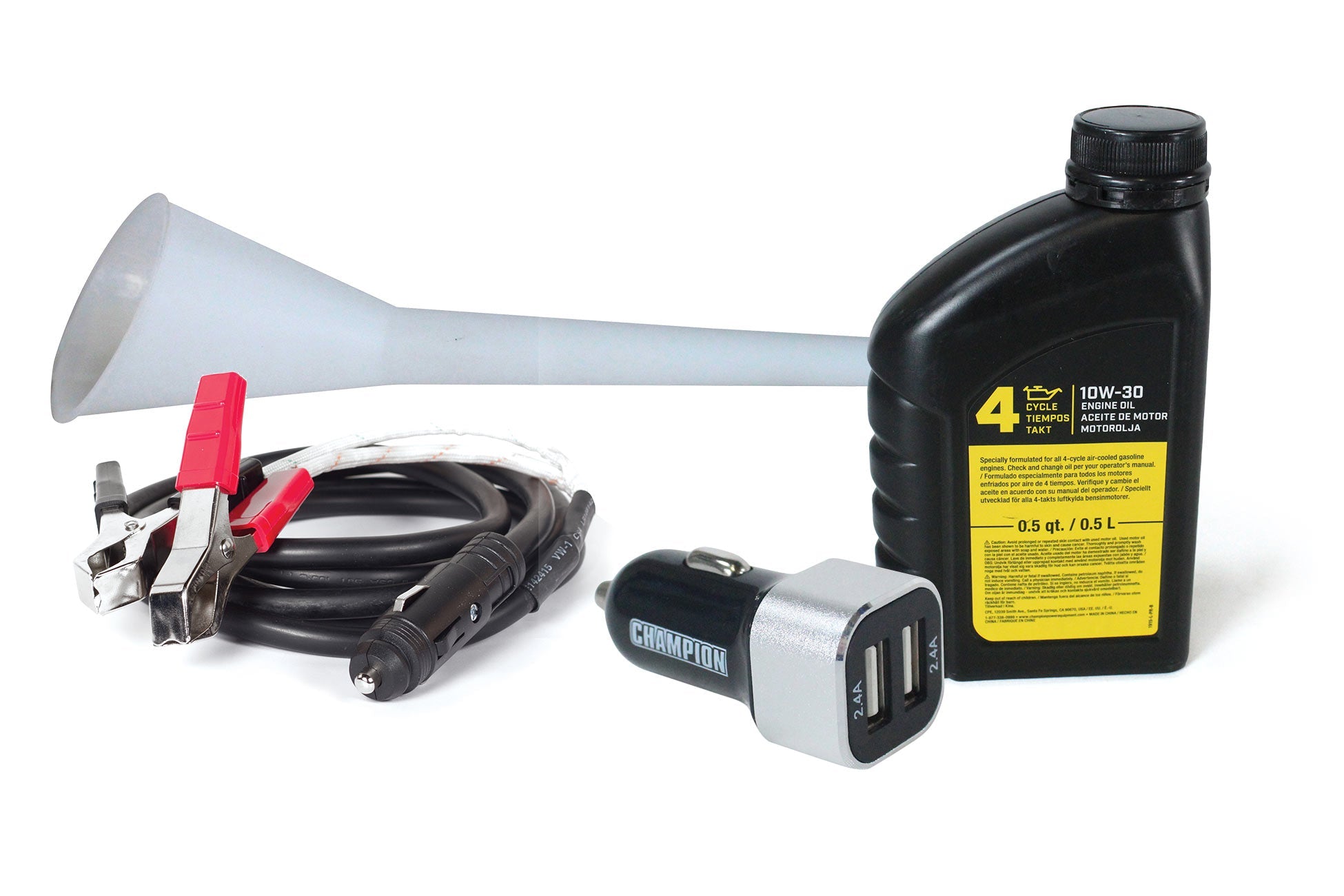

What's in the box:
- Oil
- Oil Funnel
- 12V DC USB Adapter
- 12V DC Automotive Battery Charging Cable
- Operating manual
Wattage Reference Guide*
| HOME | RUNNING | STARTING |
|---|---|---|
| Microwave | 1000 | 0 |
| Coffee Maker | 1500 | 0 |
| Lamp | 100 | 0 |
| LED/LCD TV | 150 | 0 |
| Laptop | 800 | 0 |
| Modem/Router | 20 | 0 |
| RECREATION | RUNNING | STARTING |
|---|---|---|
| Slow Cooker | 200 | 200 |
| Blender | 300 | 650 |
| Fan | 200 | 0 |
| LED/LCD TV | 150 | 0 |
| Radio | 100 | 0 |
| Game Consol | 1500 | 0 |
| ON THE JOB | RUNNING | STARTING |
|---|---|---|
| Drill | 600 | 900 |
| Air Compressor | 1600 | 4500 |
| Circular Saw | 1200 | 2000 |
| Hand Sander | 600 | 1200 |
| Work Light | 1000 | 0 |
| Paint Sprayer | 600 | 600 |
| OUTDOORS | RUNNING | STARTING |
|---|---|---|
| Lawn Mower | 1200 | 2400 |
| String Trimmer | 350 | 875 |
| Hedge Trimmer | 450 | 1200 |
| Edger | 950 | 2400 |
| Chainsaw | 1200 | 2400 |
| Pressure Washer | 1200 | 2400 |
| EMERGENCY | RUNNING | STARTING |
|---|---|---|
| Refridgerator | 700 | 2200 |
| Sump Pump 1/2 hp | 800 | 1300 |
| Well Pump 1/2 hp | 1000 | 2100 |
| Furnace 1/4 hp | 600 | 1000 |
| Water Heater | 4000 | 0 |
| Window AC | 1800 | 2800 |
How to calculate:
RUNNING WATTS NEEDED
Total running watts of ALL items to be powered by the generator at the SAME TIME.
STARTING WATTS NEEDED
Add highest SINGLE starting Watt to the total RUNNING WATTS needed above.
*This chart is for reference only. Check your device for ACTUAL wattage requirements.
Reviews and Q&A
-
I have 3 comercial machines to run at same time all between 220 -.240 volts which generator would I need
In order to work out the generator requirement, you would need to know the starting and running watt details for the 3 commercial machines. We would then be able to point you in the right direction.
-
Hi does it take a standard UK 3 pin plug or does it need an adapter
UK models will all take a standard 3 Pin plug.
-
Hi is this in stock today here in the uk for free same day dispatch on a next working day service
If the item shows as In stock (Order before 2pm Mon-Fri for same day dispatch *excl bank holidays) then it will ship same day. We use next day shipping to most areas.
-
What petrol does it take
All, Unleaded E5 or E10 is fine
-
Hi is this a 4 kva generator Sincerely confused
Max Watts 2200 Rated continuous Watts 1900
-
Can this generator use 3-pin uk plugs directly into its 240 volt sockets, please?
Yes.
-
Hi Can the 12v dc outlet be used for charging a 3 battery bank in my motorhome if so what is the amperage. if not could I power a 30amp battery charger. thanks
The max amp DC output is 8.3amps and is designed for battery charging.
-
What is the guarantee period
Backed with a 3 year warranty, you can be assured of quality and support
-
Is this a 4 stroke engine?
Yes - Its 4 stroke.
-
Hi in the event of a power cut would this power a house fridge freezer and a fridge
Yes, though you would have to plug them in and start the generator. (it would not sense a power cut automatically)
