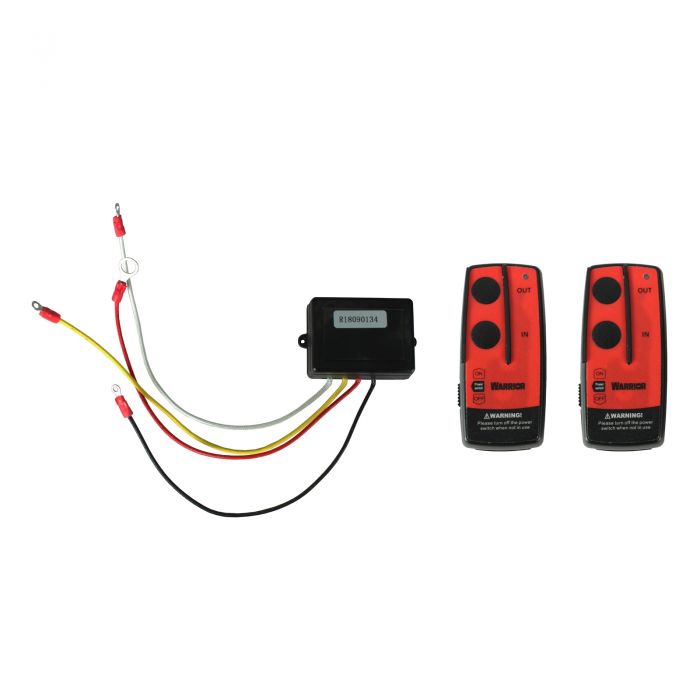

Our twin pack dual voltage 12v and 24v wireless remote and receiver is weatherproof and has a range of around 80-100 feet (dependant on local environment) This allows you to move around whilst carrying out winching making it both easier and safer. It comes with an on/off switch and an LED indicator allowing you to avoid unintentional activation. The simple wiring on this unit allows it to be easily retro fitted to most types of 12v and 24v solenoid controlled winches.

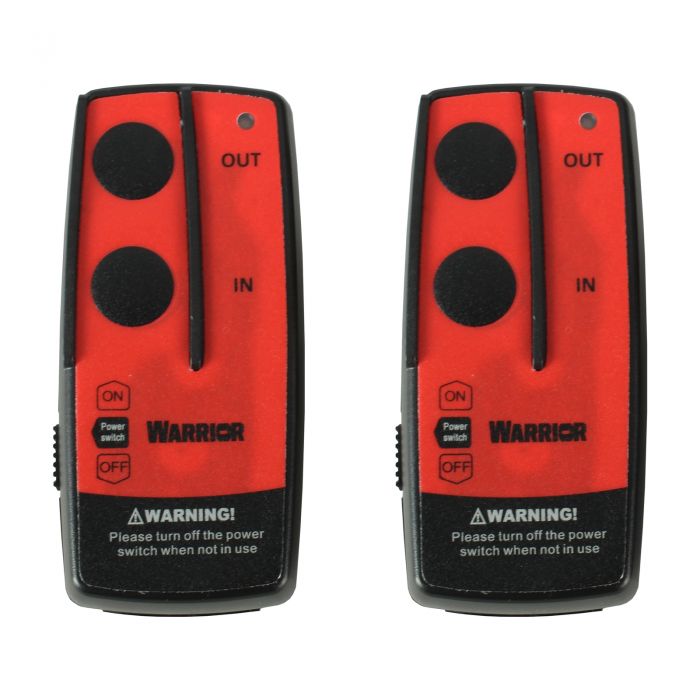

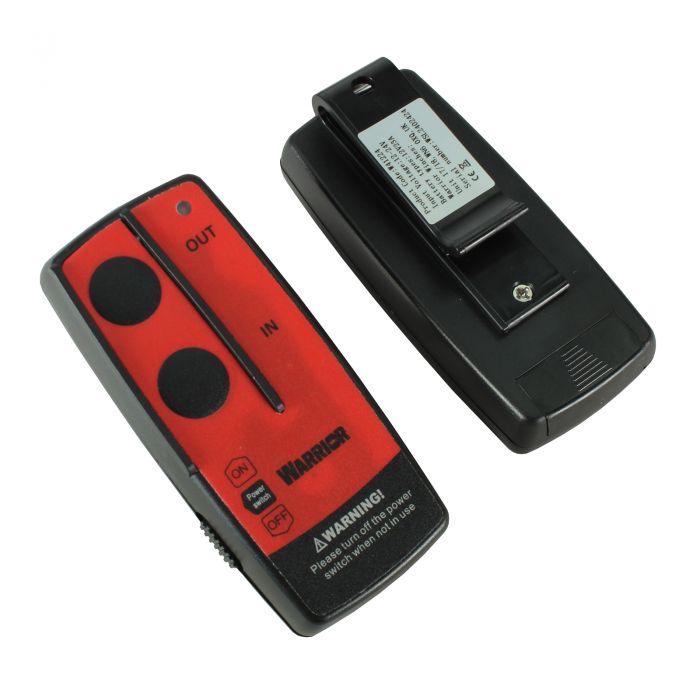

♦ Hand Control = 105mm x 45mm x 20mm

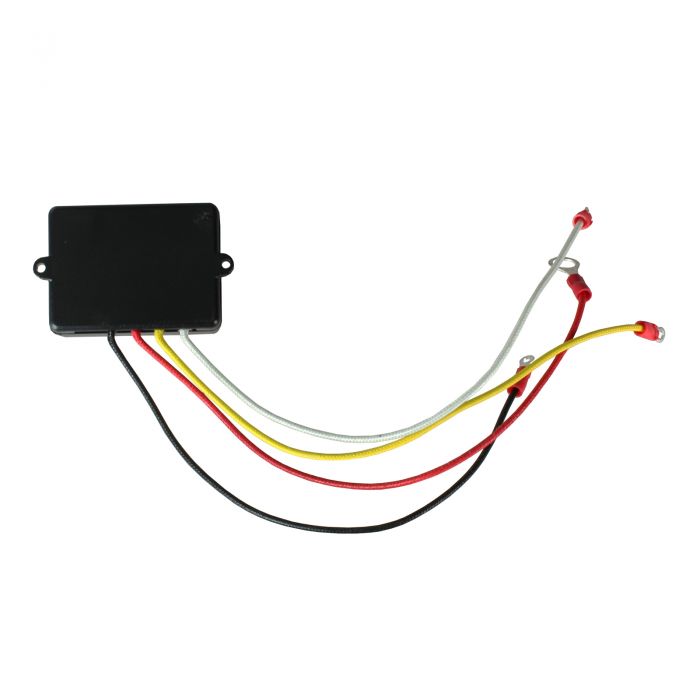

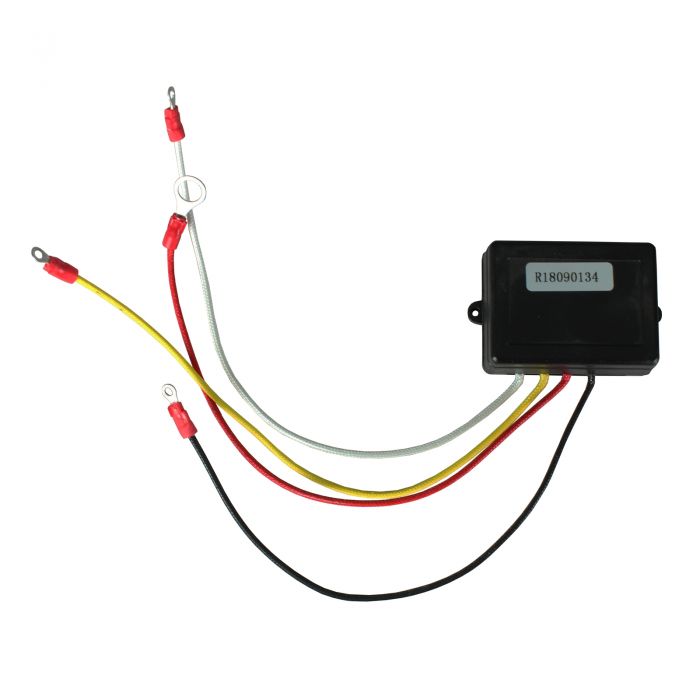

♦ Control Box = 60mm x 45mm x 22mm
♦ Control Box Wires = 220mm
The Battery is the 23A 12V, Type MN21

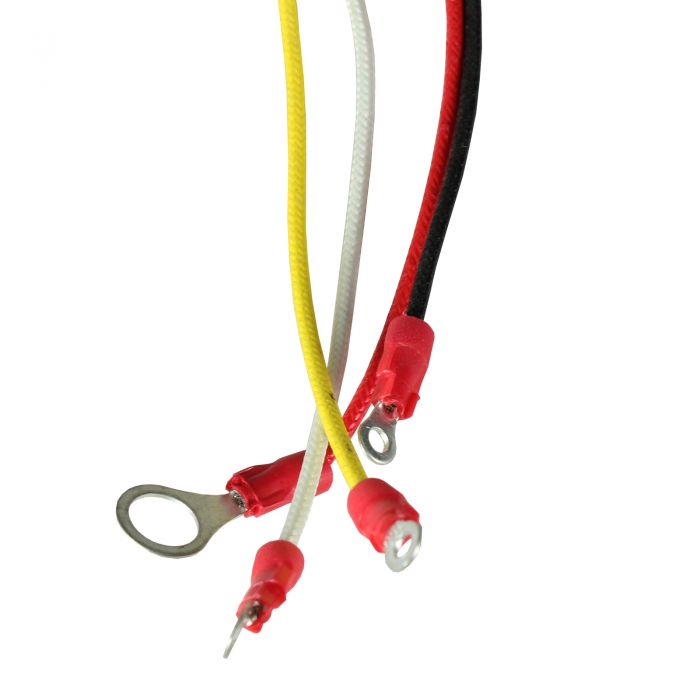

♦ Red = Live
♦ White and Yellow = Switched Live (winch in/out)
♦ Blue = aerial (Left Unconnected)
1. DIsconnect the power supply to the winch and wireless control
2. Turn off the power switch on the handset
3. Hold Both the 'In' & 'Out' buttons on the handset
4. Turn on the Handset
5. Reconnect the Power supply to the winch and wireless control
6 After 5 Seconds release the 'In' & 'Out' buittons on the handset
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
