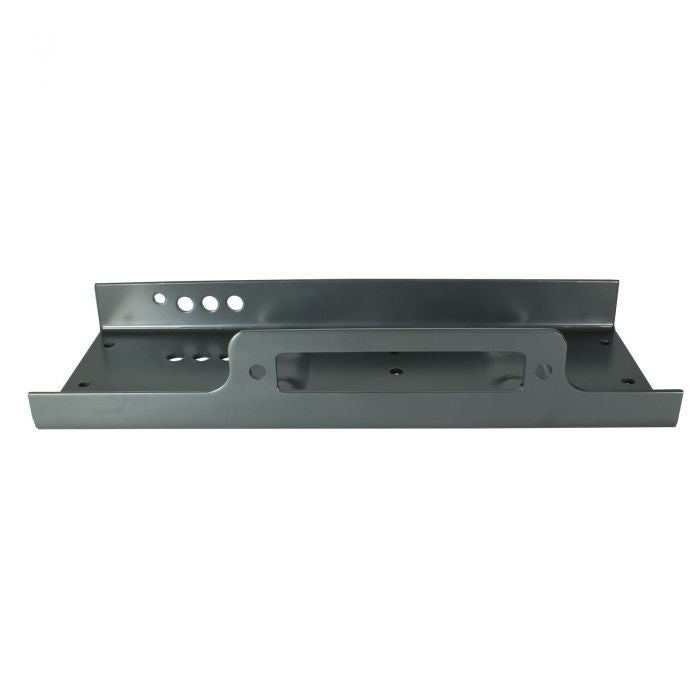

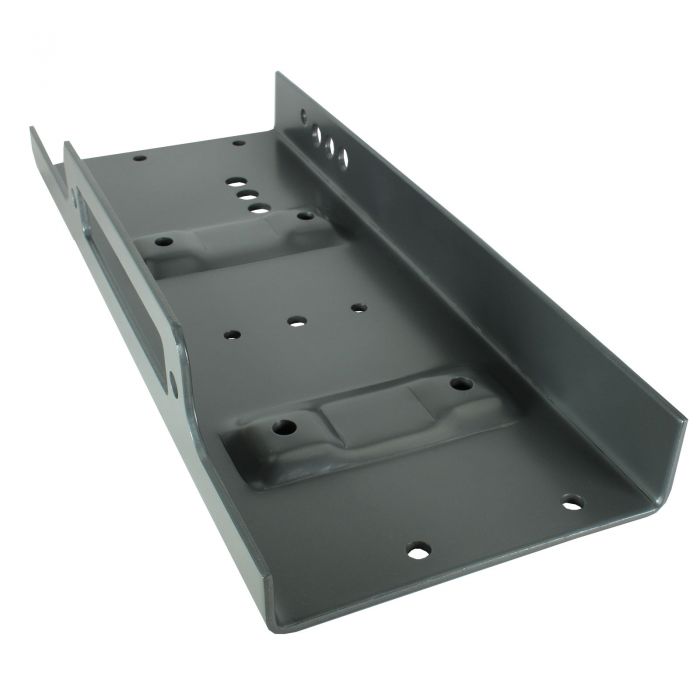

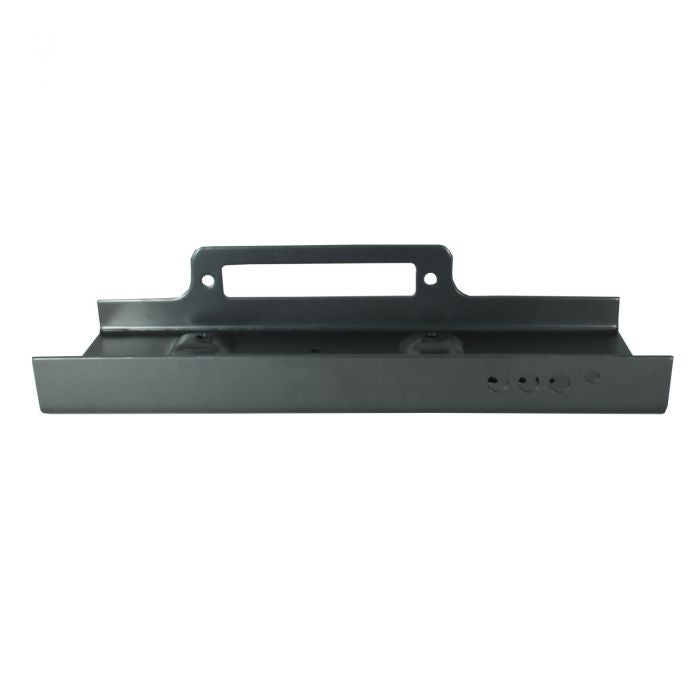

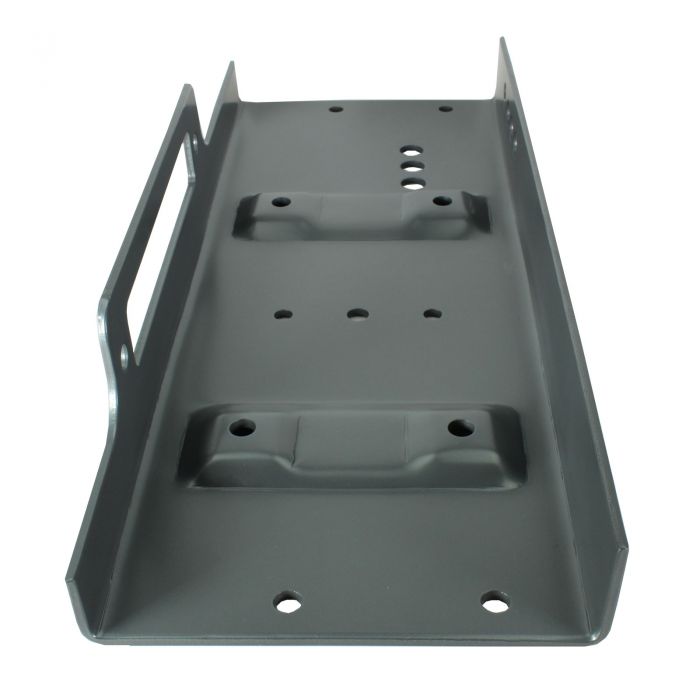

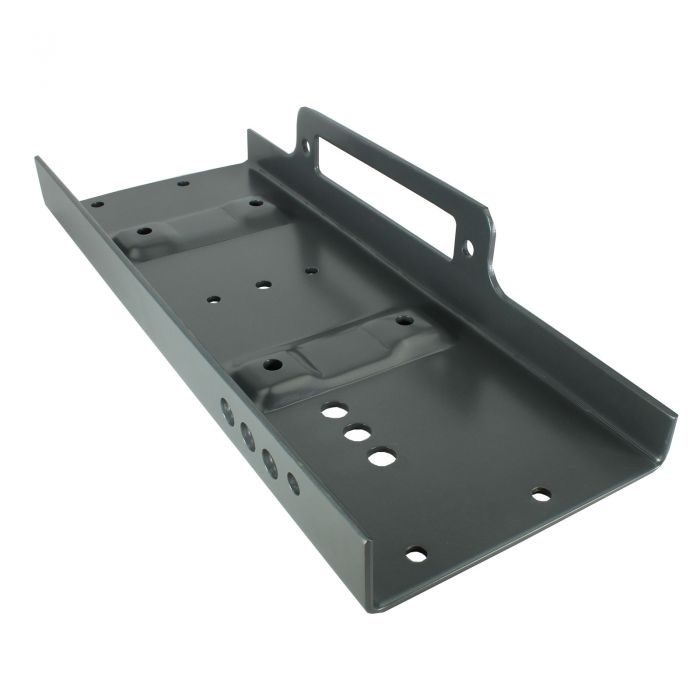

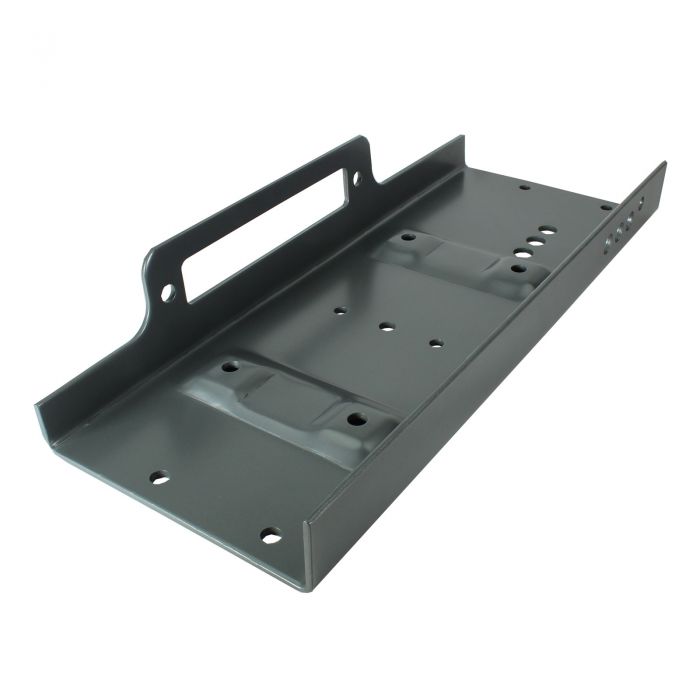

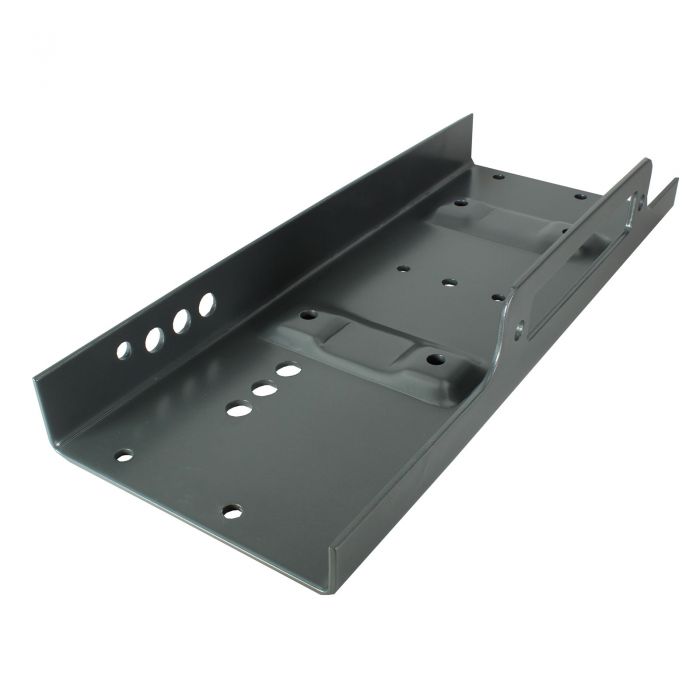

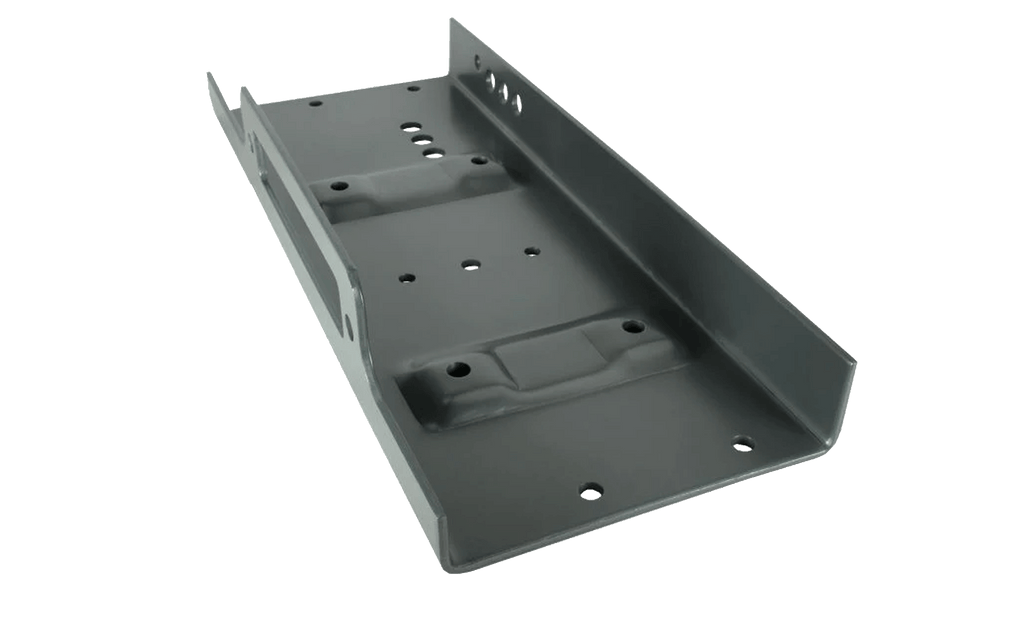

The Universal winch mount plate is ideal for fitting to recovery vehicles and 4x4. It is easily adaptable to suit all your needs and can be used in conjunction with 95% of winches available on the market today including Warrior, Superwinch and Warn. The plate has an all steel construction and is finished in durable dark grey powder coat. The mounting holes for the winch (hole centres 254mm x 114mm) are on pressed, raised sections of the plate so that the winch mounting bolt heads are flush with the underside of the plate so it can easily be bolted or welded down to a flat surface.

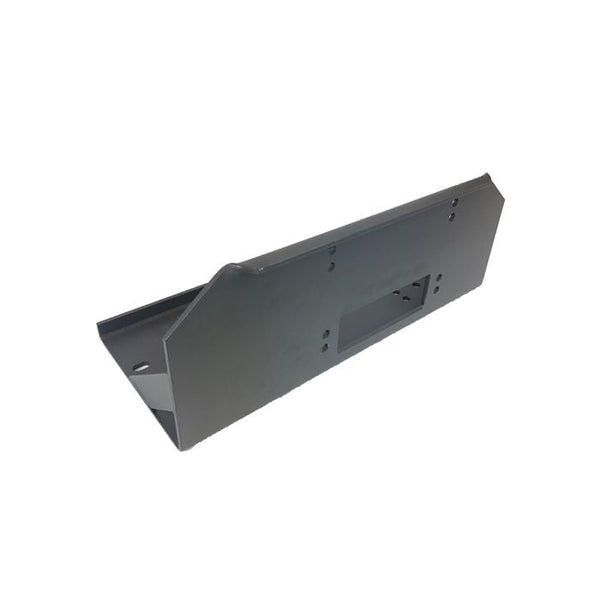

There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead to along with pre-drilled holes in the plate to feed battery or solenoid cables through. This is designed to suit a fairlead with 255mm hole centres.
Dimensions:
♦ Overall Size: 600mm x 210mm x 80mm
♦ Material Thickness: 5mm
♦ Fairlead Hole Centres: 255mm
♦ Winch Mounting Holes: 254mm x 114mm
Please cross reference the mounting pattern of your winch with the above dimensions
How to Estimate Power Usage
To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.
Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)
Examples:
|
Power Station Capacity |
Device Power Usage |
Estimated Run Time |
|---|---|---|
|
1200Wh |
400W |
1200 ÷ 400 = 3 hours |
|
1000Wh |
250W |
1000 ÷ 250 = 4 hours |
|
500Wh |
100W |
500 ÷ 100 = 5 hours |
Keep in mind:
- This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
- Ensure your device power usage is below the max rated watts the power station can ouput.
- Always allow some buffer in your calculations to account for energy loss or variations in power draw.
- Some Power Stations can use Expansion Batteries to extend their capacity.
Wattage Reference Guide*
| Device | Average Power Usage |
|---|---|
| Lamp | 10 |
| LED/LCD TV | 150 |
| Laptop | 100 |
| Desktop Computer | 200 - 500 |
| Modem/Router | 20 |
| Play Station | 165 |
*This chart is for reference only. Check your device for ACTUAL wattage requirements.
