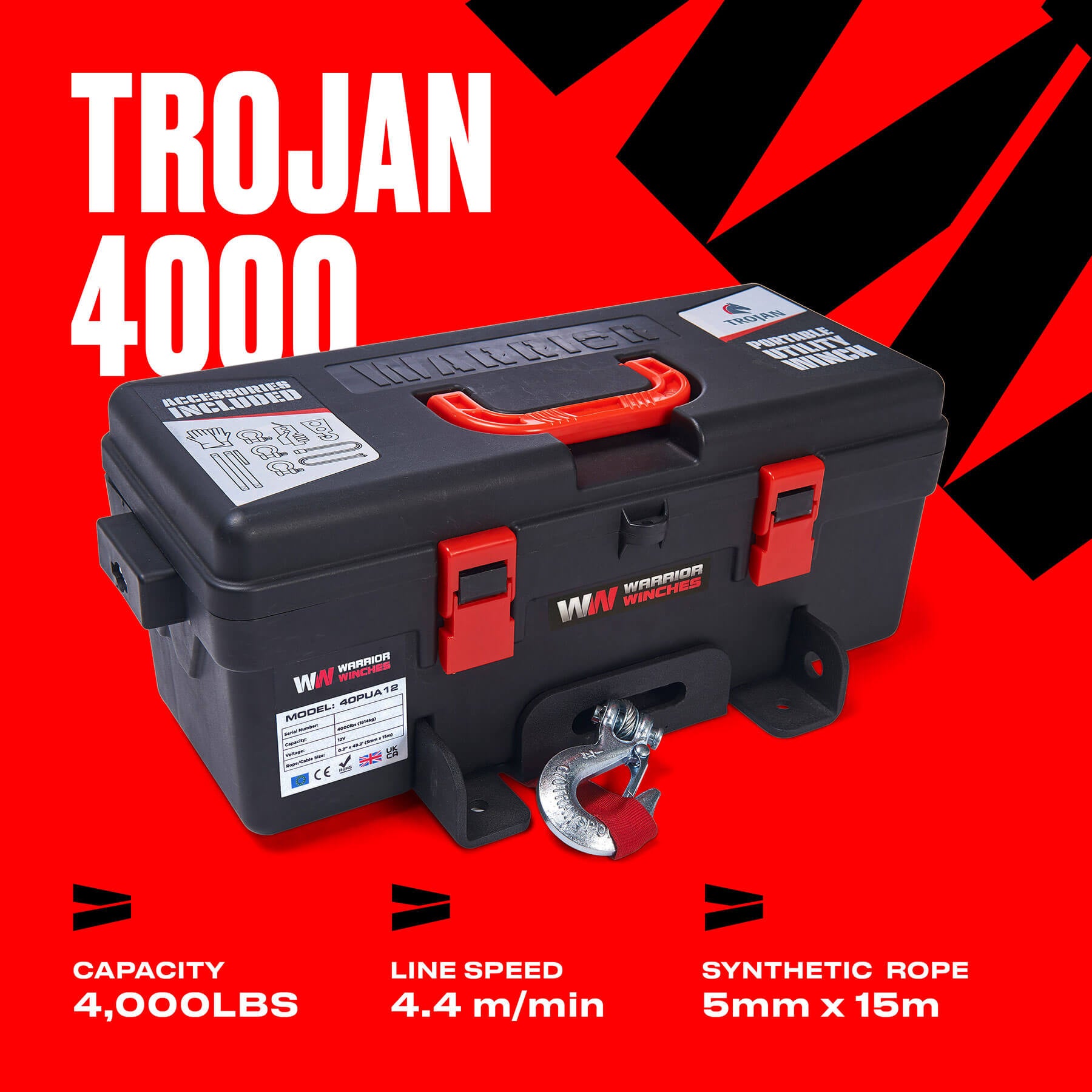

Warrior Trojan Portable 4000lb Electric Winch - Synthetic Rope

|    1 Questions Answered
SKU: 40PUA12

Rope: Synthetic Rope
Price:
Sale price£399.99
Sold out

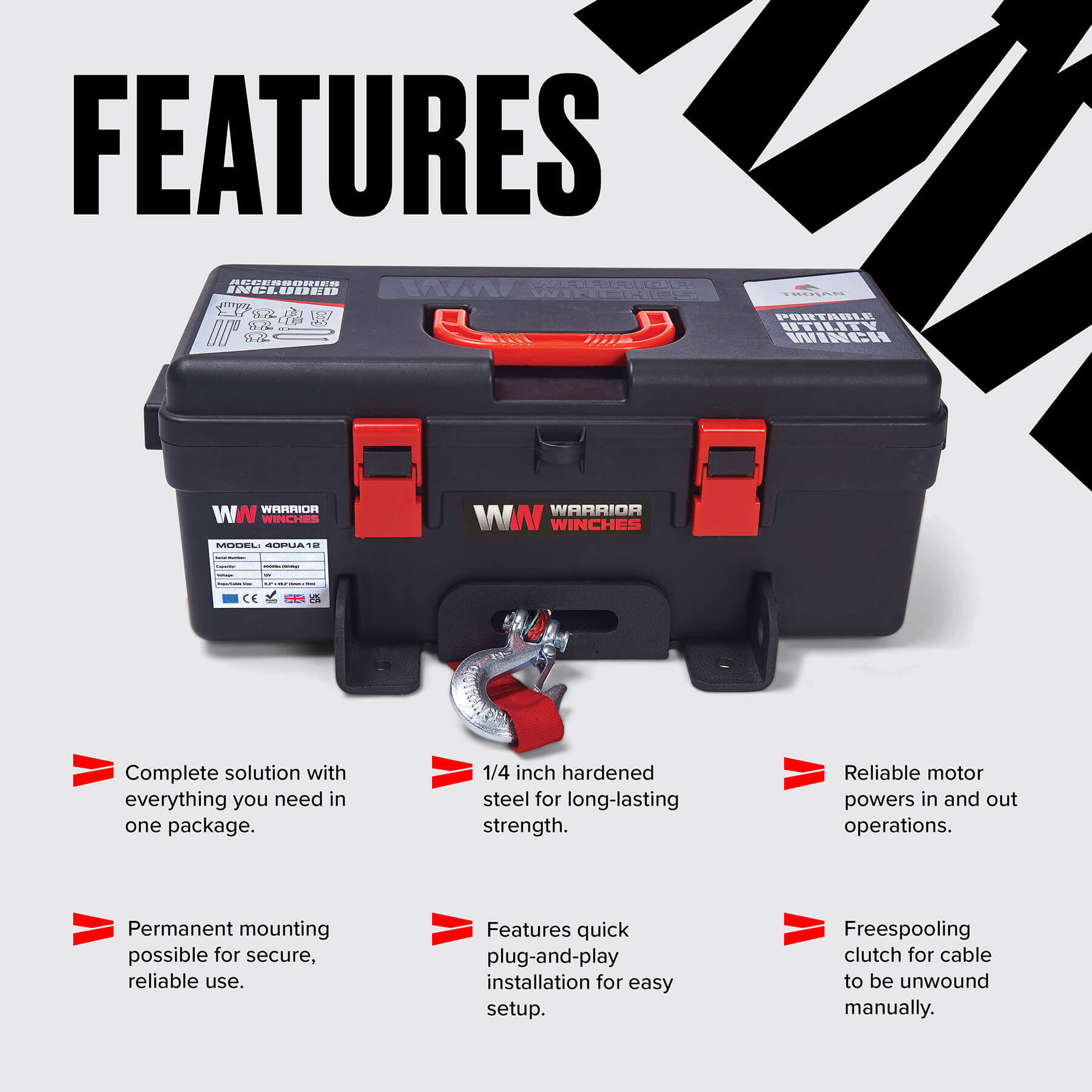

Features

  • HIGH POWER – With 4000lb of pulling power thanks to a 3.2hp 12v motor.
  • PORTABLE + PRACTICAL – In a plastic toolbox for easy portability and transportation.
  • VERSATILE – Doesn’t need to be permanently installed, but can be if you prefer.
  • QUICK USE – Speedy plug-in and start-up with this electric winch.
  • LINE PULL – 1.5m/min at full load.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

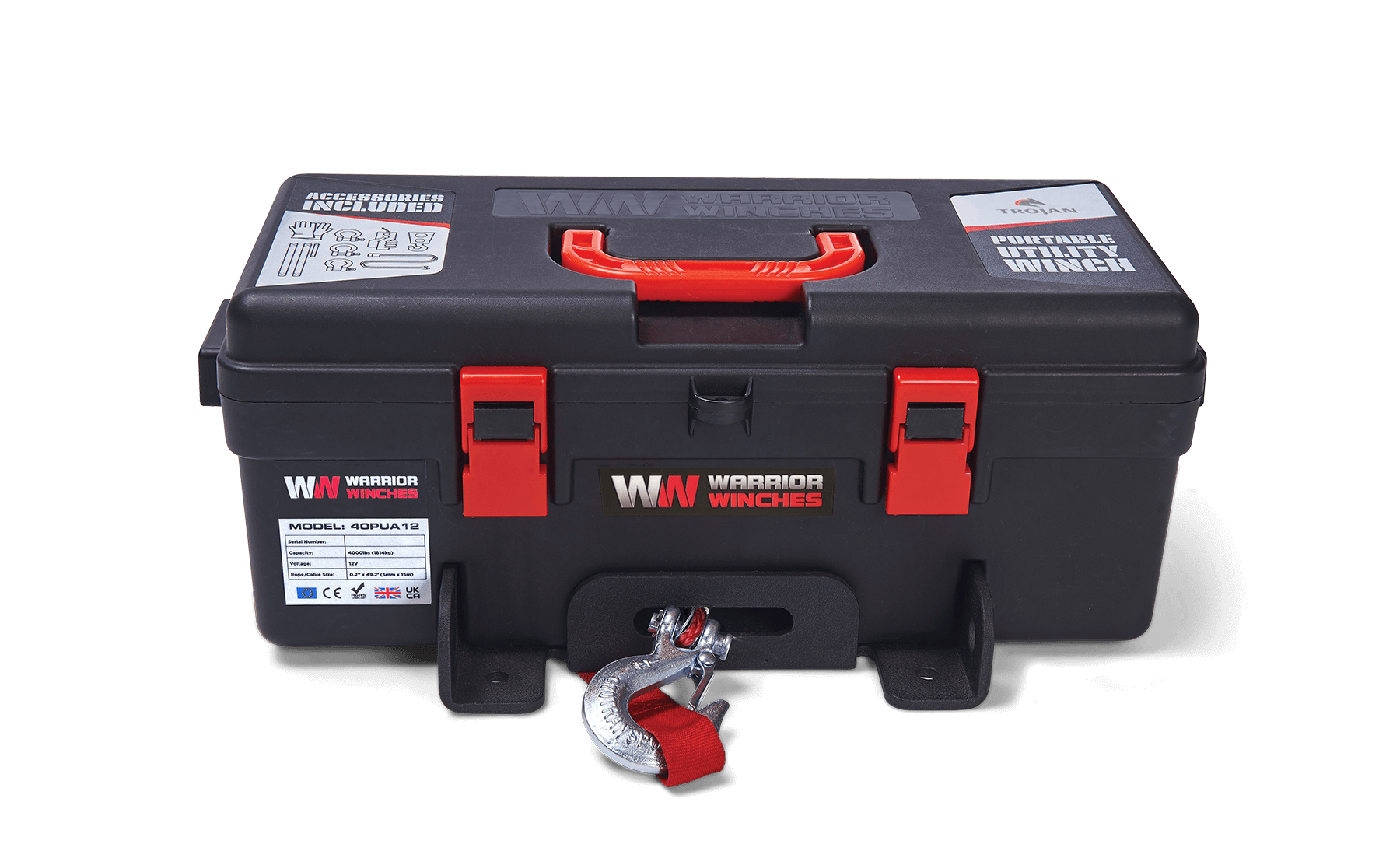

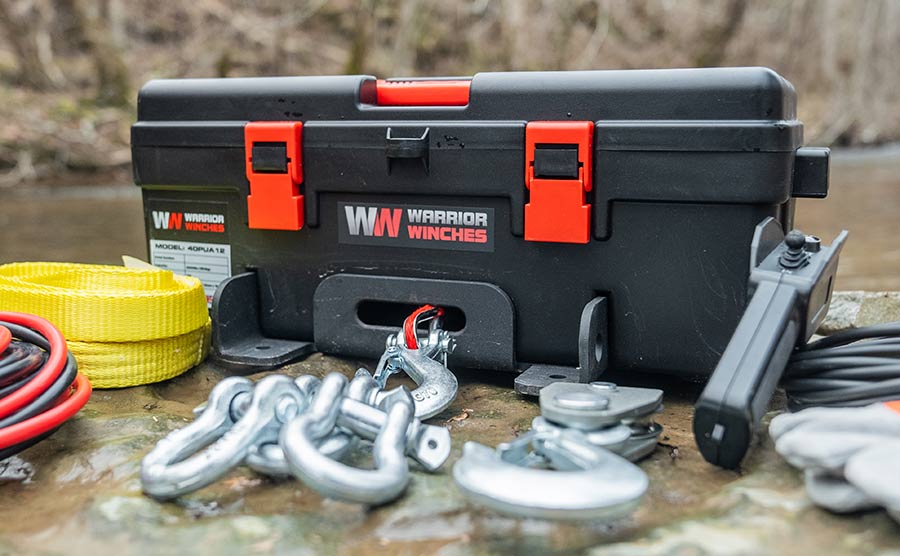

Warrior Trojan 4000lb / 1814kg Portable Winch

With Warrior’s signature strength, the Warrior Trojan portable winch gives you high power without impracticality. With a line pull of a huge 4000lb or 1814kg - there is no compromising on strength.

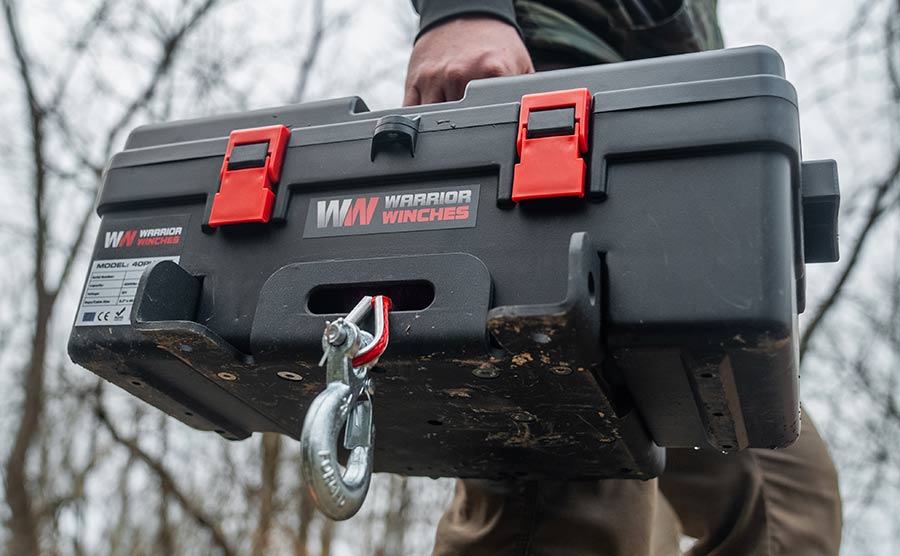

But thanks to its special design, this winch is set inside a plastic toolbox, allowing you to easily transport or store it. Also having space for all the included accessories, there’s no risk of losing vital parts along the way, as you can pack everything up neatly.

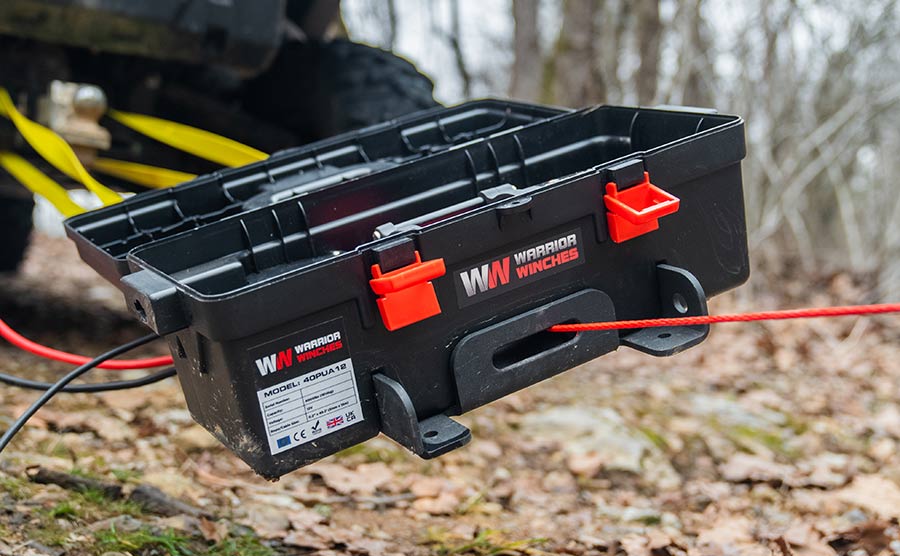

Unlike a standard winch, the Trojan doesn’t need to be permanently installed, allowing for far more versatile usage. The integrated metal base along with the included straps and shackles mean this winch can be used almost anywhere for any job; simply plug in and start up. But if you prefer something more permanent, you can use the metal base to mount it to a trailer – if that’s the way you roll.

Fact File:

Line Capacity: 4,000lb (1,814kg)
Motor: Reversible 3.2hp 12v Permanent Magnet Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 12 Month Return to Base

Accessories:

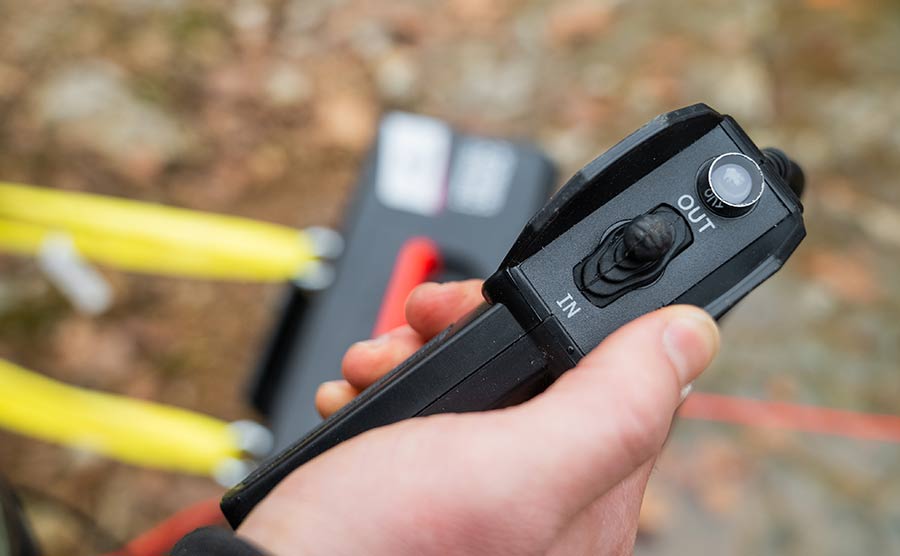

Wired Hand Control: 3.8m (12.5ft) Wired Hand Control
Wireless Control: Not Available
Mounting Plate: Integrated
Fairlead: Steel Hawse Fairlead
Mounting Bolts: Included for Standard installations
Quick connect battery cables with Alligator connectors
6,000lb Hook Type Pulley Block
3 x 14,000lb Shackles
2 x 8,000lb Heavy Duty 8ft Straps
Instruction Manual

Other Information:

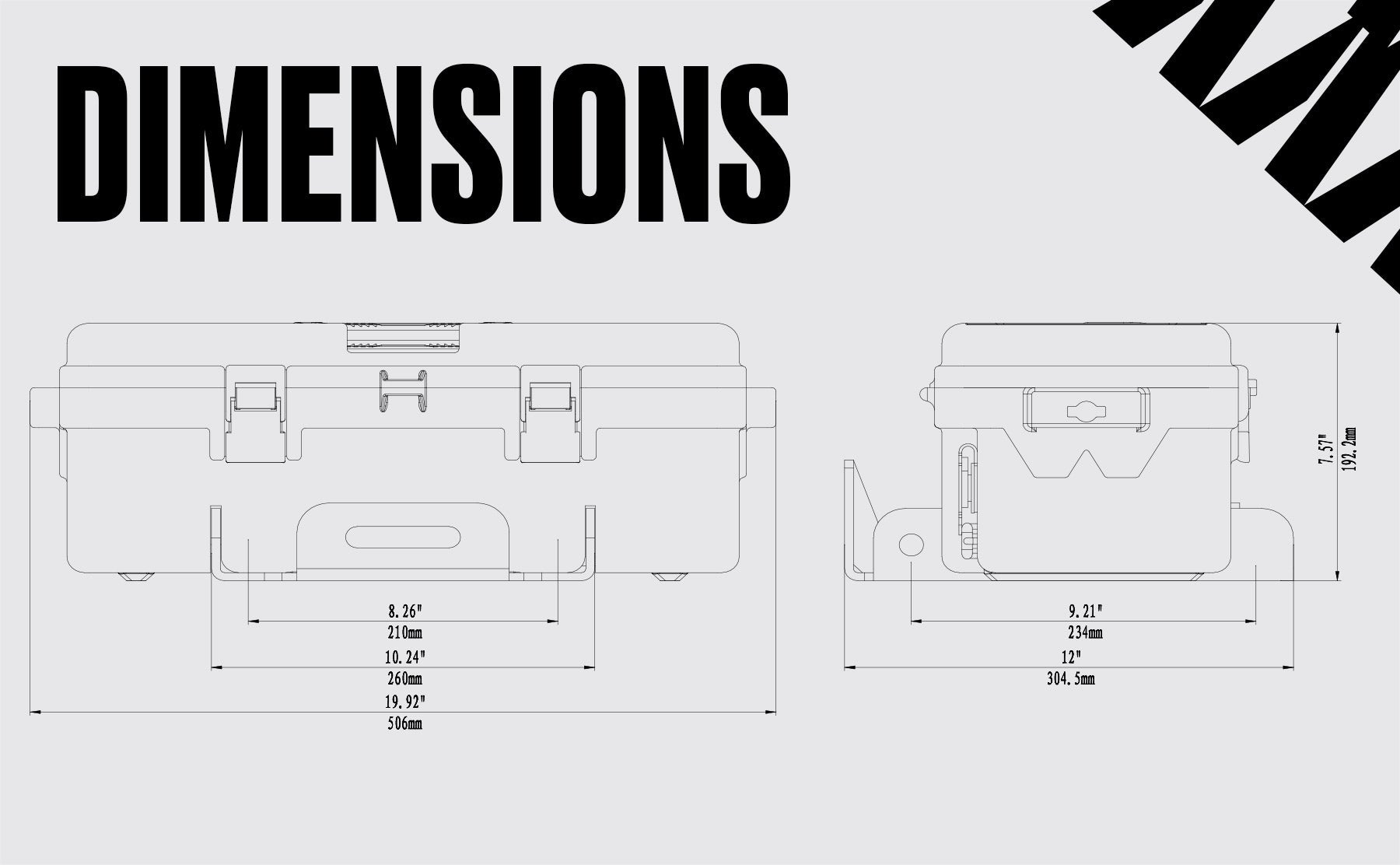

Dimensions: 506mm L x 304.5mm D x 192.2mm H
Mounting Bolt Pattern: 210mm x 234mm
Line Pull - No Load: 4.4 m/min (28 Amps)
Line Pull - Full Load: 1.5 m/min (190 Amps)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull4000 lbs
Motor Type12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt12
Gearing166:1
ClutchManual
Braking ActionAuto in the drum
Drum Size (Dia x L)50.4 x 82 mm
Cable MaterialSynthetic
Cable – Dia x LSynthetic: 5mm x 15m
Mounting Pattern210mm × 234 mm mm
Dimensions506 x 192 x 304 mm
Weight19kg
Warranty3 Years
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 4000 (1814) 8.5 (2.6)
2 3351 (1520) 18.7 (5.7)
3 2883 (1307) 29.8 (9.1)
4 2530 (1147) 42.0 (12.8)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 14.4 (4.4) 28
1000 (454) 9.8 (3.0) 80
2500 (1135) 7.2 (2.2) 150
4000 (1814) 4.9 (1.5) 190

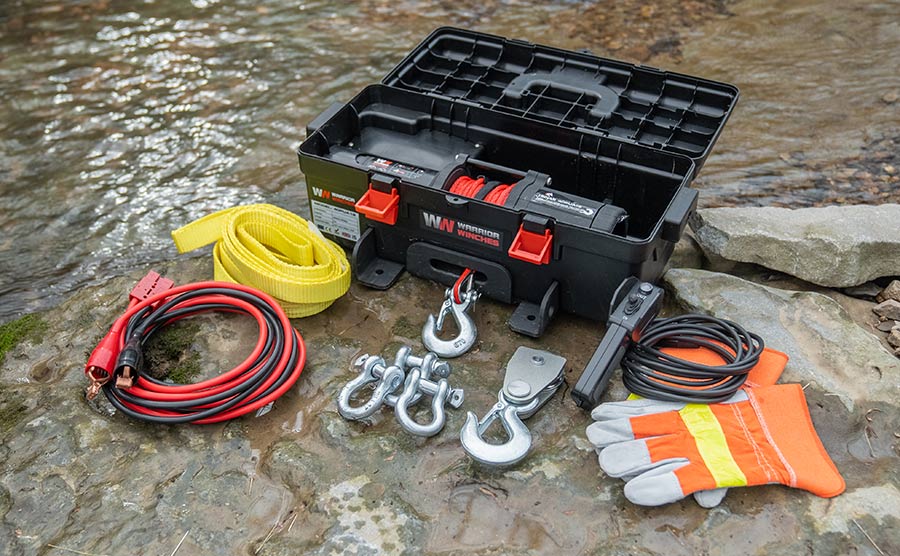

What's in the box:

  • Quick Connect Cord With Alligator Clips
  • Heavy Duty Leather Palmed Winch Gloves
  • 6 000lb Pulley Block
  • 3.8m (12.5ft) Hand Remote
  • Three 14 000lb D-shackles
  • Two 8ft Heavy Duty Straps Rated 8 000lbs
  • Synthetic Rope
User Manual Download
Brochure Download

Load Test


Reviews and Q&A

  • Can you tell me the capacity of synthetic rope this winch will hold please

    The synthetic version of the Trojan is fitted with a 5mm diameter, 15m rope.
