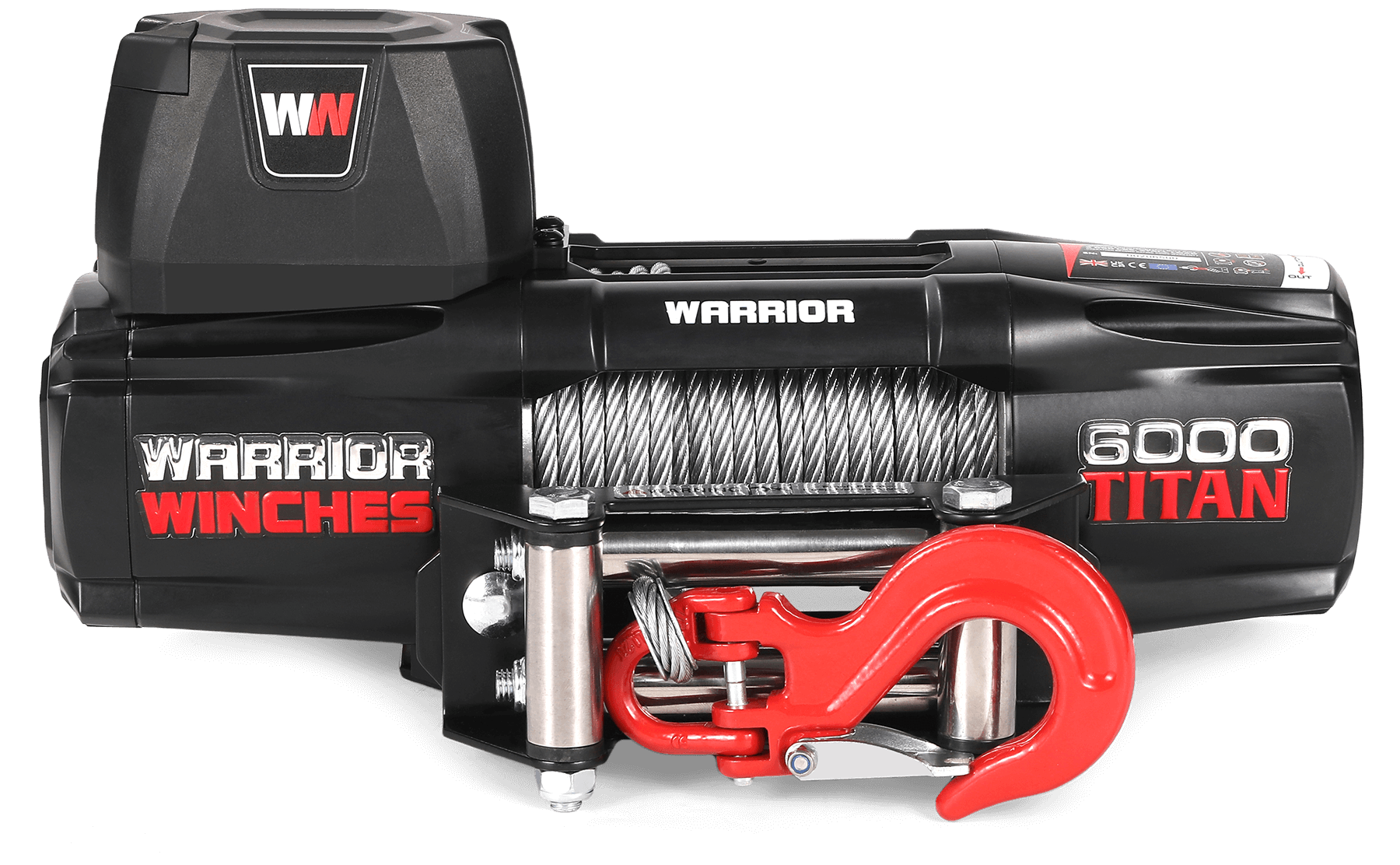

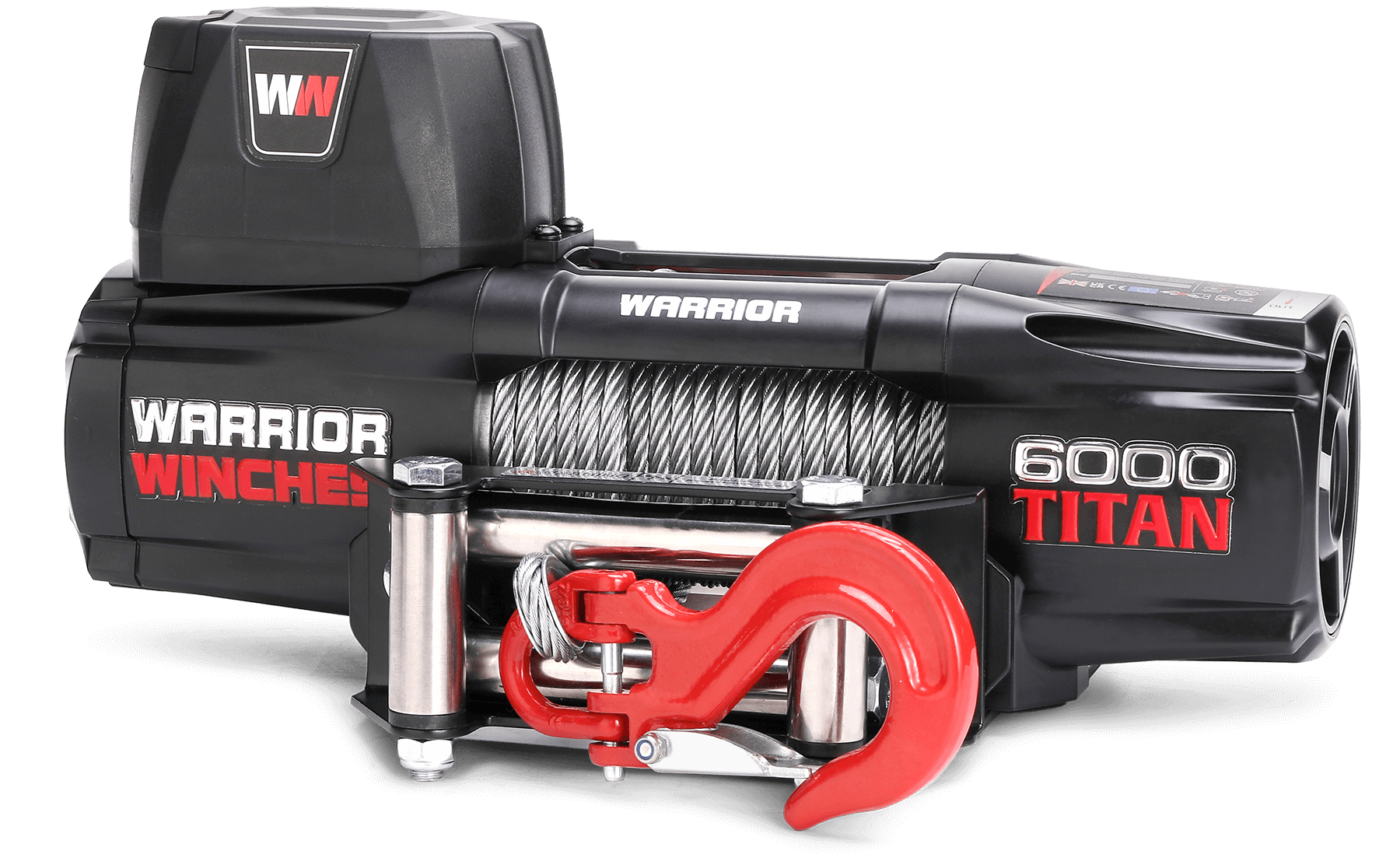

Warrior Titan 6000 lbs Winch

Features

Maximum Protection in Any Environment: Full metal armour casing shields internal components from impacts, dust, and harsh weather, extending the winch's lifespan in extreme conditions.

Faster Recoveries, Less Waiting: Higher-speed line performance ensures quicker vehicle recovery, saving time and reducing effort during demanding operations.

Enhanced Safety on Slopes and Heavy Loads: The special brake design ensures precise stopping power, preventing accidental rollback or slippage on steep terrain.

Operate from Anywhere, Anytime: 2-in-1 wired and wireless remote control offers flexibility, letting you choose how to stay in control based on your environment. USB recharging cable included for easy recharging on the road.

Faster Engagement When It Matters: The upgraded clutch design enables quick and reliable activation, making it easier to manage under pressure.

The Titan Range are premium grade winches built to deliver fast, quiet, and smooth recovery solutions. Packing impressive strength, easily pulling up to 6000 lbs.

Designed with extreme off-roaders and heavy-duty enthusiasts in mind, the Titan Range incorporates cutting-edge engineering and top-tier materials to ensure dependable performance when it matters most.

Whether you're scaling rocky trails, pulling through deep mud, recovering heavy equipment, or launching and retrieving boats, these winches provide the speed, strength, and control needed to conquer every challenge.

When performance, durability, and ease of use are non-negotiable, the Titan Range delivers. Every winch in the range is backed by a 5-year warranty, giving you confidence and peace of mind for years to come.

Specifications:

Rated Line Pull	6000 lbs
Motor Type	12V: Input: 3.4hp / 2.5kW; Output: 1.1hp / 1.4kW
Clutch	Manual
Gearing	166:1
Gearing System	Planetary
Braking Action	Mechanical Spring
Drum Size (Diameter x Length)	50 x 138 mm
Controls	2in1 Rechargeable Wired/Wireless Remote
Cable Material	Steel
Cable Size (Diameter x Length)	6.5mm x 14m
Fairlead	Roller
Mounting Pattern	6.6 ×3 in (168 × 76.2 mm) 4-M8
Dimensions	393 x 127 x 195 mm
Weight	16.3 kg
Waterproof Rating (IP)	67

Layer of Rope/Cable	Line Pull: lbs(kgs)	Total Rope on Drum ft (m)
1	6000(2722)	10.8(3.3)
2	4877(2212)	24.6(7.5)
3	4109(1864)	40.7(12.4)
4	3549(1610)	45.9(14)

Line Pull	Line Speed ft/min (m/min)	Amp Draw
lbs (kgs)	12v	12v
0	13.8 (4.2)	22
2500 (1134)	7.8 (2.4)	95
4500 (2041)	6.6 (2.0)	170
6000 (2722)	3.3 (1.0)	220

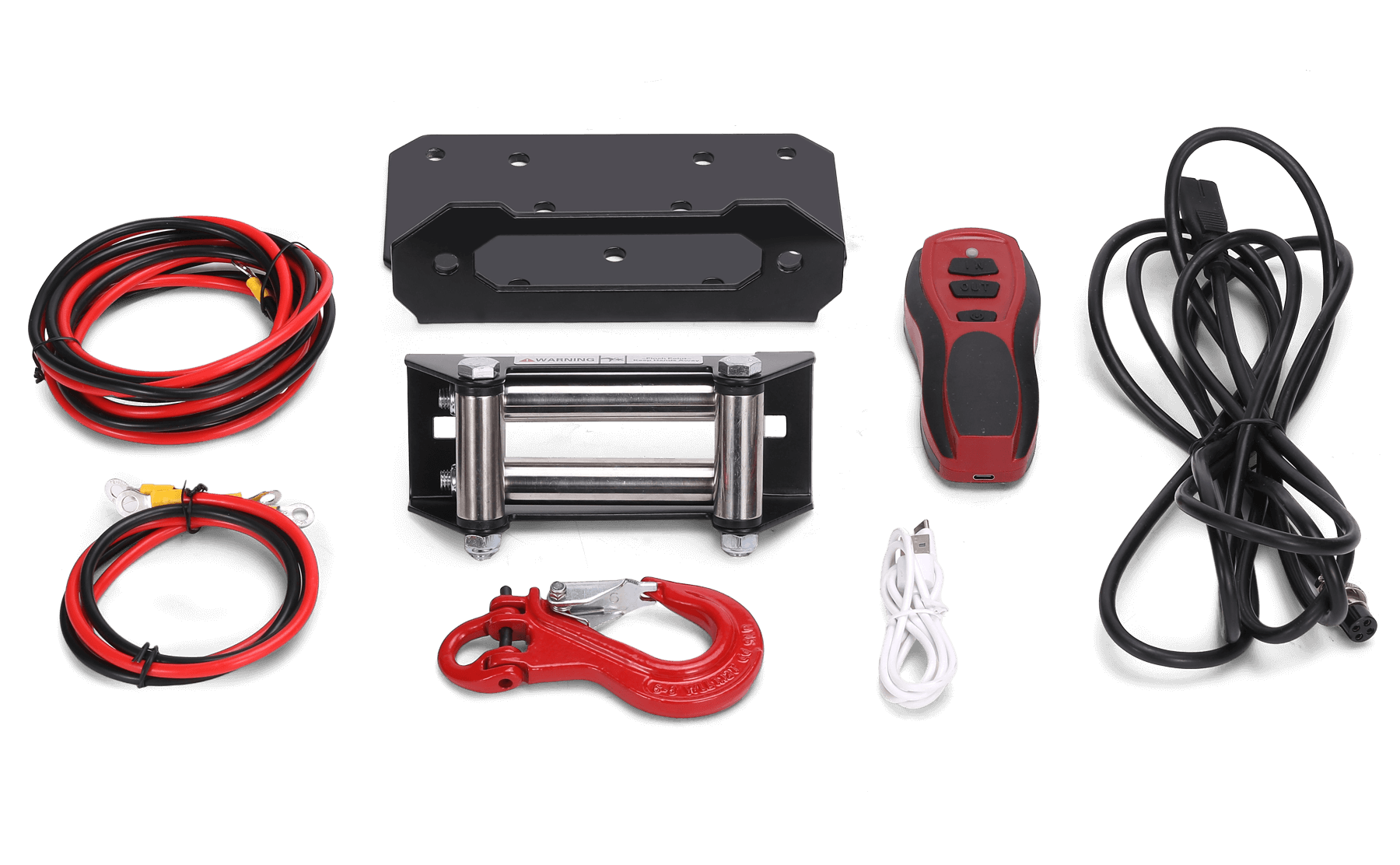

What's in the box:

Titan Winch
Rope and Hook
Fairlead
Mounting Plate
Rechargeable Wired/Wireless Remote
Heavy Duty Battery Cables

Downloads:

User Manual	Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)

Examples:

Power Station Capacity	Device Power Usage	Estimated Run Time
1200Wh	400W	1200 ÷ 400 = 3 hours
1000Wh	250W	1000 ÷ 250 = 4 hours
500Wh	100W	500 ÷ 100 = 5 hours

Keep in mind:

This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
Ensure your device power usage is below the max rated watts the power station can ouput.
Always allow some buffer in your calculations to account for energy loss or variations in power draw.
Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

Device	Average Power Usage
Lamp	10
LED/LCD TV	150
Laptop	100
Desktop Computer	200 - 500
Modem/Router	20
Play Station	165

*This chart is for reference only. Check your device for ACTUAL wattage requirements.
