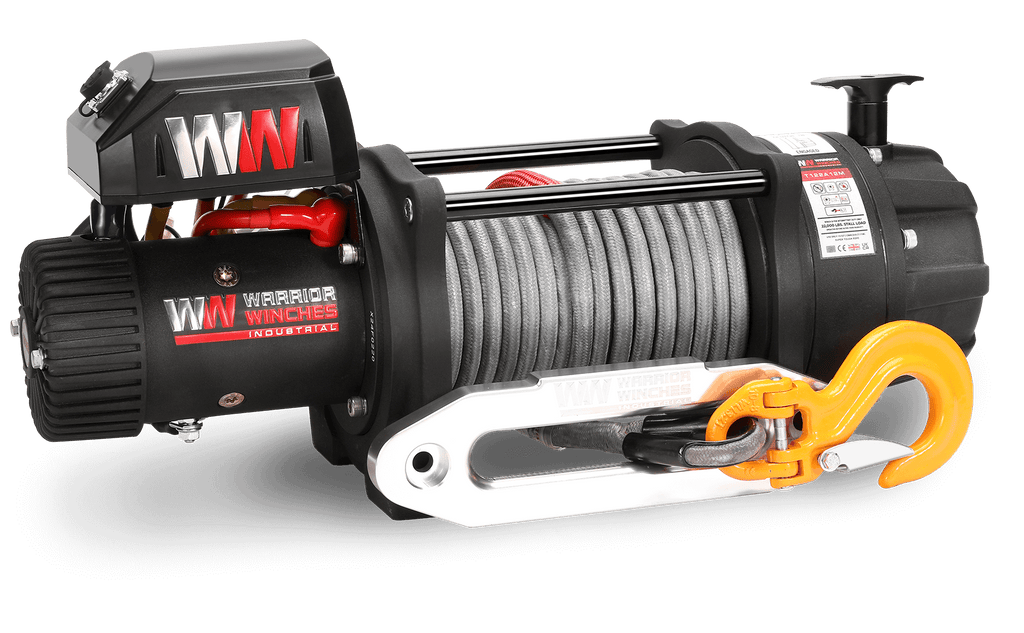

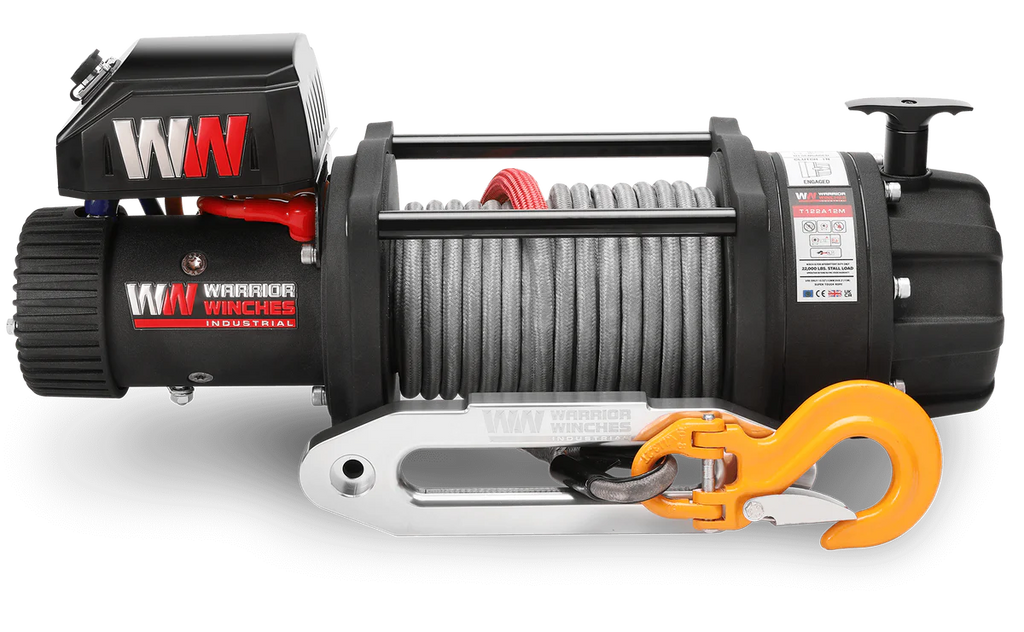

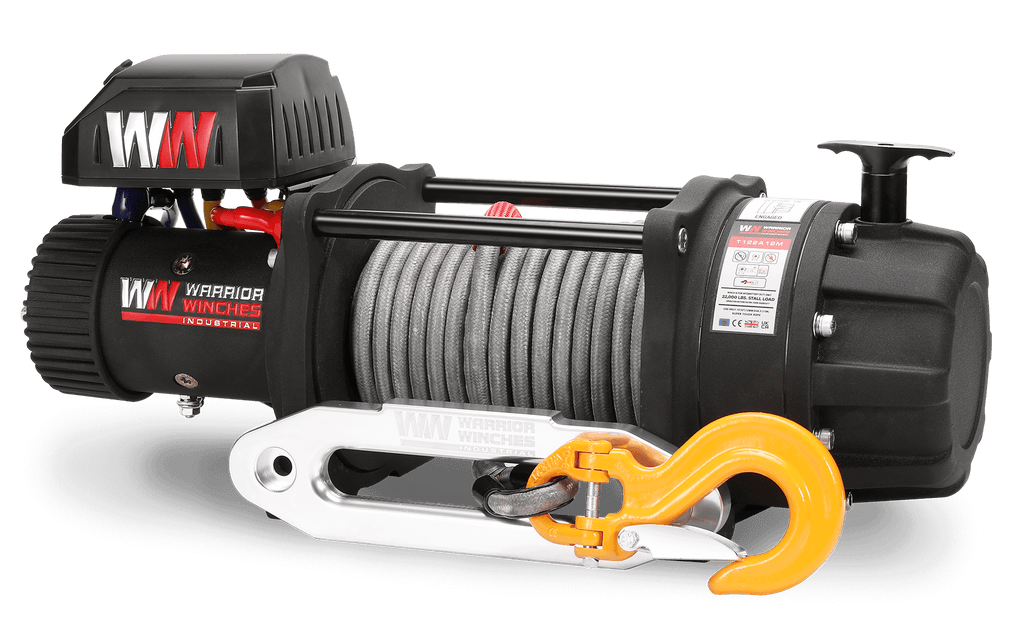

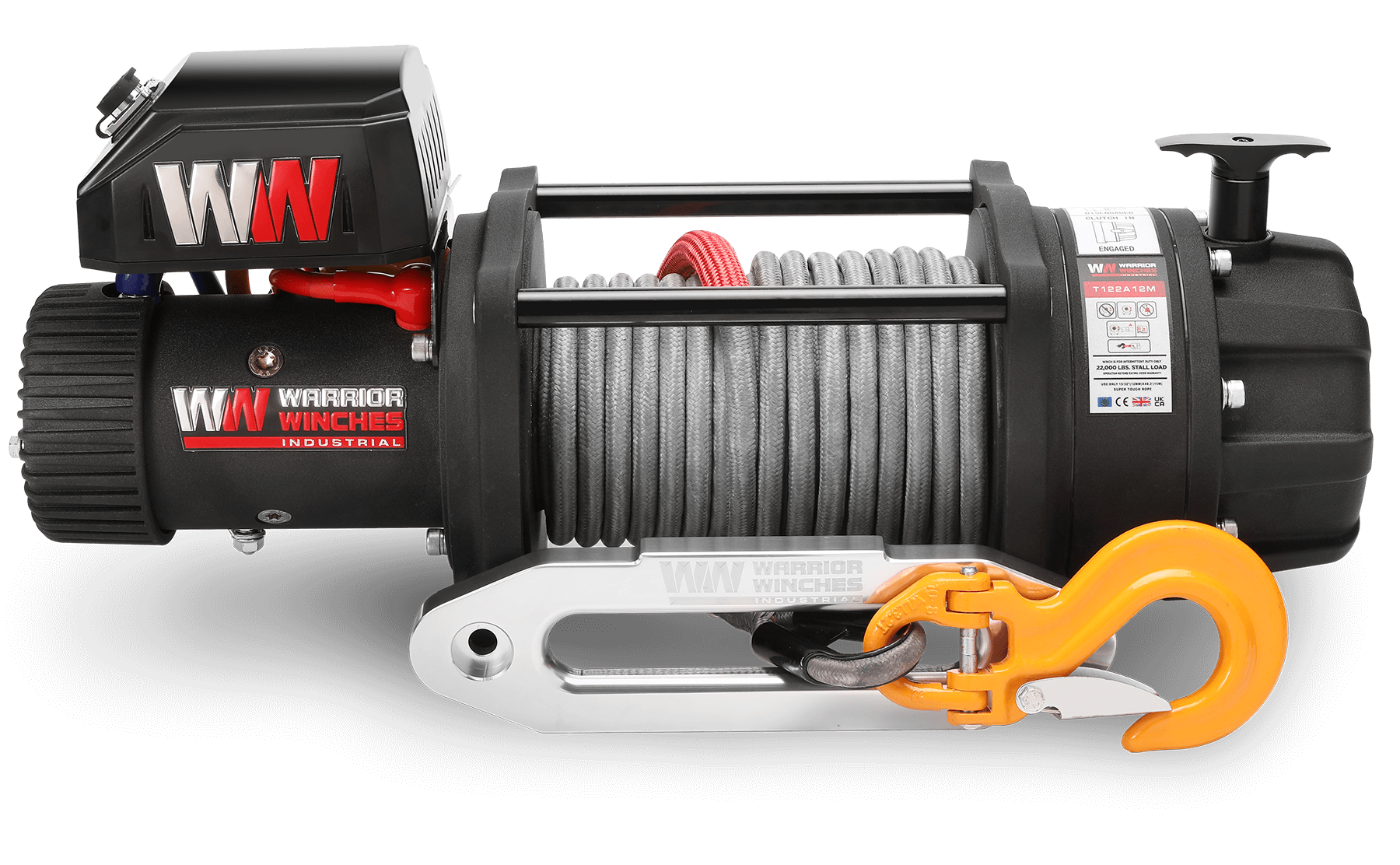

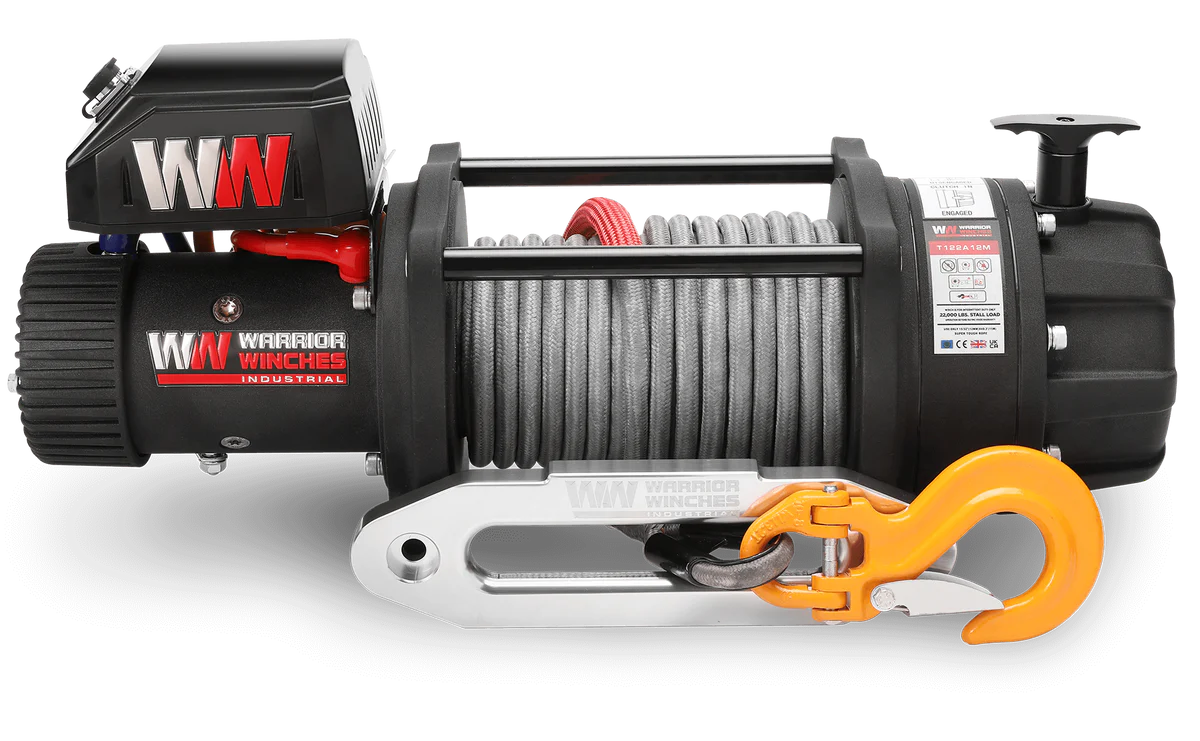

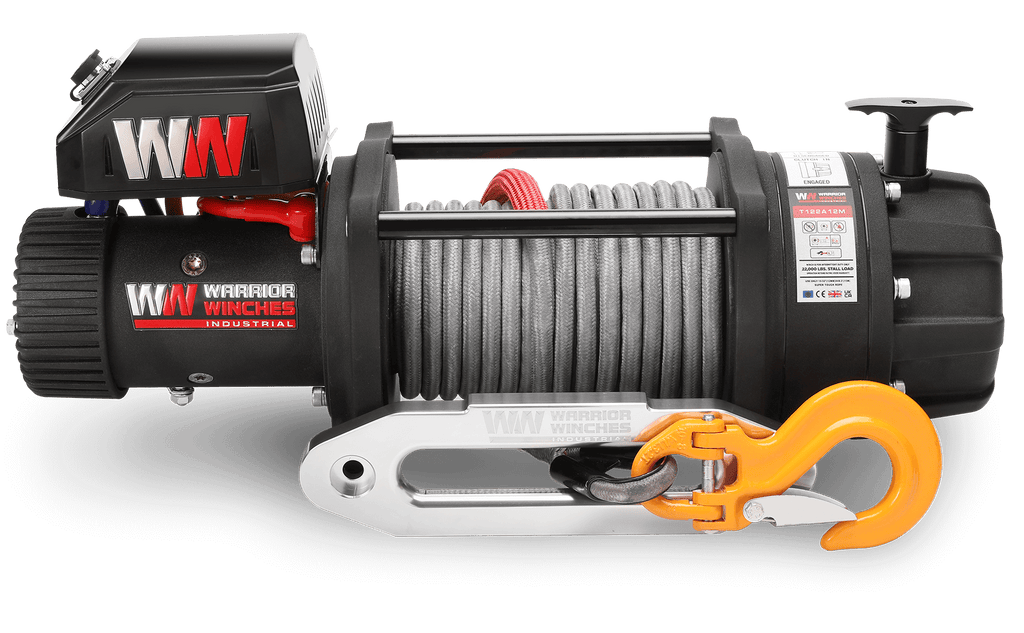

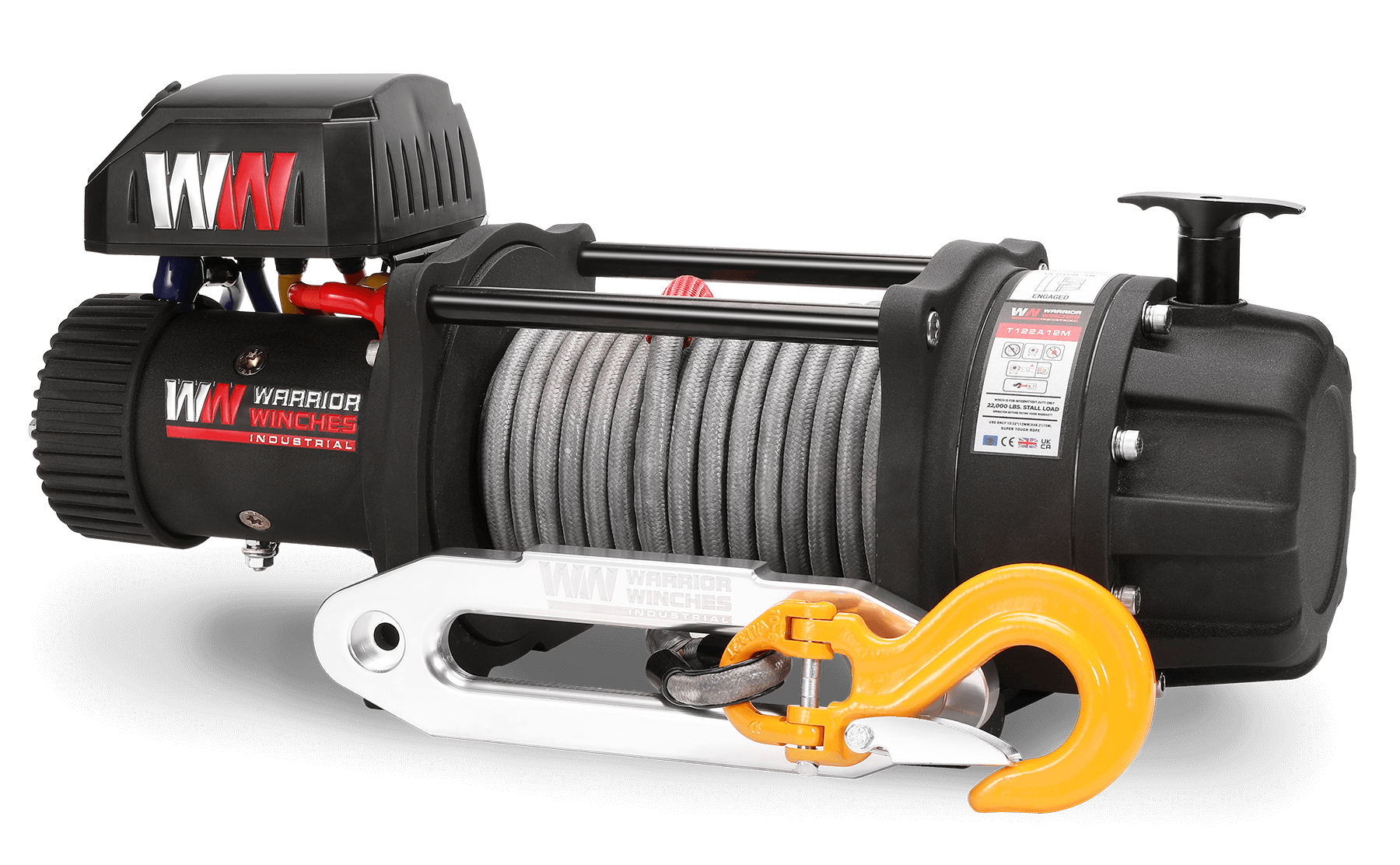

Warrior T1000-2200 22000lb Severe Duty Winch - 24v Synthetic Rope

 0 Reviews |    Ask a Question
SKU: T122A24

Rope: Synthetic Rope
Voltage: 24v
Price:
Sale price£1,835.99
Sold out

Recommended Accessories
Winch Mounting Plate T122 / 80ENS range

Winch Mounting Plate T122 / 80ENS range

£92.40 incl vat
Warrior20000lb Pulley Block

Warrior20000lb Pulley Block

£39.99 incl vat

Features

  • MILITARY QUALITY – IP68 Rated Military Grade winch & control box.
  • REVOLUTIONARY DESIGN – Features an external brake for added safety.
  • HARD-WEARING – Special lithium grease ensure operation in extreme temperatures while the powder coating protects against corrosion..
  • STEEL STRENGTH – Complete with stainless steel fittings as standard.
  • EFFICIENT POWER – Hardened 3-stage planetary gears ensure reliability.
  • OVERLOAD PROTECTION.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The T1000 range of Severe Duty Warrior Winches were originally designed as highly advanced prototypes for military application, where the ability to perform in severe climates and the harshest environments imaginable are an essential prerequisite.

 After successful operations in the field & following many plaudits at last year's Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general sale.

The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck.

Like its namesake, T1000 series is undoubtedly one of the most the most advanced and durable machines on the market, it really is the best of the best.

All T1000-122 comes with built in resettable OLP (Overload Protection) as a safety feature, this allows the user to operate in any environment with confidence without damaging the unit itself

Rated Line Pull22000 lbs
Motor Type12V: Input: 7.4hp / 5.5 kW; Output: 3.9hp / 2.9 kW
24V: Input: 8.2hp / 6.1 kW; Output: 4.2hp / 3.1 kW
Gearing450:1
ClutchManual
Braking ActionExternal Brake
Drum Size (Dia x L)88 x 213 mm
Cable MaterialSynthetic
Cable – Dia x LSynth: 12mm x 25m
Mounting Pattern254mm × 114.3 mm : 254mm × 165.1mm mm

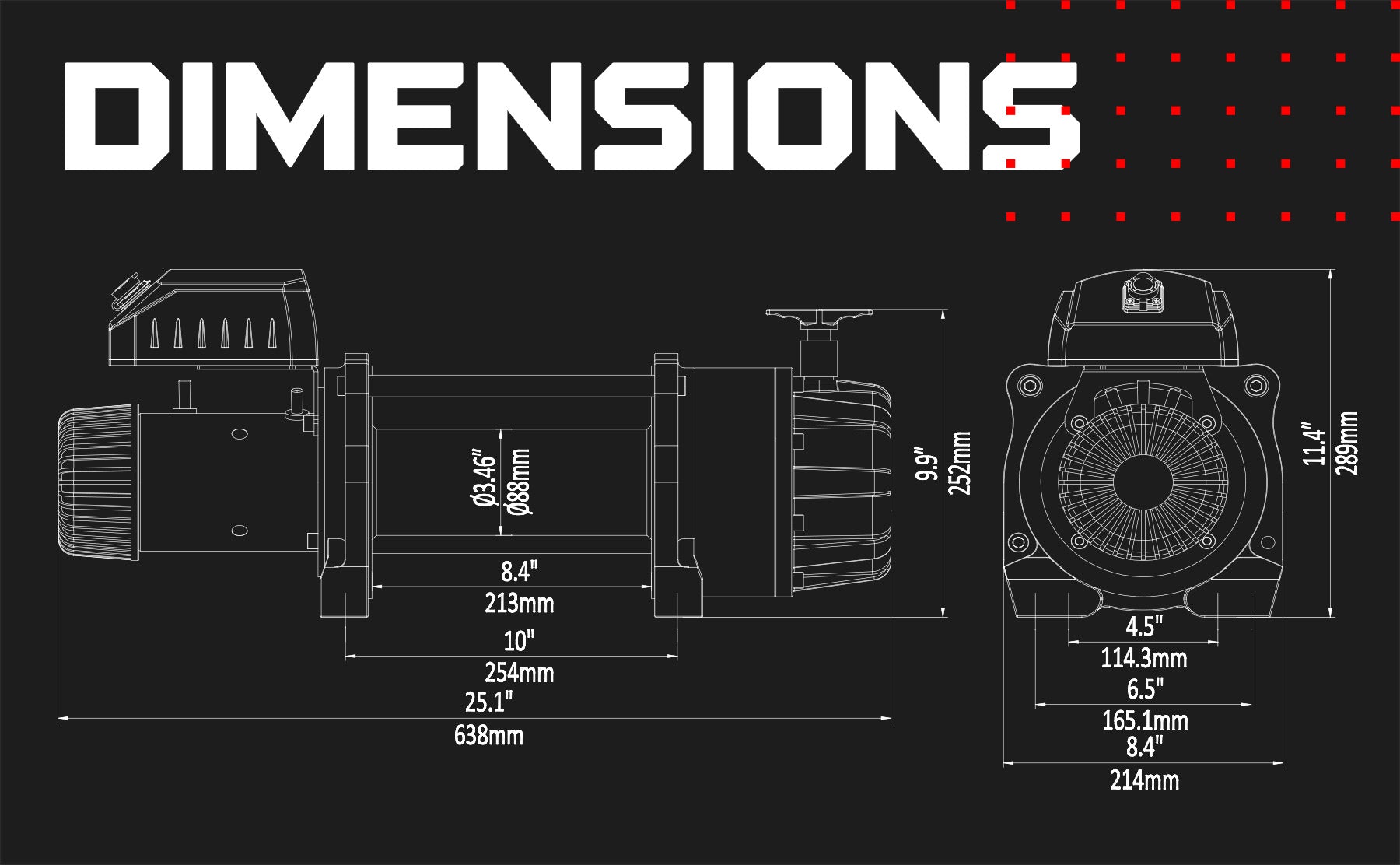

Dimensions638 x 214 x 289 mm
Weight134.5kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 22000 (9979) 14.1 (4.3)
2 17300 (7847) 32.8 (10.0)
3 14260 (6468) 55.1 (16.8)
4 12130 (5502) 78.7 (24.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 21.7 (6.6) 23.0 (7.0) 65 40
5000 (2268) 9.8 (3.0) 10.2 (3.1) 175 100
10000 (4536) 6.6 (2.0) 7.2 (2.2) 270 150
15000 (6804) 4.9 (1.5) 5.2 (1.6) 350 200
22000(9979) 3.0 (0.9) 3.3 (1.0) 460 270

What's in the box:

  • T1000 Winch
  • Aluminium Hawse Fairlead
  • Synthetic Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download

Load Test


Brake Test
