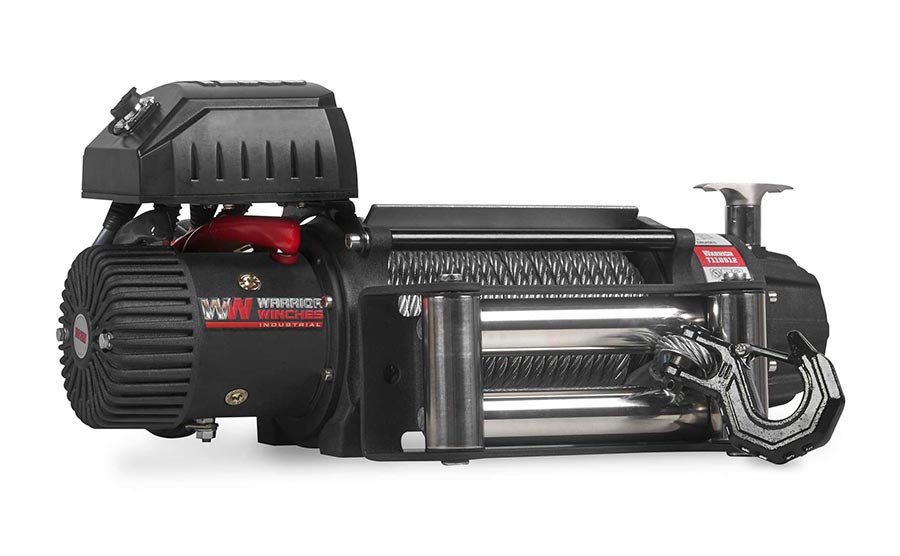

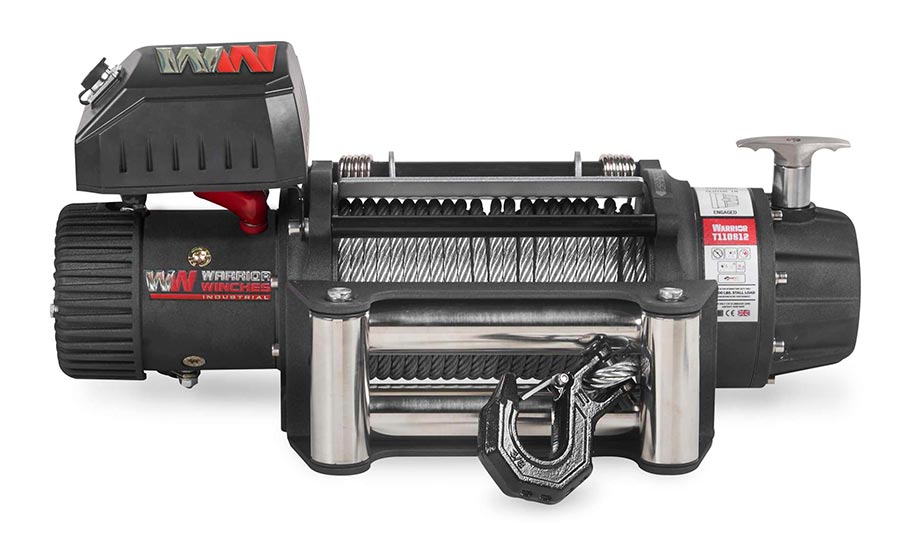

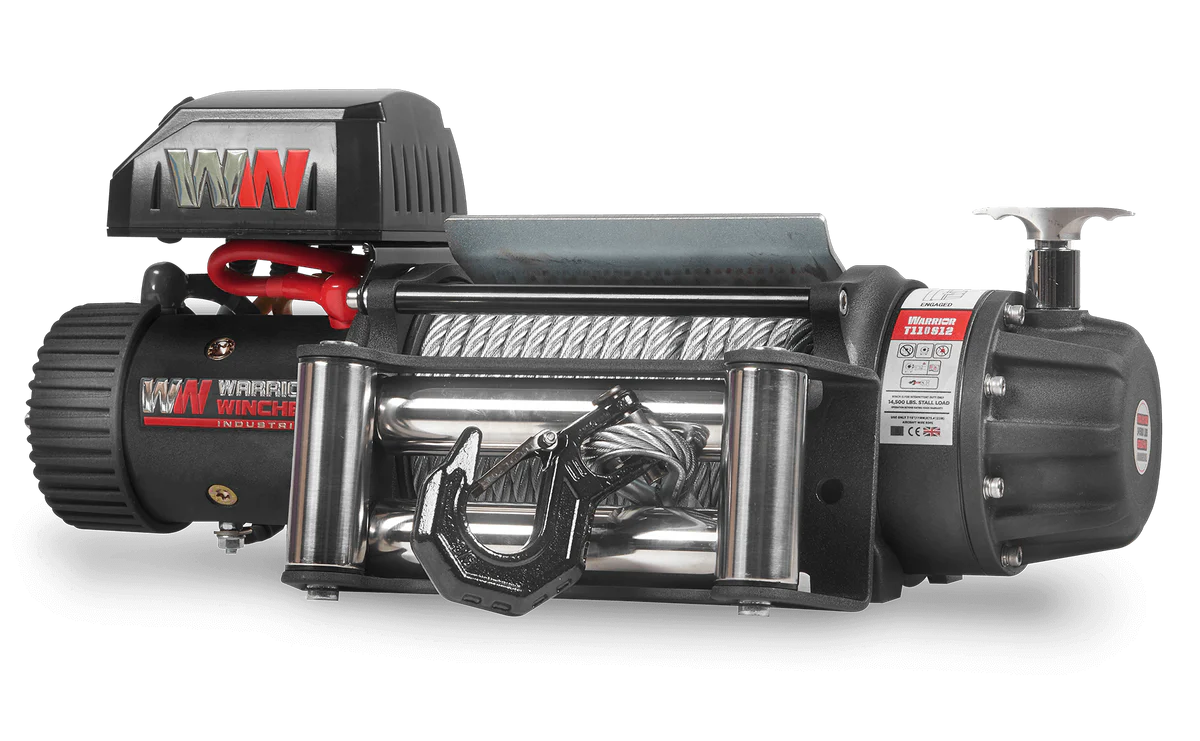

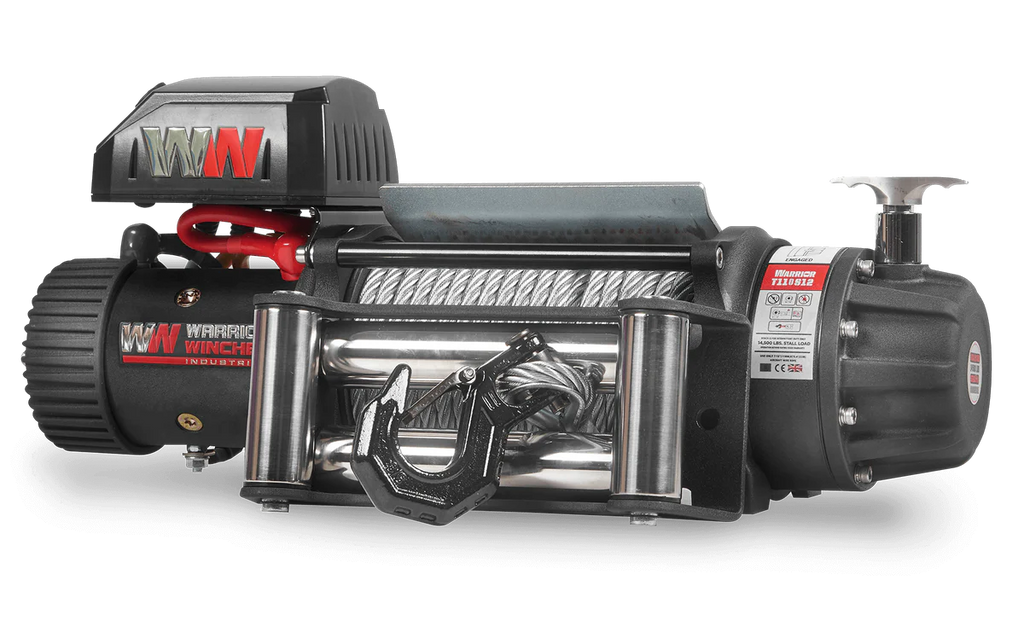

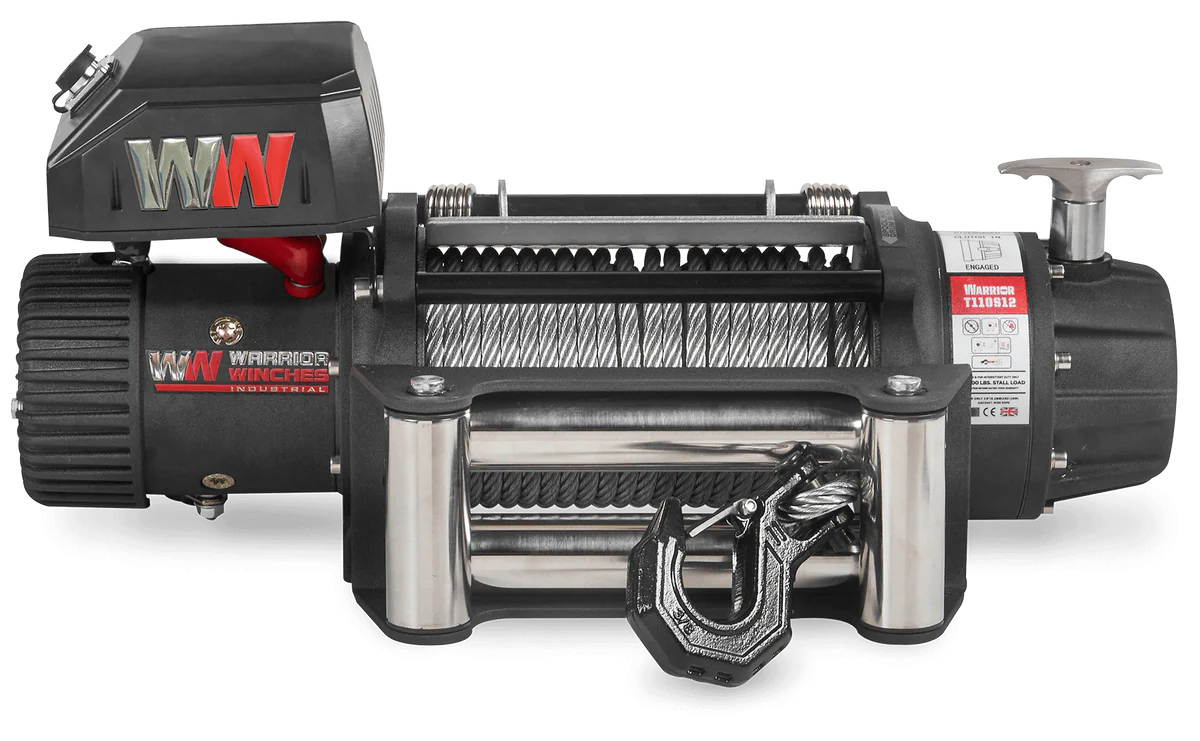

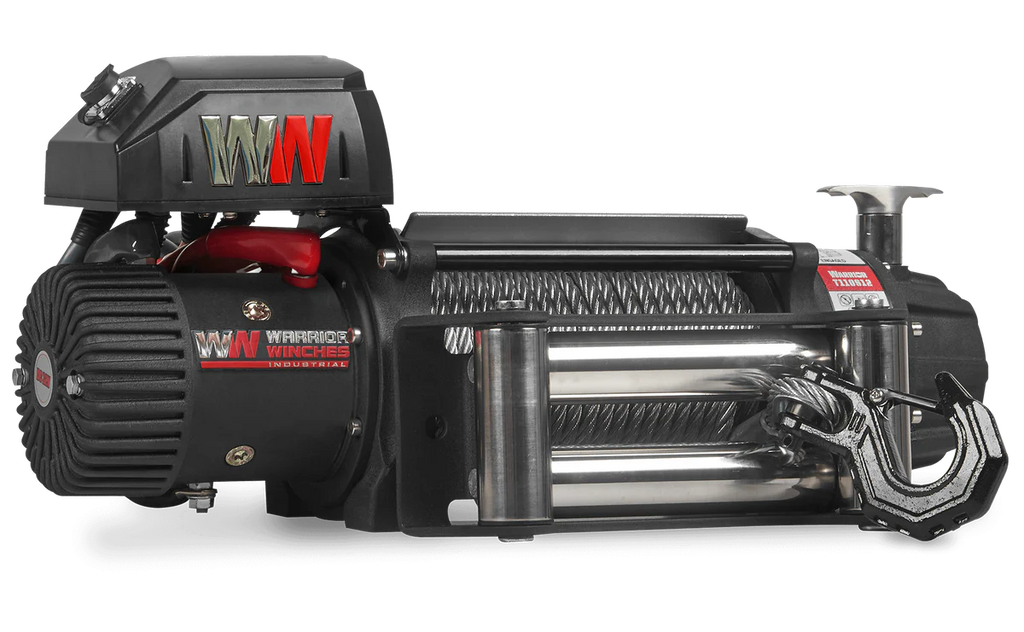

Warrior T1000-100 10000lb Severe Duty Winch

 0 Reviews  Ask a Question
SKU: T110S12

12v Steel Rope
Voltage: 12v
Rope: Steel Rope
Sale price£932.99
In stock (Delivery in 1-2 working days)

Features

  • MILITARY QUALITY – IP68 Rated Military Grade winch & control box.
  • REVOLUTIONARY DESIGN – Features an external brake for added safety.
  • HARD-WEARING – Special lithium grease ensure operation in extreme temperatures while the powder coating protects against corrosion.
  • STEEL STRENGTH – Complete with stainless steel roller fairlead and stainless steel fittings as standard.
  • EFFICIENT POWER – Hardened 3-stage planetary gears ensure reliability.

Originally designed as prototypes for military application – the T100 range of Severe Duty Warrior winches are in the highest class of reliable power. Able to perform in even the most severe climates and harshest environments – it’s power even the army would trust in. After countless successful operations in the field, the T100 range is now available for general use.

Giving you power without any compromise, they’re available in both 12v or 24v options, with either steel or Armortek Extreme ropes. With a line capacity of a huge 10000lb – it’ll get any job done with ease, ideal for industrial or commercial applications that require a battle-ready unit.

Hard-wearing is an understatement here. Special Lithium Grease ensures operation in extreme temperatures while the powder coating and stainless-steel features defy corrosion for long-lasting power. Also benefitting from a truly revolutionary design – the external brake is protected from overheating for reliability in harsh climates.

Undoubtedly one of the most advanced and durable machines on the market – why settle for less than the best?

Rated Line Pull 10000 lbs (4536 kgs)
Motor 12V :4.6kW / 6.2hp
24V : 5.7kW / 7.6hp
Gearing 228:1
Braking Action External Brake

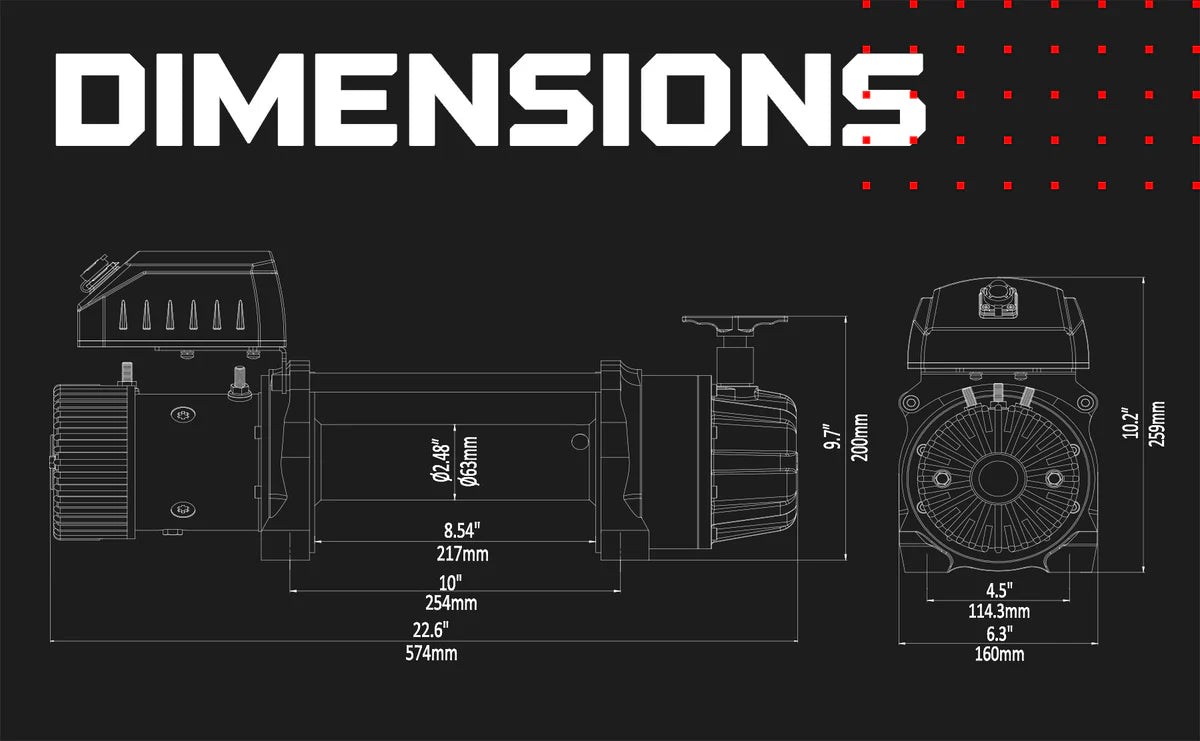

Drum Size - Dia x L 63 x 217mm
(2.48 x 8.5 in)
Cable - Dia x L Steel: 9mm x 26m (0.35 in x 85 ft)
Synthetic: 10mm x 25m (0.39 in x 82 ft)
Dimensions 574 x 16 x 259mm
(22.6 x 6.3 x 10.2 in)
Mounting Pattern 254 x 114.3mm
10 x 4.5 in
4-M10
Weight kg Steel: 37.5kg (82.7 lbs)Synthetic: 28kg (61.7lbs)
Clutch Manual



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 16.1 (4.9)
2 7980 (3620) 36.4 (11.1)
3 6640 (3012) 61.0 (18.6)
4 5680 (2576) 82.0 (25.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 32.2 (9.8) 34.4 (10.5) 65 45
3000 (1361) 14.8 (4.5) 16.4 (5.0) 140 85
6000 (2722) 10.5 (3.2) 12.5 (3.8) 260 140
8000 (3629) 7.5 (2.3) 9.8 (3.0) 320 175
10000 (4536) 5.2 (1.6) 7.5 (2.3) 380 210

What's in the box:

  • Trident 2.4G Wireless Remote
  • Heavy Duty Wired Remote Control
  • Hook
  • Steel Rope or Synthetic Rope
  • Heavy Duty Stainless Steel Roller Fairlead (Steel) or Aluminium Hawse Fairlead (Synthetic)
  • Stainless Steel Monting Hardware
