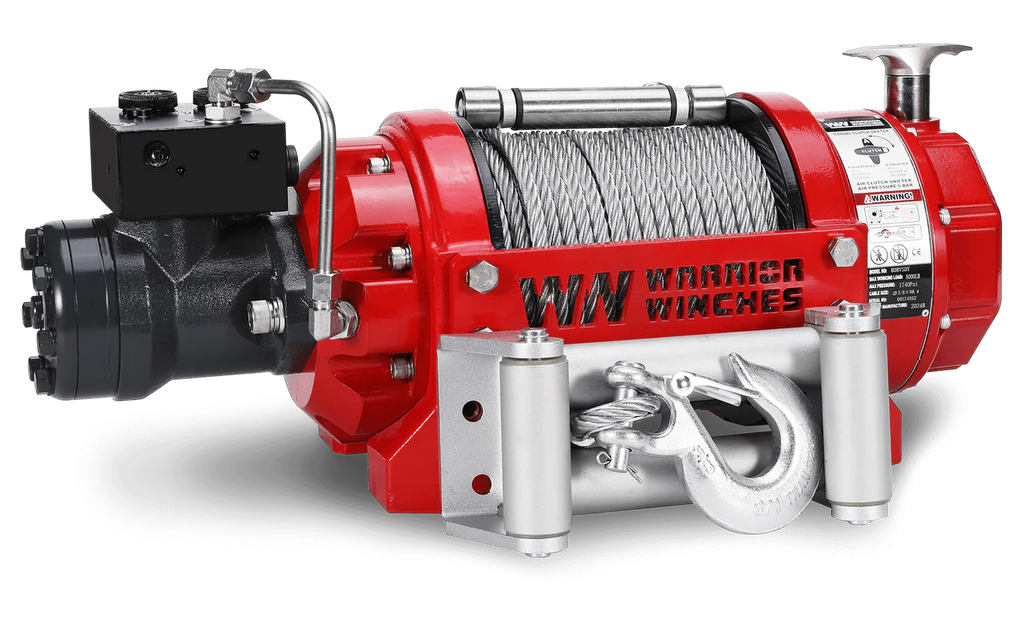

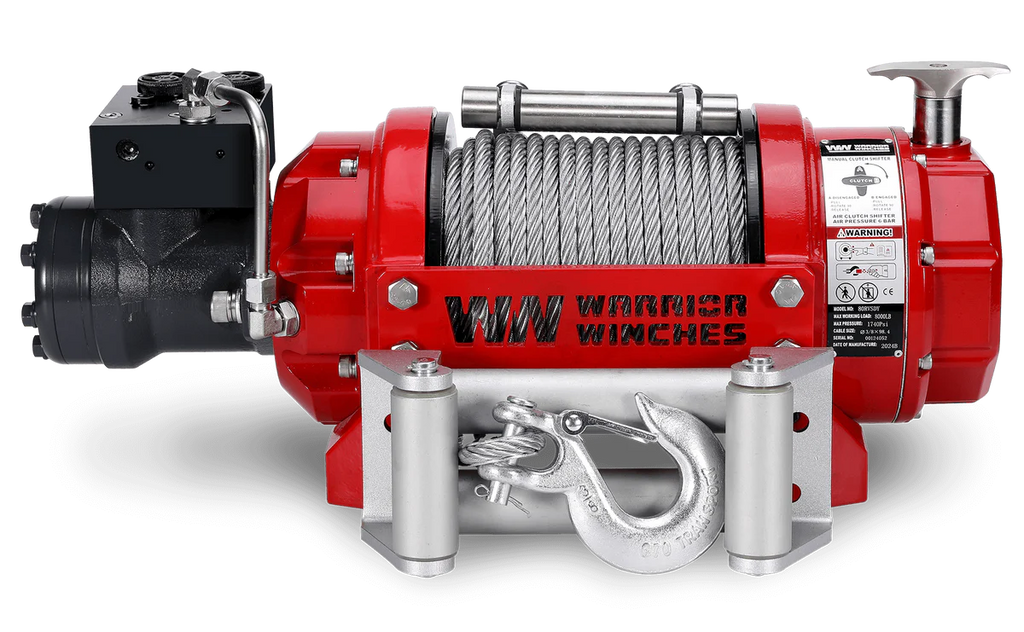

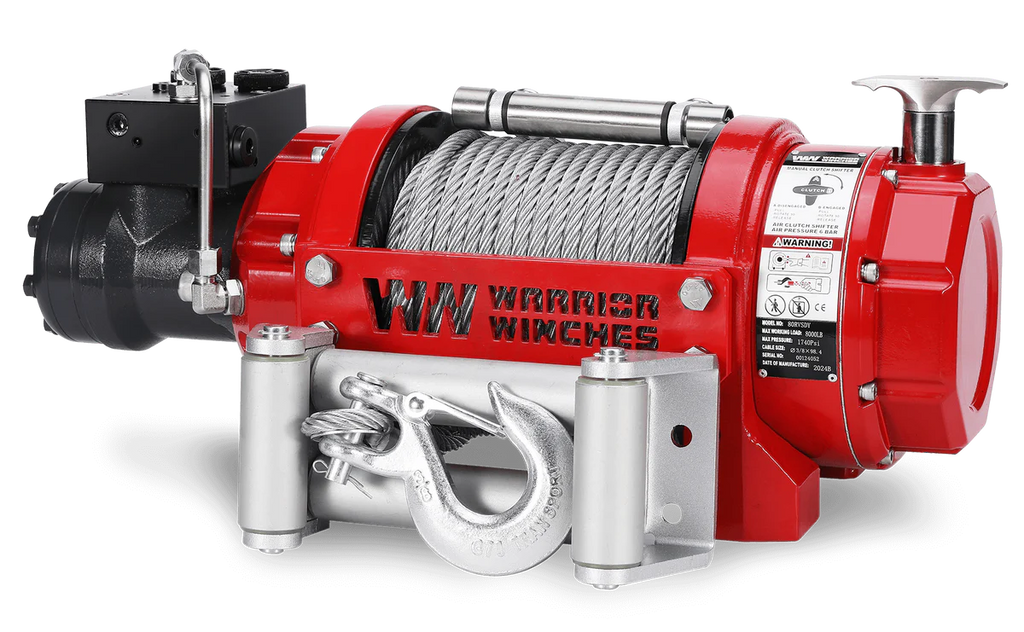

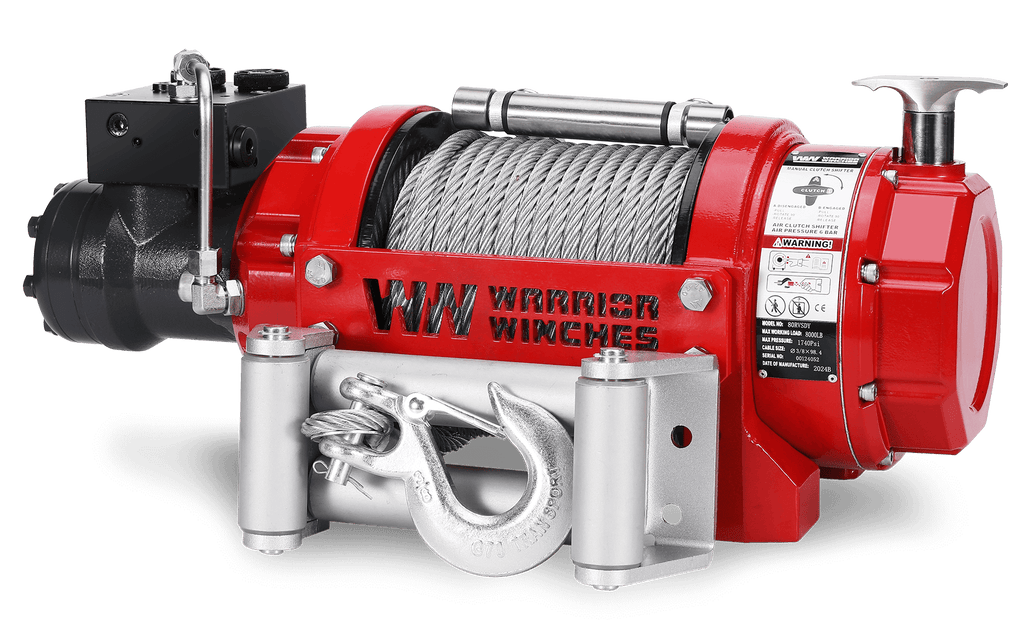

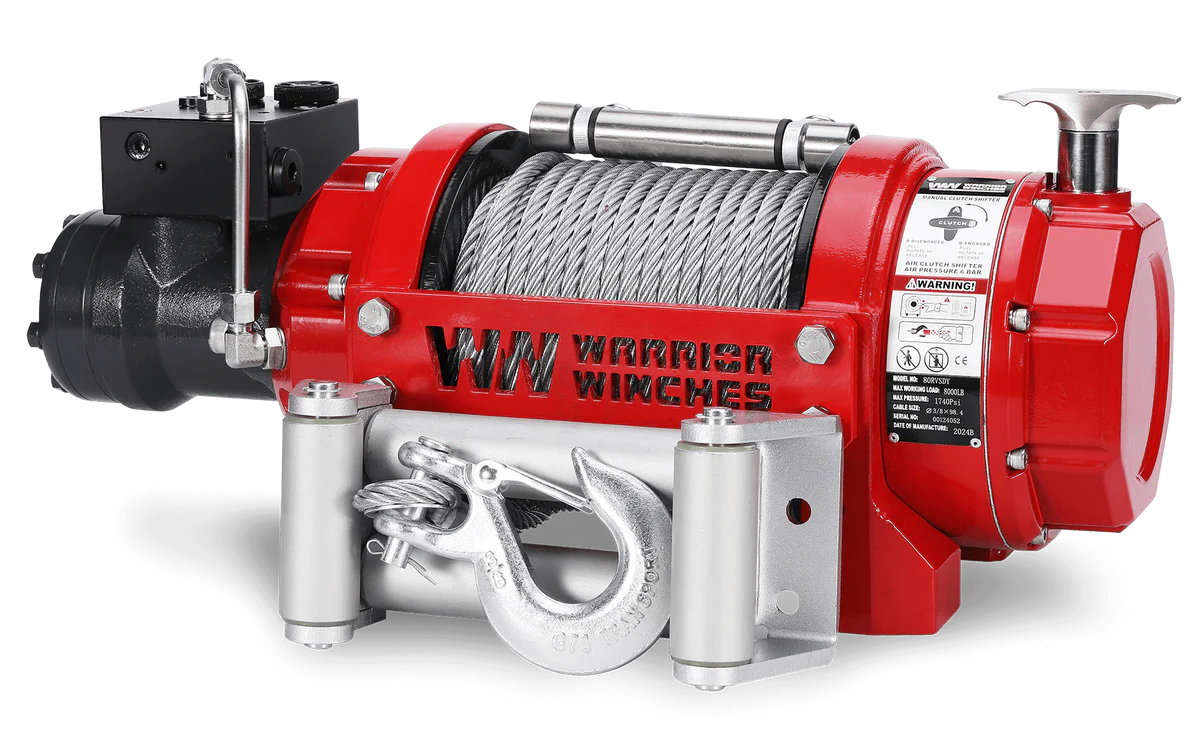

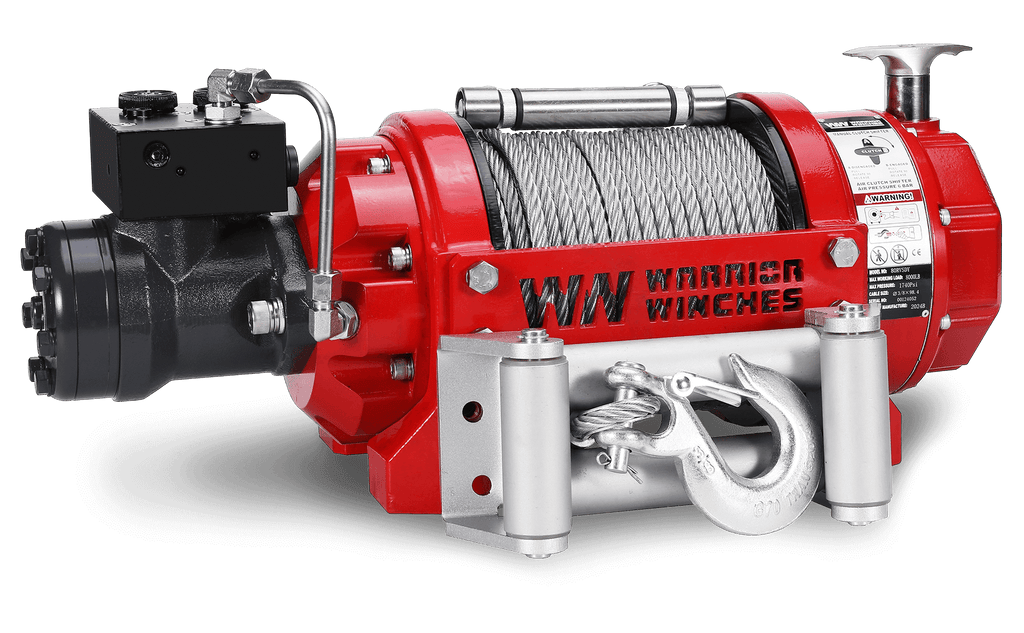

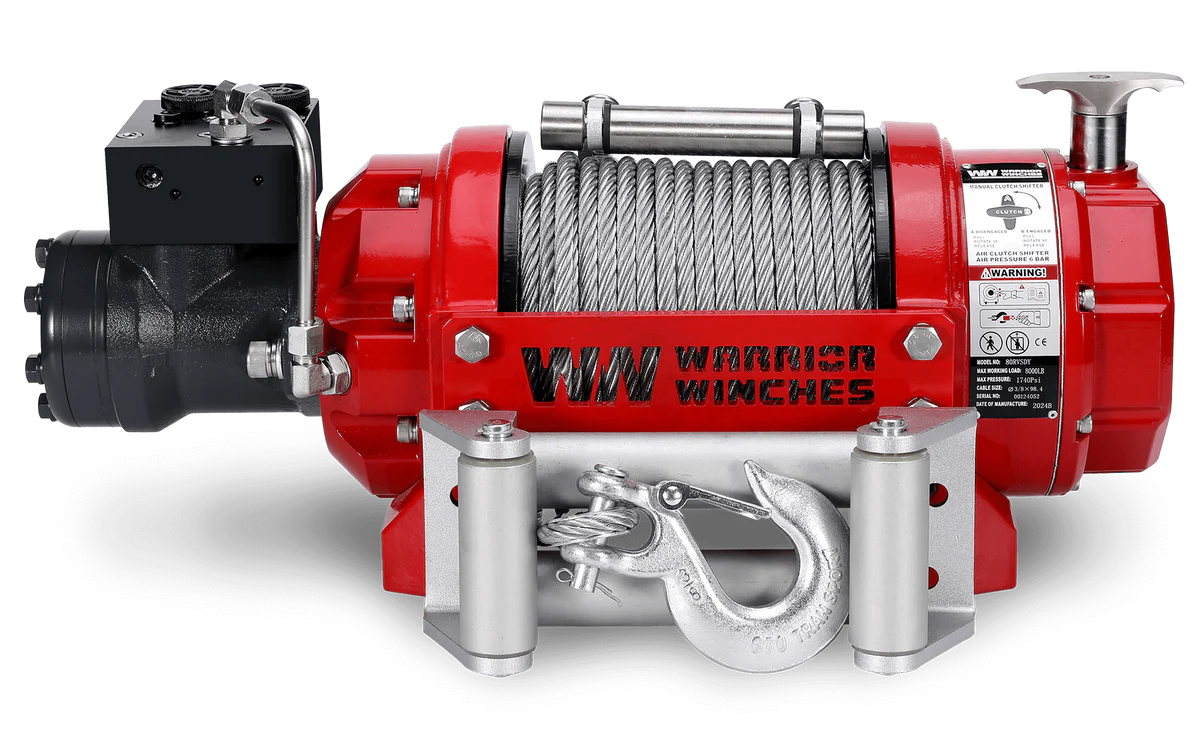

Warrior RV8000 Short Drum 3.6 Tonne Hydraulic Winch

 0 Reviews |    Ask a Question
SKU: 80RVSDY

Price:
Sale price£1,235.99
In stock (Delivery in 1-2 working days)

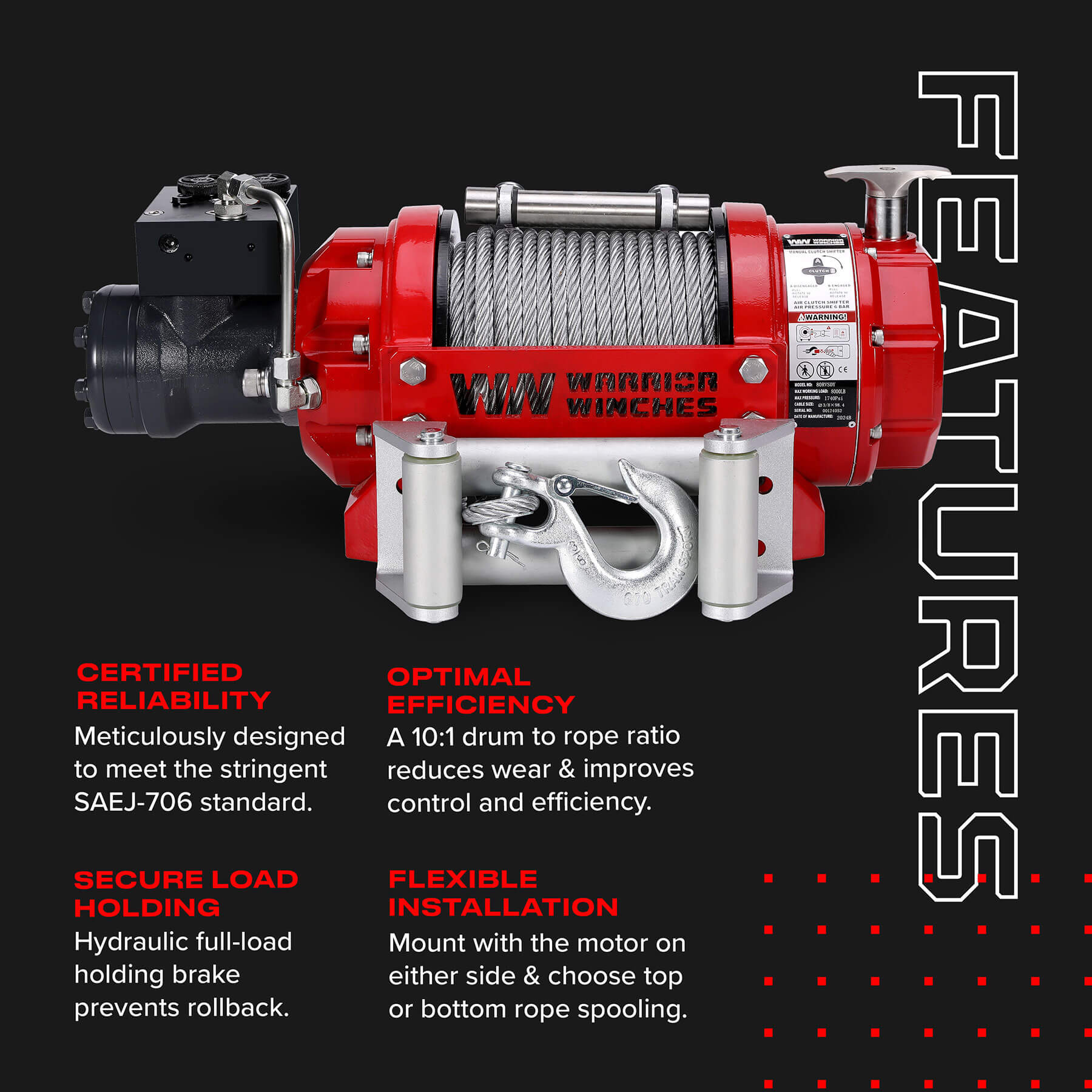

Features

  • PROFESSIONAL DESIGN – Built for the professional operator. Conforms to part of BS EN 14492-1:2006+A1:2009 and SAEJ-706.
  • ROPE:DRUM – Wire rope to drum ratio of 10:1
  • INCREDIBLE POWER – Line capacity of 8000lb or 3629kg, with a pull of 1m per minute at full load!
  • SAFE USAGE – Wire rope has a 2:1 safety factor.
  • HYDRAULIC – Features a hydraulic full-load holding brake.
  • REVERSABLE ORIENTATION - These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

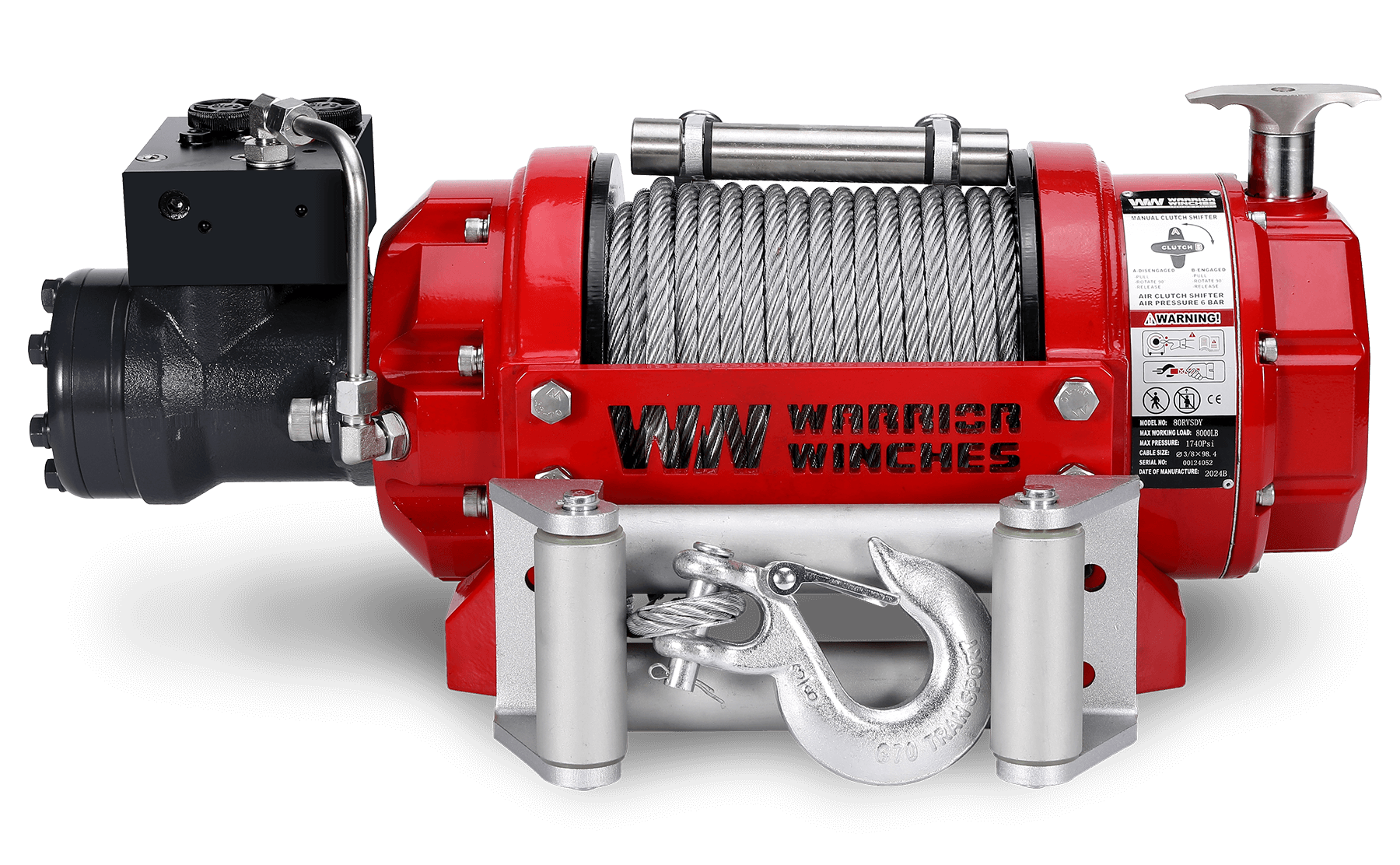

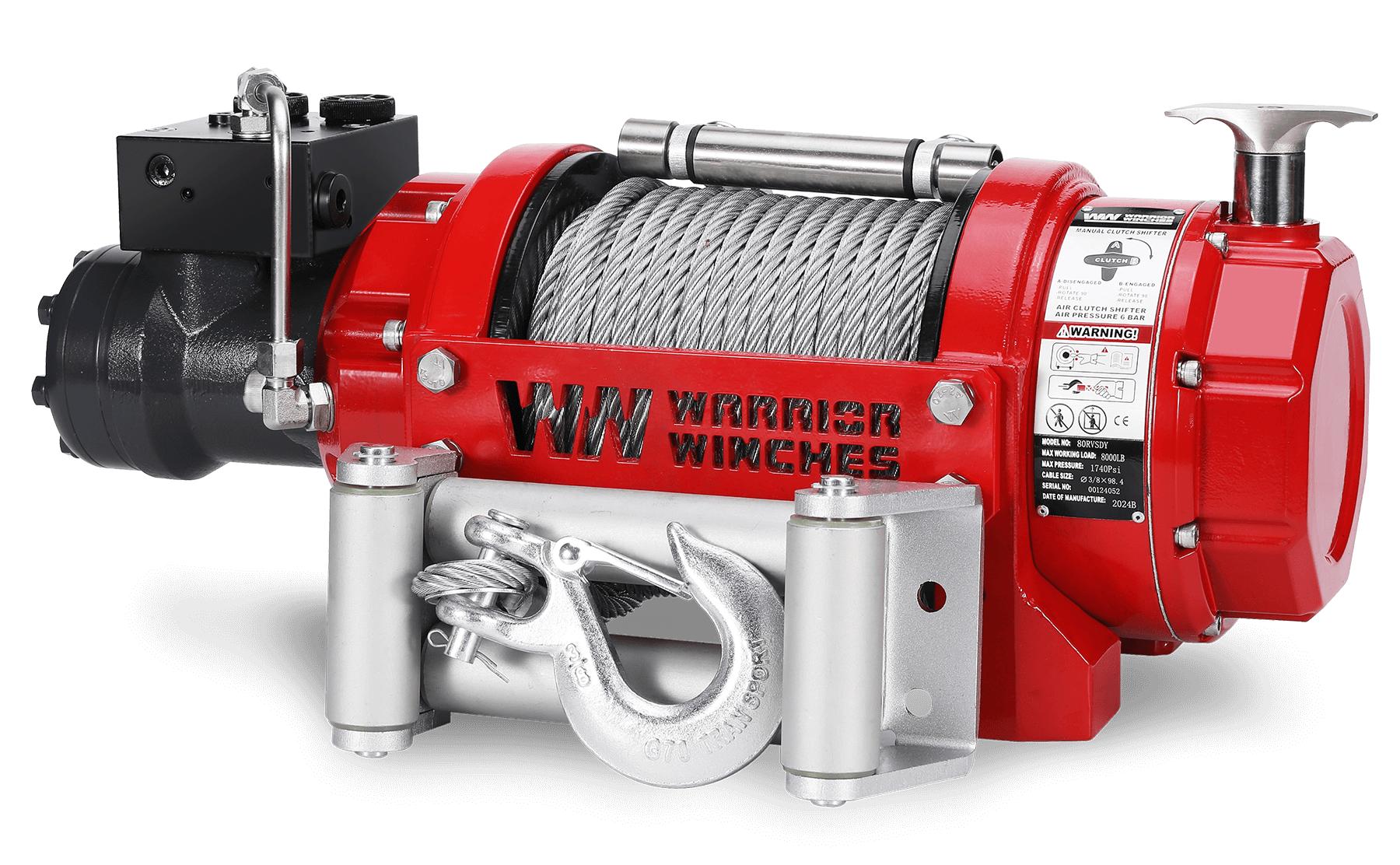

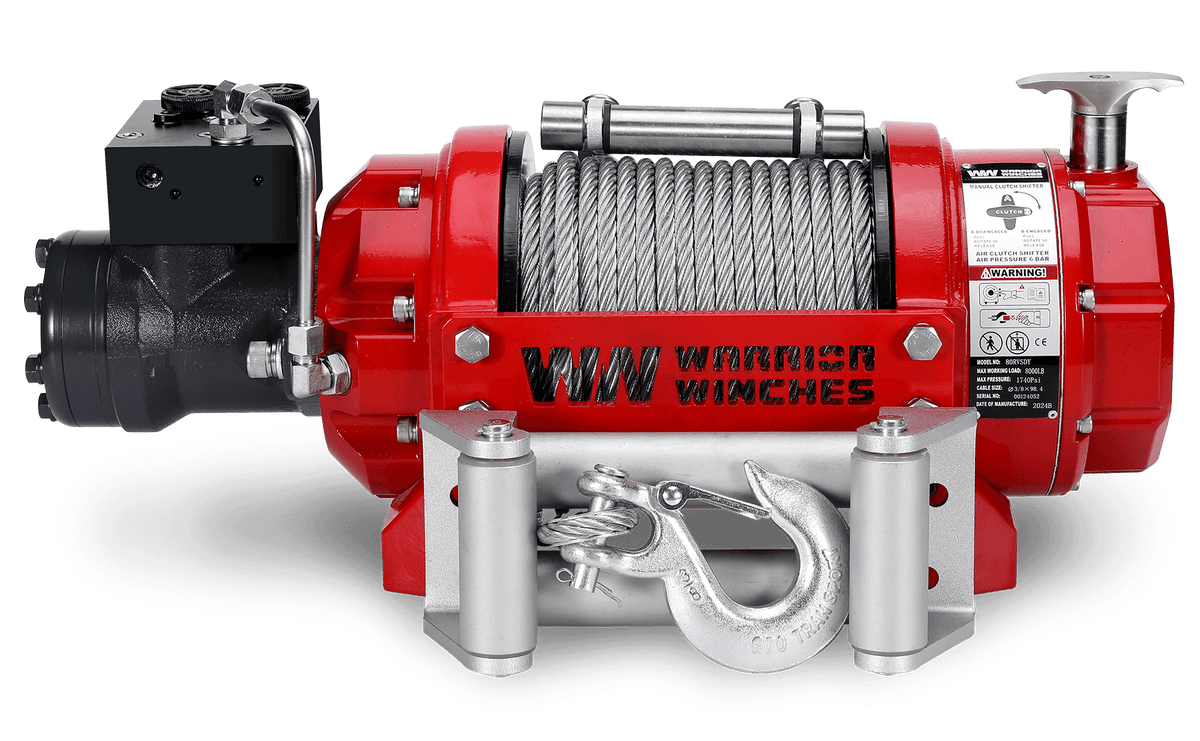

Warrior RV8000 3.6 Tonne Hydraulic Winch

Designed and developed for the professional operator, the RV series winches are the highest of quality. Conforms to part of BS EN 14492-1:2006+A1:2009 and SAEJ-706, you can rely on their safety and strength.

Now in a short drum design, there’s still no compromising on power. Delivering a line capacity of a huge 8,000lb or 3629kg, 10:1 drum-to-rope ratio provides unbeatable power.

Also with a hydraulic brake capable of holding the full load, it’s more than effective at getting any job done. Ideal for tough commercial and industrial applications – the work will be sorted in no time.

 Standard Features:

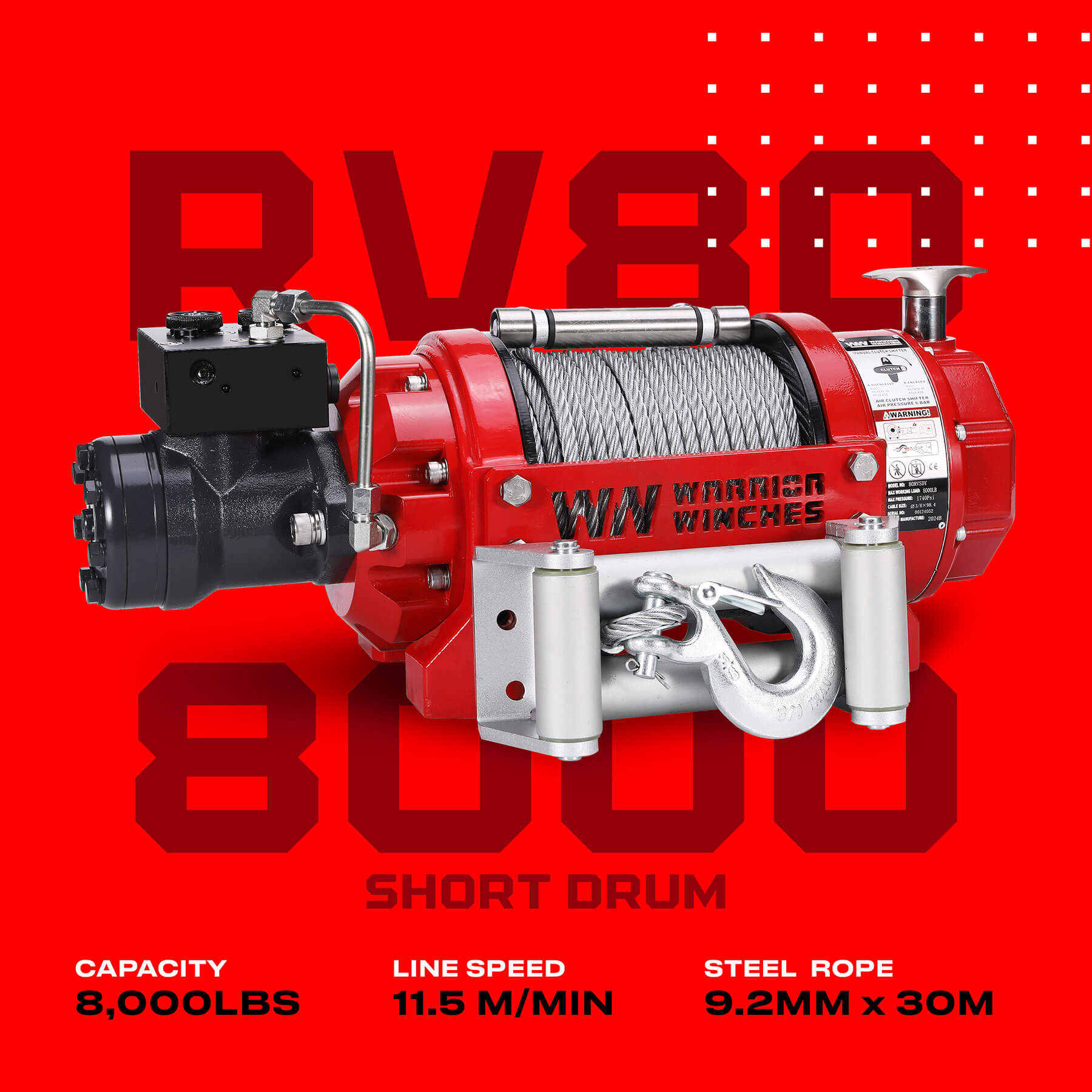

♦ Line Capacity: 8,000lb (3,629kg)
♦ RopeSteel cable 9.2mm x 30m
♦ MotorHydraulic
♦ Gearbox: 17.6:1
♦ Warranty: Limited One Year Mechanical

Accessories:

♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Mounting Plate: Available as optional extra
♦ Fairlead: Roller Fairlead Included
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Balance Valve
♦ Cable Tensioner
♦ Instruction Manual

Other Information:

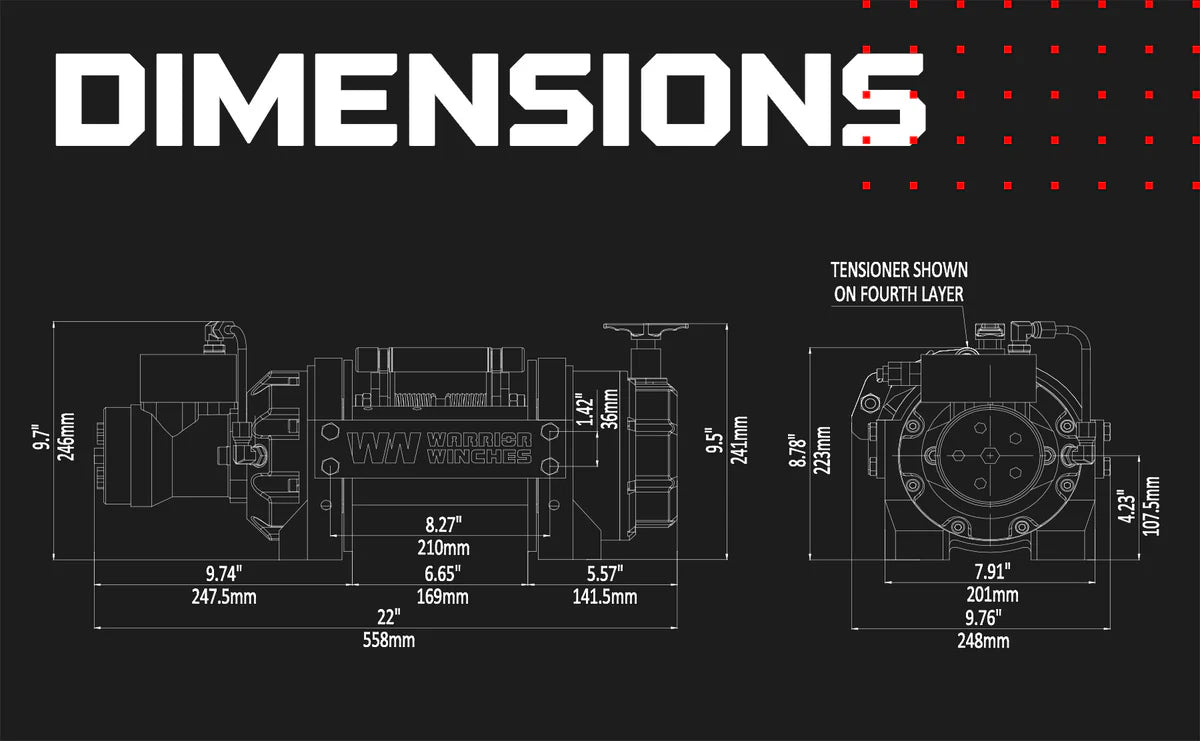

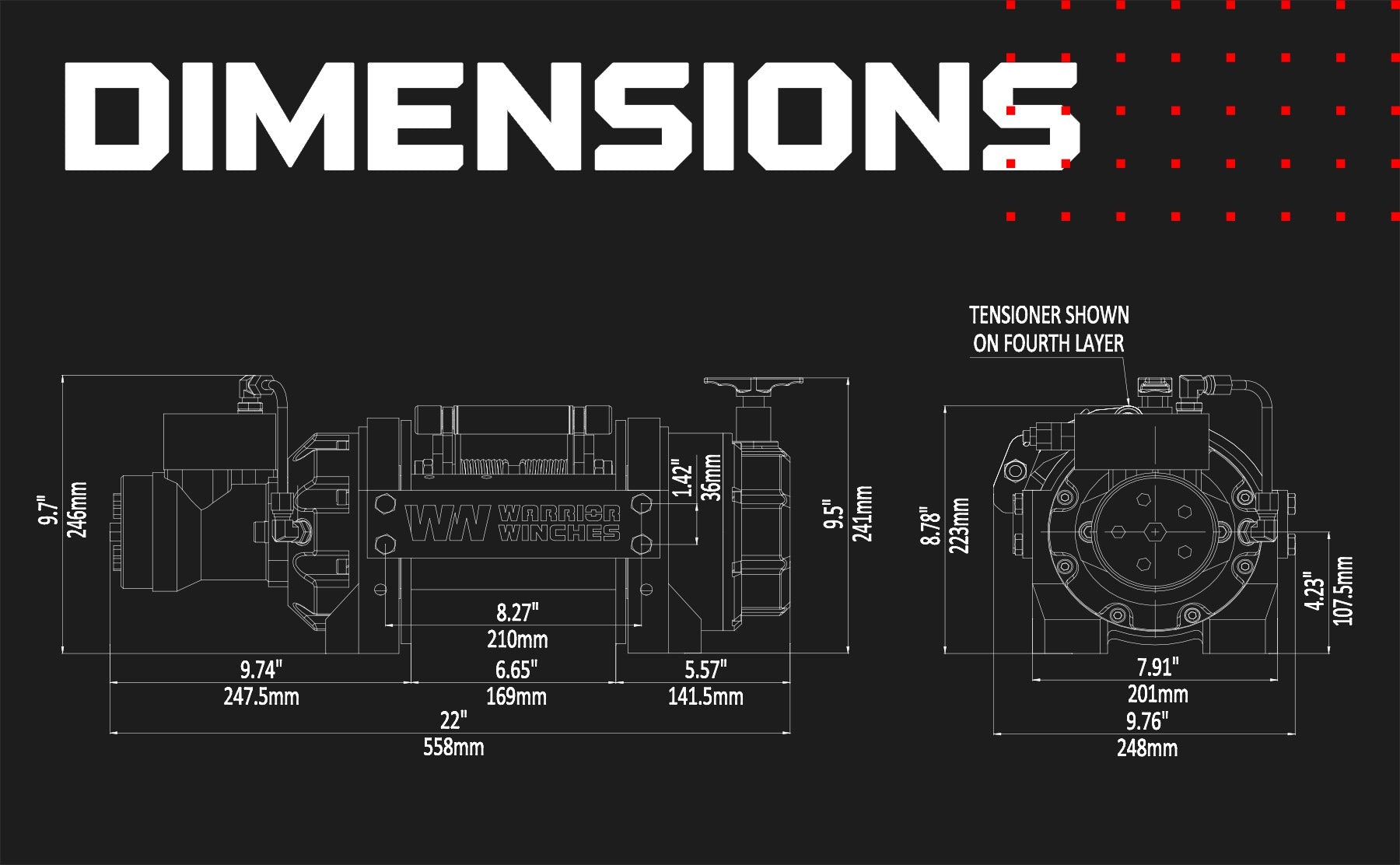

♦ Dimensions: 558mm L x 237mm D x 241mm H
♦ Mounting Bolt Pattern: 222mm x 114.3mm
♦ Approx. Shipping Weight: 47.6kg
♦ Line Pull - No Load: 11.5 m/min (290.1 Amps)
♦ Line Pull - Full Load:  1.0 m/min (1740.4 Amps)




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull8000 lbs
Motor TypeHydraulic
Gearing17.6:1
ClutchManual
Braking ActionHydraulic
Drum Size (Dia x L)102 x 169 mm
Cable MaterialSteel
Cable – Dia x L9.2mm x 30.0m
Mounting Pattern222 mm x 114.3 mm / 222 mm x 165.1 mm mm
Dimensions558 x 237 x 241 mm
Max Flow L/Min5-60 L/Min
Max Pressure MPA12.0 Bar
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 8000(3629) 18.4(5.6)
2 6864(3113) 42.3(12.9)
3 6010(2726) 69.5(21.2)
4 5345(2424) 98.4(30.0)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 37.7(11.5) 5 (1.3) 2.0(290.1)
4000(1814) 23.9(7.3) 20 (5.3) 5.0(725.2)
6000(2722) 10.8(3.3) 40 (10.5) 8.0(1160.3)
8000(3629) 3.2(1.0) 60 (15.8) 12.0(1740.4)

What's in the box:

  • Tensioner
  • Heavy Duty Roller Fairlead
  • Hook
  • Steel Rope
  • Balance Valve
User Manual Download
Brochure Download
