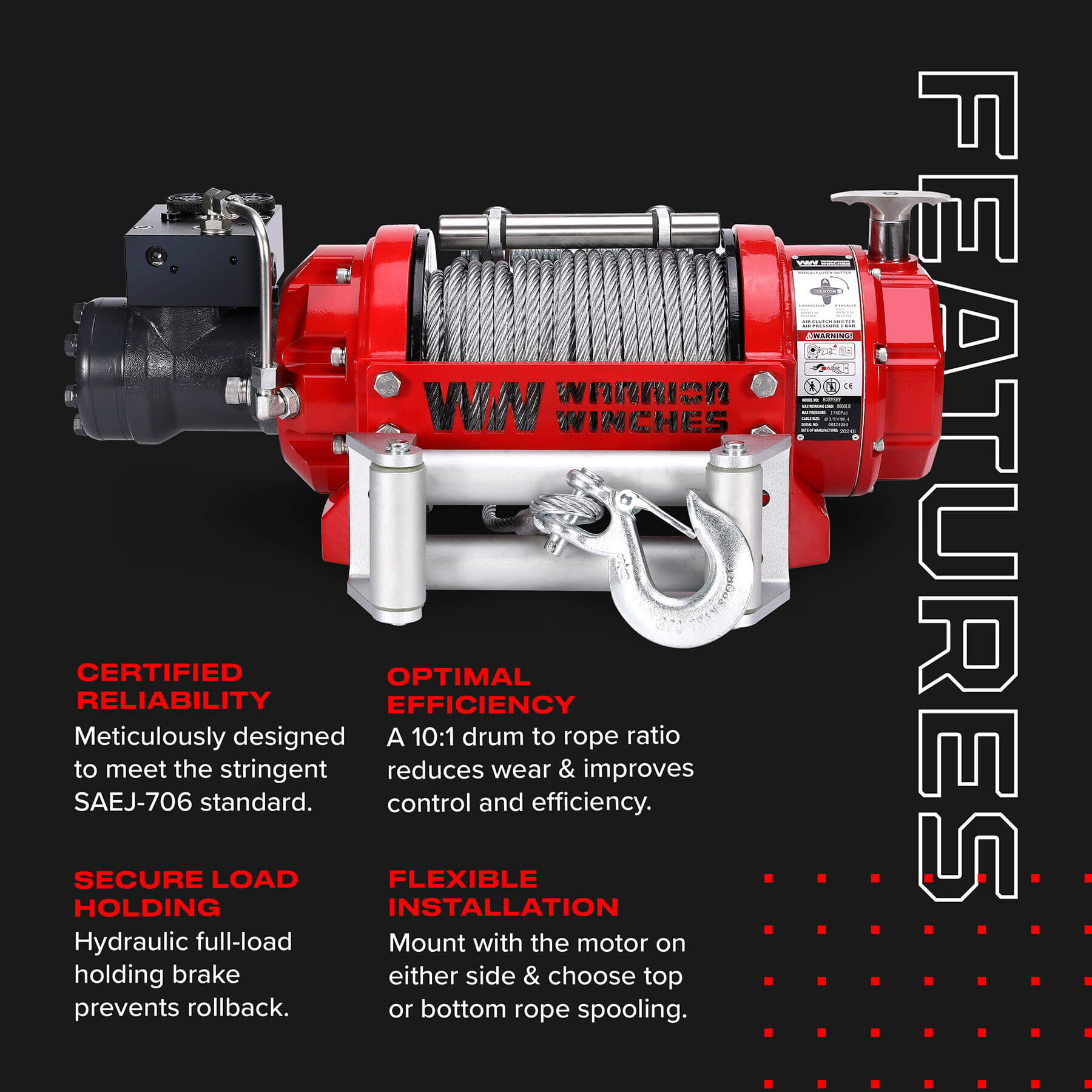

Features
- PROFESSIONAL DESIGN – Built for the professional operator meeting the requirements of EN14492-2 and SAEJ-706.
- ROPE:DRUM – Wire rope to drum ratio of 10:1
- INCREDIBLE POWER – Line capacity of 8000lb or 3629kg, with a pull of 1m per minute at full load!
- SAFE USAGE – Wire rope has a 2:1 safety factor.
- HYDRAULIC – Features a hydraulic full-load holding brake.
Pay in 3 interest-free payments
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.
- Choose Paypal at checkout to pay later with Pay in 3.
- Complete your purchase with the first payment today.
- Remaining payments are taking automtically.
Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

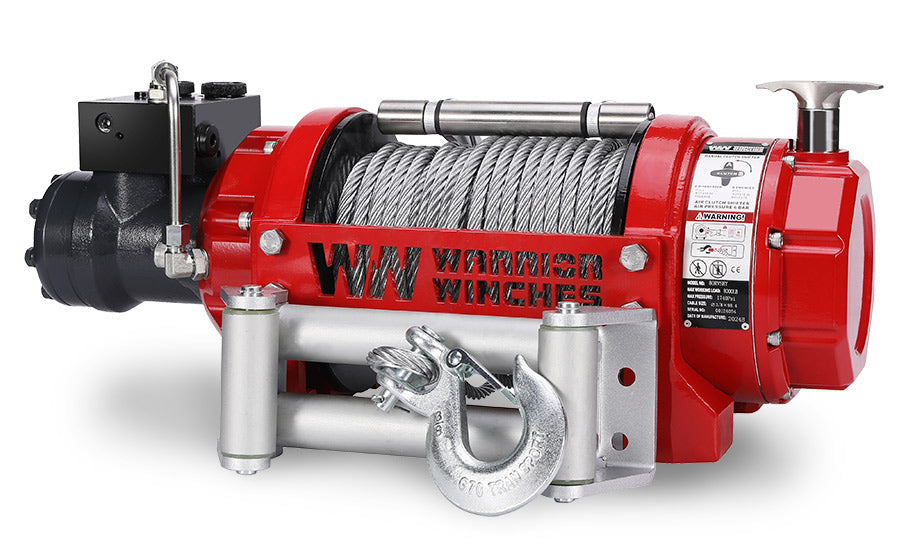

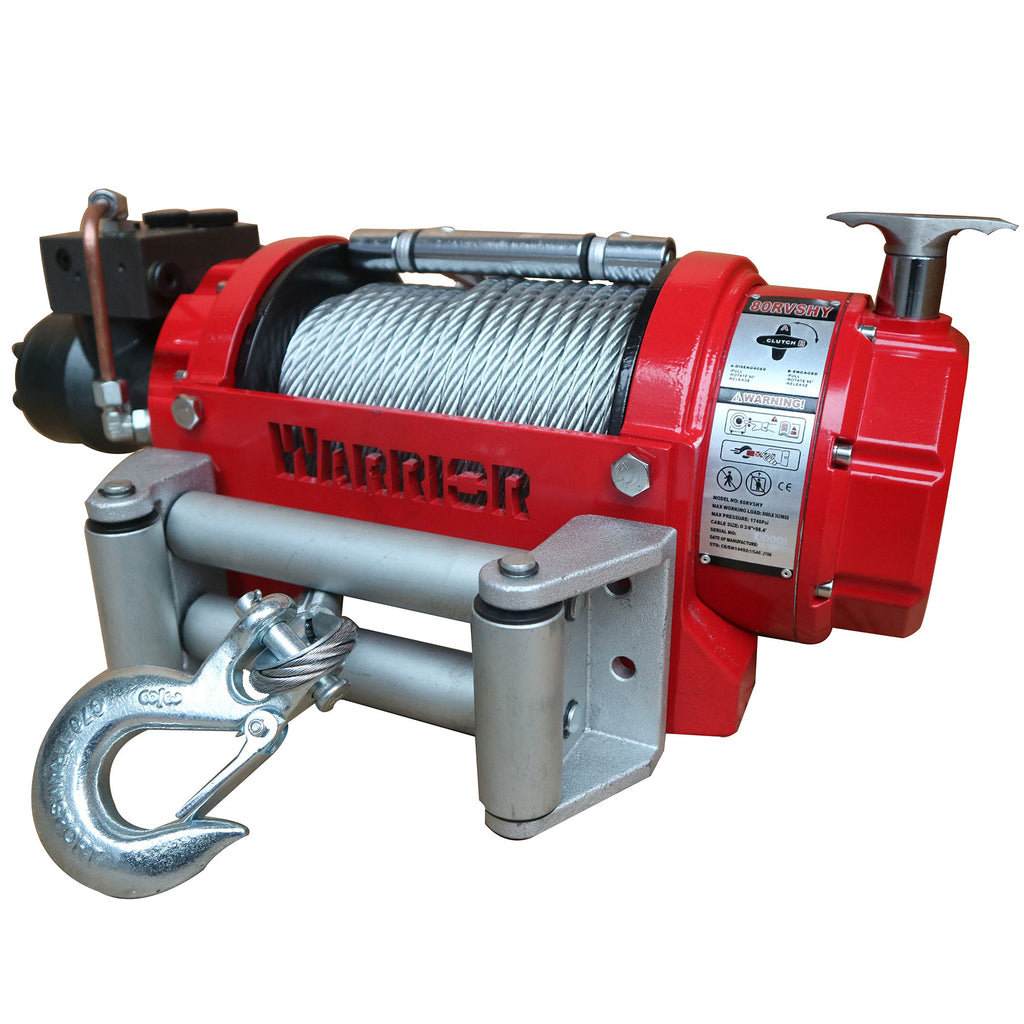

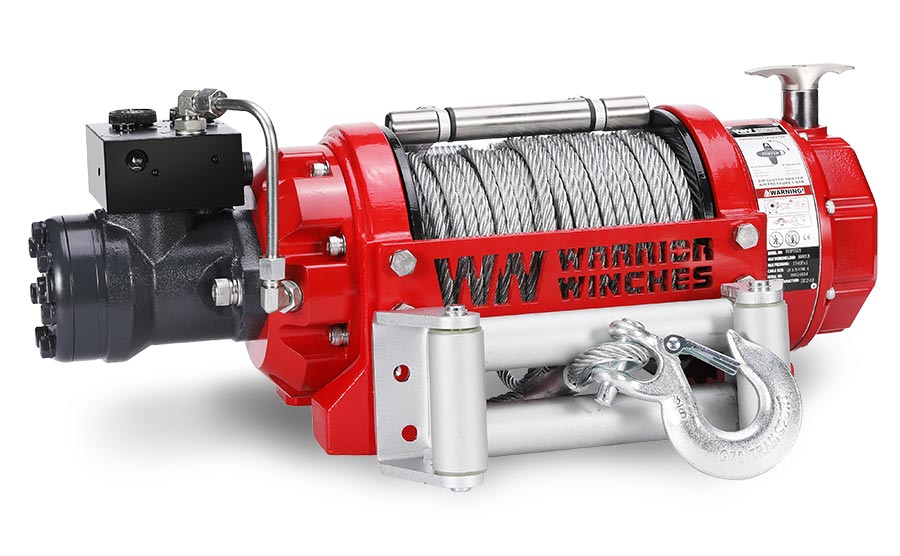

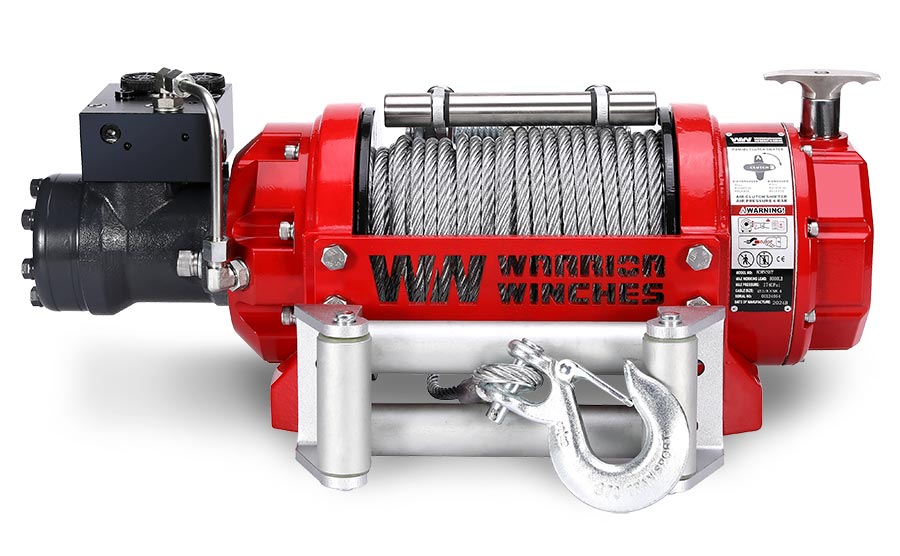

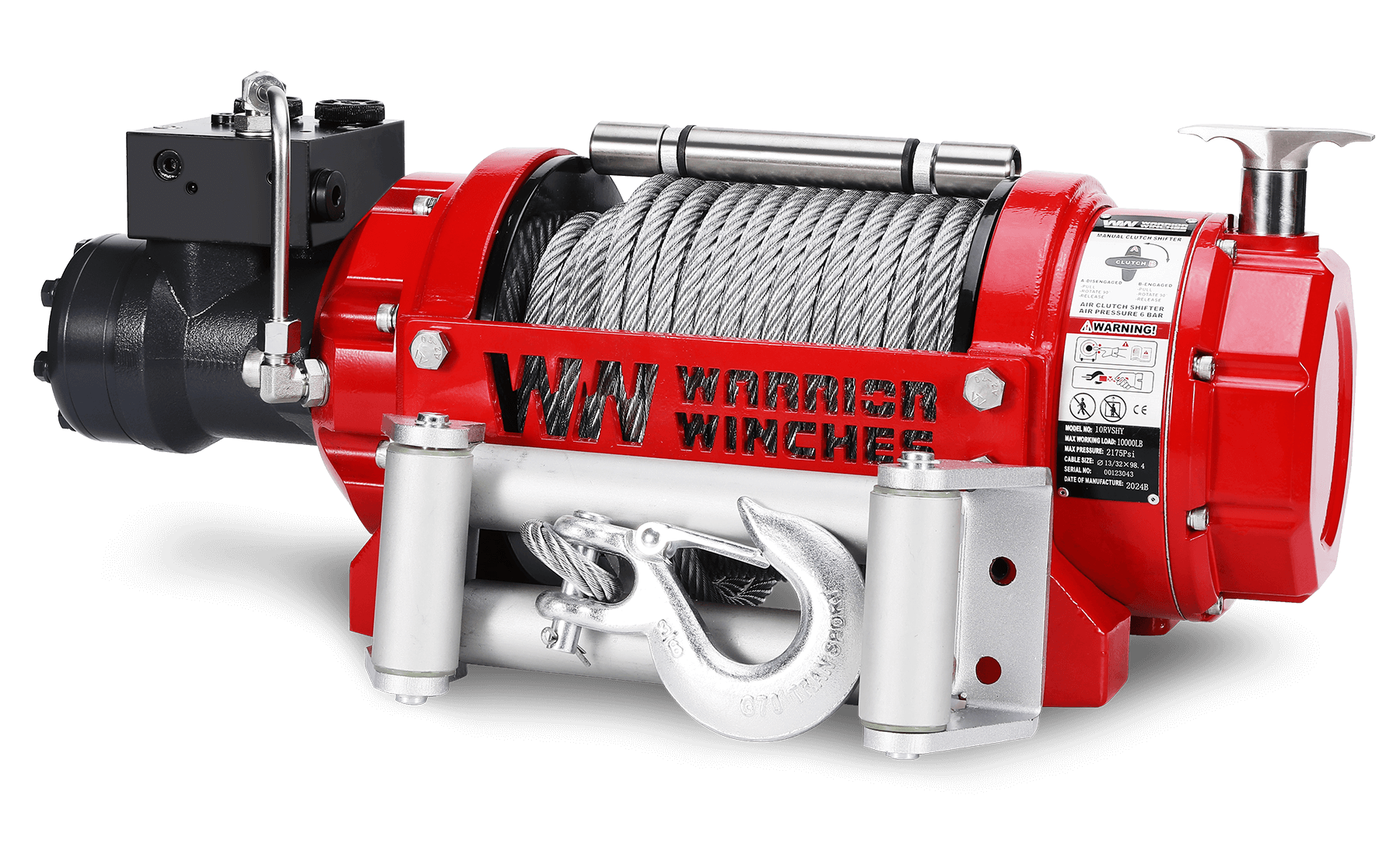

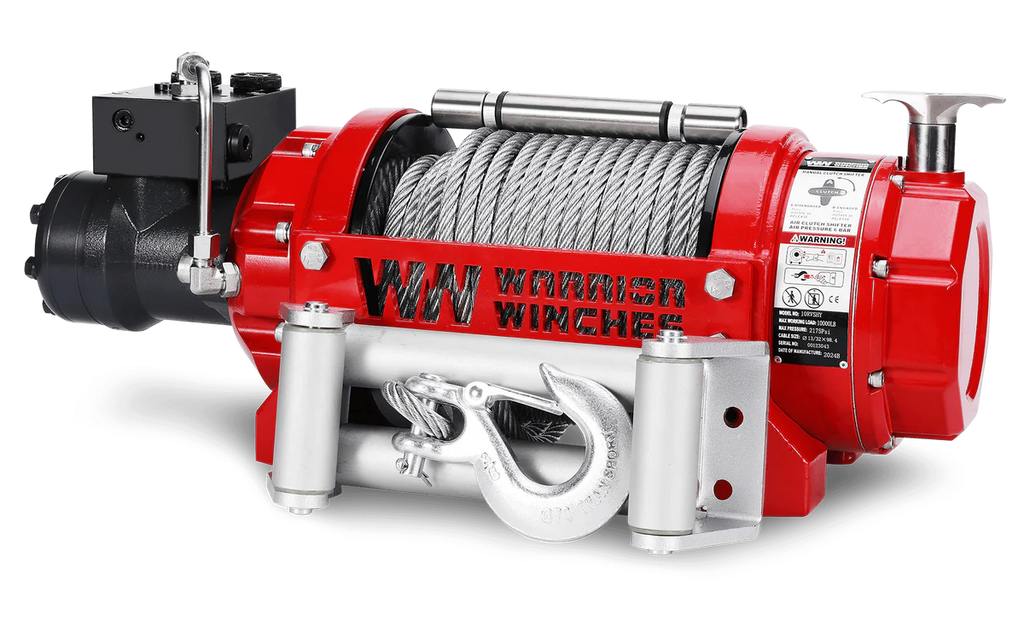

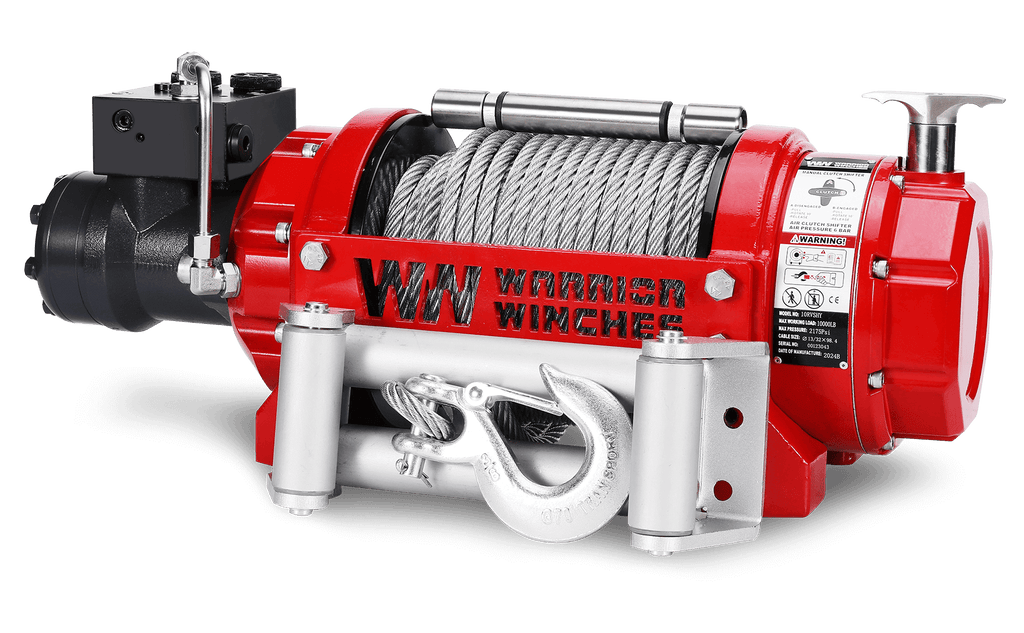

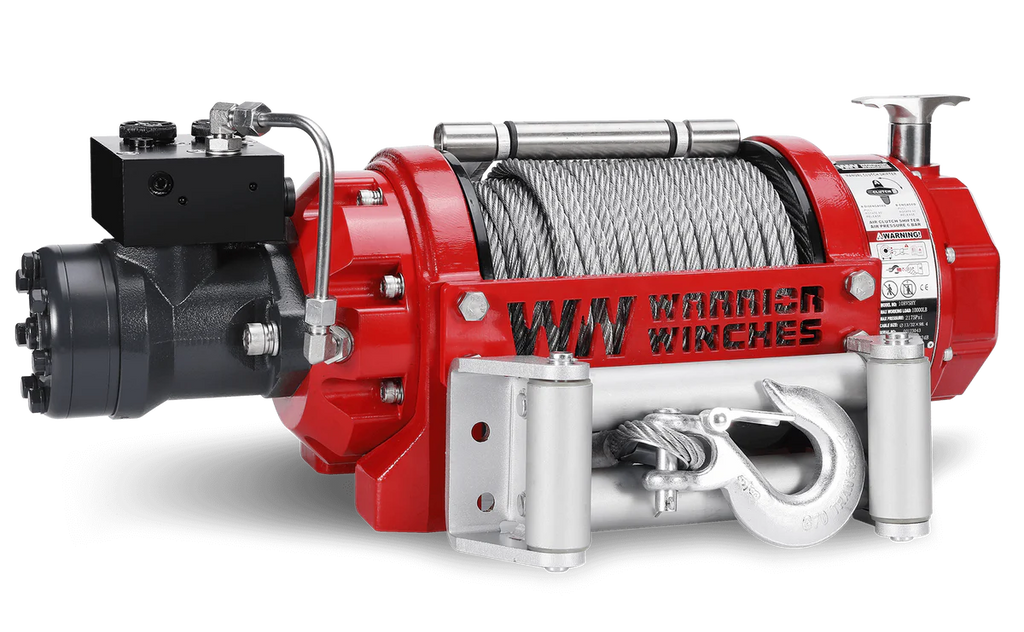

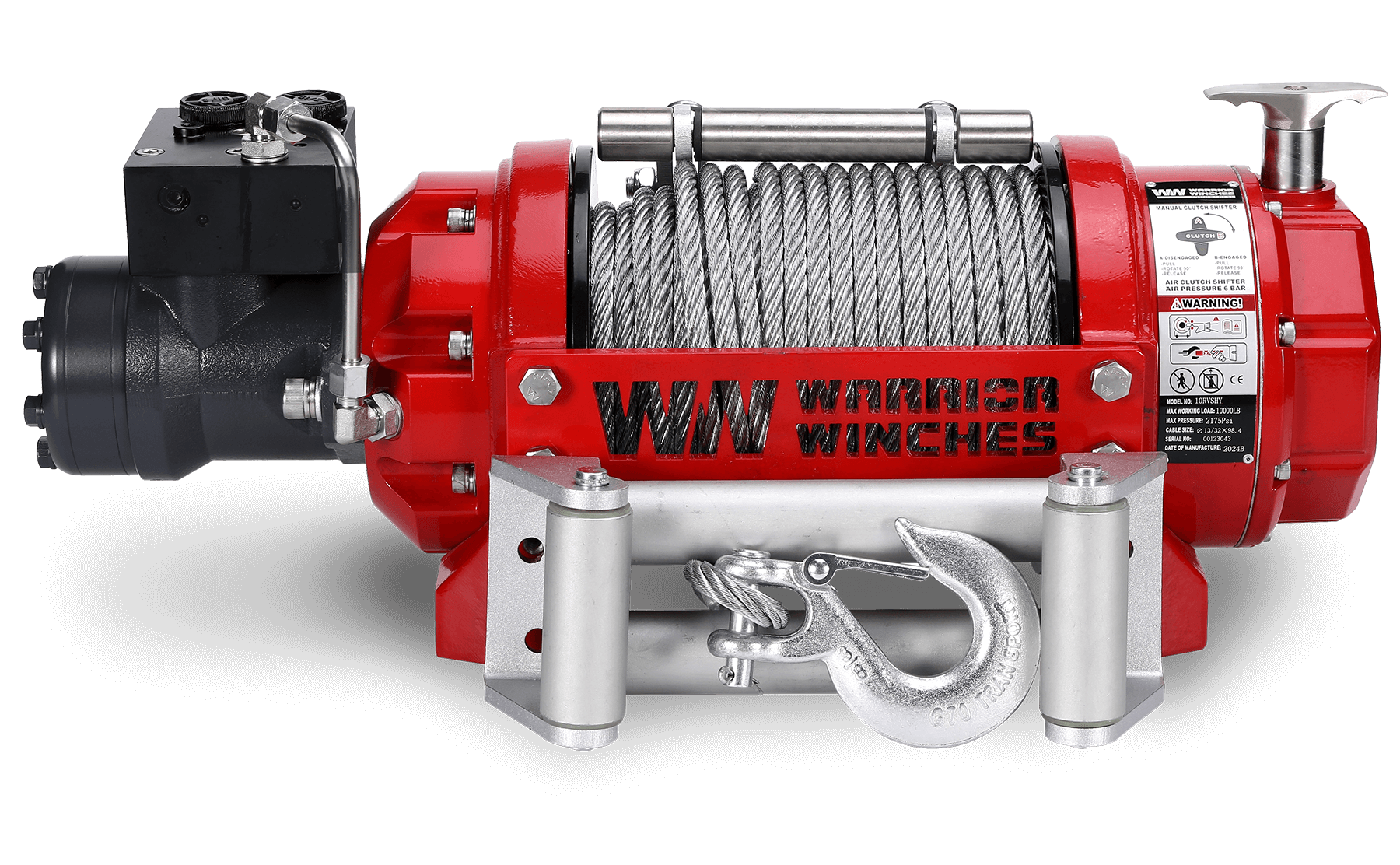

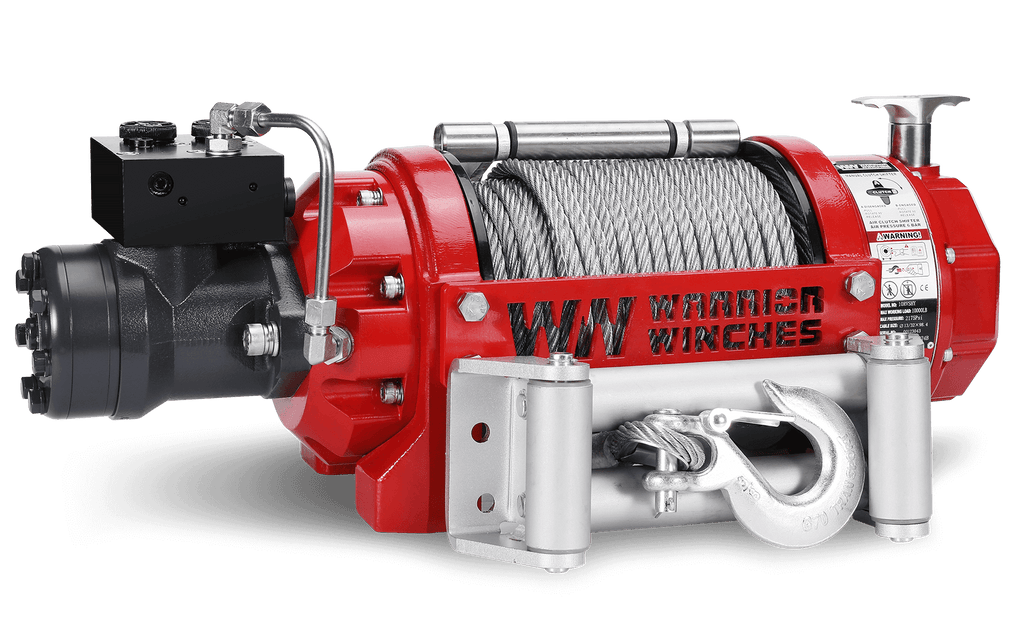

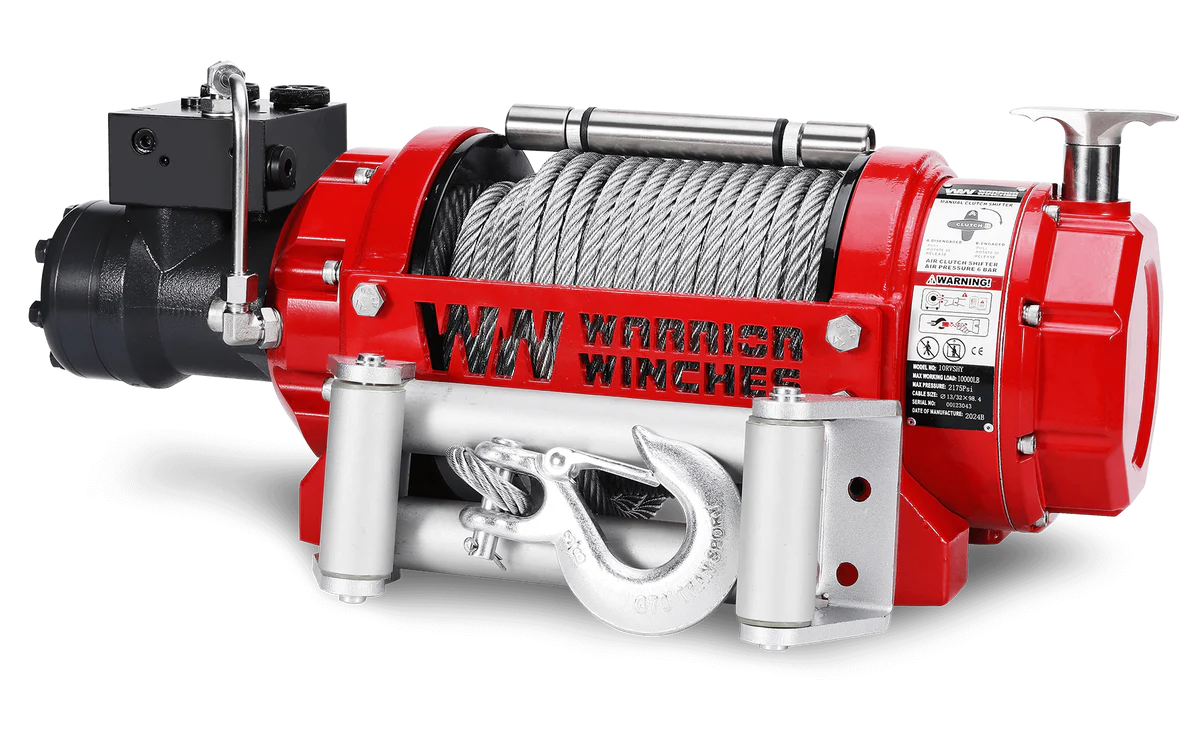

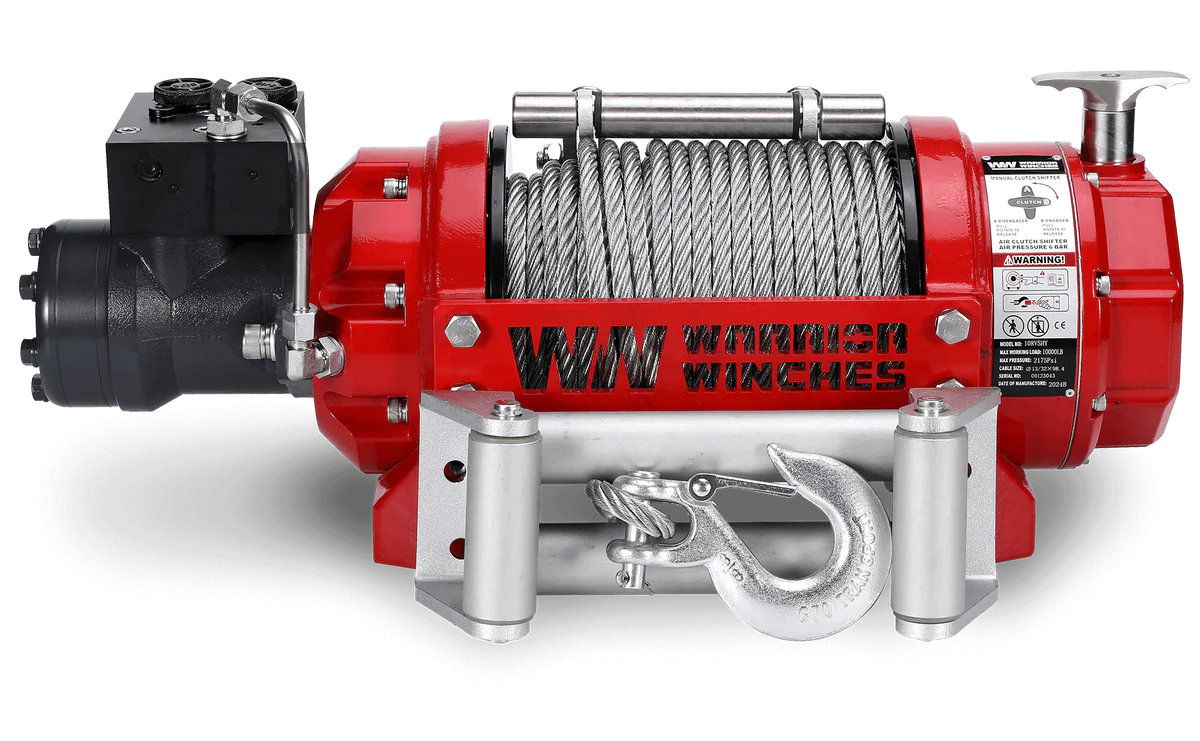

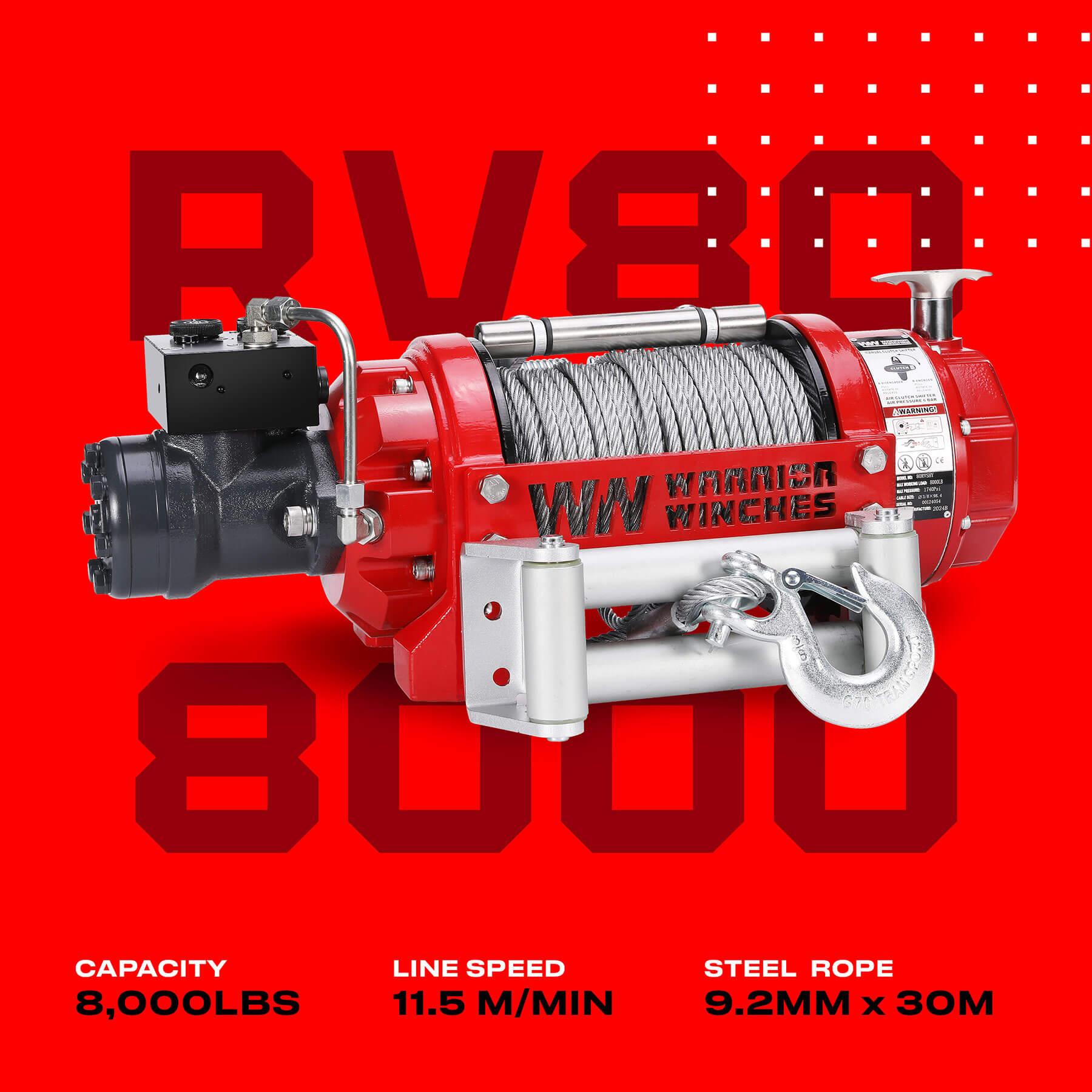

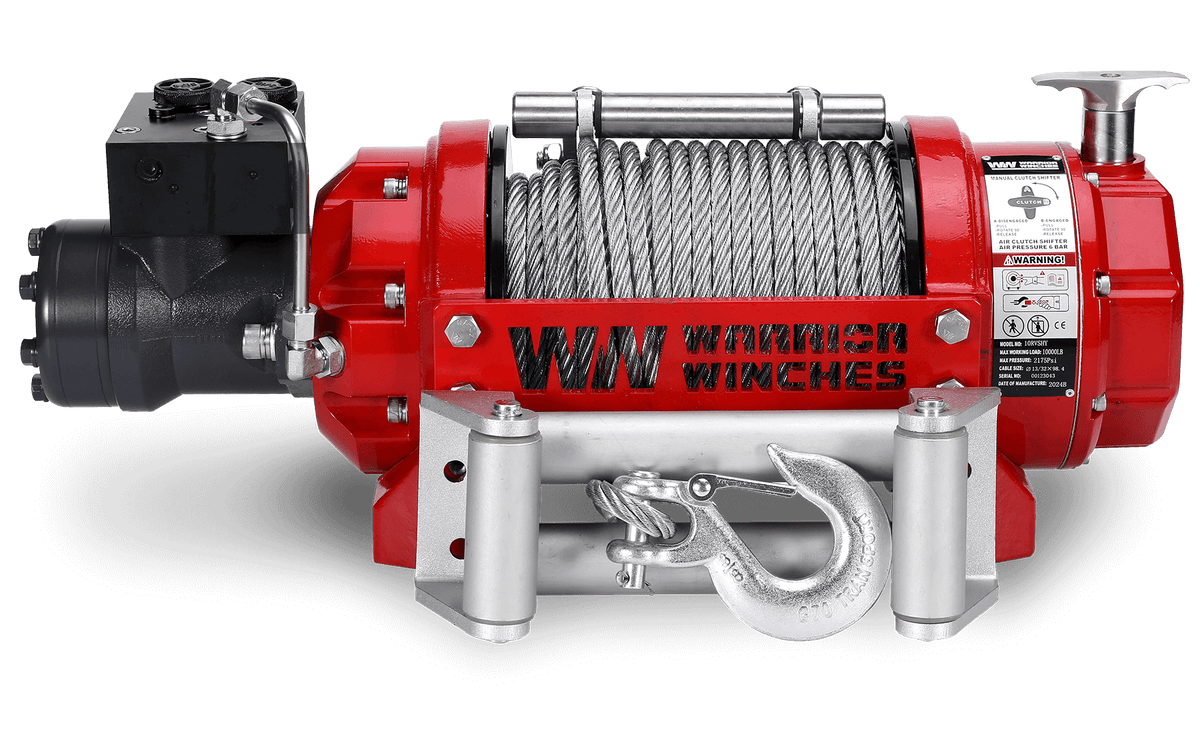

Warrior RV8000 Short Drum 3.6 Tonne Hydraulic Winch
Designed and developed for the professional operator, the RV series winches are the highest of quality. Ensuring they meet the requirements of EN 14492-1 and SAEJ-706, you can rely on their safety and strength.
Now in a short drum design, there’s still no compromising on power. Delivering a line capacity of a huge 8,000lb or 3629kg, 10:1 drum-to-rope ratio provides unbeatable power.
Also with a hydraulic brake capable of holding the full load, it’s more than effective at getting any job done. Ideal for tough commercial and industrial applications – the work will be sorted in no time.
Standard Features:
♦ Line Capacity: 8,000lb (3,629kg)

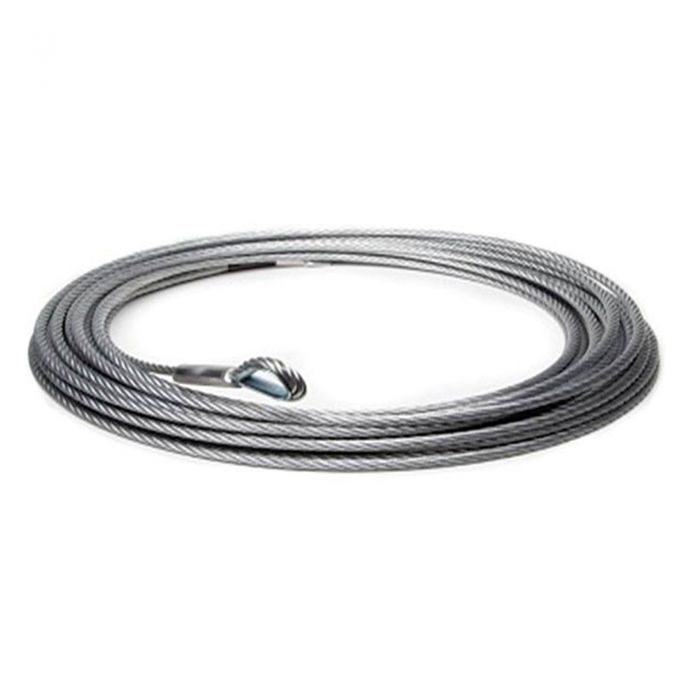

♦ Rope: Steel cable 9.2mm x 30m
♦ Motor: Hydraulic
♦ Gearbox: 17.6:1
♦ Warranty: Limited One Year Mechanical
Accessories:
♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Mounting Plate: Available as optional extra
♦ Fairlead: Roller Fairlead Included
♦ Mounting Bolts: Included for Standard installations
Also Includes:

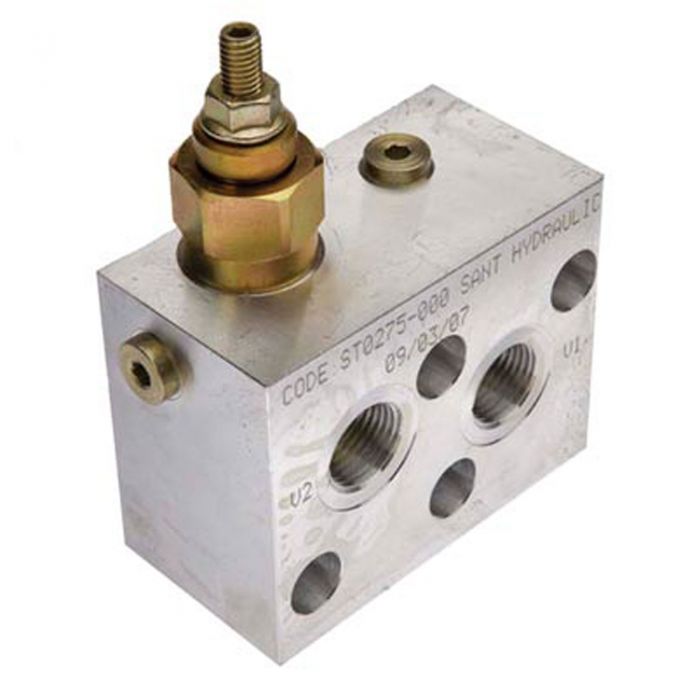

♦ Balance Valve

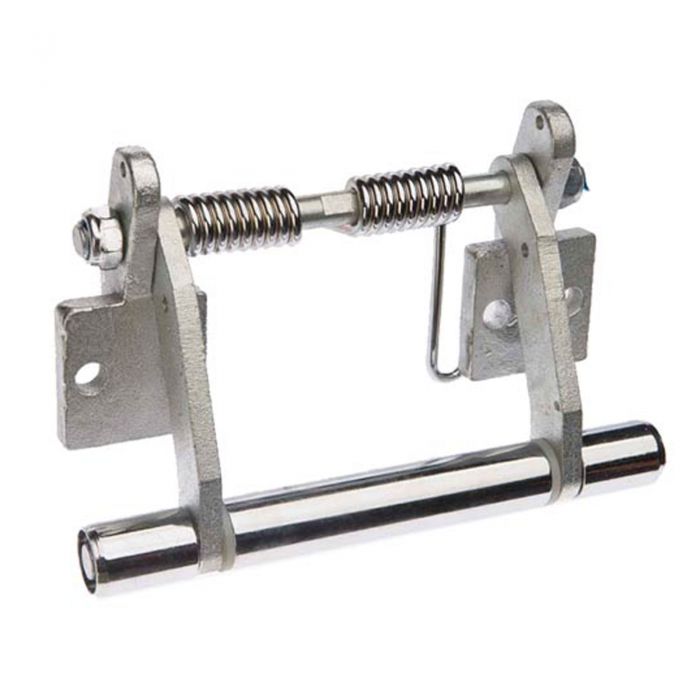

♦ Cable Tensioner
♦ Instruction Manual
Other Information:

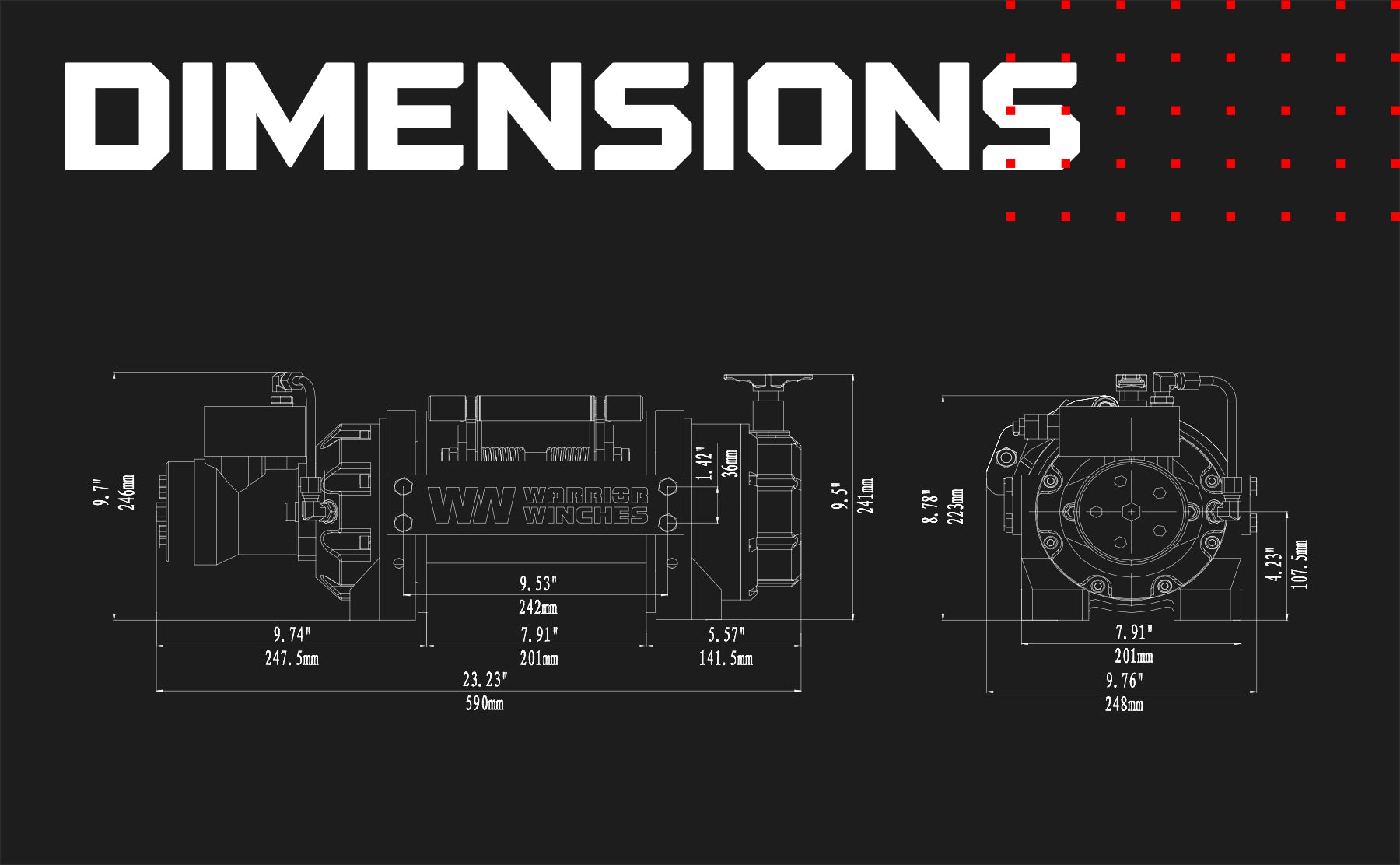

♦ Dimensions: 590mm L x 237mm D x 241mm H
♦ Mounting Bolt Pattern: 254mm x 114.3mm
♦ Approx. Shipping Weight: 49kg
♦ Line Pull - No Load: 11.5 m/min (290.1 Amps)
♦ Line Pull - Full Load: 1.0 m/min (1740.4 Amps)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
Rated Line Pull | 8000 lbs (3629 kgs) |
---|---|
Gearing | 17.6:1 |
Braking Action | Hydraulic |
Drum Size - Dia x L | 4.0 x 7.91 in 102 x 201mm |
Cable - Dia x L | 3/8 in x 98.4 ft 9.2mm x 30.0m |
Dimensions | 23.23 x 9.3 x 9.5 in 590 x 237 x 241mm |
Mounting Pattern | 10 x 4.5 in (254 x 114.3mm) 10 x 6.5 in (254 x 165.1mm) 8-M10 |
Weight kg | 65 kg (143.3 lb) |
Max Flow L/min | 5-60L/min |
Max Pressure Mpa | 12Mpa |
Clutch | Manual |
Certification | CE Certified |
Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
---|---|---|
1 | 8000(3629) | 21.3(6.5) |
2 | 6864(3113) | 49.2(15.0) |
3 | 6010(2726) | 80.4(24.5) |
4 | 5345(2424) | 98.4(30.0) |
Line Pull lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow L/min (G/min) |
Pressure Mpa |
---|---|---|---|
0 | 37.7(11.5) | 5 (1.3) | 2.0(290.1) |
4000(1814) | 23.9(7.3) | 20 (5.3) | 5.0(725.2) |
6000(2722) | 10.8(3.3) | 40 (10.5) | 8.0(1160.3) |
8000(3629) | 3.2(1.0) | 60 (15.8) | 12.0(1740.4) |
What's in the box:
- Tensioner
- Heavy Duty Roller Fairlead
- Hook
- Steel Rope
- Balance Valve
Reviews and Q&A
-
Hi. Can this be used along with a wireless controller?
Hello,
Thanks for the question
The only two options use hydraulic levers on the truck or install new control valve with electric solenoids so you can use a wireless remote set.
Thanks
James.
