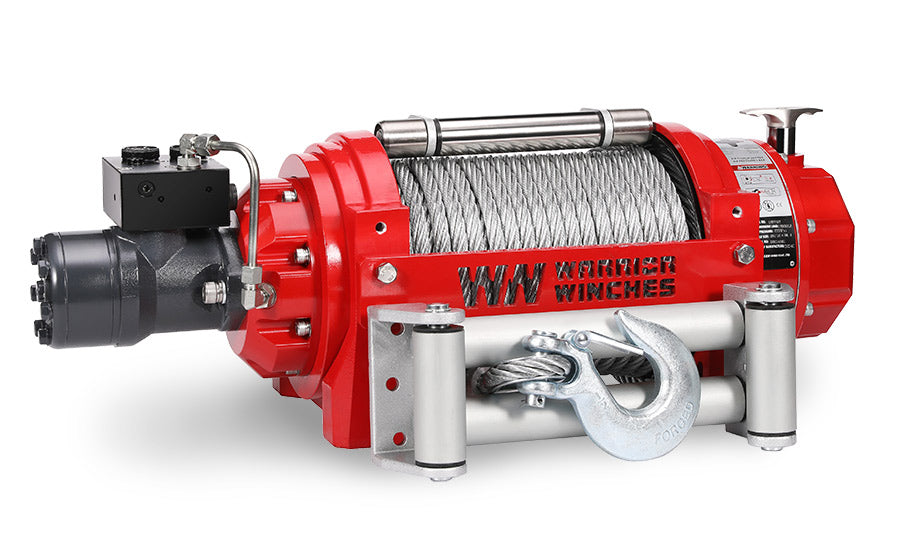

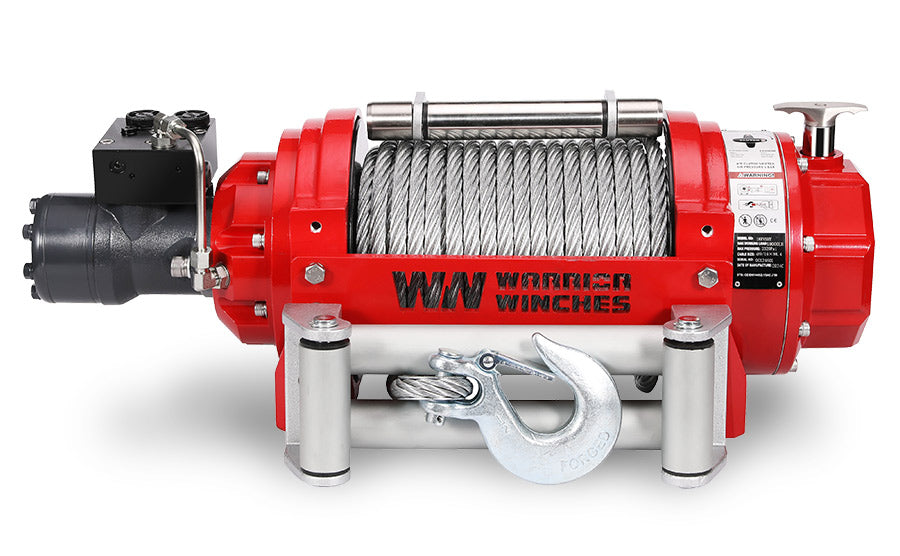

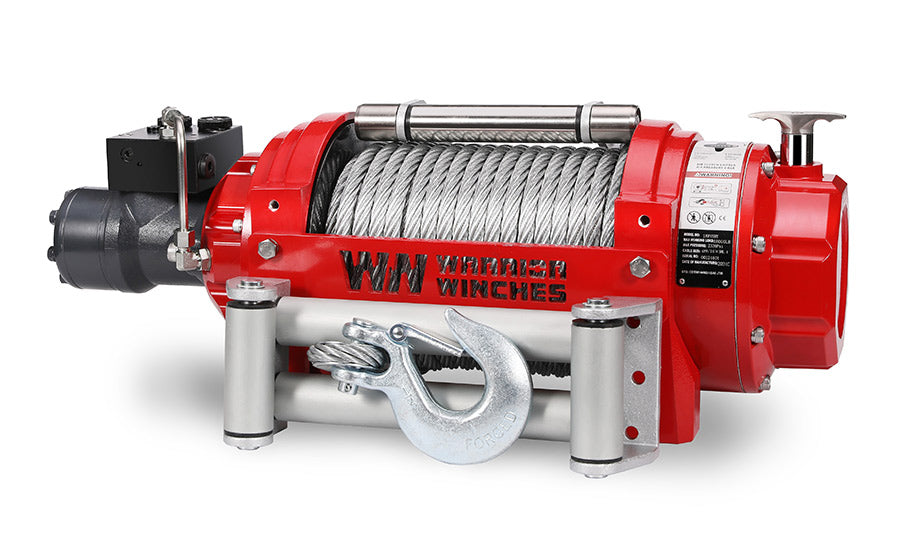

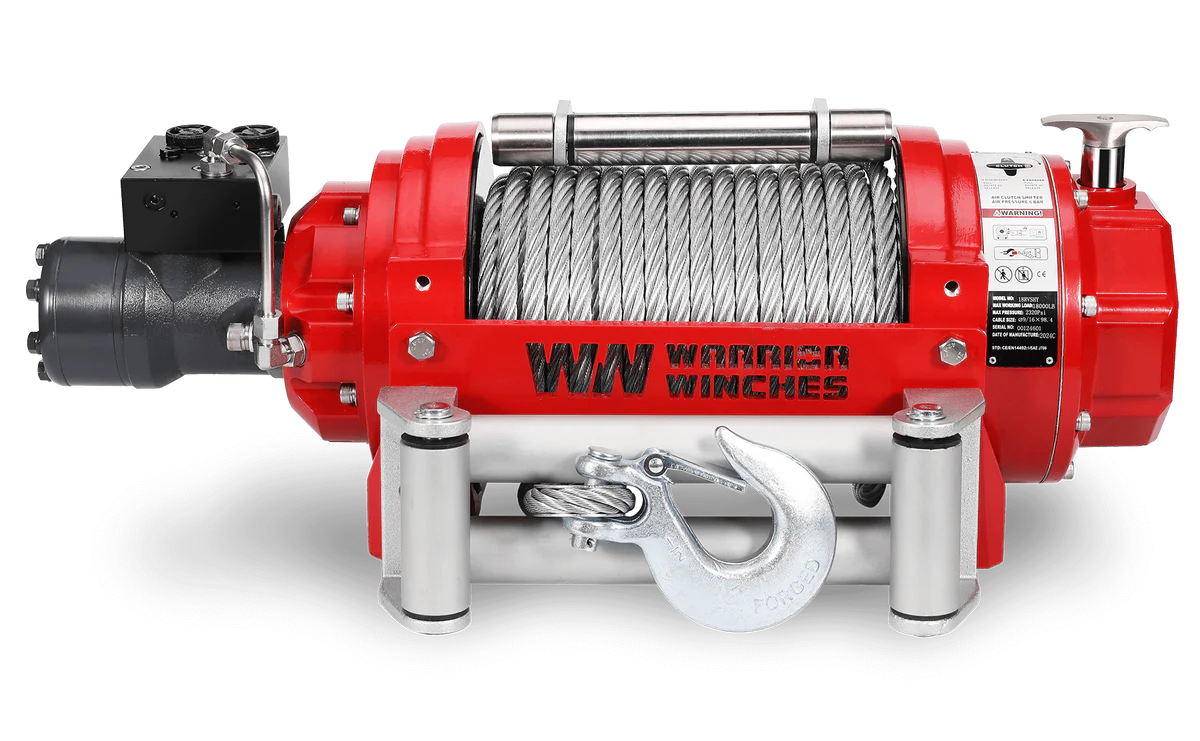

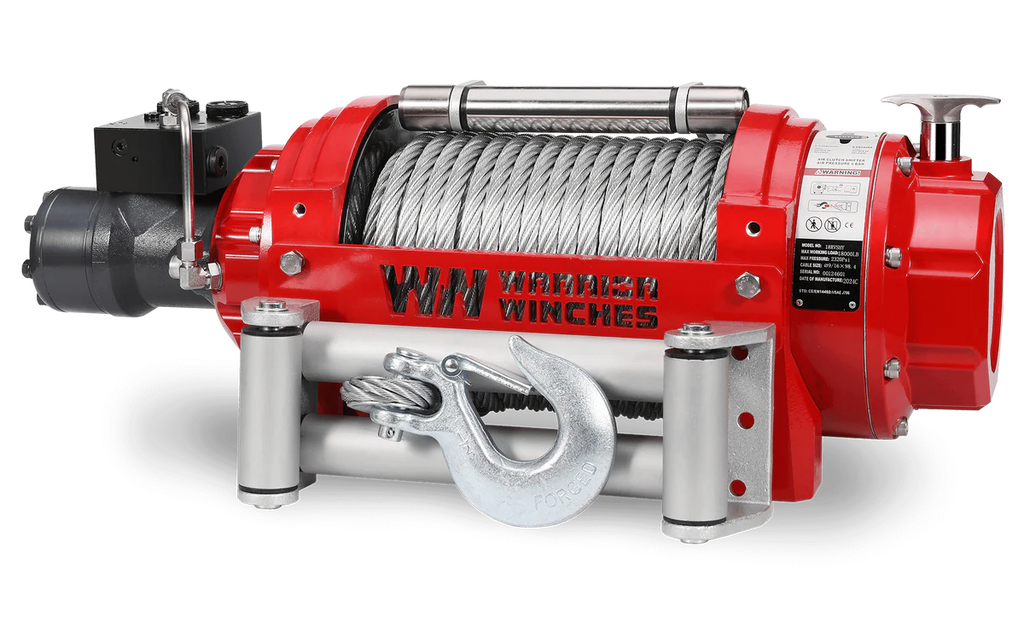

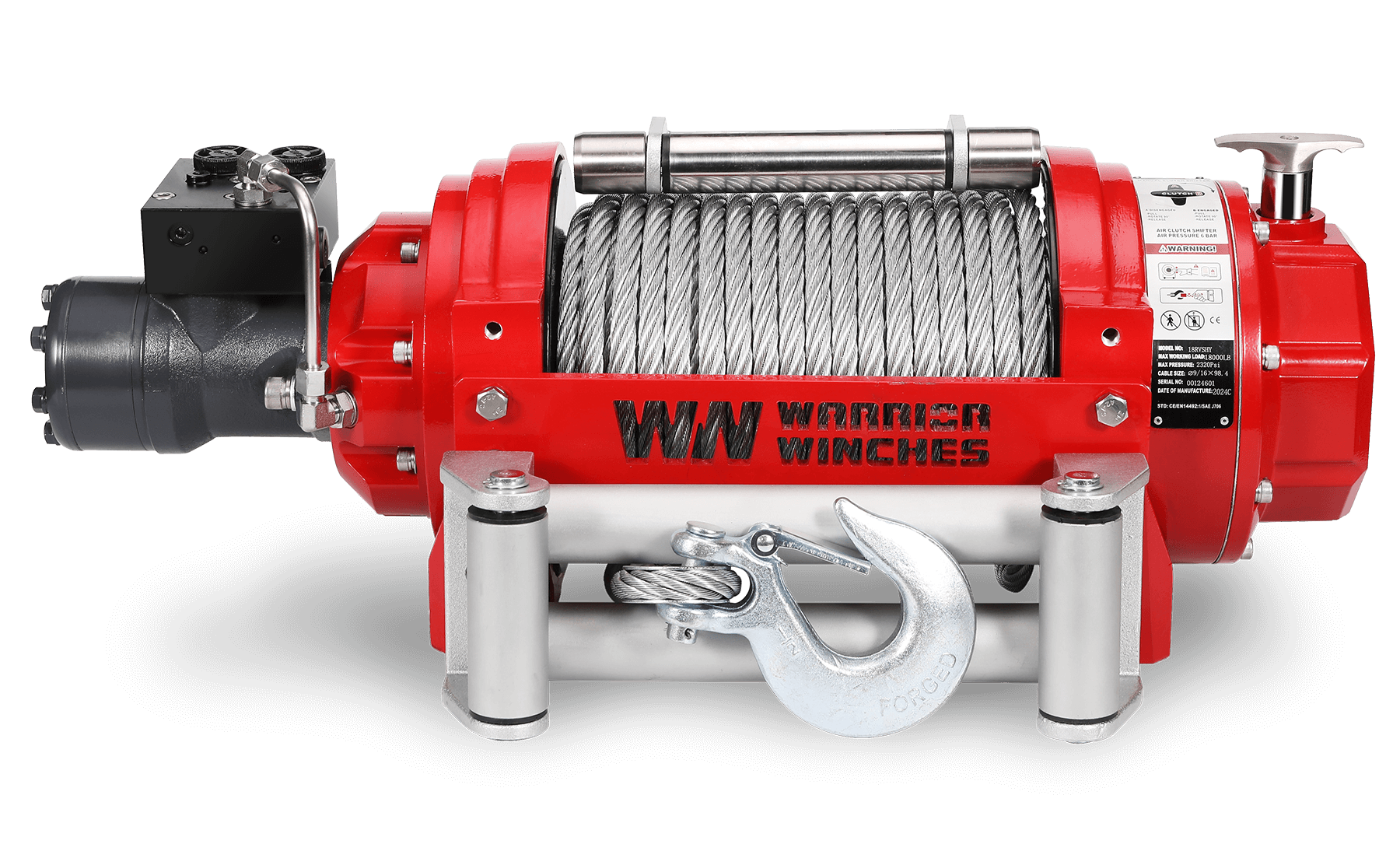

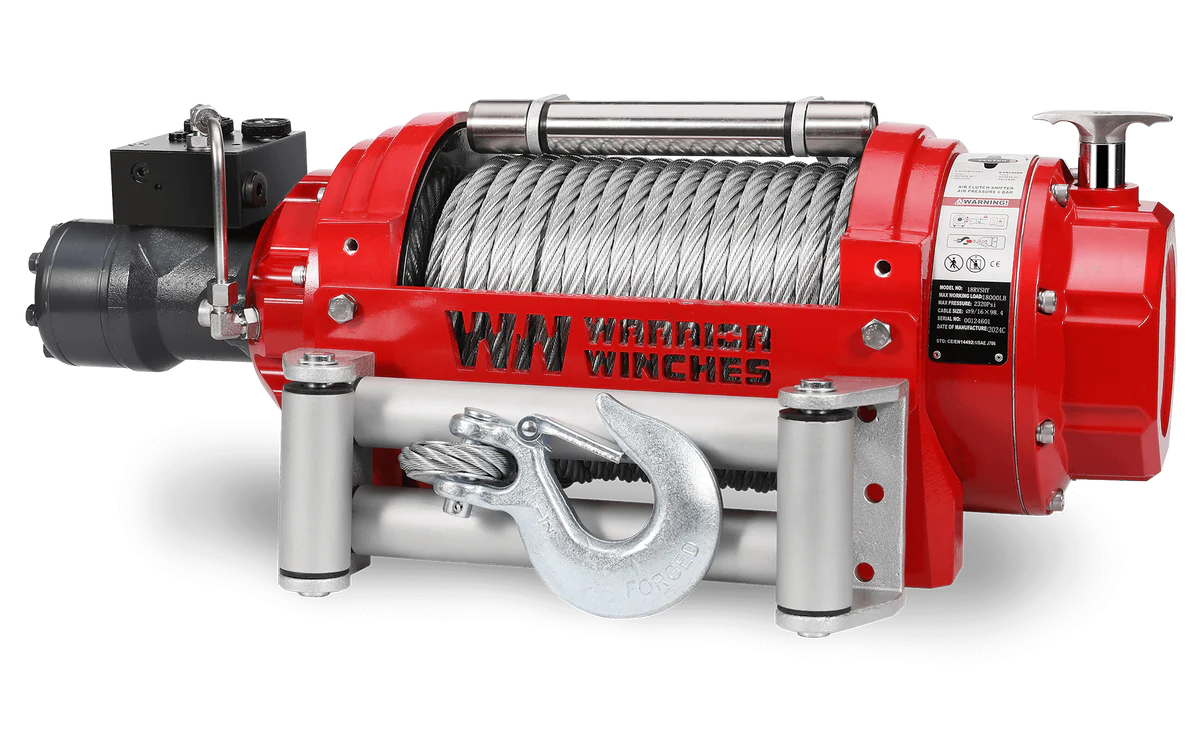

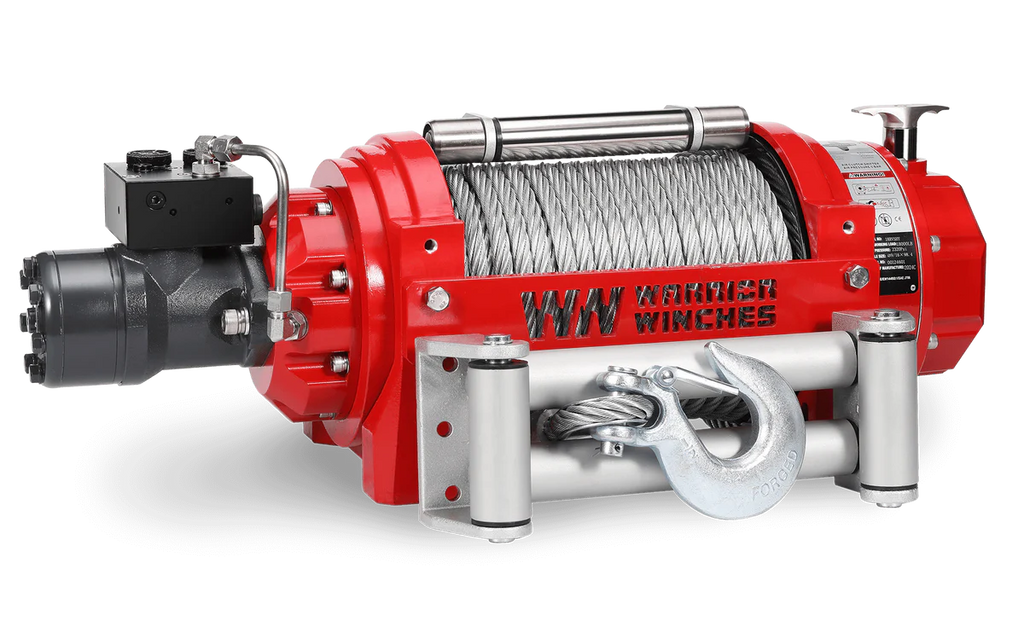

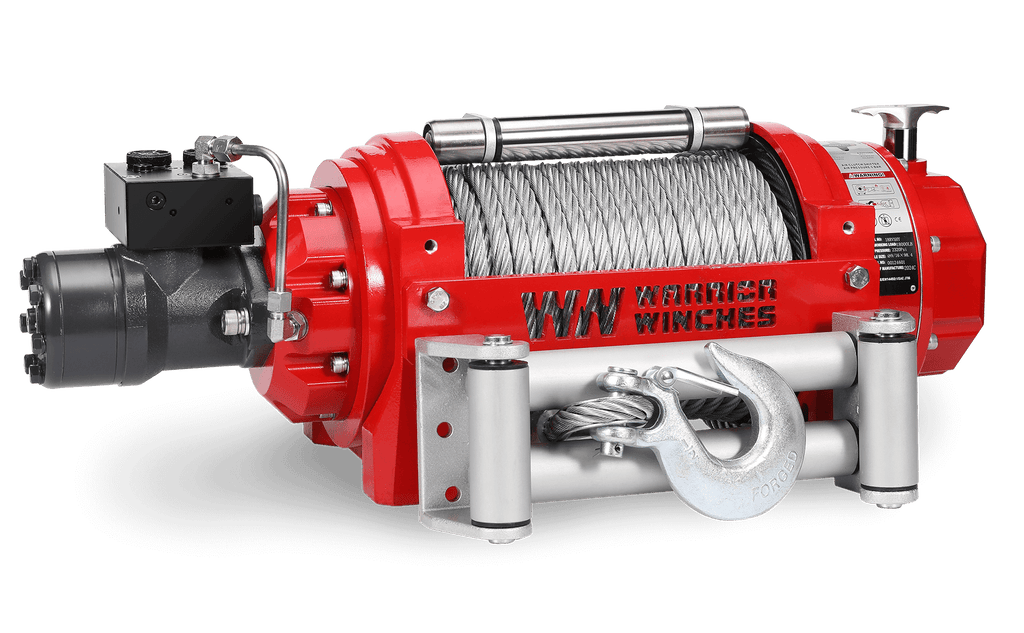

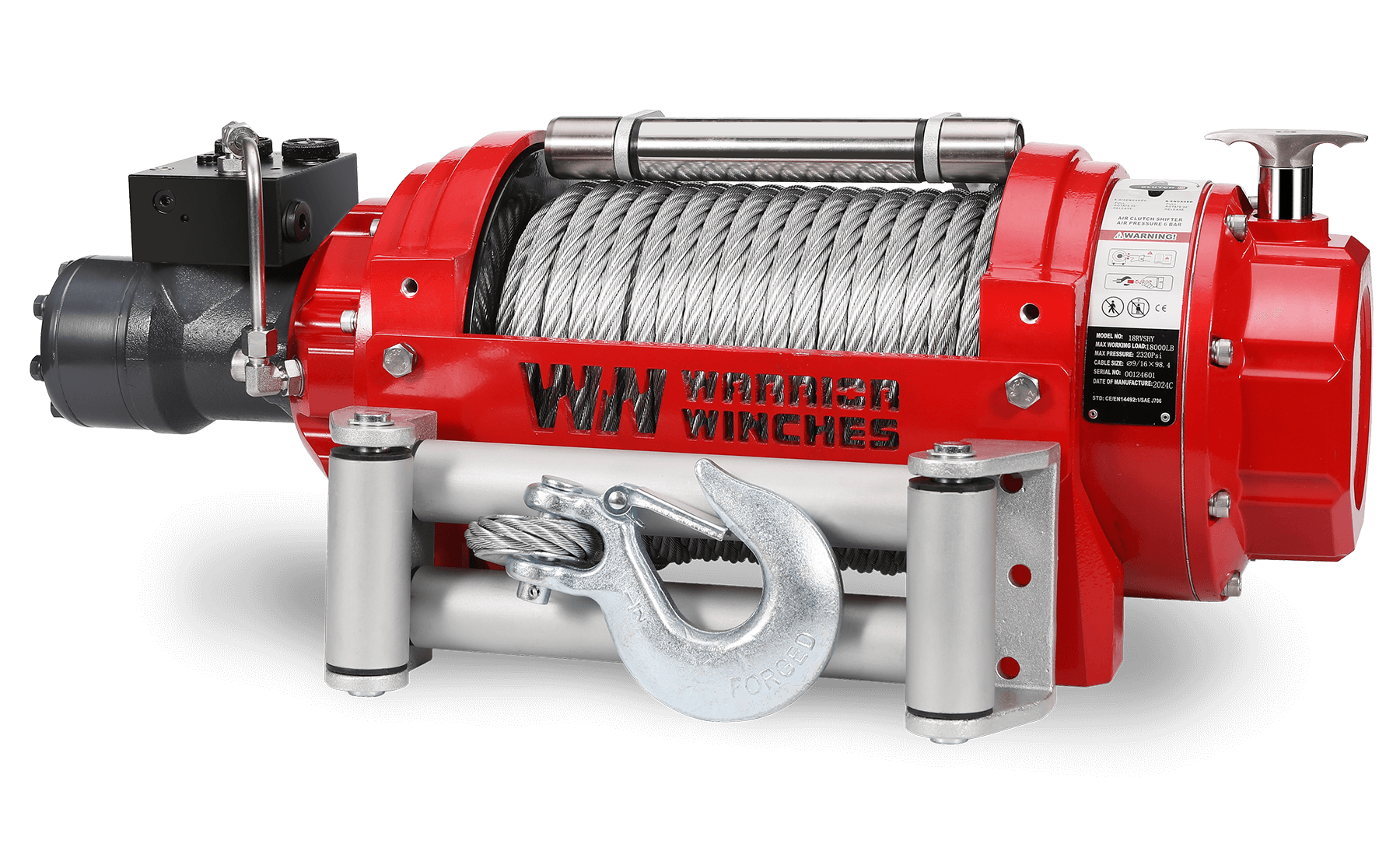

Warrior RV15000 6.8 Tonne Hydraulic Winch

 0 Reviews  Ask a Question
SKU: 15RVSHY

Sale price£1,385.99 inc vat
Sold out (back orders not currently available)

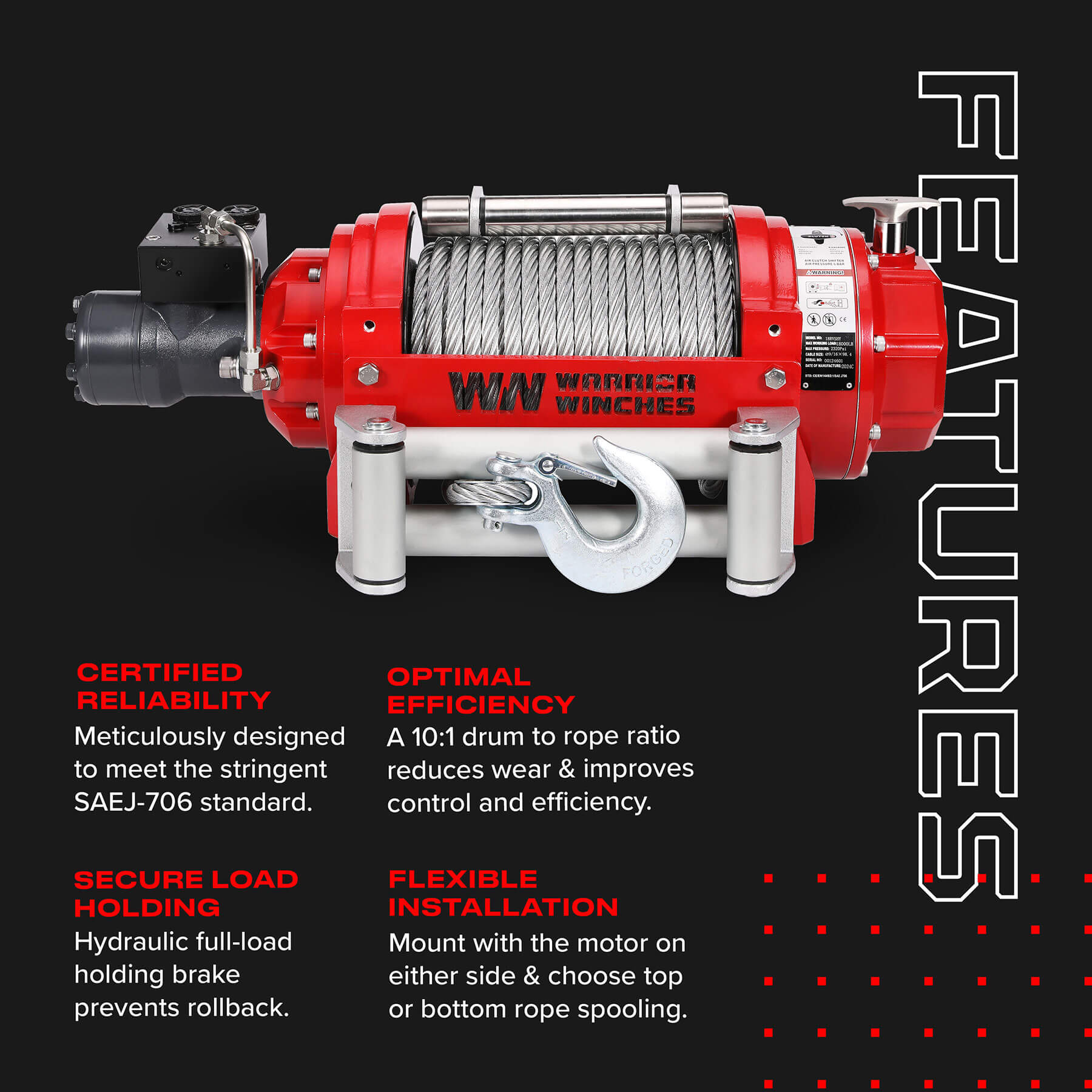

Features

  • PROFESSIONAL DESIGN – Built for the professional operator meeting the requirements of EN14492 and SAEJ-706.
  • ROPE:DRUM – Wire rope to drum ratio of 10:1
  • INCREDIBLE POWER – Huge line capacity of 15,000lb or 6804kg, with a pull of 1.3m per minute at full load!
  • SAFE USAGE – Wire rope has a 2:1 safety factor.
  • HYDRAULIC – Features a hydraulic full-load holding brake.

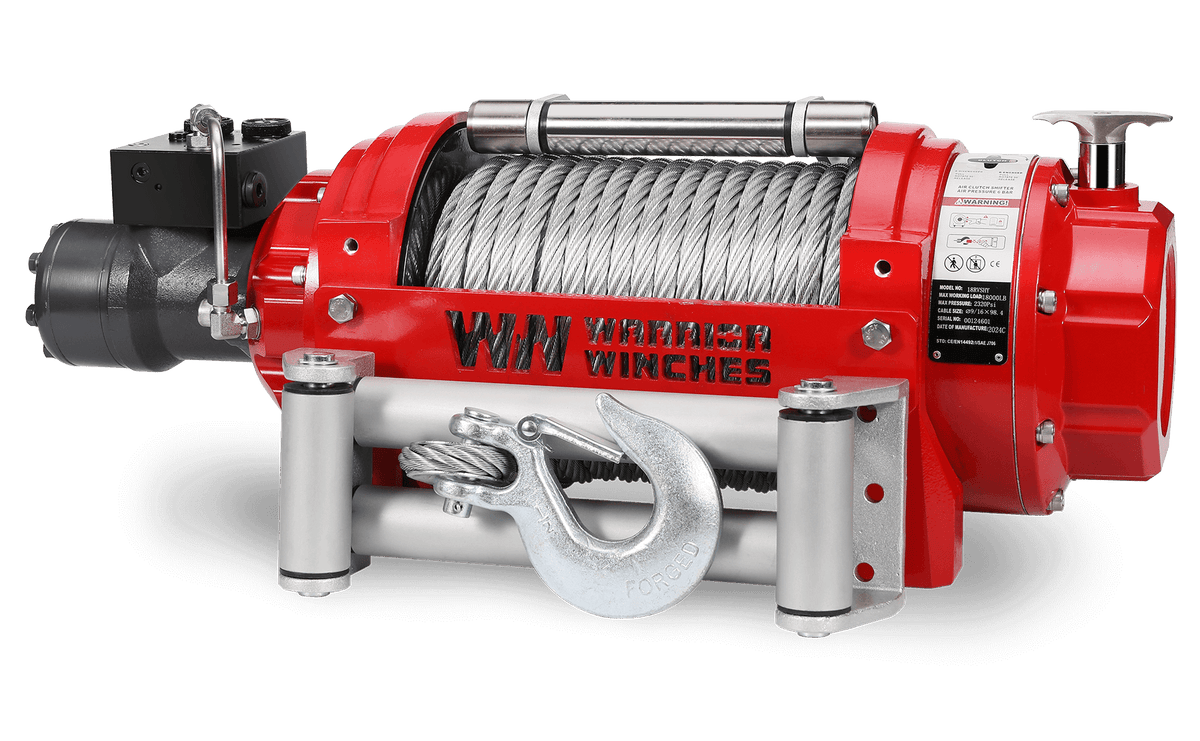

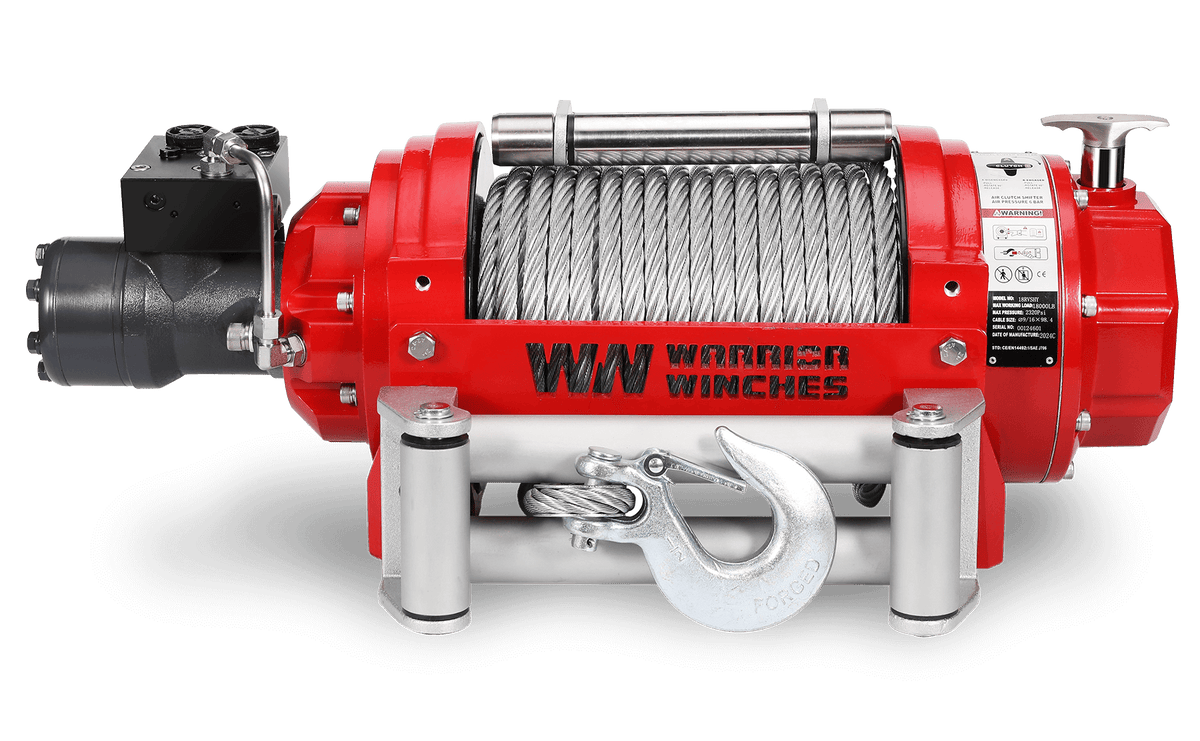

Warrior RV15000 6.8 Tonne Hydraulic Winch

Designed and developed for the professional operator, the RV series winches are the highest of quality. Ensuring they meet the requirements of EN 14492-1 and SAEJ-706, you can rely on their safety and strength.

Delivering a huge line capacity of 15,000lb or 6.8kg, the 10:1 drum-to-rope ratio also provides unbeatable power to have the job done in no time.

Featuring a hydraulic motor and brake, capable of holding the full load, it’s more than effective at getting any job done safely and easily. Ideal for tough commercial and industrial applications – the work will be sorted in no time.

Standard Features:

♦ Line Capacity: 15,000lb (6,804kg)
♦ RopeSteel cable 10.2mm x 30m
♦ MotorHydraulic
♦ Gearbox: 17.3:1
♦ Warranty: Limited One Year Mechanical

Accessories:

♦ Wired Hand Control: Available as an optional extra
♦ Wireless Control: Available as an optional extra
♦ Mounting Plate: Available as optional extra
♦ Fairlead: Roller Fairlead Included
♦ Mounting Bolts: Included for Standard installations

Also Includes:

♦ Balance Valve
♦ Cable Tensioner
♦ Instruction Manual

Other Information:

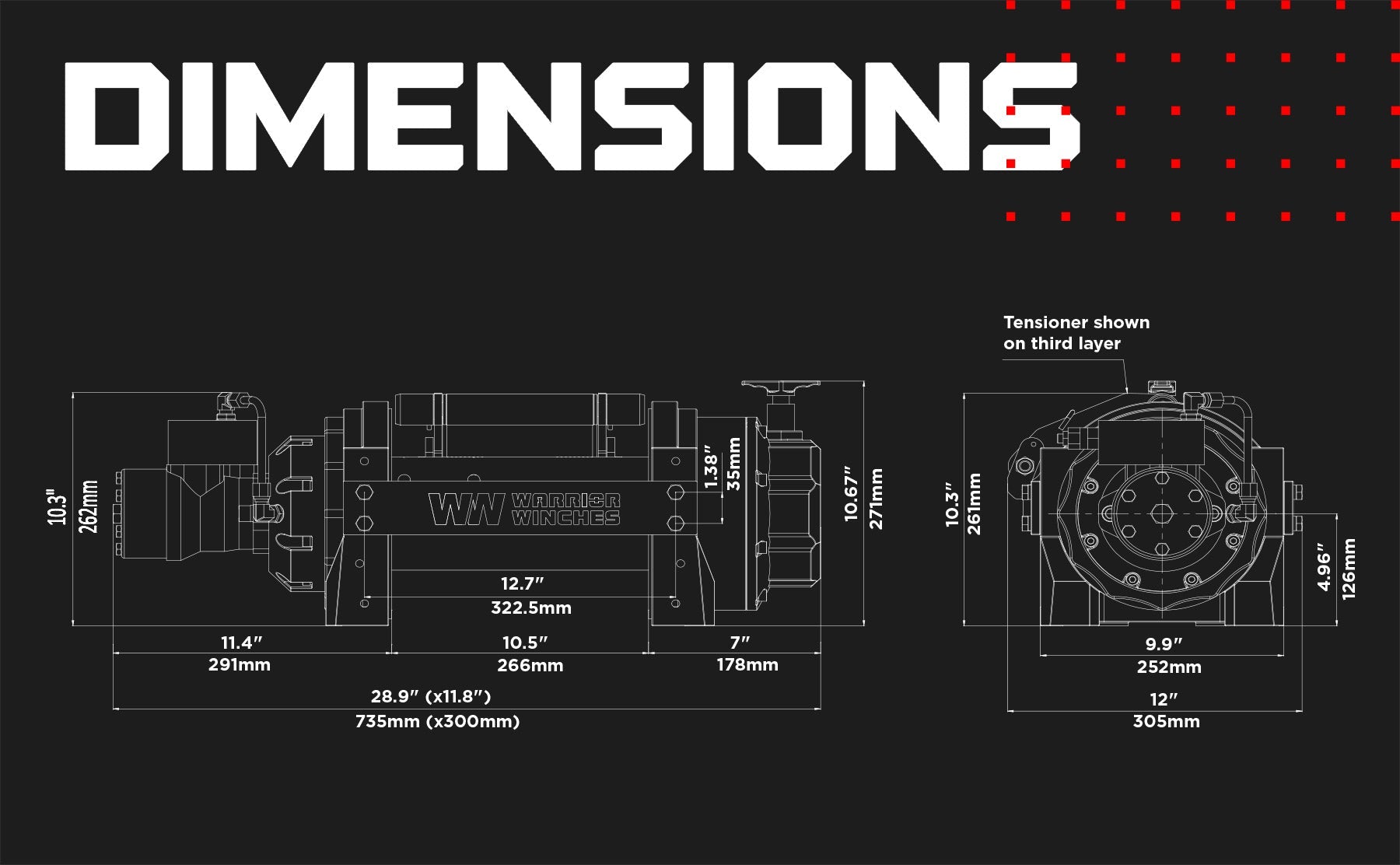

♦ Dimensions: 735mm L x 300mm D x 277mm H
♦ Mounting Bolt Pattern: 303.5mm x 114.3mm
♦ Approx. Shipping Weight: 83.6kg
♦ Line Pull - No Load: 7 m/min (290 Amps)
♦ Line Pull - Full Load:  1.3 m/min (2,537 Amps)




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 15000 lbs (6804 kgs)
Gearing 17.3:1
Braking Action Hydraulic
Drum Size - Dia x L 5.0 x 10.5 in
127 x 266mm
Cable - Dia x L 15/32 in x 98.4 ft
12mm x 30.0m
Dimensions 28.9 x 11.8 x 10.9 in
735 x 300x277mm
Mounting Pattern 12.0 x 4.5 in (303.5 x 114.3mm)
14.5 x 6.7 in (368.5 x 171.2mm)
8-M12
Weight kg 112 kg (246.9 lb)
Max Flow L/min 10-60L/min
Max Pressure Mpa 17.5Mpa
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 15000(6804) 29.5(9.0)
2 12791(5807) 65.6(20.0)
3 11150(5062) 98.4(30.0)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 23 (7) 10 (2.6) 2.0 (290)
8000 (3629) 16.7 (5.1) 20 (5.2) 9.2 (1337)
10000 (4536) 12.4 (3.8) 30 (7.9) 11.5 (1627)
12000 (5448) 8.5 (2.6) 40 (10.4) 14.0 (2030)
15000 (6810) 4.2 (1.3) 60 (15.6) 17.5 (2537)

What's in the box:

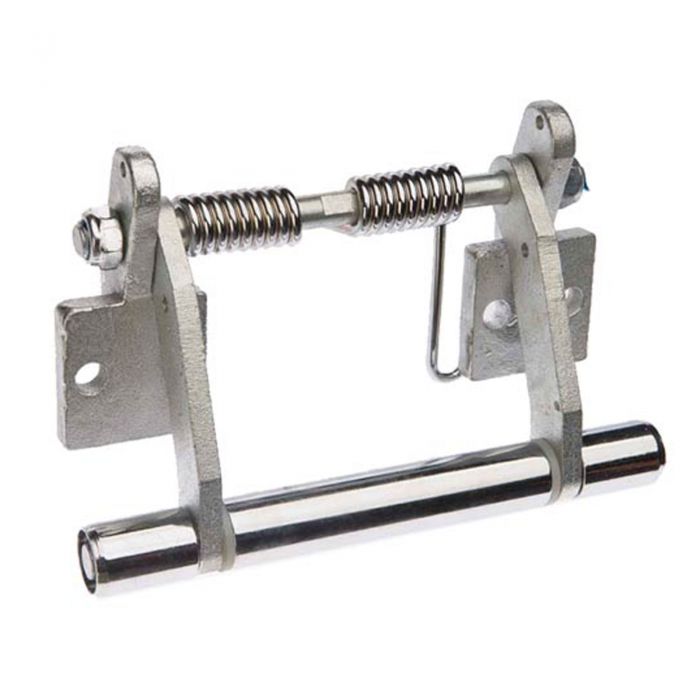

  • Tensioner
  • Heavy Duty Roller Fairlead
  • Hook

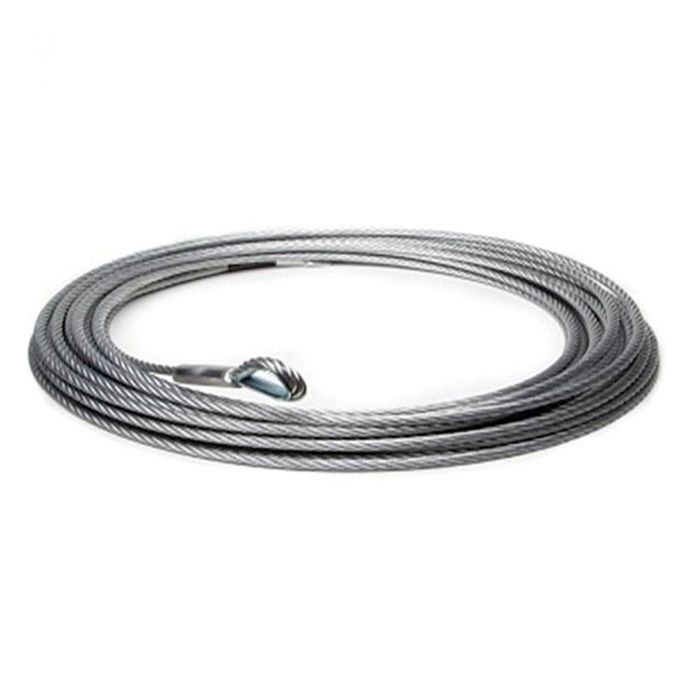

  • Steel Rope

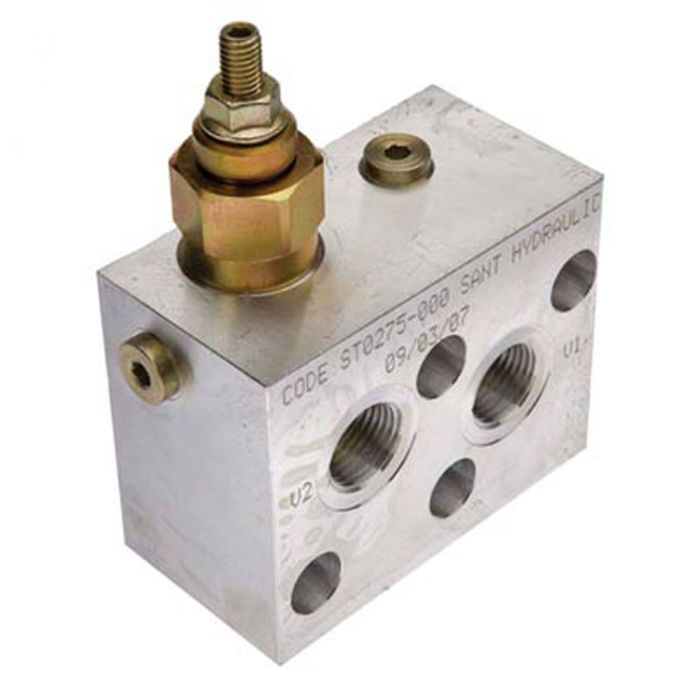

  • Balance Valve
