Warrior Trojan Portable 4000lb Electric Winch

 0 Reviews 2 Questions Answered
SKU: 40PUA12

Synthetic Rope
Rope: Synthetic Rope
Sale price£386.99
In stock (Delivery in 1-2 working days)

Features

  • HIGH POWER – With 4000lb of pulling power thanks to a 3.2hp 12v motor.
  • PORTABLE + PRACTICAL – In a plastic toolbox for easy portability and transportation.
  • VERSATILE – Doesn’t need to be permanently installed, but can be if you prefer.
  • QUICK USE – Speedy plug-in and start-up with this electric winch.
  • SYNTHETIC OR STEEL – Available with synthetic or steel pull rope..
  • LINE PULL – 1.5m/min at full load.

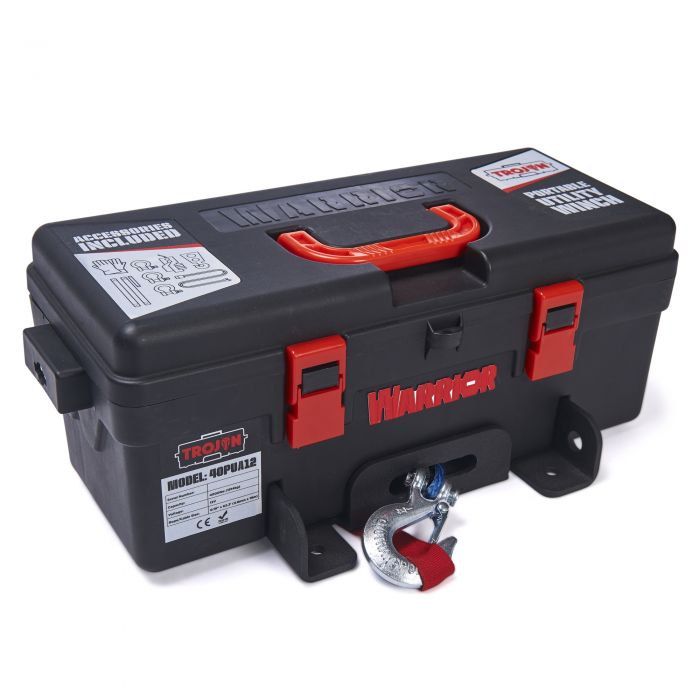

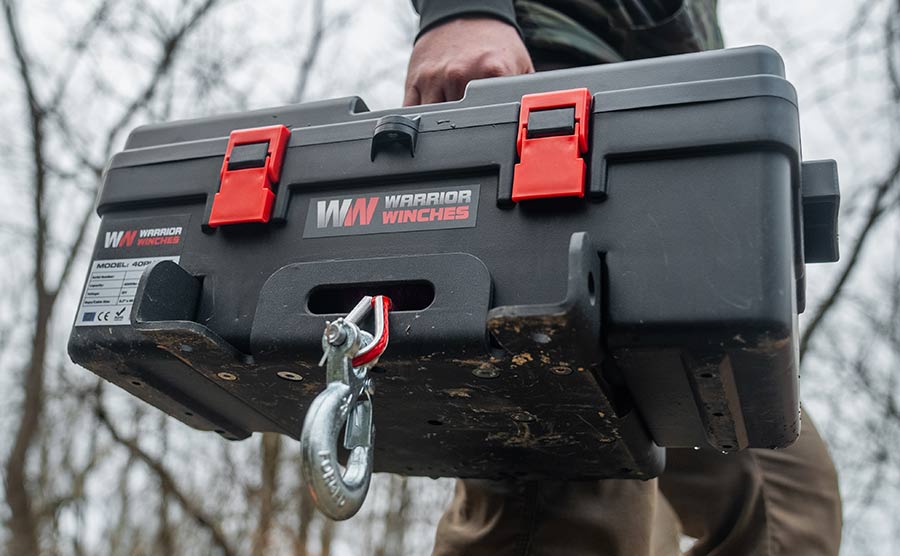

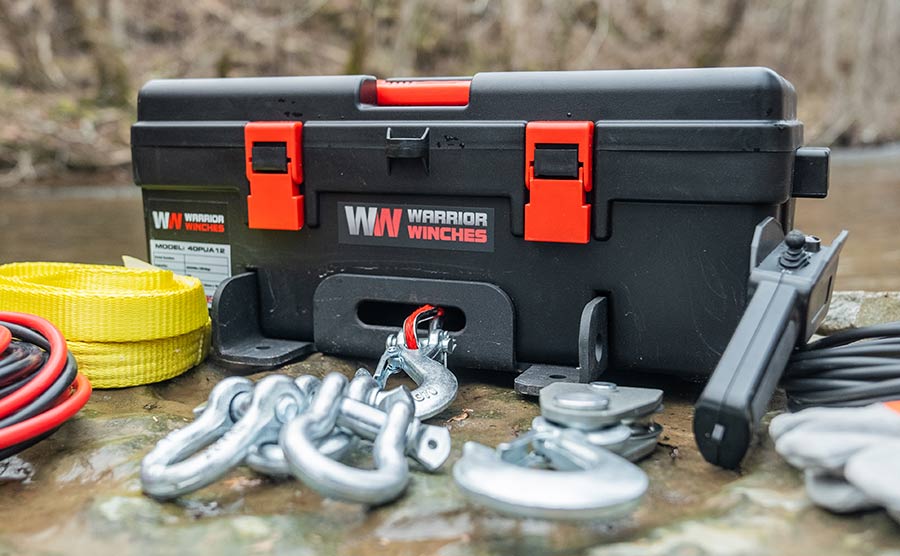

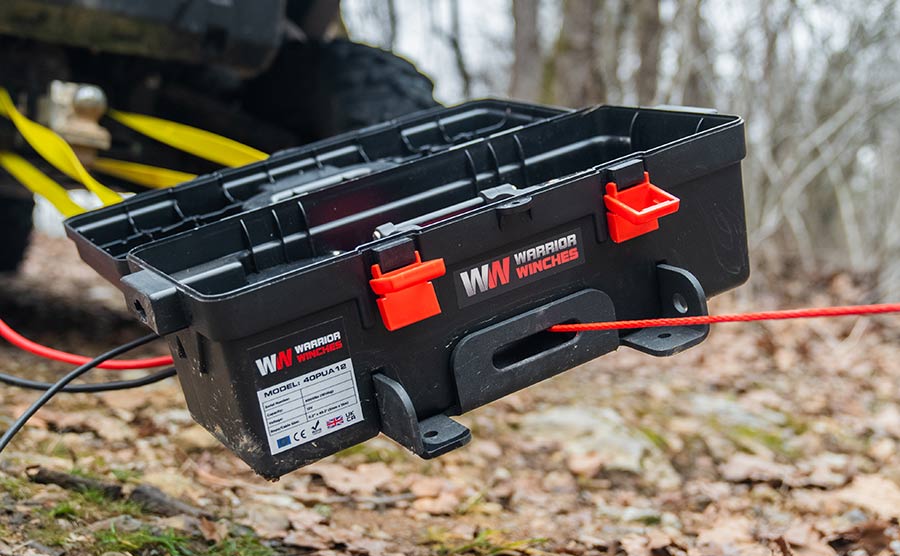

Warrior Trojan 4000lb / 1814kg Portable Winch

With Warrior’s signature strength, the Warrior Trojan portable winch gives you high power without impracticality. With a line pull of a huge 4000lb or 1814kg - there is no compromising on strength.

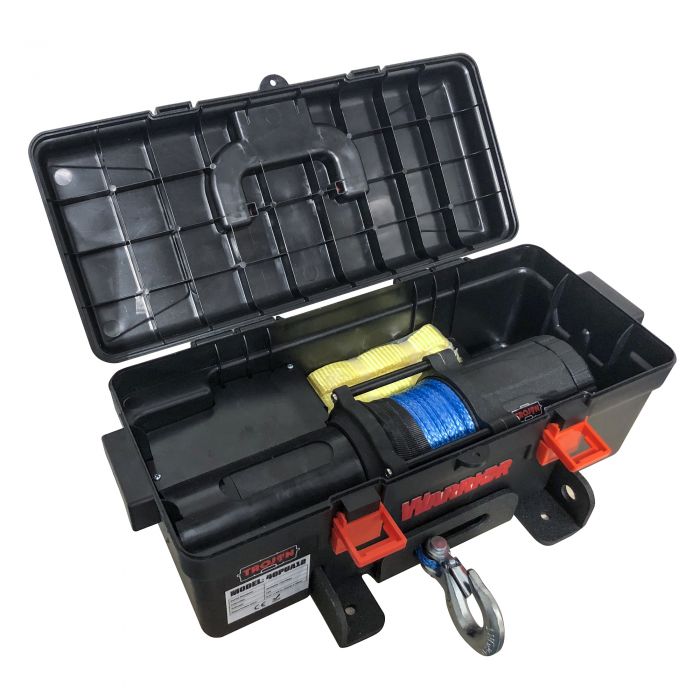

But thanks to its special design, this winch is set inside a plastic toolbox, allowing you to easily transport or store it. Also having space for all the included accessories, there’s no risk of losing vital parts along the way, as you can pack everything up neatly.

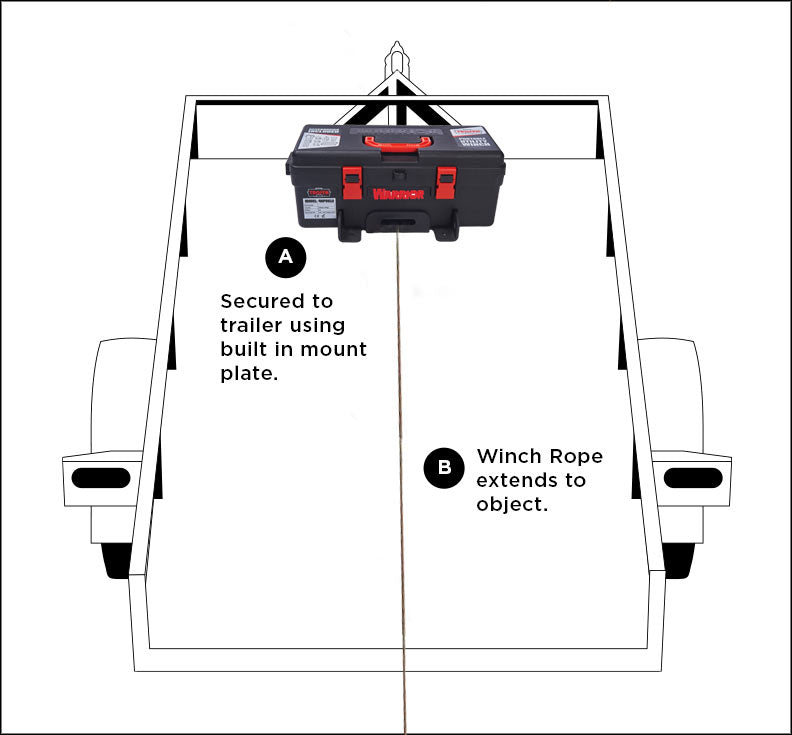

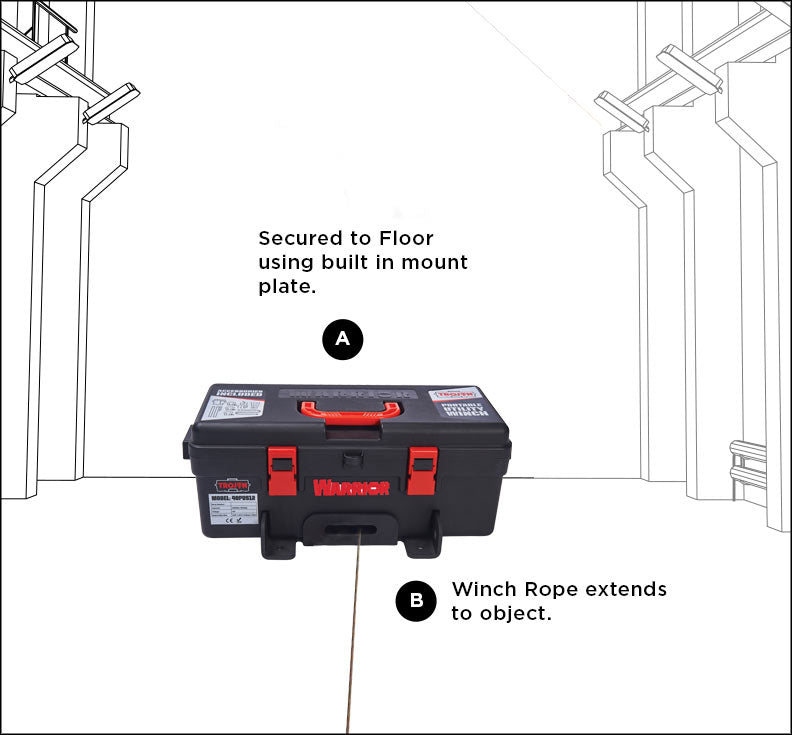

Unlike a standard winch, the Trojan doesn’t need to be permanently installed, allowing for far more versatile usage. The integrated metal base along with the included straps and shackles mean this winch can be used almost anywhere for any job; simply plug in and start up. But if you prefer something more permanent, you can use the metal base to mount it to a trailer – if that’s the way you roll.

Fact File:

Line Capacity: 4,000lb (1,814kg)
Motor: Reversible 3.2hp 12v Permanent Magnet Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 12 Month Return to Base

Accessories:

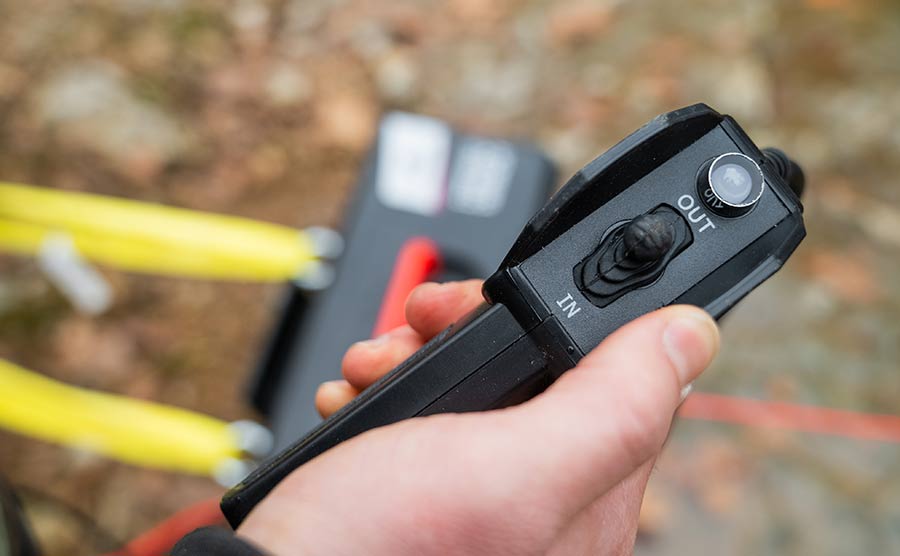

Wired Hand Control: 3.6m (12ft) Wired Hand Control
Wireless Control: Not Available
Mounting Plate: Integrated
Fairlead: Steel Hawse Fairlead
Mounting Bolts: Included for Standard installations

Quick connect battery cables with Alligator connectors
6,000lb Hook Type Pulley Block
3 x 20,000lb Shackles
2 x 8,000lb Heavy Duty 8ft Straps
Instruction Manual

Other Information:

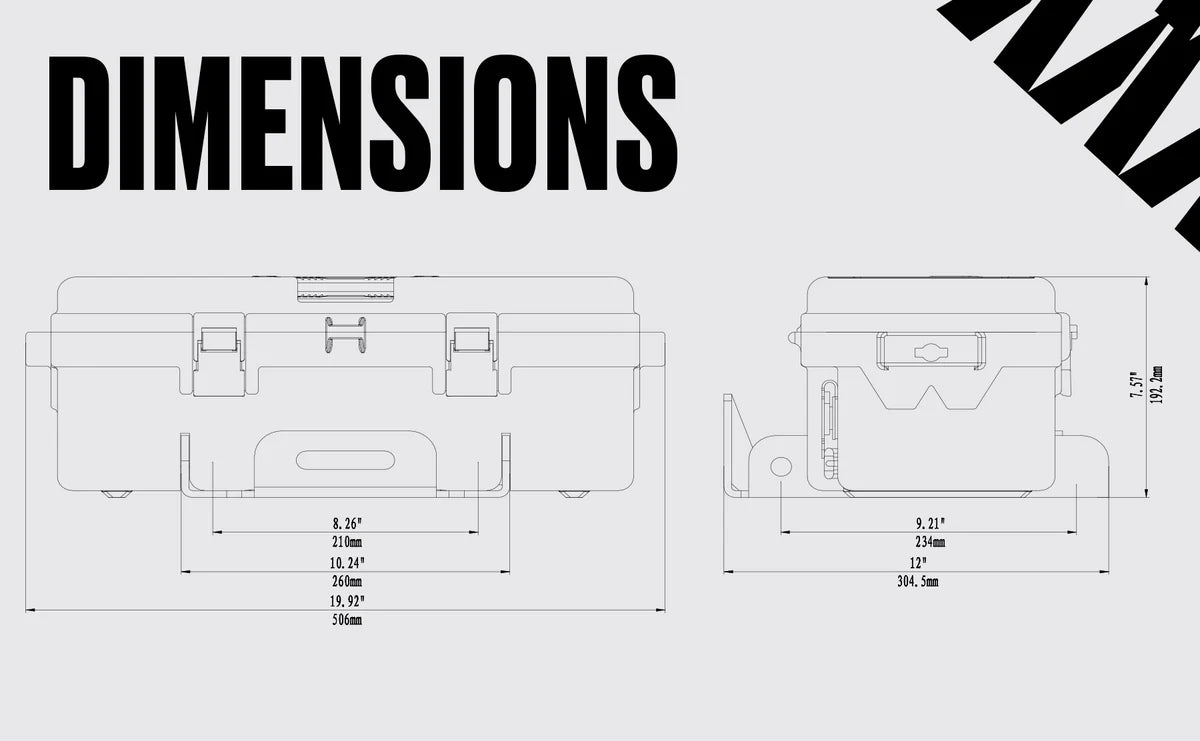

Dimensions: 506mm L x 304.5mm D x 192.2mm H
Mounting Bolt Pattern: 210mm x 234mm
Line Pull - No Load: 4.4 m/min (28 Amps)
Line Pull - Full Load: 1.5 m/min (190 Amps)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 4000 lbs (1814 kgs)
Motor 12v: 2.4kW / 3.2hp
Gearing 166:1
Braking Action Auto in the drum
Drum Size - Dia x L 50.4 x 82mm
(1.98 x 3.2 in)
Cable - Dia x L Steel: 5.4mm x 12.8m (0.2in x 42ft)
Synthetic: 5mm x 15m (0.19in x 49.2ft)
Dimensions 506 x 304.5 x 192.2mm
(19.9 x 12 x 7.6in)
Mounting Pattern 210 x 234mm
(8.3 x 9.2 in)
Weight kg Steel: 20.5kg (45.2 lbs)
Synthetic: 19kg (41.9 lbs)
Clutch Manual



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 13500 (6123) 16.1 (4.9)
2 10596 (4806) 36.4 (11.1)
3 8720 (3955) 60.0 (18.3)
4 7408 (3360) 65.6 (20.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 19.7 (6.0) 72
4000 (1814) 10.5 (3.2) 180
8000 (3629) 7.5 (2.3) 265
13500 (6123) 3.9 (1.2) 390

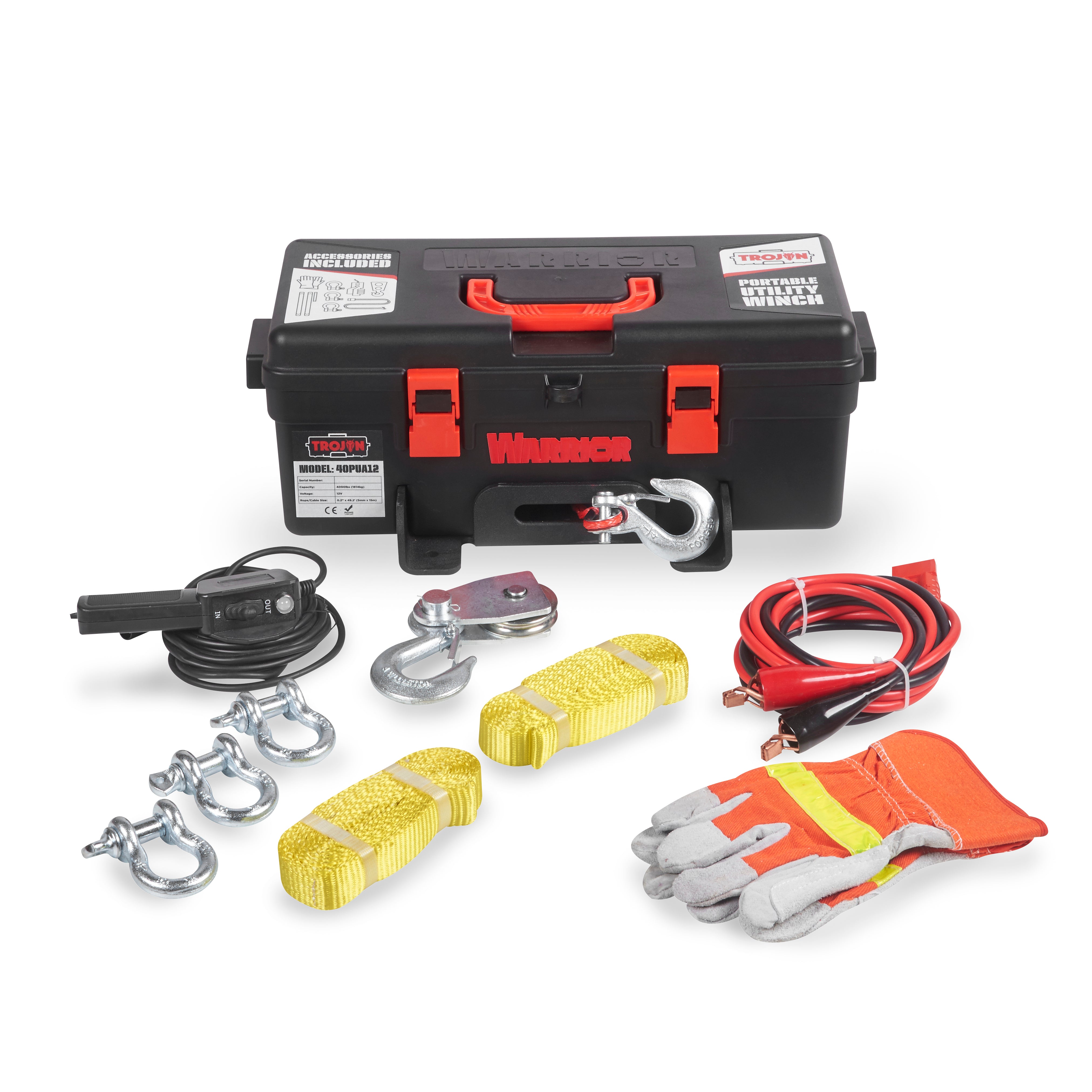

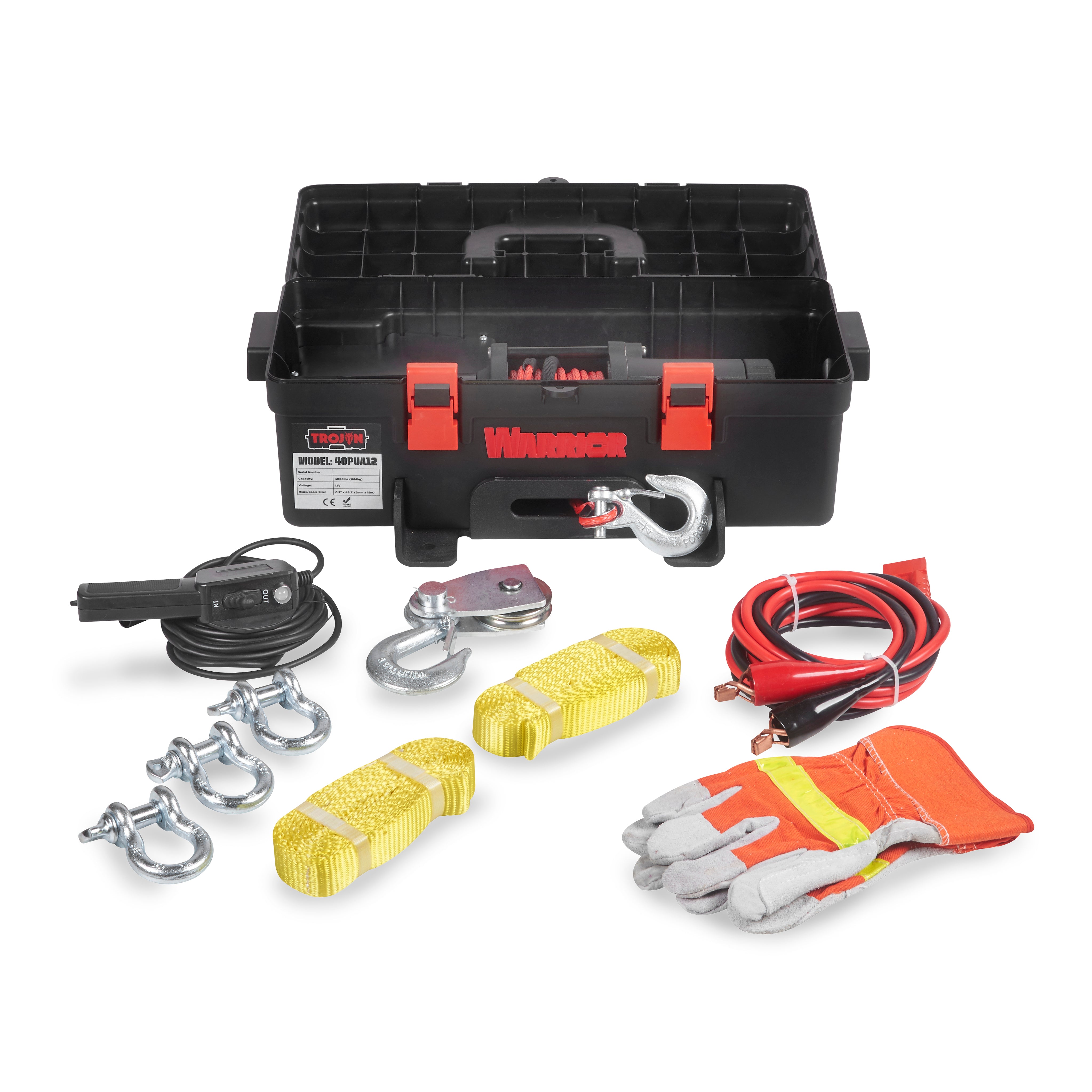

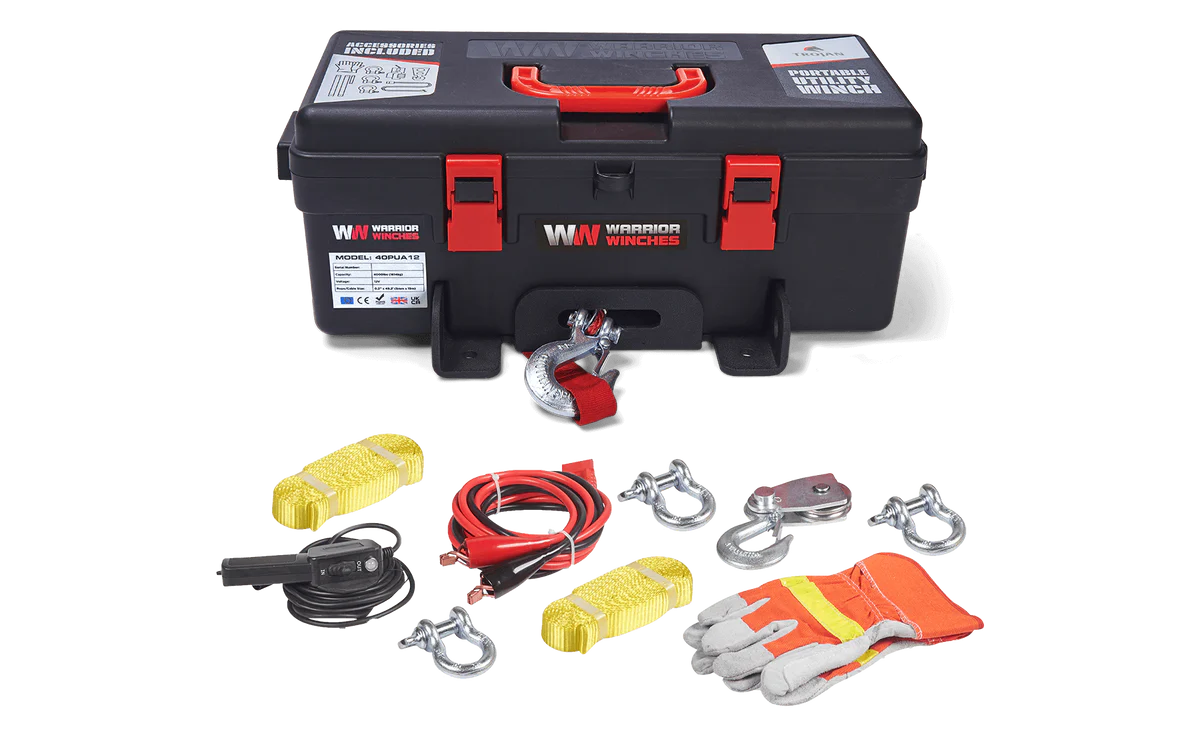

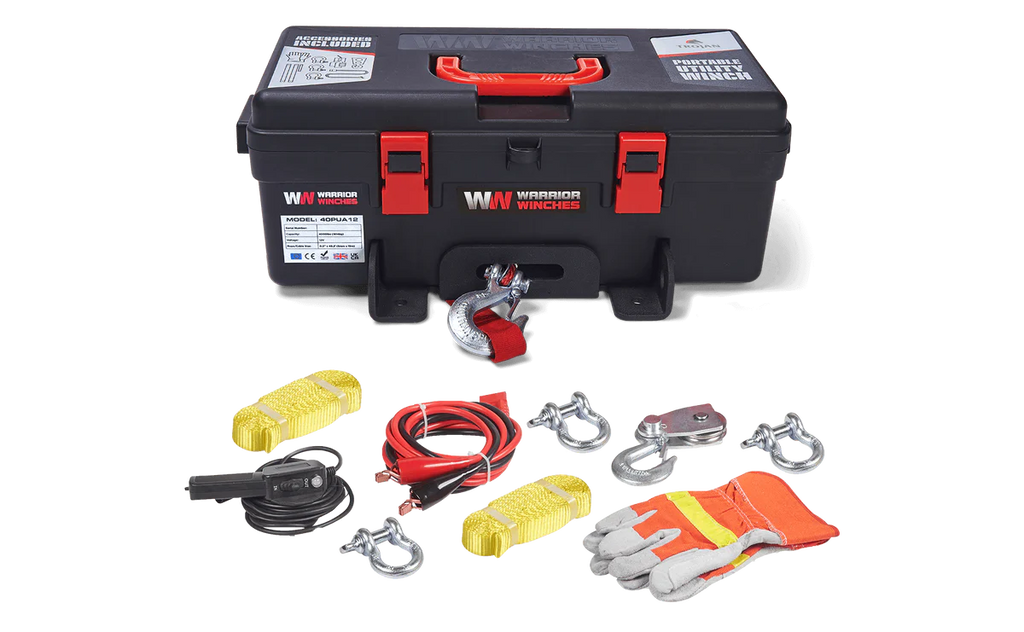

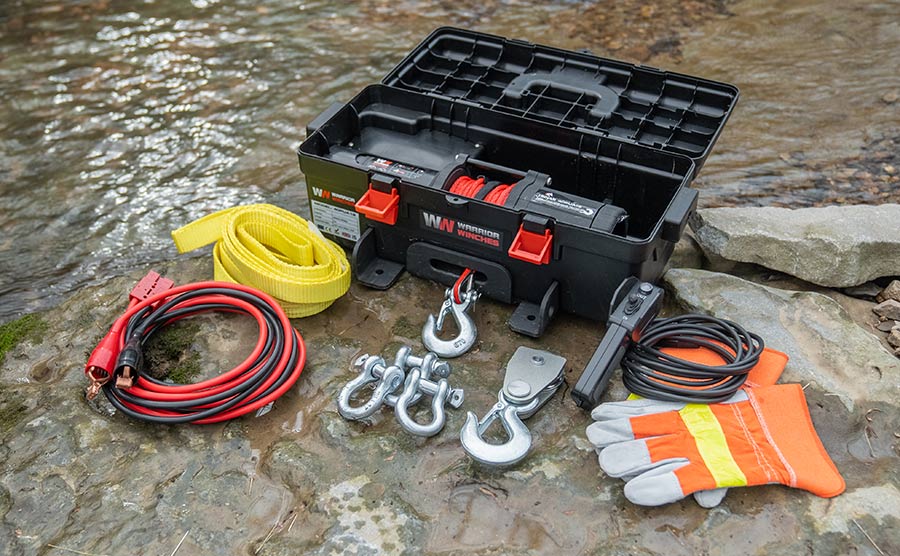

What's in the box:

  • Quick Connect Cord With Alligator Clips
  • Heavy Duty Leather Palmed Winch Gloves
  • 6 000lb Pulley Block
  • 3.6m (12ft) Hand Remote
  • Three 20 000lb D-shackles
  • Two 8ft Heavy Duty Straps Rated 8 000lbs
  • Steel or Synthetic Rope

Reviews and Q&A

  • Can you tell me the capacity of synthetic rope this winch will hold please

    The synthetic version of the Trojan is fitted with a 5mm diameter, 15m rope.

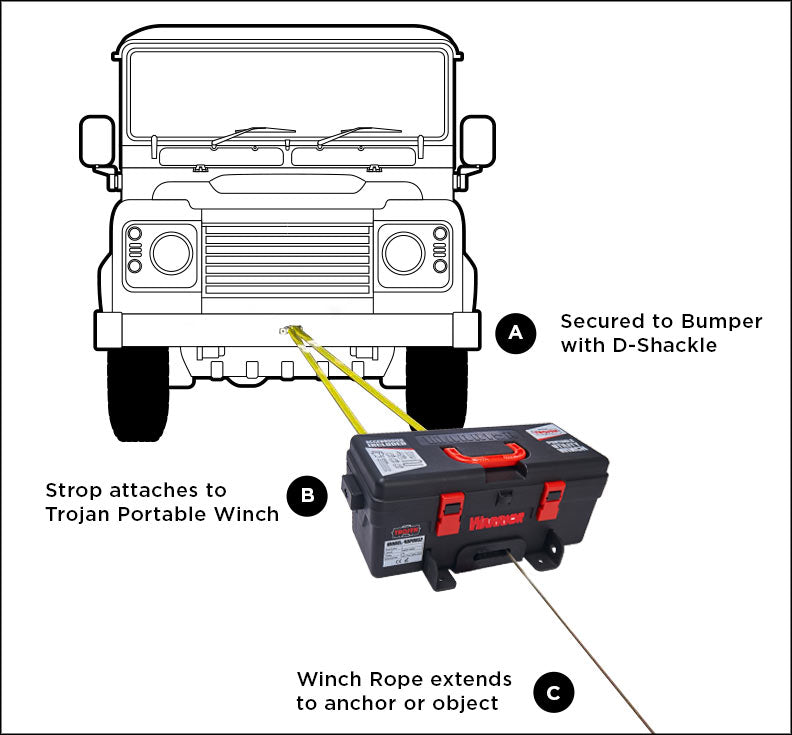

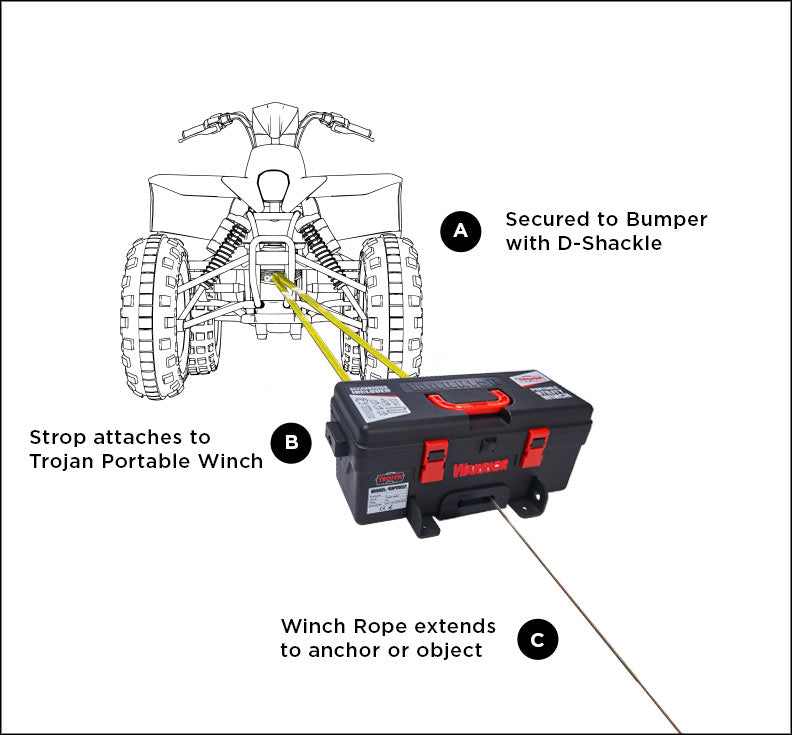

  • How is this used, and does it need to be fixed to the vehicle or is it in the middle of a fixed position ie tree with a strap then the winch then hooked on the item to be winched ?

    Hello,

    Thanks for getting in touch.

    Good question, we should look into having some installation drawings on the site.

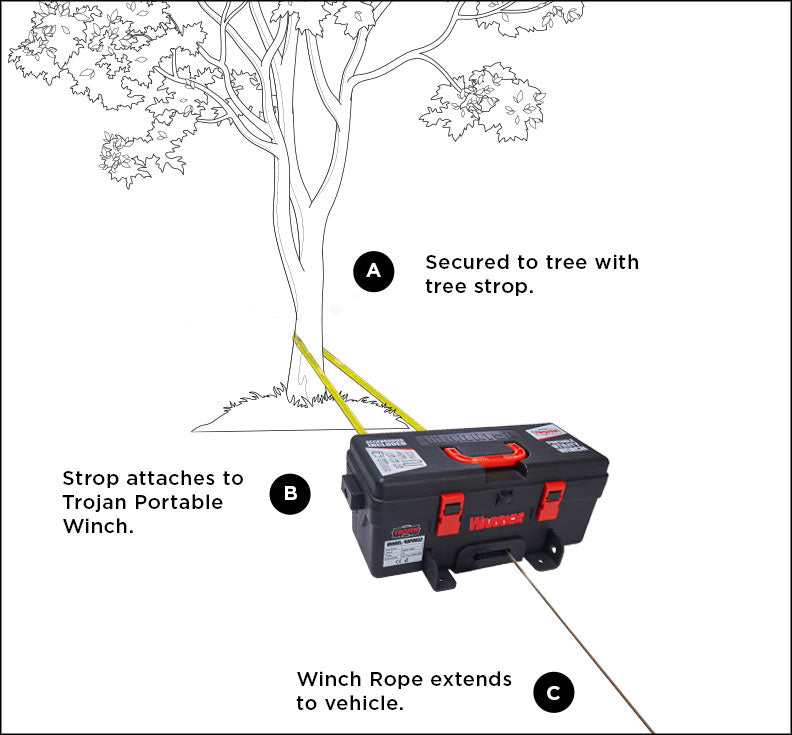

    The bracket at the rear is to be attached to a tree for example, with the load attached to the front.

    If you do require any further information please contact us directly on sales@bimsonpower.co.uk

    Thanks

    James
