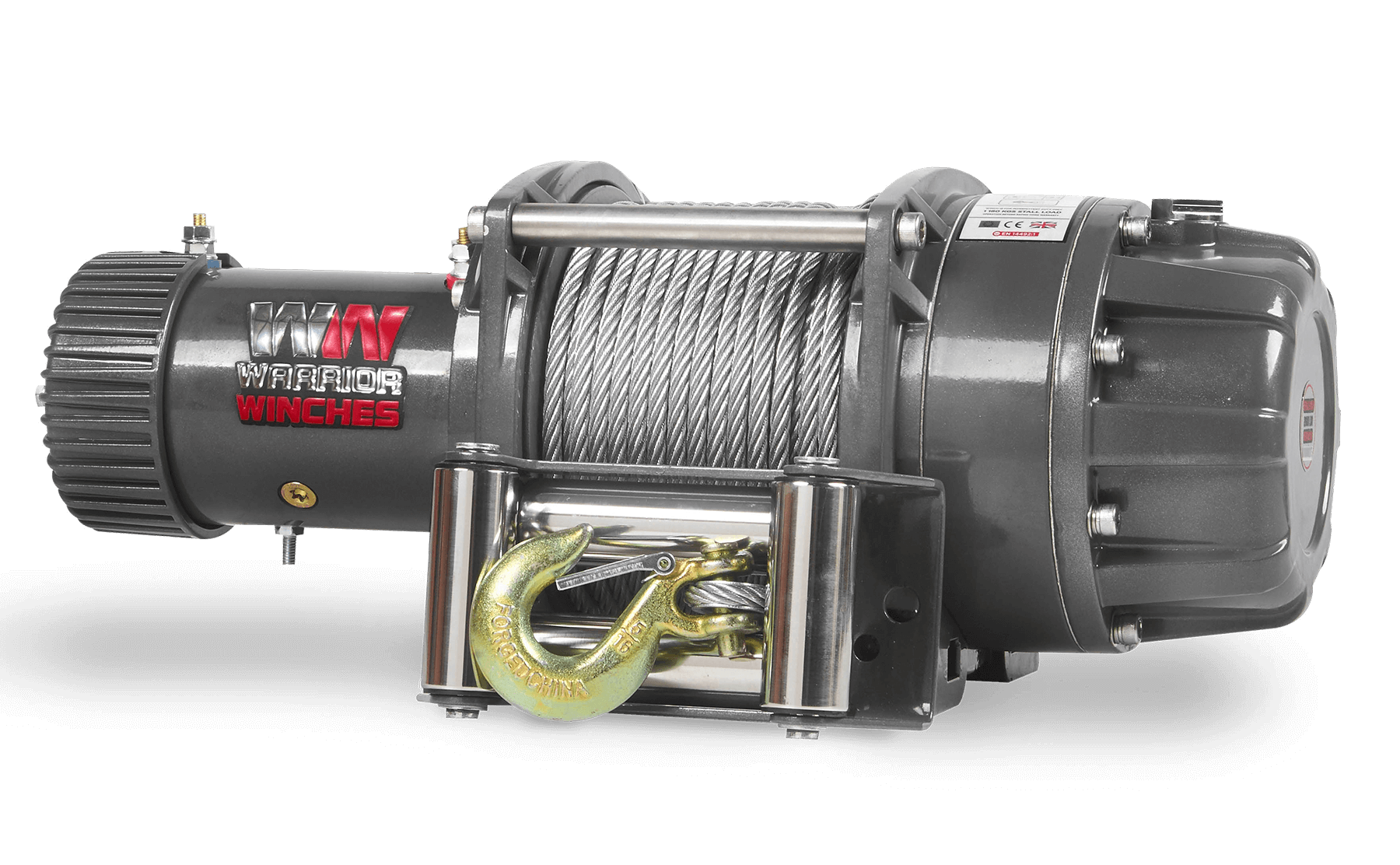

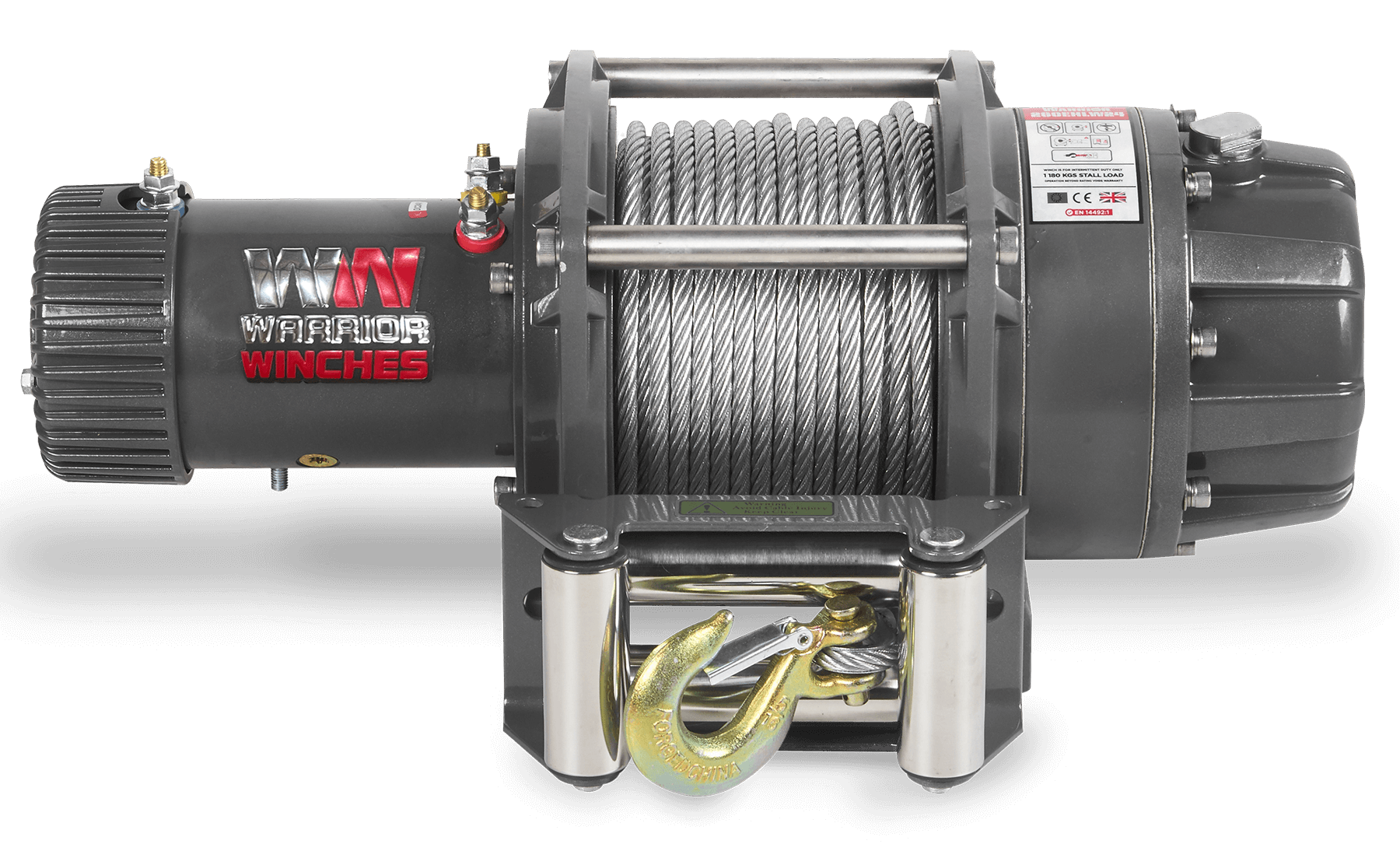

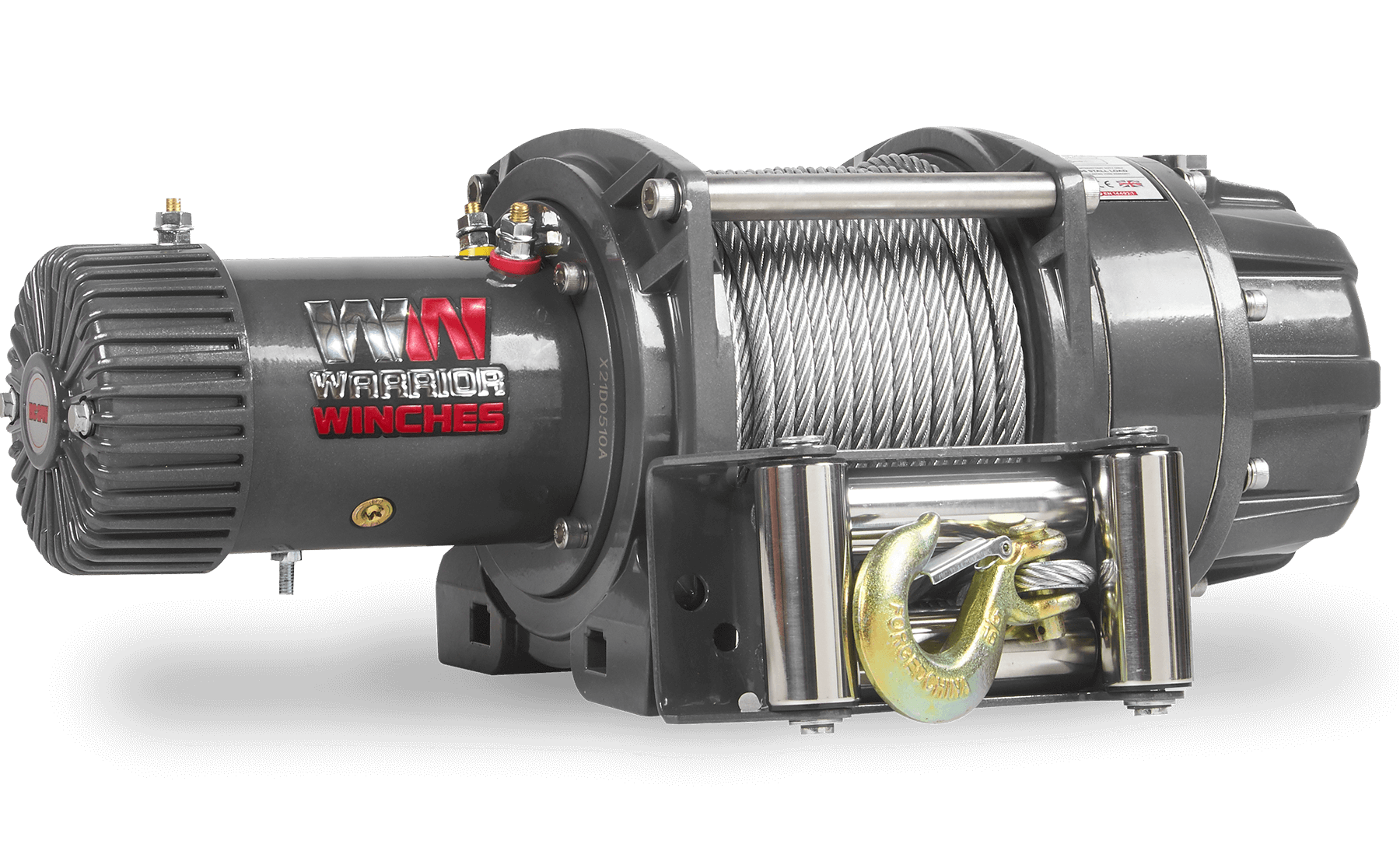

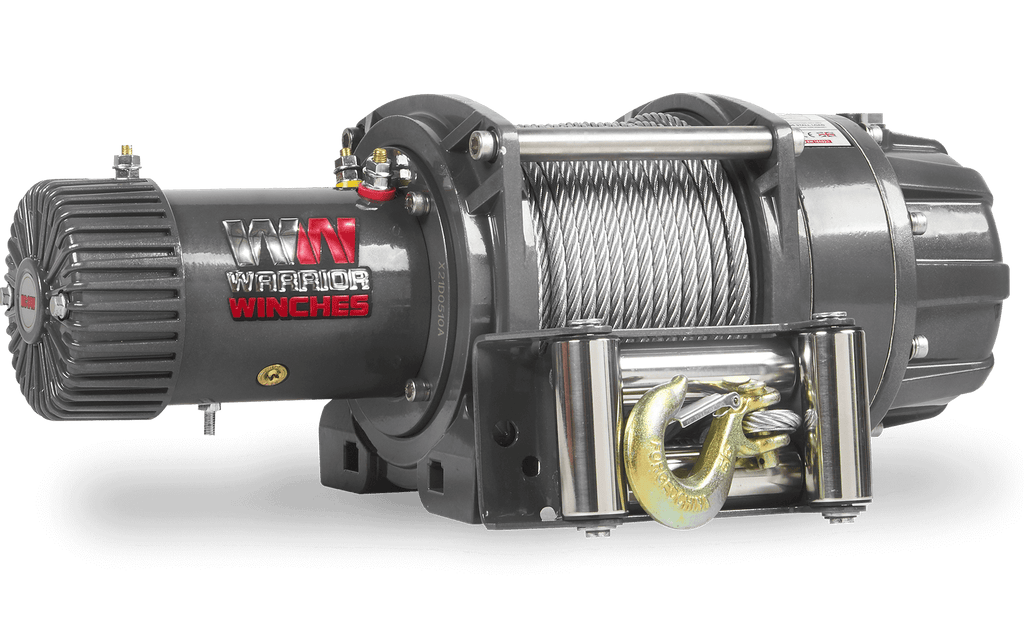

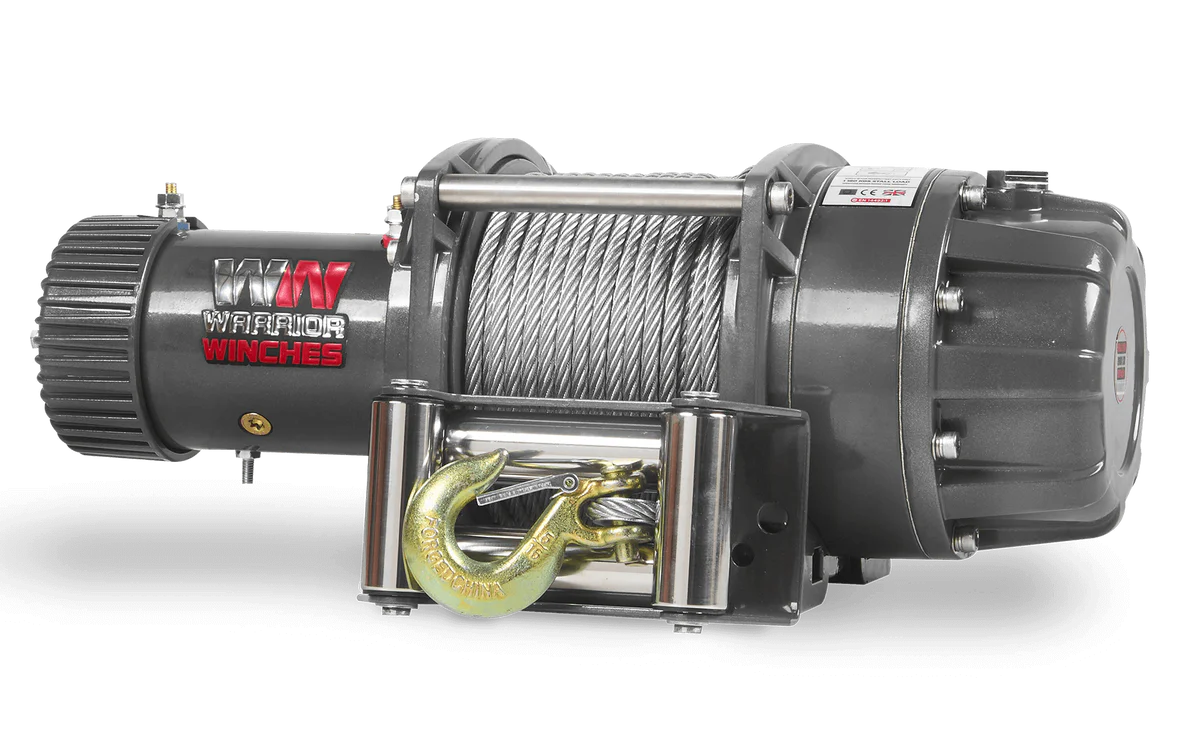

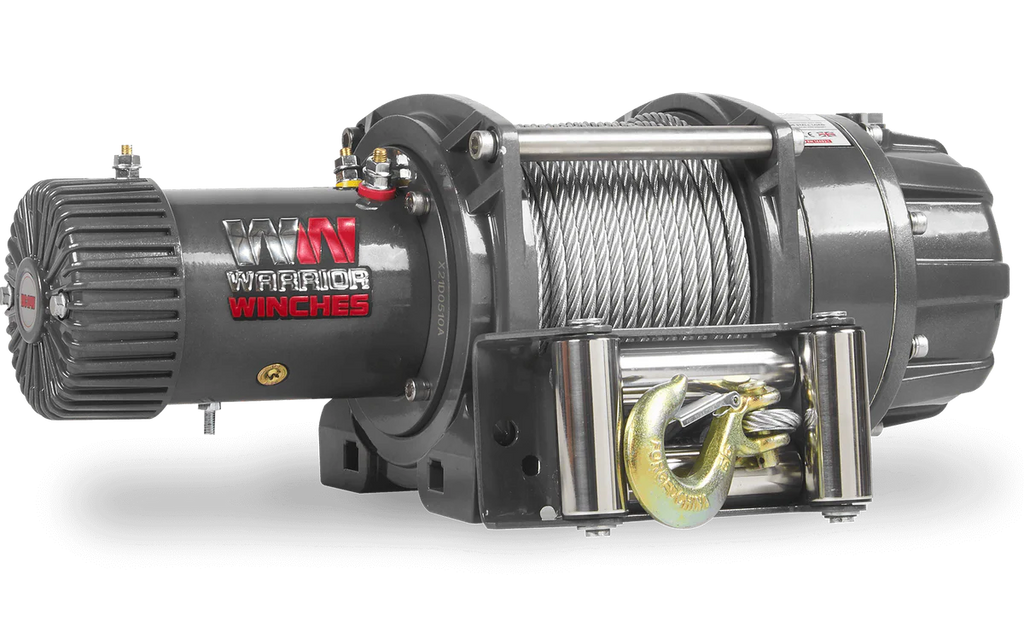

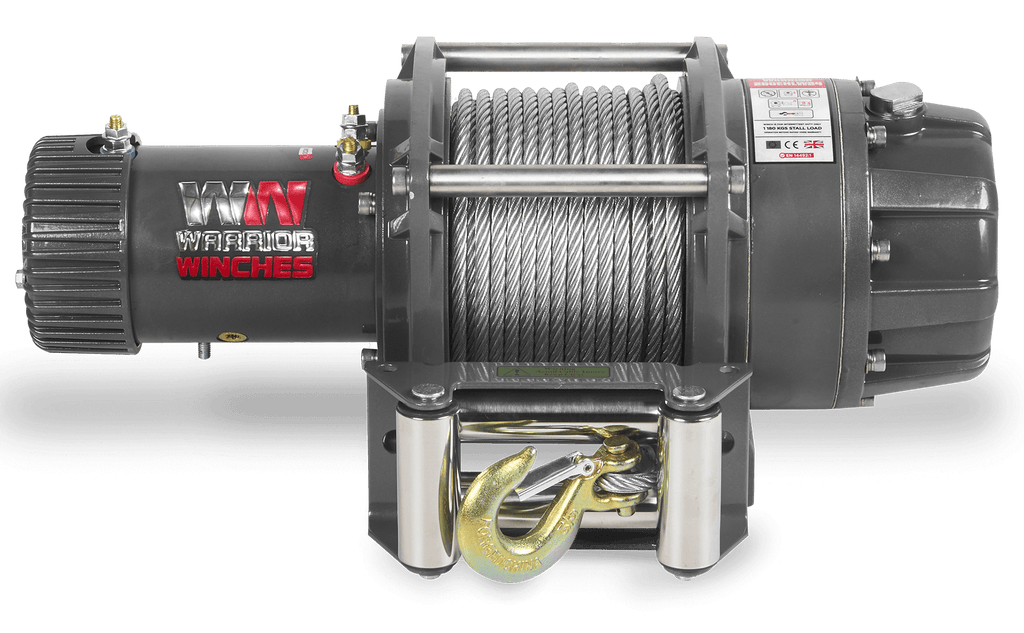

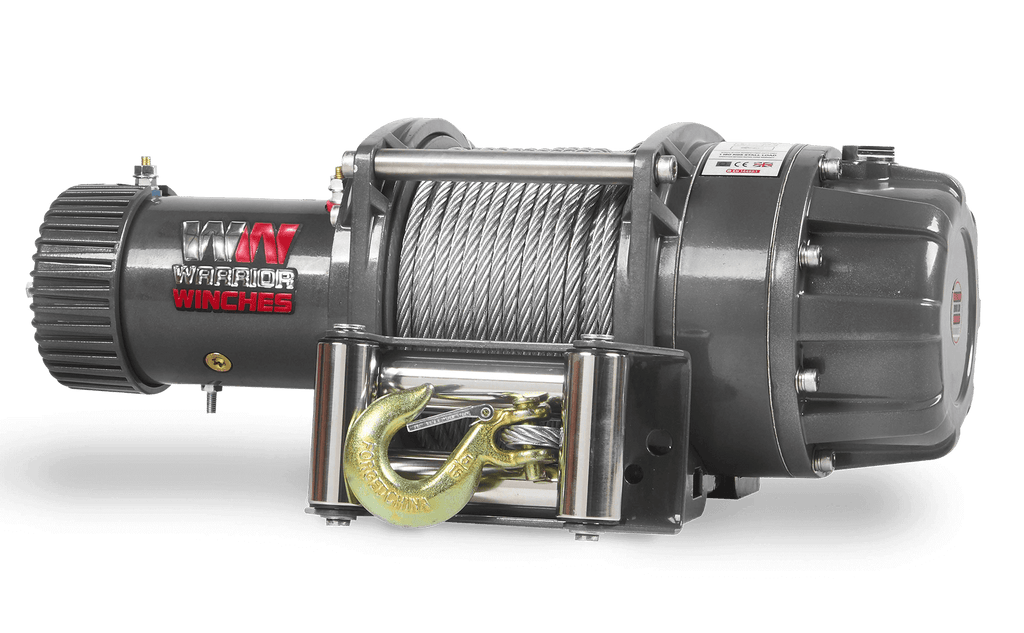

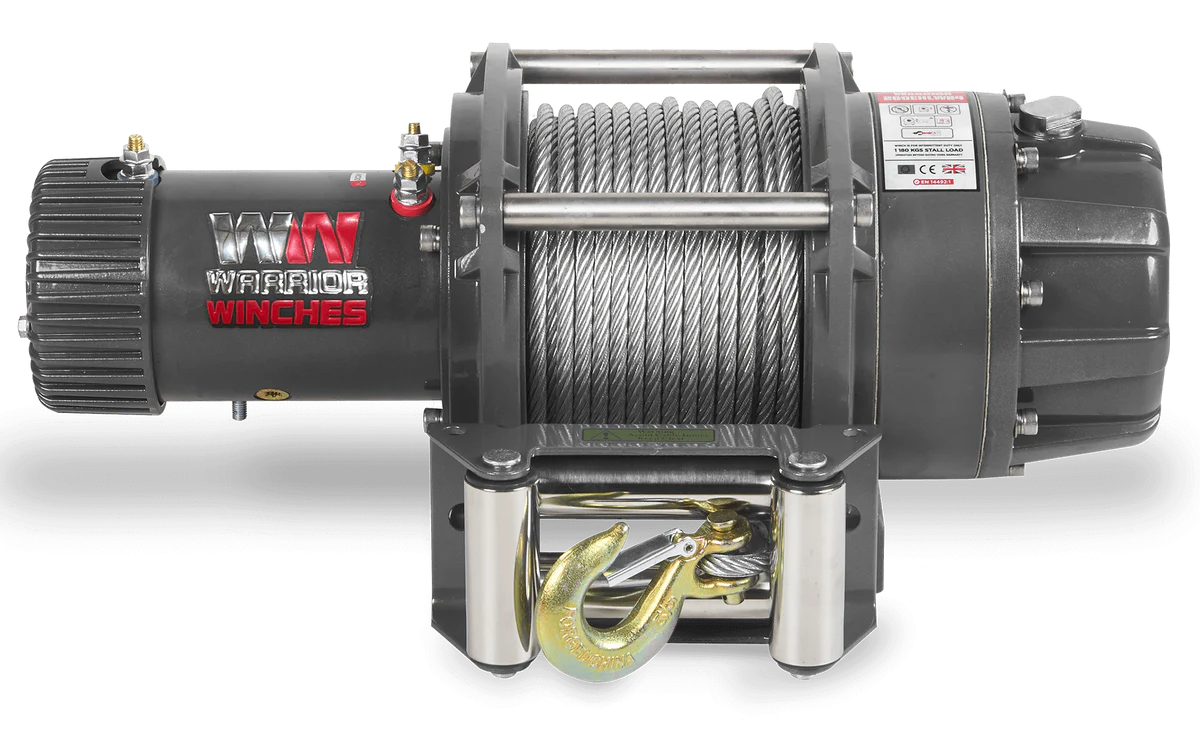

Warrior Winches 260EHLW24

2600lbs DC Winch Hoist - 24v

£1,097.99
Delivery in 1-2 working days

Features

  • Powerful Series Wound DC Motor With Robust Sealing
  • Proven 3-Stage Planetary Gear Train
  • Automatic Cone Brake That Holds Full Rated Load
  • Clutchless Operation
  • Overload Protection

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior 2600 DC Lifting Winch is designed to take the strain out of heavy lifting. Whether you're hoisting equipment on a construction site, in a workshop, or in a remote location, this winch gives you dependable power with the push of a button. The high-torque DC motor provides smooth and consistent performance, so you can lift confidently without hesitation or interruption.

Built for professionals who value reliability, the all-metal 3-stage gear train operates with permanent grease lubrication, meaning there's no need for constant maintenance. You’ll spend less time servicing and more time getting the job done. It’s built to withstand repeated use in tough environments, with a focus on performance that lasts.

Safety is at the core of the Warrior 2600’s design. An automatic mechanical brake holds the load securely - even during power loss - giving you full control in every lift. Coupled with integrated overload protection, this system guards against user error and motor damage, providing peace of mind for operators and site managers alike.

The winch is ready to perform in all weather conditions thanks to its fully sealed, IP68-rated control box. Whether you're working in rain, dust, or mud, the electronics remain fully protected, helping prevent costly delays or failures due to environmental exposure.

Its heavy-duty steel frame and robust cast steel drum not only ensure structural strength but also offer generous rope capacity. This means more flexibility on the job, allowing for higher lifts or longer reaches - ideal for more complex or variable lifting requirements.

Conforms to part of BS EN 14492-1.

Specifications:

Sku260EHLW24
EAN5060423986423
Rated Line Pull2600 lbs
Motor Type12V: Input: 5.5kW / 7.4hp; Output: 2.9kW / 3.9hp 24V: Input: 6.1kW / 8.2hp; Output: 3.1kW / 4.2hp
Rated Volt24
Max Load1180
Lift Height 28.0 m
Lift Speed 7.8 m/min
Drum Size (Diameter x Length)120 x 130 mm
Cable MaterialSteel
Cable Size (Diameter x Length)8mm x 28.0m
Waterproof Rating (IP)IP68

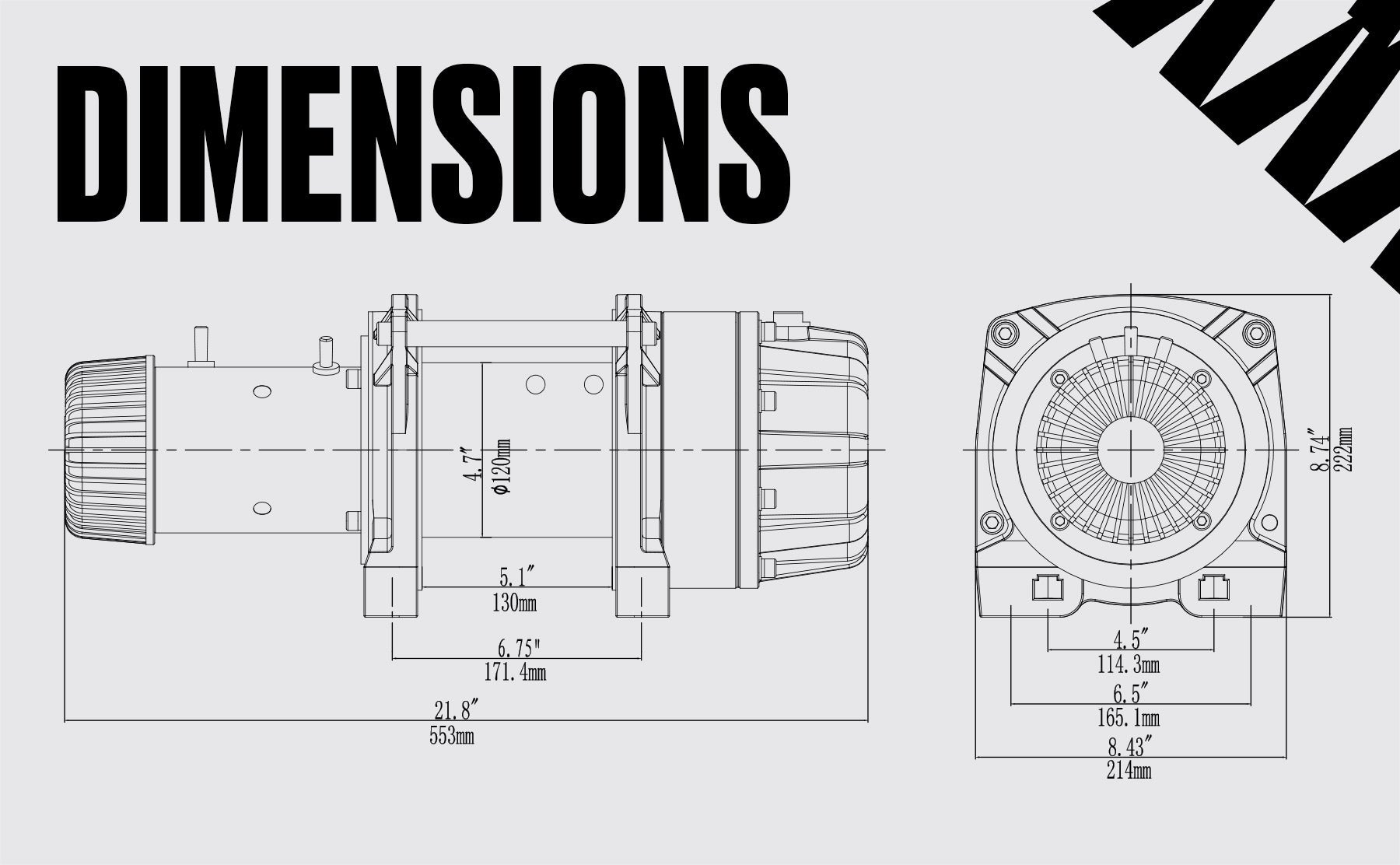

Dimensions553 x 214 x 222 mm
Weight20.0 kg
Warranty1 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 2600 (1180) 19.7 (6)
2 2253 (1022) 41 (12.5)
3 1988 (901) 65.6 (20)
4 1700 (770) 91.8 (28)
Line Pull Line Speed ft/min (m/min) Amp Draw
lbs (kgs) 12v 24v
12v
24v
0 24.6 (7.5) 27.5 (8.4) 60 35
1000 (453) 19.4 (5.9) 23.3 (7.1) 80 40
2000 (907) 14.8 (4.5) 18.7 (5.7) 110 55
2600 (1180) 12.5 (3.8) 15.7 (4.8) 125 65

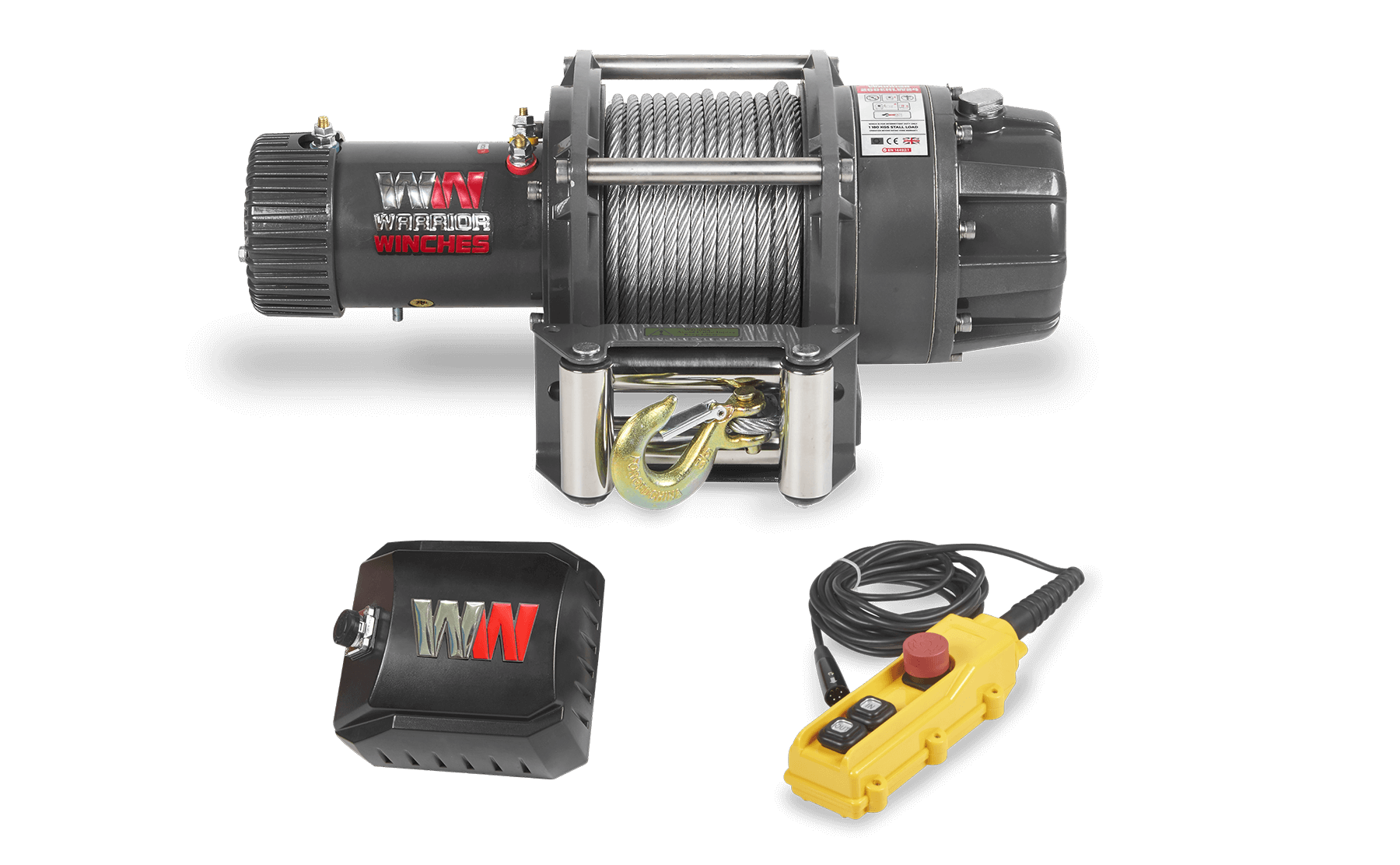

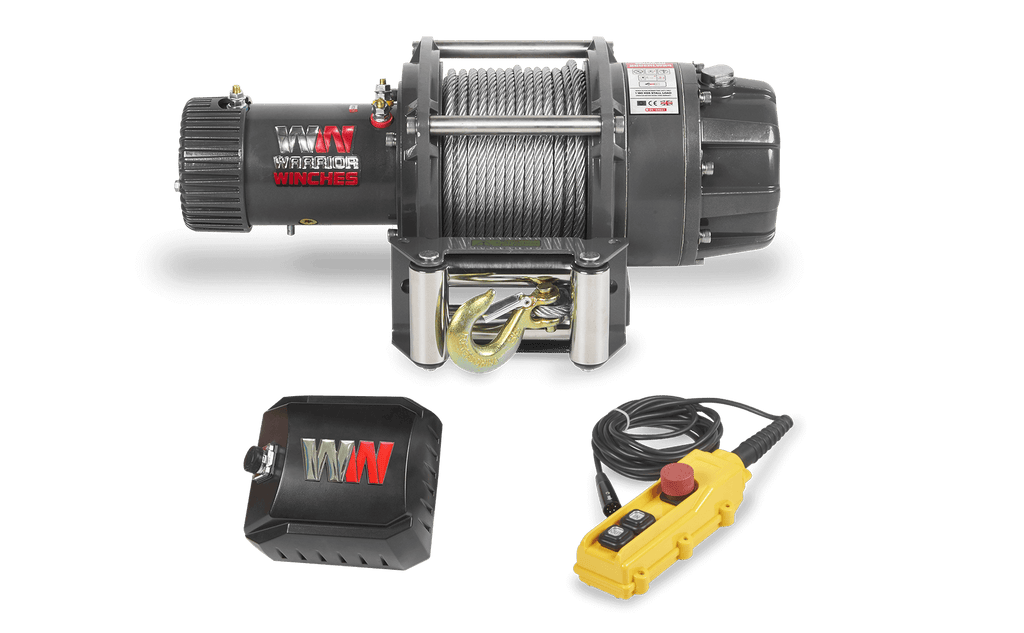

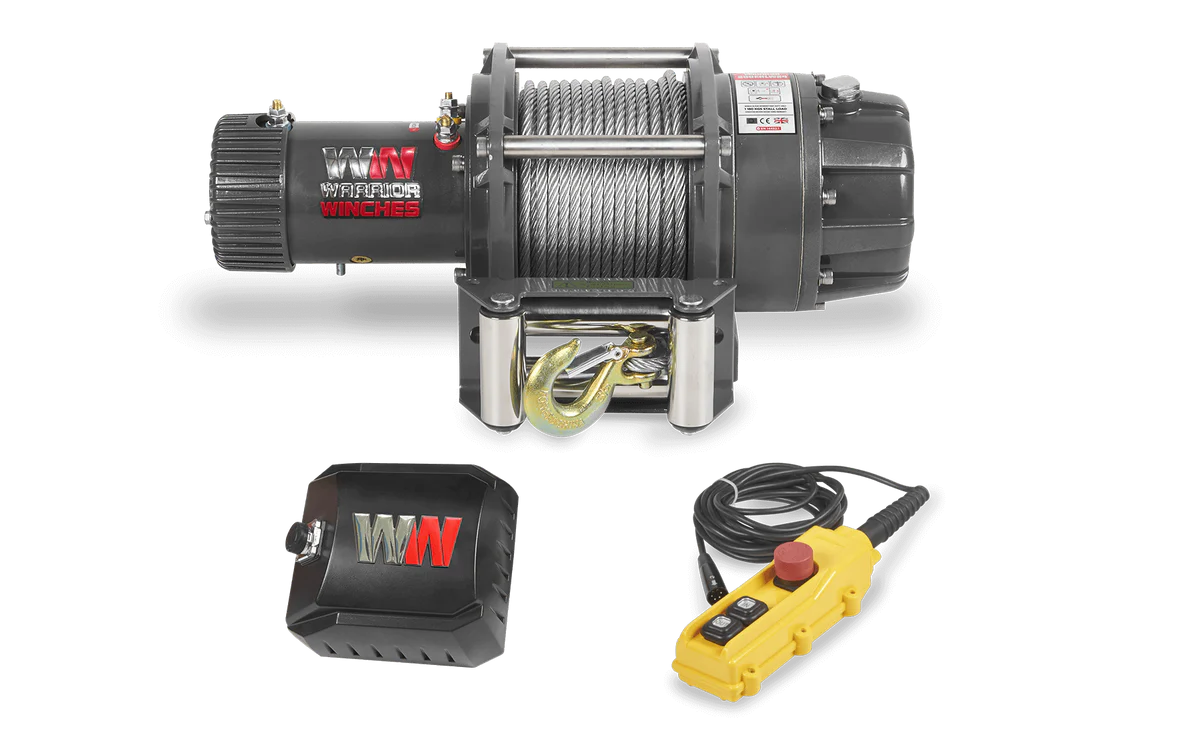

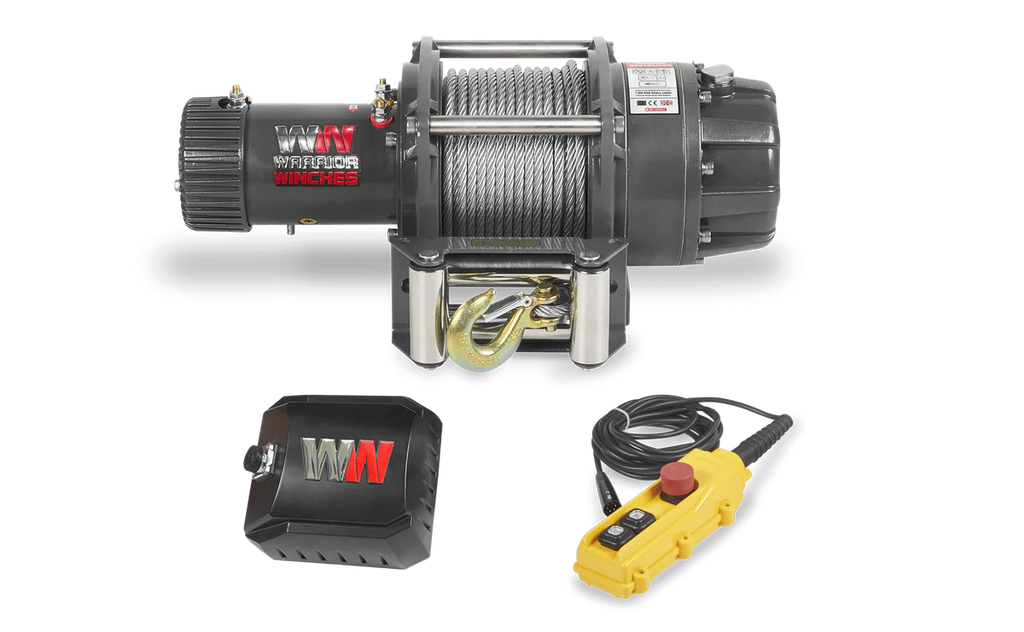

What's in the box:

  • DC Winch Hoist
  • Steel Winch Rope
  • Heavy Duty Hook
  • Hand Remote Handset with Emergency Stop
  • Watertight Contactor
  • Mounting Hardware (nuts/bolts)

Downloads:

User Manual Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This products has a 1 Year Warranty

All Warrior purchases must be registered with Warrior Winches.

Register your winch here

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product BPE Holdings determines to be defective will be repaired or replaced at BPE Holdings sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes.

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.
