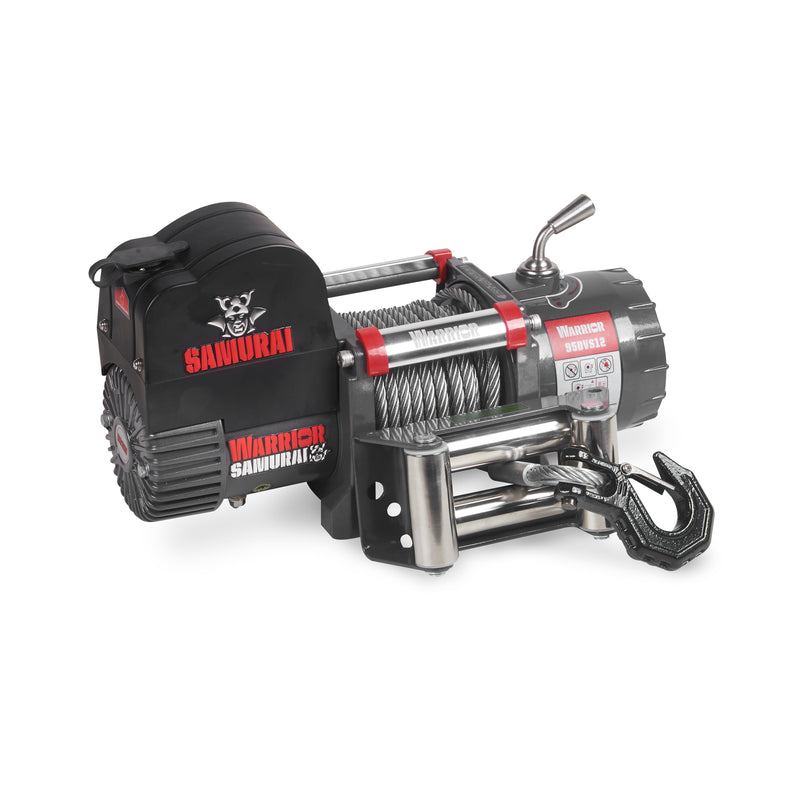

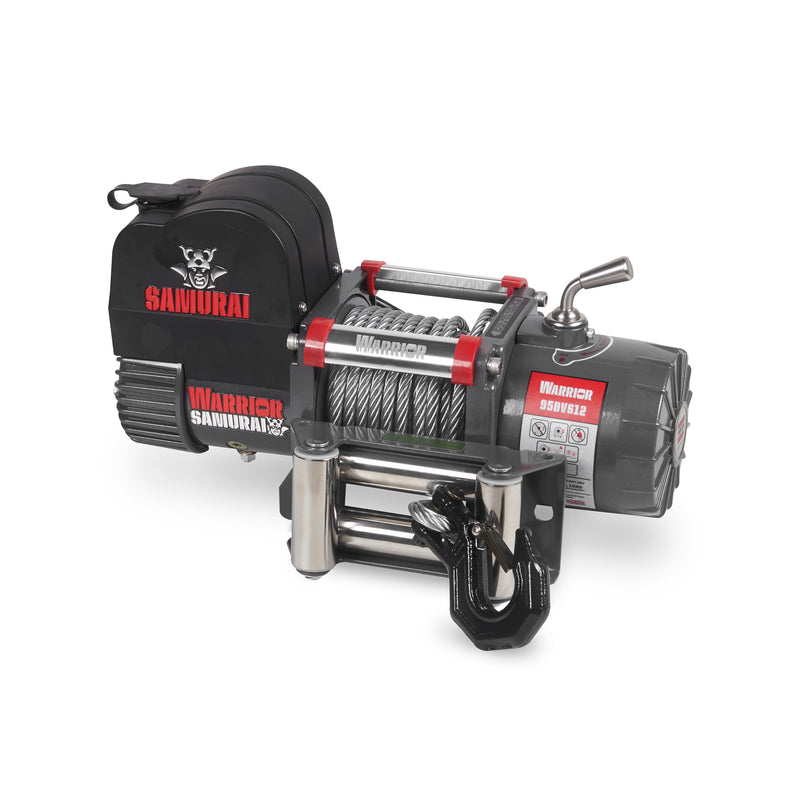

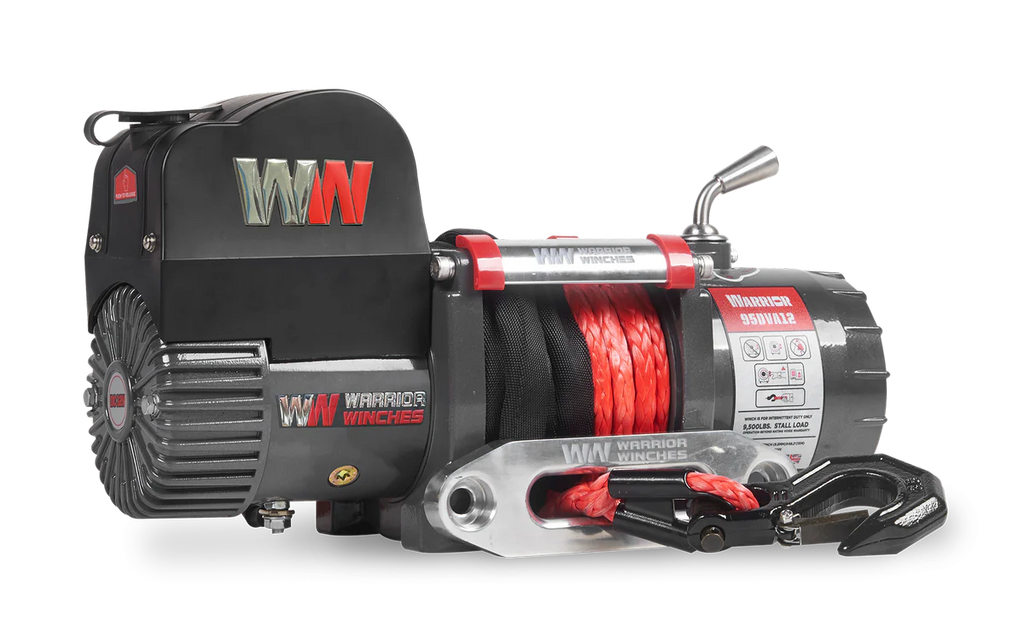

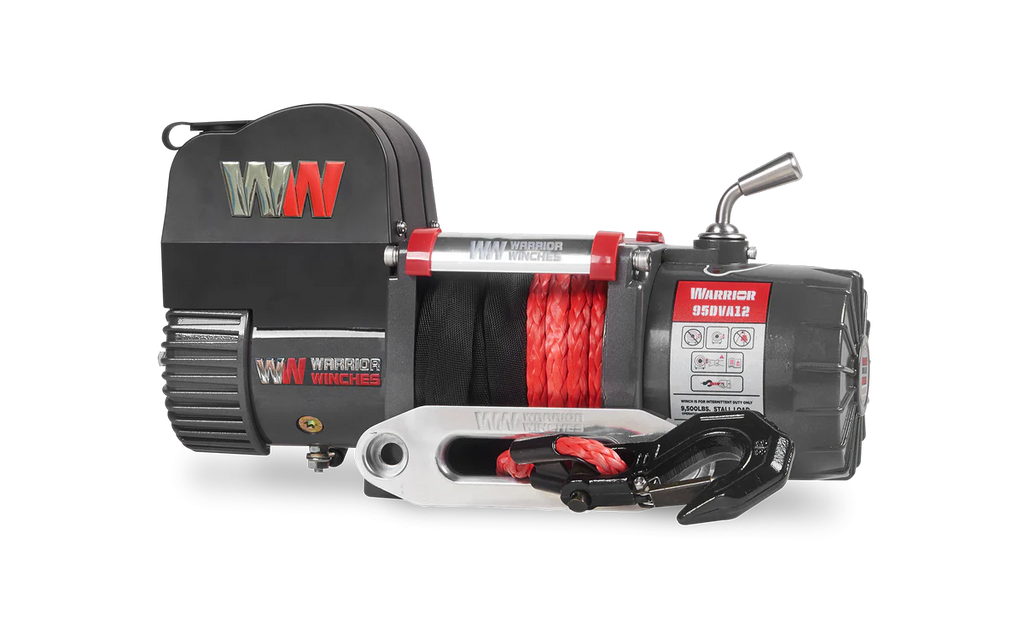

Warrior Samurai V2 Next Gen 9500lb Short Drum Winch

 0 Reviews |    Ask a Question
SKU: 95DVS12

12v Steel Rope (Includes Wireless Remote)
Voltage: 12v
Rope: Steel Rope
Sale price£497.99
In stock (Delivery in 1-2 working days)

Recommended Accessories
Winch Mounting Plate for C9500 SD

Winch Mounting Plate for C9500 SD

£40.79 incl vat


  • REVOLUTIONARY DESIGN – Upgraded model with an external brake.
  • COMPACT – Total width of only 456mm.
  • MILITARY POWER – The preferred winch of the British Military, used on specialist vehicles!
  • LINE CAPACITY – 9500LB (4500KG), ideal for recovery and 4x4 applications.

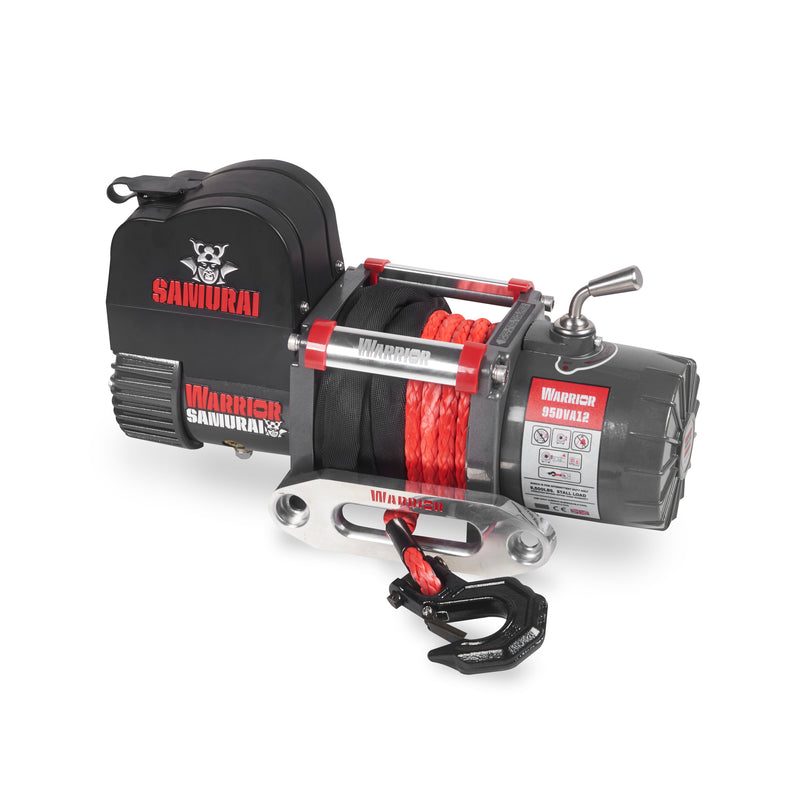

  • STEEL OR SYNTHETIC ROPE – Available with stainless Steel 4 Way Fairleads or Aluminium Fairlead.
  • UPGRADED REMOTE – Wireless 2.4G remote (available with the 12v model only).

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

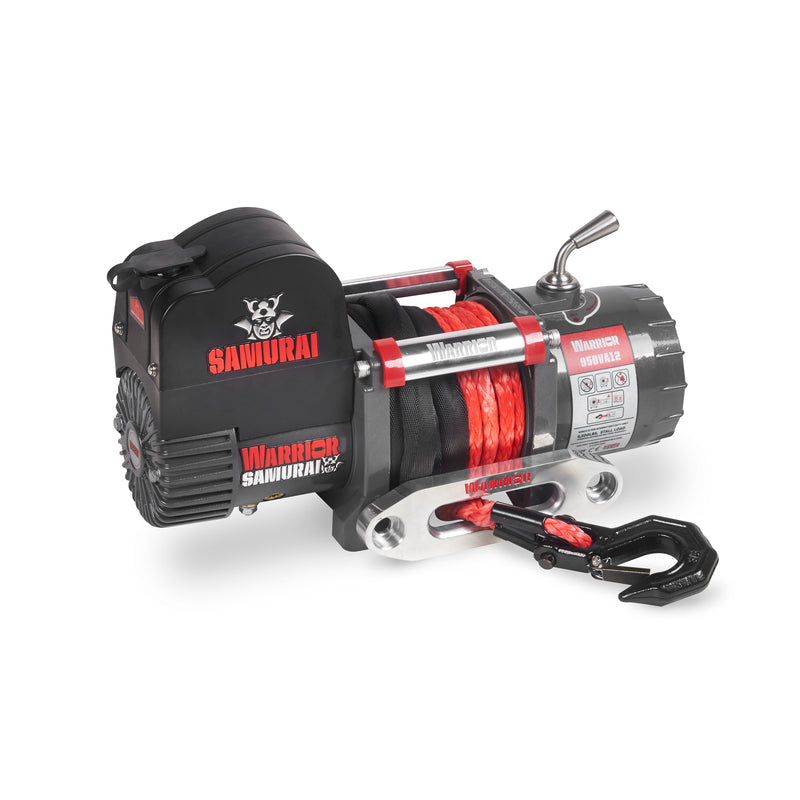

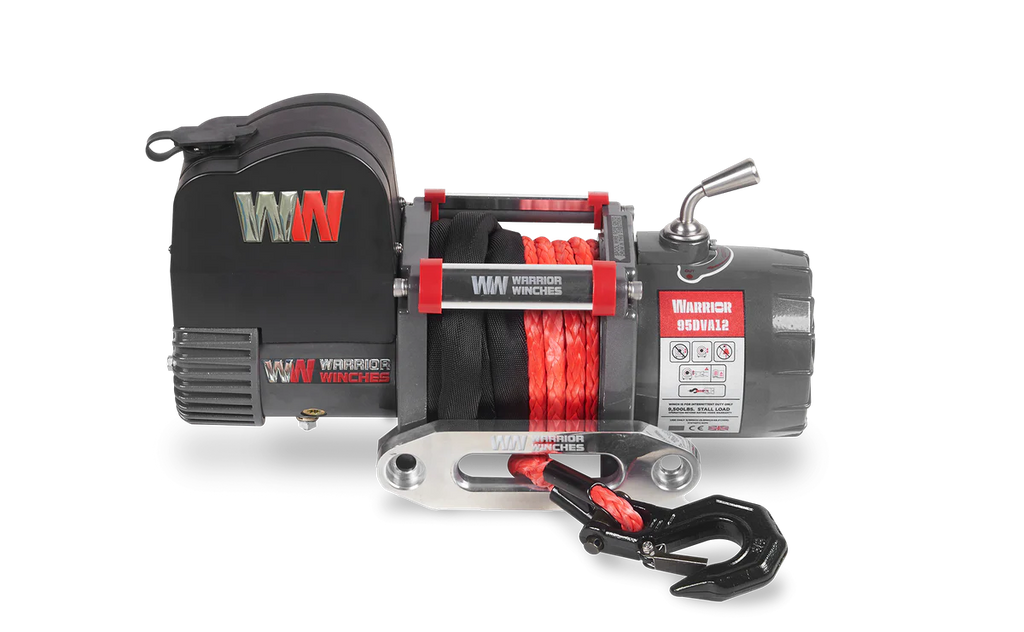

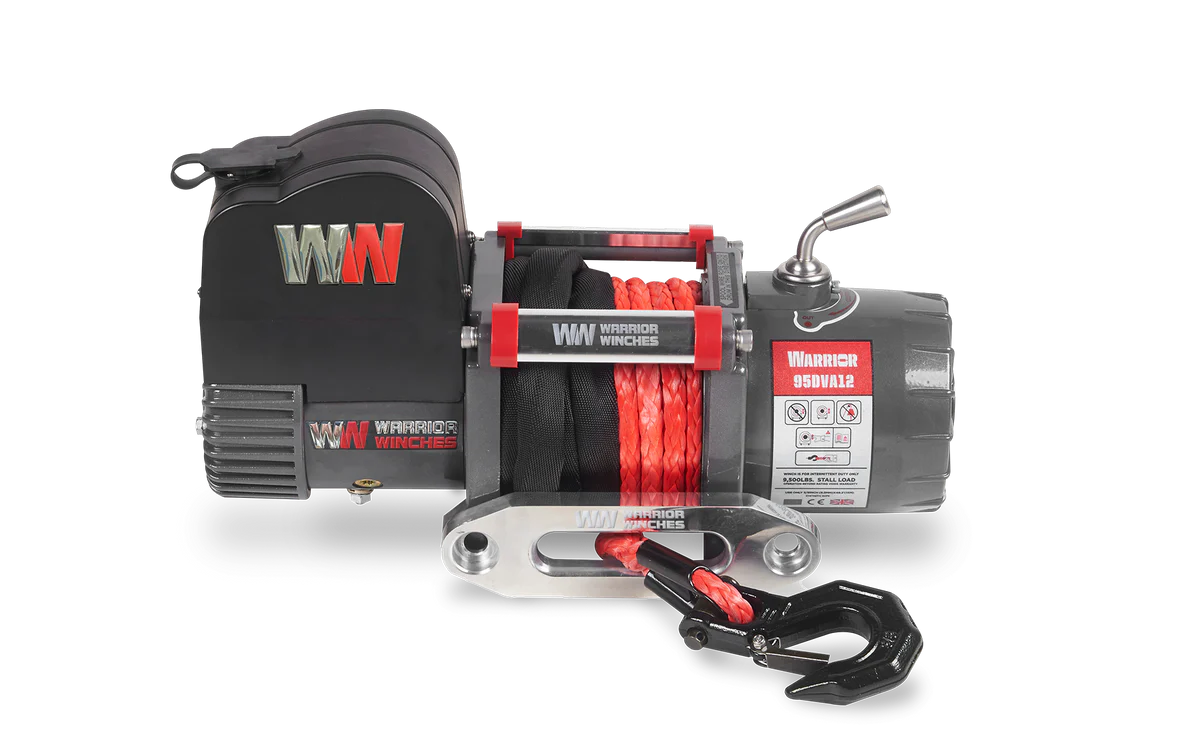

Warrior Samurai V2 9500lb Short Drum Next Generation Winch

The Warrior Samurai just got even better. Taking their premium offering and making it more compact for space saving and easier transportation, the Warrior Samurai V2 next-generation winch is now available with a short drum.

The short drum winch is the preferred choice of the British Military on their specialist vehicles currently serving in action – so you know you can rely on its power. Keeping the same high speculation in a compact package, this winch has a line capacity of 9500LB or 4500KG to get the job done with ease.

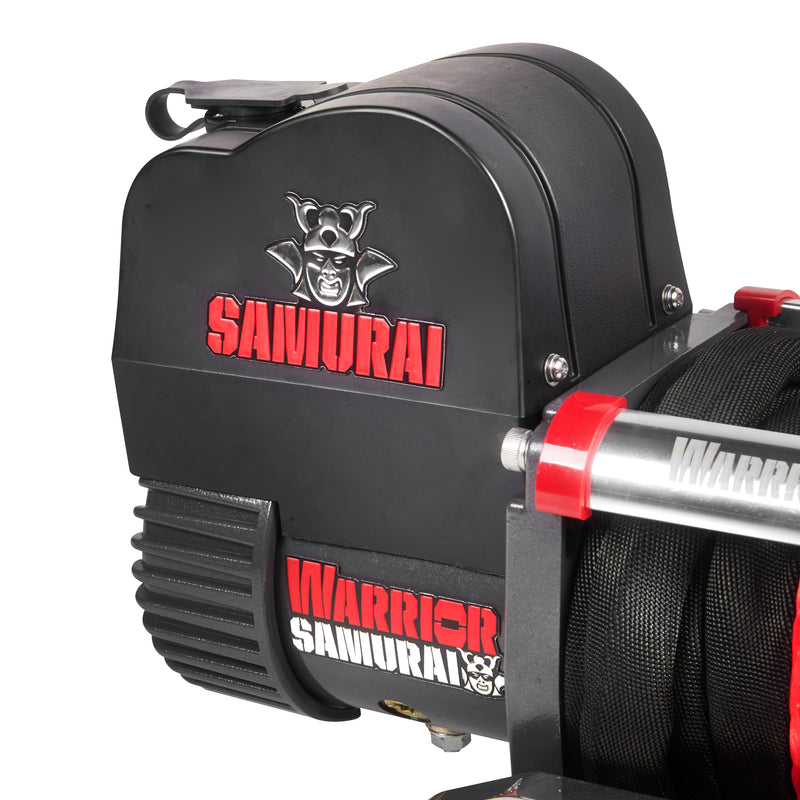

As well as its strength, this upgraded Warrior winch features a high-quality wound motor with brass contacts going direct to the motor for efficient running. Also boasting a heavy-duty waterproof solenoid, double sealed drum, and full steel planetary gearing that runs quietly to keep the peace. Whether you opt for the Stainless Steel 4 Way Fairleads or Aluminium Fairlead (Synthetic Rope), the Warrior Samurai V2 winch provides unbeatable power.

But the stand-out feature is the addition of a revolutionary new external braking system. Unlike standard winch brakes, the V2 Samurai brake is at the end of the gearbox rather than inside the drum. Making it even faster with a lower amp draw and higher capacity for load holding and lowering – the benefits are numerous. Also reducing heat build-up around the drum, making it extra safe to use with synthetic rope.

With a line pull of 2.2 m/min (320 Amps) at full load, you can get the job done quickly and easily. Backed up with a limited lifetime warranty and 3 years of electrical cover; trust in Warrior power.

Standard Features:

Line Capacity: 9,500lb (4,500kg)

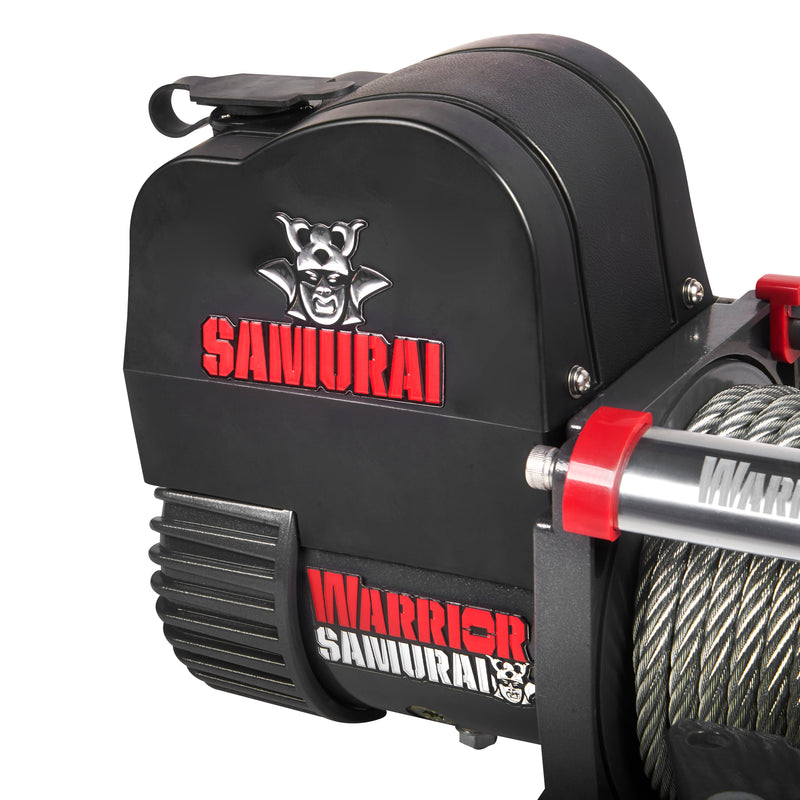

Motor: Series Wound Motor - Powers In and Out

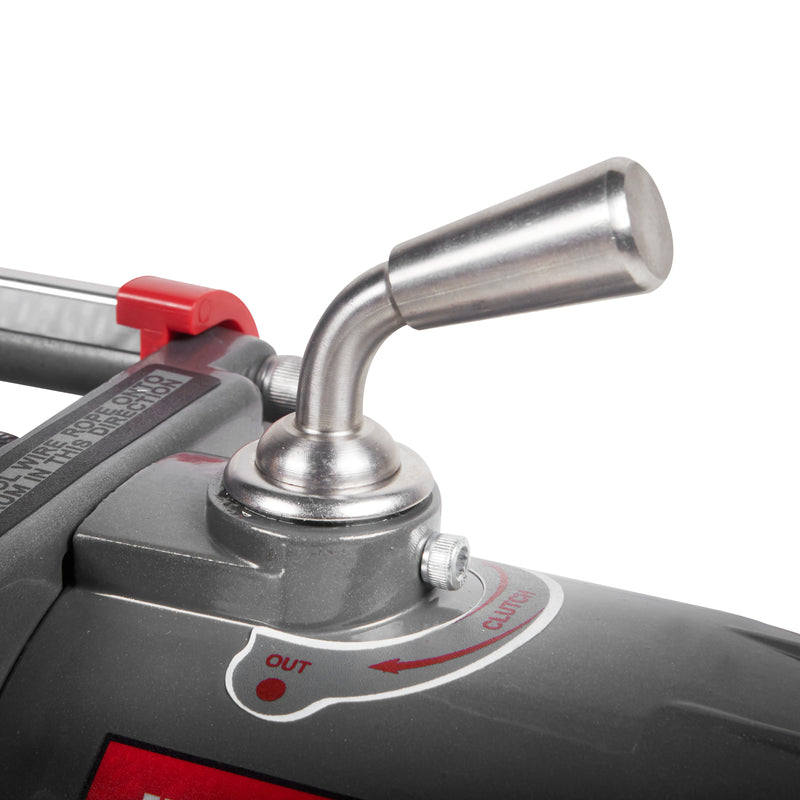

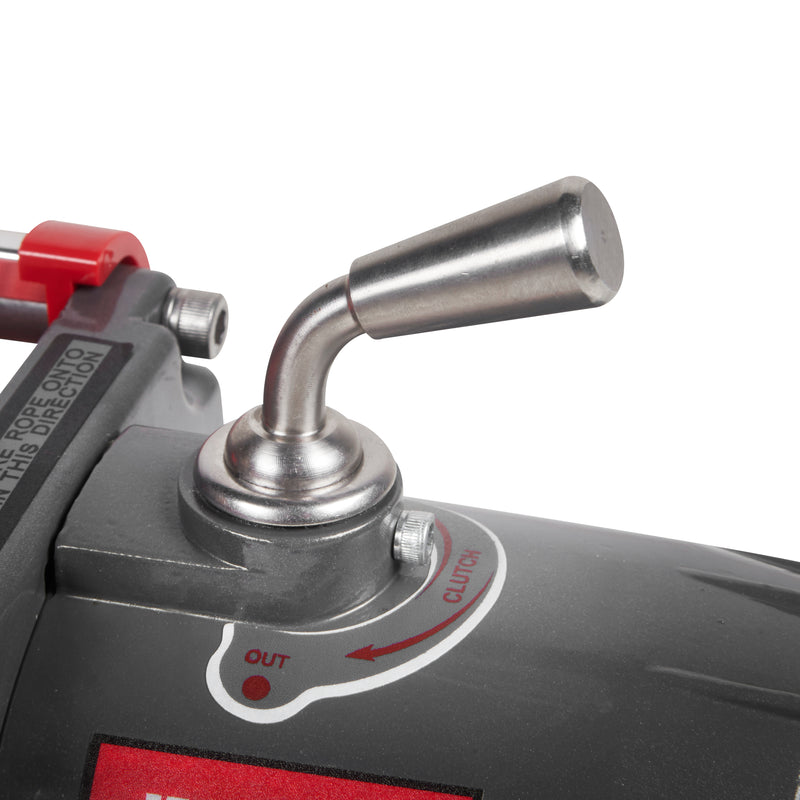

Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: Limited Lifetime Warranty with 3 Year Electrical Cover


Wired Hand Control: 3.8m Wired Hand Control
Wireless Control - 12V MODEL ONLY: Pre-Installed Heavy Duty Wireless Control with Lanyard (See note below)
Mounting Plate: Available as optional extra
Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Cables (May need extending dependent on application)
♦ Battery Isolation Switch (Failure to fit will invalidate warranty)
♦ Instruction Manual

Other Information:

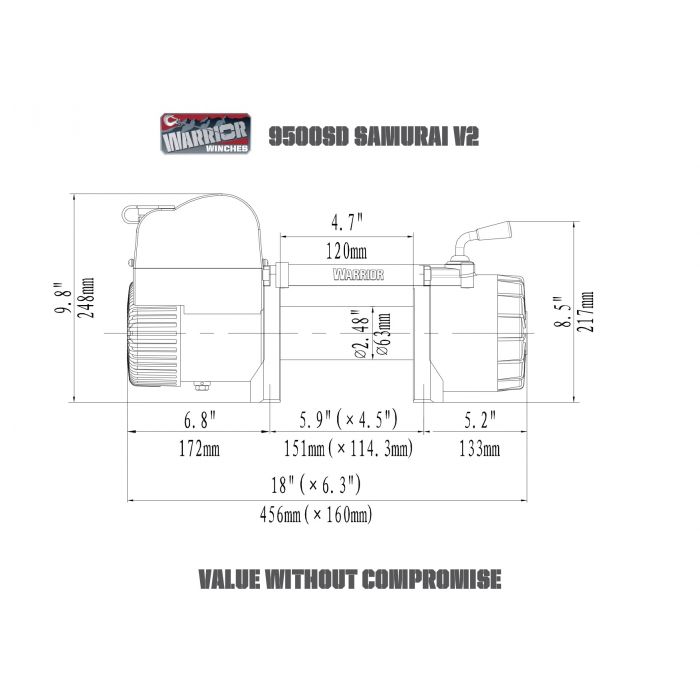

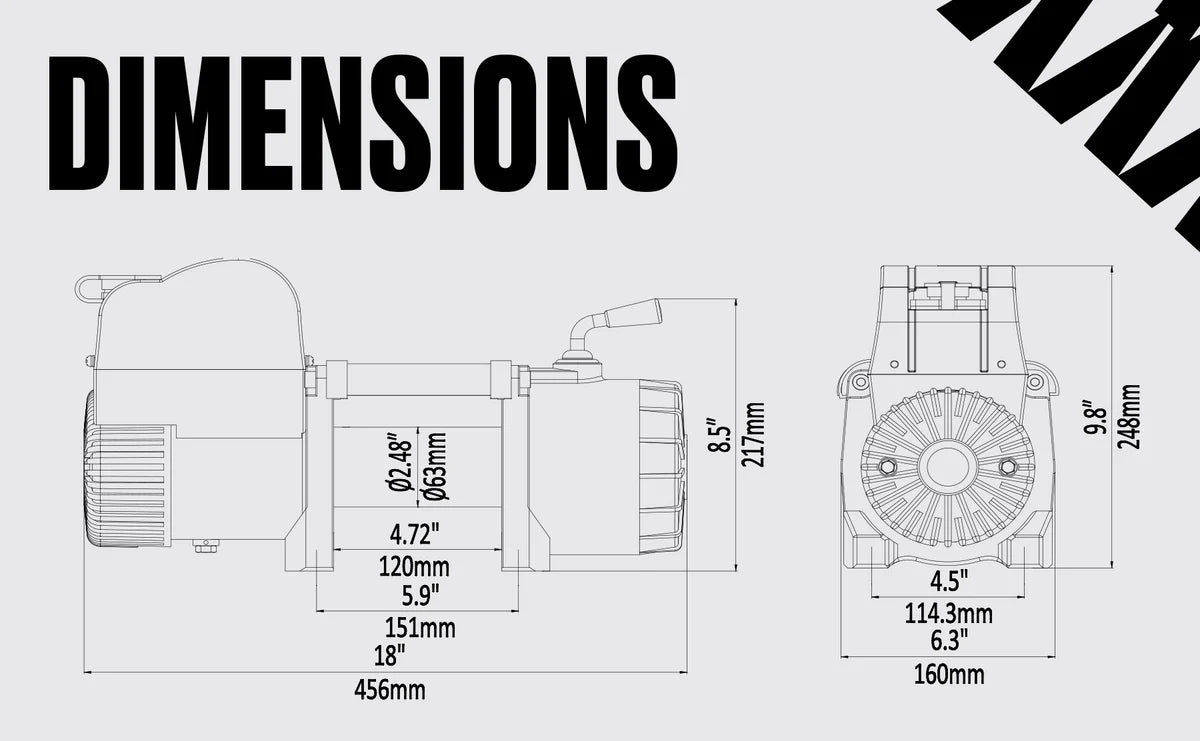

Dimensions: 456mm L x 160mm D x 248mm H

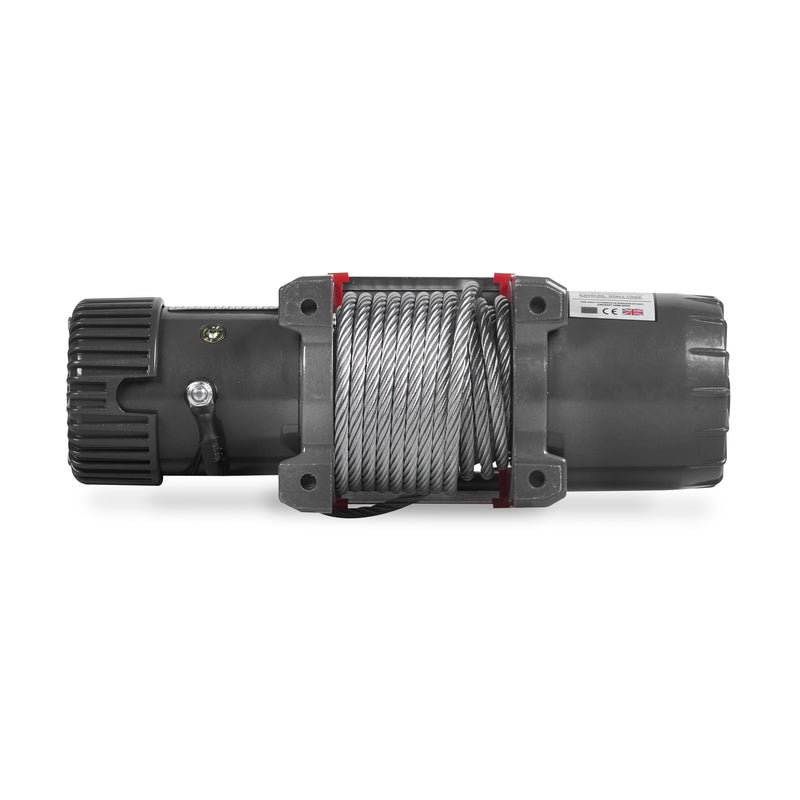

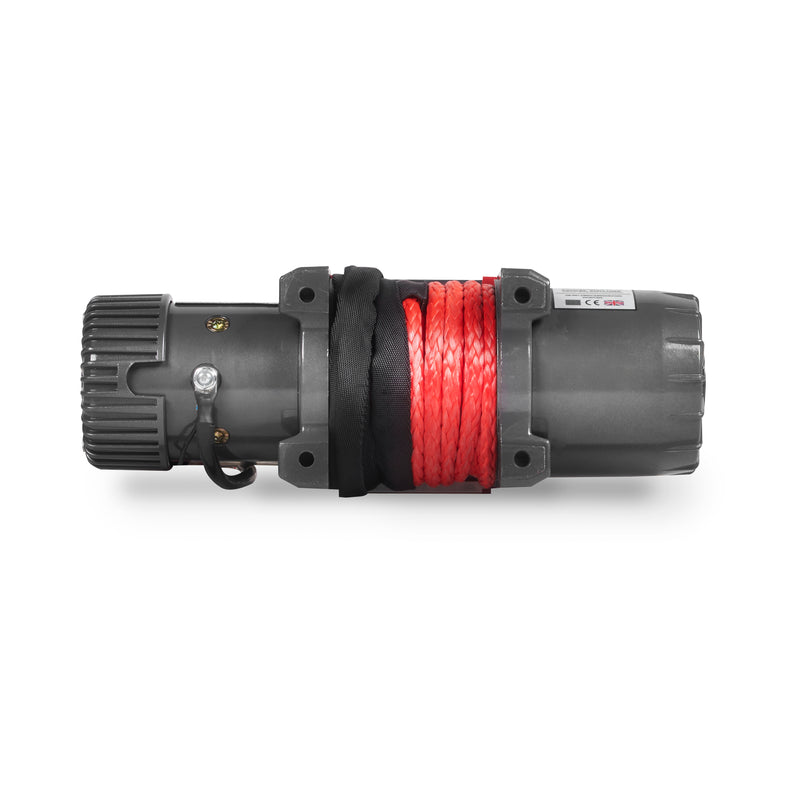

Mounting Bolt Pattern: 254mm x 114.3mm
Line Pull - No Load: 10.2 m/min (50 Amps)
Line Pull - Full Load:  2.2 m/min (320 Amps)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull9500 lbs
Motor Type12V:Input: 6.1hp/4.6Kw Output: 2.8hp/2.1kW
24V:Input: 7.6hp/5.7Kw Output: 3.8hp/2.8kW
Braking ActionExternal Brake
Drum Size (Dia x L)63 x 120 mm
Cable MaterialSteel or Synthetic
Cable – Dia x LSteel: 9.2mm x 14m
Synth: 9.5mm x 15m
Mounting Pattern151 x 114.3 mm mm
Dimensions456 x 160 x 248 mm
WeightSteel: 32kg
Synthetic: 27kg
Warranty3 Years


Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 9500 (4309) 9.8 (3.0)
2 7600 (3447) 24.6 (7.5)
3 6200 (2812) 42.7 (13.0
4 5400 (2400) 45.9 (14.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
Amp Draw
0 33.4 (10.2) 44.3 (13.5) 50 45
2000 (907) 17.4 (5.3) 20.3 (6.2) 120 90
3000 (1360) 15.4 (4.7) 17.3 (5.3) 150 105
6000 (2721) 10.1 (3.1) 12.4 (3.8) 260 190
8000 (3628) 8.2 (2.5) 9.5 (2.9) 300 230
9500 (4309) 7.2 (2.2) 8.5 (2.6) 320 250

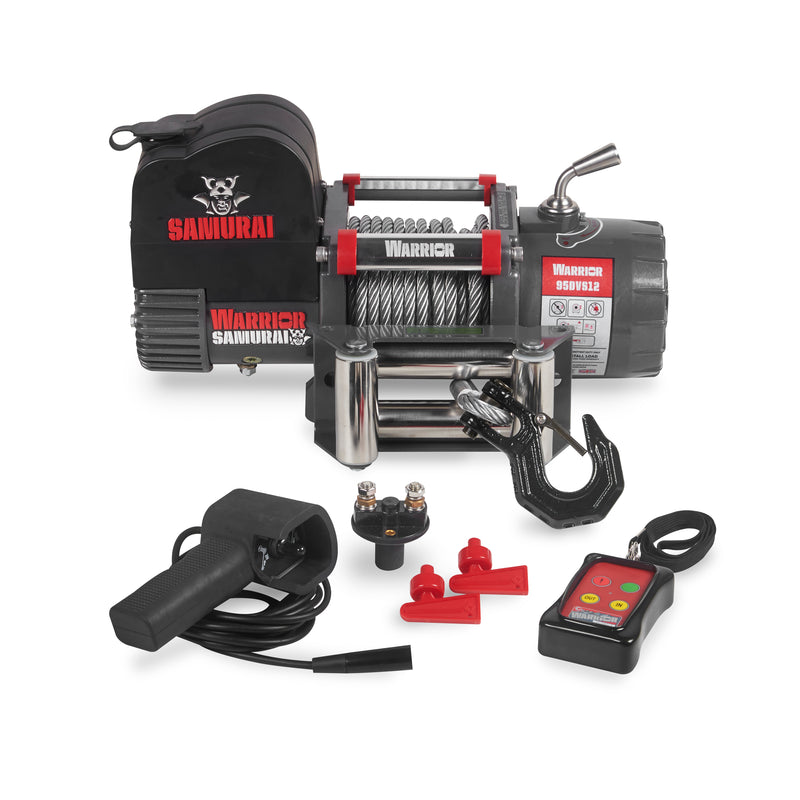

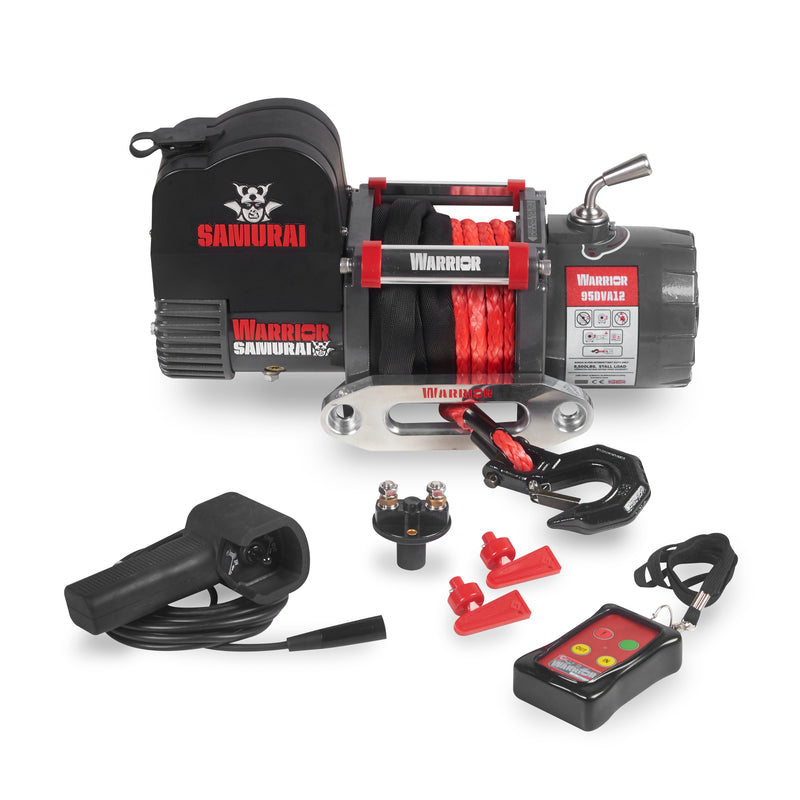

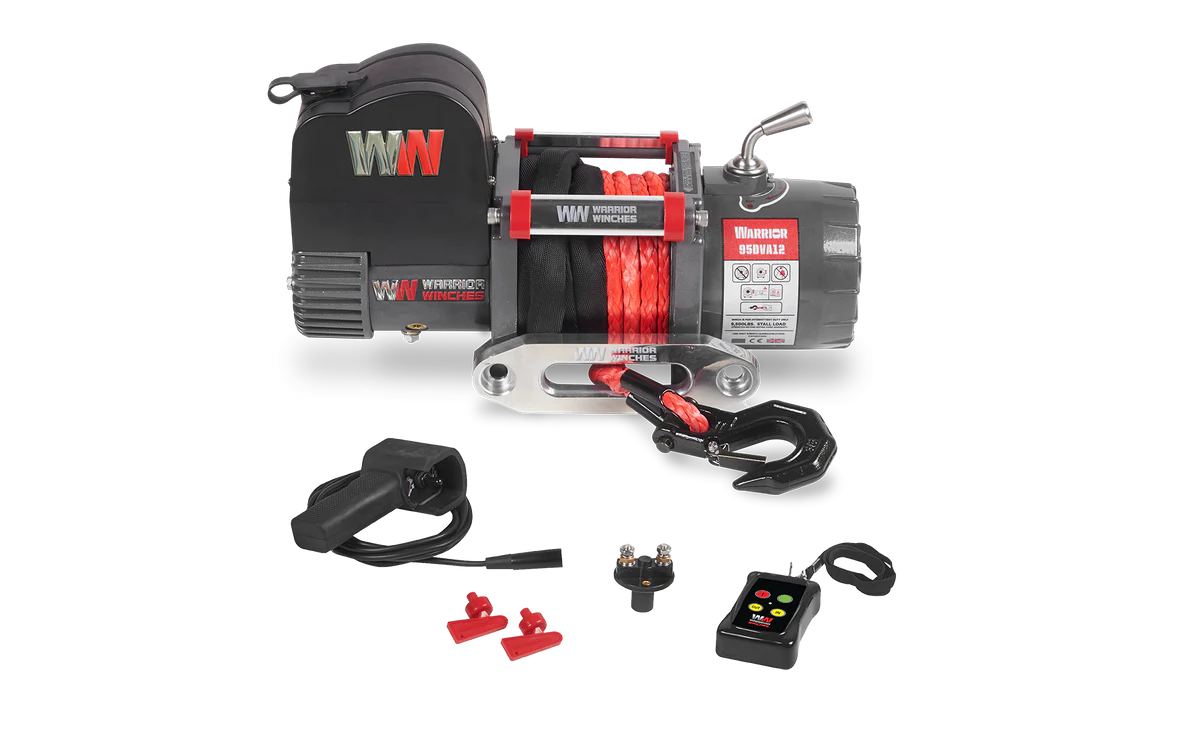

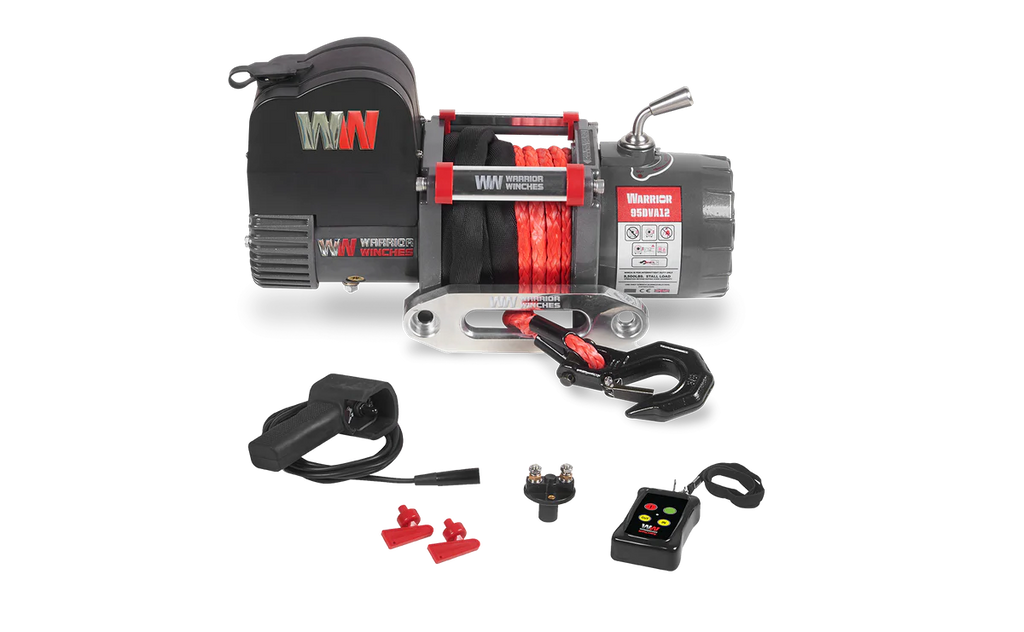

What's in the box:

  • 3.8m Remote Handset
  • Built in Wireless Remote (12v Model Only)

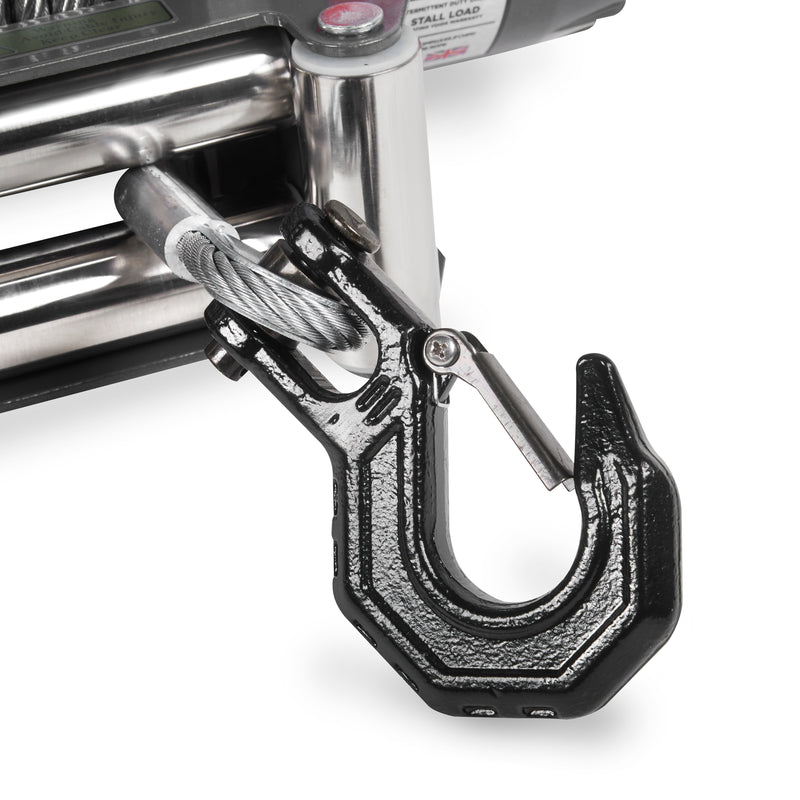

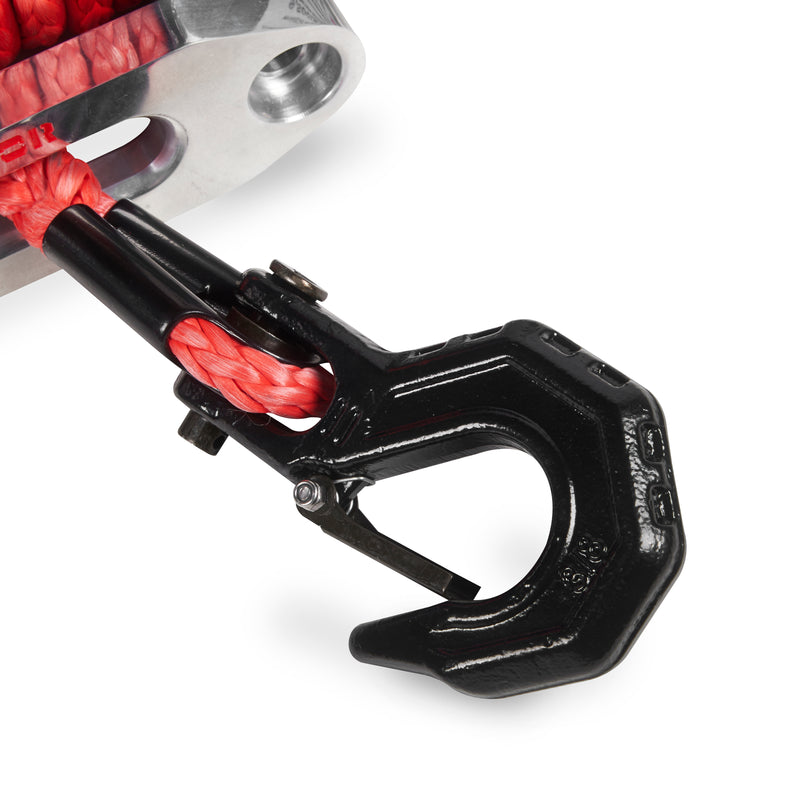

  • Removable Heavy Duty Hook

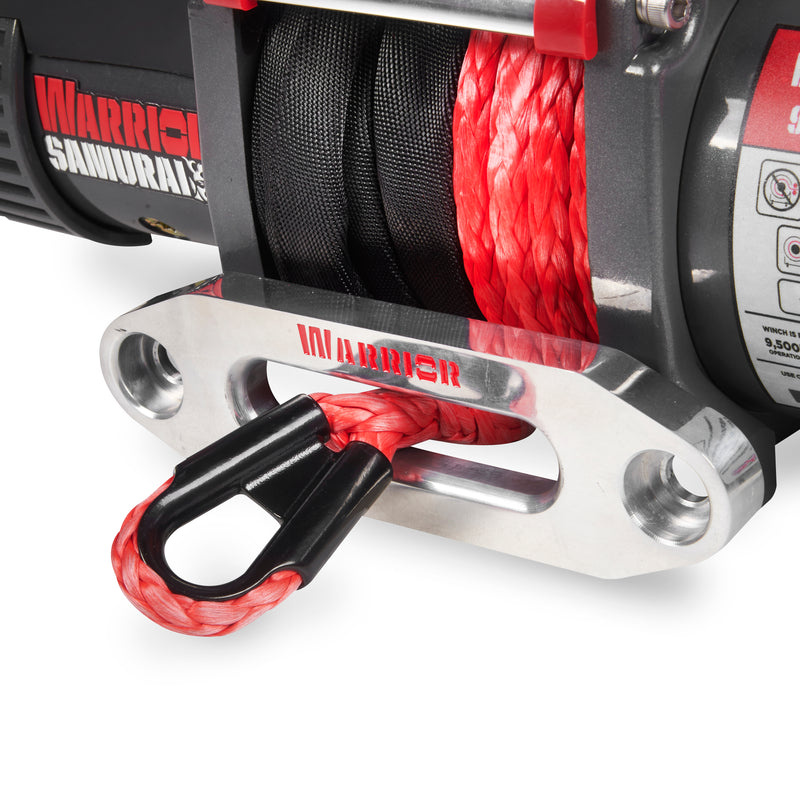

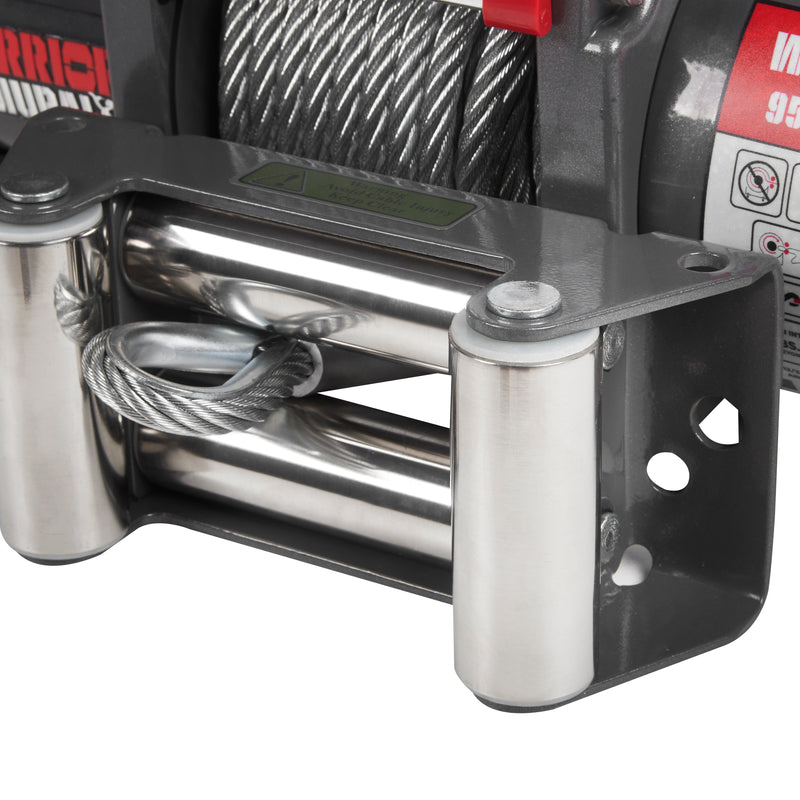

  • Heavy Duty Stainless Steel Roller (Steel) or Aluminium Fairlead (Synthetic)

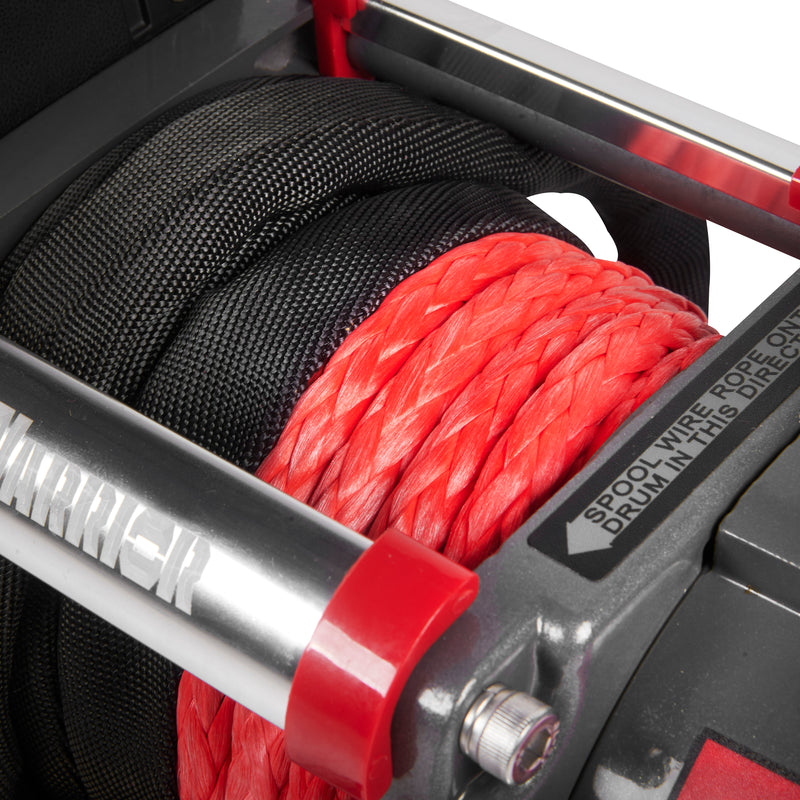

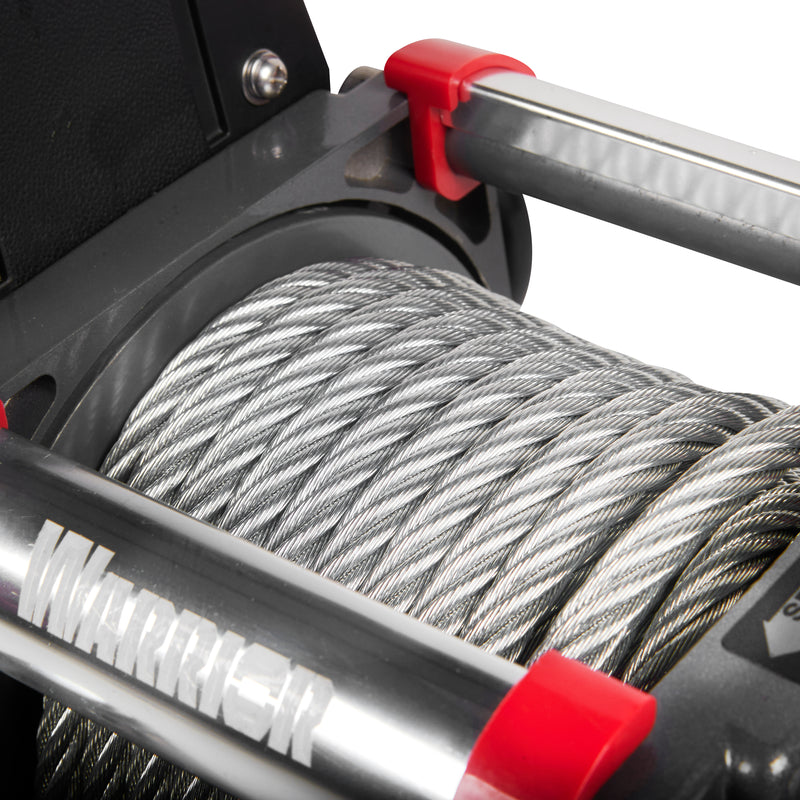

  • Steel or Synthetic Rope
  • Isolation Switch
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
User Manual Download
Brochure Download
