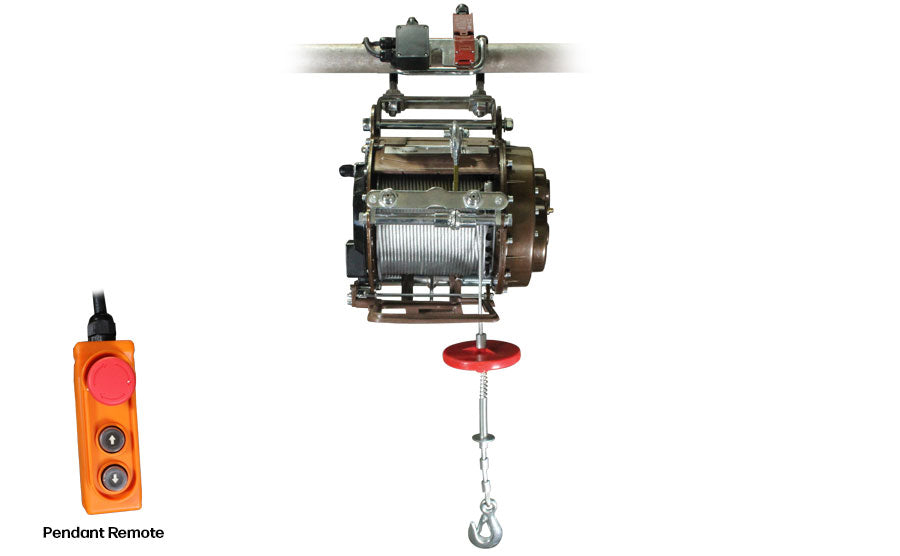

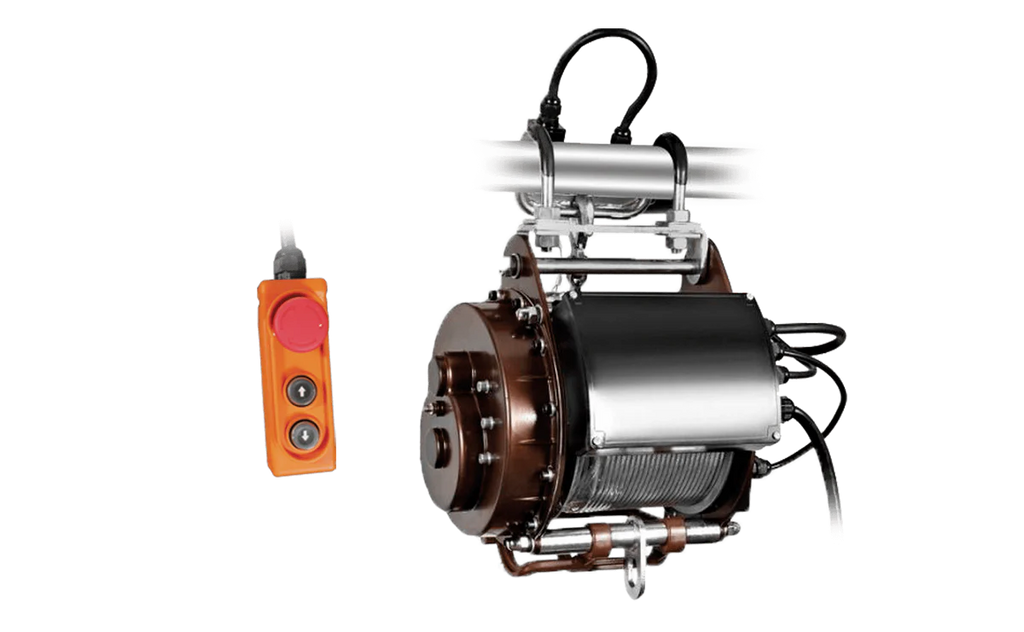

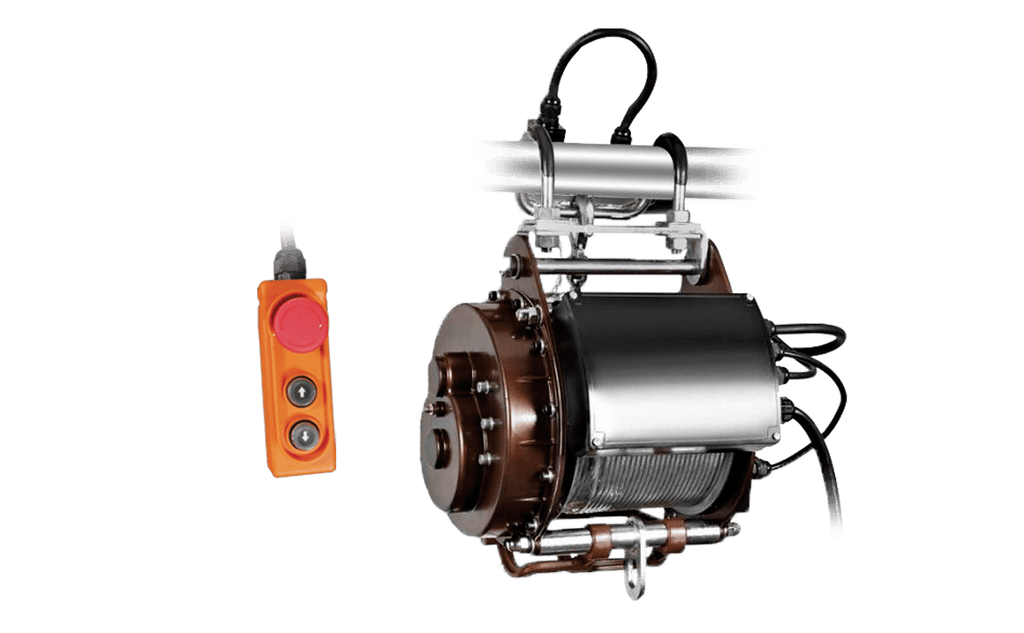

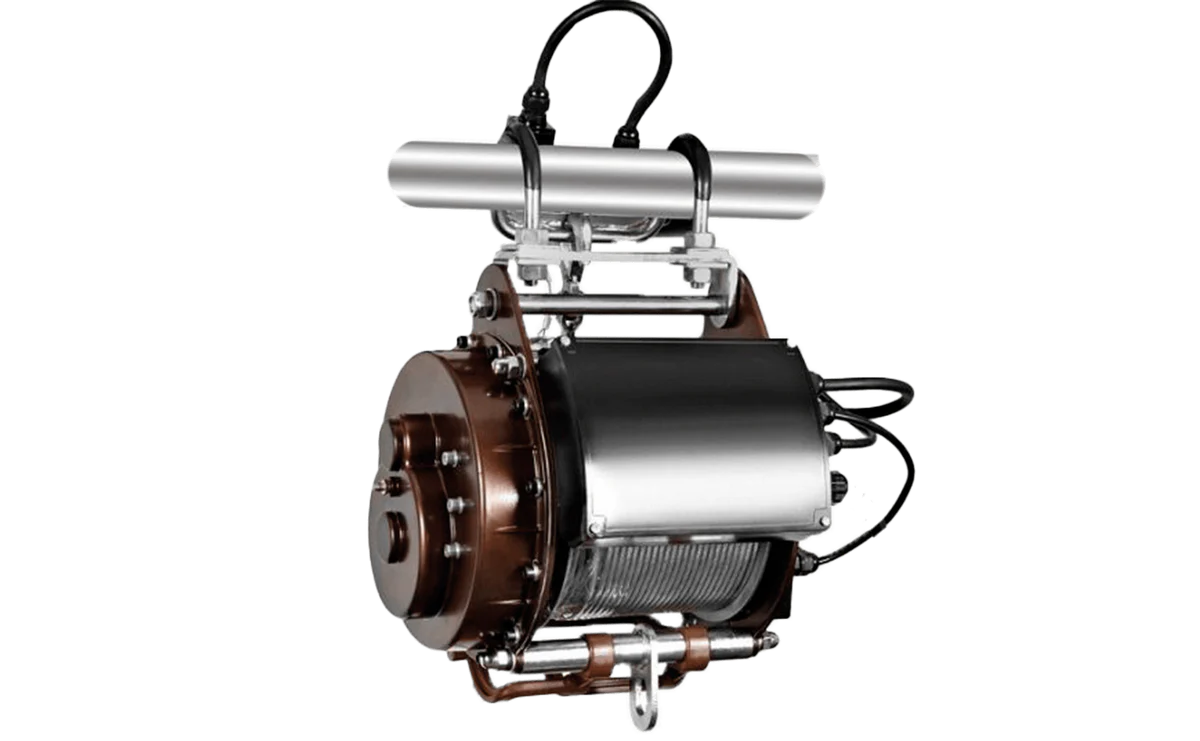

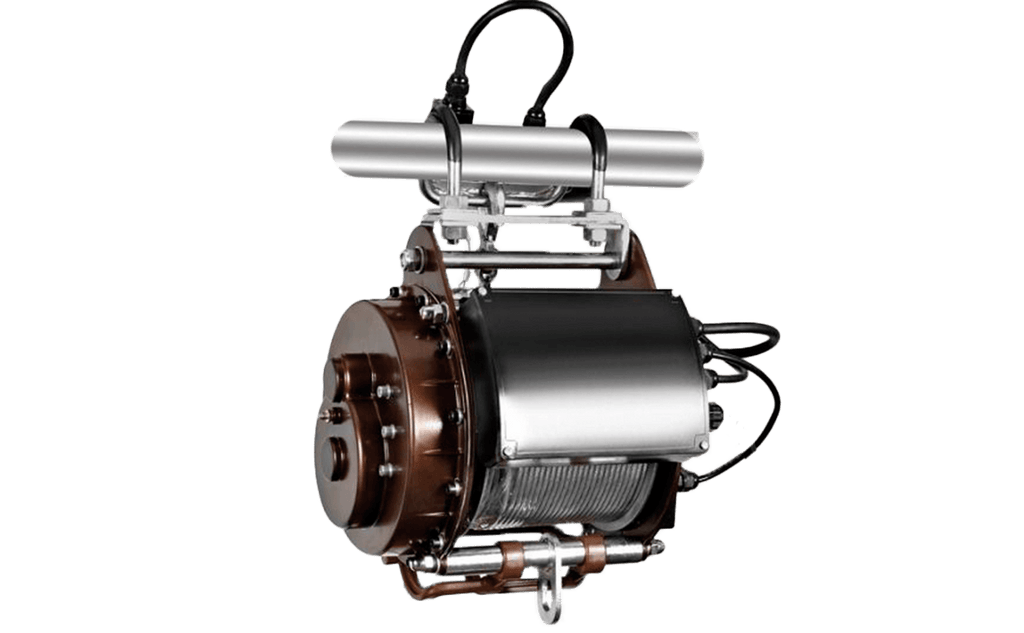

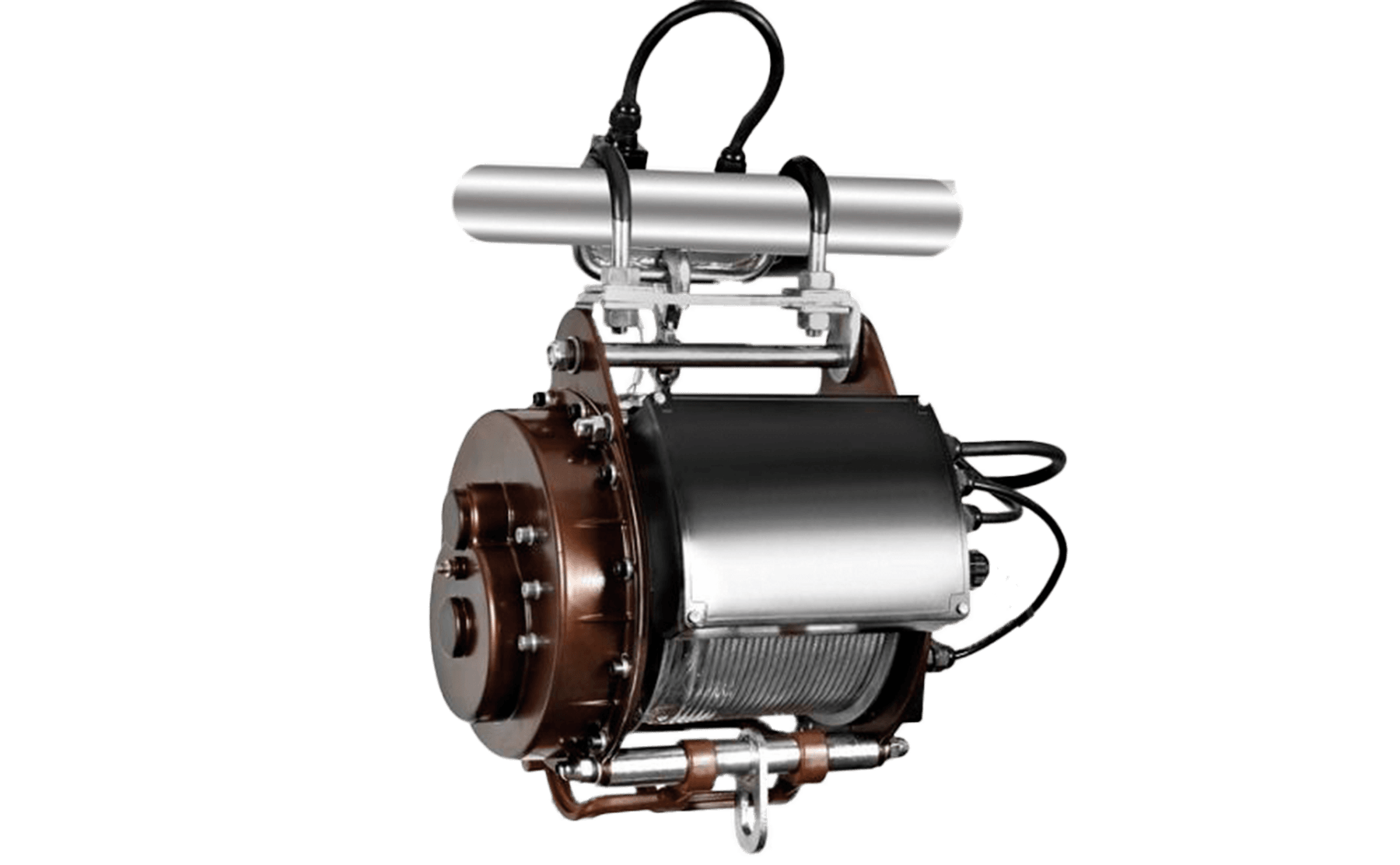

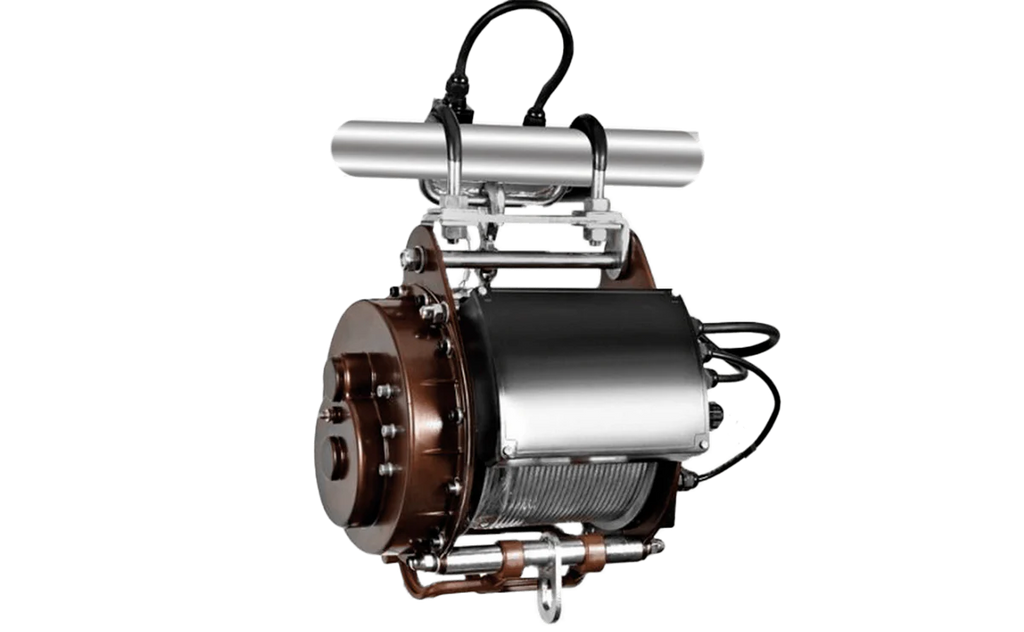

Warrior 800KG Scaffold Hoist - 240v Pendant Remote

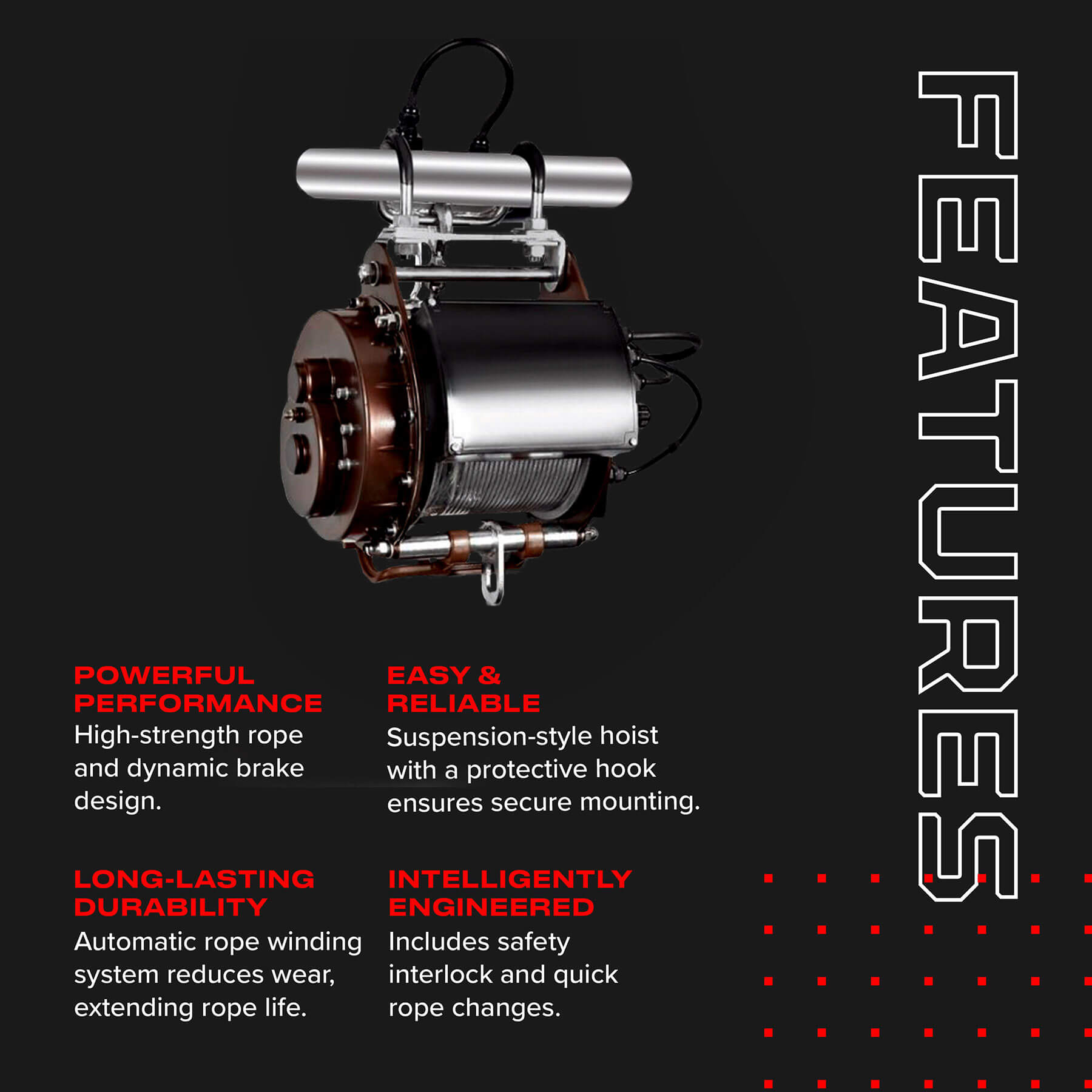

Features

Quick and Safe Installation – Suspension-style mounting with a secure protection hook ensures easy setup and reliable safety.

Tangle-Free Rope Management – Automatic rope winding system keeps the steel rope neatly aligned, reducing wear and maintenance time.

Tool-Free Rope Replacement – Easily change the steel rope without disassembling the hoist, saving downtime on site.

Longer Service Life – Innovative bearing system enables smooth cable drum rotation, enhancing durability and performance.

Built for Compliance and Safety – Meets key elements of BS EN14492-1 and BS EN14492-2 standards with advanced safety features.

Warrior 800KG Scaffold Hoist - 240v Pendant Remote

A brand-new addition to the Warrior range, this portable hoist is packed with cutting-edge features and smart new design details. Made to hook onto scaffolding, this suspended-style hoist makes the job of getting materials from one floor to the next easier and safer. Thanks to the easy installation and added protection hook, safety is made simple.

Featuring 30m of cable and a pendant remote at a power level of 240v, it’s ideal for builders and roofers looking to work smarter. And with a capacity of 800kg and a smart internal dynamic brake that holds the weight at both static and dynamic positions; it does the hard work for you.

Made with strong steel and a durable powder-coated finish, the hoist is made to last. With a smart new beating system that allowed free rotation of the cable drum and an automatic rope winding system that keeps ropes neat; both are made to extend the life span of the hoist.

The duty cycle of this winch is S3 – 20% on a 10-minute cycle. In plain English, that means this unit can be used continuously for 2 minutes before needing an 8-minute cooldown period. Thanks to the load-holding brake, you can pause without losing any progress or needing to disassemble.

Specifications:

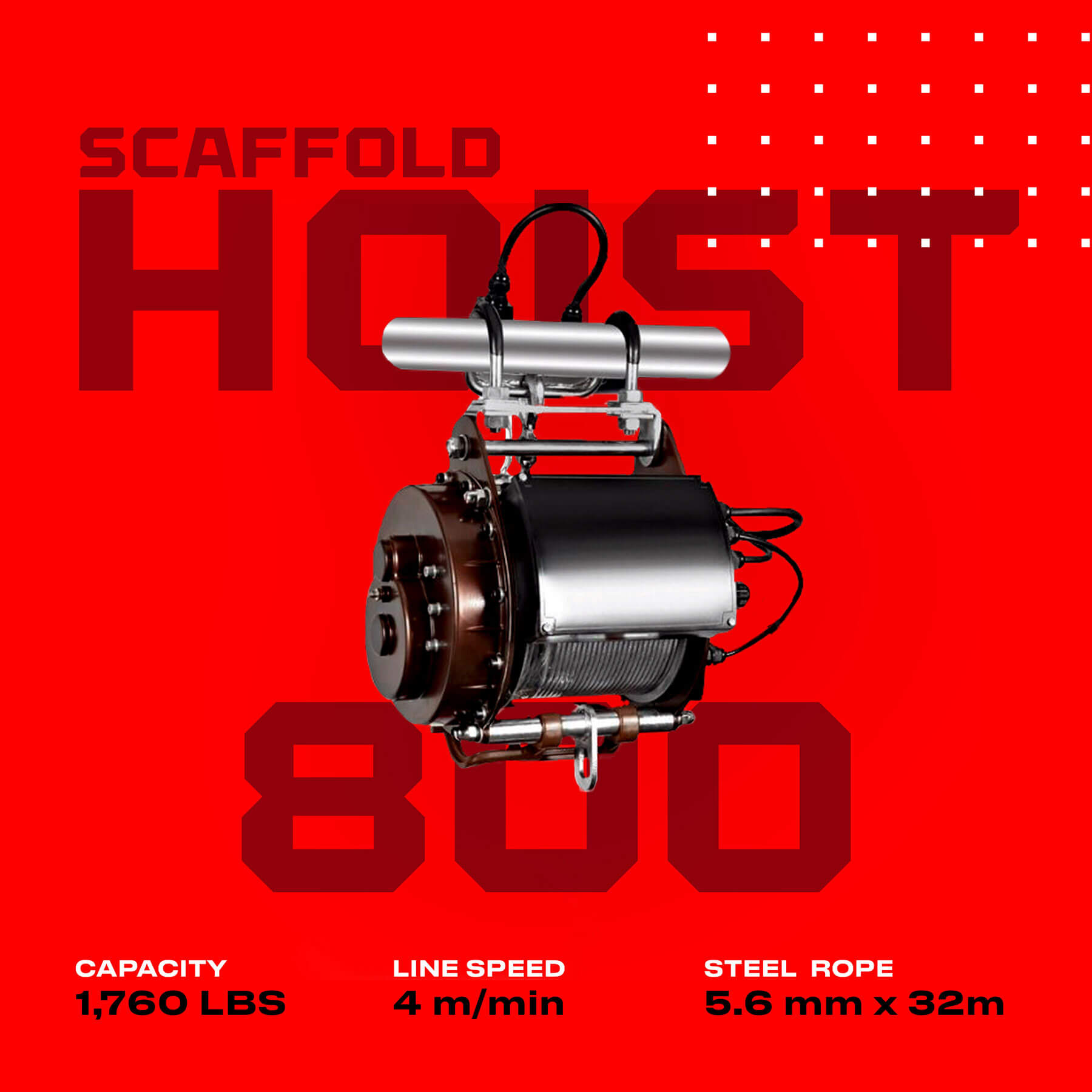

Maximum Lifting Capacity - 400kgs (30m) / 800kgs (15m) (Single Line / Double Line)
Cable Diameter & Length - 5.6mm x 32m steel with swivel hook
Line Speed - 8m/min Single Line at 400kg / 4m/min Double Line at 800kg
Limit Switch For Safety - Upper & Lower
IP Rating - 54
Remote Length - 4m

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku	240VSH800
EAN	5060423980186
Rated Line Pull	1763 lbs
Rated Volt	240
Max Load	800
Lift Height	32.0 m 32.0 m (Double line)
Lift Speed	8.0 m/min 4.0 m/min (Double line)
Power	1300
Cable Material	Steel
Cable Size (Diameter x Length)	6mm x 32.0m
Limit Safety Switch	Upper & Lower
Work Rate	S3 20% 10mins
Waterproof Rating (IP)	IP65

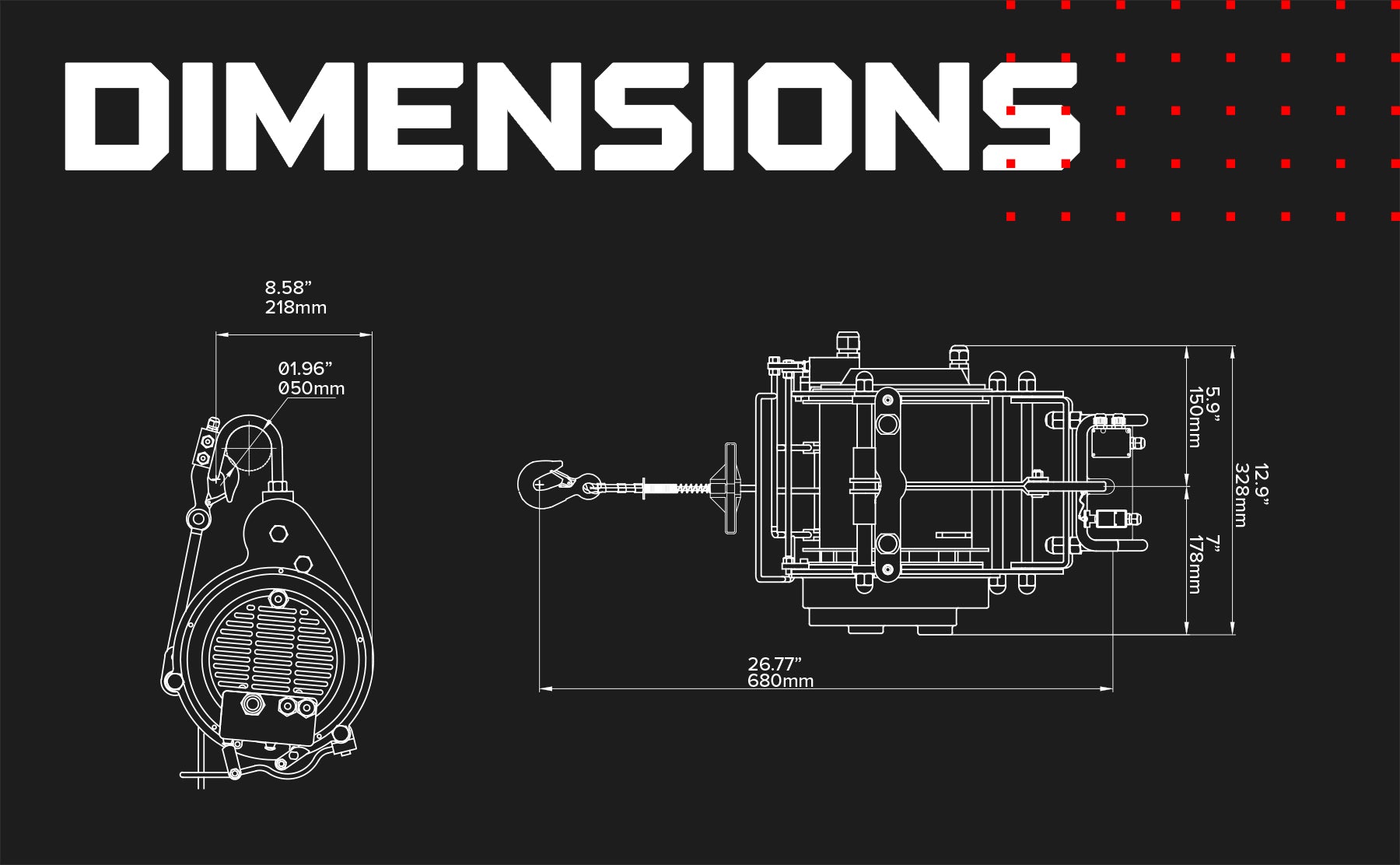

Dimensions	340 x 500 x 400 mm
Weight	37.0 kg
Warranty	1 Year
Certification	CE

What's in the box:

Scaffold Hoist
Steel Winch Rope with Hook
Pendant Remote

Downloads:

User Manual	Download
Brochure	Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)

Examples:

Power Station Capacity	Device Power Usage	Estimated Run Time
1200Wh	400W	1200 ÷ 400 = 3 hours
1000Wh	250W	1000 ÷ 250 = 4 hours
500Wh	100W	500 ÷ 100 = 5 hours

Keep in mind:

This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
Ensure your device power usage is below the max rated watts the power station can ouput.
Always allow some buffer in your calculations to account for energy loss or variations in power draw.
Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

Device	Average Power Usage
Lamp	10
LED/LCD TV	150
Laptop	100
Desktop Computer	200 - 500
Modem/Router	20
Play Station	165

*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This products has a 1 Year Warranty

All Warrior purchases must be registered with Warrior Winches.

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product BPE Holdings determines to be defective will be repaired or replaced at BPE Holdings sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes.

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.
