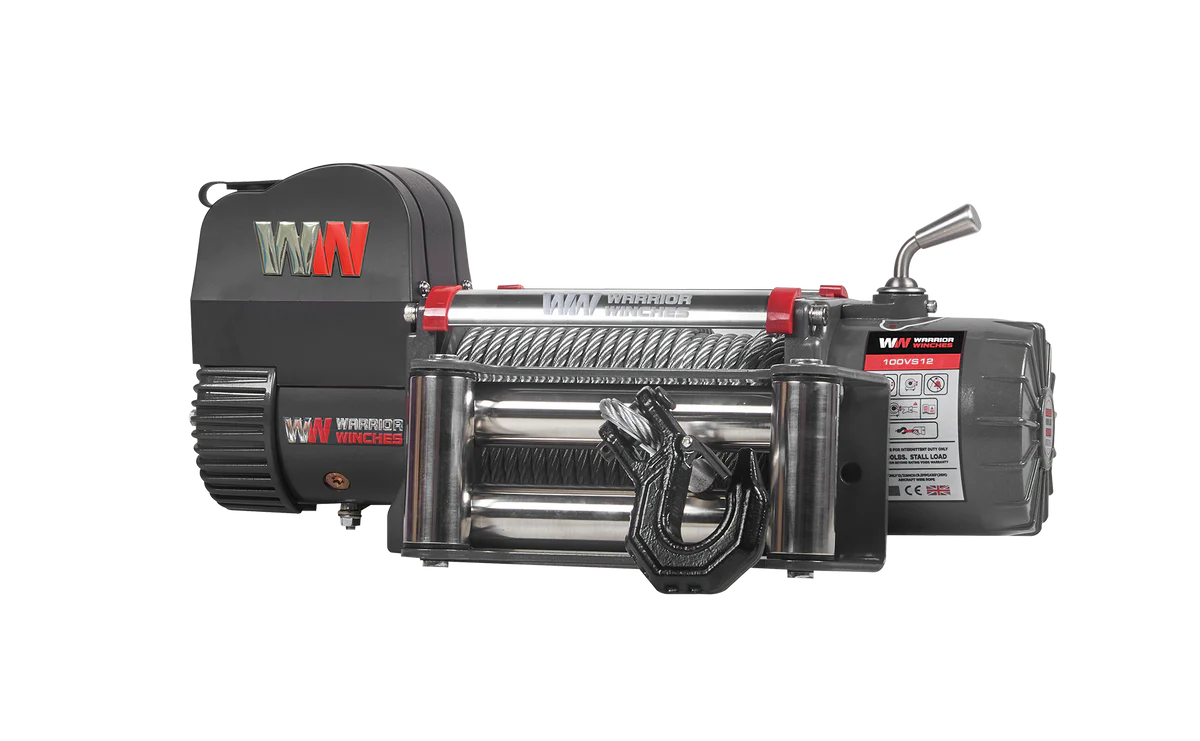

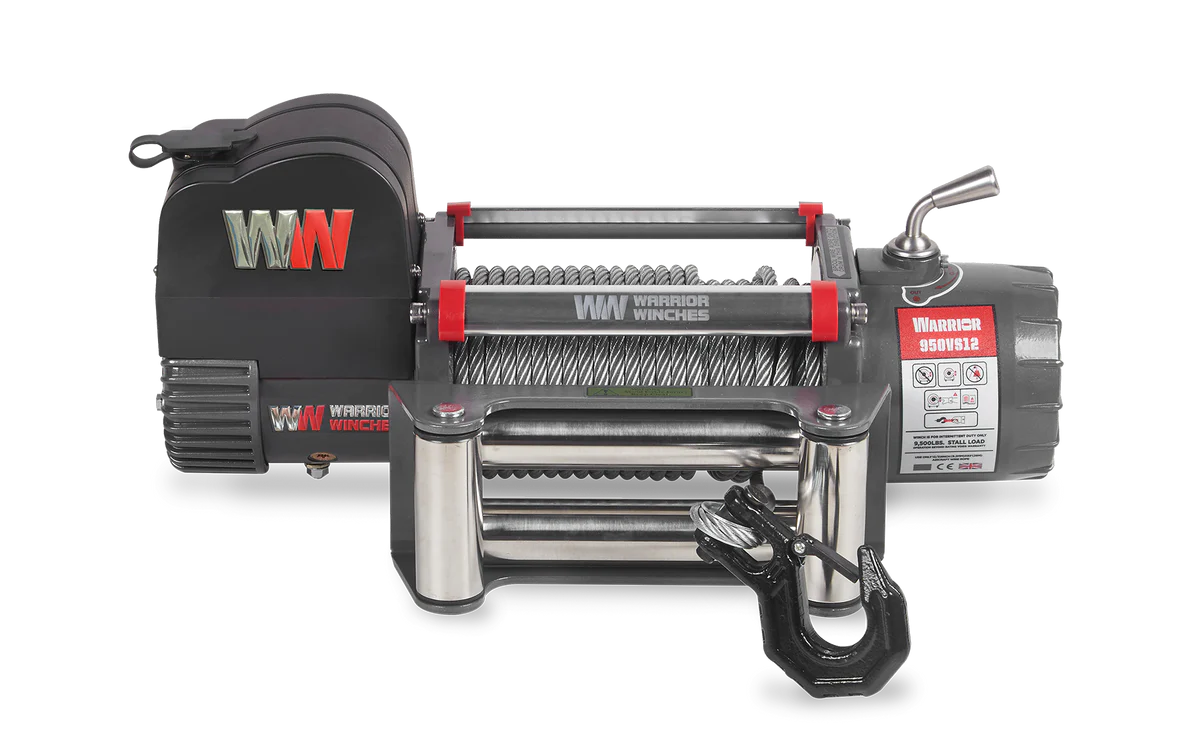

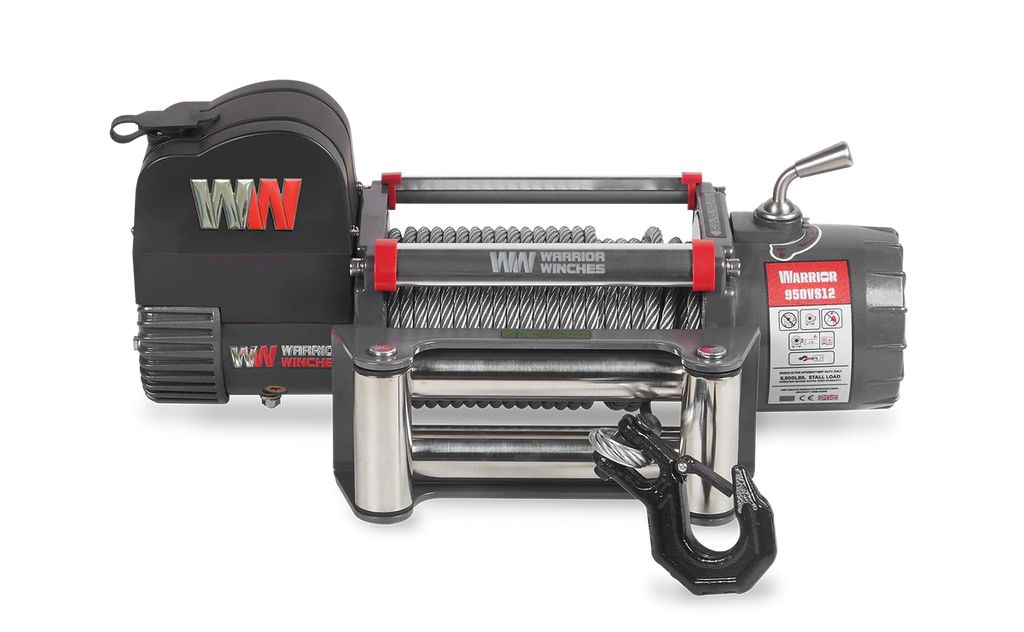

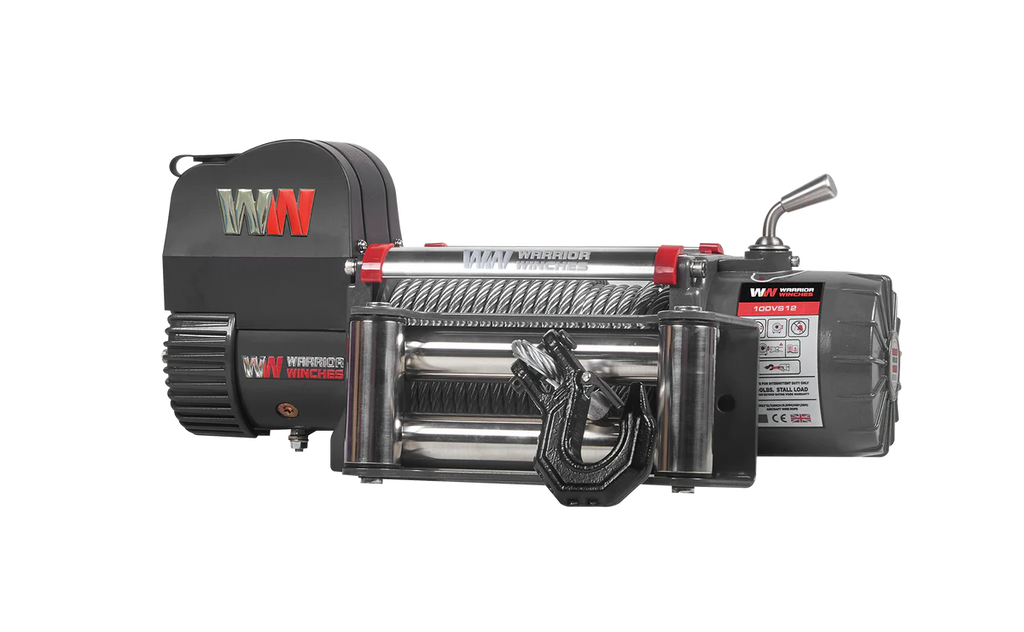

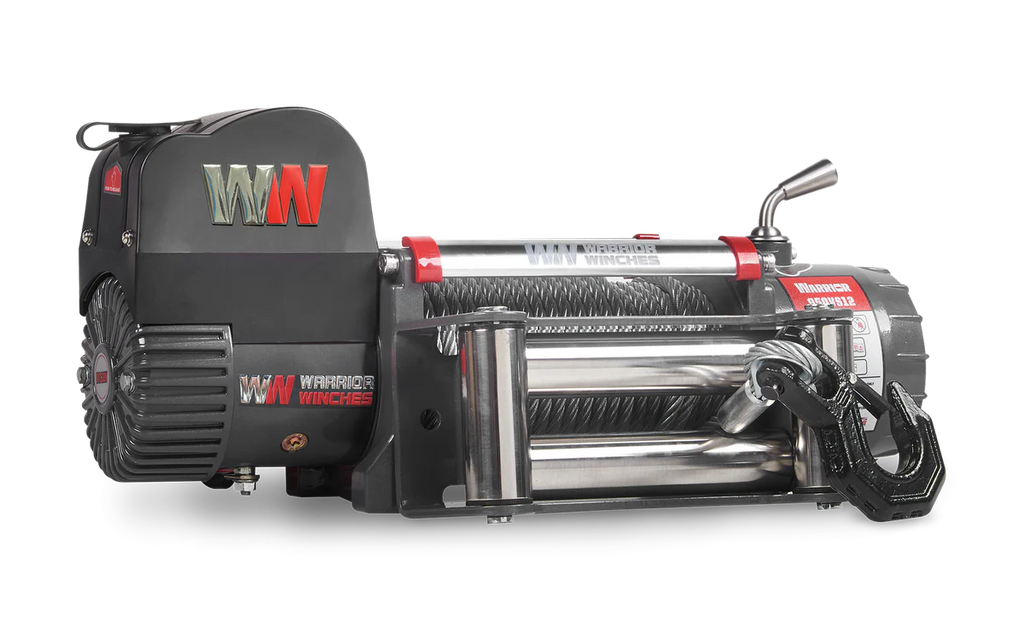

Warrior Samurai V2 Next Gen 8000lb Winch

 0 Reviews  Ask a Question
SKU: 800VS12

12v Steel Rope (includes Wireless Remote)
Voltage: 12v
Rope: Steel Rope
Sale price£437.99 inc vat
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • REVOLUTIONARY DESIGN – Premium winch now upgraded to V2.
  • HEAVY DUTY – Removable heavy-duty hook and hard-wearing design.
  • LINE CAPACITY – 8,000LB (3636KG), ideal for recovery and 4x4 applications.
  • BRASS FITTINGS – Solid brass contacts direct to the motor for efficient running
  • UPGRADED REMOTE – Wireless 2.4G upgraded remote (12v model only)

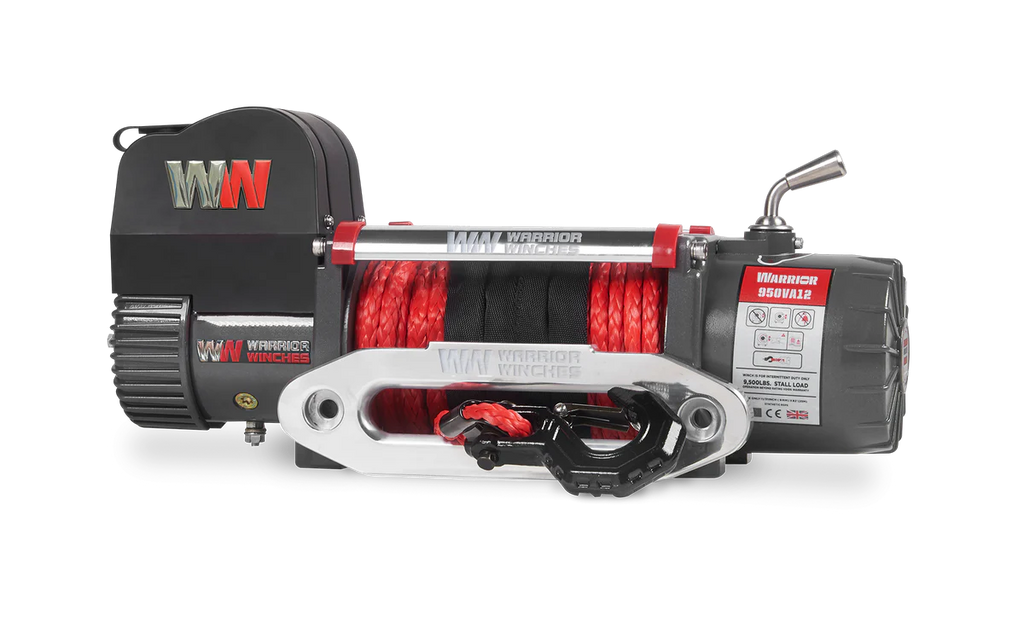

Warrior Samurai V2 8000lb Next Generation Winch

Since their launch, the Warrior Samurai winches have been their premium offerings. Now upgraded to V2, the high speculation winch has only got better, making it ideal for reliable recovery and 4x4 applications. With a line capacity of 8,000LB, this heavy-duty winch is strong enough to get the job done.

As well as its strength, this upgraded Warrior winch features a high-quality wound motor with brass contacts going direct to the motor for efficient running. Also boasting a heavy-duty waterproof solenoid, double sealed drum, and full steel planetary gearing that runs quietly to keep the peace. Whether you opt for the Stainless Steel 4 Way Fairleads or Aluminium Fairlead (Synthetic Rope), the Warrior Samurai V2 winch provides unbeatable power.

But the stand-out feature is the addition of a revolutionary new external braking system. Unlike standard winch brakes, the V2 Samurai brake is at the end of the gearbox rather than inside the drum. Making it even faster with a lower amp draw and higher capacity for load holding and lowering – the benefits are numerous. Also reducing heat build-up around the drum making it extra safe to use with synthetic rope.

With a line pull of 2.5 m/min (300 Amps) at full load, you can get the job done quickly and easily. Backed up with a limited lifetime warranty and 3 years of electrical cover; trust in Warrior power.

Standard Features:

Line Capacity: 8,000lb (3,636kg)
Motor: Series Wound Motor - Powers In and Out
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: Limited Lifetime Warranty with 3 Year Electrical Cover

Accessories:

Wired Hand Control: 3.8m Wired Hand Control
Wireless Control - 12v MODEL ONLY: Pre-Installed Heavy Duty Wireless Control with Lanyard (See note below)
Mounting Plate: Available as optional extra
Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Cables (May need extending dependant on application)
♦ Battery Isolation Switch (Failure to fit will invalidate warranty)
♦ Instruction Manual

Other Information:

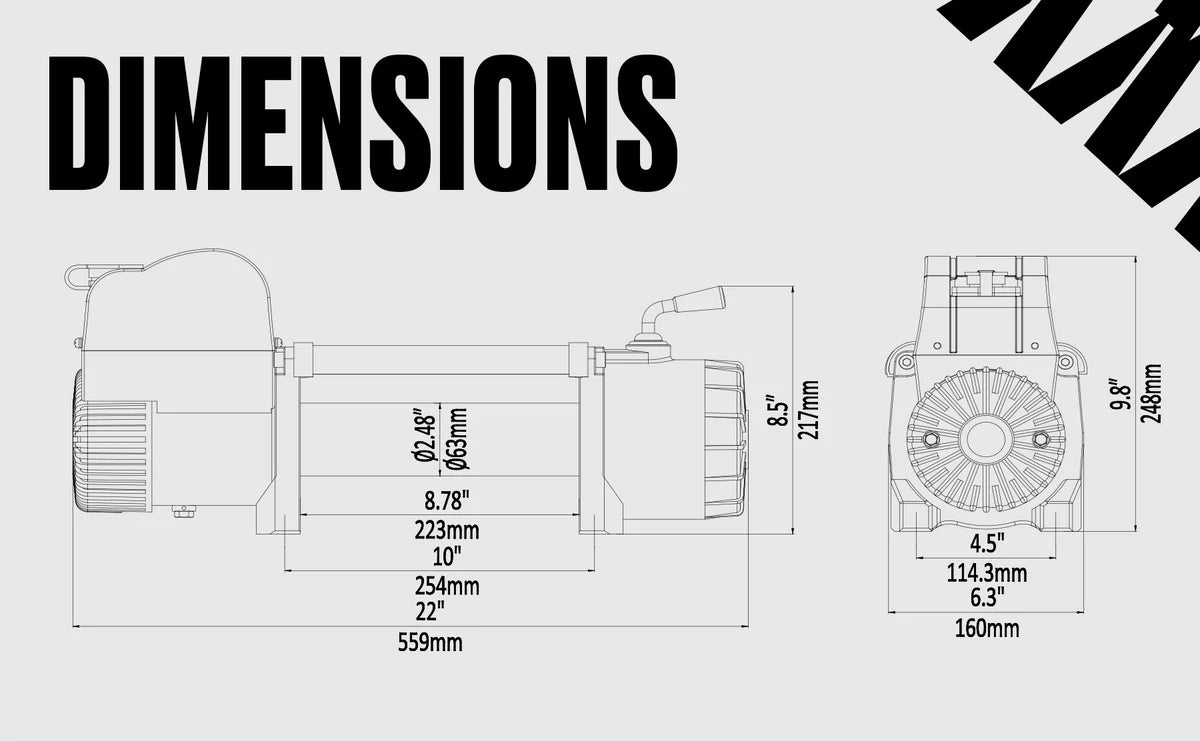

Dimensions: 559mm L x 160mm D x 248mm H
Mounting Bolt Pattern: 254mm x 114.3mm
Line Pull - No Load: 10.2 m/min (58 Amps)
Line Pull - Full Load:  2.5 m/min (300 Amps)

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 8000 lbs (3636 kg)
Motor 12v : 5.8hp / 4.3kw
24v: 7.4hp / 5.5kw
Gearing 196:1
Braking Action External Brake
Drum Size - Dia x L 63 x 223mm
(2.48 x 8.78 in)
Cable - Dia x L Steel: 8.3mm x 29m (0.33 in x 95 ft)
Synthetic: 8.3mm x 29m (0.33 in x 95 ft)
Dimensions 559 x 160 x 248mm
(22 x 6.3 x 9.8 in)
Mounting Pattern 254 x 114 mm
(10 x 4.5 in)
Weight kg Steel: 39 kg (85.9 lbs)
Synthetic: 28 kg (61.7 lbs)
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 8000 (3628) 21.3 (6.5)
2 6620 (3002) 46.9 (14.3)
3 5650 (2562) 77.1 (23.5)
4 4920 (2231) 95.1 (29)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 33.4 (10.2) 44.3 (13.5) 58 50
2000 (907) 17.4 (5.3) 20.3 (6.2) 125 100
4000 (1814) 13.1 (4.0) 15.7 (4.8) 190 140
6000 (2721) 10.1 (3.1) 12.4 (3.8) 260 190
8000 (3628) 8.2 (2.5) 9.5 (2.9) 300 230

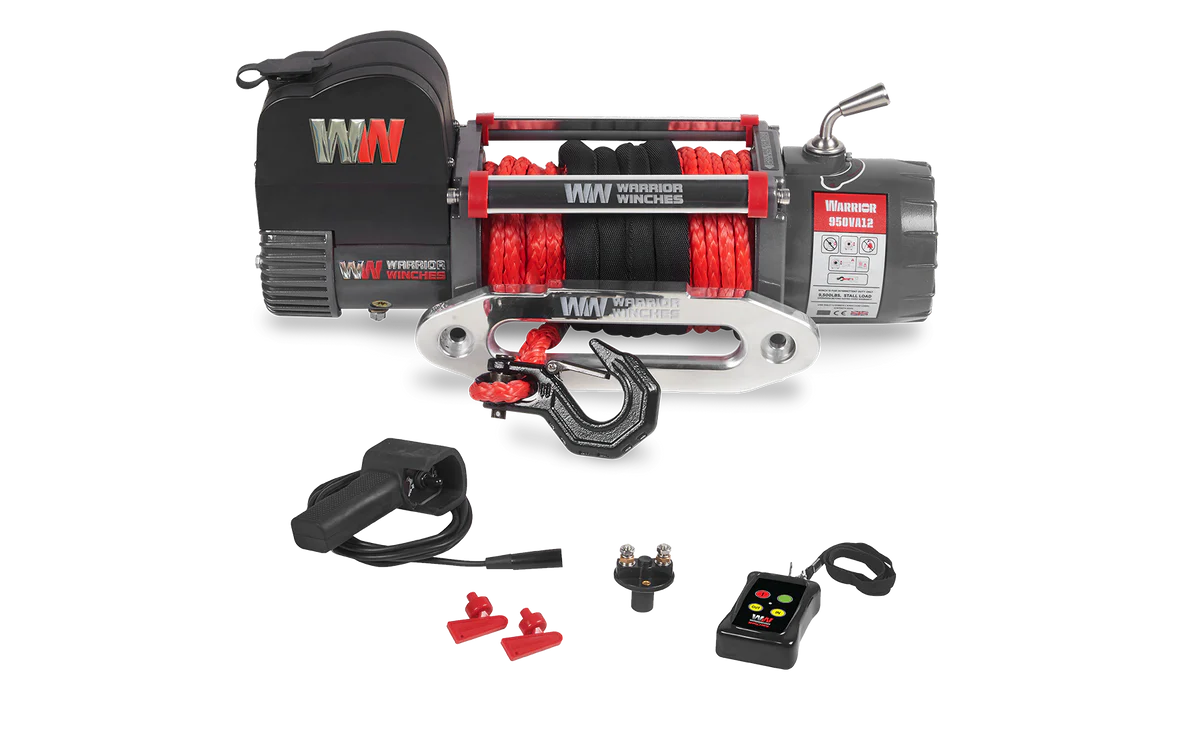

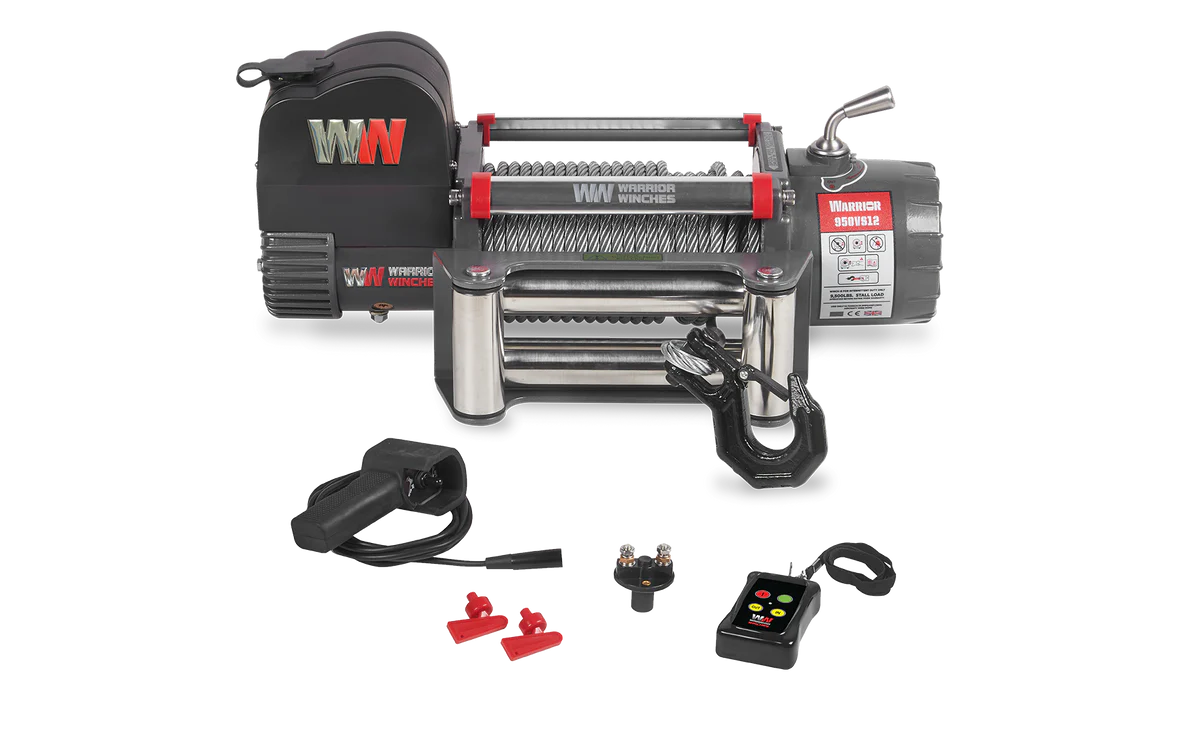

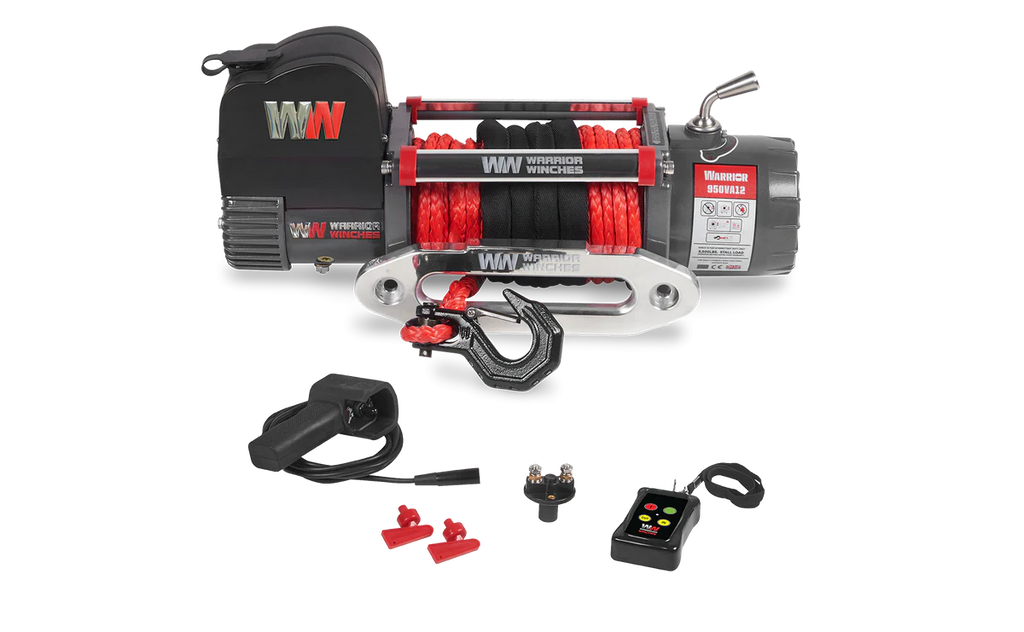

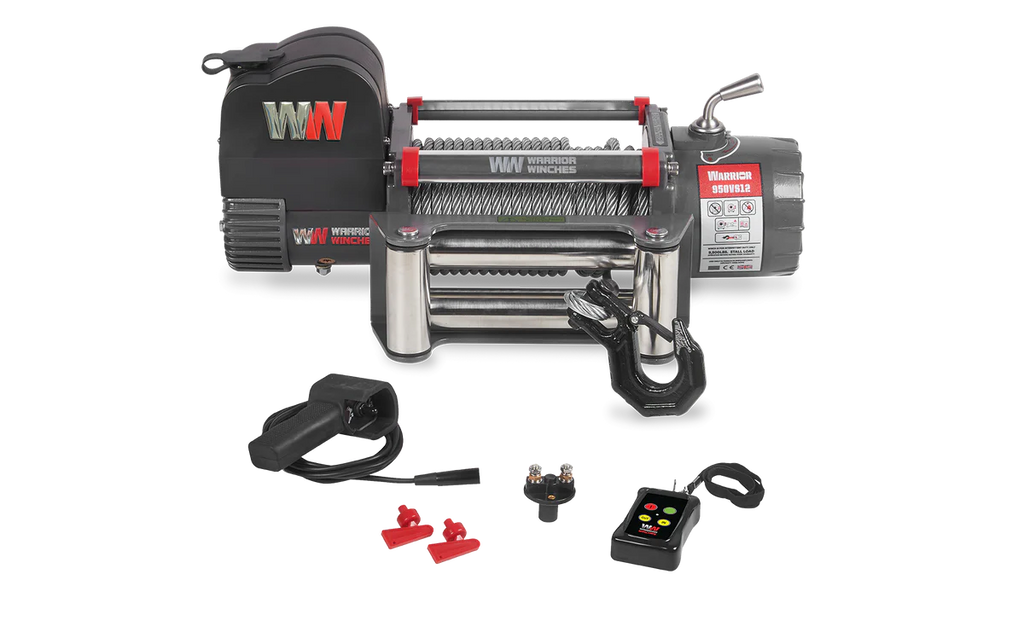

What's in the box:

  • 3.8m Remote Handset
  • Built in Wireless Remote (12v Model Only)
  • Removable Heavy Duty Hook
  • Heavy Duty Stainless Steel Roller (Steel) or Aluminium Fairlead (Synthetic)
  • Steel or Synthetic Rope
  • Isolation Switch
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
