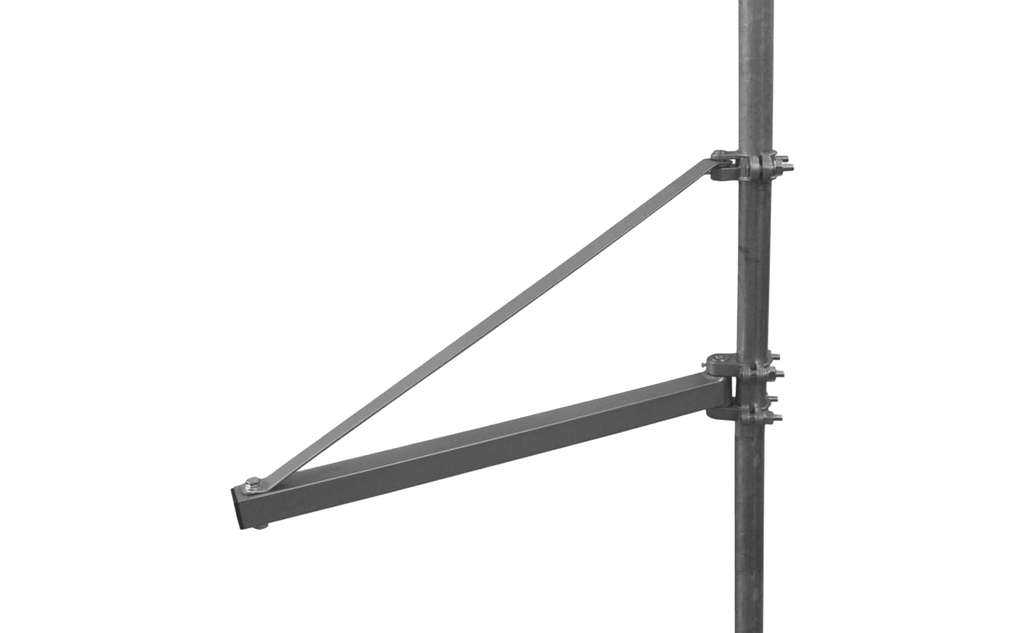

Warrior 750mm Rotary Hoist Frame
600Kg Capacity
*Vertical pole not included*
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
Reviews and Q&A
-
Could you tell me what diameter vertical pole these need to attach to please? Do you have a bracket that goes with this to attach a pulley to? Intention is to lift filters a height of around 10m.
Standard scaffold pole
-
What are the dimensions of the square section arm of the Warrior 750mm Rotary Hoist Frame

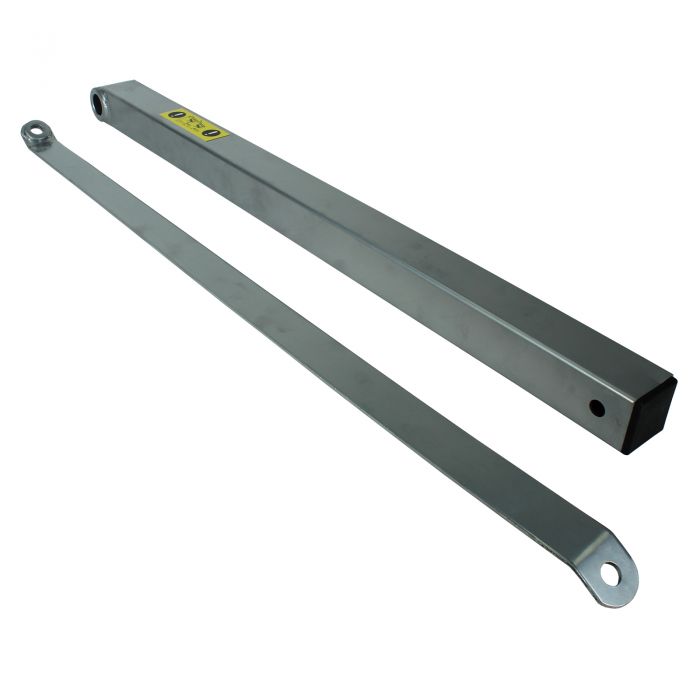

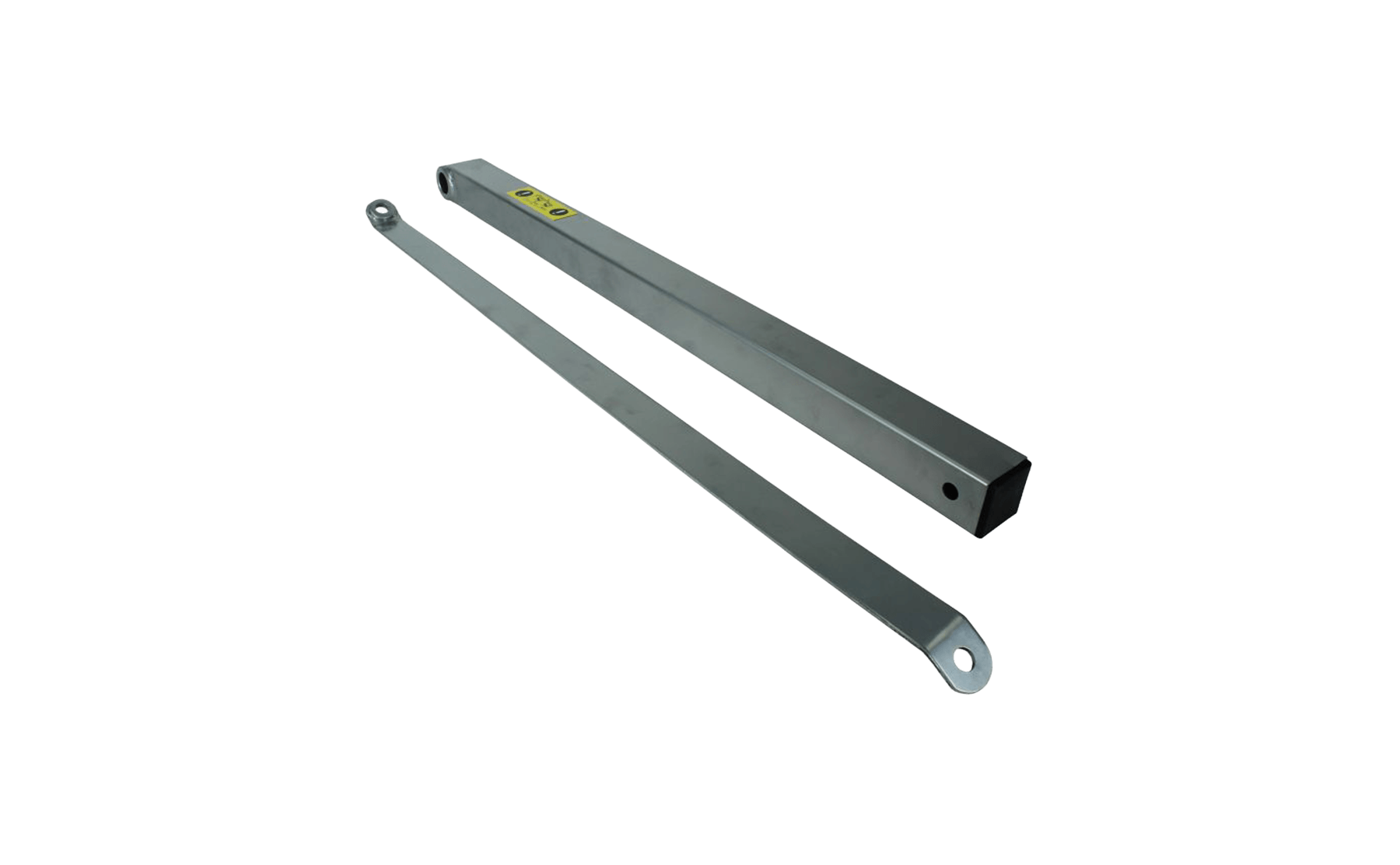

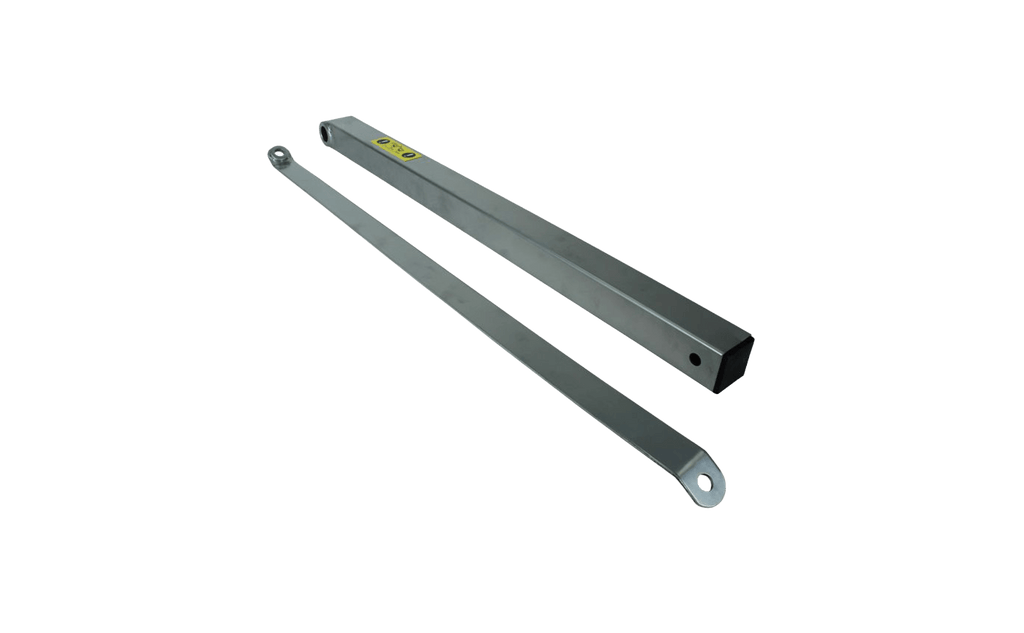

] Square tube 46x46, T2.0, L 765 Q235
[2] Strengthen plate W34, T3.4, L840 Q235

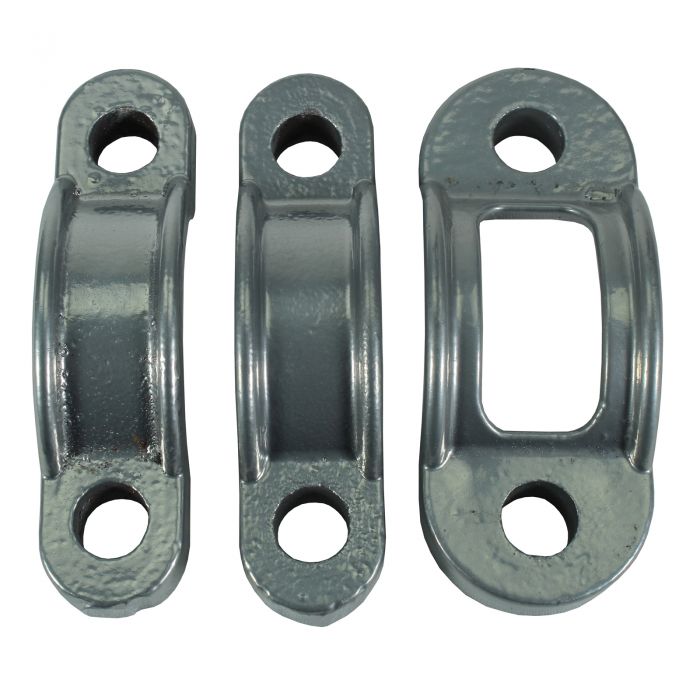

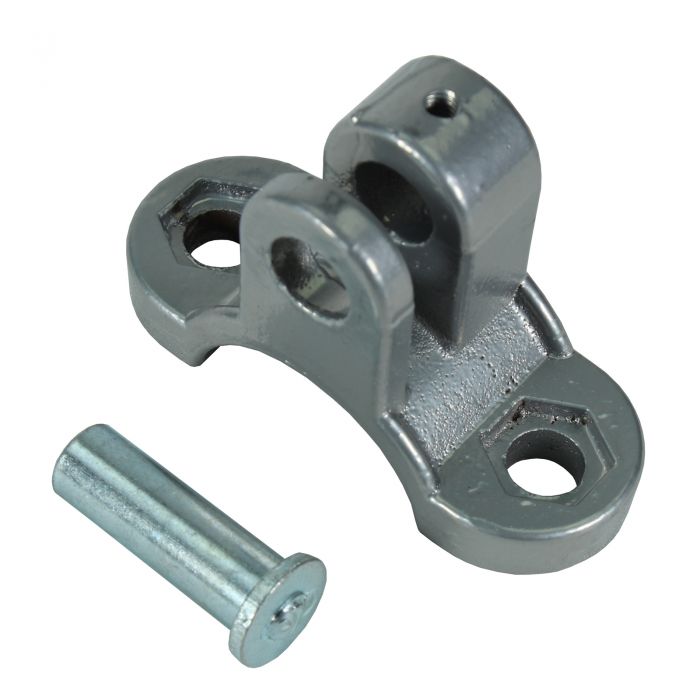

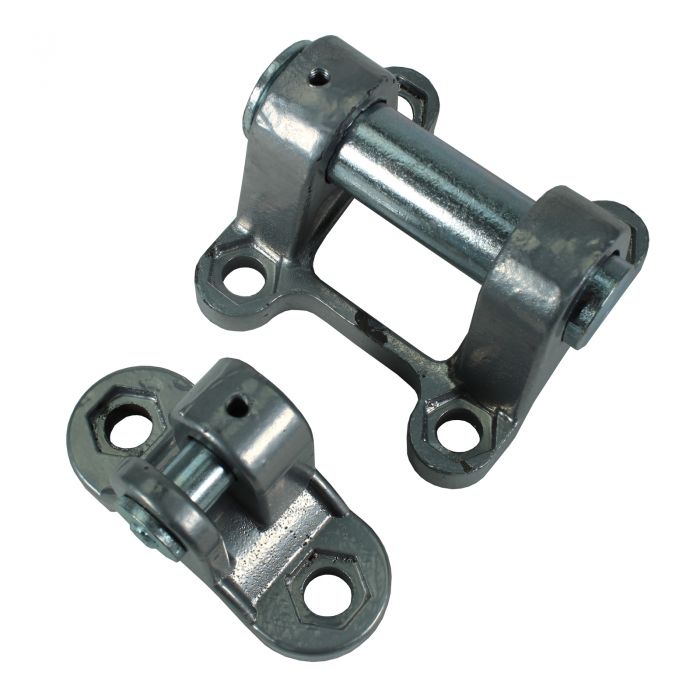

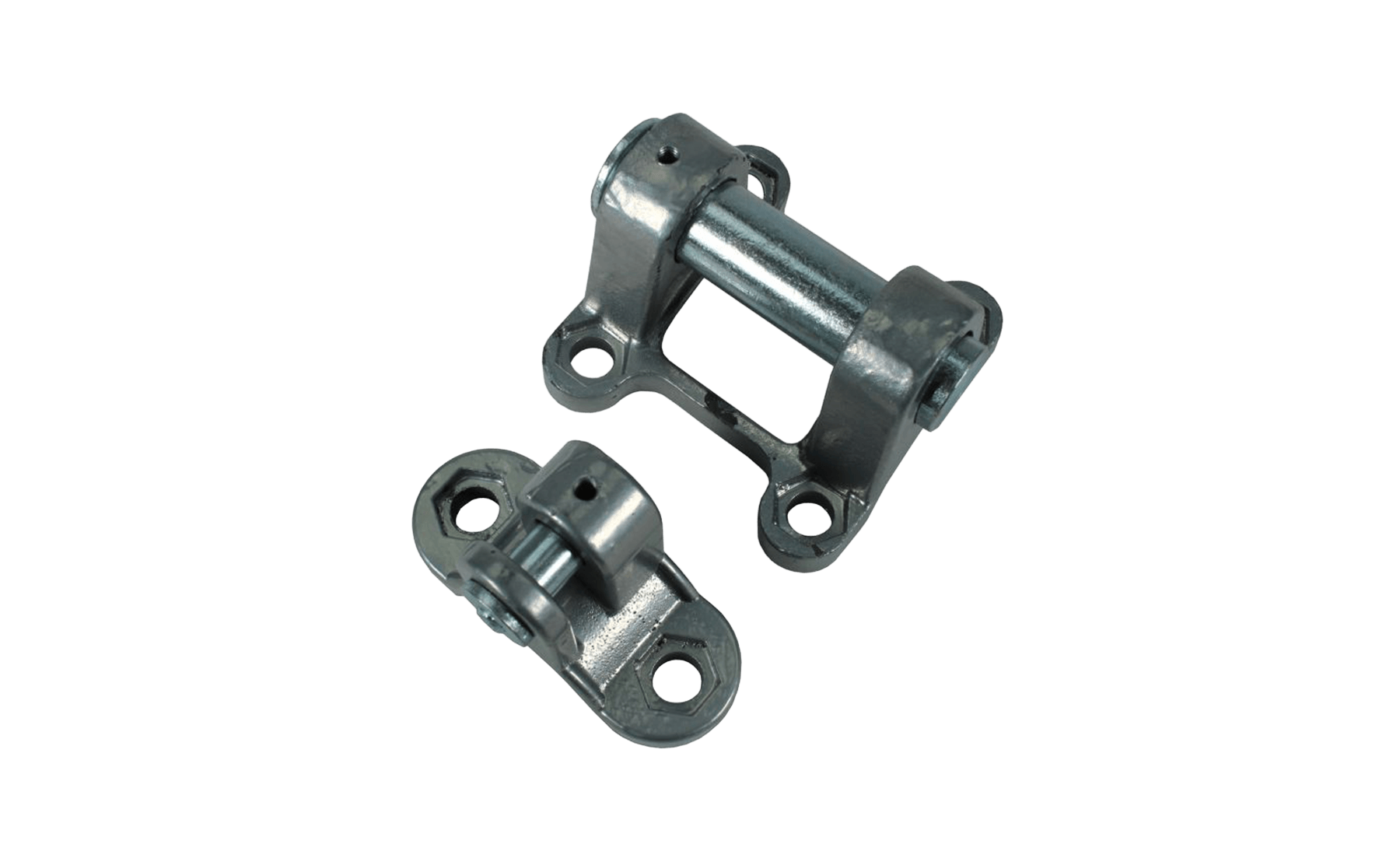

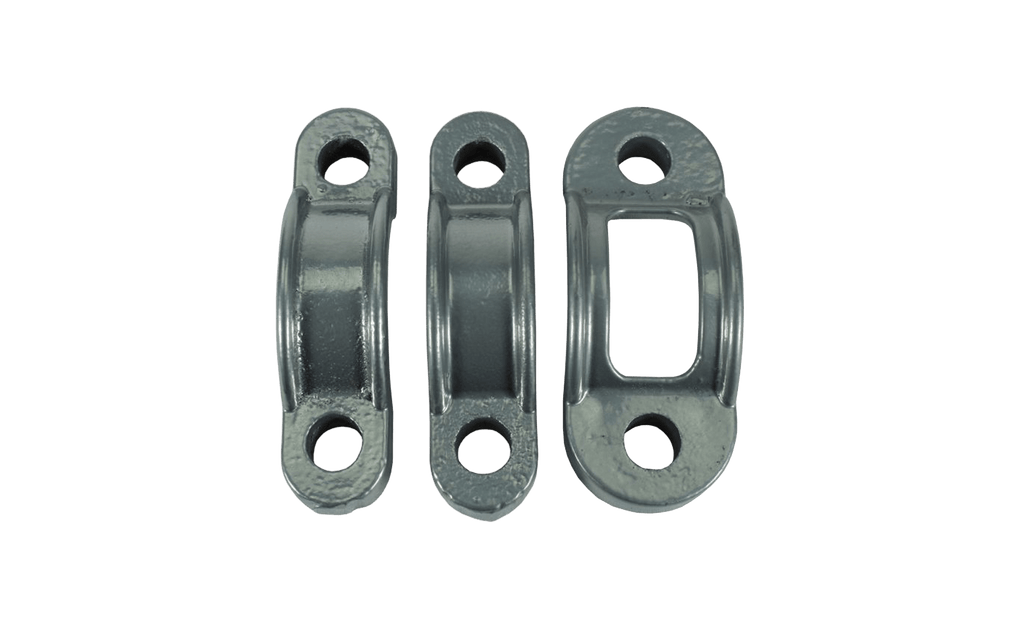

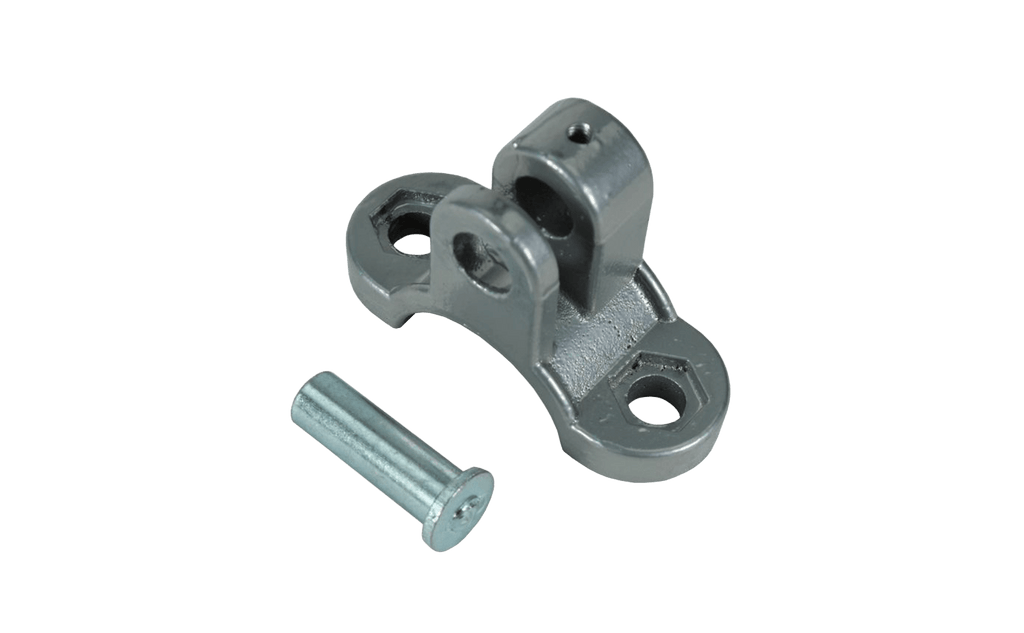

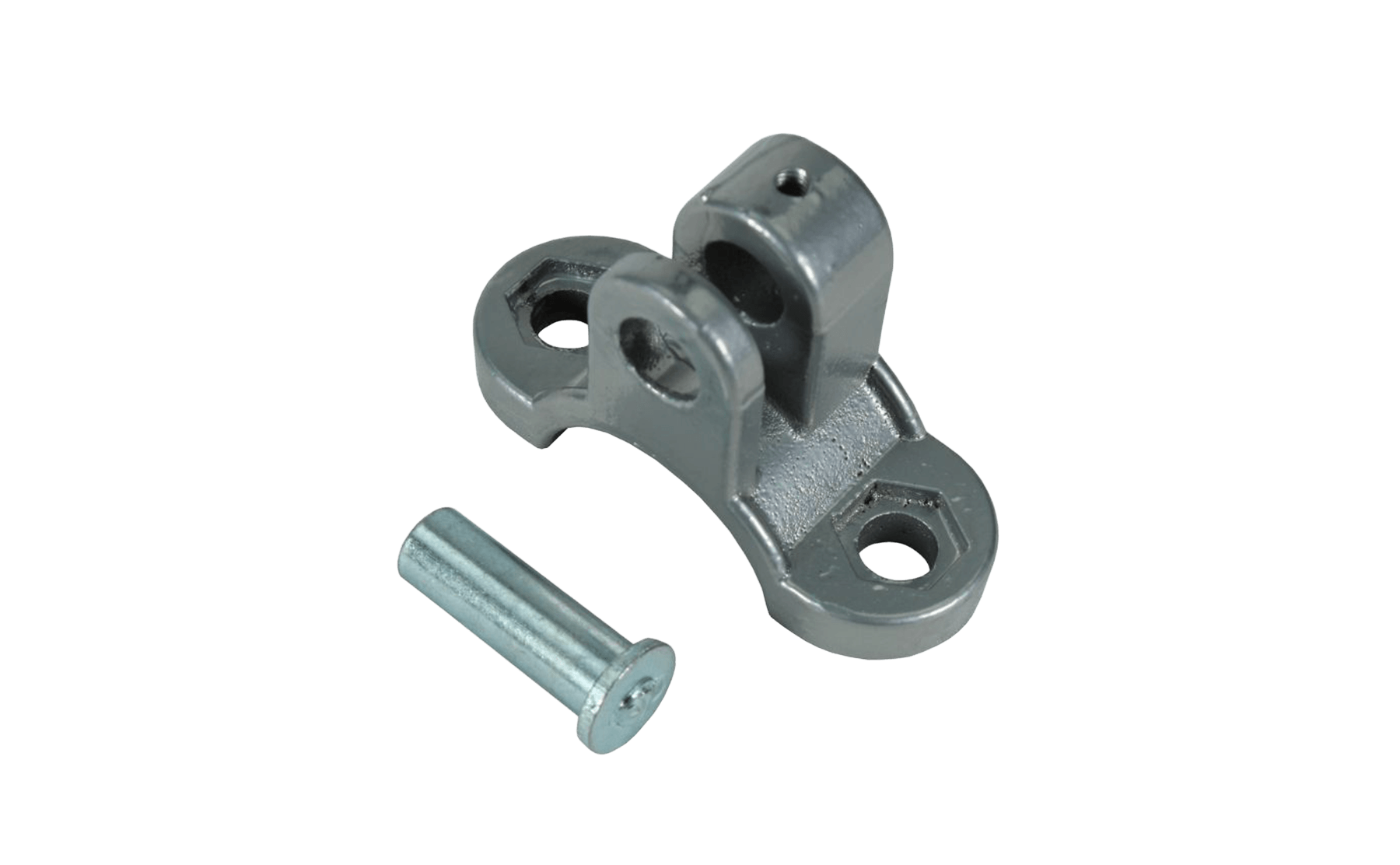

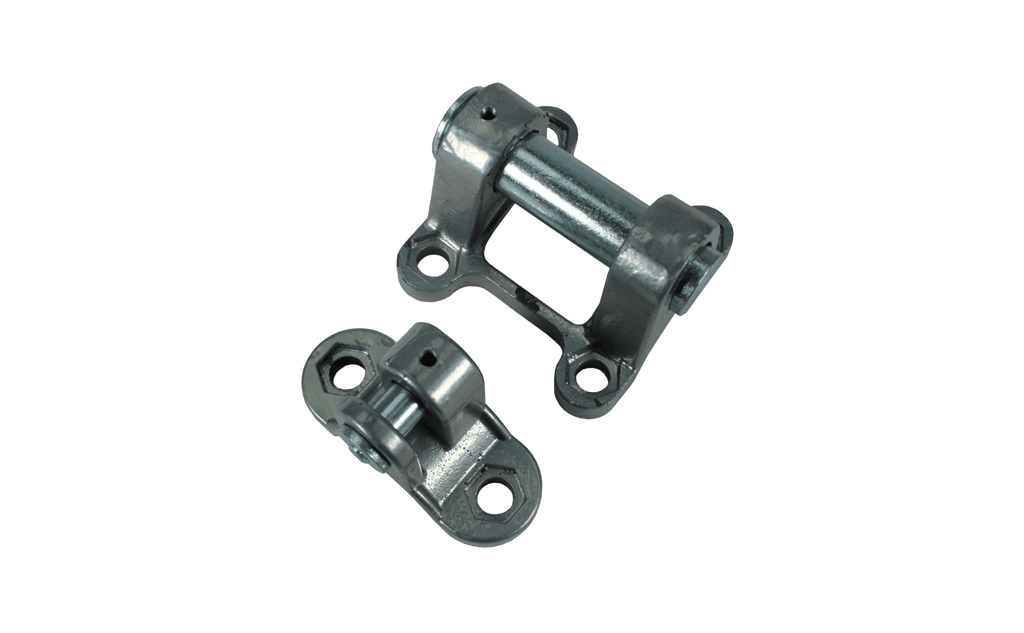

[3] Front upper clamp LIOO, W61, H40 45
[ 4] Rear upper clamp LIOO, W27, H40 45
[5] Pin on the upper clamp 014, L43 45

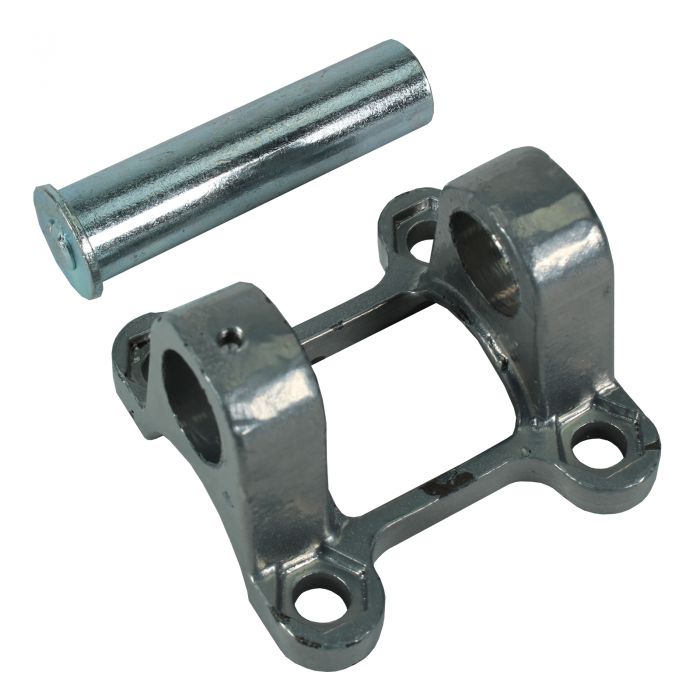

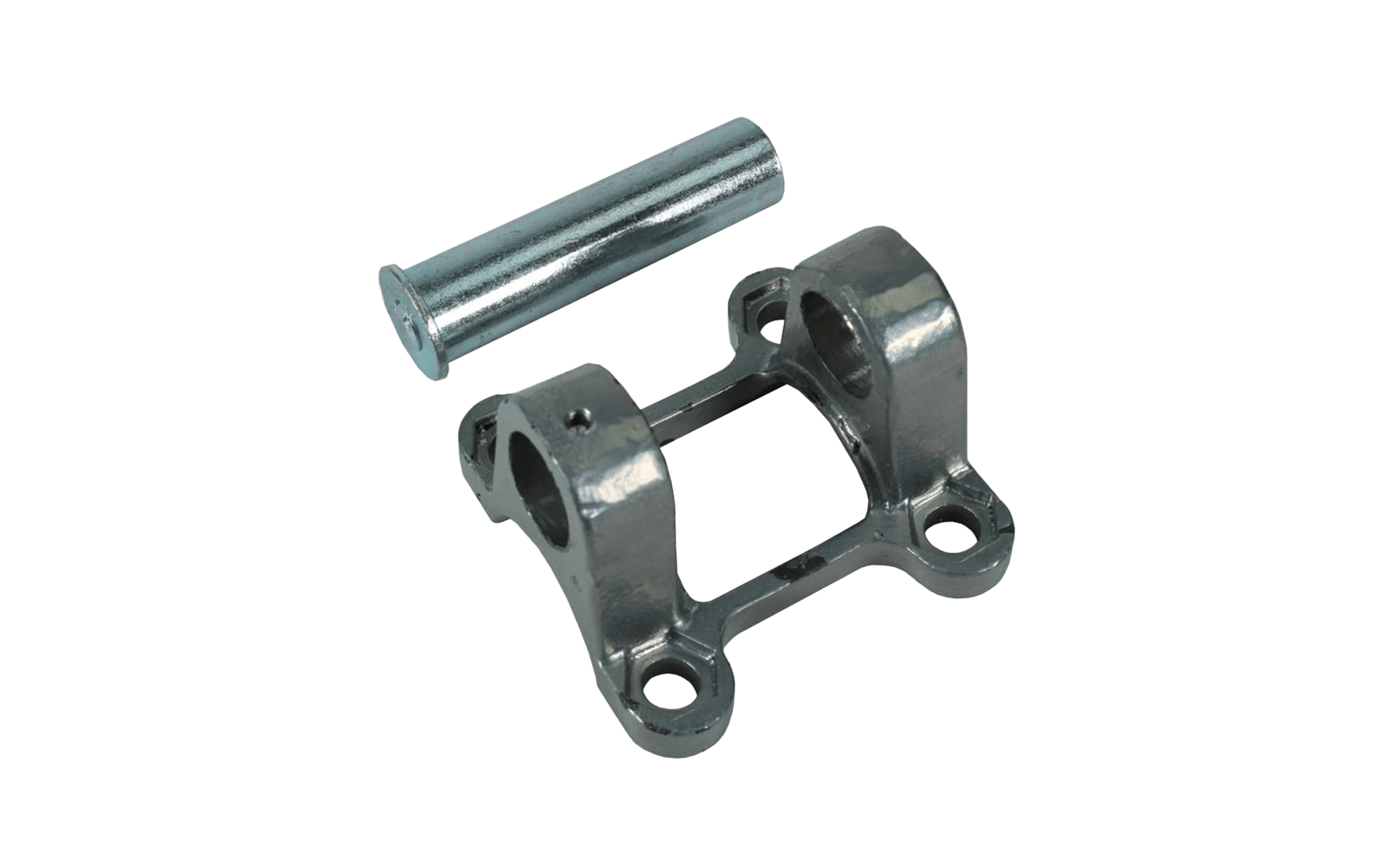

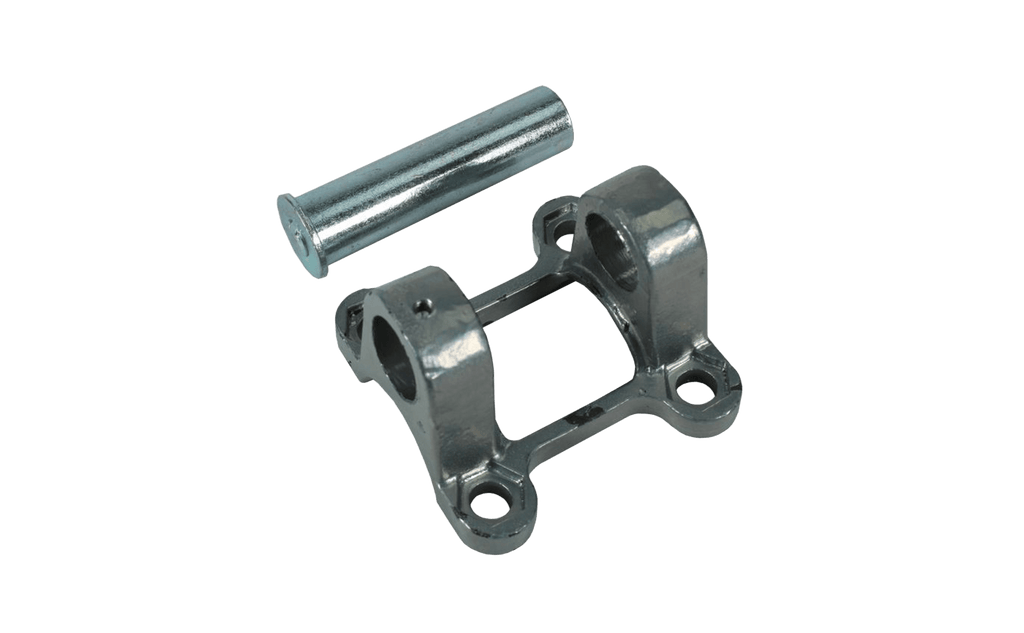

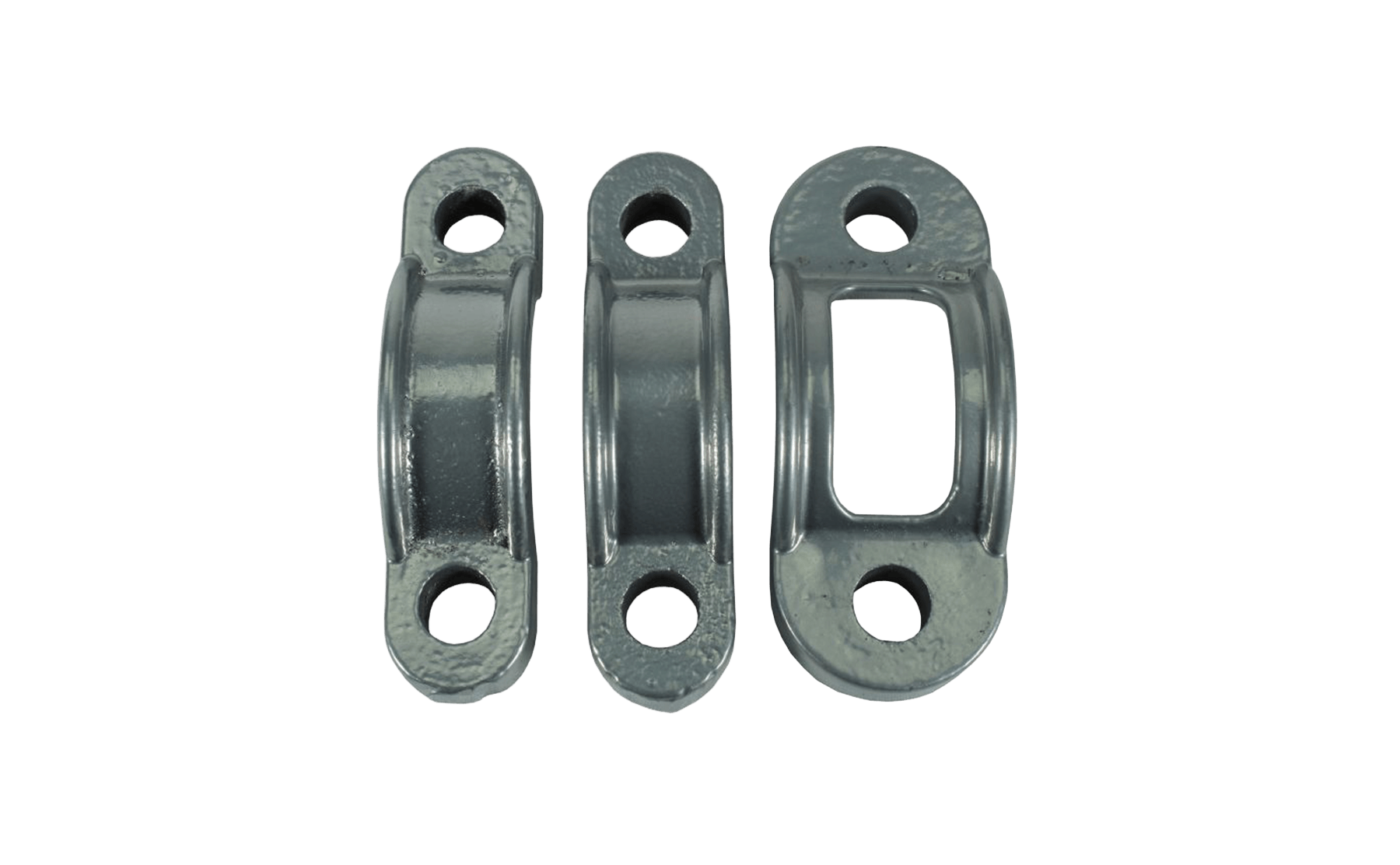

[6] Front lower clamp LIOO, W66, HlOO 45
[7] Rear lower clamp LIOO, W27, H25 (2pcs) 45
[8] Pin on the lower clamp 025, Ll03 45

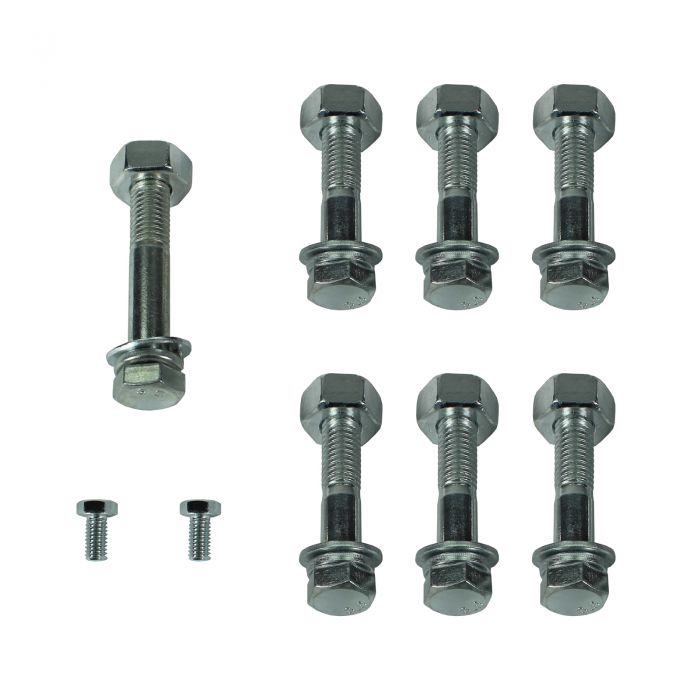

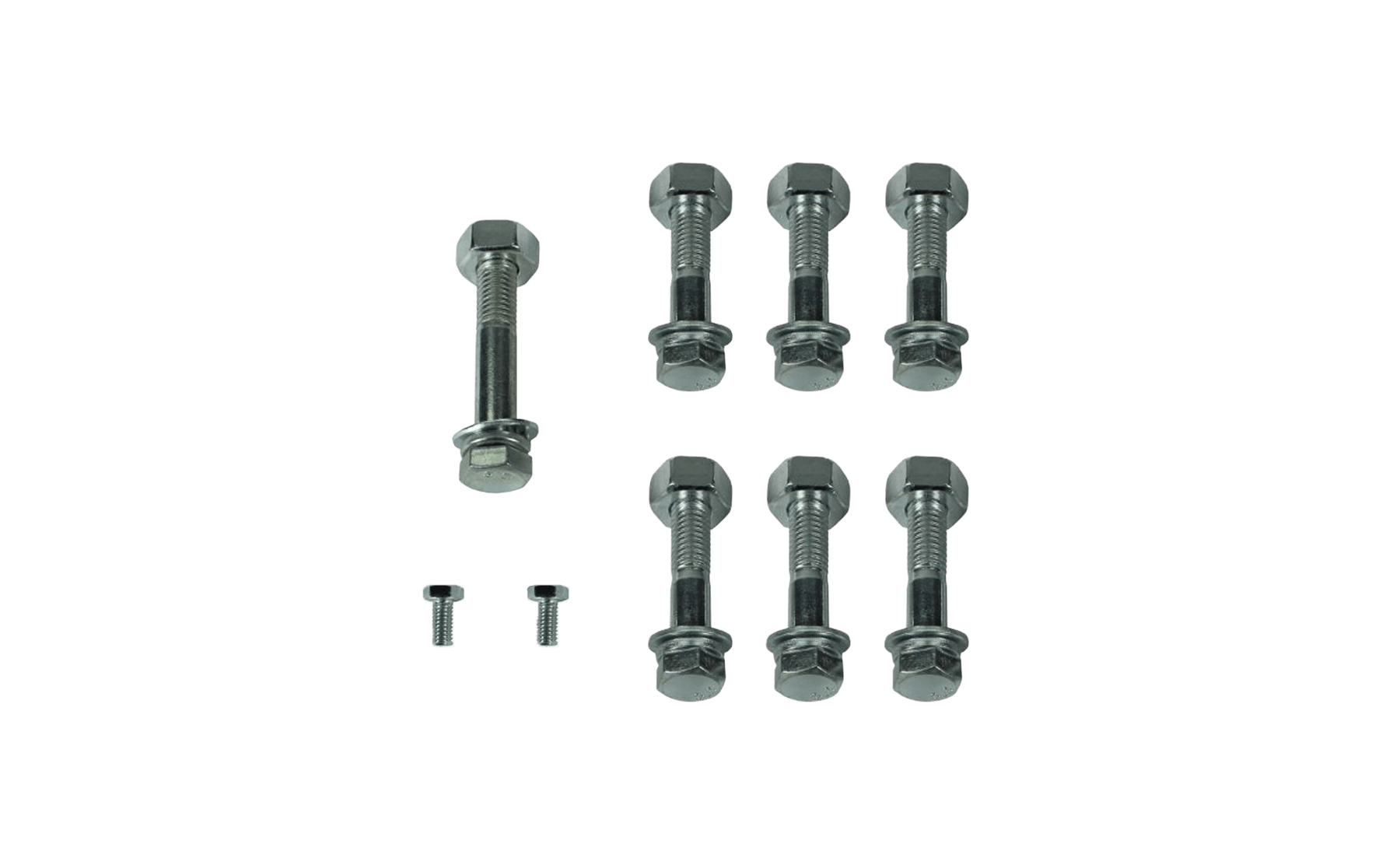

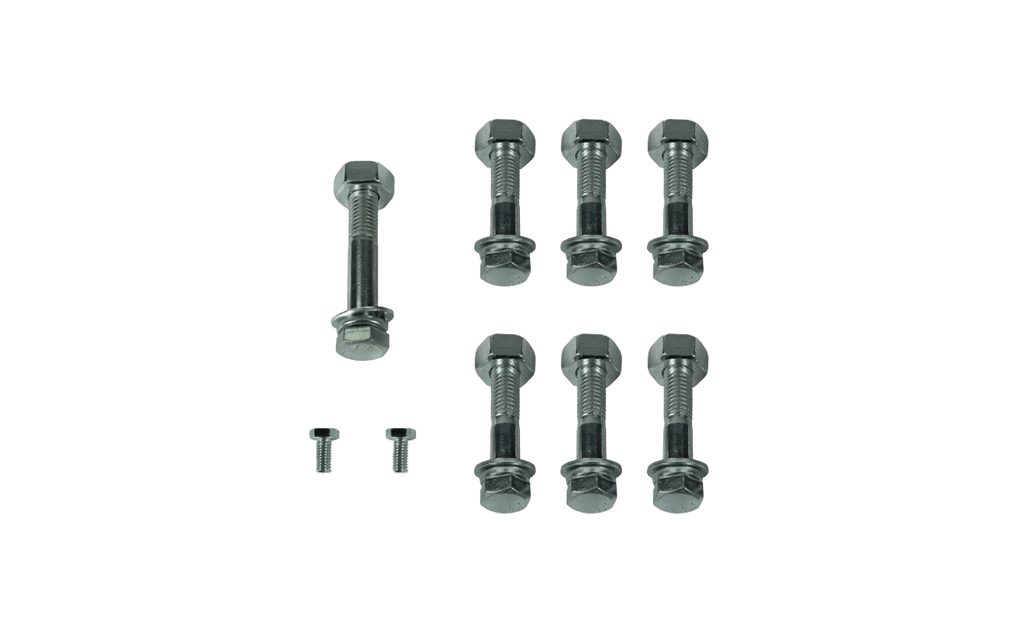

[9] Clamping bolt Ml2x60 (6 pcs) Class 8.8
[IO] Clamp M12x70 (1 pc) Class 8.8
