Features
- PROFESSIONAL DESIGN – Built for the professional operator meeting the requirements of EN 14492:1.
- ROPE:DRUM – Wire rope to drum ratio of 10:1 with twin hole rope fixing.
- INCREDIBLE POWER – Line capacity of 11574lb or 5250kg, with a pull of 4.9m per minute at full load!
- HARD-WEARING DESIGN – Features full sealing, stainless steel fairleads and fittings for long-lasting power.
- ROPE GRADE - 2160N/mm2 Rope grade with 2:1 rating.
- SMART FEATURES – Comes with an emergency stop remote handset for smart usage.

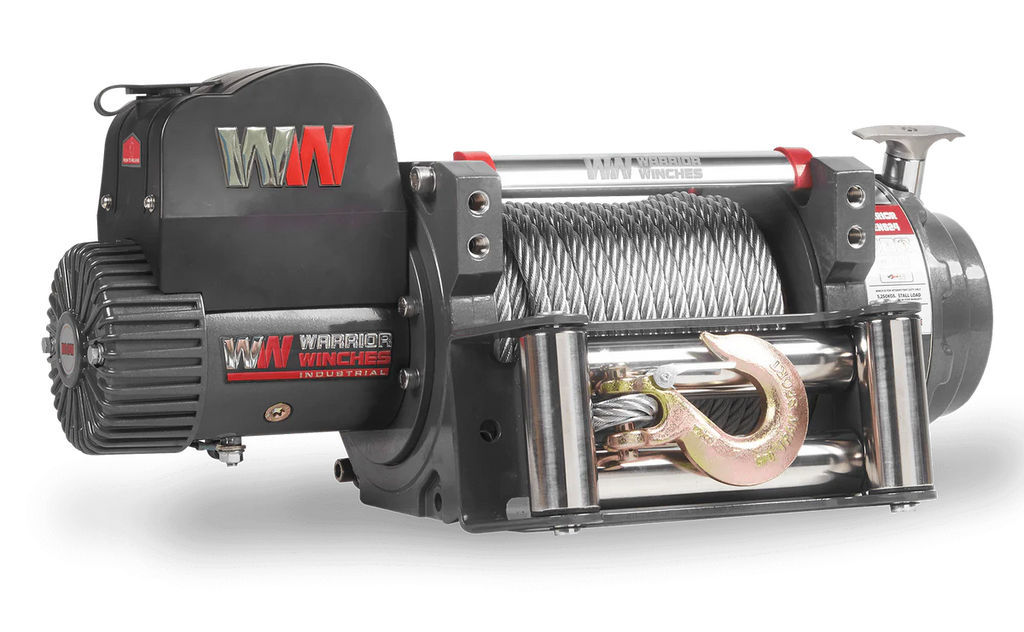

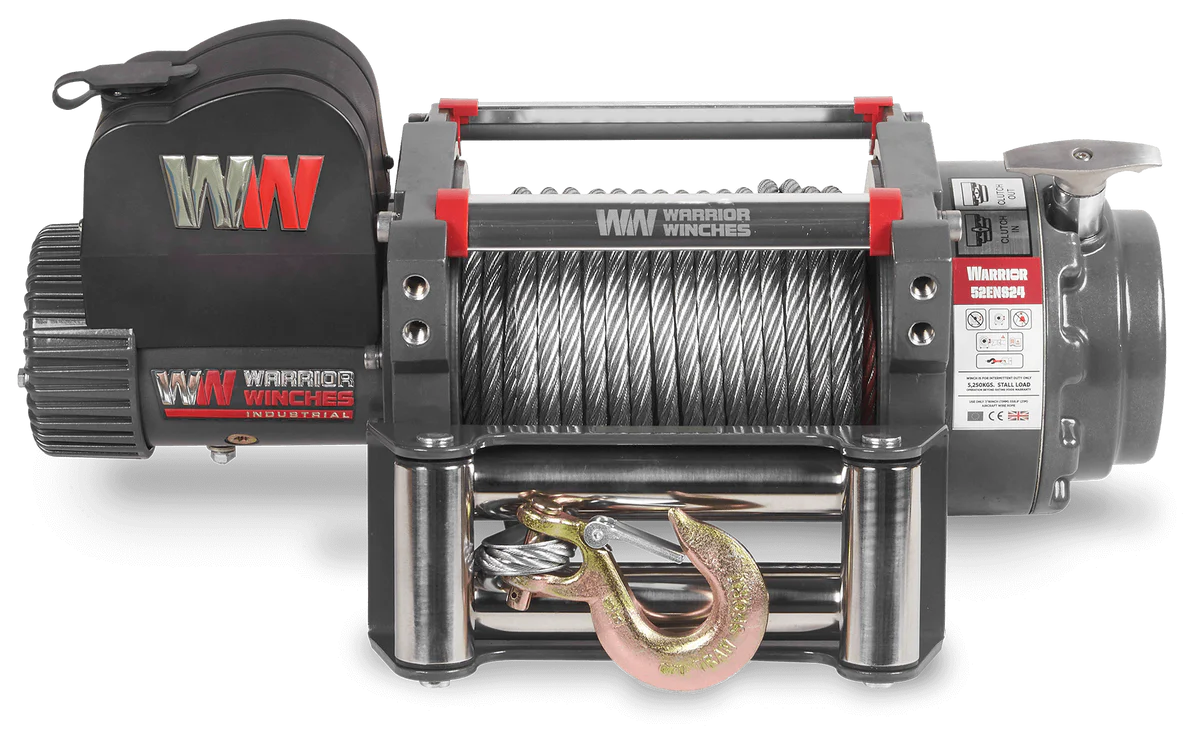

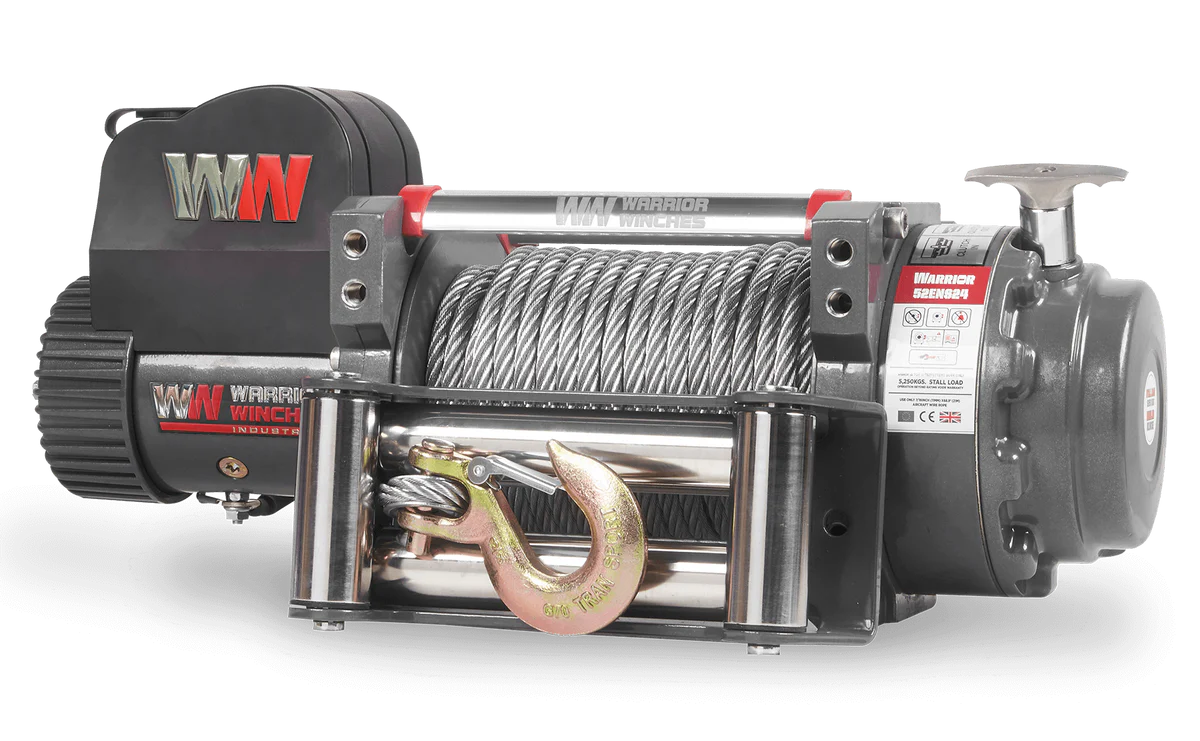

Warrior 5250EN Electric Winch with Steel Cable
Designed and developed for the professional operator, the EN series winches are the highest of quality. Ensuring they meet the requirements of EN 14492:1, they seamlessly fit into an installation solution for any job.
Featuring a wire rope to drum ratio of 10:1, it also benefits from twin hole rope fittings. The 2160N/mm2 rope itself is graded with a 2:1 rating to ensure strength and quality.
Built to last, like all Warrior winches, the 5250EN is heavy-duty and hard-wearing. Reinforced with full sealing, stainless steel fairleads and fittings for reliable power whatever the conditions.
All this with a line capacity of 11574lb and either a 12v or 24v high-power motor – you’re guaranteed to enjoy high-quality, reliable power.
Standard Features:
♦ Line Capacity: 11574 lbs (5250 kg)
♦ Rope: 11mm x 21m (0.43 in x 69 ft)
♦ Motor: 12v or 24v
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 12 Month Return to Base Warranty
Accessories:
♦ Wired Hand Control: 3.8m Remote Handset
♦ Wireless Control: Available as an optional extra
♦ Mounting Plate: Available as an optional extra
♦ Roller Fairlead: Heavy Duty Stainless Steel
♦ Mounting Bolts: Included for Standard installations
♦ 1.5m Heavy Duty Battery Leads (May need extending dependent on application)
♦ Instruction Manual
Other Information:

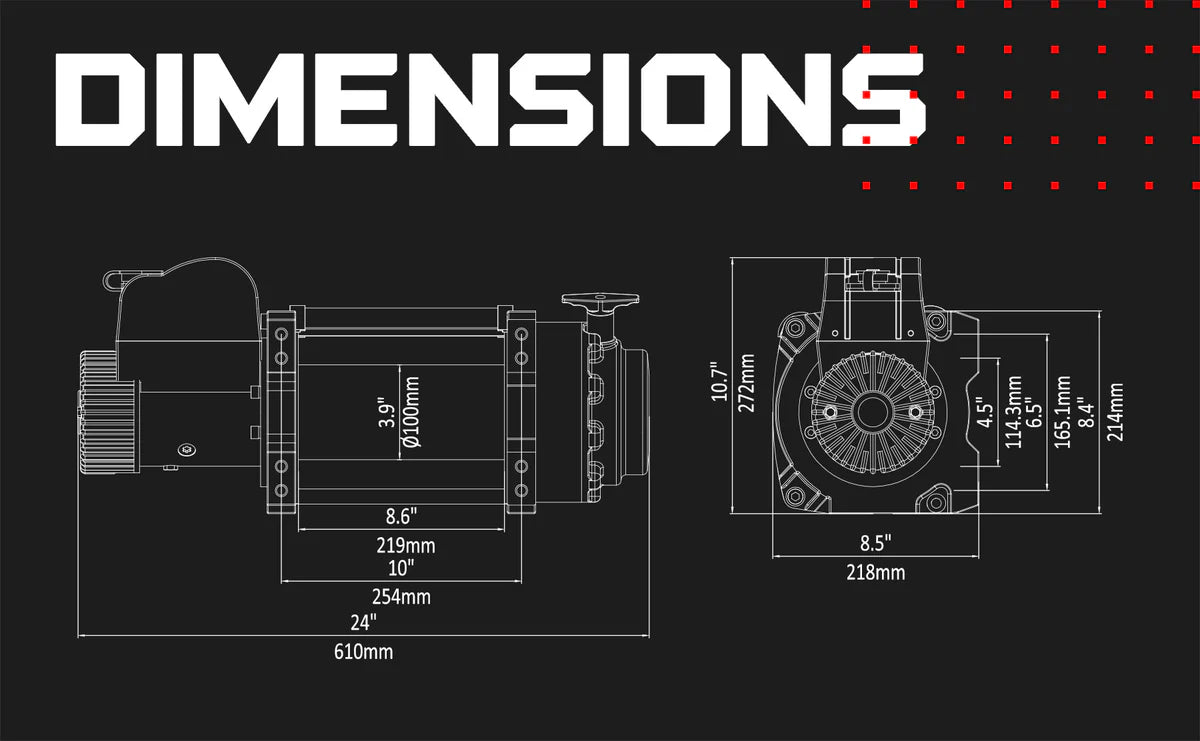

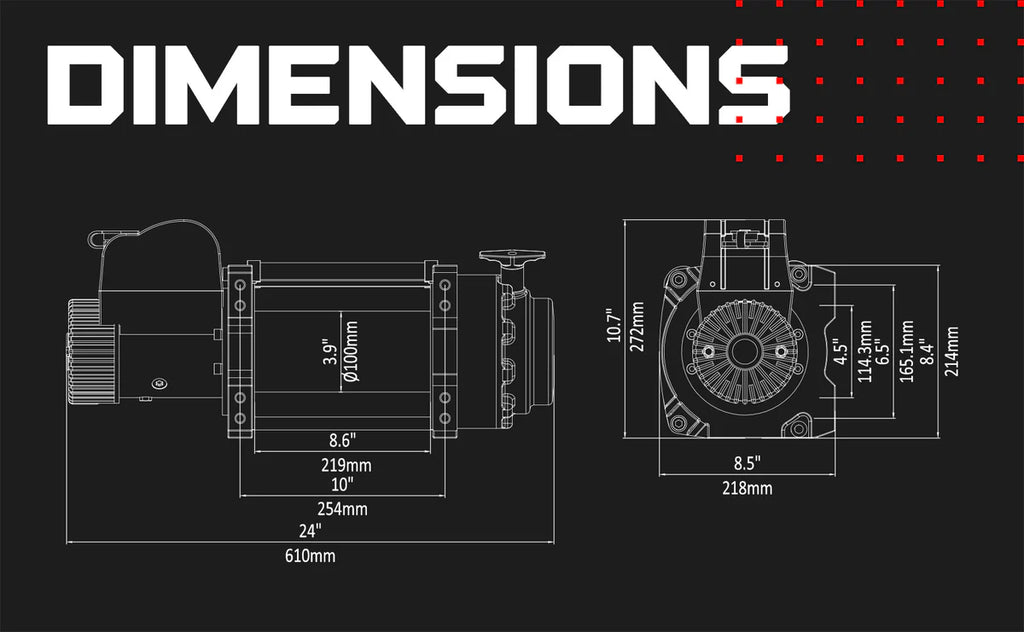

♦ Dimensions: 610 x 218 x 272mm
♦ Mounting Bolt Pattern: 254 x 114.3mm
♦ Approx. Shipping Weight: 60kg
♦ Line Pull - No Load: 14.4 m/min (80 Amps)
♦ Line Pull - Full Load: 4.9 m/min (280 Amps)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
| Rated Line Pull | 11574 lbs (5250 kg) |
|---|---|
| Motor | 12v : 7hp / 4.9kw - 24v : 7.9h |
| Gearing | 430:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 100 x 219mm (3.94 x 8.62 in) |
| Cable - Dia x L | 11mm x 21m (0.43 in x 69 ft) |
| Dimensions | 610 x 218 x 272mm (24.02 x 8.6 x 10.7 in) |
| Mounting Pattern | 254 x 114.3 mm (10 x 4.5 in) |
| Weight kg | 65 kg (143 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 11574 (5250) |
| 2 | 9352 (4242) |
| 3 | 7848 (3560) |
| Line Pull lbs (kgs) |
Line Speed
12v ft/min (m/min) |
Line Speed 24v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|---|
| 0 | 14.4 (4.4) | 13.1 (4) | 80 | 70 |
| 2205 (1000) | 8.5 (2.6) | 9.1 (2.8) | 130 | 78 |
| 4409 (2000) | 6.9 (2.1) | 7.2 (2.2) | 180 | 108 |
| 11574 (5250) | 4.9 (1.5) | 5.2 (1.6) | 350 | 180 |

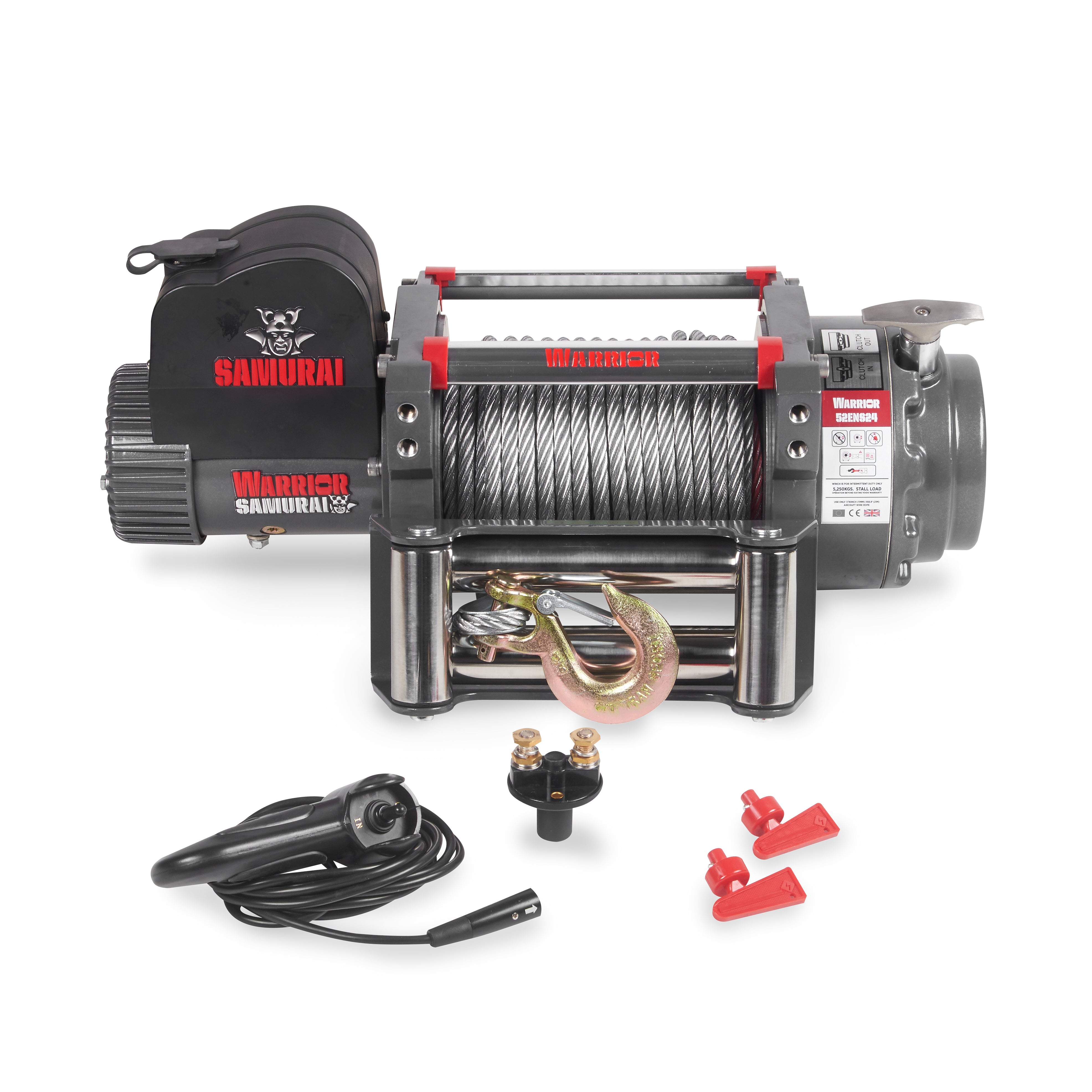

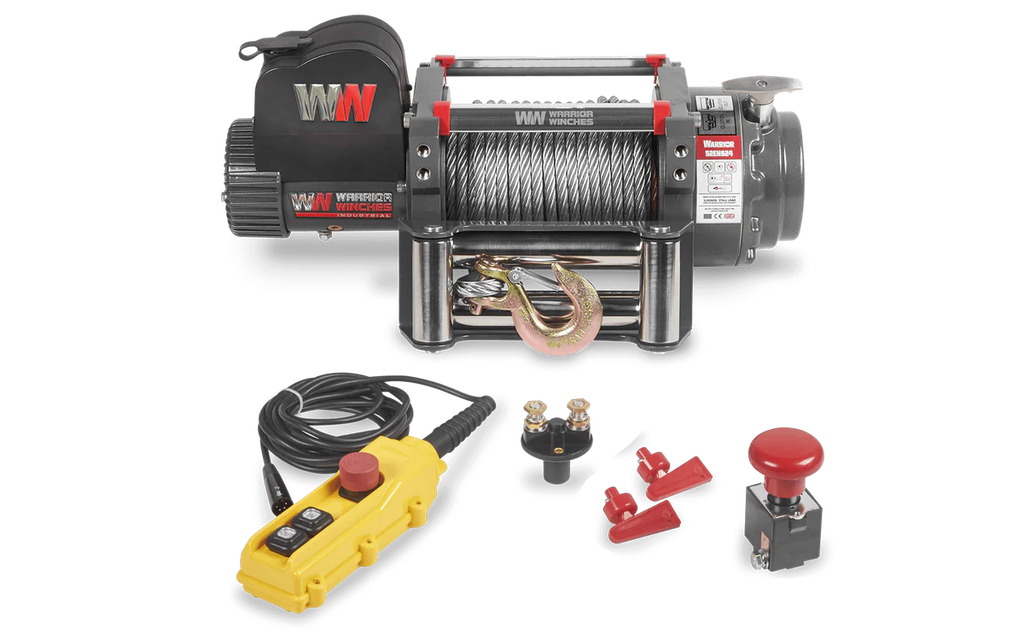

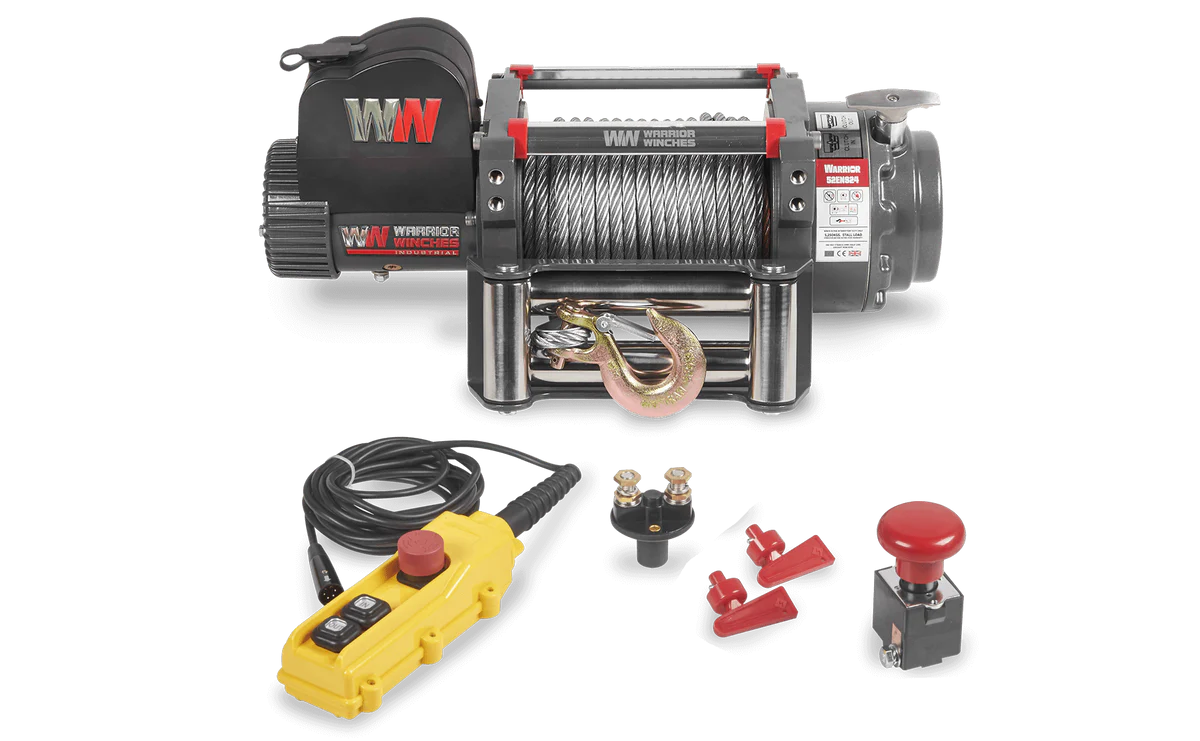

What's in the box:
- 3/8 Hook
- Heavy Duty Stainless Steel Roller Fairlead
- Steel Rope
- 3.8m Remote Handset
- Emergency Stop Button
- Heavy Duty Battery Leads
- Stainless Steel Mounting Hardware
Reviews and Q&A
-
What do I need to buy to make this wireless remote and is it plug and play
The warrior centurian wireless control kit is the recomended kit.
This would need to be wired in.
