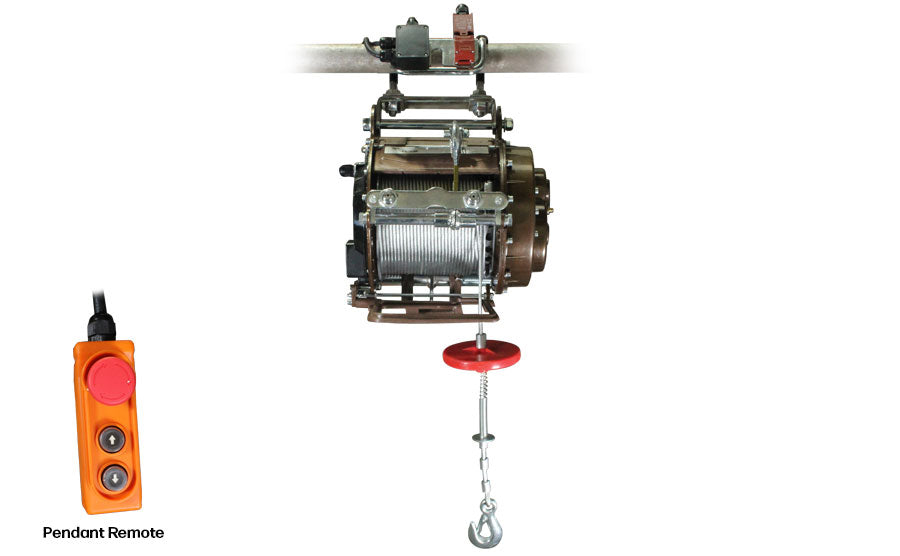

Warrior 500KG Scaffold Hoist - 110v Pendant Remote

|    1 Questions Answered
SKU: 110VSH500

Voltage: 110v
Price:
Sale price£341.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

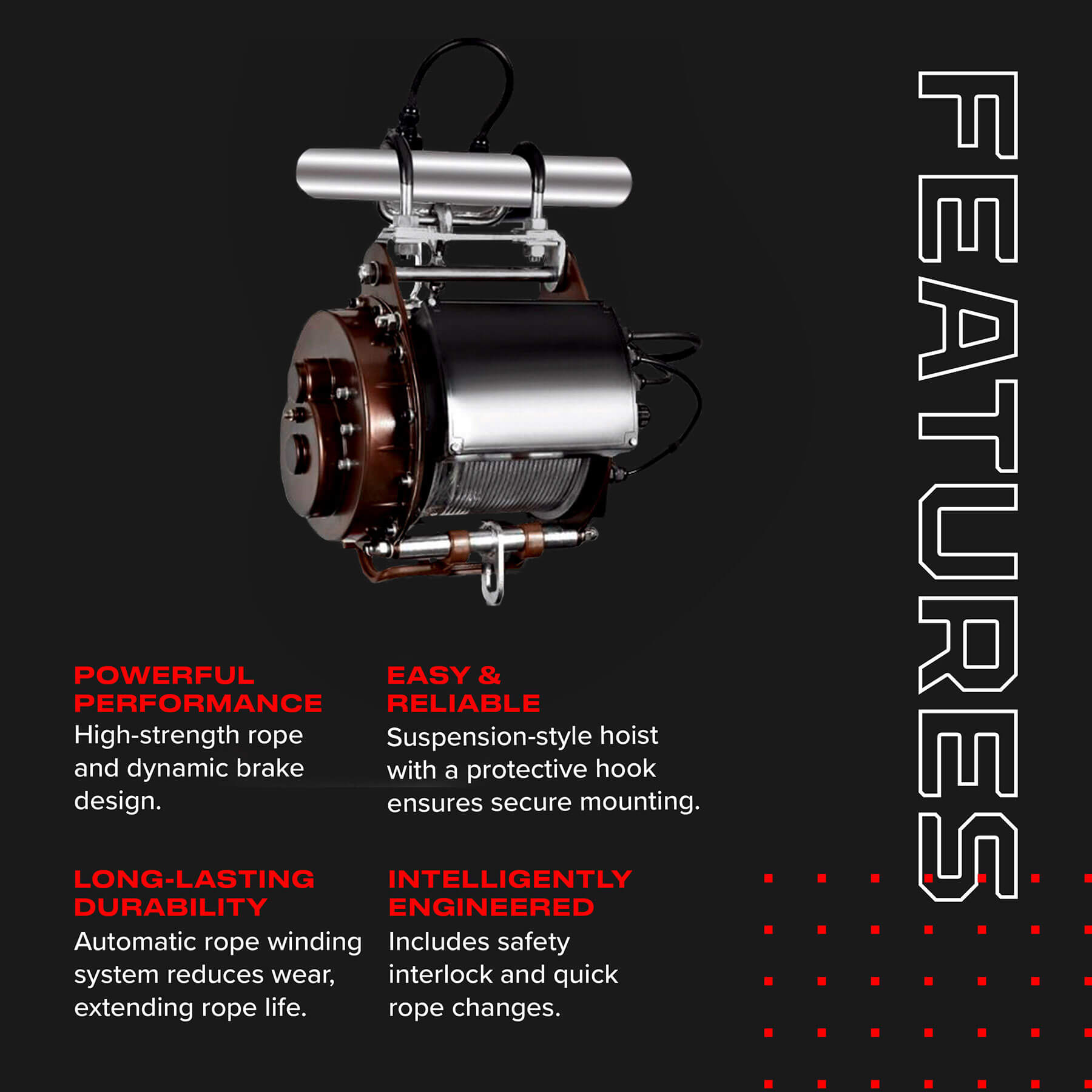

Features

  • CONVENIENT + RELIABLE – Suspending style hoist with added protection hook for easy mounting.
  • HEAVY DUTY – Safely lift 500KG with ease thanks to the super-strength rope and dynamic brake design.
  • LONG LIFE – The unique automatic rope winding system lines up the ropes with no mess to increase their life span.
  • PROFESSIONAL QUALITY – Combined with a suitable installation these hoists can conform to part of BS EN14492-1 and BS EN14492-2.
  • SMART DESIGN – This new hoist is full of smart features including interlock safety protection, and easy change ropes.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Warrior 500KG Scaffold Hoist - 110v Pendant Remote

A brand-new addition to the Warrior range, this portable hoist is packed with cutting-edge features and smart new design details. Made to hook onto scaffolding, this suspended-style hoist makes the job of getting materials from one floor to the next easier and safer. Thanks to the easy installation and added protection hook, safety is made simple.

Featuring 30m of cable, a pendant remote at a power level of either 110v, it’s ideal for builders and roofers looking to work smarter. And with a capacity of 500kg and a smart internal dynamic brake that holds the weight at both static and dynamic positions; it does the hard work for you.

Made with strong steel and a durable powder-coated finish, the hoist is made to last. With a smart new beating system that allowed free rotation of the cable drum and an automatic rope winding system that keeps ropes neat; both are made to extend the life span of the hoist.

The duty cycle of this winch is S3 – 20% on a 10-minute cycle. In plain English, that means this unit can be used continuously for 2 minutes before needing an 8-minute cooldown period. Thanks to the load-holding brake, you can pause without losing any progress or needing to disassemble.

Combined with a suitable installation these hoists can conform to part of BS EN14492-1 and BS EN14492-2 European standards, you can work with confidence.

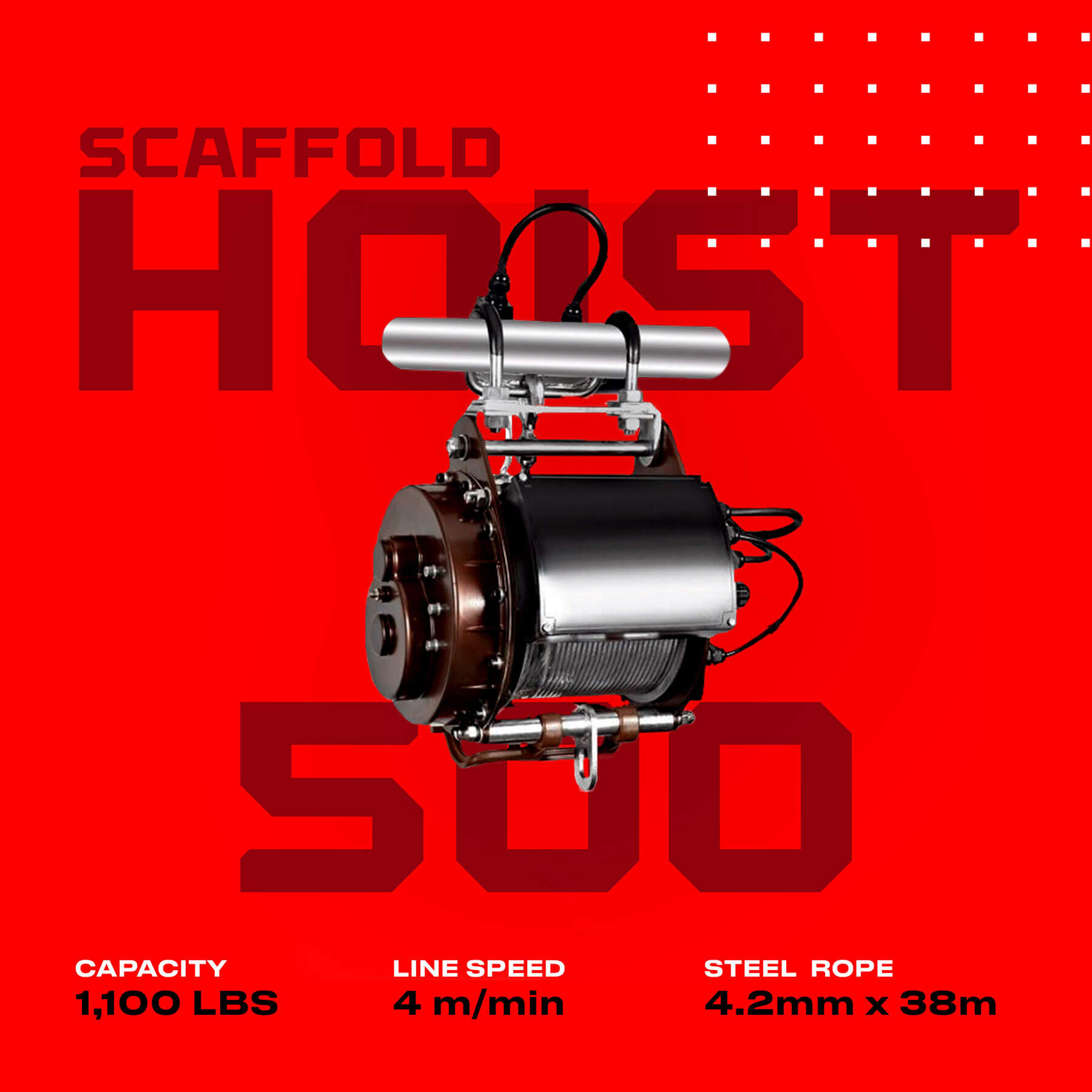

Specifications:

Maximum Lifting Capacity - 250kgs (36m) / 500kgs (18m) (Single Line / Double Line)
Cable Dia & Length - 4.2mm x 38m steel with swivel hook
Line Speed - 8m/min Single Line at 250kg / 4m/min Double Line at 500kg
Limit Switch For Safety - Upper & Lower
Hoist IP Rating - 54
Remote Length - 4m
Power Supply - 110v 16 amp 50Hz power supply required

Please note:  110v scaffold hoists will only run on 110v 50Hz used by most of Europe and cannot be used with USA 110v 60Hz transformers.


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull1102 lbs
Max Load500
Lift Height38m / 19m
Lift Speed8 / 4m p/min
Power1000
Cable MaterialSteel
Cable – Dia x L4.2mm x 38m
RatingIP65
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight36.0 kg
Warranty1 Years
CertificationCE



What's in the box:

  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Pendant Remote
User Manual Download

Reviews and Q&A

  • Can the wireless remote be added at a later date if the customer doesnt want the pendant remote?.

    Thanks for your enquiry.

    Yes, we sell wireless remotes for the scaffold hoists separately. The part codes are as follows: ACWRC110 or ACWRC240 (depending on the voltage hoist)
