Name: Warrior 500kg Electric Hoist - 240v
Brand: Warrior Winches
SKU: 240EHA500
Price: 144.99 GBP
Availability: InStock

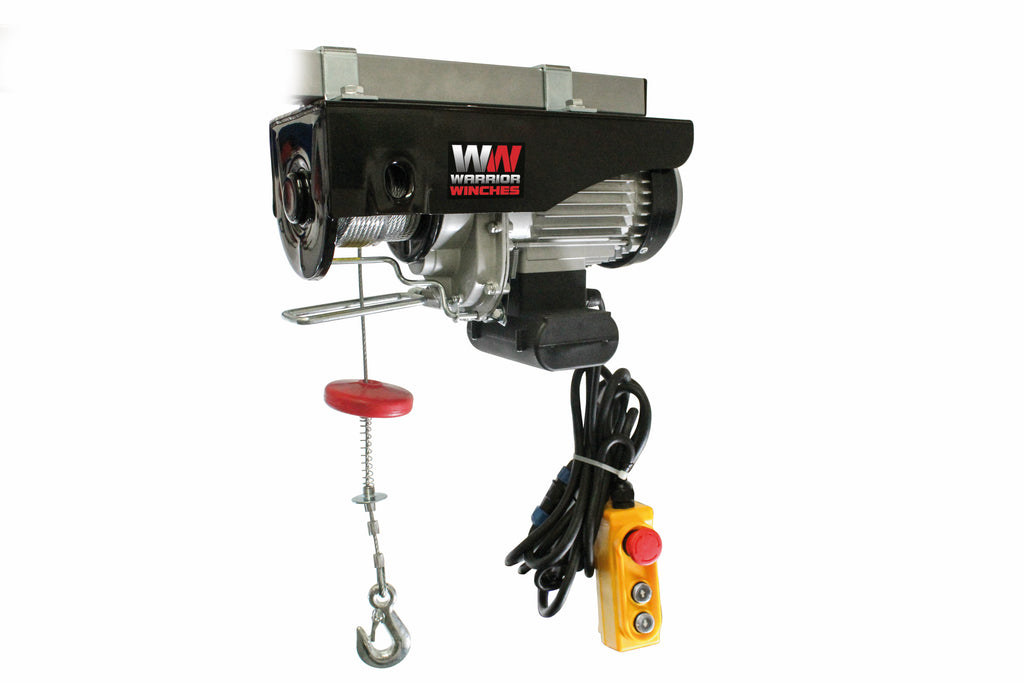

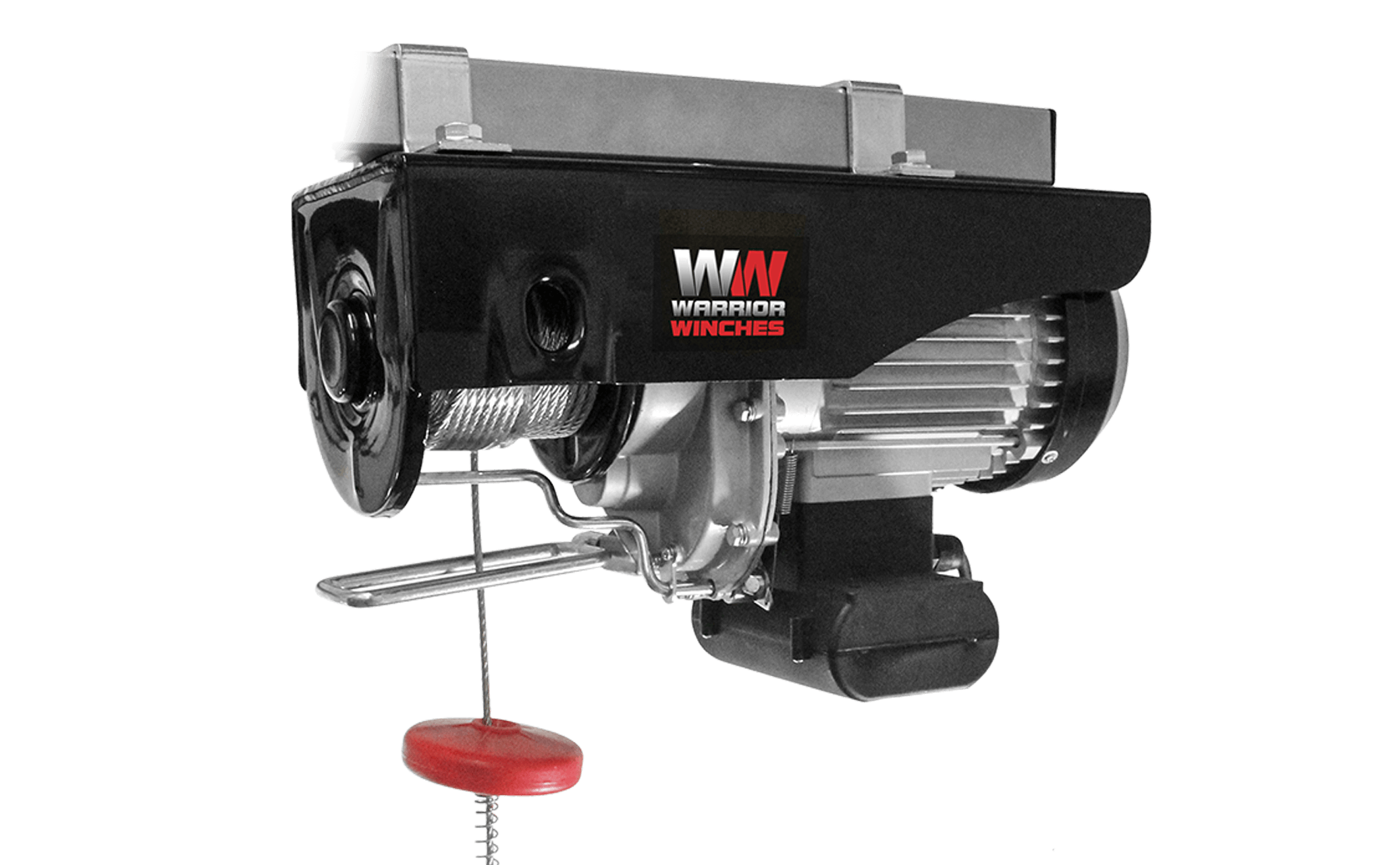

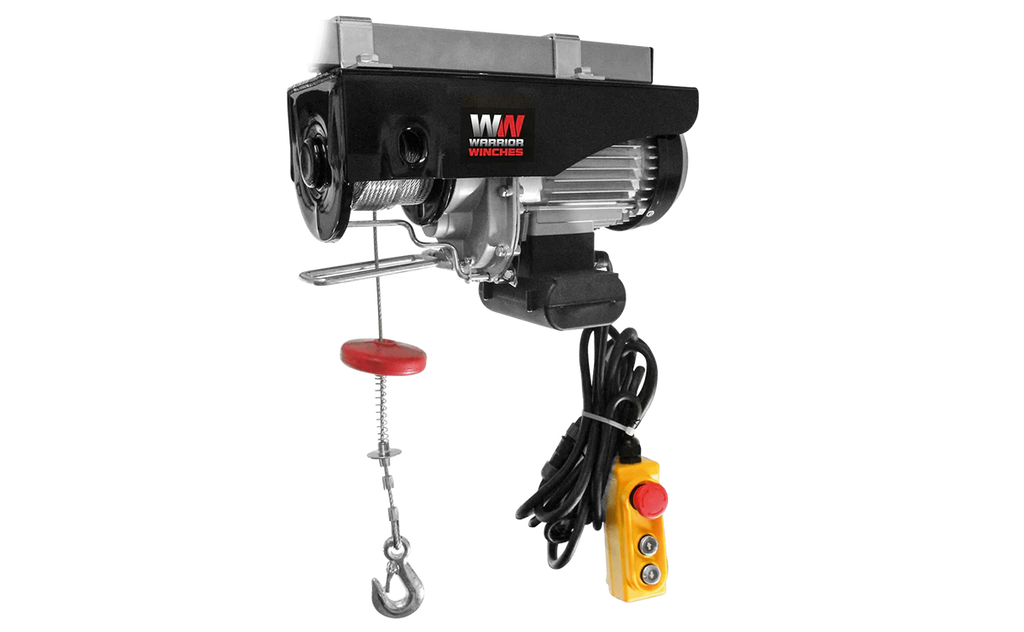

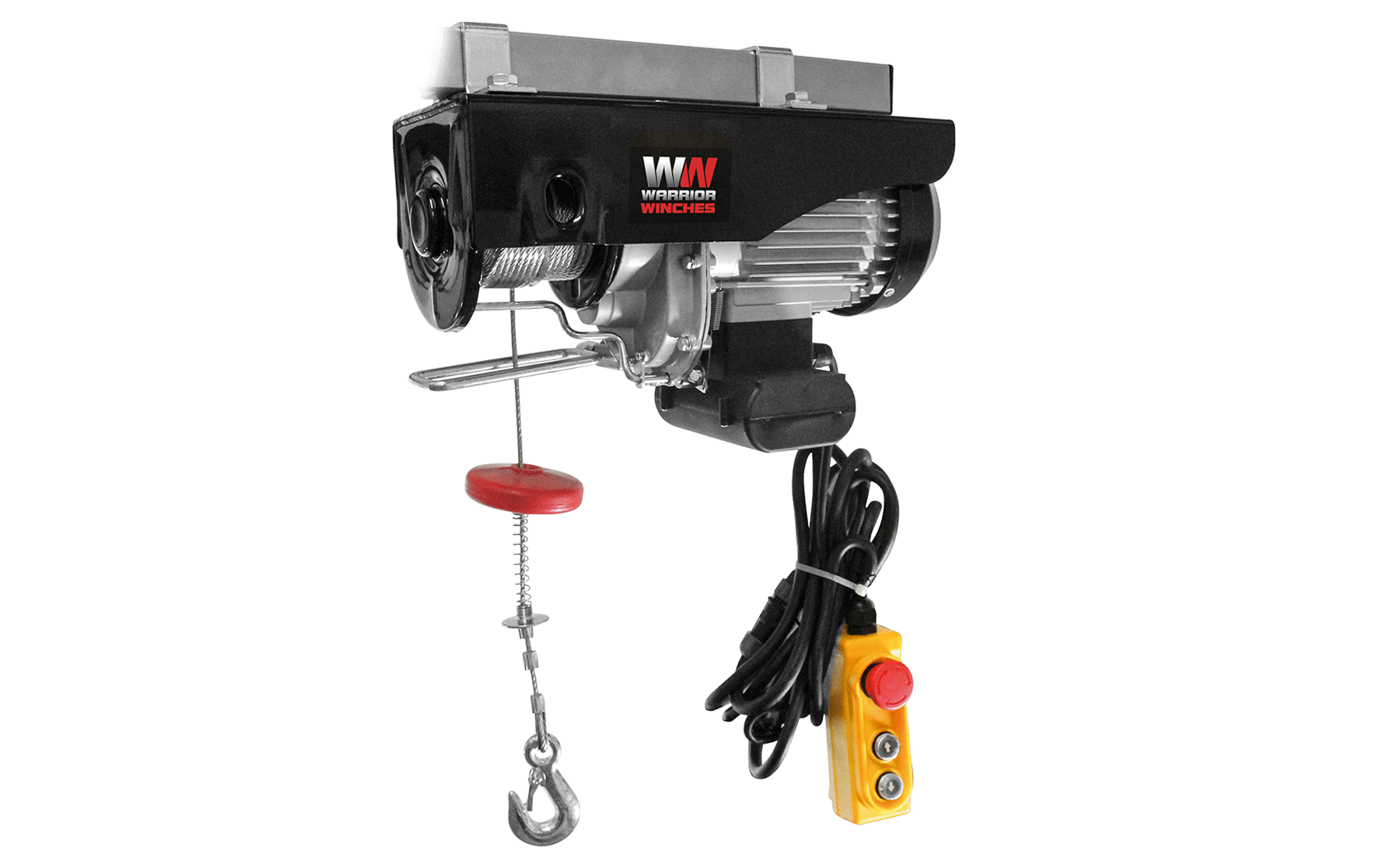

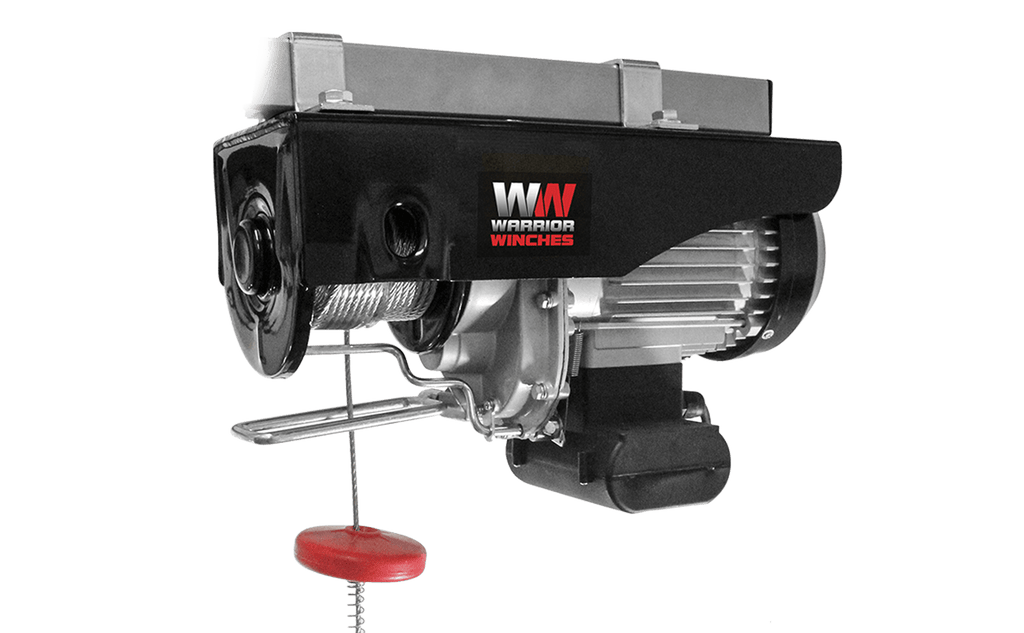

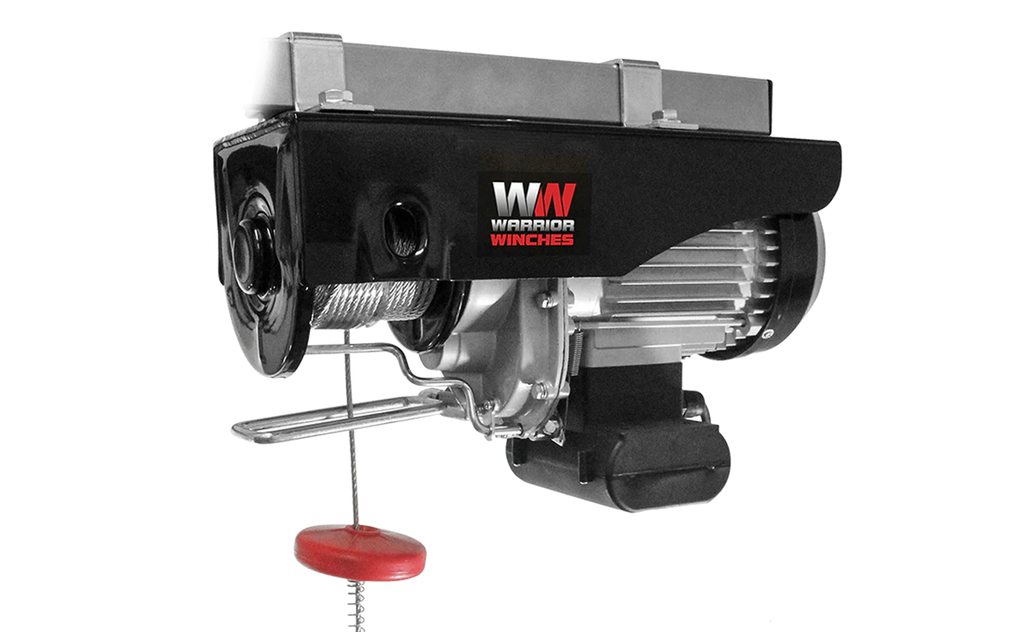

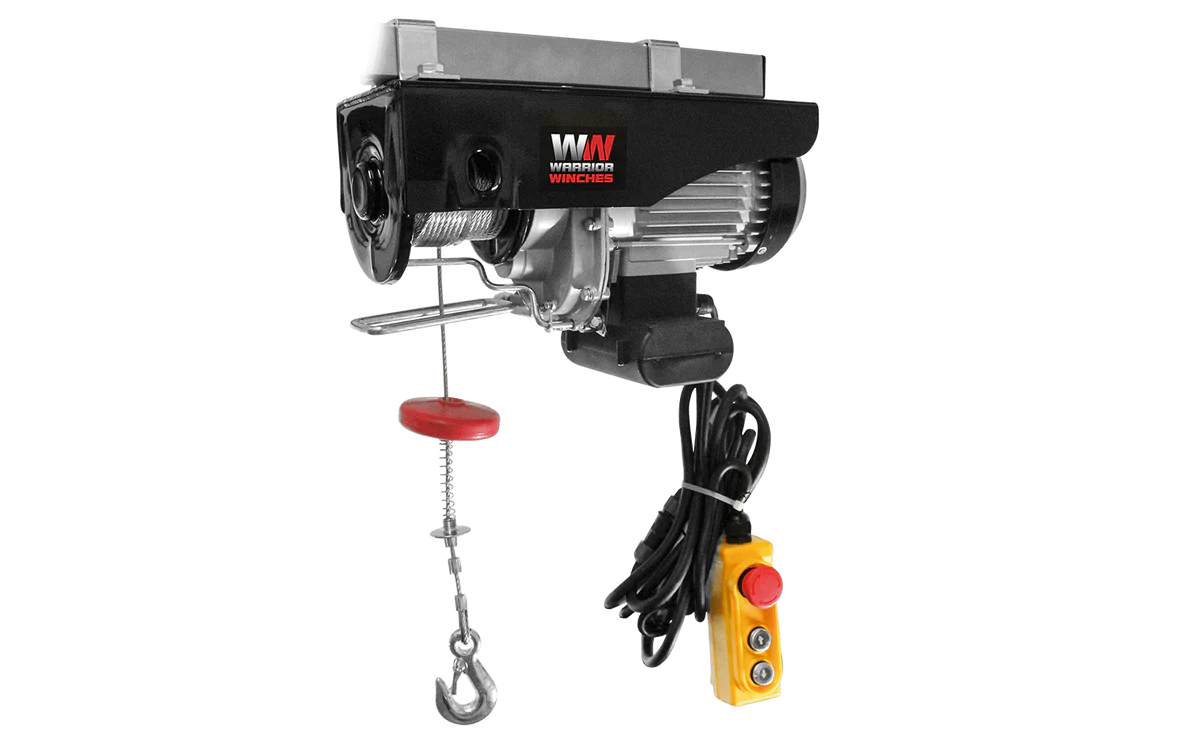

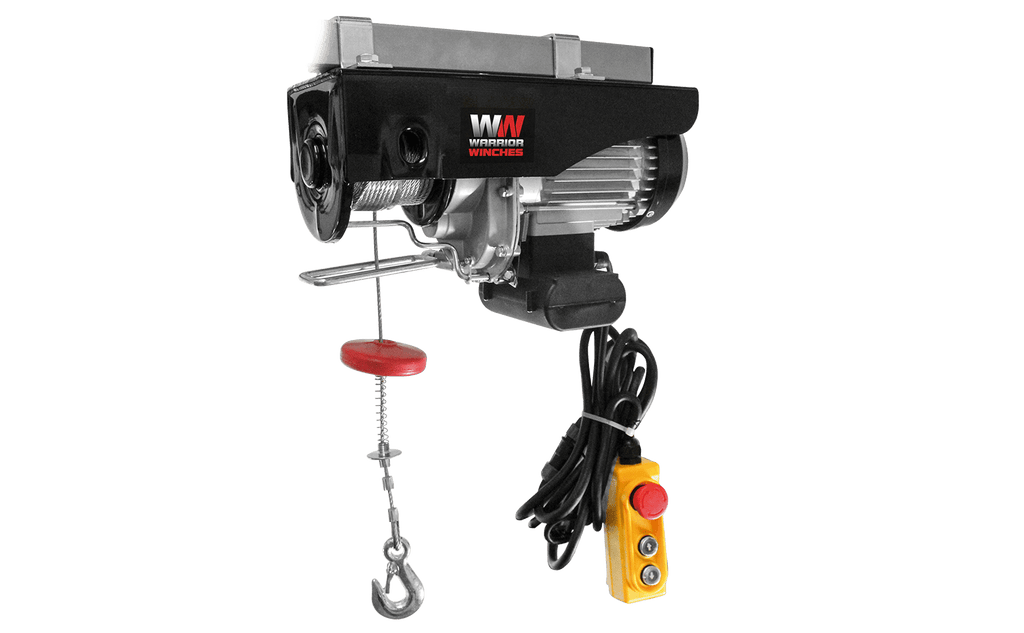

Warrior 500kg 240v Electric Hoist with Air Socket

Compact and versatile, Warrior have created a hoist with almost limitless applications. With a lift capacity of 500kg, and wattage of 240v, this electric hoist is ideal for all manner of jobs and lifting applications.

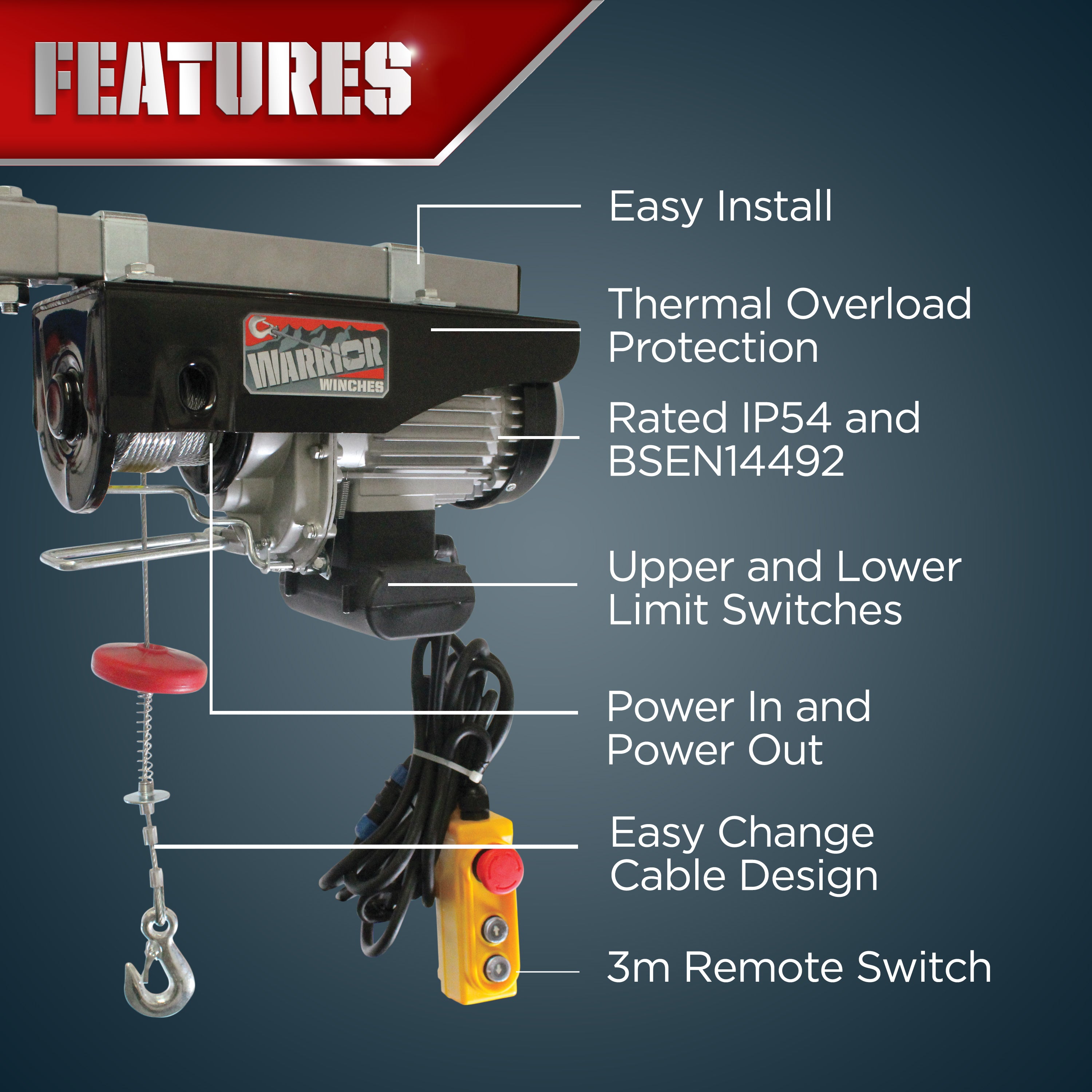

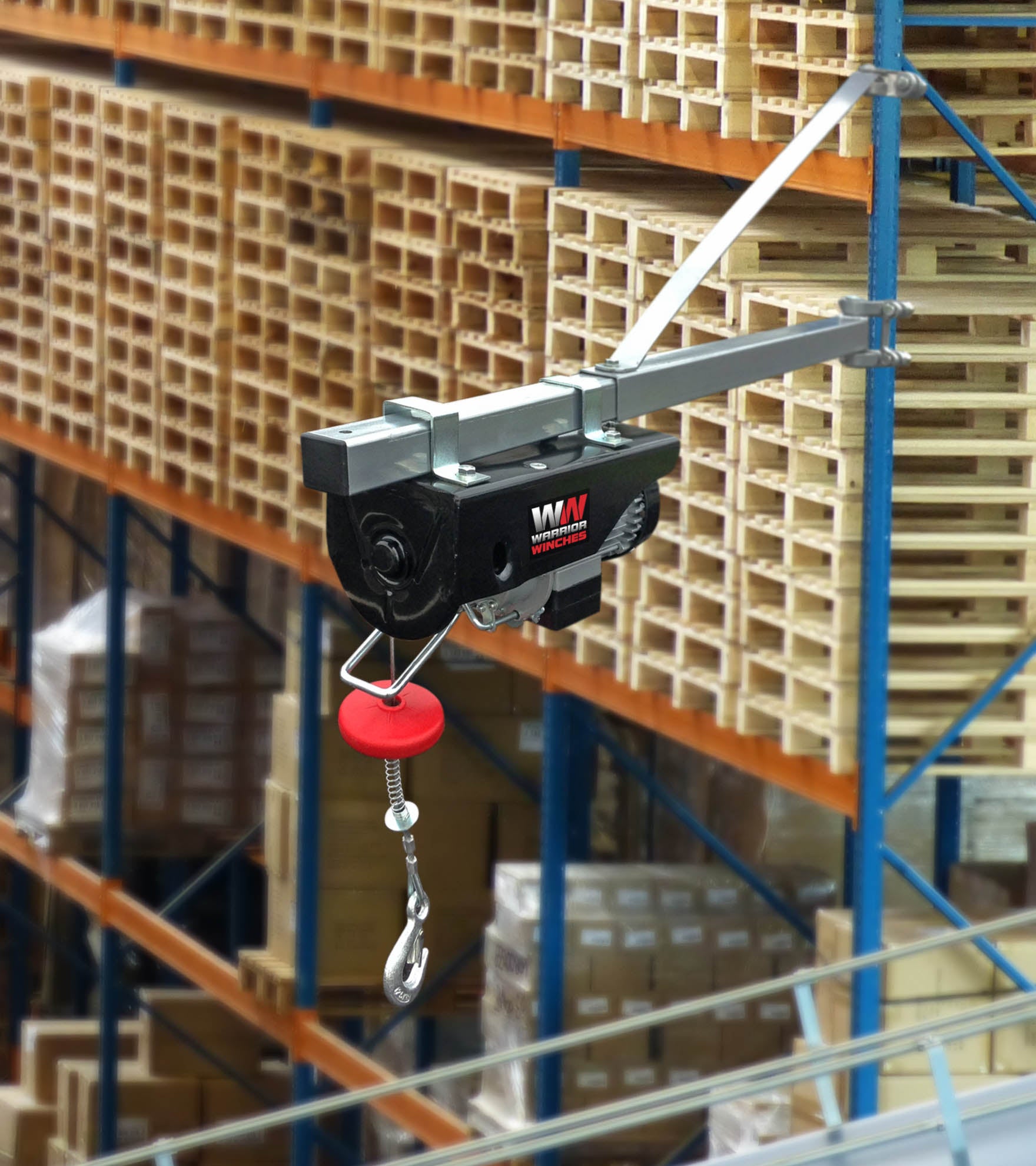

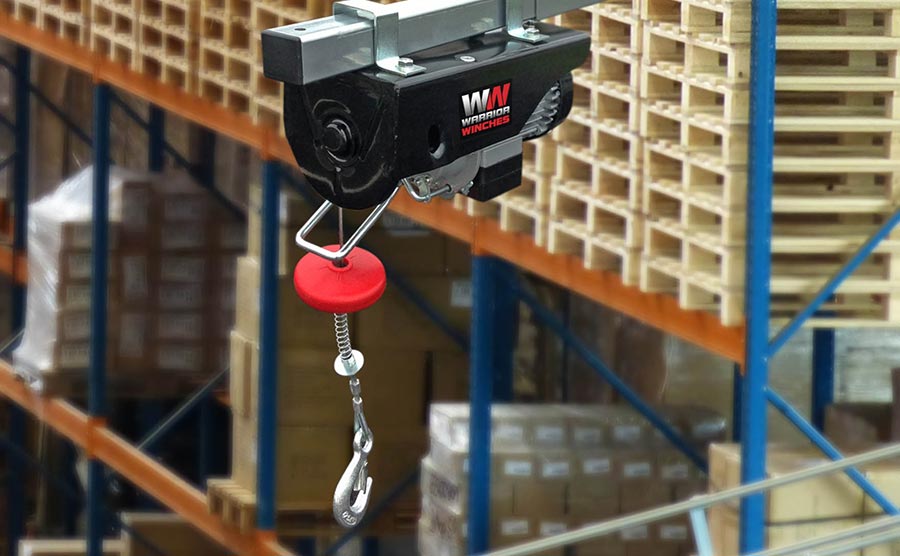

Design to be as easy to install as possible, the easy-change cable design makes set up a breeze. Designed to be mounted to a box section of up to 46mm x 46mm - you’ll be up and running in no time.

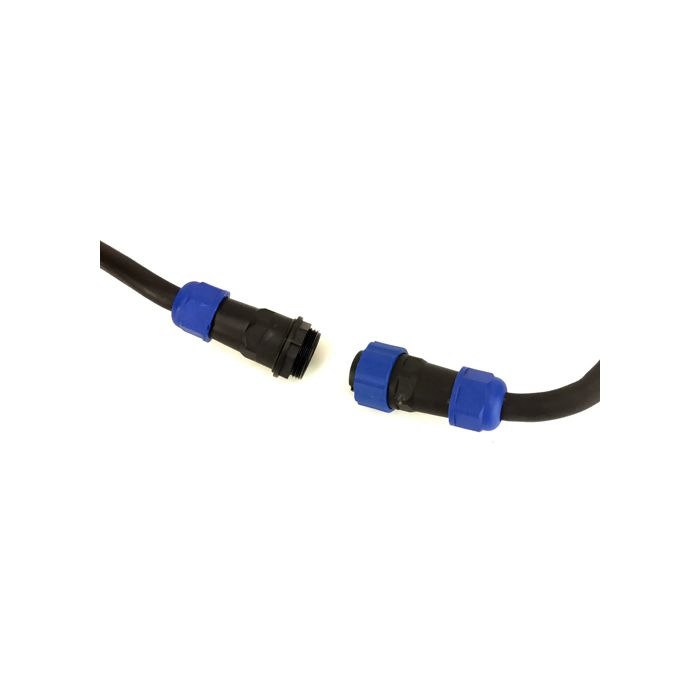

Giving you professional quality, the hoist conforms to part of BS EN14492-1 and BS EN14492-2 and is IP 54 rated for your confidence. Complete with a 2.75m long wired remote with power in and power out facility, you can get the job done safely and easily.

With a duty cycle of S3 – 20% on a 10-minute cycle; that basically means it can run continuously for 2 minutes and then requires an 8-minute cooldown. The load-holding break ensures your load is held safely during downtime, as Warrior is dedicated to safe and fuss-free usage.

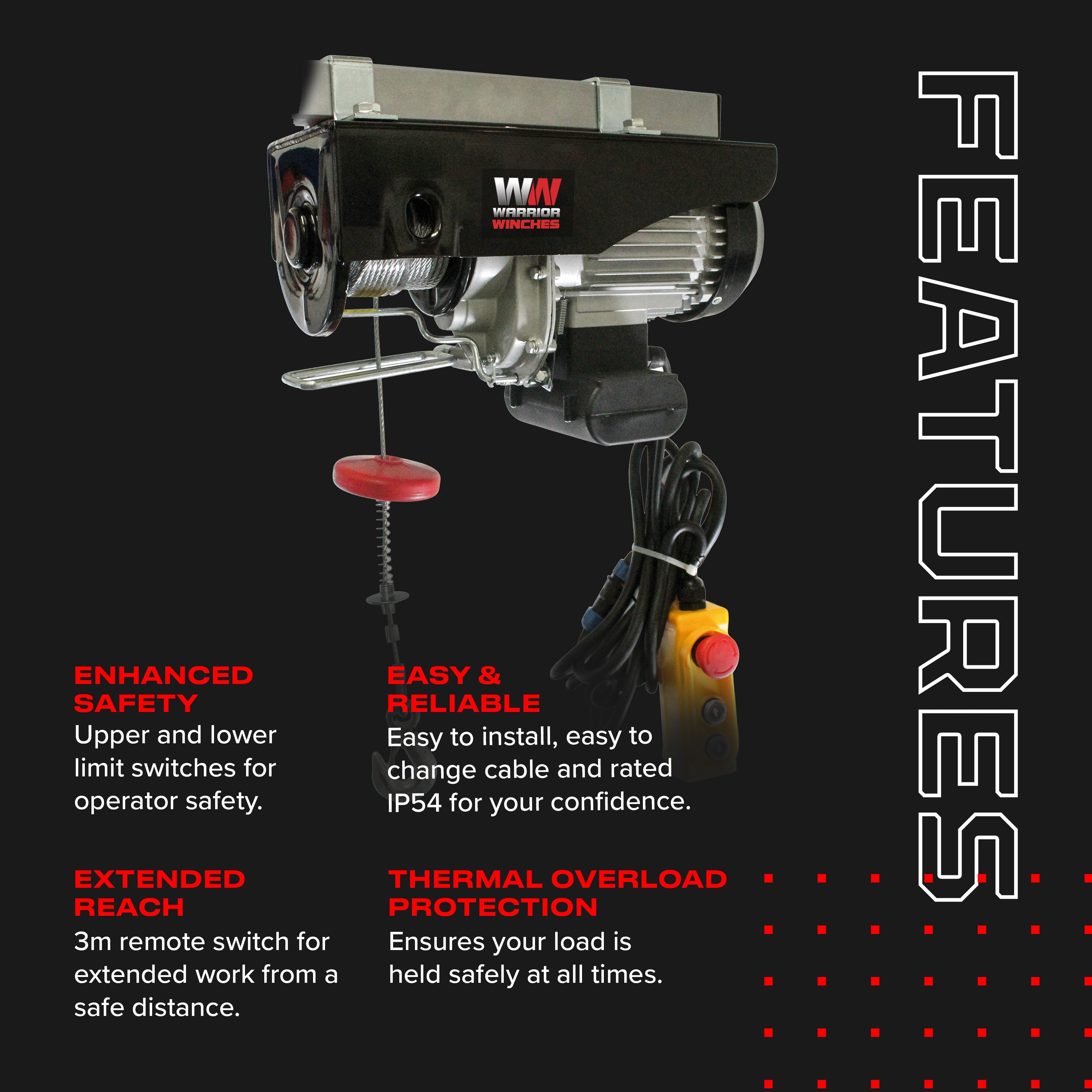

Standard Features:

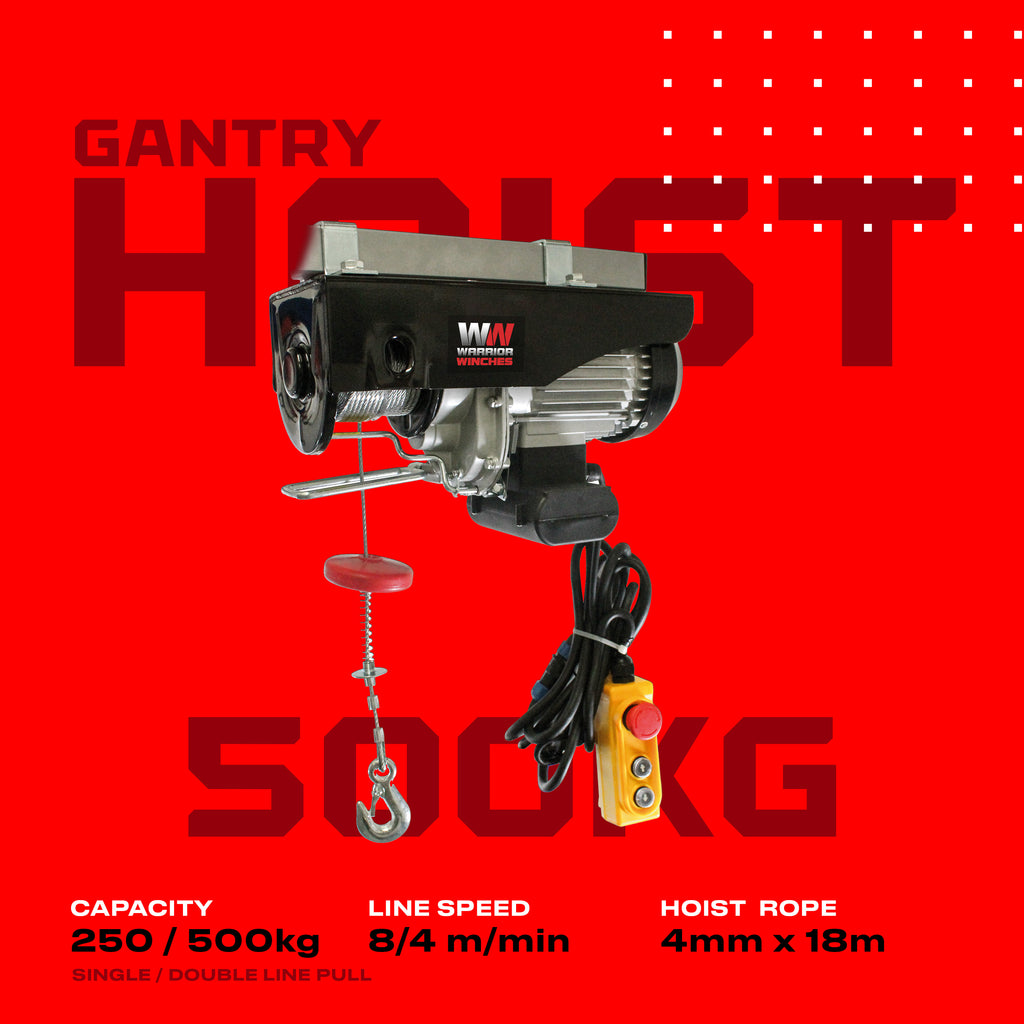

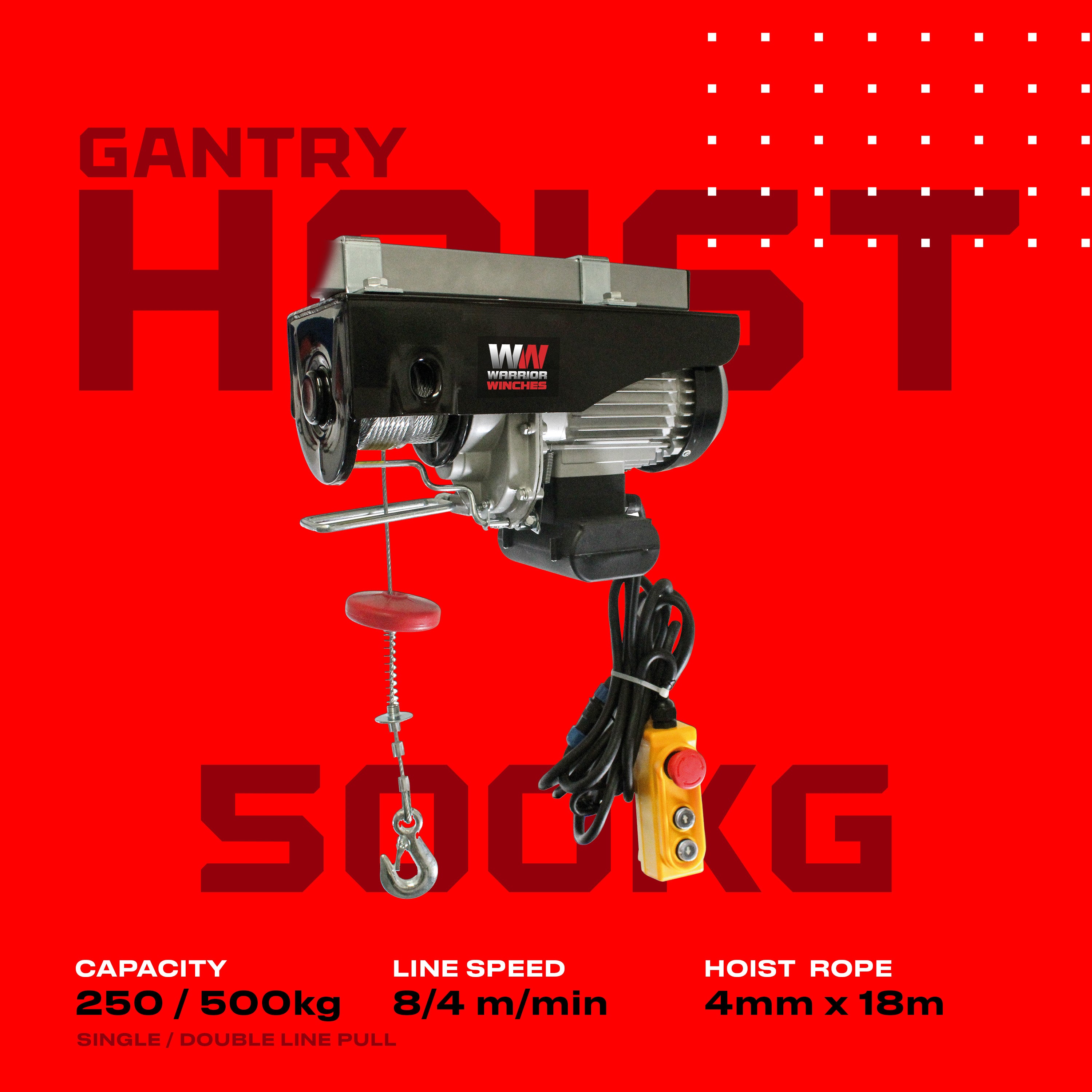

♦ Line Capacity: 250kg single cable, & 500kg double cable
♦ Lift Height: 18m metres single cable & 9 metres double cable (Using Included Pulley Block)
♦ Motor: Reversible 1000W 240v 50Hz Motor - Powers In and Out (Standard UK 3-Pin Plug - Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12 Month Return to Base

Accessories:

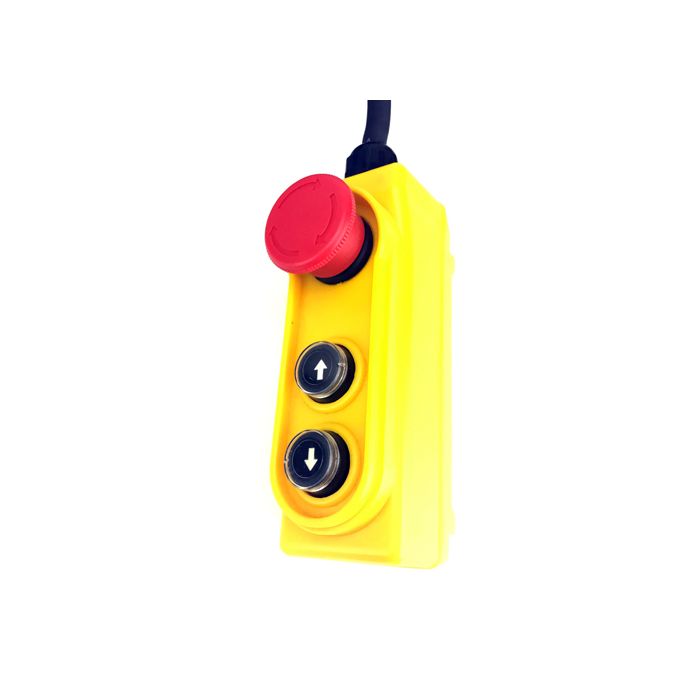

♦ Wired Hand Control: 2.75m Wired Hand Control with Stop Button
♦ Wireless Control: Available as an optional extra
♦ Mountings: Included for Standard 46mm2 Box Section installations

Also Includes:

♦ 3-Pin UK Plug on 650mm Flex
♦ Pulley Block for double line operation
♦ Instruction Manual

Other Information:

♦ Dimensions: 390mm L x 150mm D x 240mm H (510mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 18kg

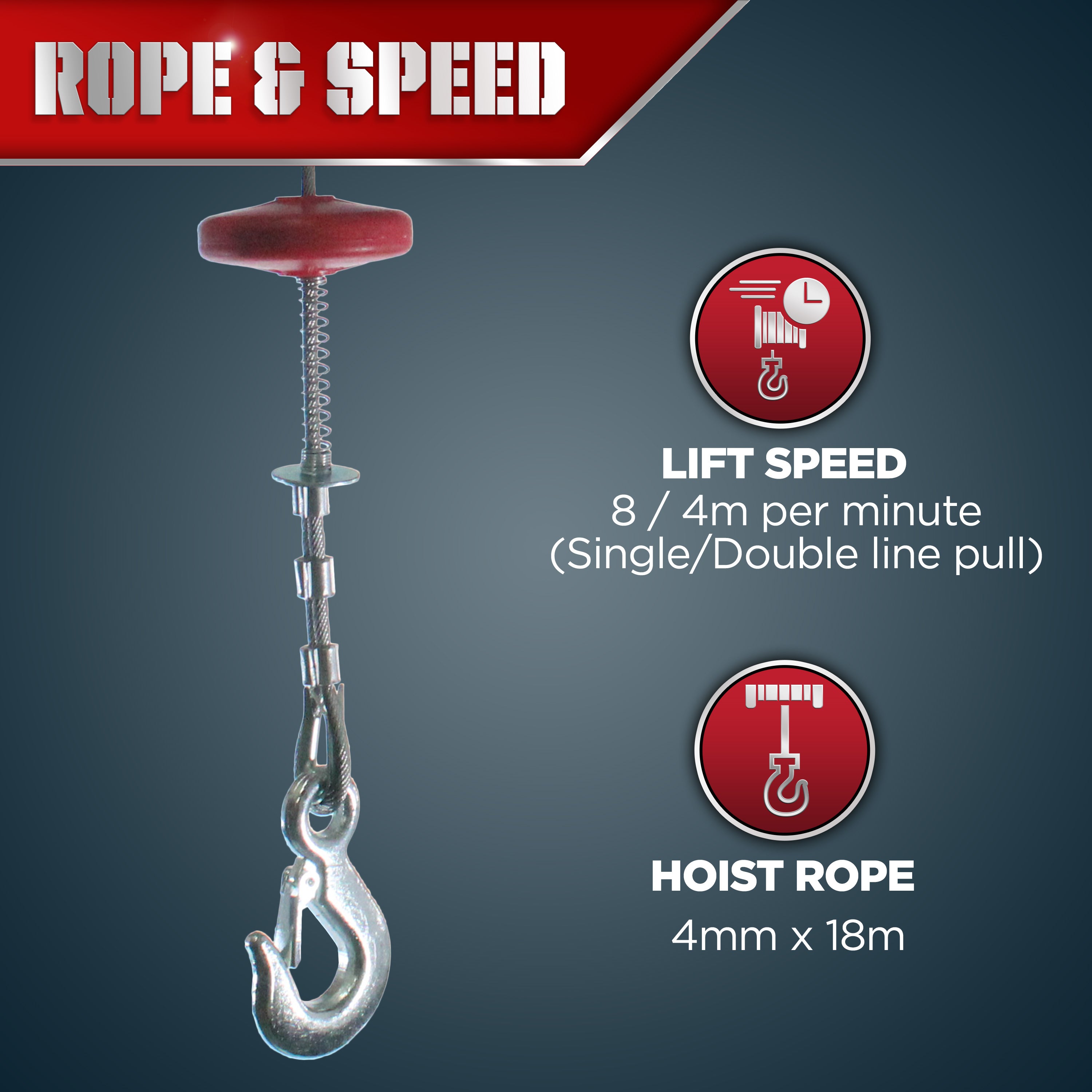

♦ Lifting Speed: 8m/min single cable & 4m/min double cable
♦ Casing Colour: Black

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku	240EHA500
EAN	5060423981138
Rated Line Pull	1102 lbs
Rated Volt	240
Max Load	500
Lift Height	12.0 m 12.0 m (Double line)
Lift Speed	8.0 m/min 4.0 m/min (Double line)
Power	1000
Controls	Wired Remote
Cable Material	Steel
Cable Size (Diameter x Length)	4mm x 18.0m
Limit Safety Switch	Integrated
Work Rate	ED 20%, 150s/h
Waterproof Rating (IP)	IP54
Dimensions	385 x 148 x 280 mm
Weight	16.5 kg
Warranty	1 Year
Certification	CE

What's in the box:

Electric Hoist
Steel Winch Rope with hook
3m Hand Remote Handset

Downloads:

User Manual	Download
Brochure	Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)

Examples:

Power Station Capacity	Device Power Usage	Estimated Run Time
1200Wh	400W	1200 ÷ 400 = 3 hours
1000Wh	250W	1000 ÷ 250 = 4 hours
500Wh	100W	500 ÷ 100 = 5 hours

Keep in mind:

This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
Ensure your device power usage is below the max rated watts the power station can ouput.
Always allow some buffer in your calculations to account for energy loss or variations in power draw.
Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

Device	Average Power Usage
Lamp	10
LED/LCD TV	150
Laptop	100
Desktop Computer	200 - 500
Modem/Router	20
Play Station	165

*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This products has a 1 Year Warranty

All Warrior purchases must be registered with Warrior Winches.

Register your winch here

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product BPE Holdings determines to be defective will be repaired or replaced at BPE Holdings sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes.

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.

	Warrior 500kg Mini Hoist - Replacement Steel Cable	Translation missing: en.part.general.sale_price £47.99

Questions & Answers:

Ask a Question

What is the size of the bolts to mount the hoist I have a track system. Thanks Glenn

Hi Glenn,

Thanks for your enquiry.

If you could please provide us with further information about your set-up via sales@bimsonpower.com .

Kind regards,
Bimson Power Support
Will the bracket on hoist fit on a scaffold tube

Hello,

the bracket included with this hoist is designed to be mounted to a box section of up to 46mm x 46mm.

Thanks

James.
Hi would this be any good for continuous uses like pulling buckets out of a basement one after another

Hello,

Thanks for getting in touch

With a duty cycle of S3 – 20% on a 10-minute cycle; that basically means it can run continuously for 2 minutes and then requires an 8-minute cooldown. The load-holding break ensures your load is held safely during downtime, as Warrior is dedicated to safe and fuss-free usage.

Thanks

James.
