Features
- HIGH POWER – Ideal for large ATVs and small trailers.
- POWERFUL + PROTECTED – High-powered motor sealed for protection.
- HEAVY DUTY – Features full steel planetary gearing and a strengthened steel drum.

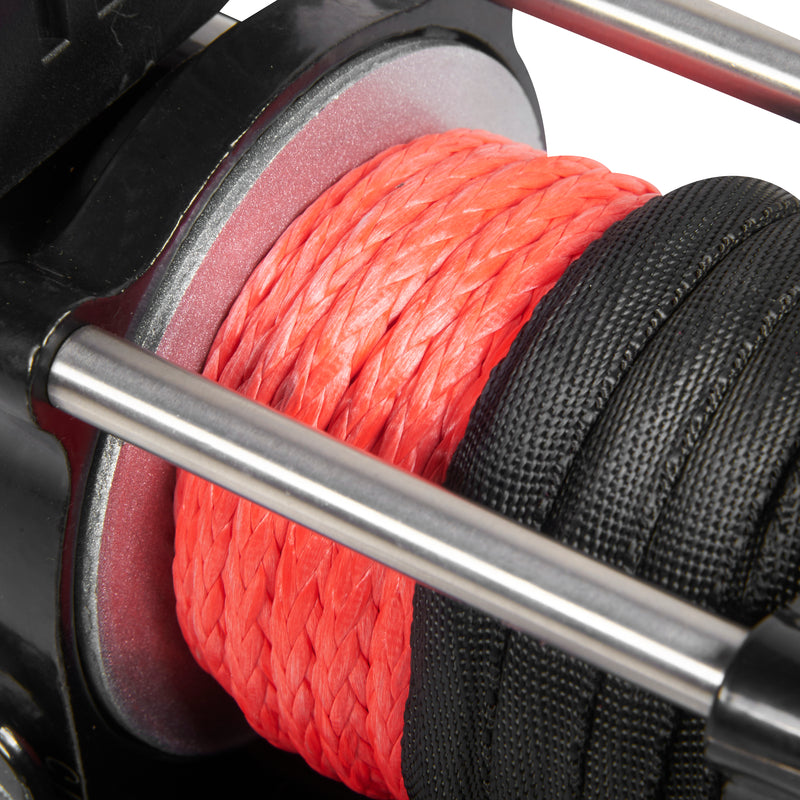

- ROPE CHOICE – Available with steel or synthetic rope.

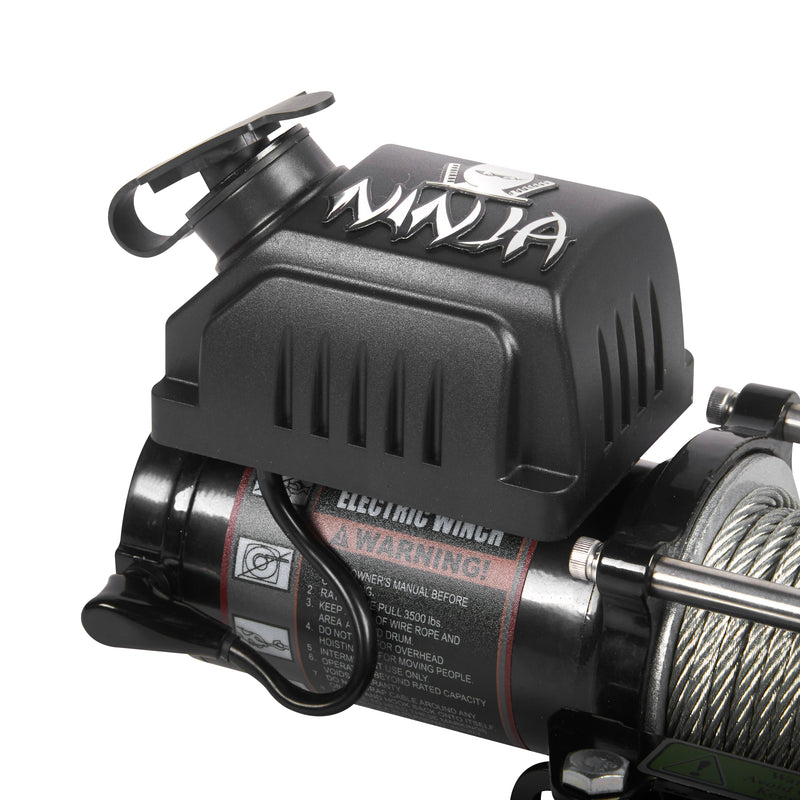

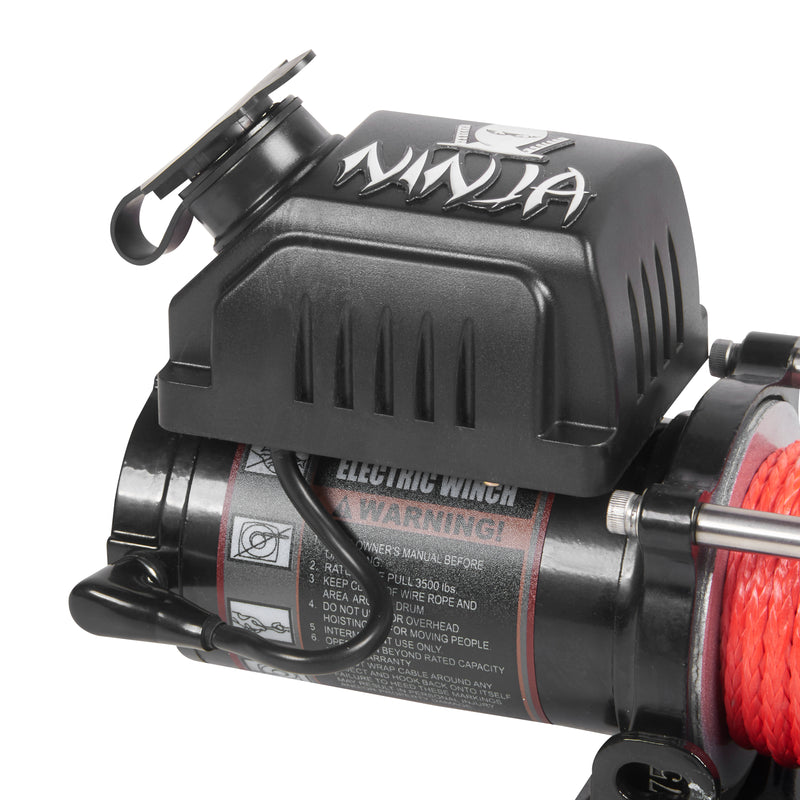

- ALL WEATHER – With watertight contactors and controller socket.
- LINE CAPACITY – 3500LB OR 1588KG capacity.

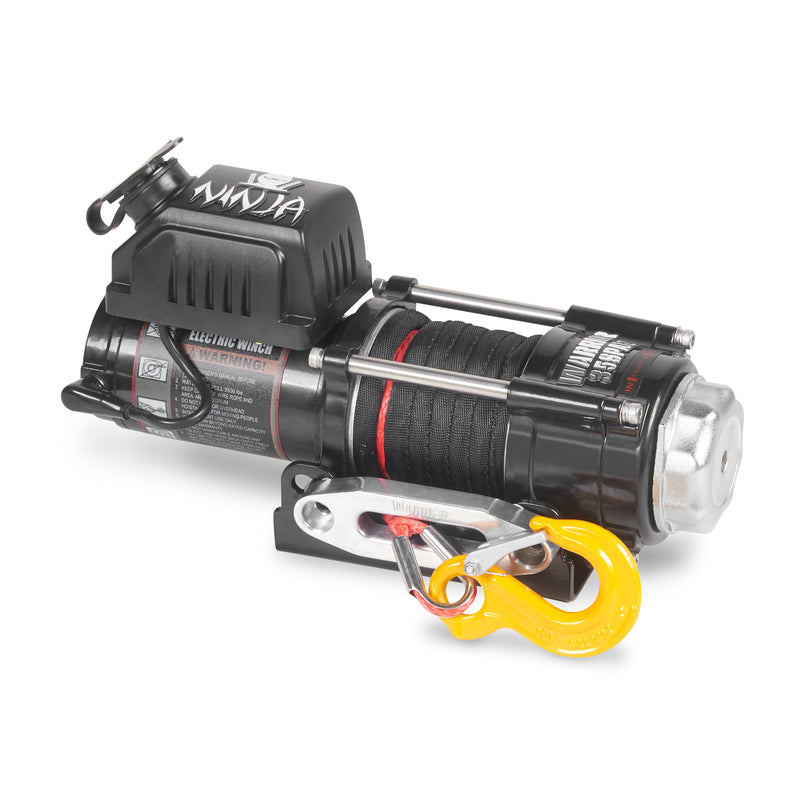

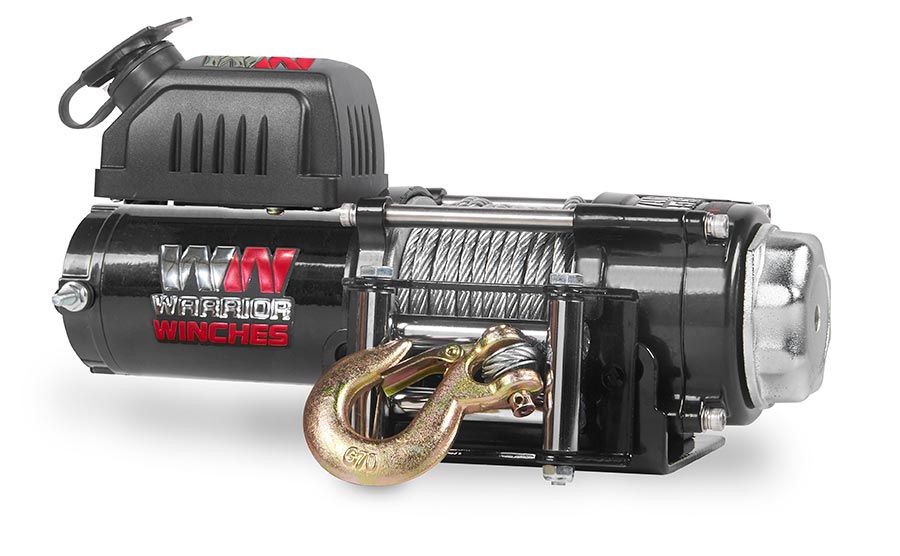

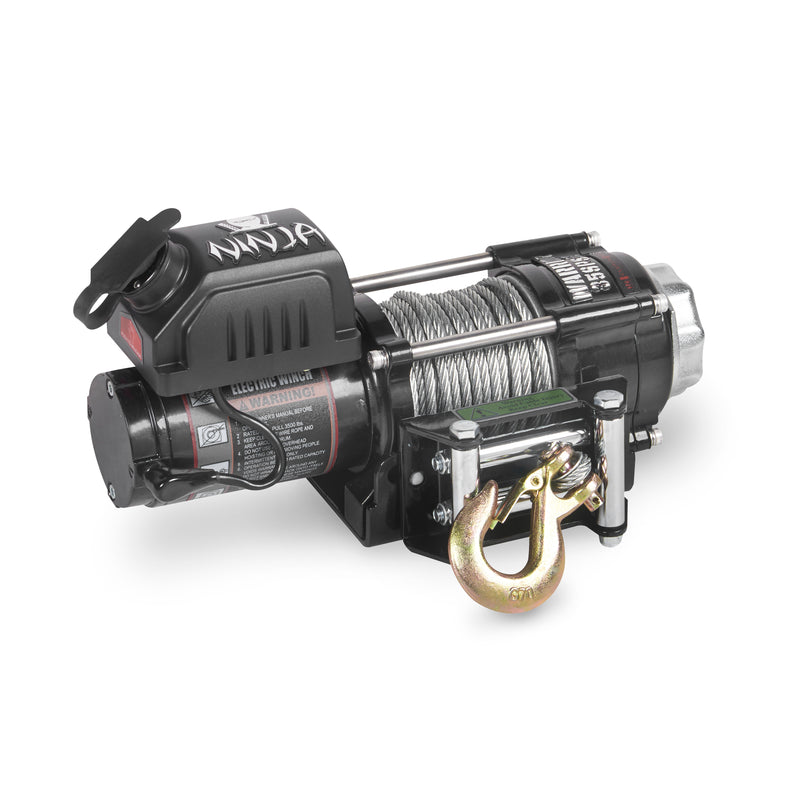

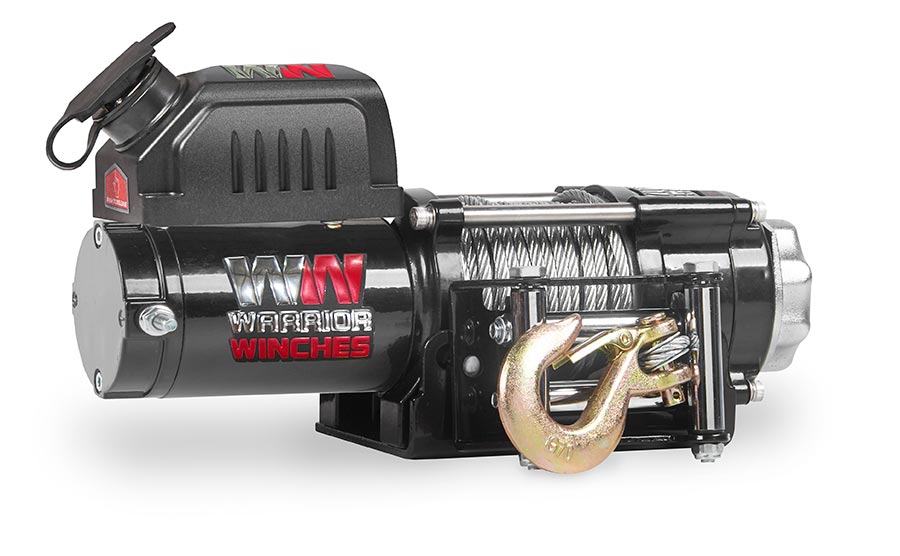

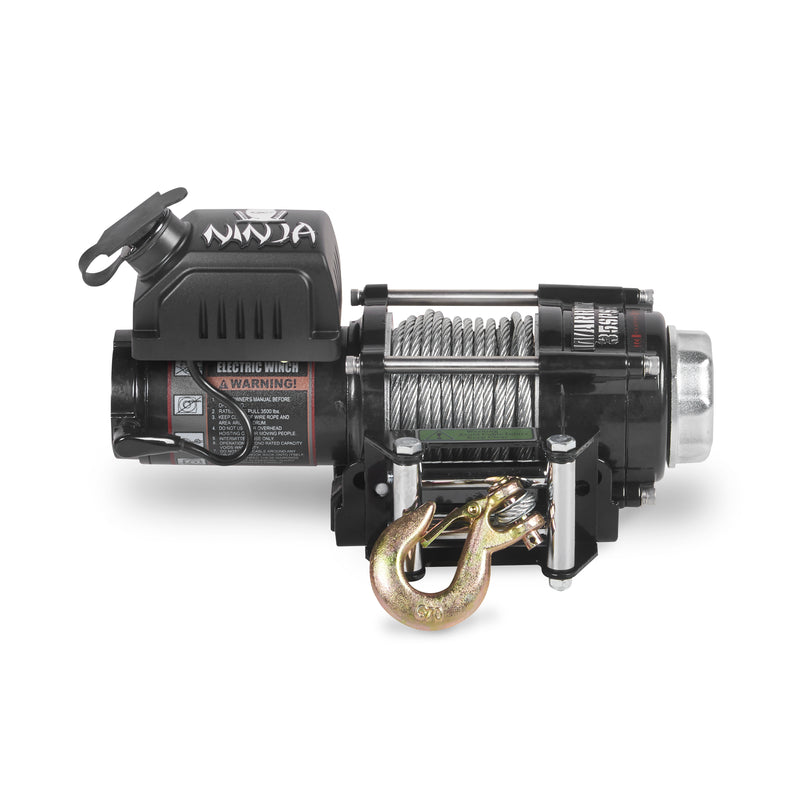

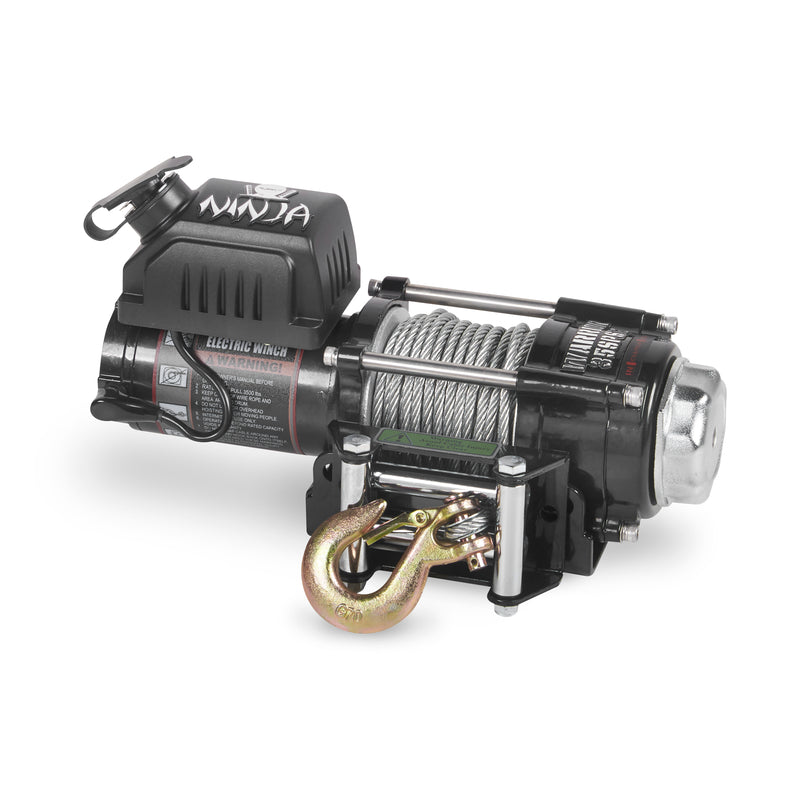

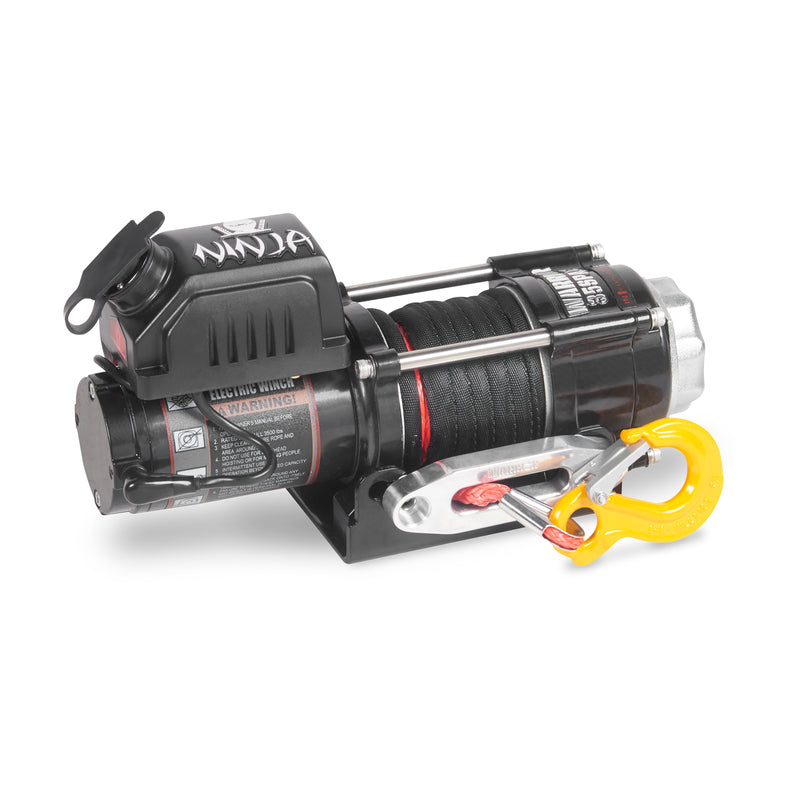

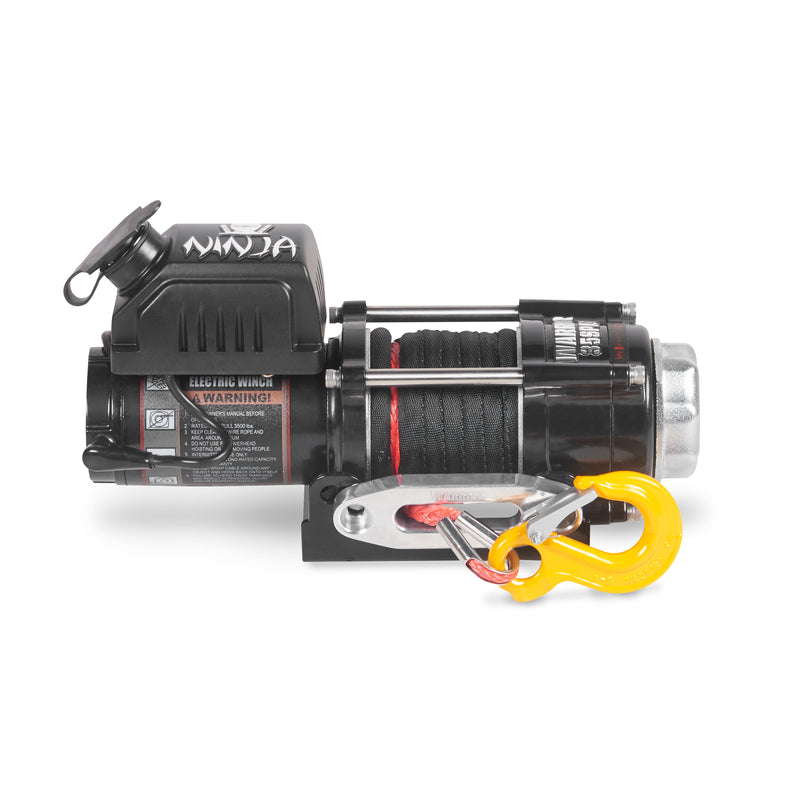

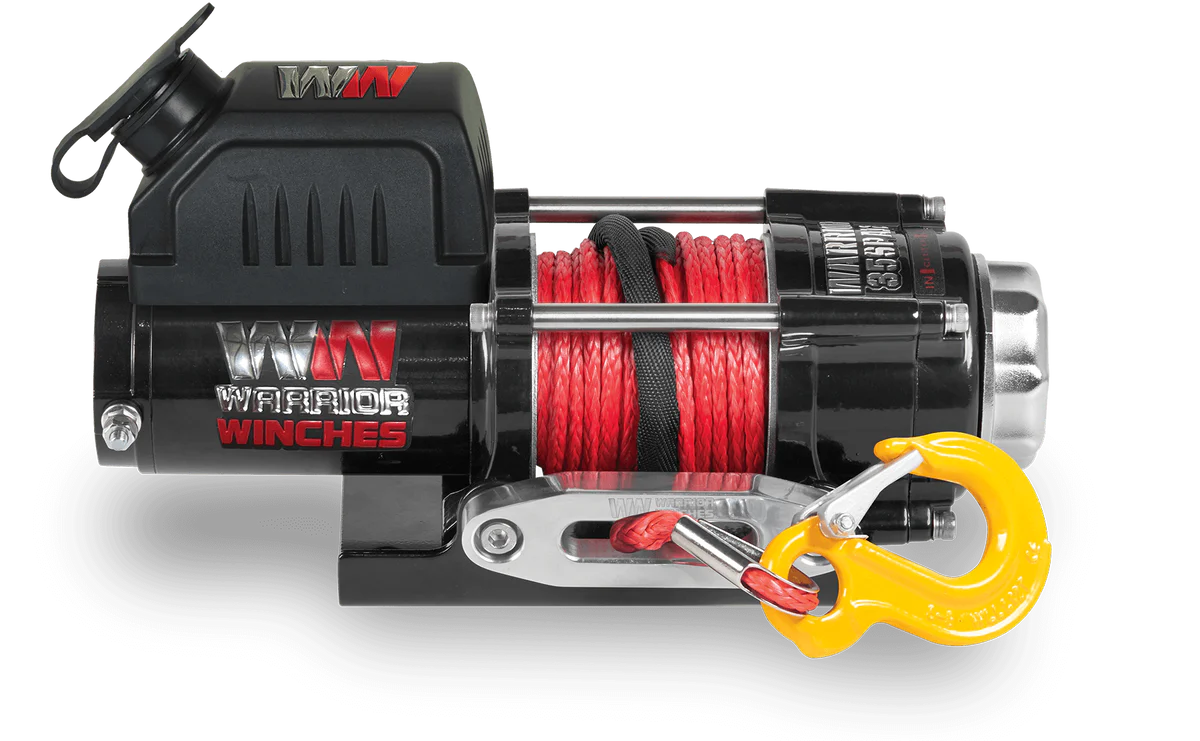

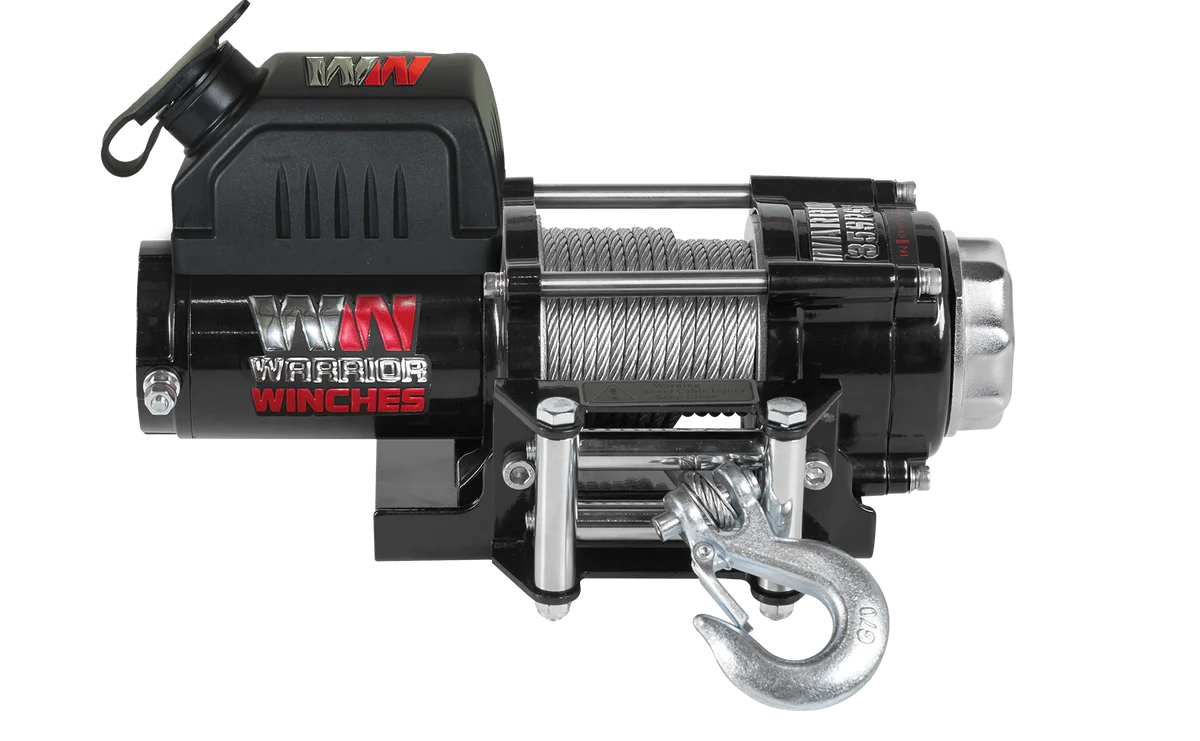

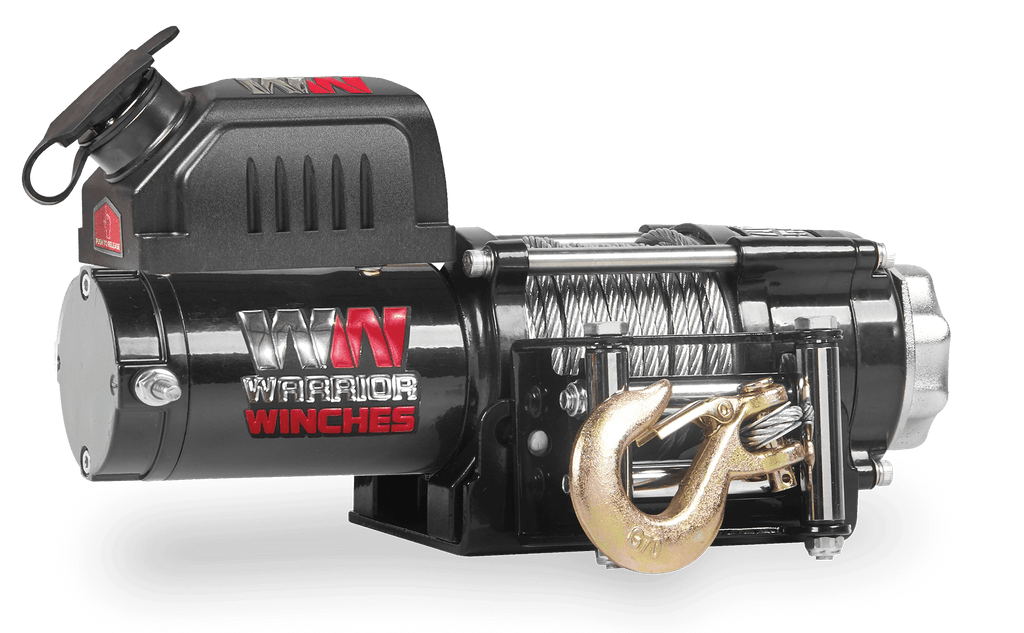

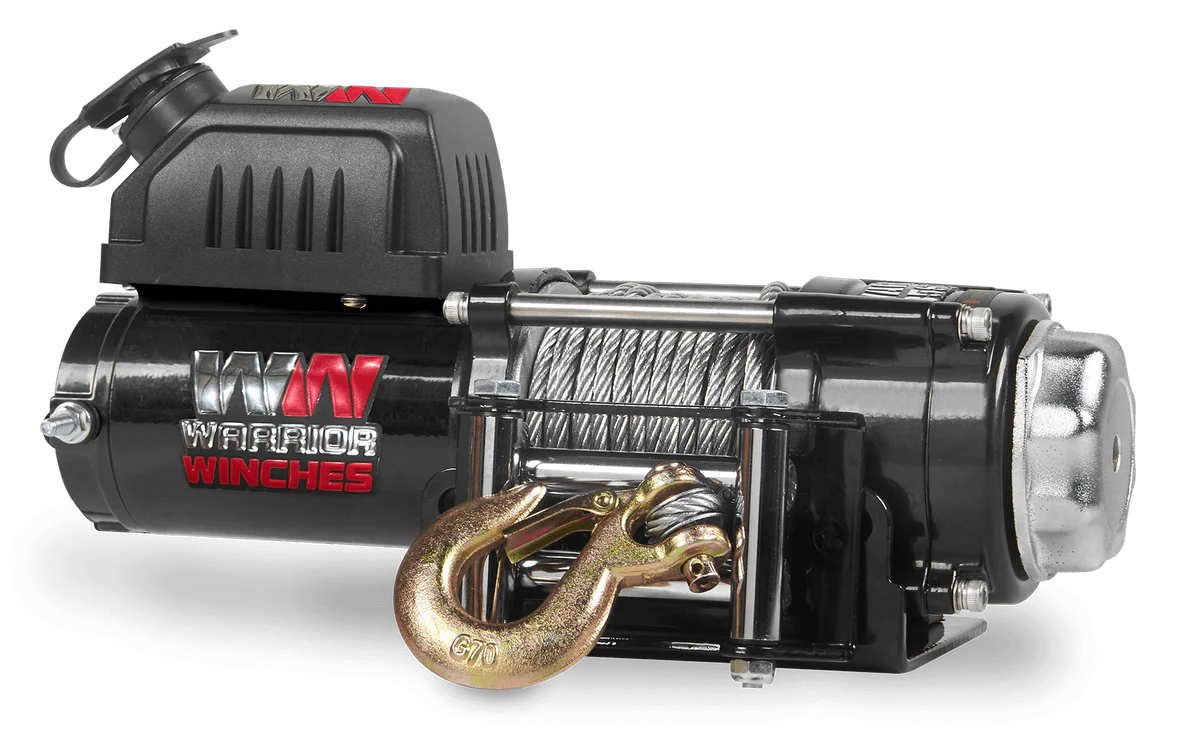

Warrior Ninja 3500lb Winch
With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its heavy-duty clutch and huge 1.95hp motor. Ideal for large ATVs and small trailers, it’s unbeatable in strength.
Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor and allowing you the choice of steel or synthetic rope without any compromise on strength, you can rely on this heavy-duty winch.
Complete with a mount plate for flat bed mounting, the Ninja can also be fitted to a portable tow ball attachment for ease and versatility.
With a line capacity of 3500lb or 1588kg, and a pull of 1.4m per minute at full load – you can get the job done with ease.
Standard Features:
- Line Capacity: 3,500lb (1588kg)

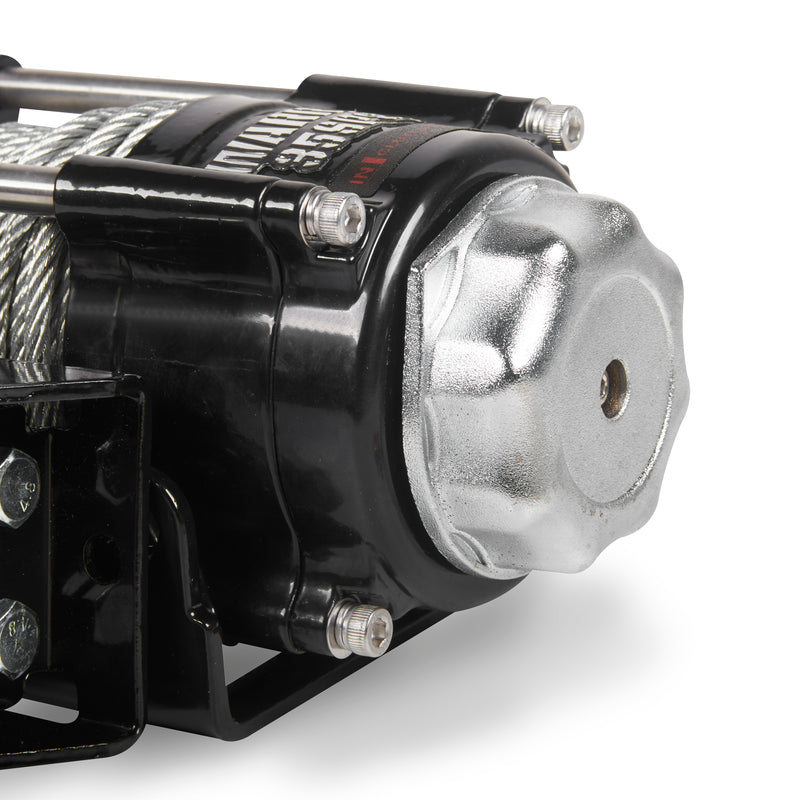

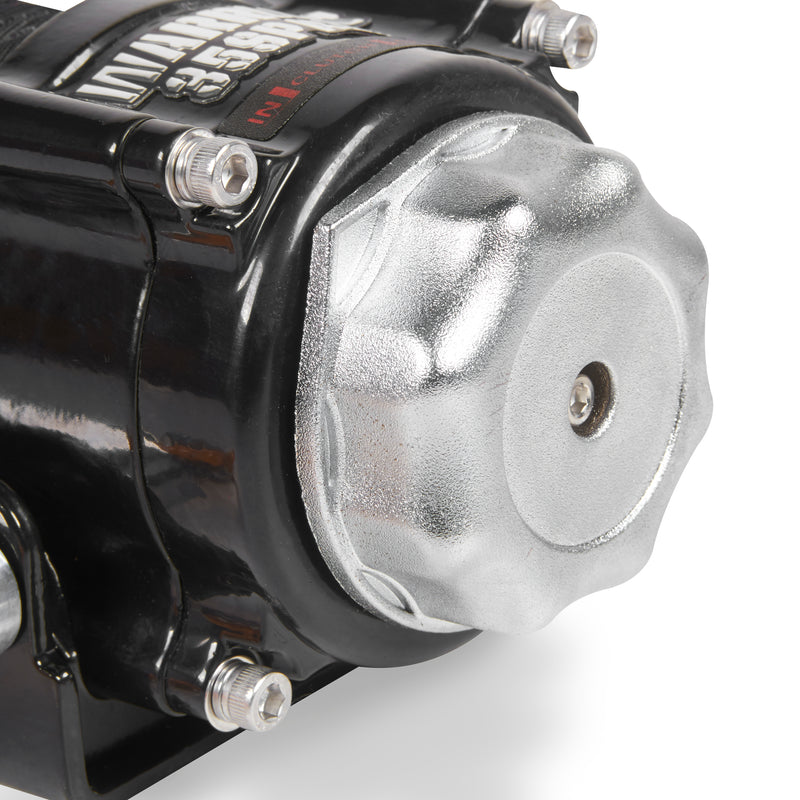

- Gearbox: Freespooling Clutch - Allows cable to be unwound manually
- Warranty: 12-month return to base warranty
Accessories:
- Wired Hand Control: 3m Wired Hand Control
- Wireless Control: Available as an optional extra
- Mounting Plate: Included for standard installations
- Mounting Bolts: Included for Standard installations
- Heavy Duty Battery Cables (May need extending depending on application)
- Instruction Manual
Other Information:
- Dimensions: 340mm L x 116mm D x 165mm H

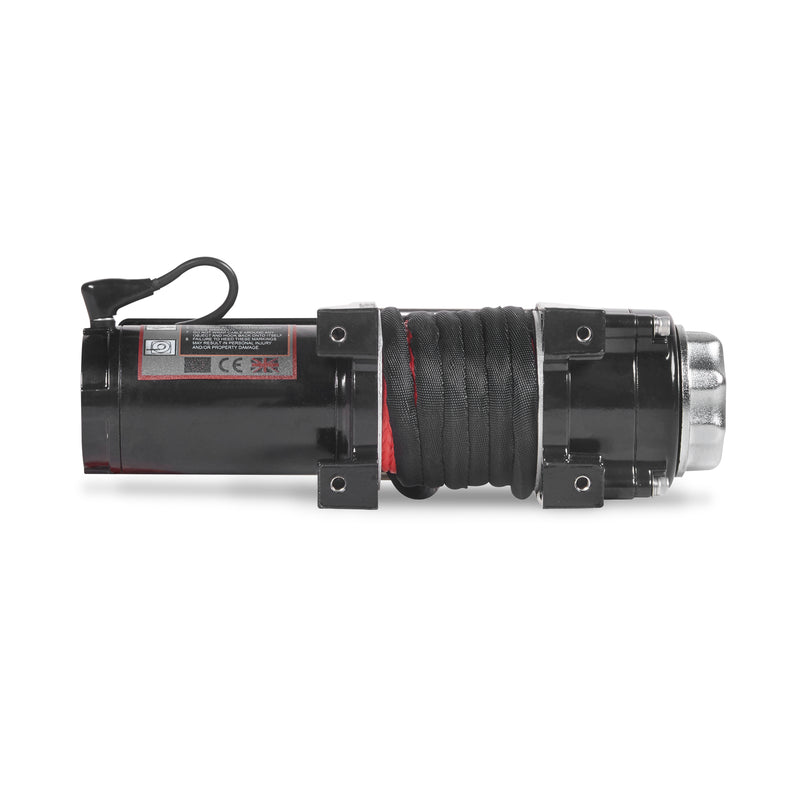

- Mounting Bolt Pattern: 124 x 76mm
- Line Pull- No Load: 3.2 m/min (45 Amps)
- Line Pull - Full Load: 1.4 m/min (200 Amps)

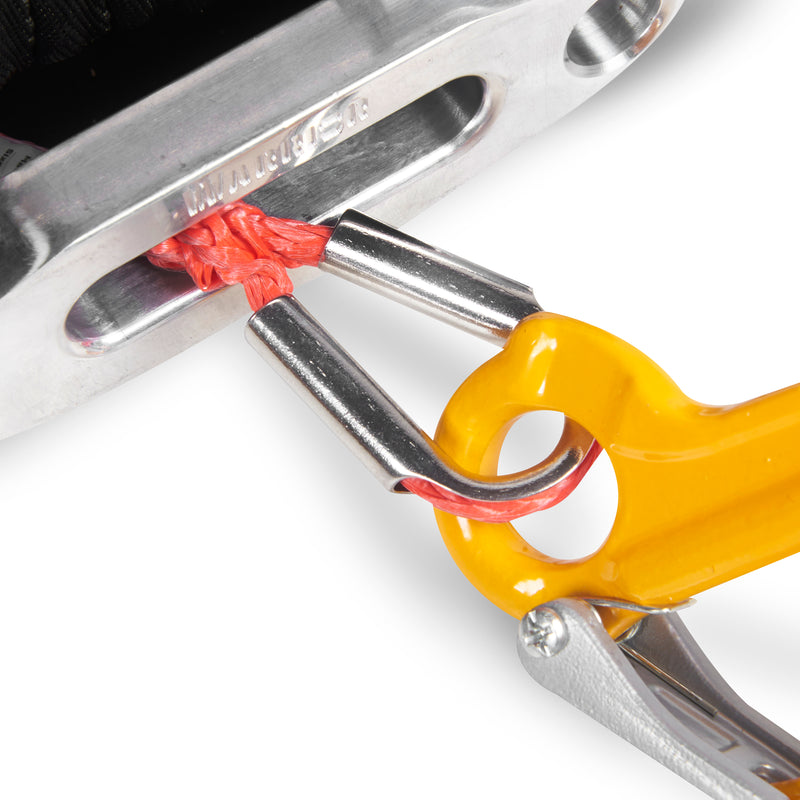

Note: For the majority of applications the synthetic rope supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum. A fixed hook will not (and should not) feed through the fairlead.
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

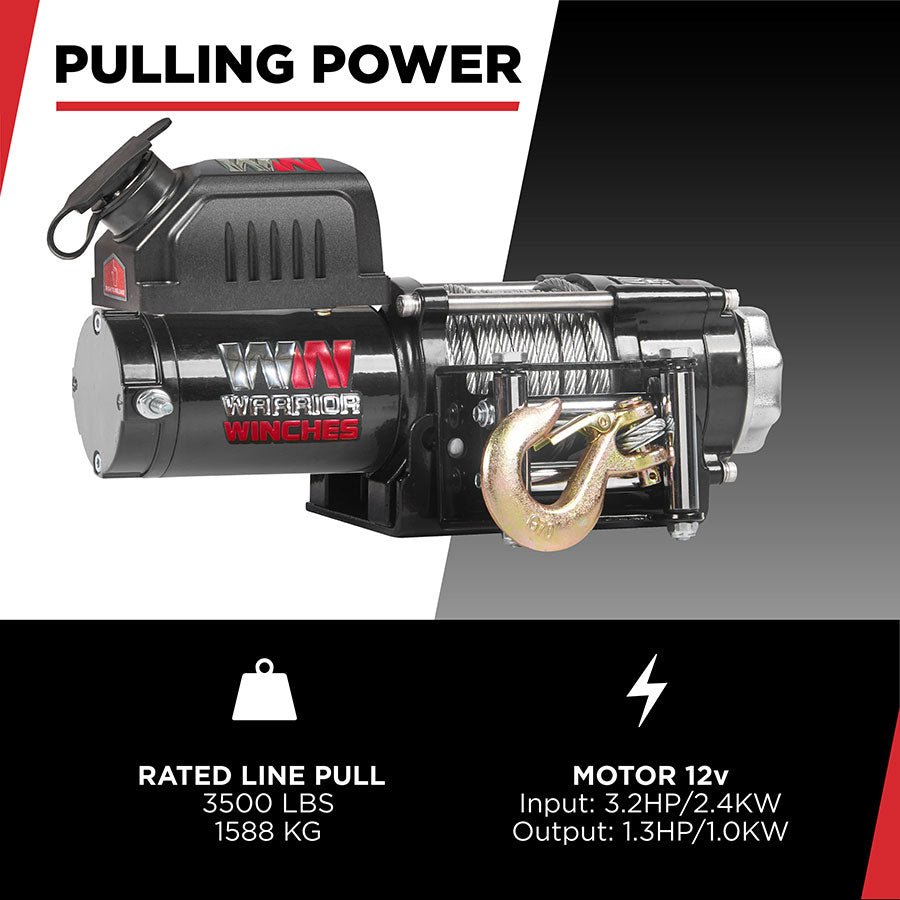

| Rated Line Pull | 3500 lbs (1588 kg) |
|---|---|

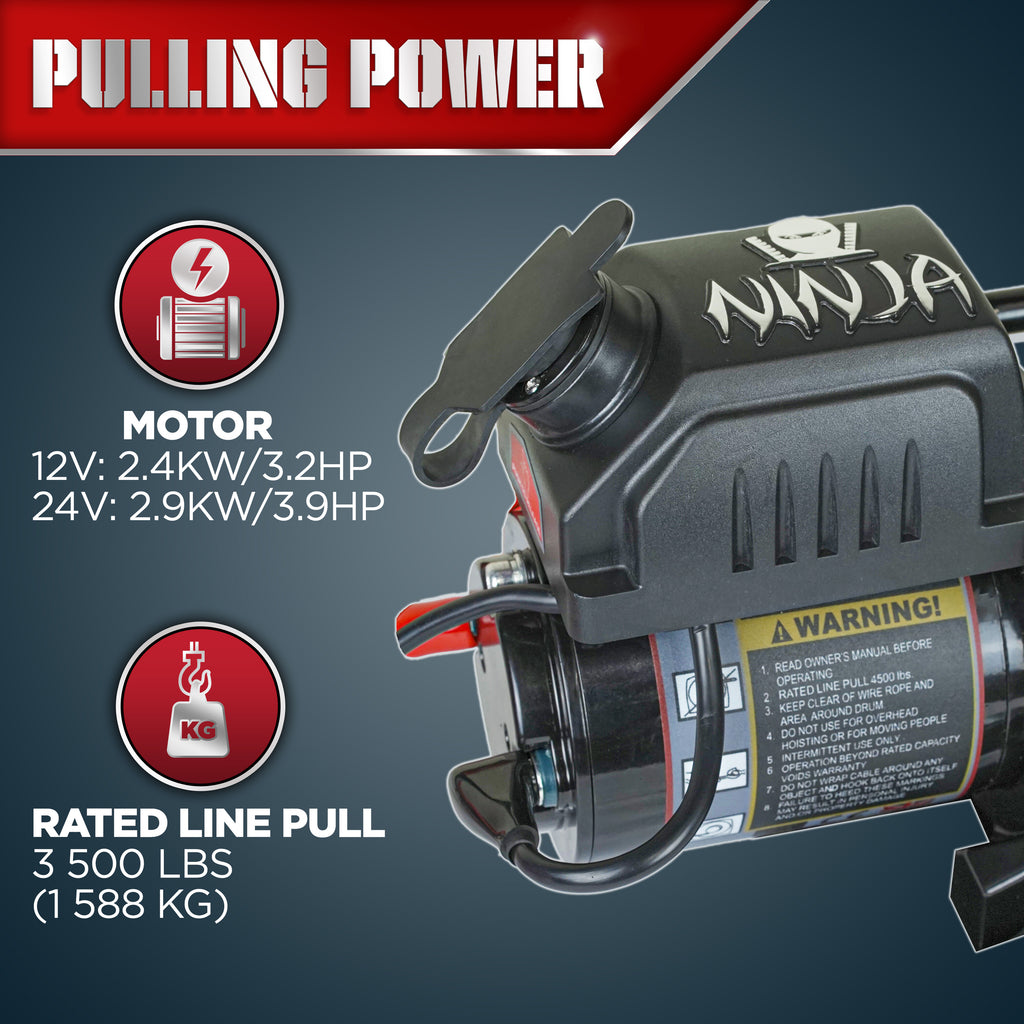

| Motor | 12v: 2.4kw/3.2hp 24v: 2.9kw/3.9hp |
| Gearing | 170:1 |
| Braking Action | Dynamic |
| Drum Size - Dia x L | 37 x 80mm (1.46 x 3.15 in) |

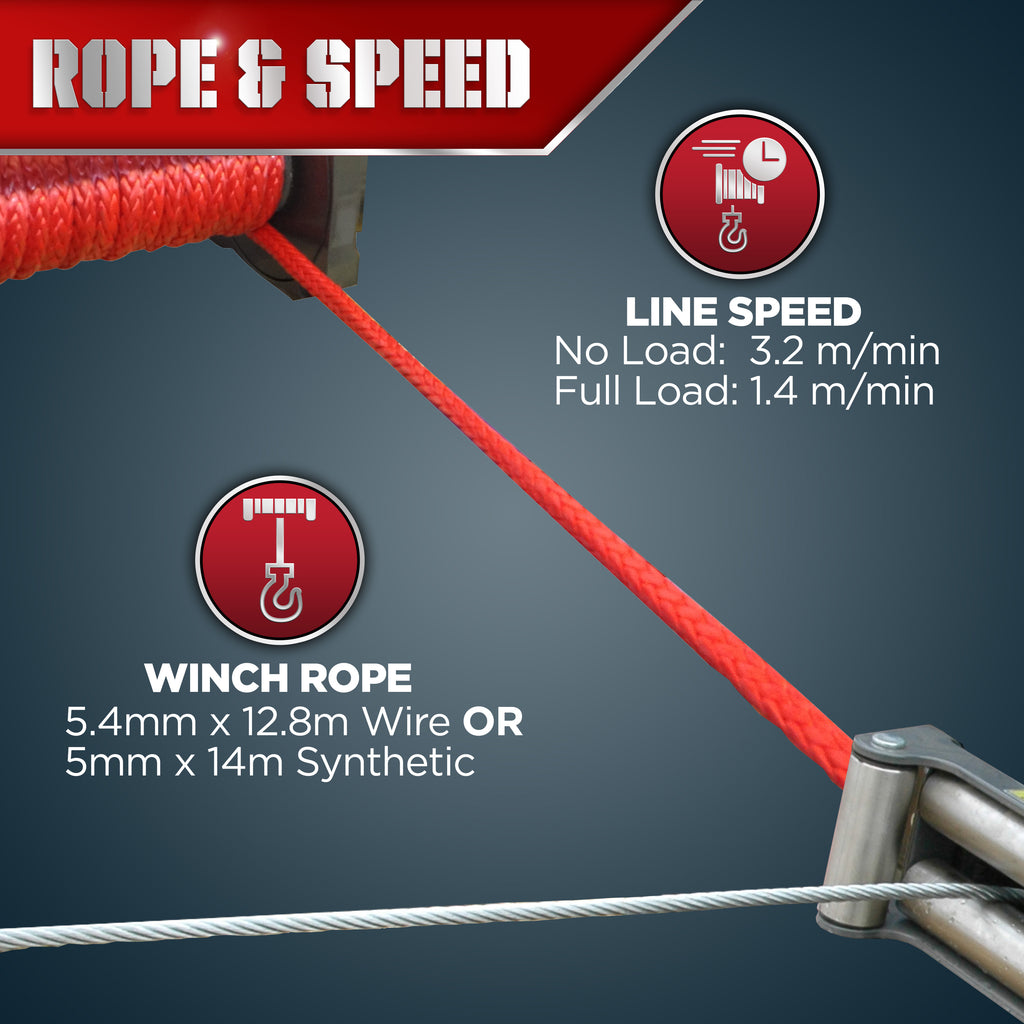

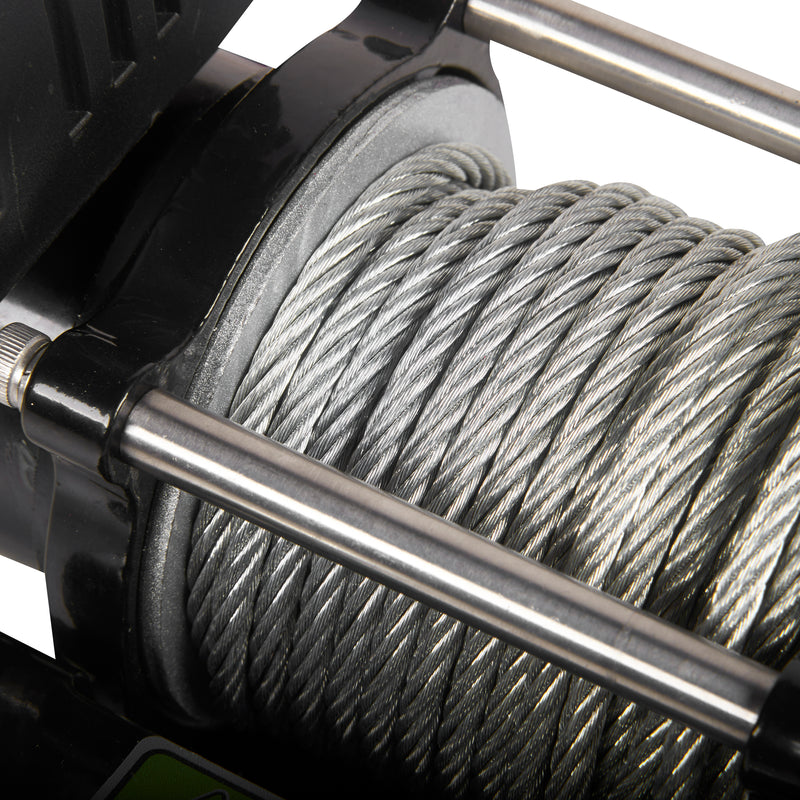

| Cable - Dia x L | Steel: 5.4mm x 12.8m (0.21 in x 42 ft) Synthetic: 5mm x 14m (0.2 in x 46 ft) |

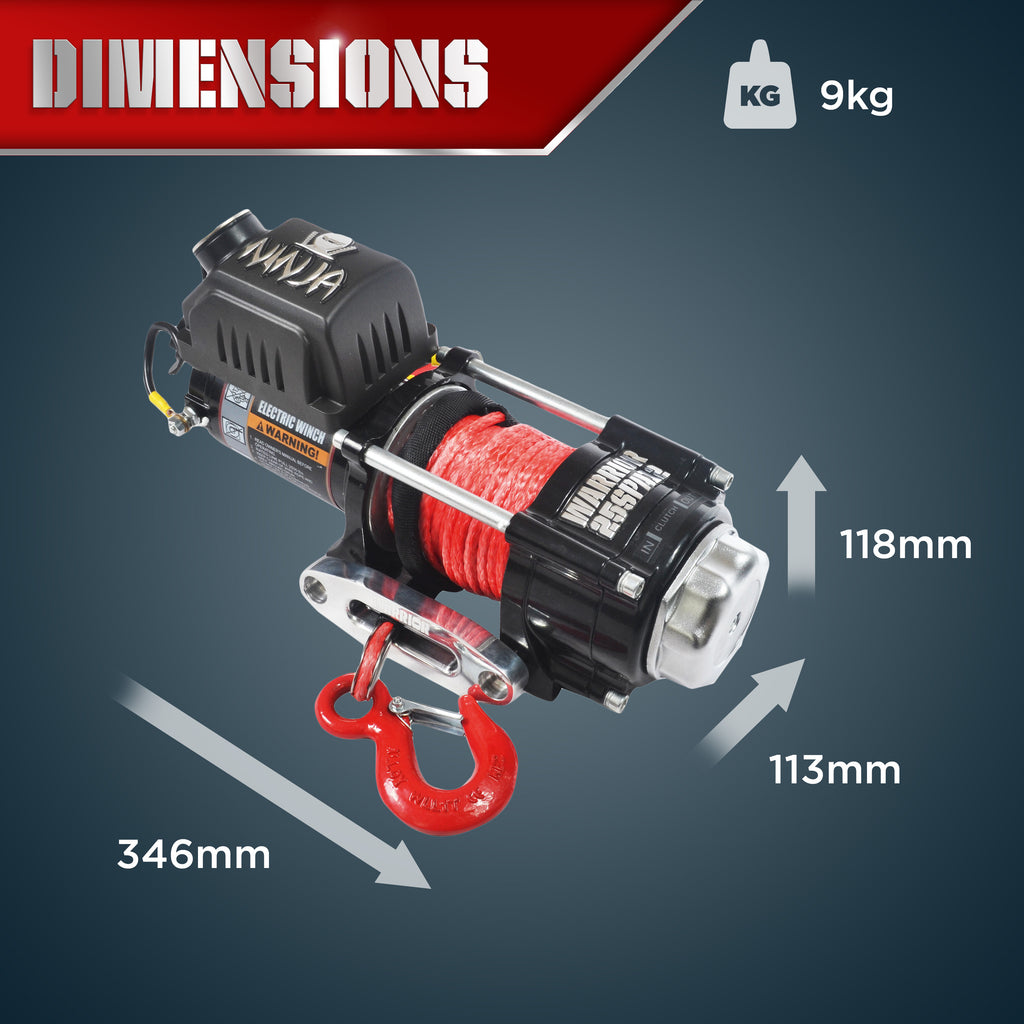

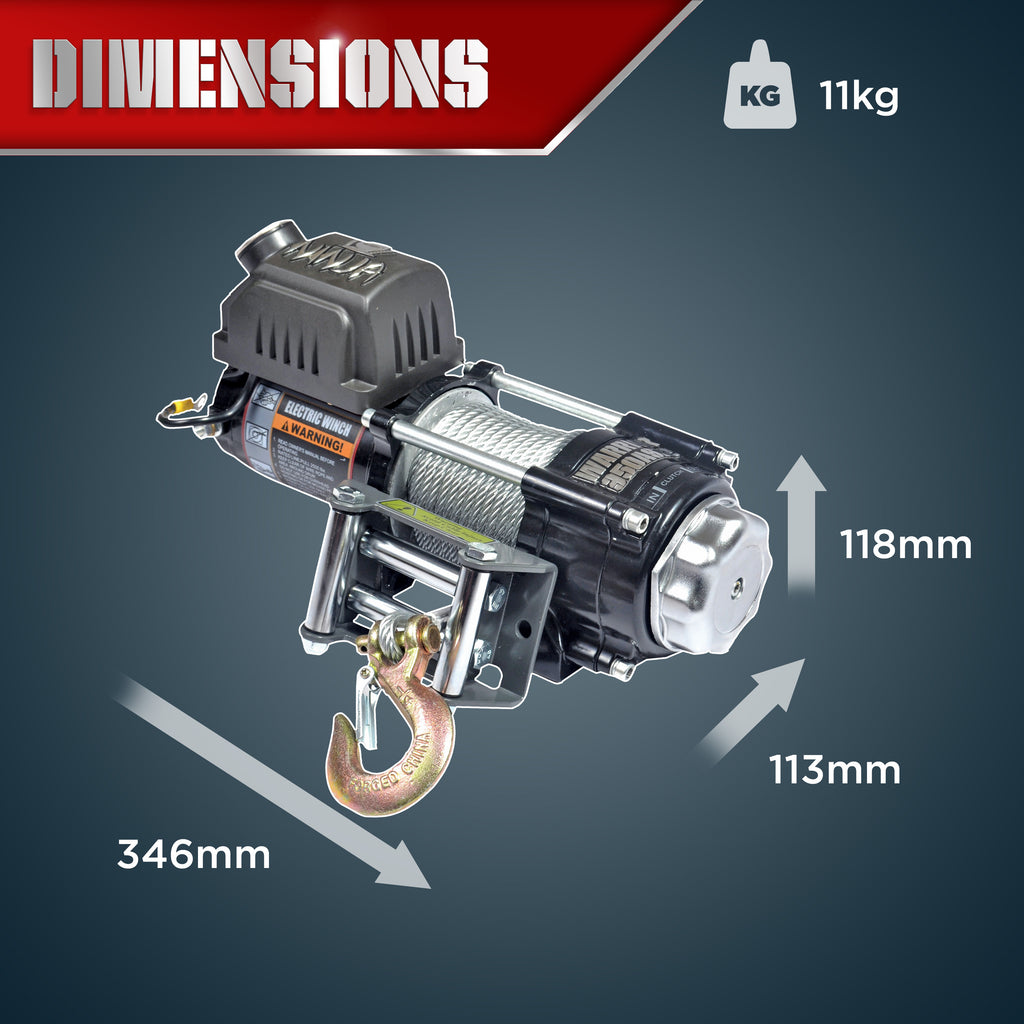

| Dimensions | 346 x 113 x 118mm (13.62 x 4.4 x 4.6 in) |
| Mounting Pattern | 124 x 76 mm (4.88 x 3 in) |
| Weight kg | Steel: 11 kg (24.2 lbs) Synthetic:9 kg (19.8 lbs) |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
|---|---|
| 1 | 3500 (1588) |
| 2 | 2789 (1265) |
| 3 | 2319 (1052) |
| 4 | 1984 (900) |
| 5 | 1733 (786) |
| Line Pull lbs (kgs) |
Line Speed
12v ft/min (m/min) |
Amp Draw 12v |
Amp Draw 24v |
|---|---|---|---|
| 0 | 10.5 (3.2) | 45 | 25 |
| 1000 (454) | 8.9 (2.7) | 75 | 40 |
| 2000 (907) | 7.5 (2.3) | 130 | 75 |
| 3500 (1588) | 4.6 (1.4) | 200 | 120 |

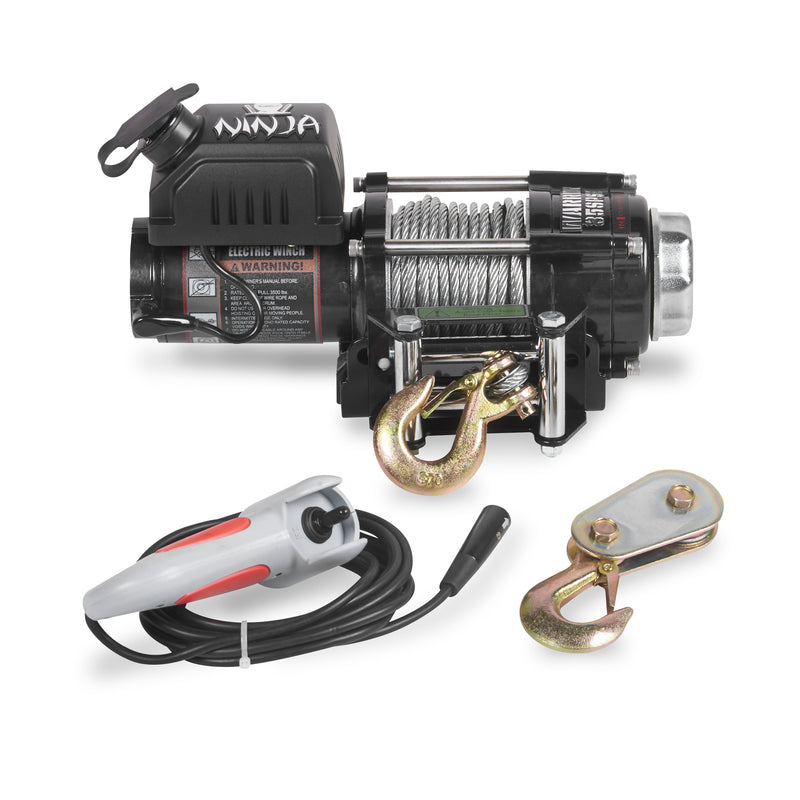

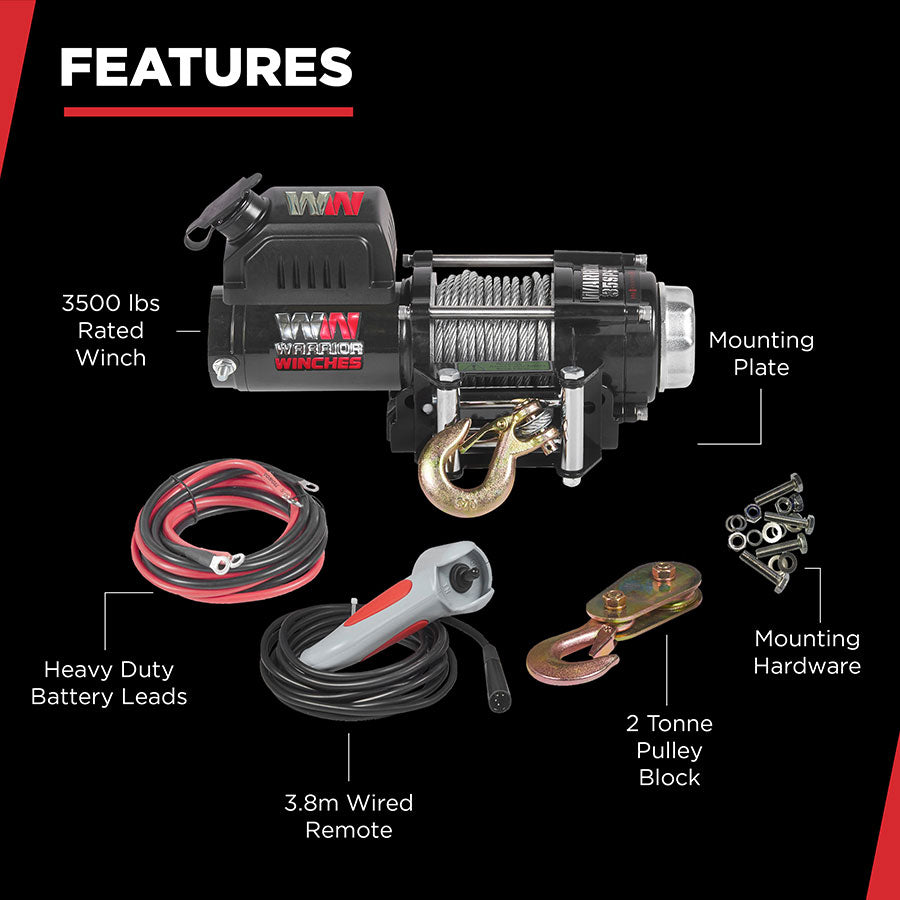

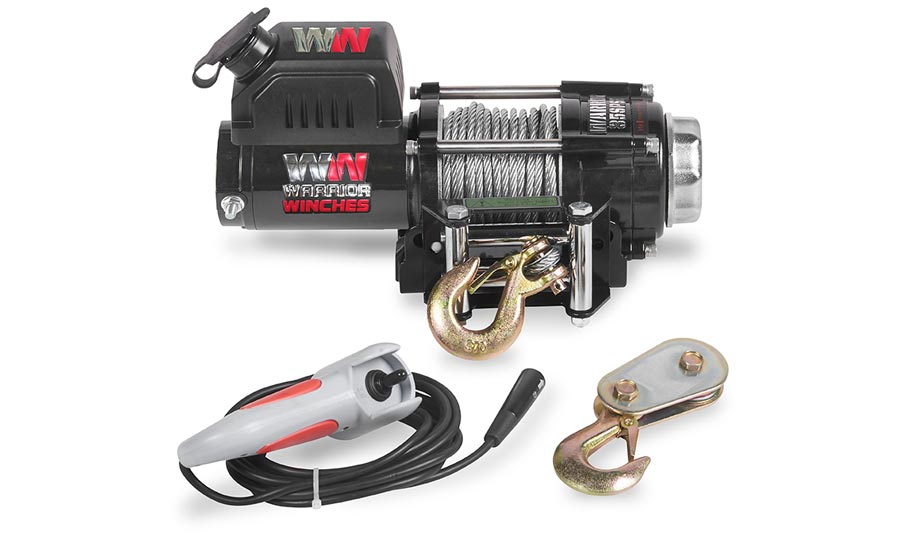

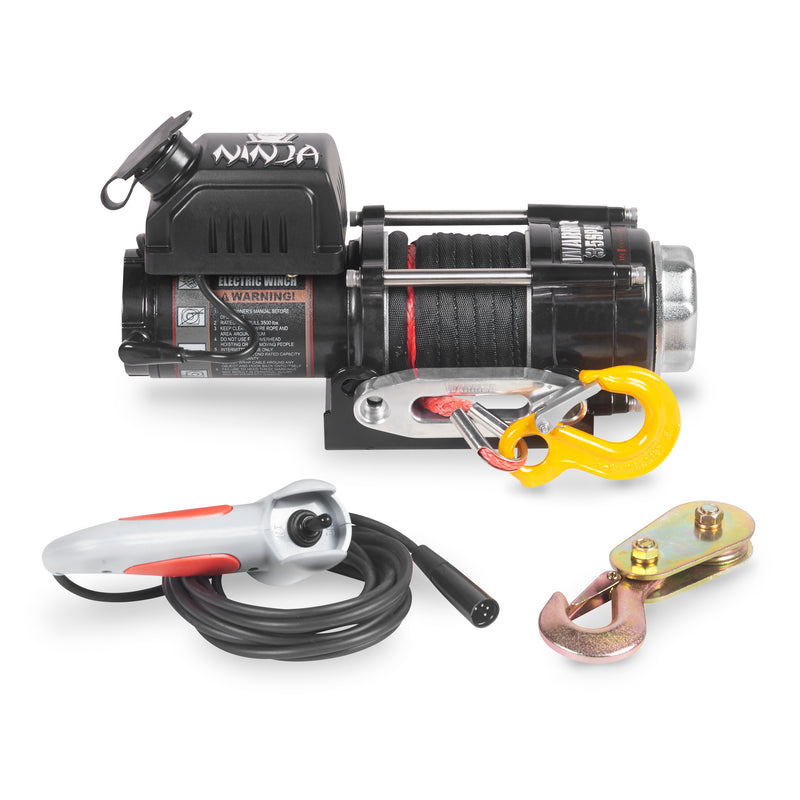

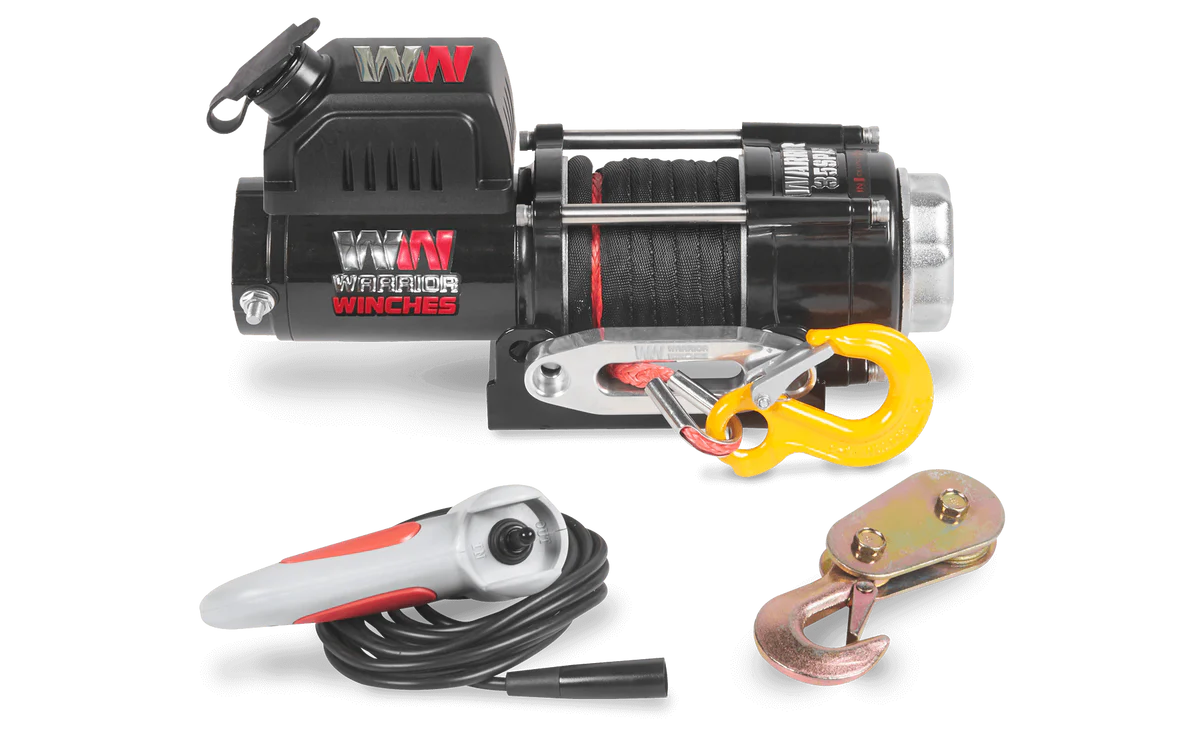

What's in the box:

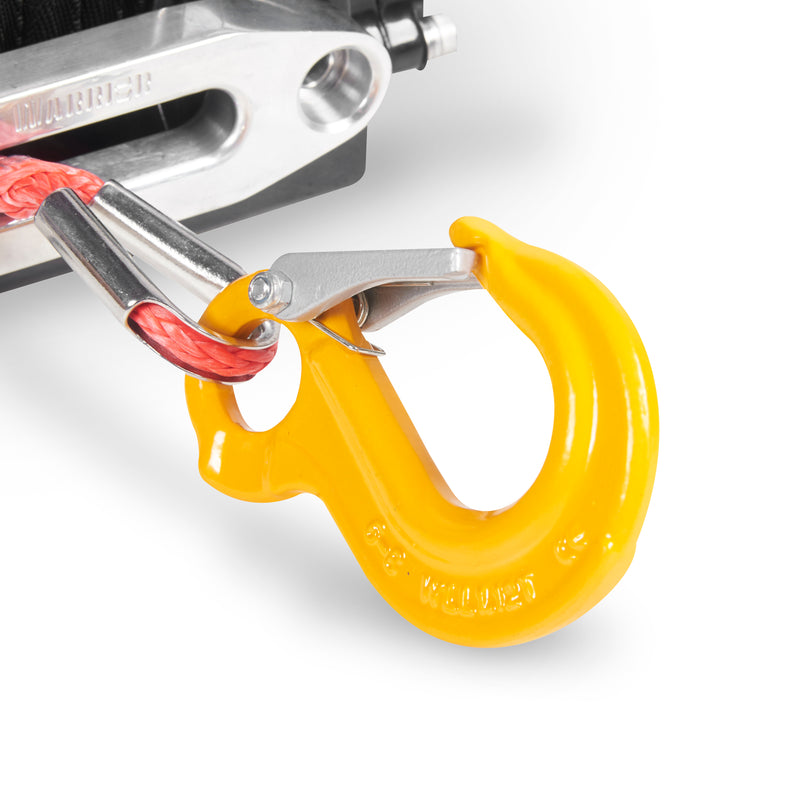

- 1/4 Hook
- 3 Tonne Pulley Block
- 3.8m Ninja Wired Remote Handset

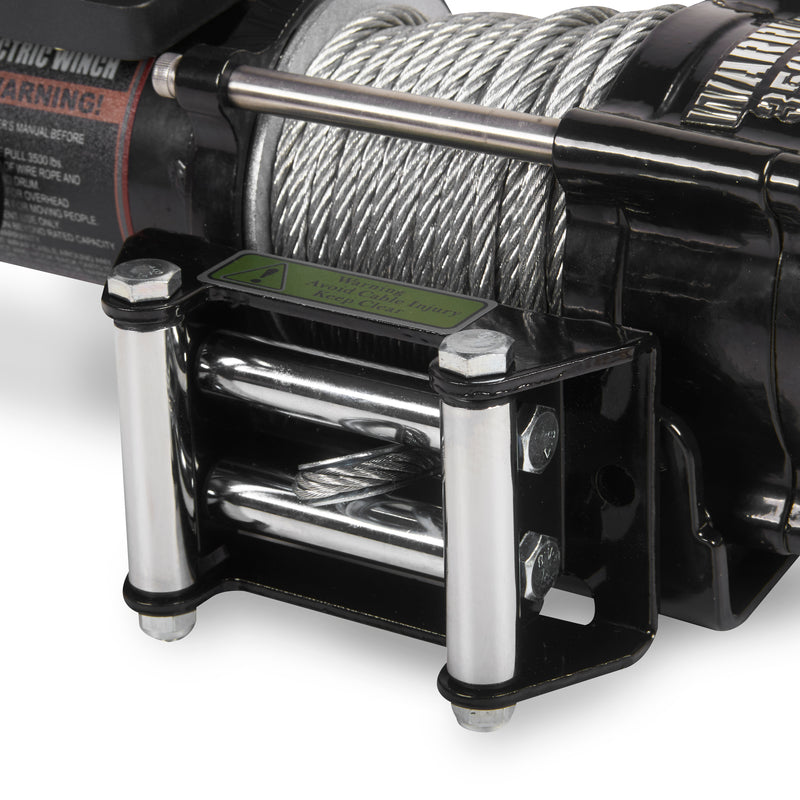

- Heavy Duty Roller Fairleads (Wire) OR Aluminium Fairlead (Synthetic)
- Wire or Synthetic Rope
- Mounting Tray
- Mounting Hardware
- Heavy Duty Battery Leads
Reviews and Q&A
-
please you confirm the length of synthetic rope on the 35spa12
Rope: 14m x 5mm Synthetic Rope with Hook and Handsaver Strap
