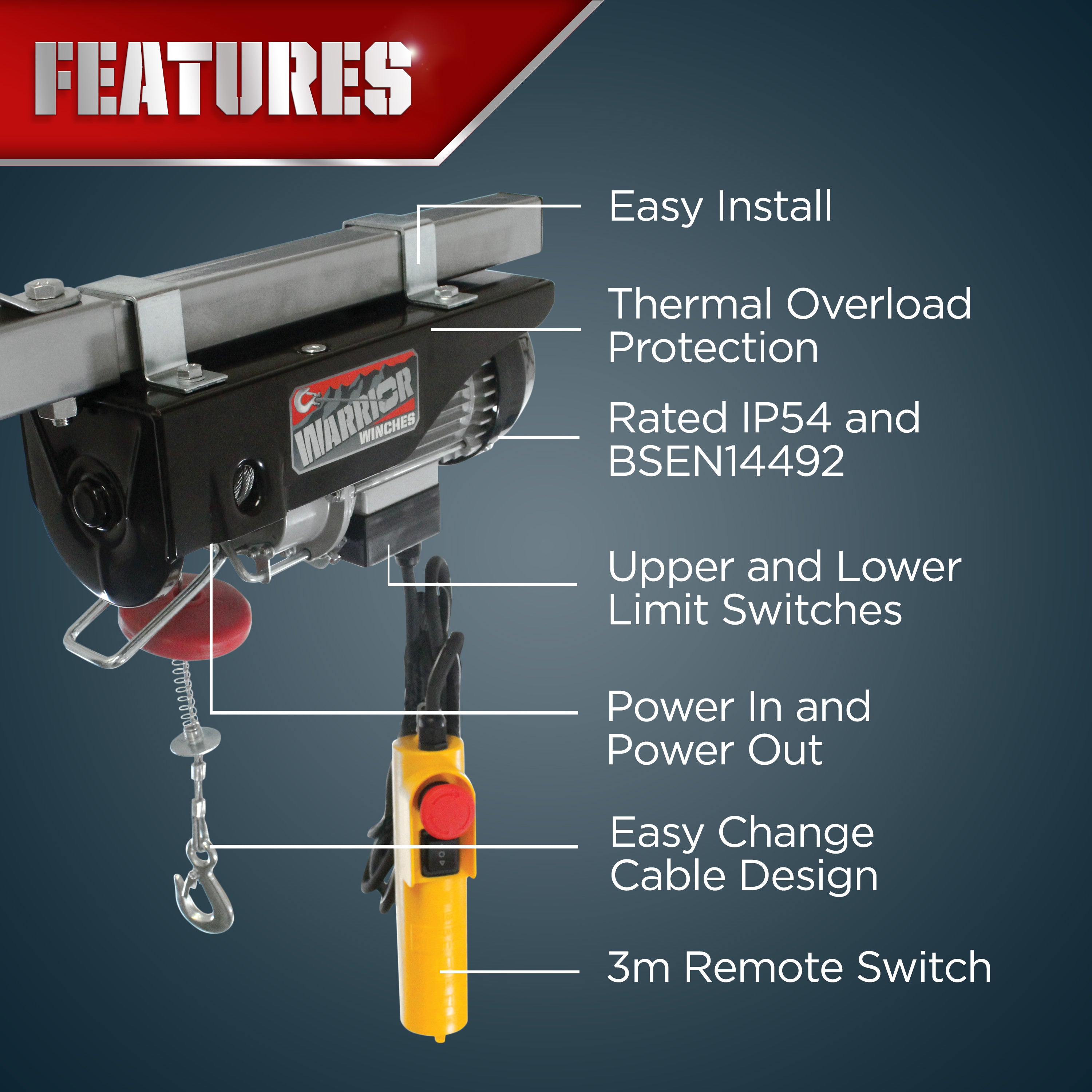

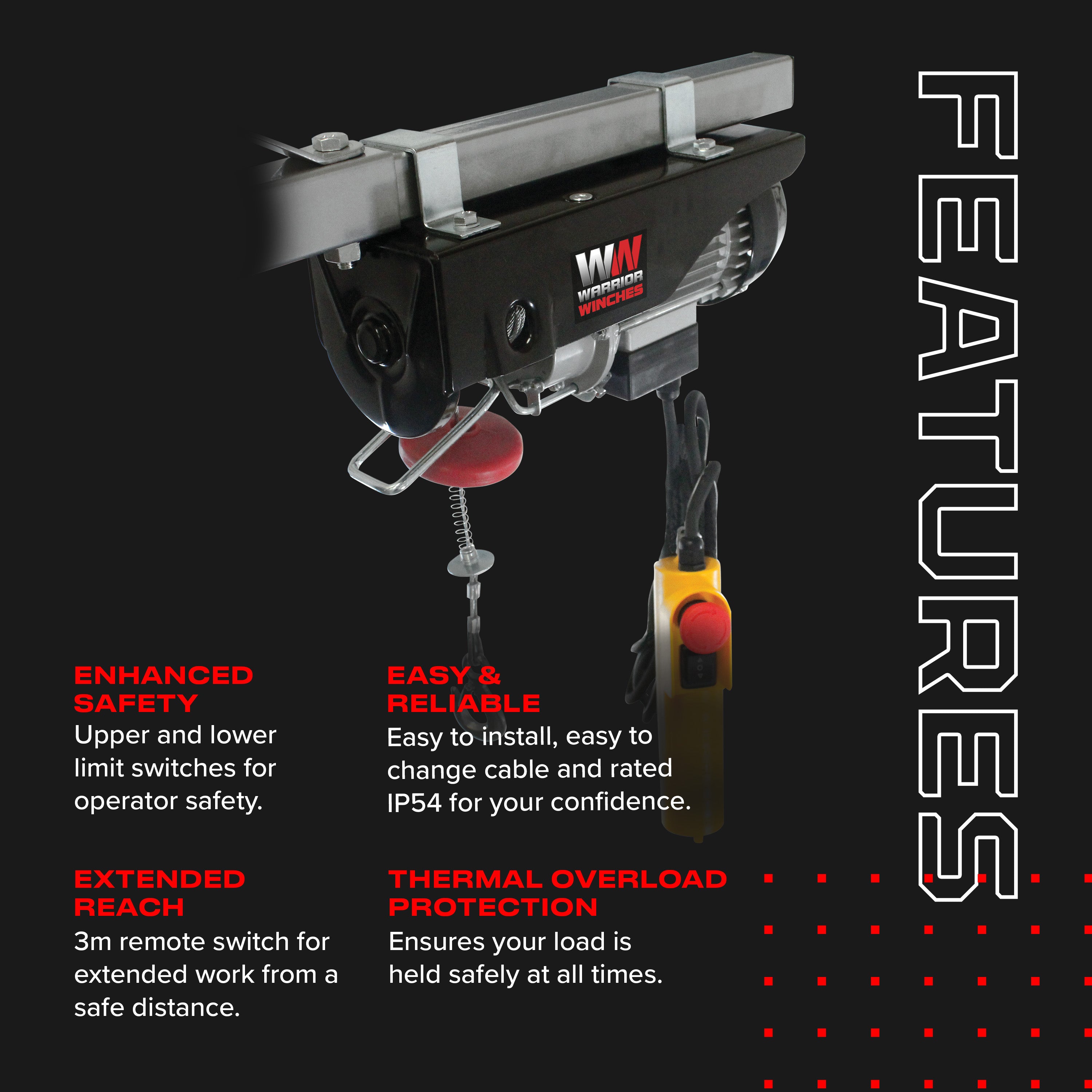

Features
- Ideal for all manner of lifting applications.
- Easy to install, with easy change cable design.

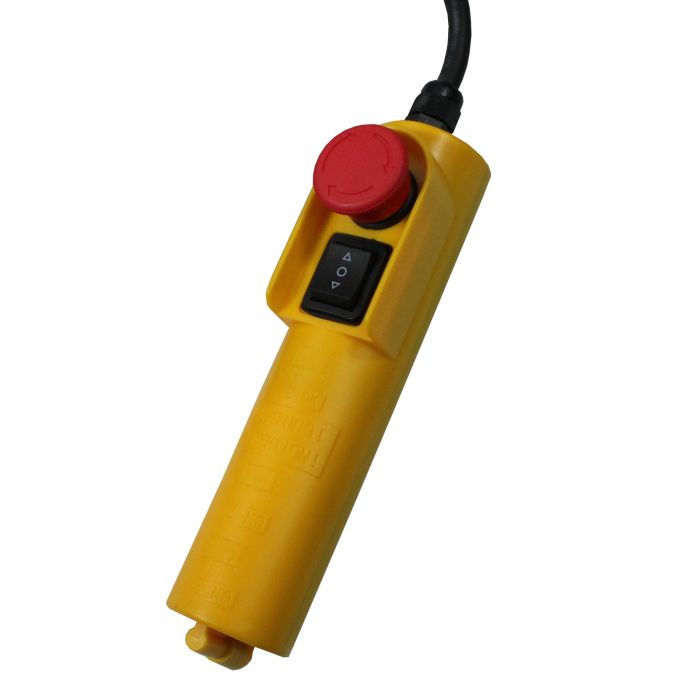

- 3m remote switch with power in & power out facility.
- Conforms to BS EN14492 standard.
- IP 54 rated.

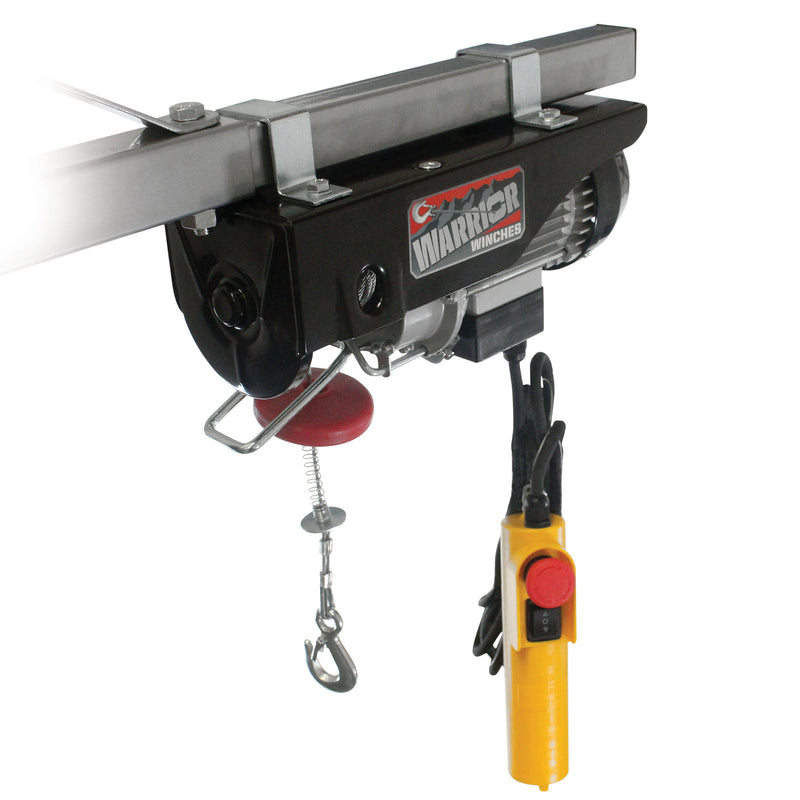

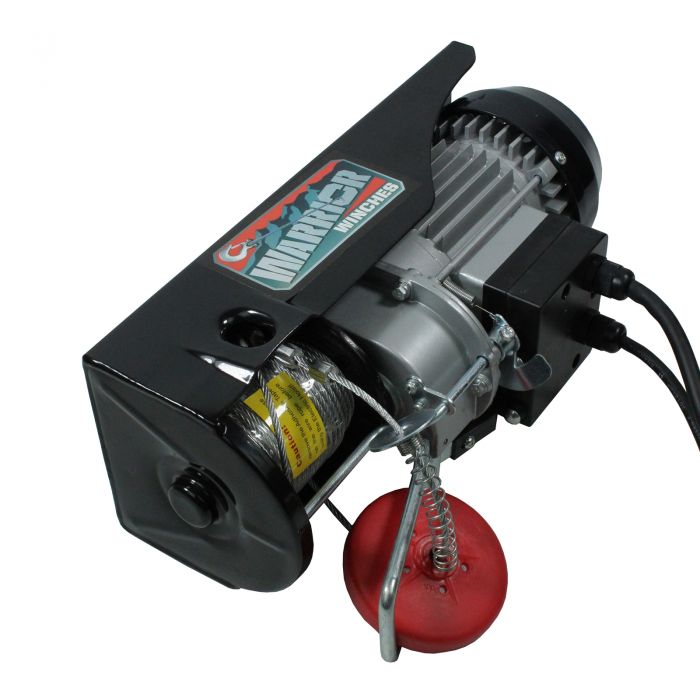

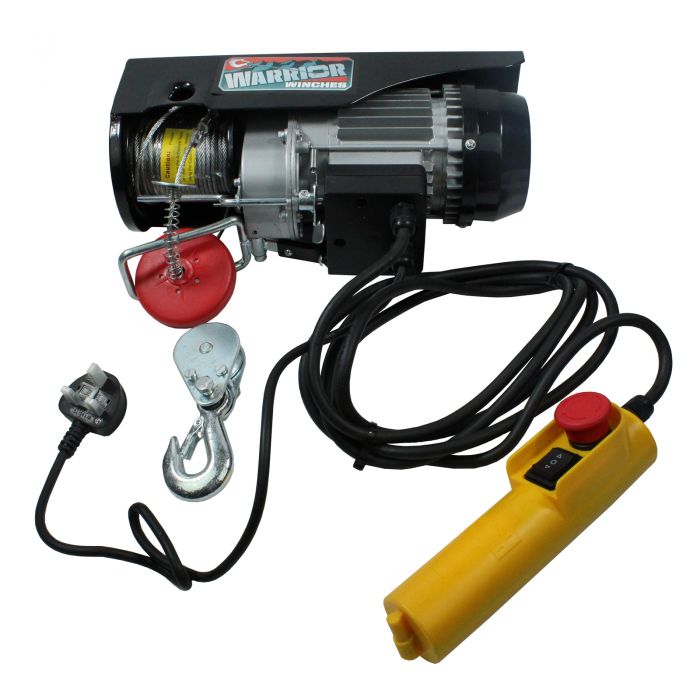

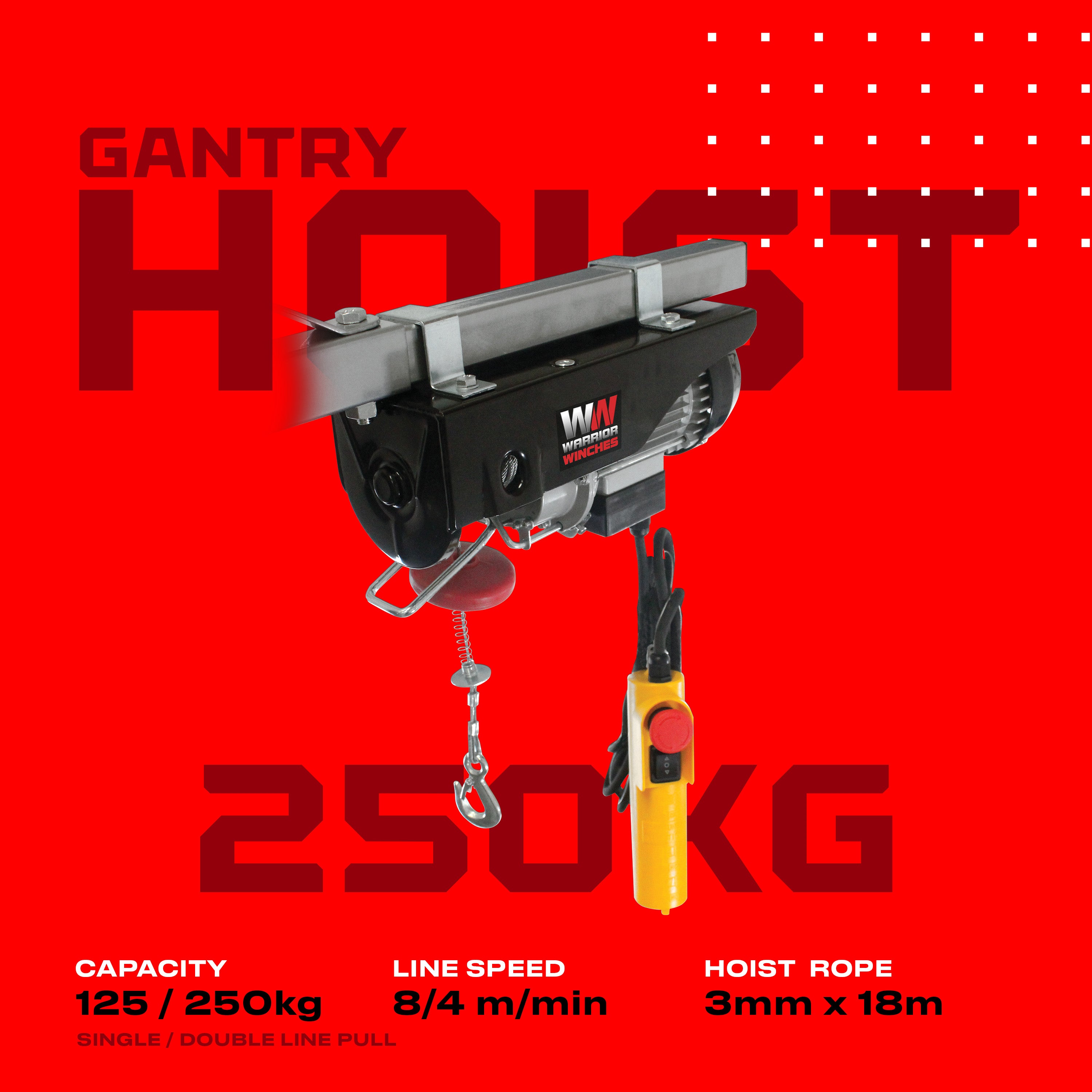

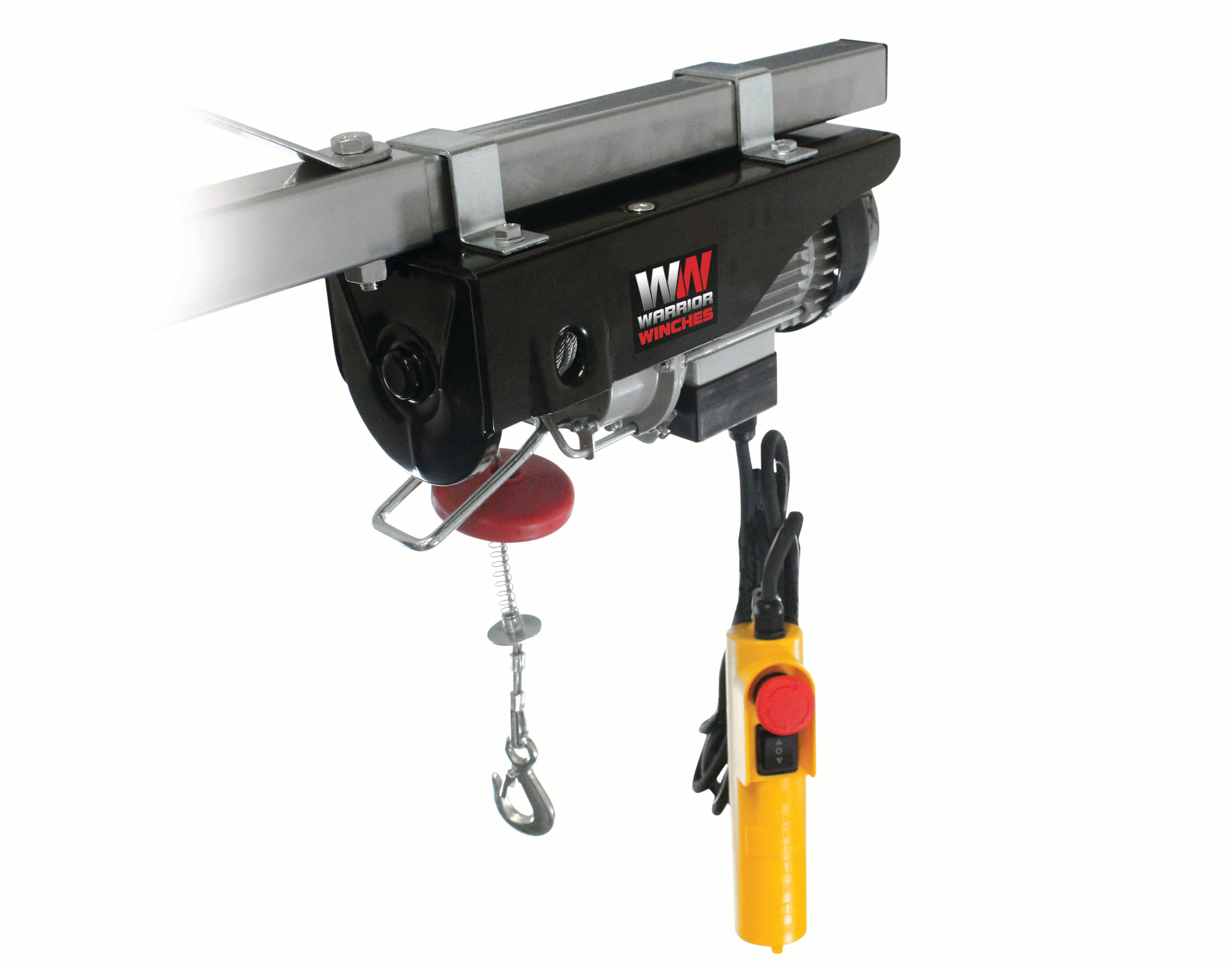

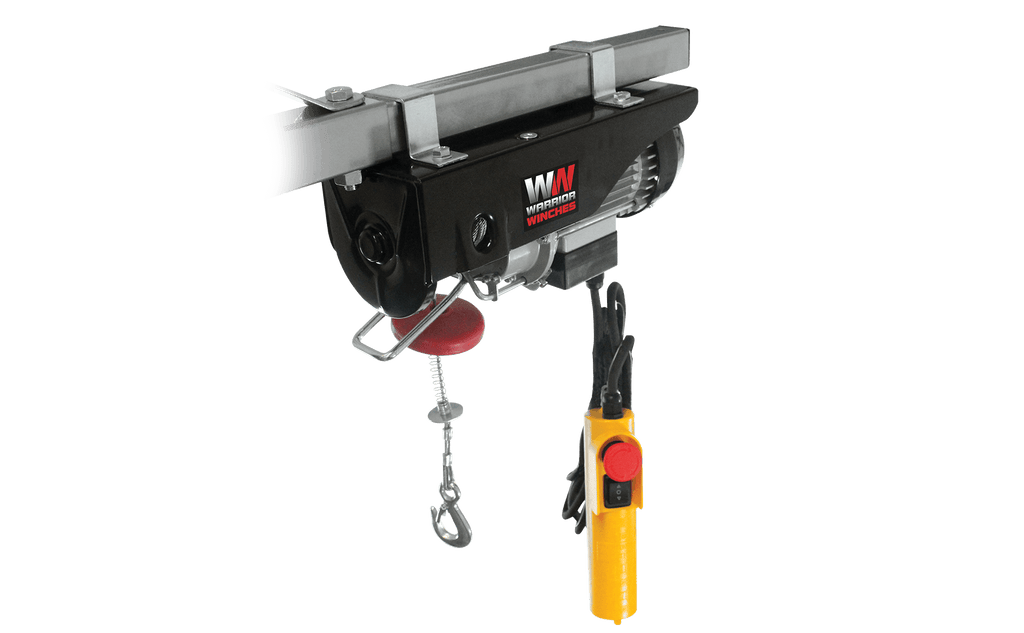

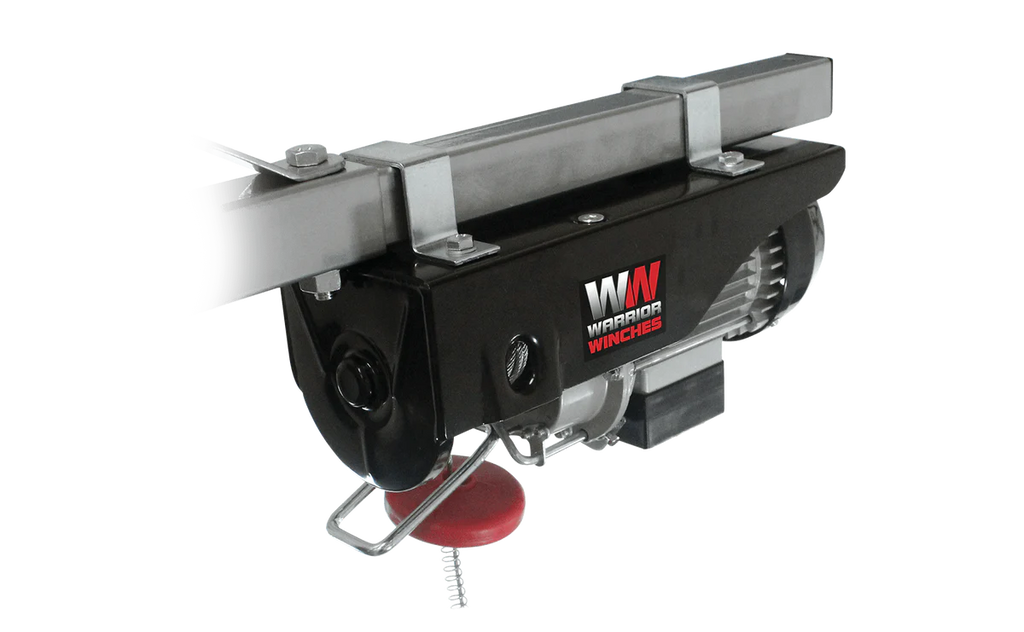

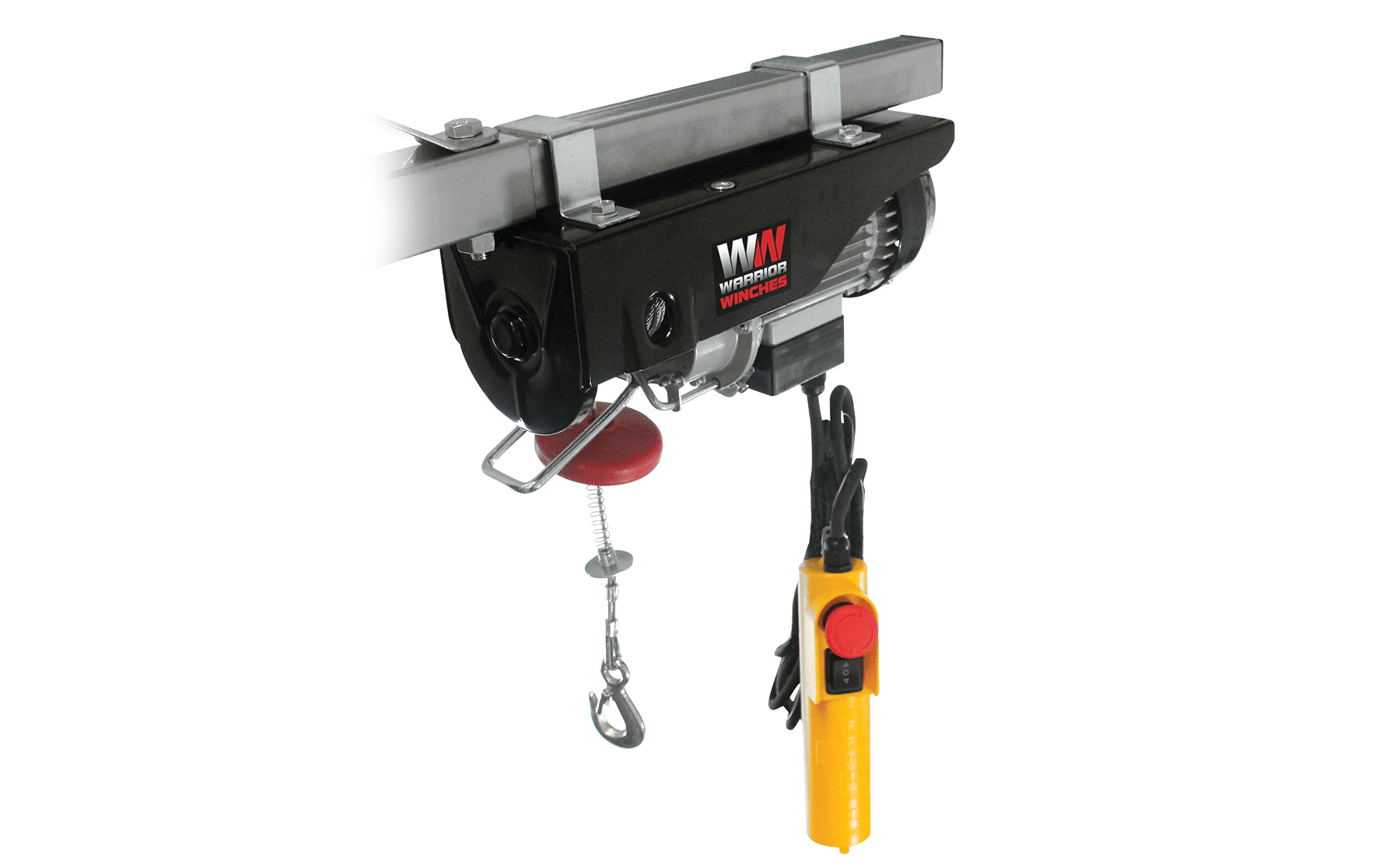

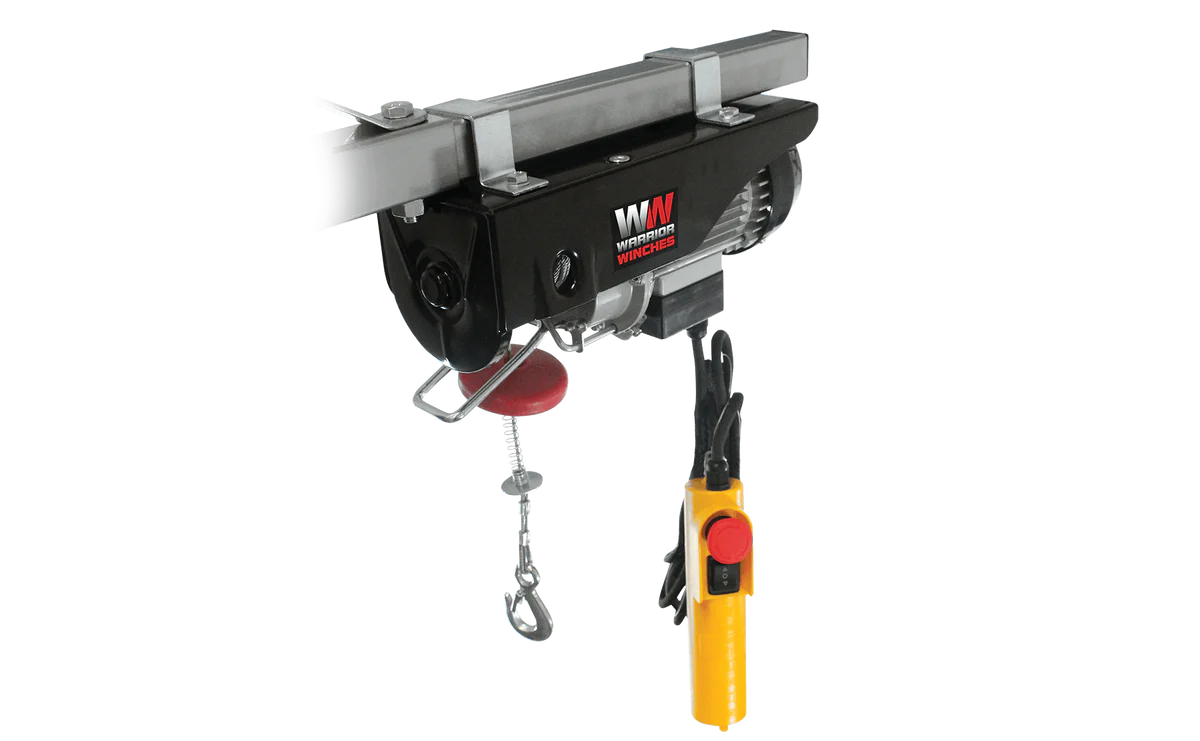

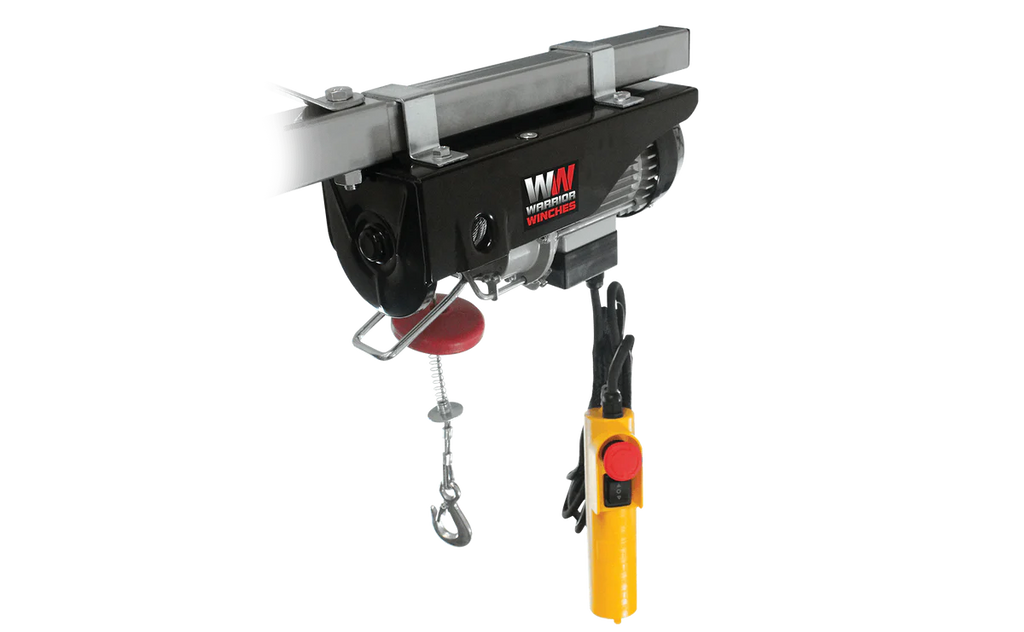

Warrior 250kg Electric Hoist

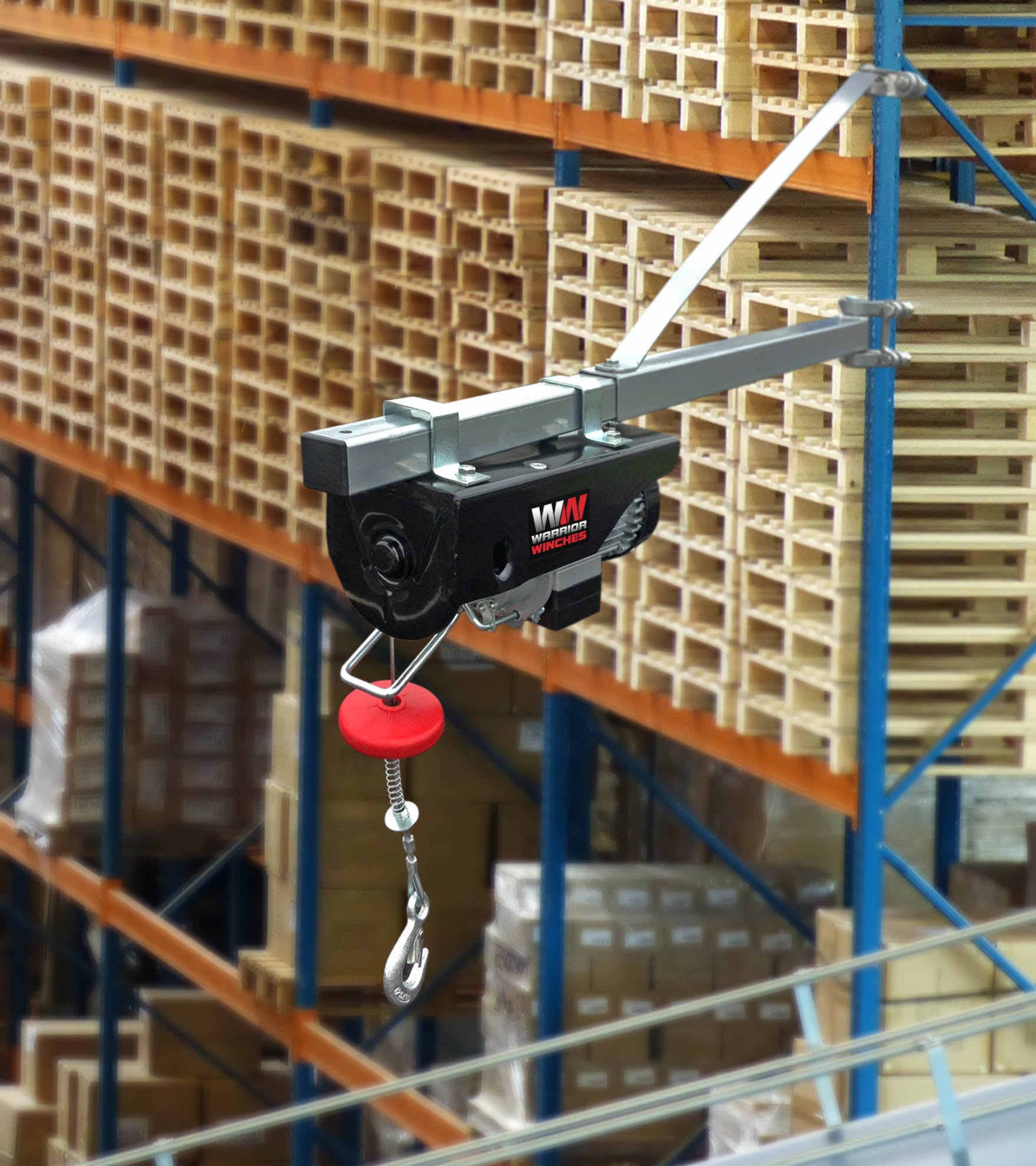

Designed to be mounted to a 40mm x 40mm Box section

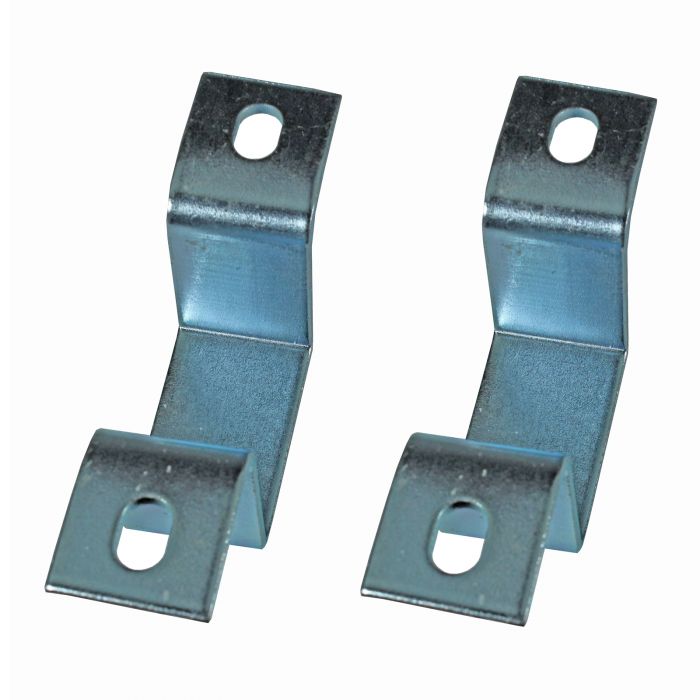

Compact, general purpose 240v electric hoist is ideal for all manner of lifting applications. Easy to install, with easy change cable design. It is supplied with special fixing clamps for simple section beam fitting (square section beams). This hoist has 3m remote switch with power in & power out facility. Conforms to BS EN14492 standard with built in upper and lower limit switches and also with a thermal overload on the motor for added safety. IP 54 rated.
The duty cycle of this winch is S3 - 20% on a 10 minute cycle. Simply translated this means that the unit can be used continuously for 2 minutes before an 8 minute cool down period is required. The load holding break will ensure that your load is held safely during down time.
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
| Voltage | 220/240v |
|---|---|

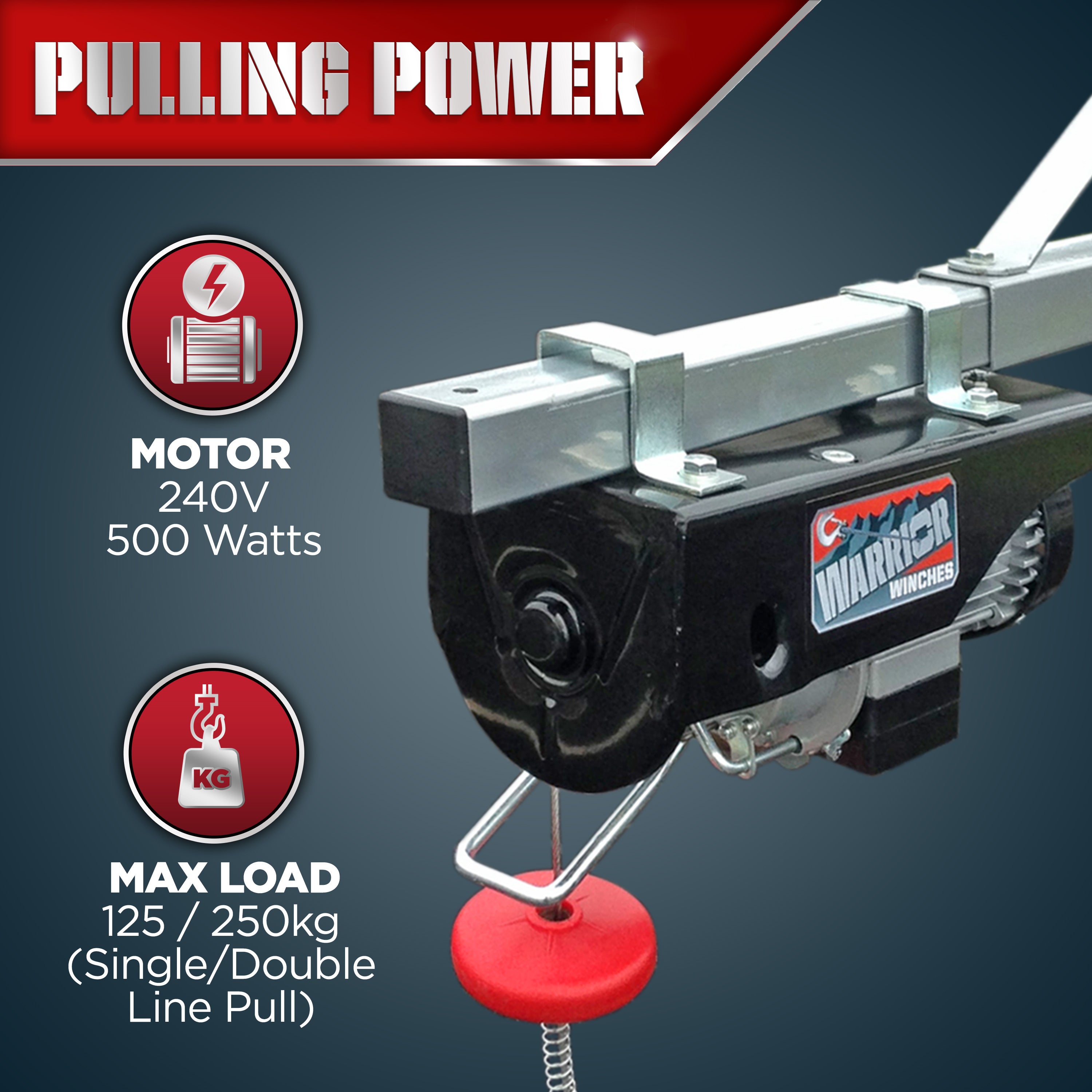

| Max Load | 125 / 250kg (275 / 551 lb) |
| Lift Height | 18 / 9m (59 / 29 ft) |

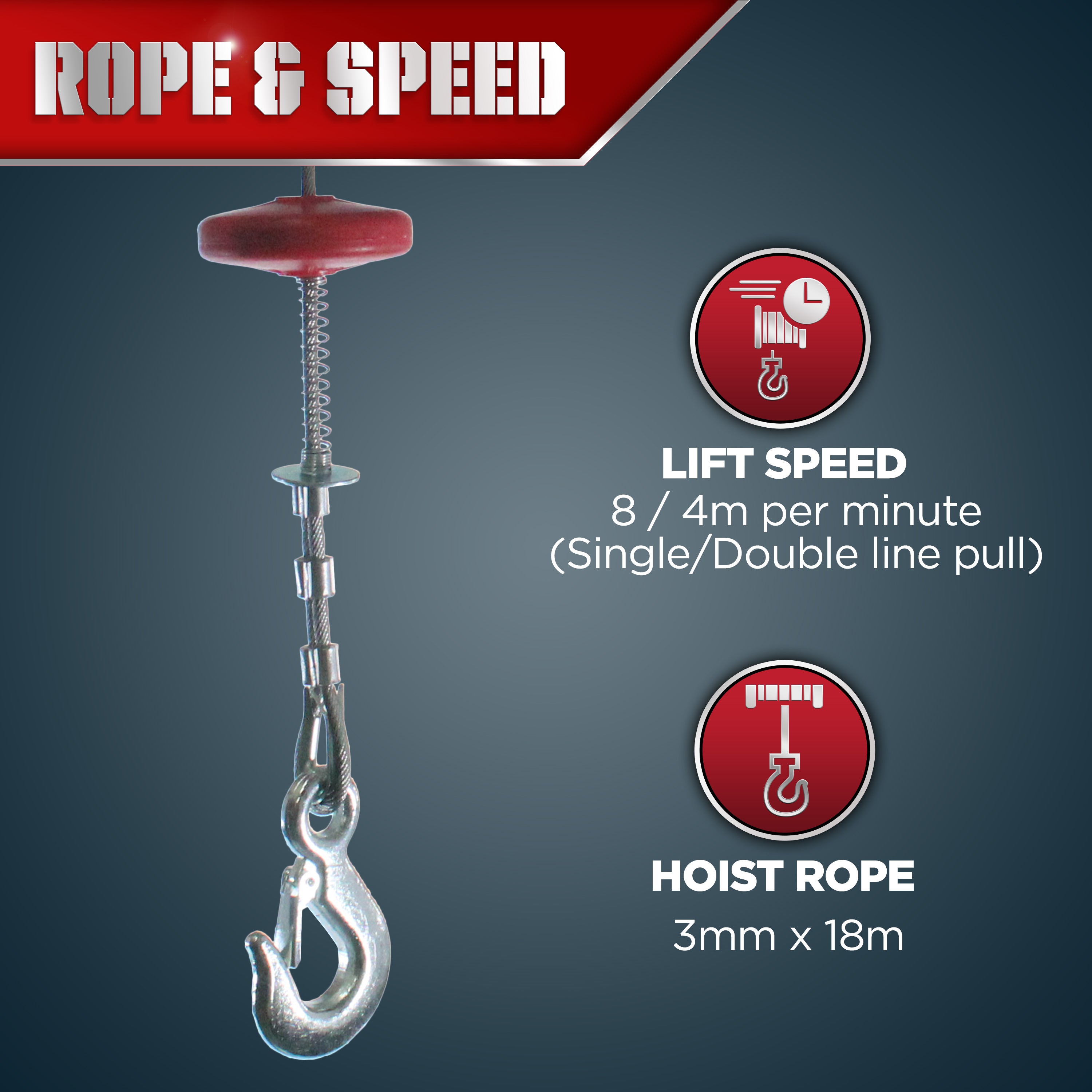

| Lift Speed | 8 / 4m (26 / 13ft) p/min |

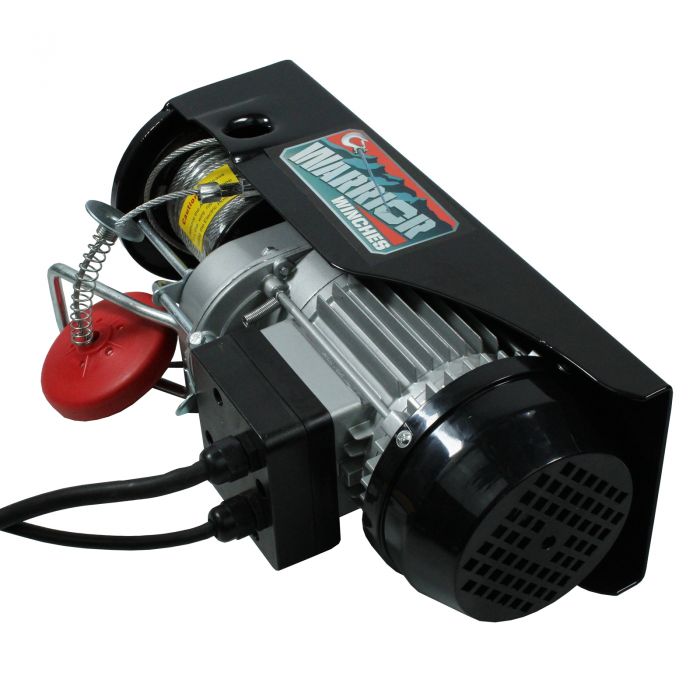

| Motor | 230v |
| Power | 500 watts |
| Cable | 3mm x 18m (0,12in x 59ft) |
| Rating | IP54 |
| Limit Safety Switch | Integrated |
| Weight | 12 kg (26 lb) |
| Work Rate | ED 20%, 150s/h |
| Certification | CE, EN 14492-2:2019 |
