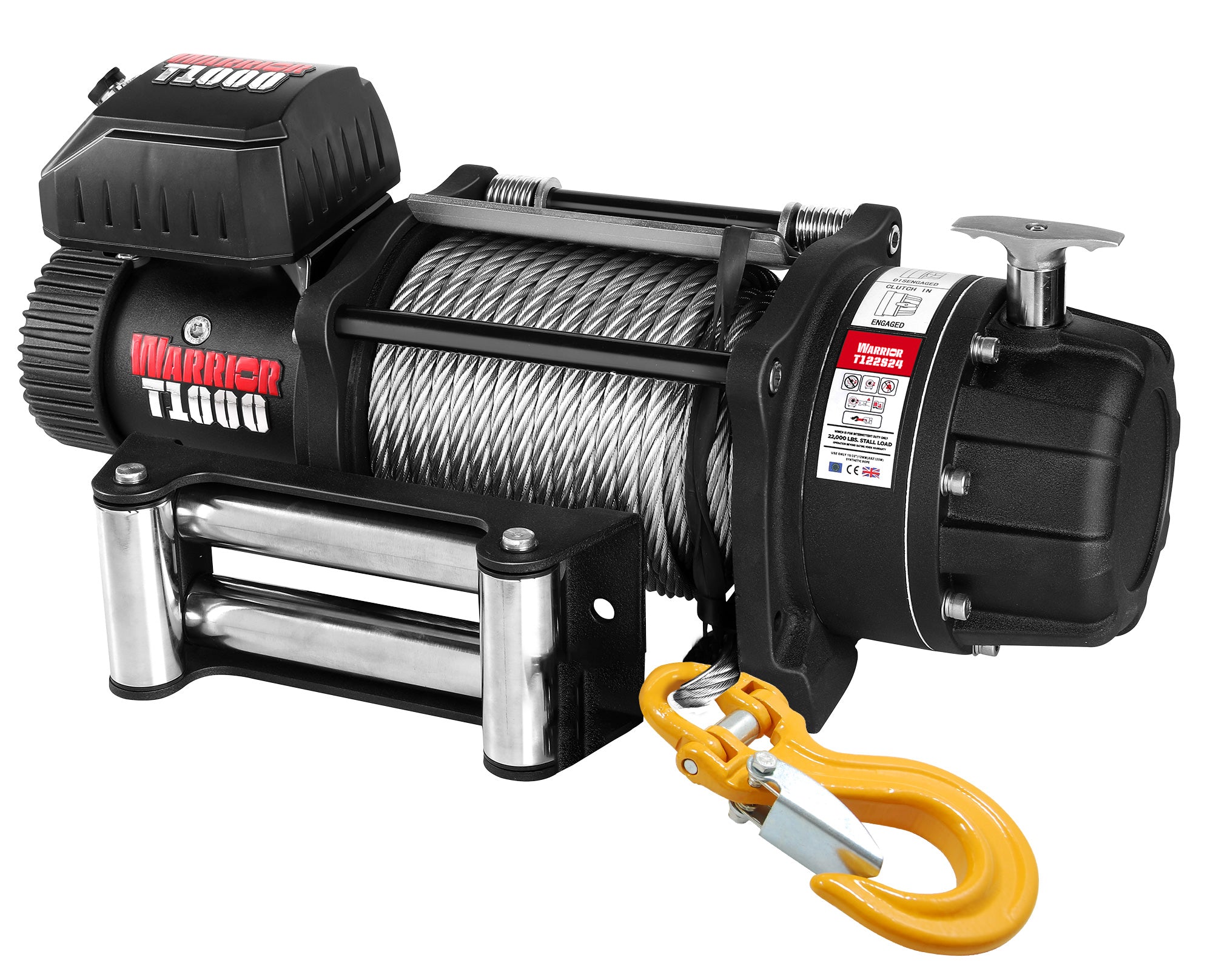

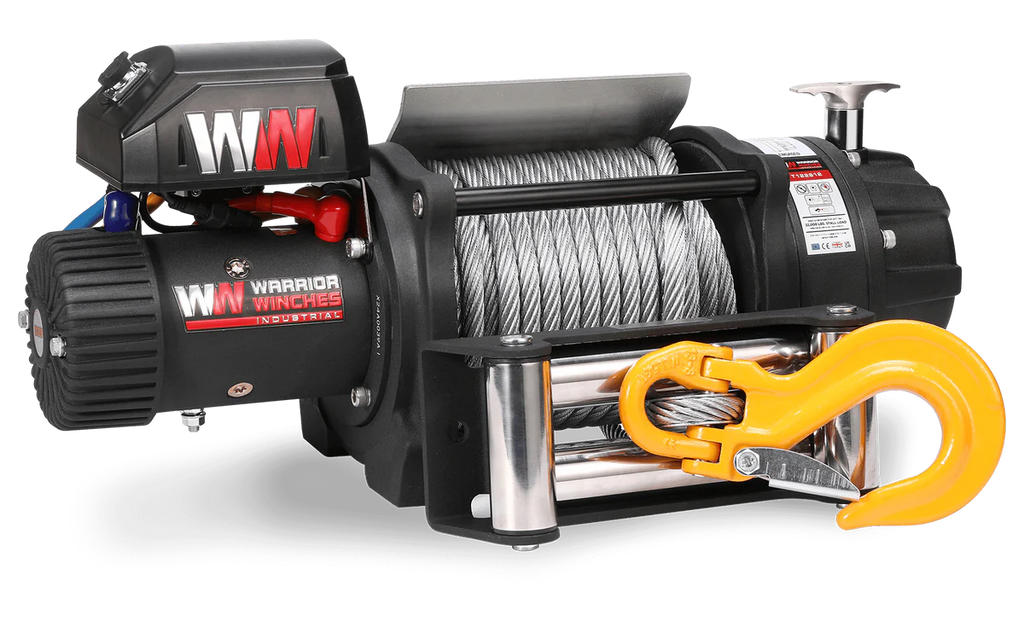

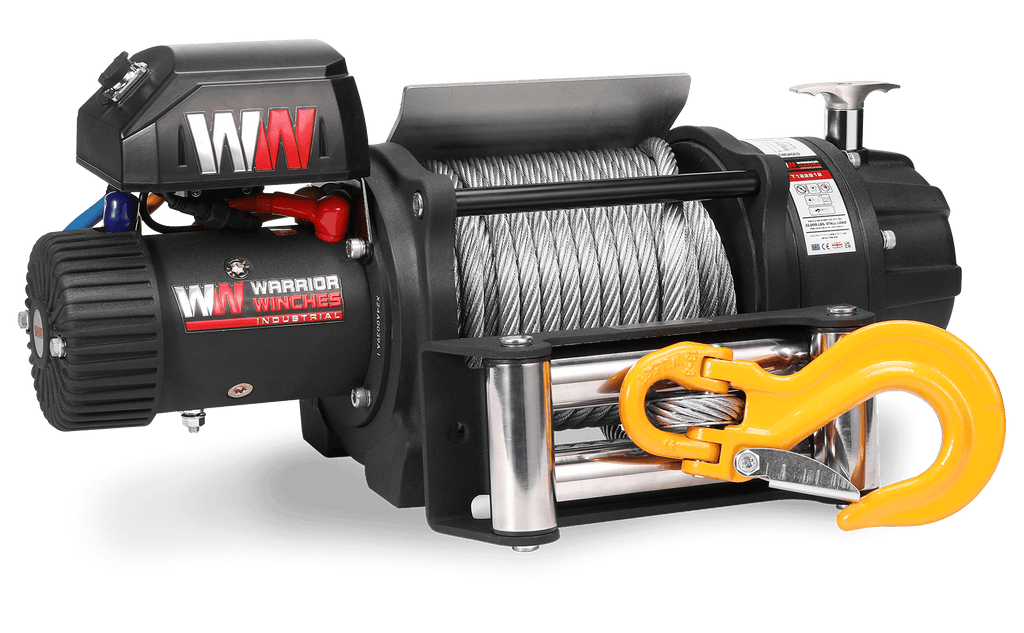

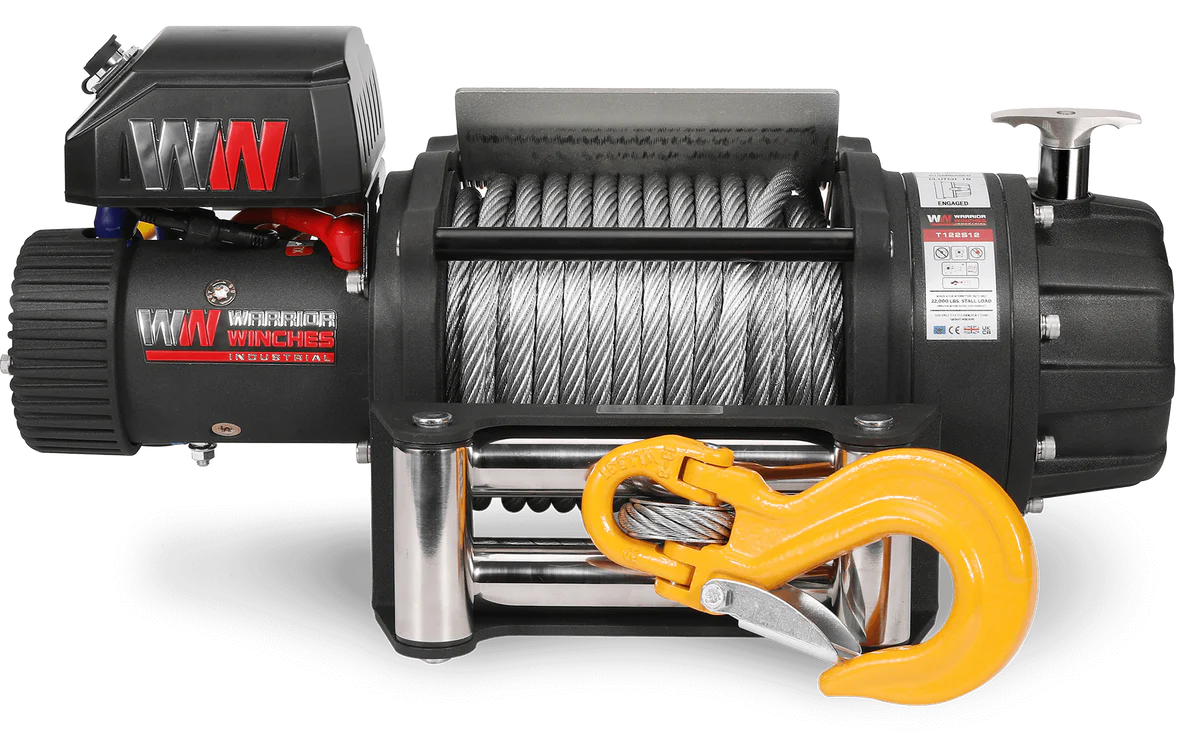

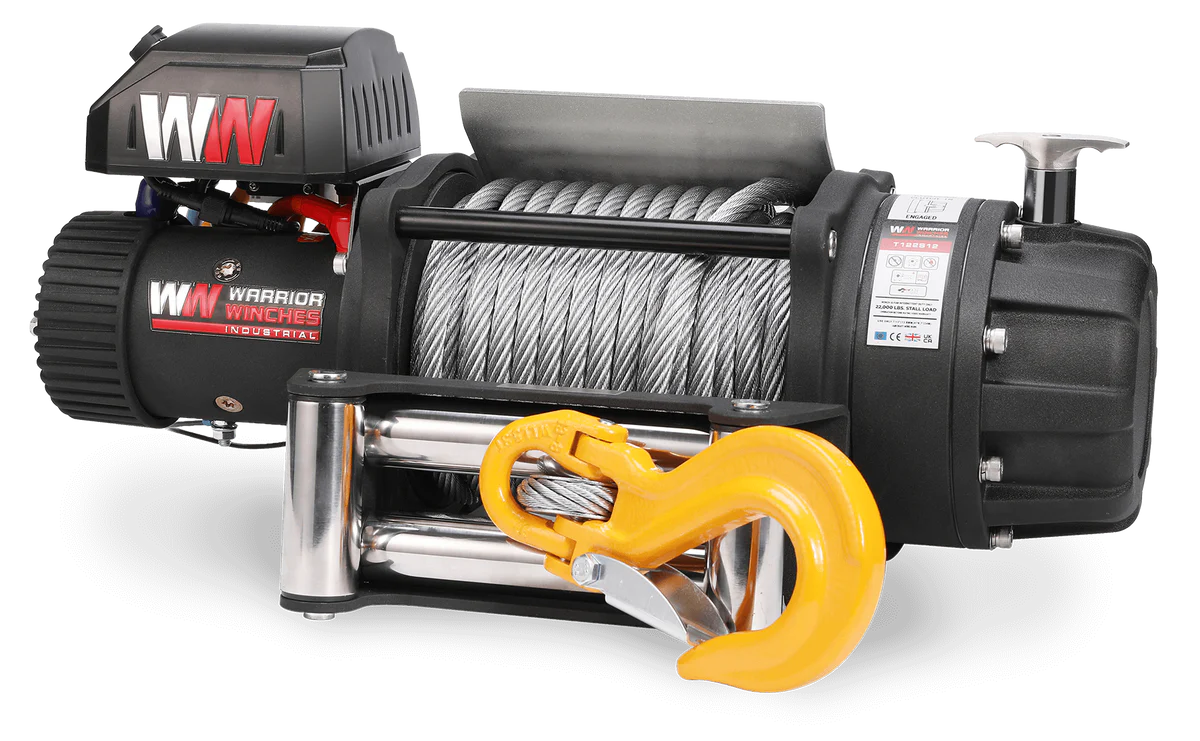

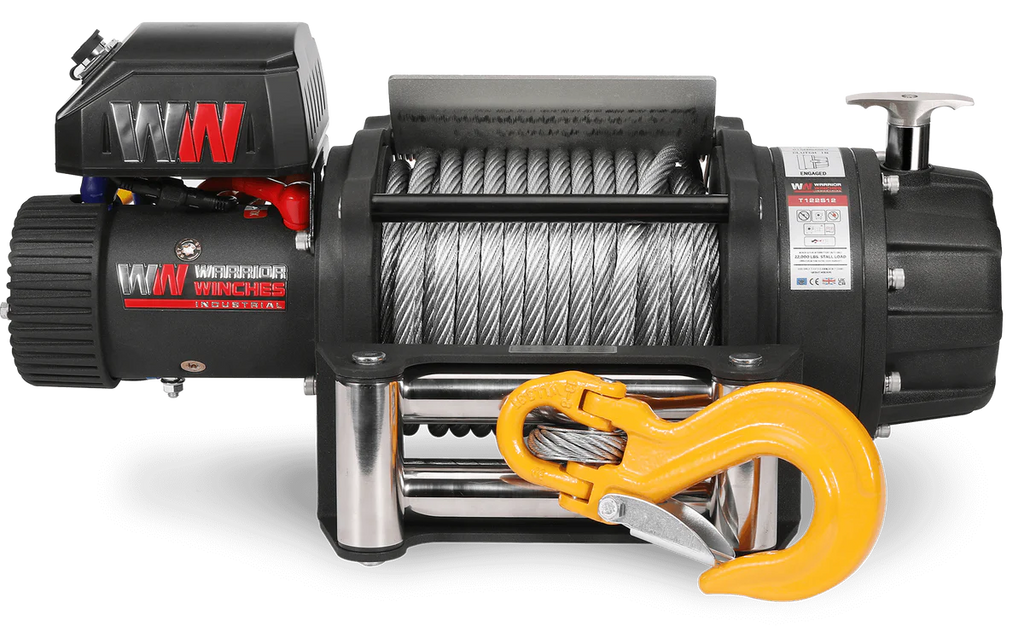

Warrior T1000-2200 22000lb Severe Duty Winch

 0 Reviews  Ask a Question
SKU: T122S12

12v Steel Rope
Voltage: 12v
Rope: Steel Rope
Sale price£1,712.99 inc vat
In stock (Delivery in 1-2 working days)

Features

  • MILITARY QUALITY – IP68 Rated Military Grade winch & control box.
  • REVOLUTIONARY DESIGN – Features an external brake for added safety.
  • HARD-WEARING – Special lithium grease ensure operation in extreme temperatures while the powder coating protects against corrosion..
  • STEEL STRENGTH – Complete with stainless steel roller fairlead and stainless steel fittings as standard.
  • EFFICIENT POWER – Hardened 3-stage planetary gears ensure reliability.

Originally designed as prototypes for military application – the T100 range of Severe Duty Warrior winches are in the highest class of reliable power. Able to perform in even the most severe climates and harshest environments – it’s power even the army would trust in. After countless successful operations in the field, the T100 range is now available for general use.

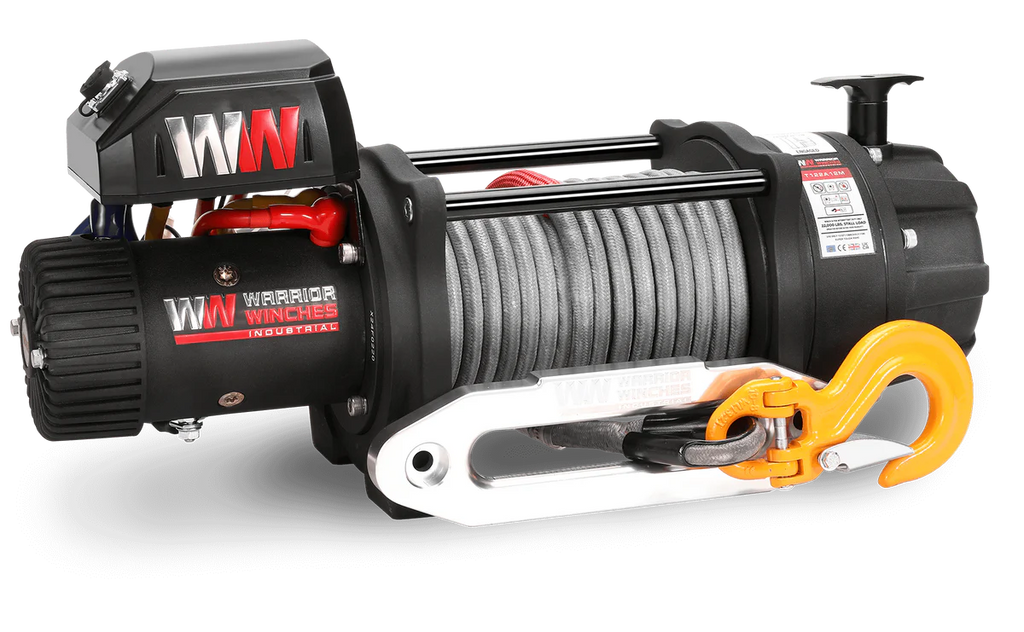

Giving you power without any compromise, they’re available in both 12v or 24v options, with either steel or Armortek Extreme ropes. With a line capacity of a huge 22000lb – it’ll get any job done with ease, ideal for industrial or commercial applications that require a battle-ready unit.

Hard-wearing is an understatement here. Special Lithium Grease ensures operation in extreme temperatures while the powder coating and stainless-steel features defy corrosion for long-lasting power. Also benefitting from a truly revolutionary design – the external brake is protected from overheating for reliability in harsh climates.

Undoubtedly one of the most advanced and durable machines on the market – why settle for less than the best?

Rated Line Pull 22000 lbs (9979 kgs)
Motor 12V : 5.5kW / 7.4hp
24V : 6.1kW / 8.2hp
Gearing 450:1
Braking Action External Brake
Drum Size - Dia x L 88 x 213mm
(3.4 x 8.3 in)
Cable - Dia x L Steel: 13.8mm x 24m (0.54 in x 78.7 ft)

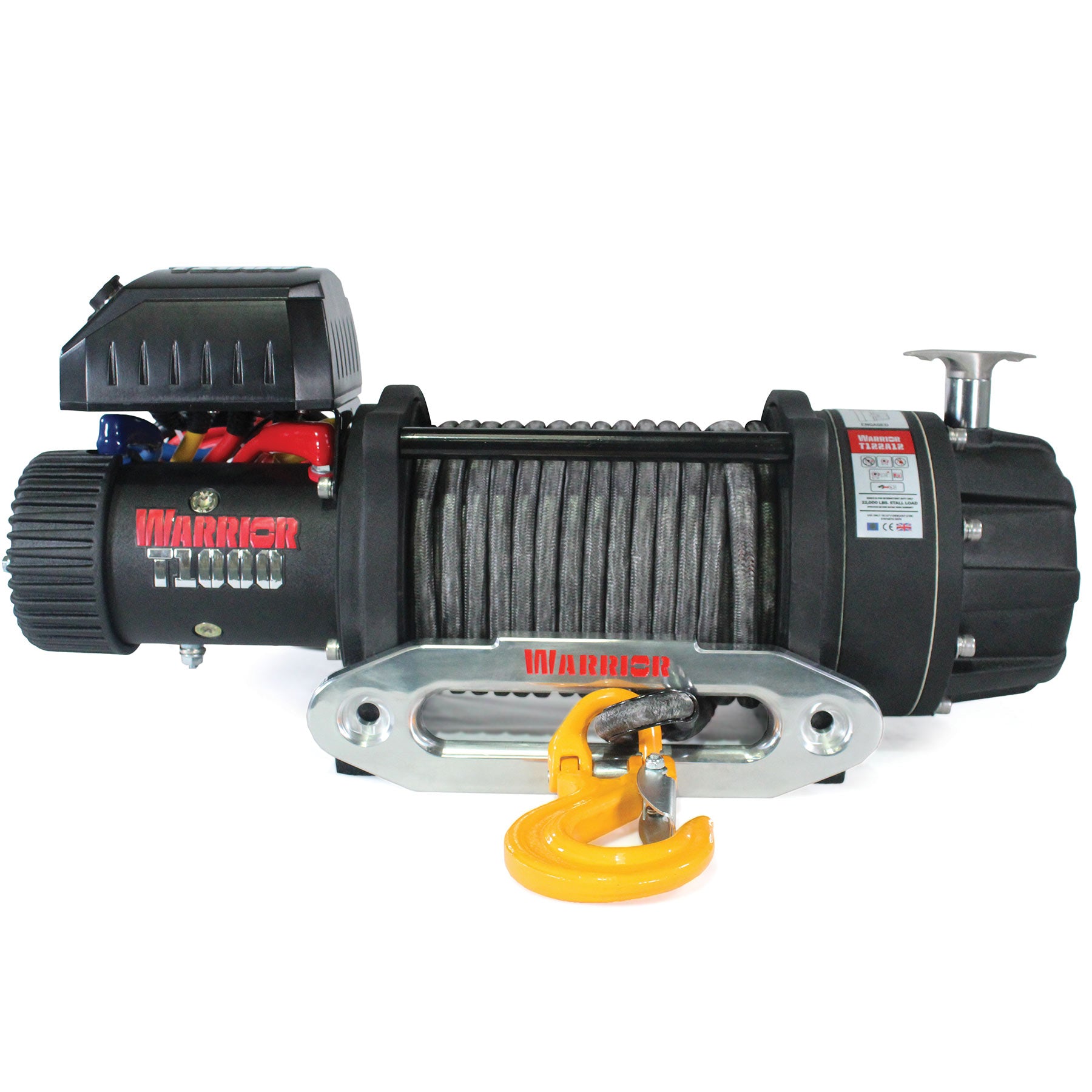

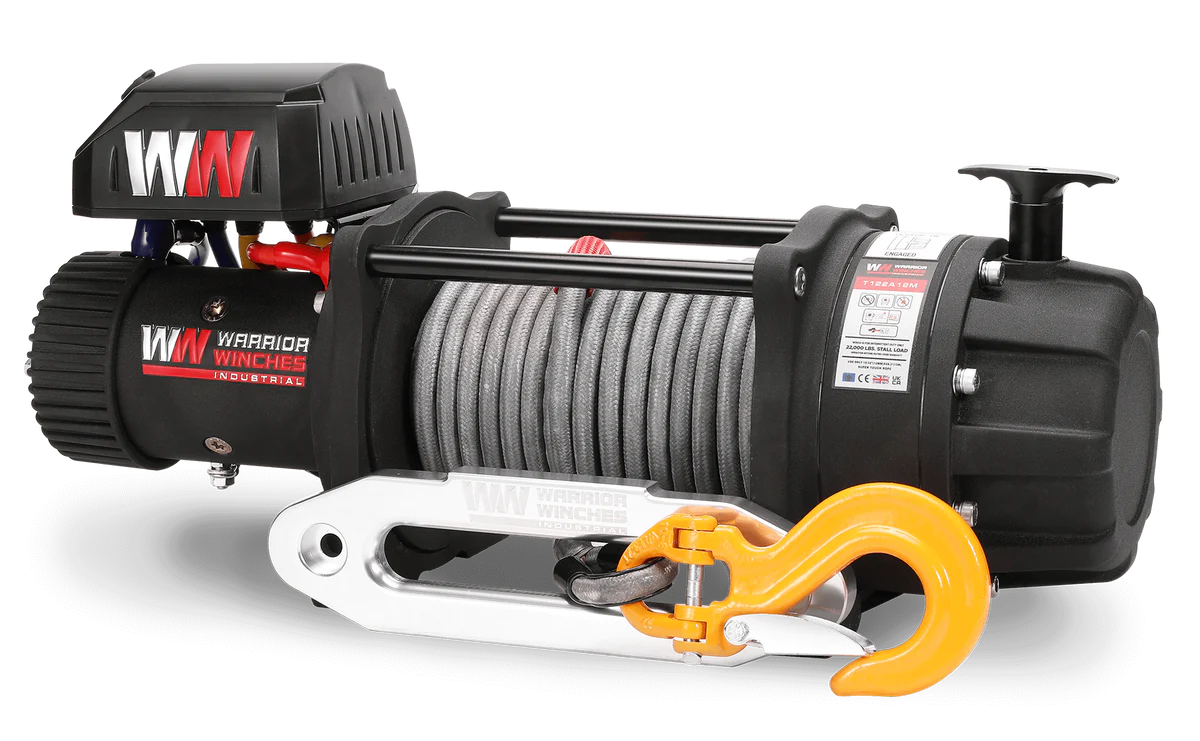

Synthetic: 12mm x 25m (0.47 in x 82 ft)

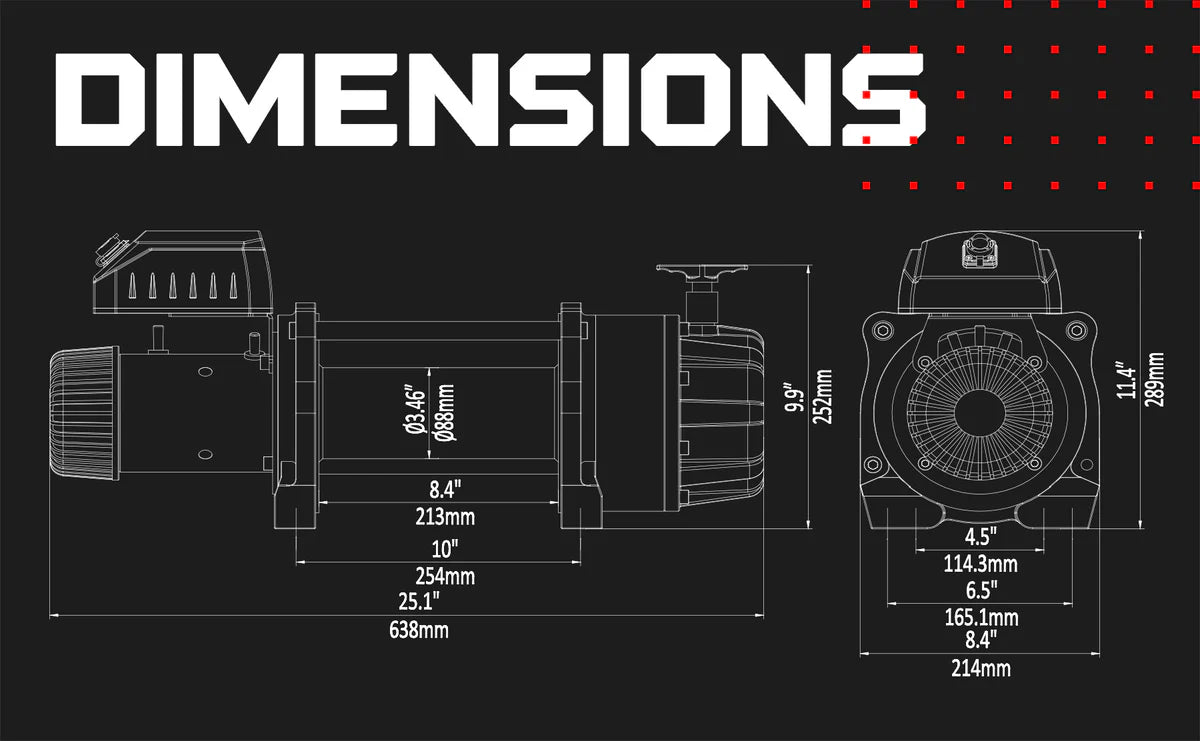

Dimensions 638 x 214 x 289mm
(25.2 x 8.4 x 11.4 in)
Mounting Pattern 254 x 114.3mm / 254 x 165.1mm
10 x 4.5 in / 10 x 6.5 in
Weight kg Steel: 75kg (165.3 lbs)
Synthetic: 62kg (136.6 lbs)
Clutch Manual



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 22000 (9979) 14.1 (4.3)
2 17300 (7847) 32.8 (10.0)
3 14260 (6468) 55.1 (16.8)
4 12130 (5502) 78.7 (24.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 21.7 (6.6) 23.0 (7.0) 65 40
5000 (2268) 9.8 (3.0) 10.2 (3.1) 175 100
10000 (4536) 6.6 (2.0) 7.2 (2.2) 270 150
15000 (6804) 4.9 (1.5) 5.2 (1.6) 350 200
22000(9979) 3.0 (0.9) 3.3 (1.0) 460 270

What's in the box:

  • Heavy Duty Wired Remote Control
  • Hook
  • Steel Rope or Synthetic Rope
  • Heavy Duty Stainless Steel Roller Fairlead (Steel) or Aluminium Hawse Fairlead (Synthetic)
  • Stainless Steel Monting Hardware
