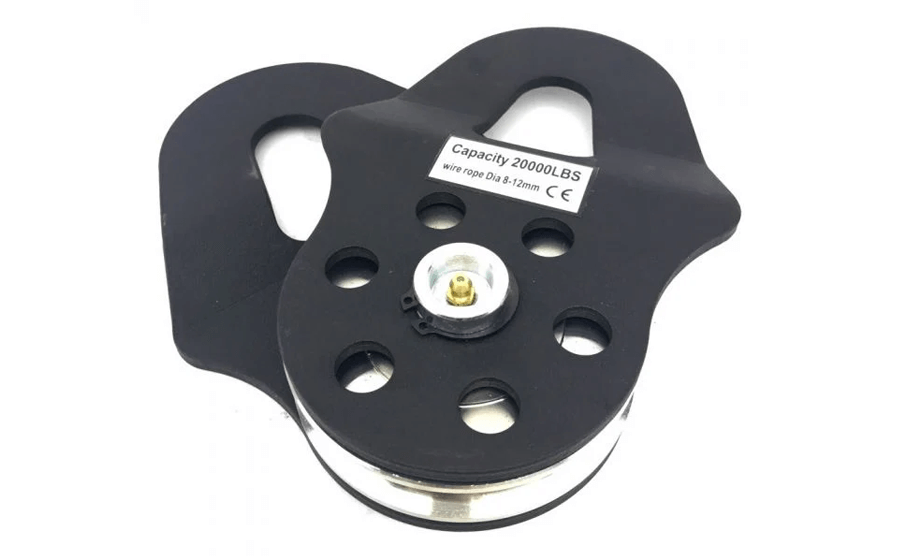

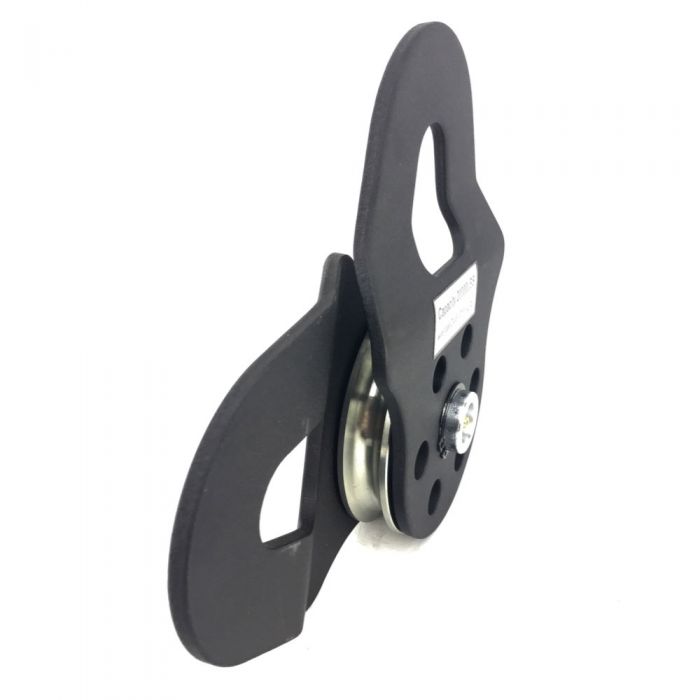

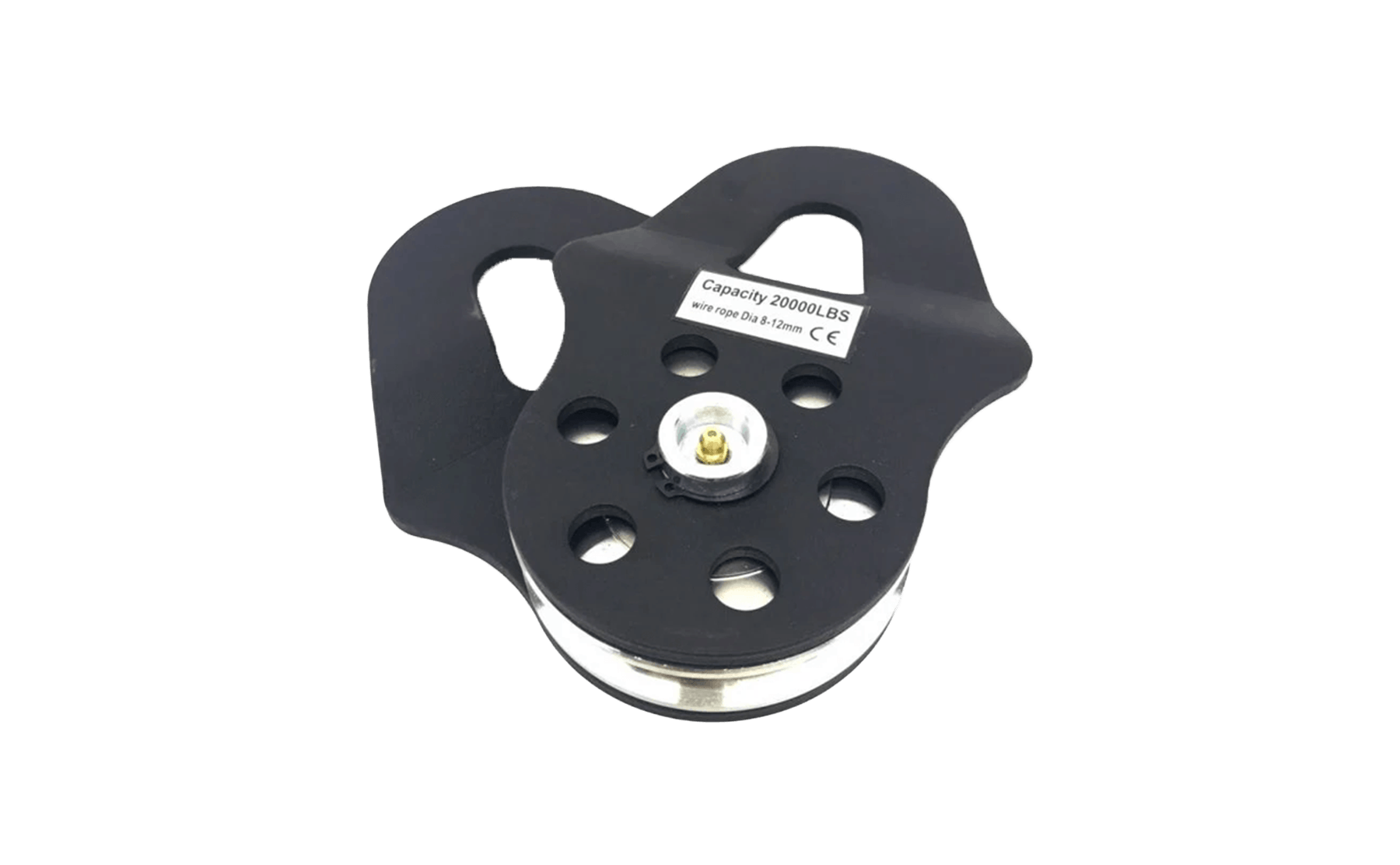

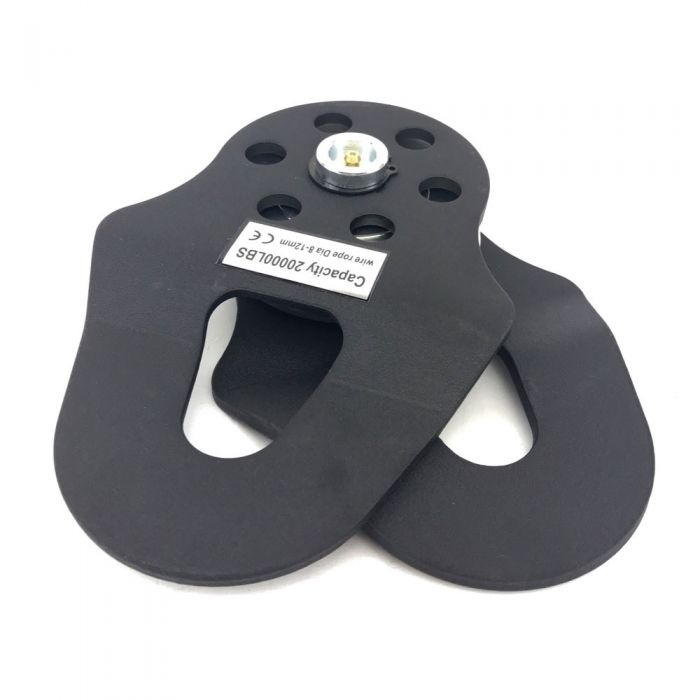

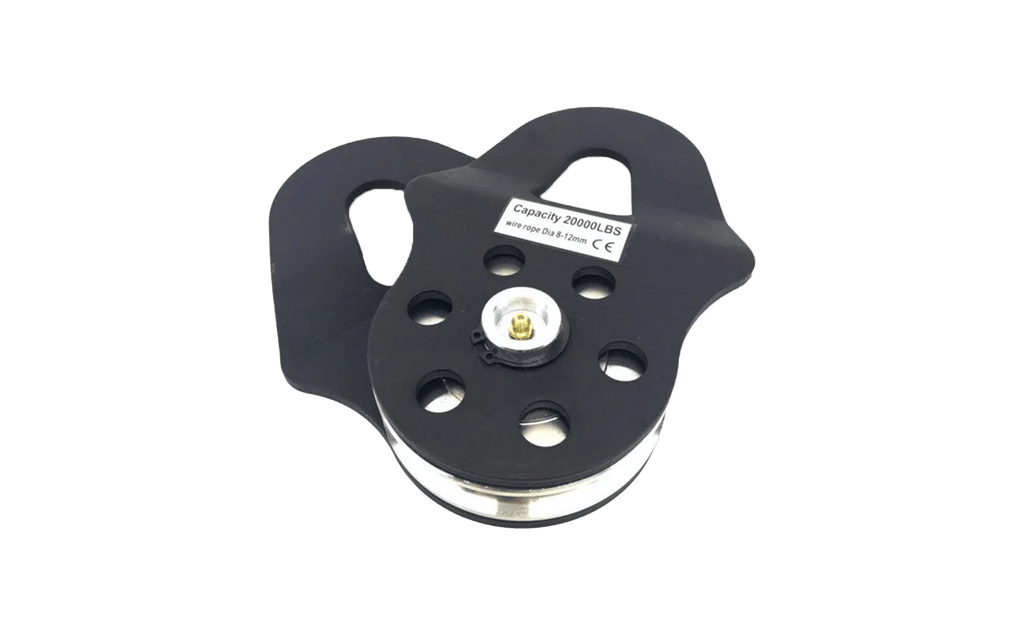

This all new Black Edition 20000lb pulley block is suitable for both steel and synthetic* ropes from 8mm to 12mm. It comes complete with a grease nipple allowing continued free running of the pulley wheel. The main body is coated with a tough matt black finish and the roller is finished with a durable zinc/galvanised finish. This is an essential bit of kit to have in your accessory kit inside your 4x4 and recovery truck.
Dimensions:
♦ Overall Size = 144mm x 215mm x 46mm
♦ Roller Size = 105mm x 21mm
♦ Pin Size = 27mm
♦ Maximum Capacity = 20000lb (9072 kg)
* It is important that a pulley with a damaged roller must not be used with a synthetic rope as it could possibly damage the cable.
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
How to Estimate Power Usage
To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.
Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)
Examples:
|
Power Station Capacity |
Device Power Usage |
Estimated Run Time |
|---|---|---|
|
1200Wh |
400W |
1200 ÷ 400 = 3 hours |
|
1000Wh |
250W |
1000 ÷ 250 = 4 hours |
|
500Wh |
100W |
500 ÷ 100 = 5 hours |
Keep in mind:
- This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
- Ensure your device power usage is below the max rated watts the power station can ouput.
- Always allow some buffer in your calculations to account for energy loss or variations in power draw.
- Some Power Stations can use Expansion Batteries to extend their capacity.
Wattage Reference Guide*
| Device | Average Power Usage |
|---|---|
| Lamp | 10 |
| LED/LCD TV | 150 |
| Laptop | 100 |
| Desktop Computer | 200 - 500 |
| Modem/Router | 20 |
| Play Station | 165 |
*This chart is for reference only. Check your device for ACTUAL wattage requirements.
