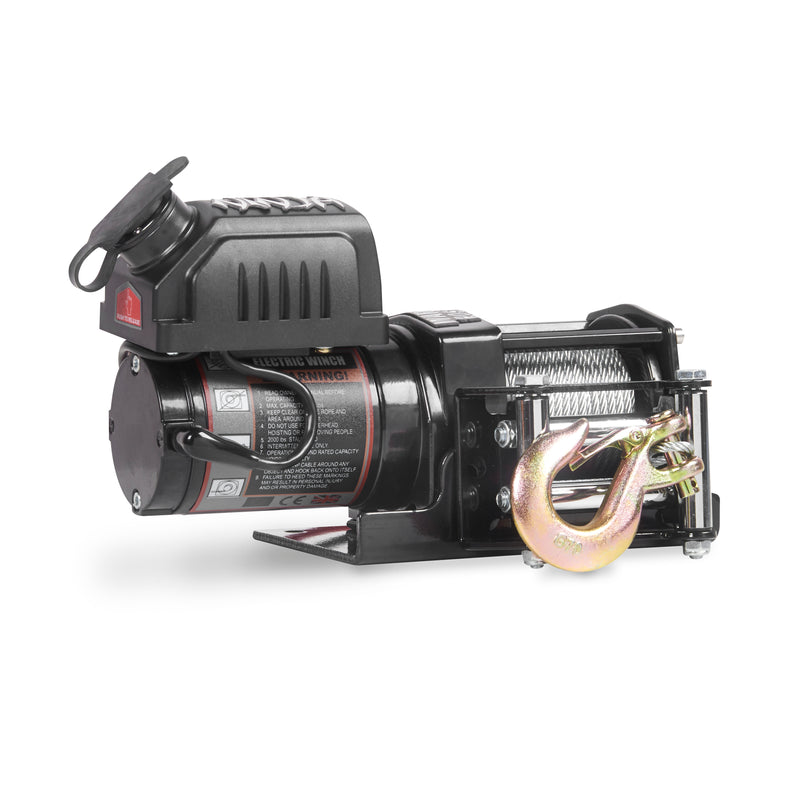

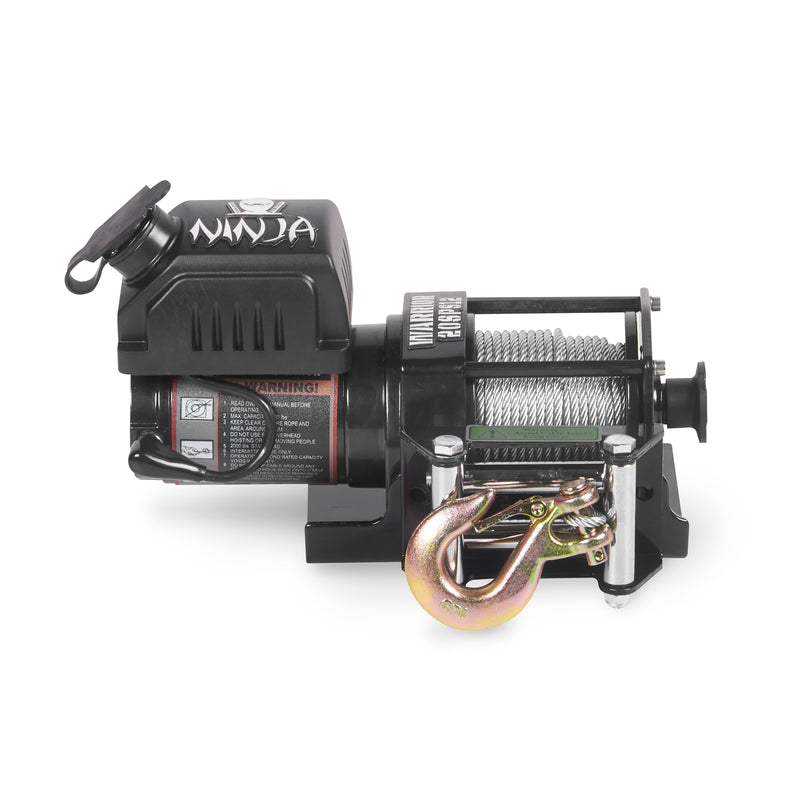

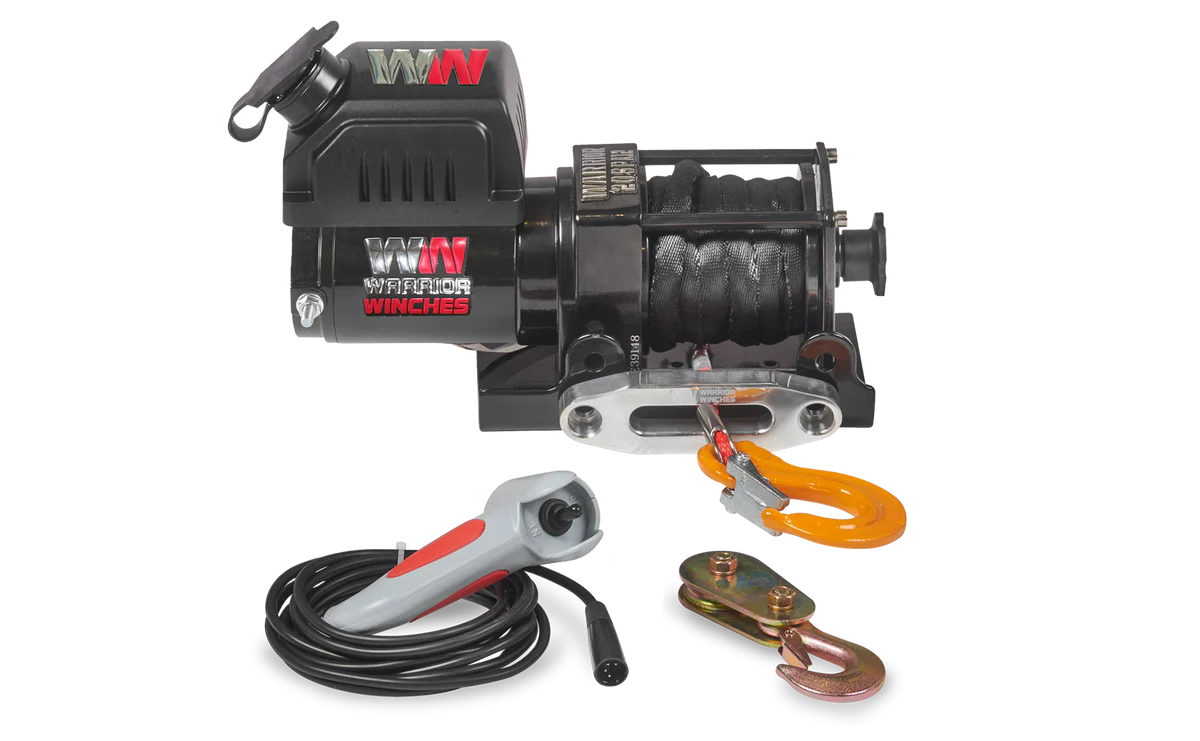

Warrior Ninja 2000lb Winch

1 Questions Answered
SKU: 20SPS12

12v Steel Rope
Voltage: 12v
Rope: Steel Rope
Sale price£92.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • NEWLY UPGRADED – The Warrior Ninja 2000 is an upgrade from the popular C2000A model.
  • POWERFUL + PROTECTED – High-powered motor sealed for protection.
  • HEAVY DUTY – Features full steel planetary gearing and a strengthened steel drum.

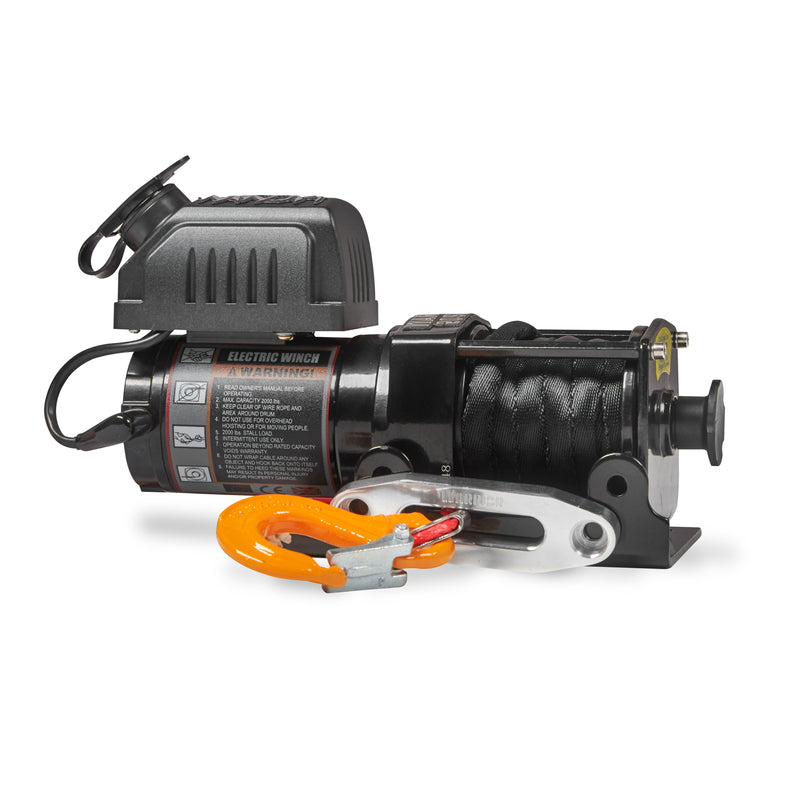

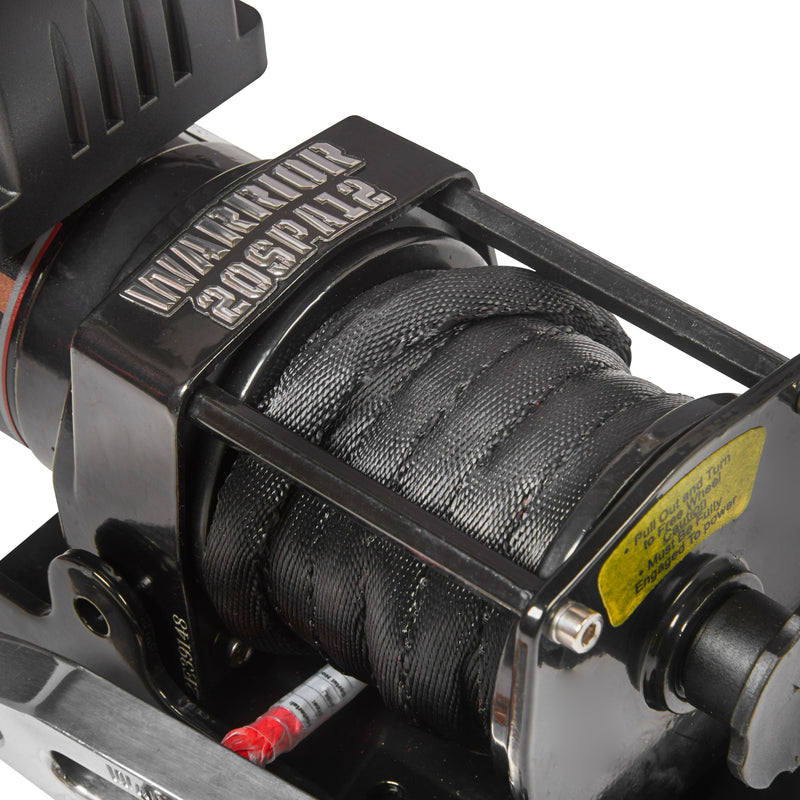

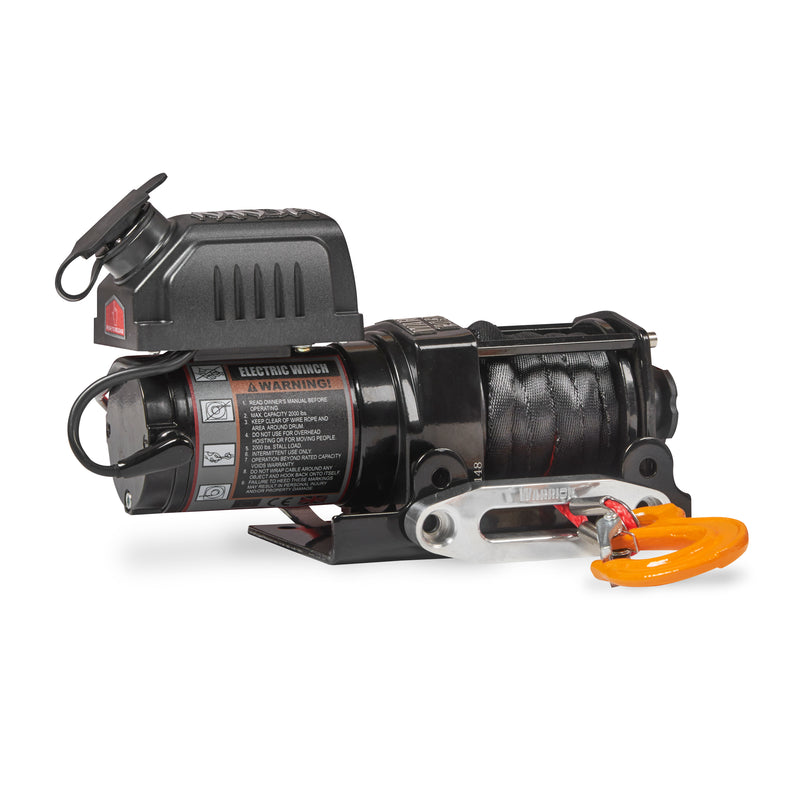

  • ROPE CHOICE – Available with steel or synthetic rope.

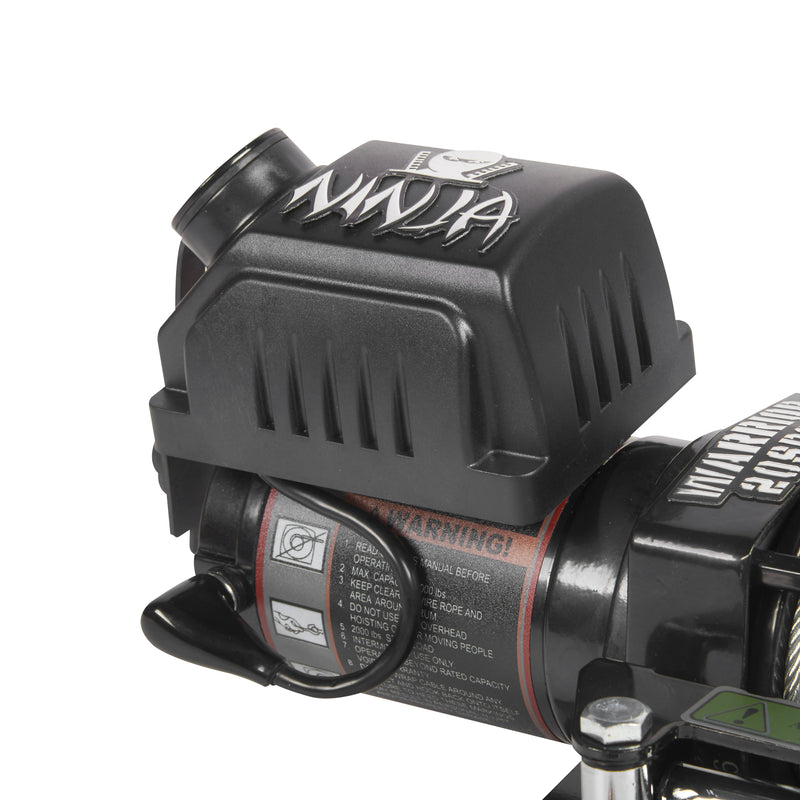

  • ALL WEATHER – With watertight contractors and controller socket.
  • LINE CAPACITY – 2000LB OR 907KG capacity.

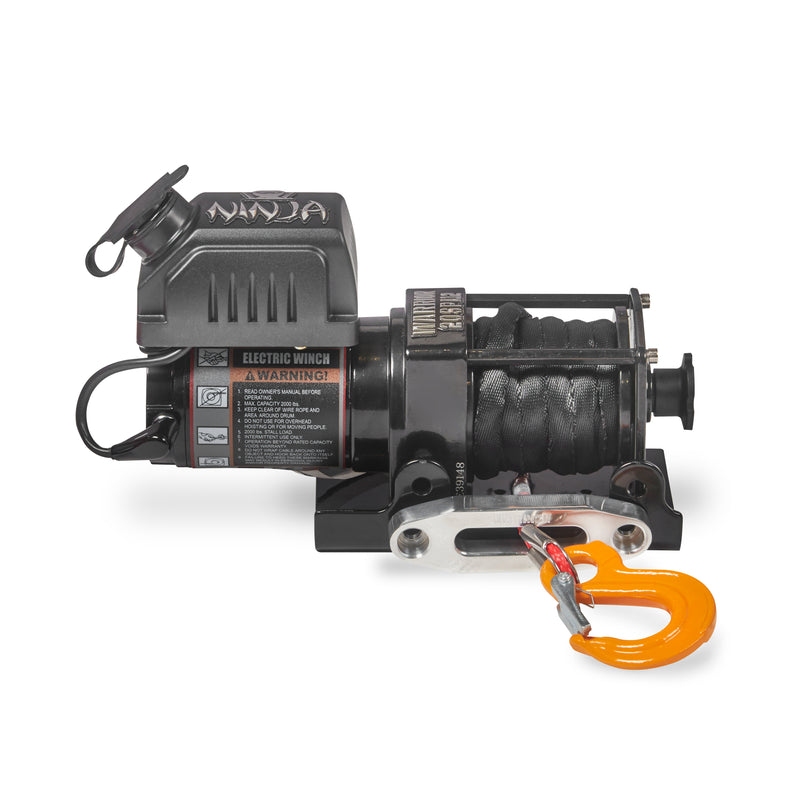

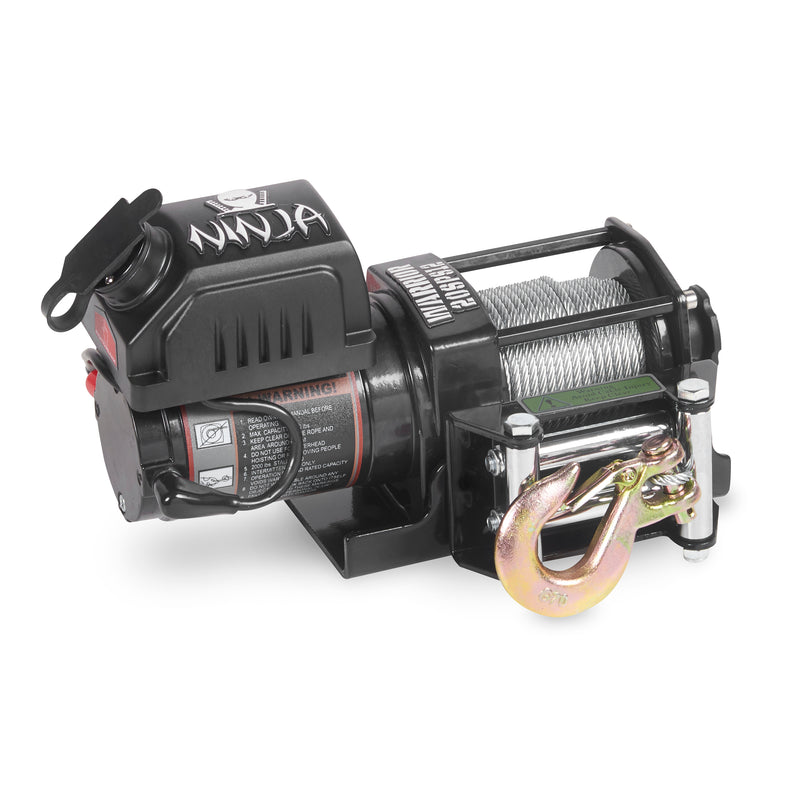

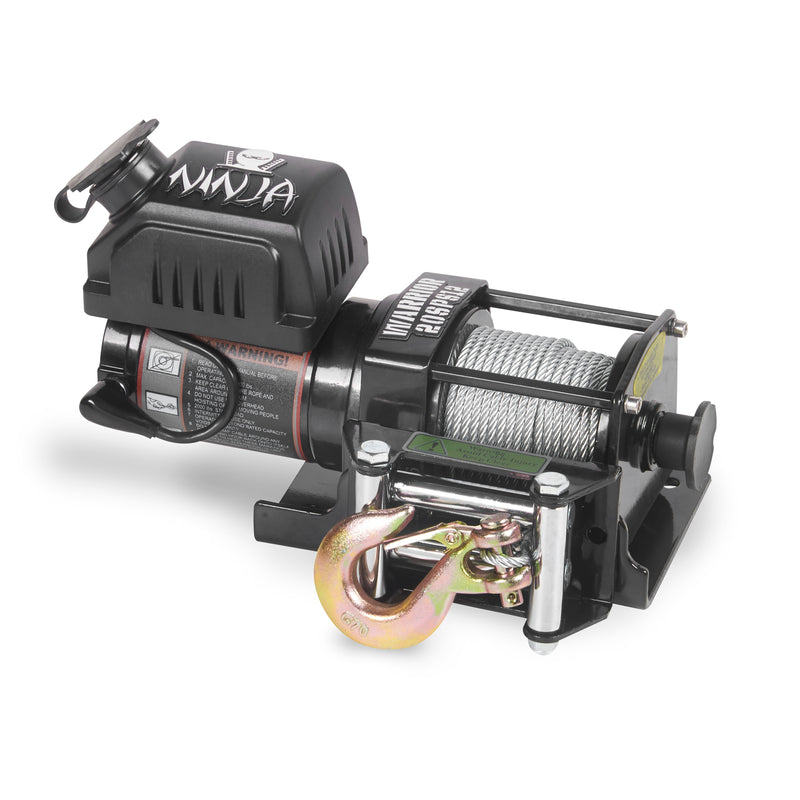

Warrior Ninja 2000lb Winch

Recently upgraded, the Warrior Ninja is a levelled-up version of the extremely popular C 2000A model. With no rivals on the market and no comparisons in strength, the Ninja is a truly outstanding offering thanks to its unique freespool system.

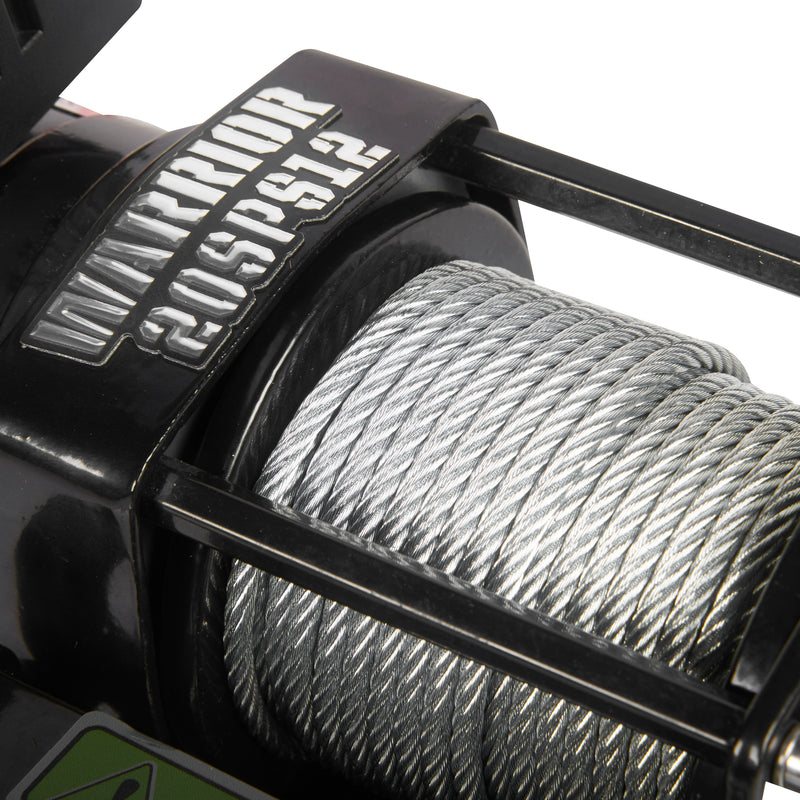

Built to last, the Ninja is packed with life-lengthening, strengthening features such as full steel planetary gearing, chip-resistant paint and a strengthened steel drum. Also protected for all weather, both the controller socket and contactors are watertight. Powered by a sealed high-power motor, you can rely on this heavy-duty winch.

With a line capacity of 2000lb or 907kg, and a pull of 1.0m per minute at full load – you can get the job done with ease. Unbeatable on pulling power, you can also get a handlebar control as an optional extra for ATV application.



Standard Features:

  •  Line Capacity: 2,000lb (907kg)

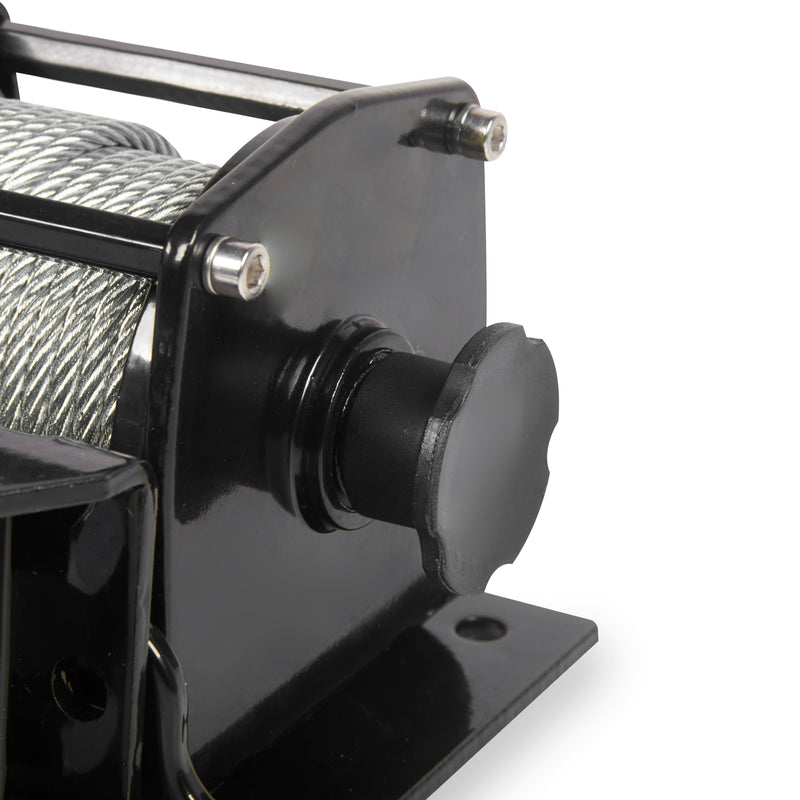

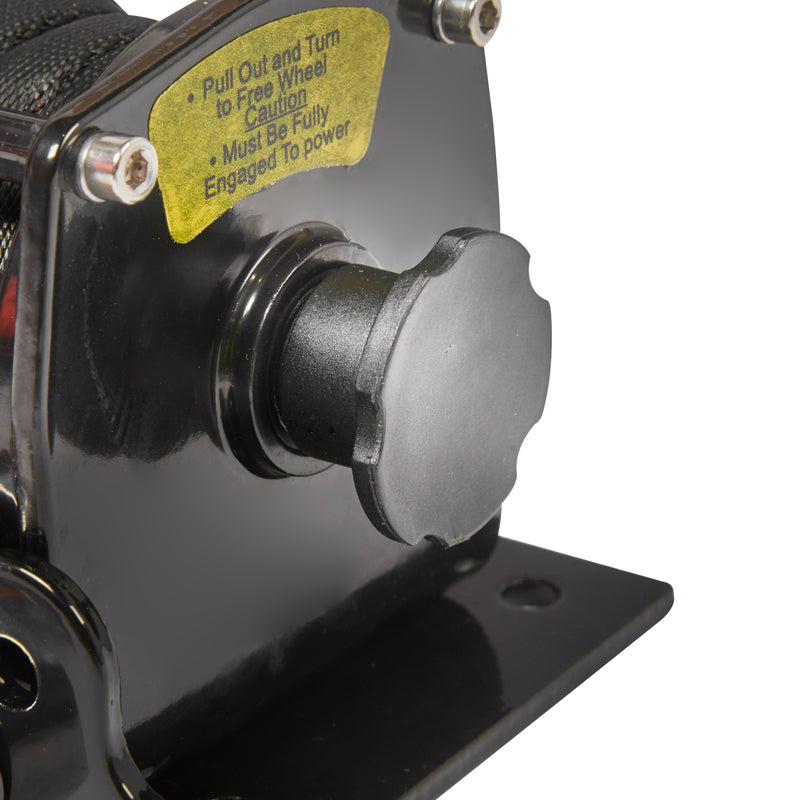

  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: 12 Month Return to Base

 Accessories:

  • Wired Hand Control: 3m Wired Hand Control
  • Wireless Control: Available as optional extra

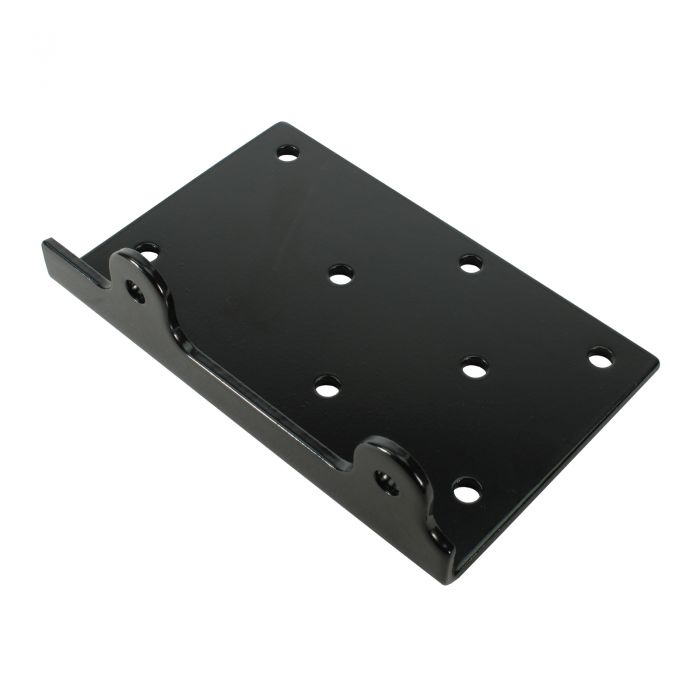

  • Mounting Plate: Included
  • Mounting Bolts: Included for Standard installations
  • 1.6m Heavy Duty Battery Cables (May need extending dependant on application)
  • 2t Hook Type Pulley Block
  •  Instruction Manual

 Other Information:

  • Dimensions: 308mm L x 113mm D x 150mm H

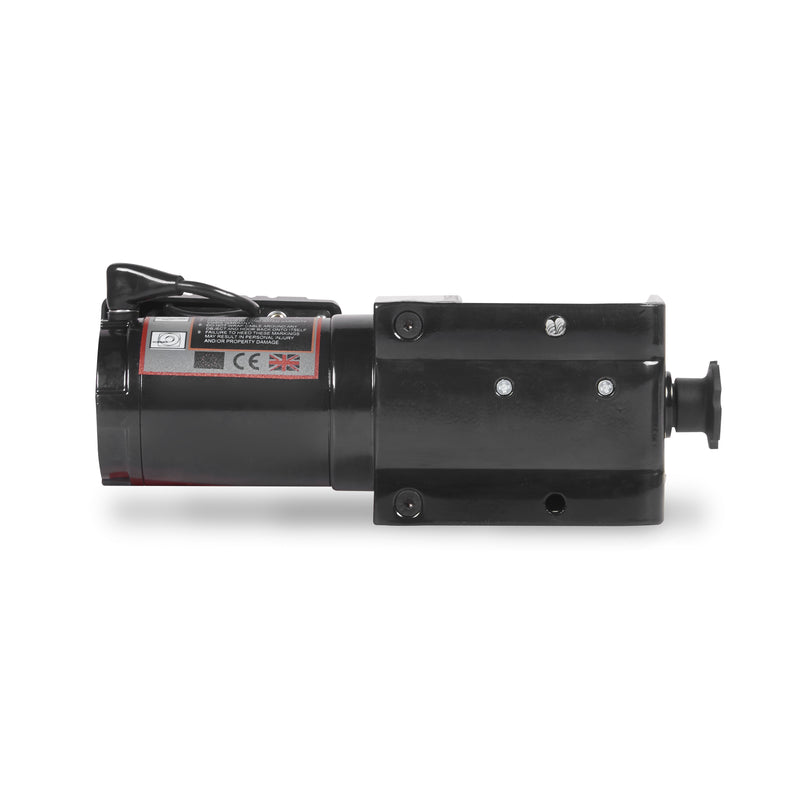

  • Mounting Bolt Pattern: 79.5mm
  • Approx. Shipping Weight: 7kg
  • Line Pull- No Load: 3.2 m/min (12 Amps)
  • Line Pull - Full Load:  1.0 m/min (90 Amps)

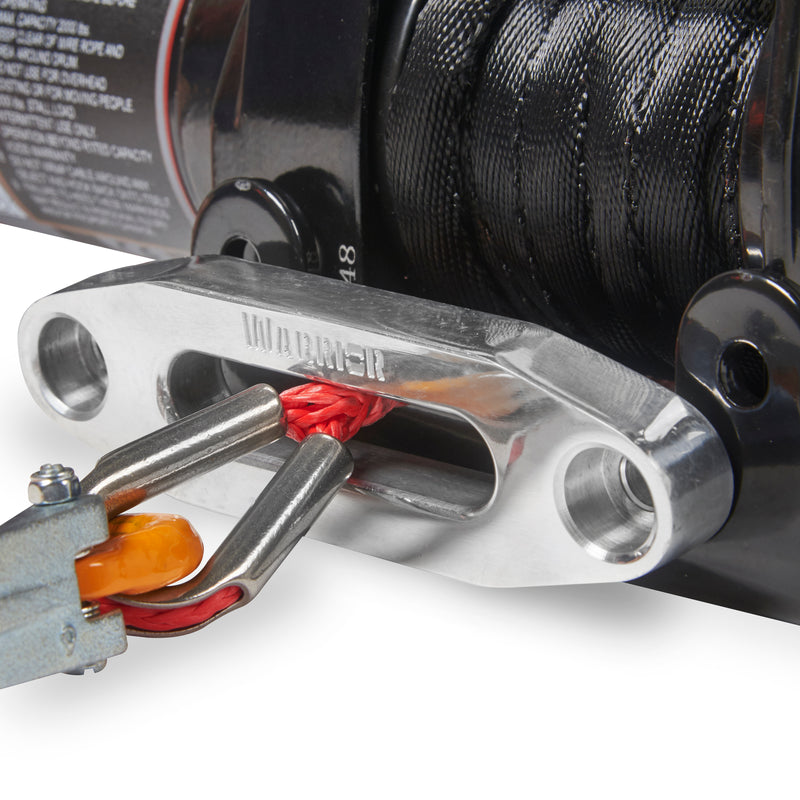

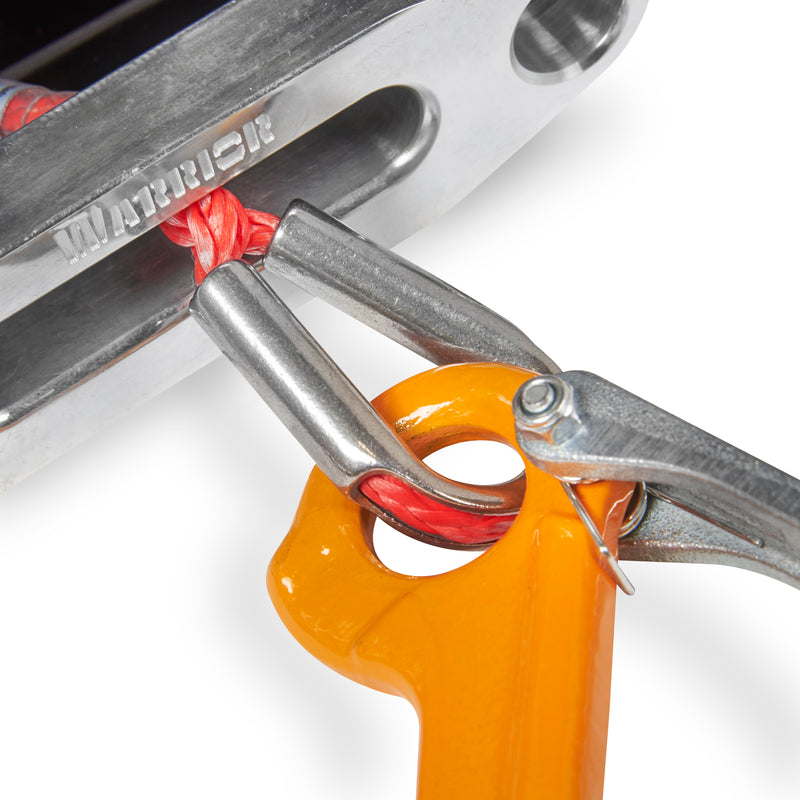

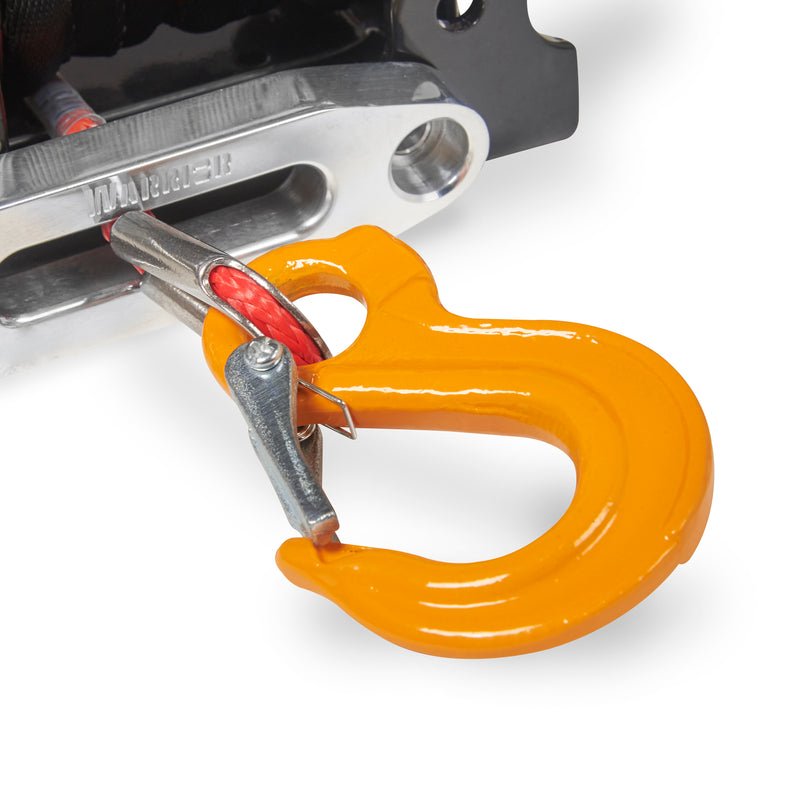

Note: For the majority of applications the synthetic rope  supplied with this winch will need to be removed from the drum, fed through the hawse fairlead once it is mounted in place and then the cable re-wound onto the drum.  A fixed hook will not (and should not) feed through the fairlead.




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 2000lbs (907kg)
Motor 12v: 1.7kw/2.3hp
24v: 1.9kw/2.6hp
Gearing 153:1
Braking Action Dynamic

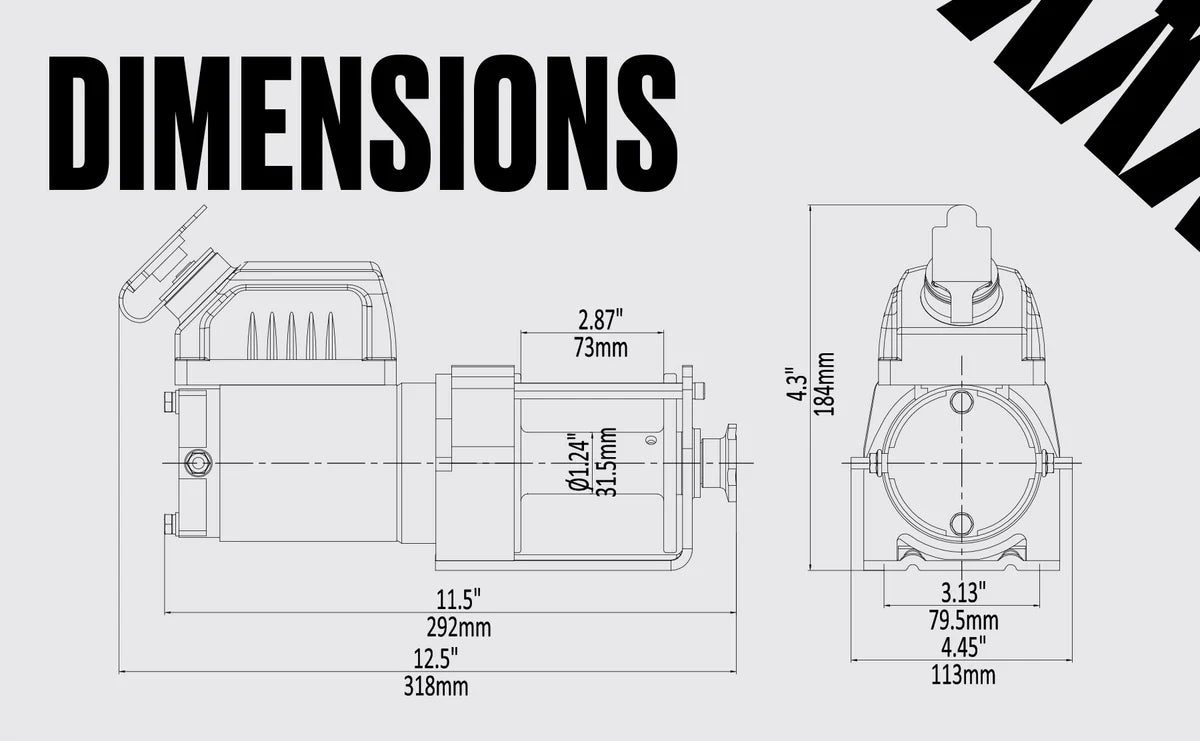

Drum Size - Dia x L 31.5 x 73mm (1.24 x 2.87 in)
Cable - Dia x L Steel: 4mm x 15m (0.16 in x 49 ft)
Synthetic: 5mm x 15m (0.2 in x 49 ft)

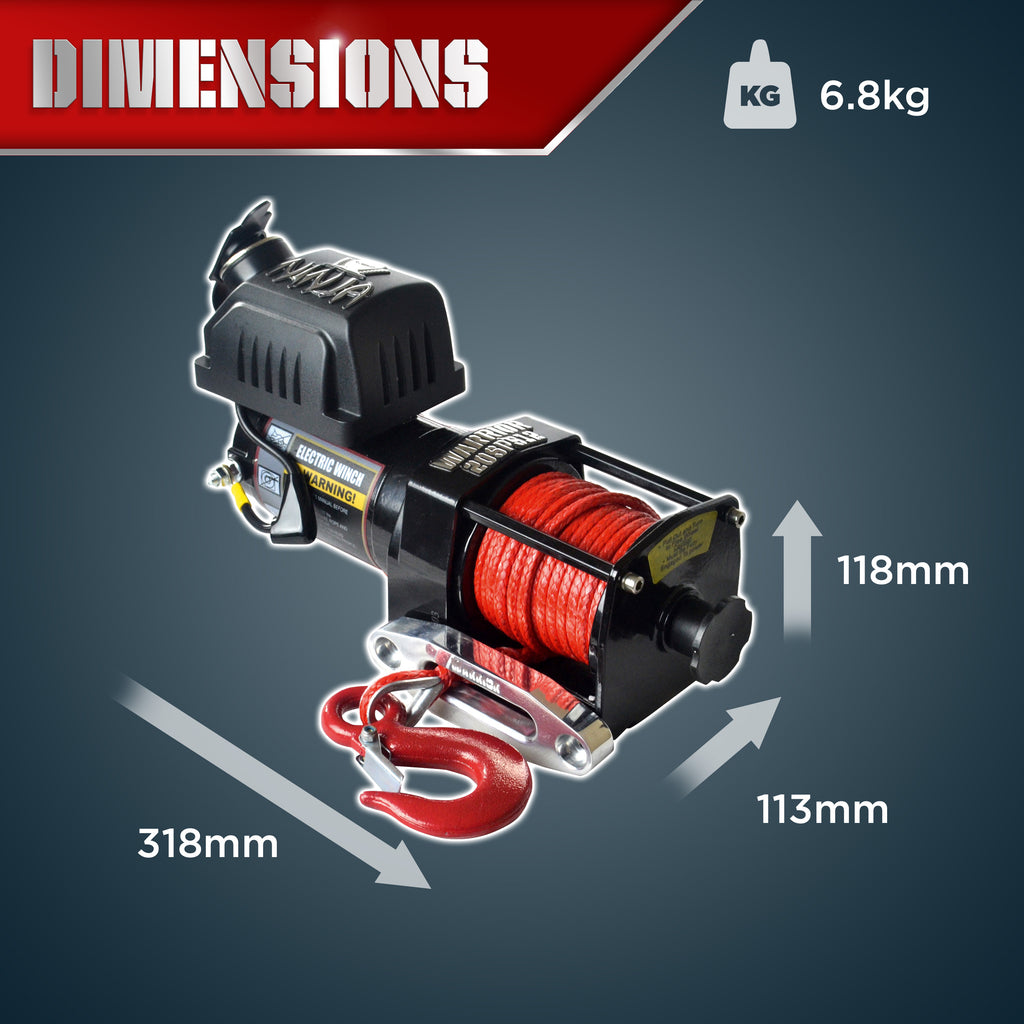

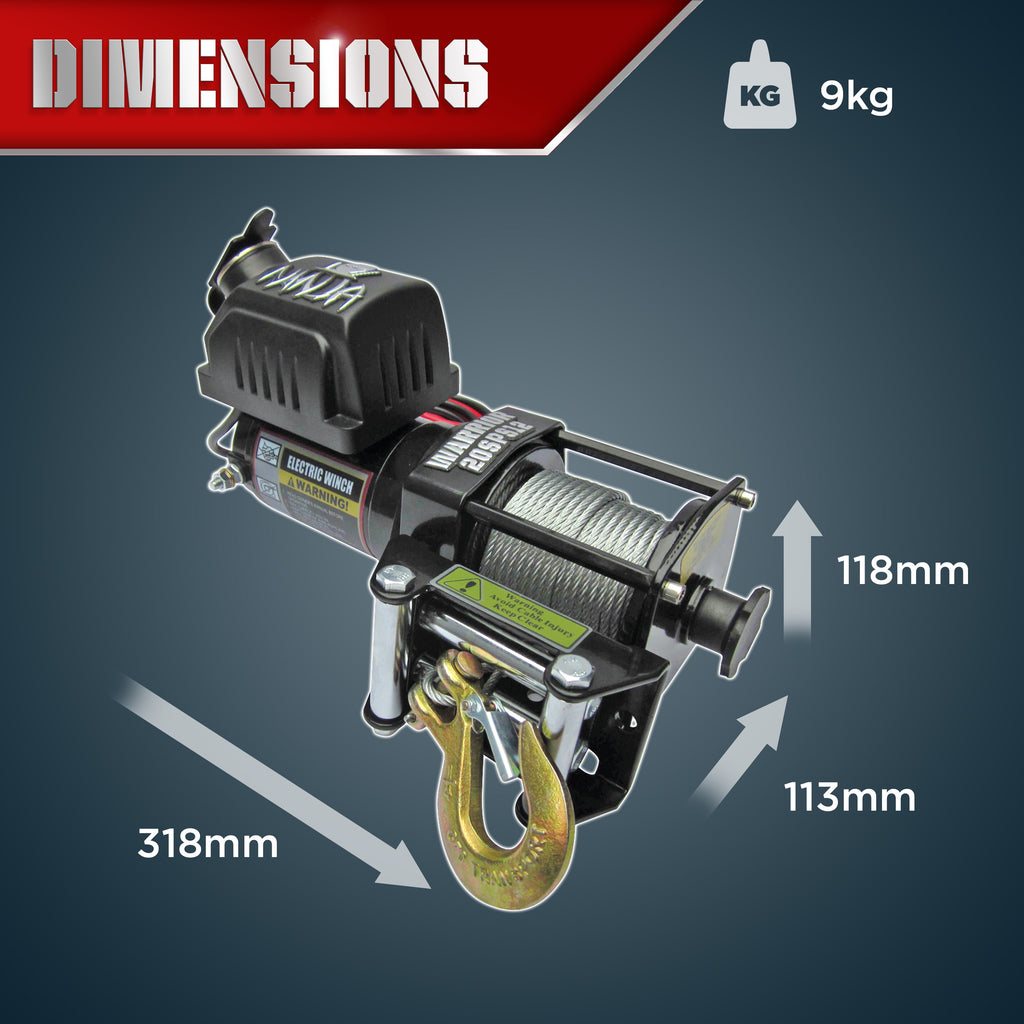

Dimensions 318 x 113 x 184mm (12.52 x 4.4 x 7.2 in)
Mounting Pattern 79.5mm (3.12 in) two bolts only
Weight kg Steel: 9 kg (19.8 lbs)
Synthetic: 6.8 kg (15 lbs)
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2000 (907)
2 1630 (739)
3 1380 (1190)
4 1190 (540)
5 1050 (476)
6 940 (426)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 10.5 (3.2) 12 6
500 (227) 9.2 (2.8) 25 10
1000 (454) 7.5 (2.3) 40 15
1500 (680) 5.9 (1.8) 60 25
2000 (907) 3.3 (1.0) 90 55

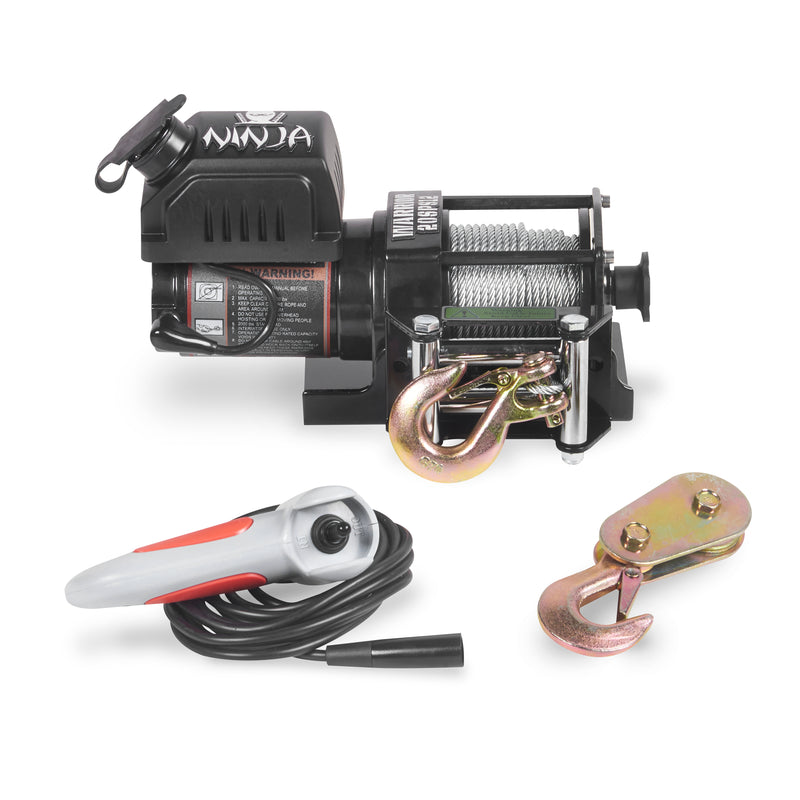

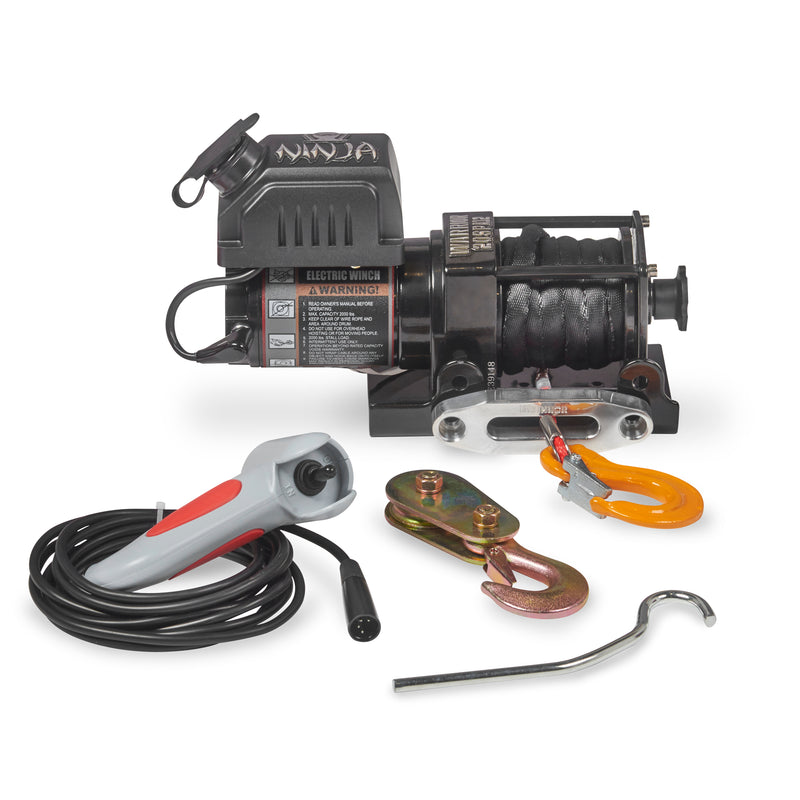

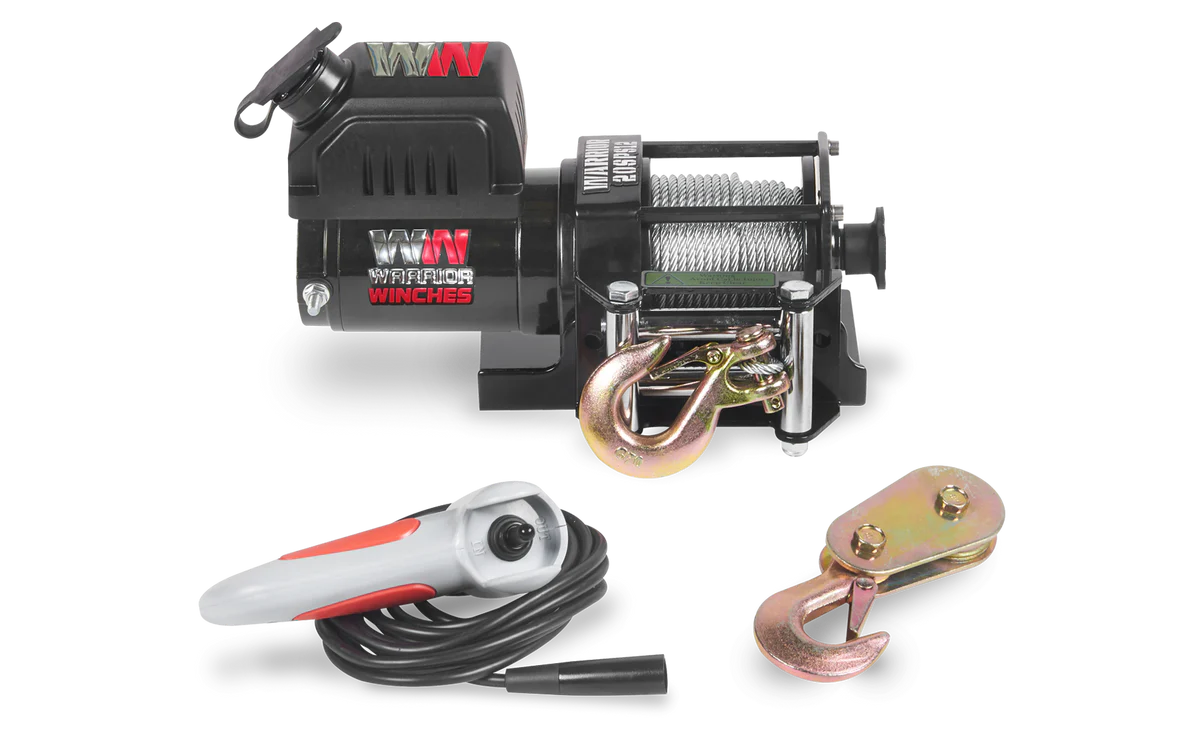

What's in the box:

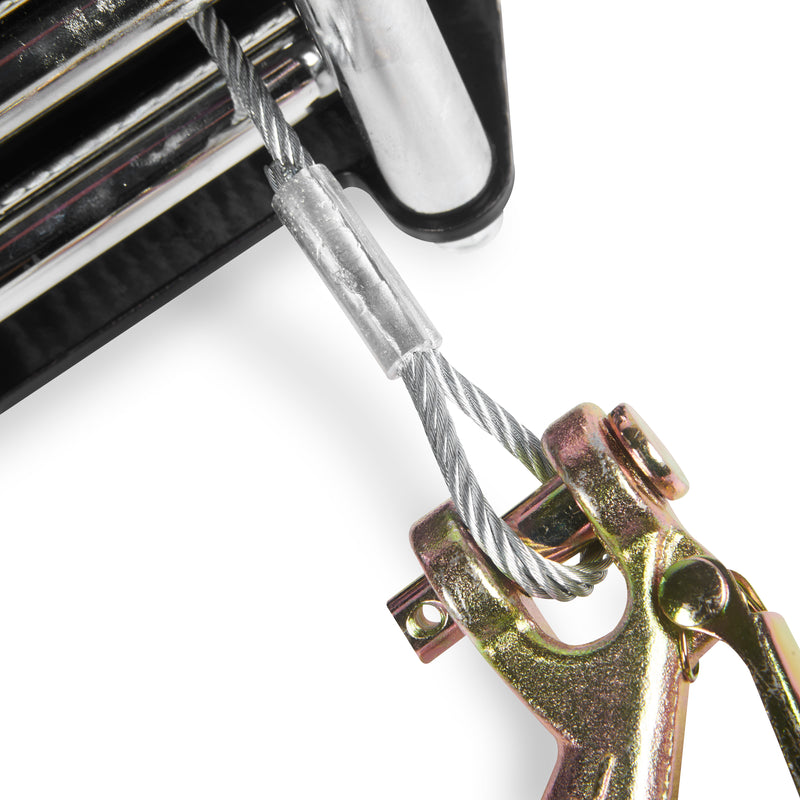

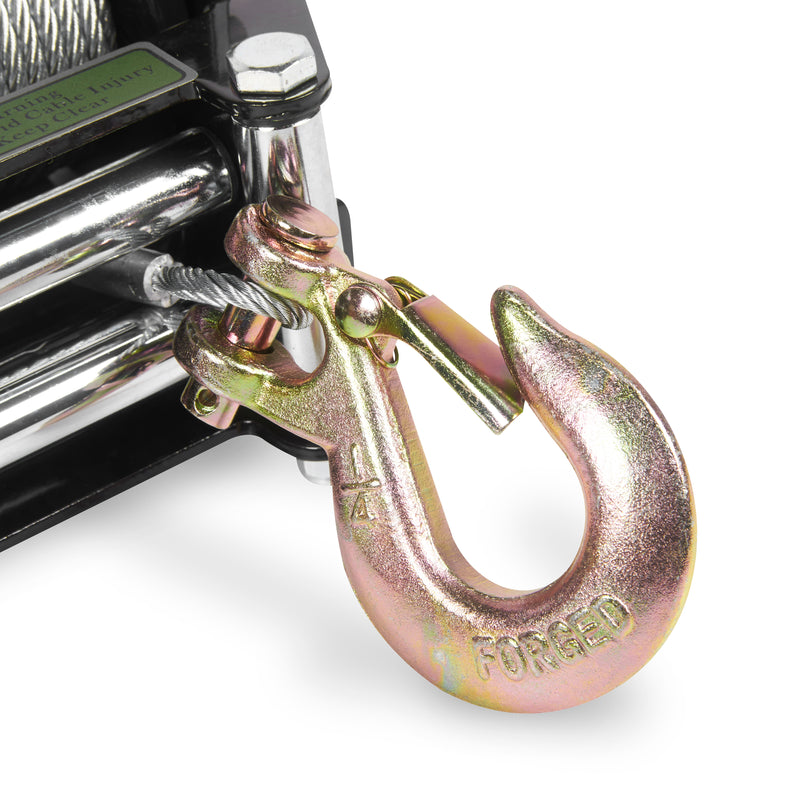

  • 1/4 Hook
  • 3 Tonne Pulley Block
  • 3.8m Ninja Wired Remote Handset

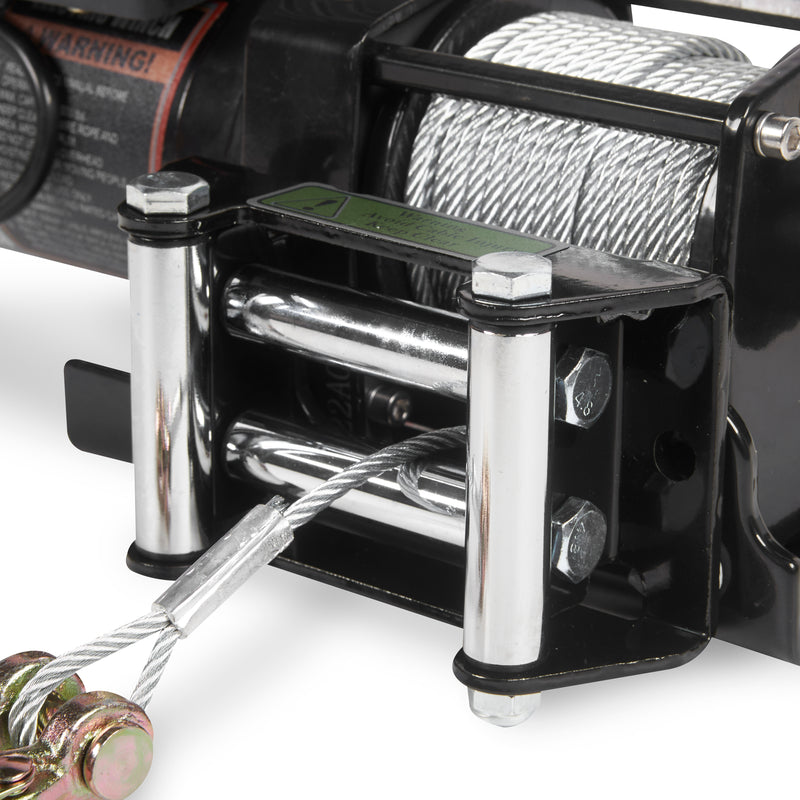

  • Heavy Duty Roller Fairleads (Wire) OR Aluminium Fairlead (Synthetic)
  • Wire or Synthetic Rope
  • Mounting Tray
  • Mounting Hardware
  • Heavy Duty Battery Leads

Reviews and Q&A

  • what length of synthetic rope will the drum hold

    Steel: 4mm x 15m (0.16 in x 49 ft)
    Synthetic: 5mm x 15m (0.2 in x 49 ft)
