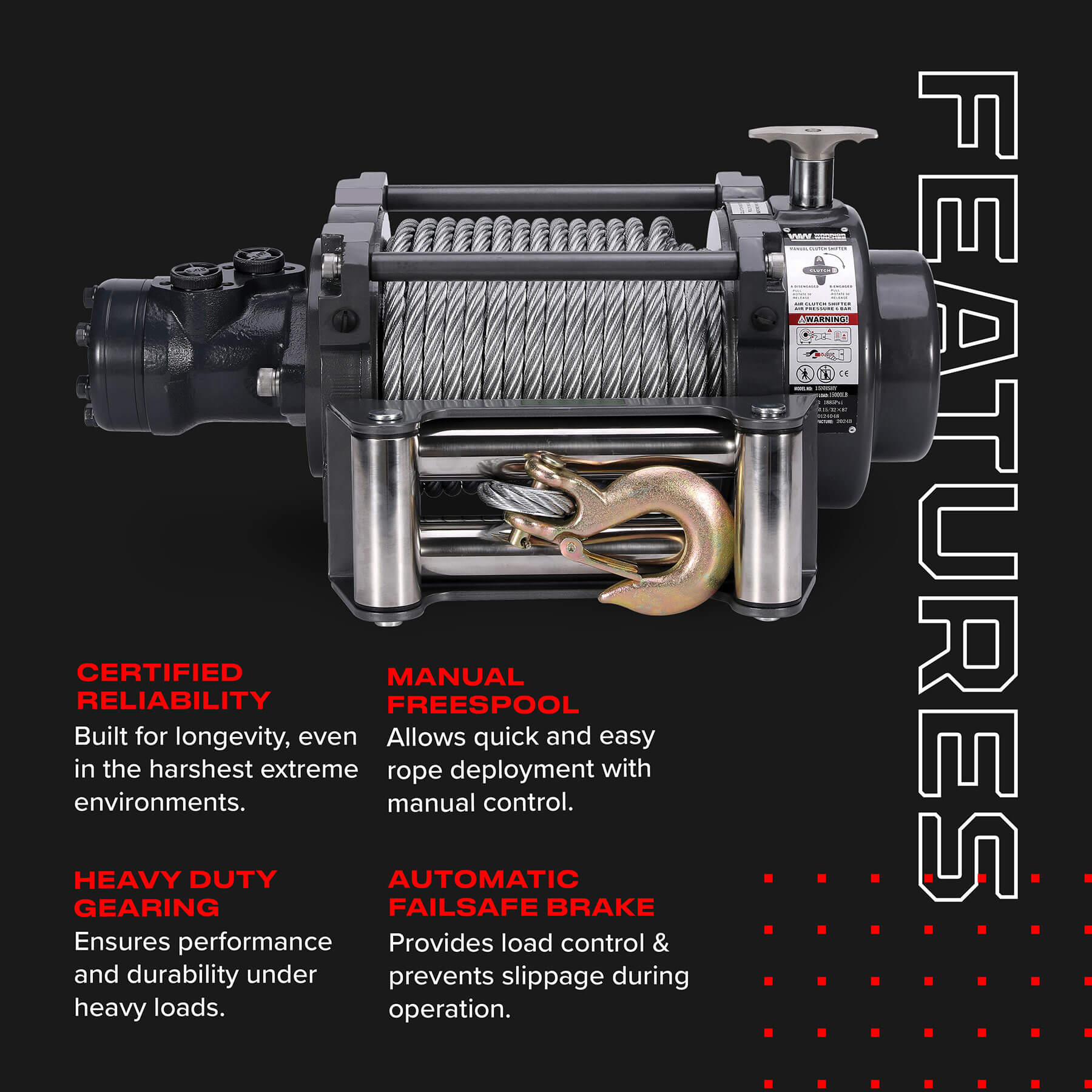

Features
- Rugged High Torque Motor
- Patented Heavy Duty Gearing
- Integral, Automatic Failsafe Brake
- Spring Engaged Manual Freespool
- Stainless Steel Fairlead and Fittings
- Rugged and compact for Long Life
Pay in 3 interest-free payments
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.
- Choose Paypal at checkout to pay later with Pay in 3.
- Complete your purchase with the first payment today.
- Remaining payments are taking automtically.
Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

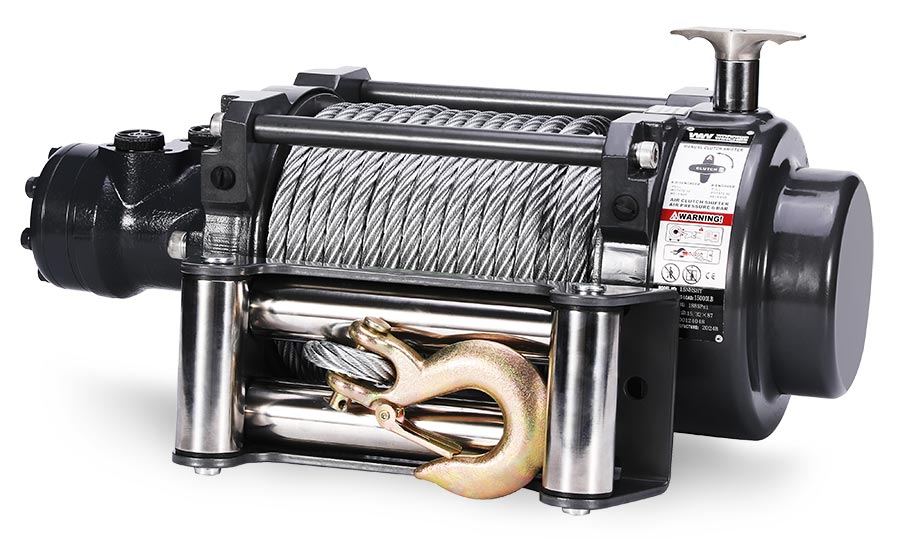

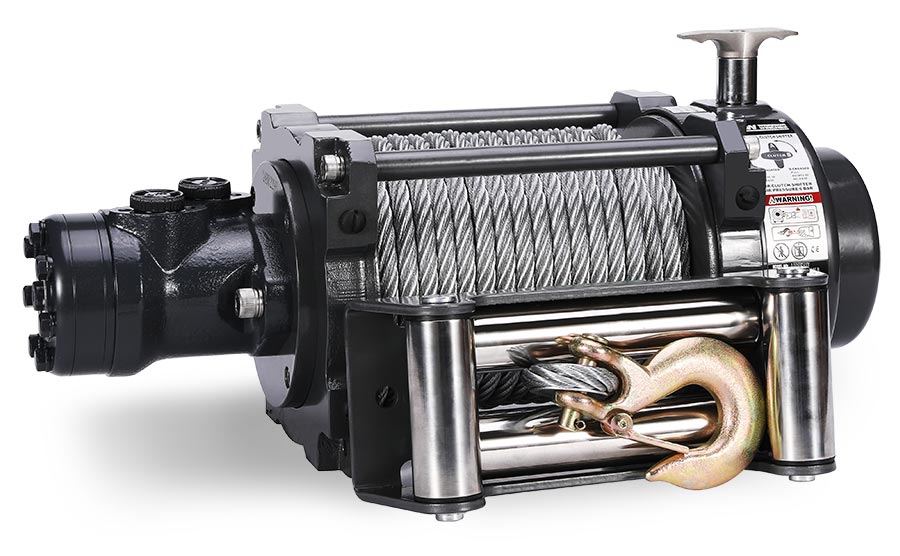

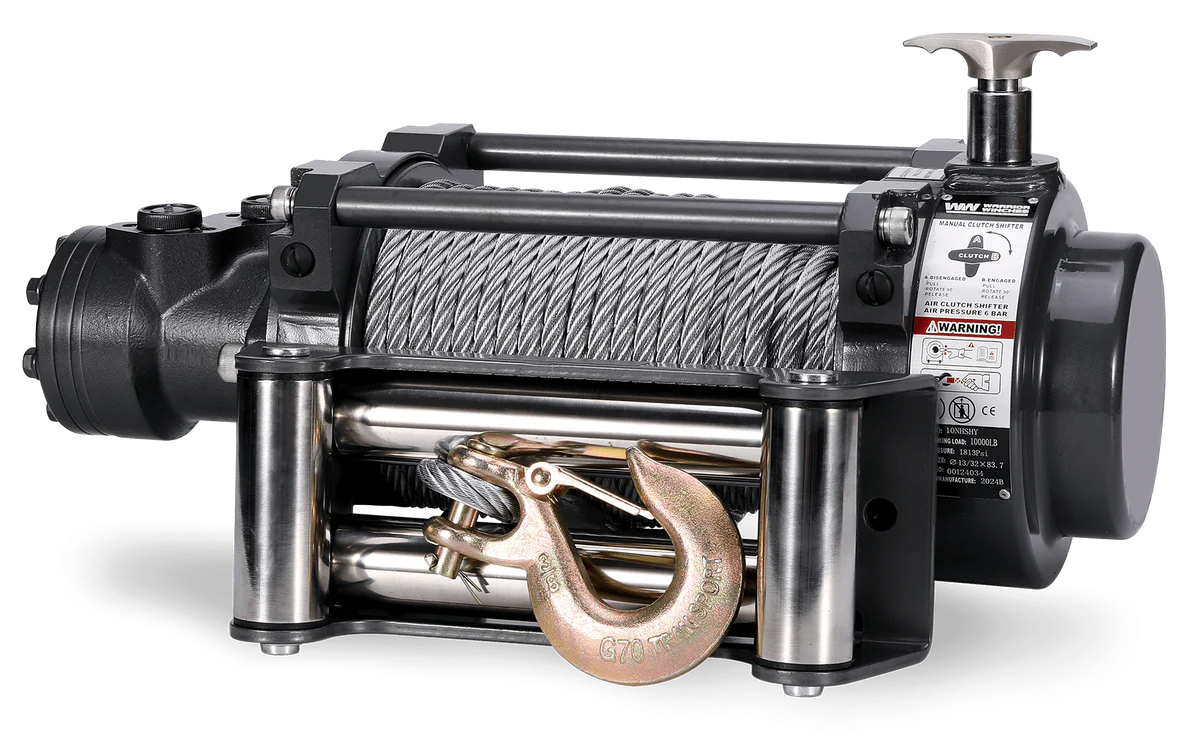

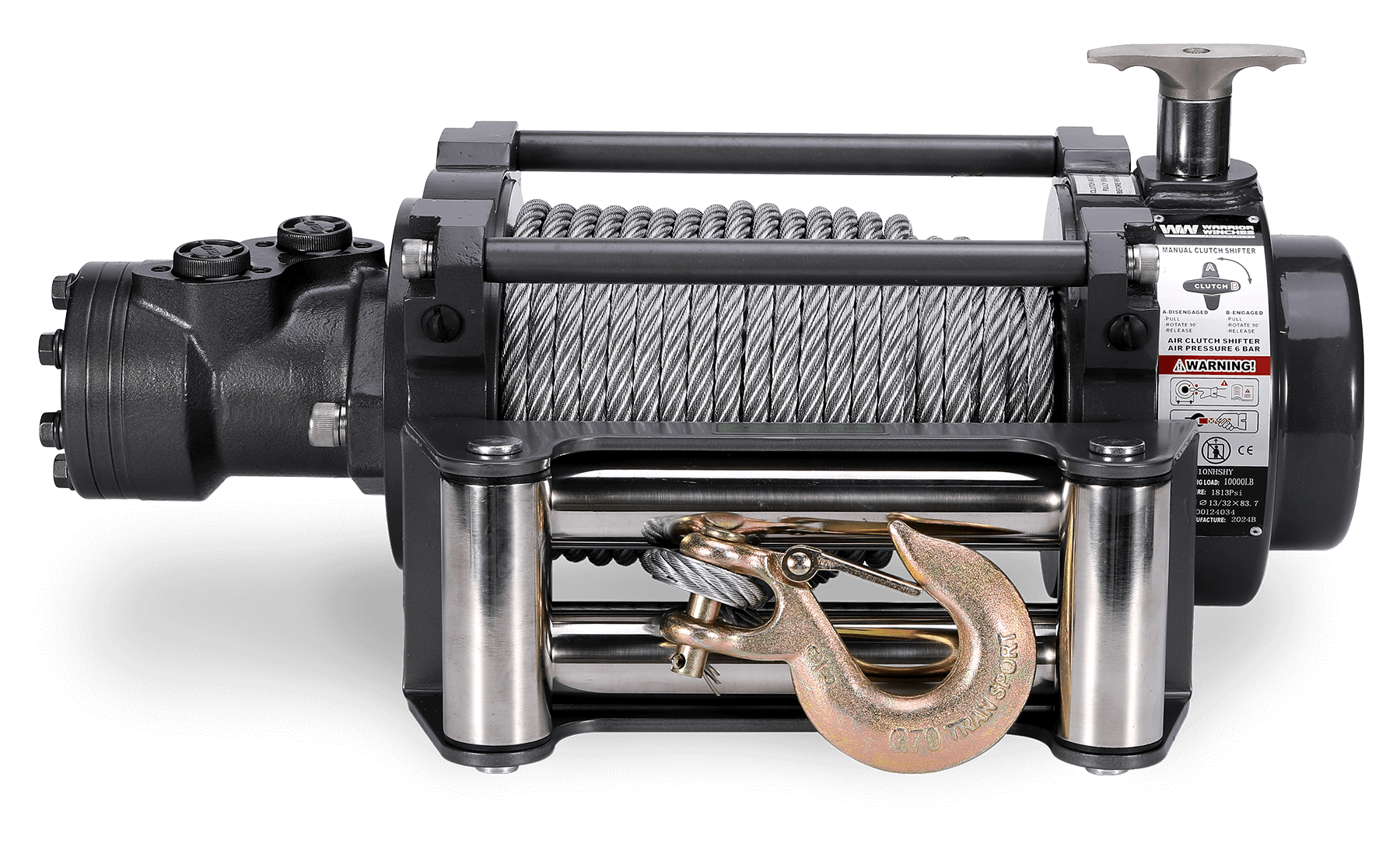

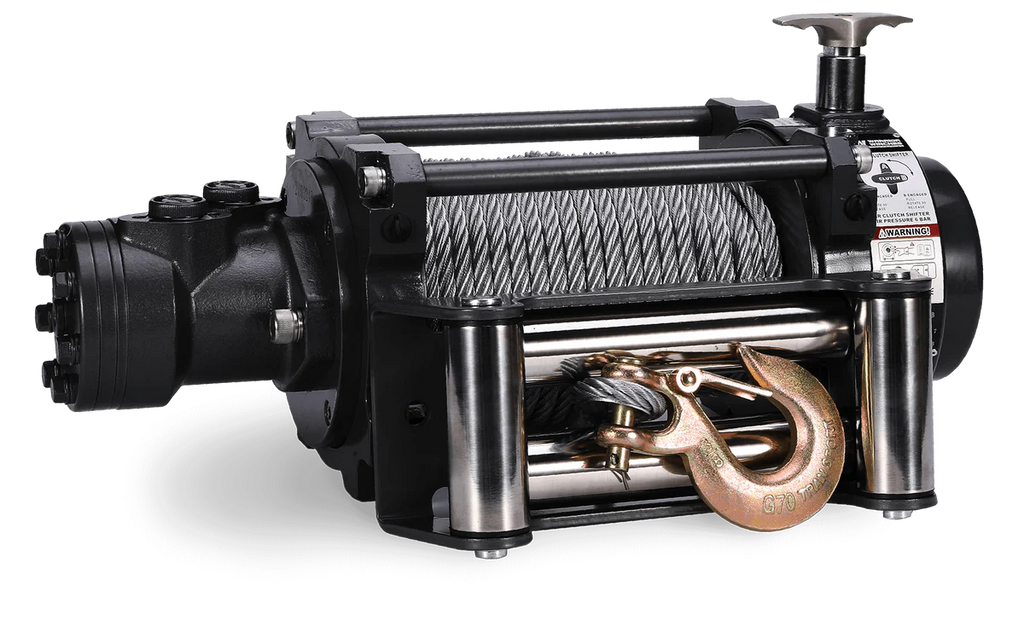

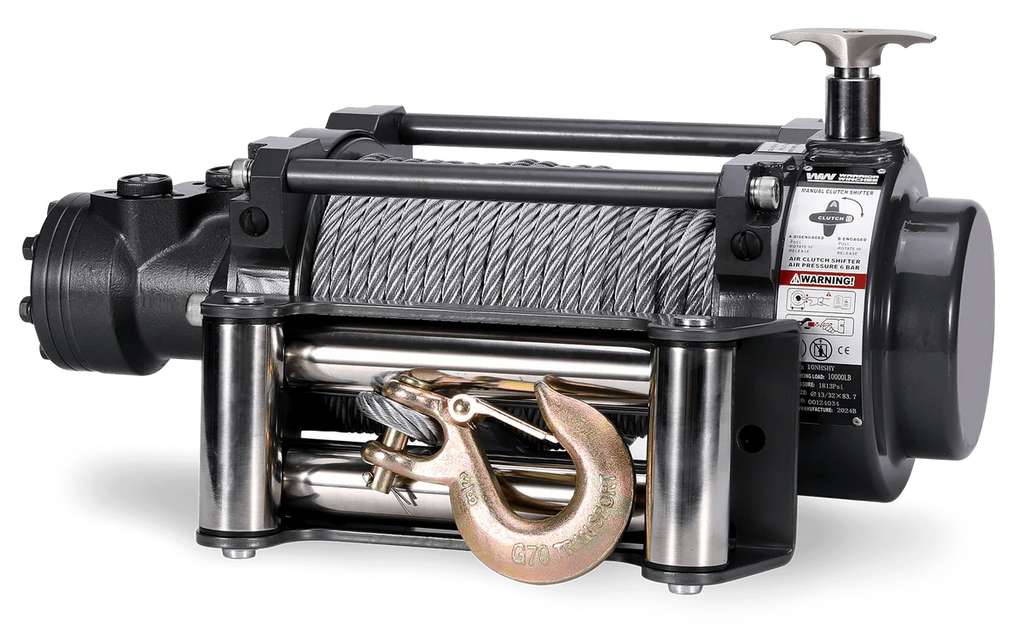

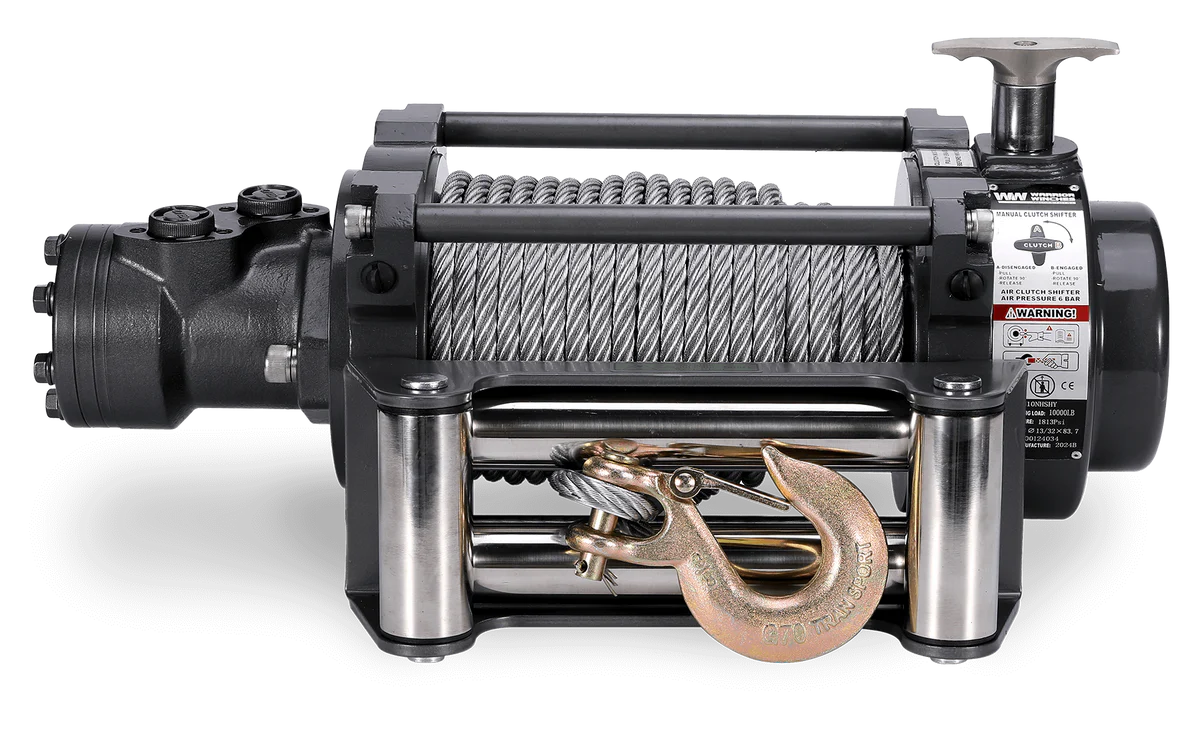

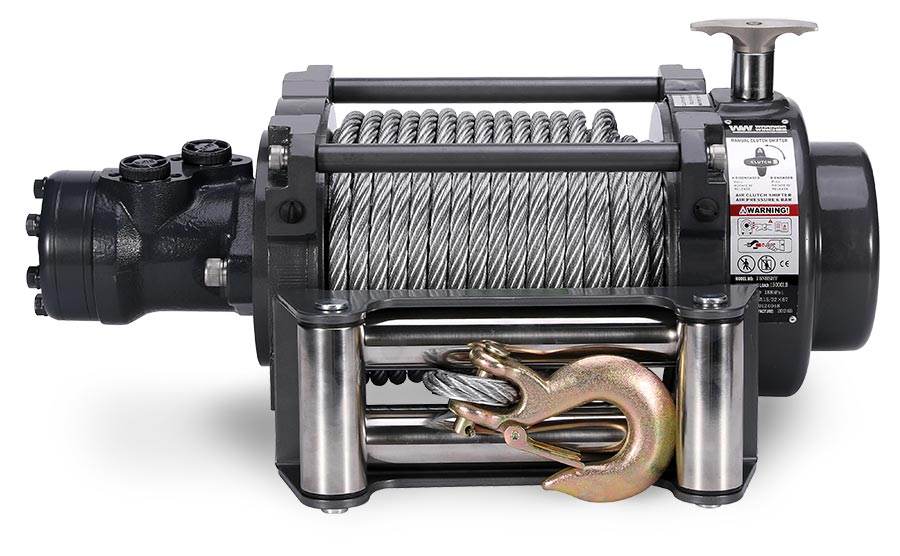

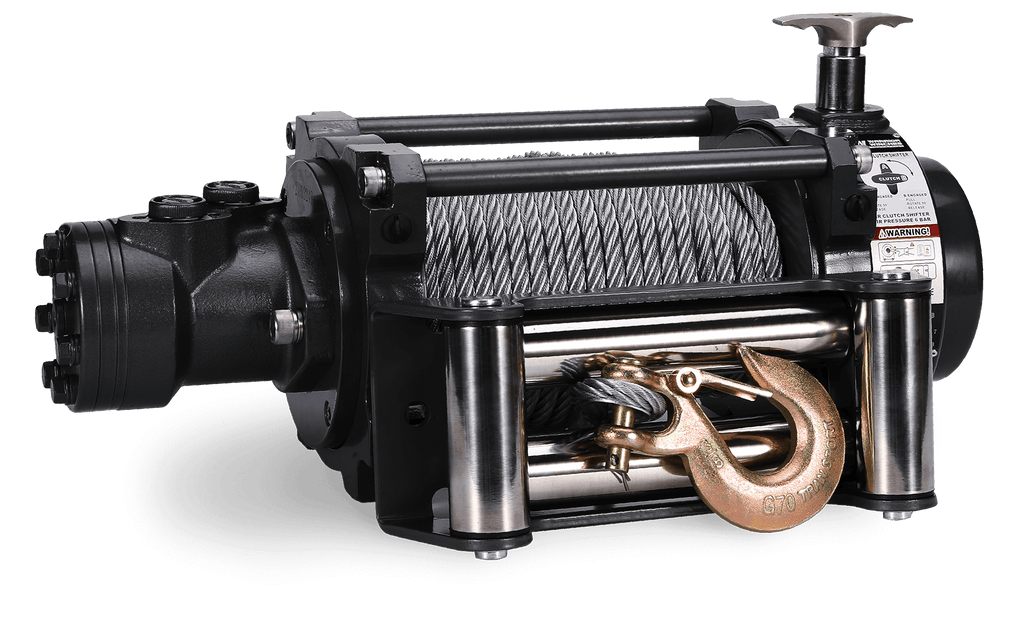

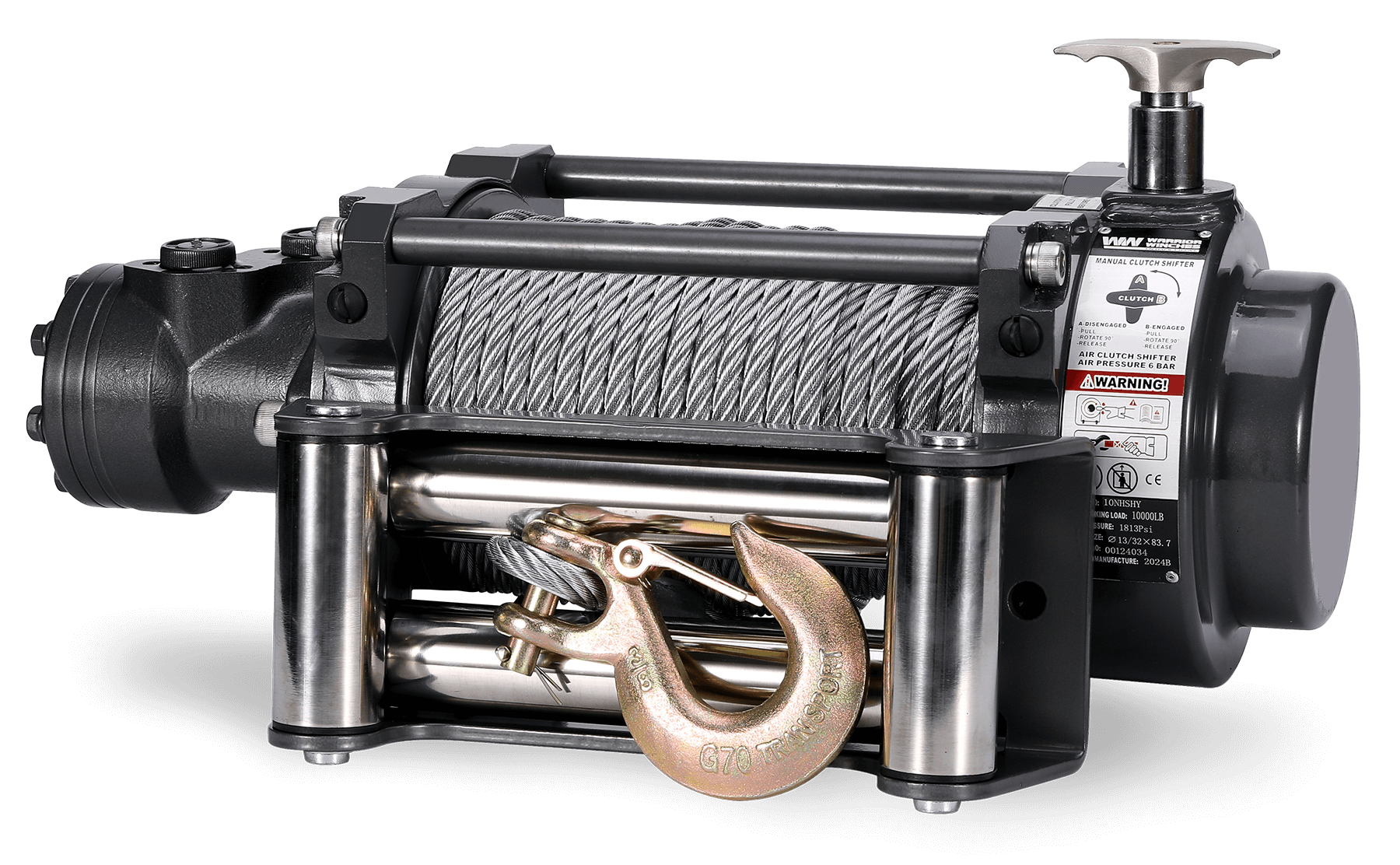

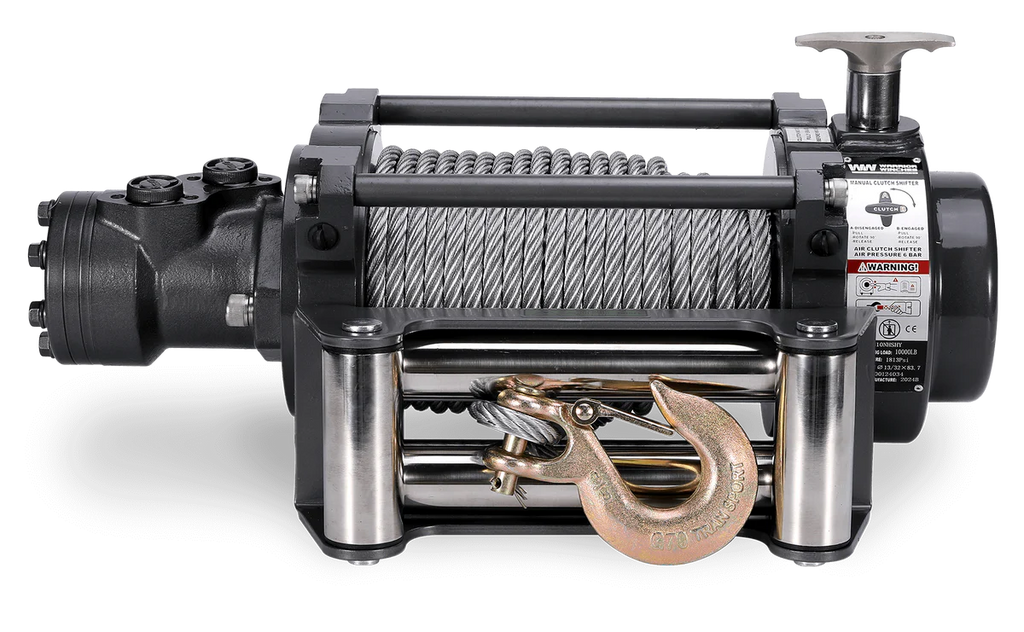

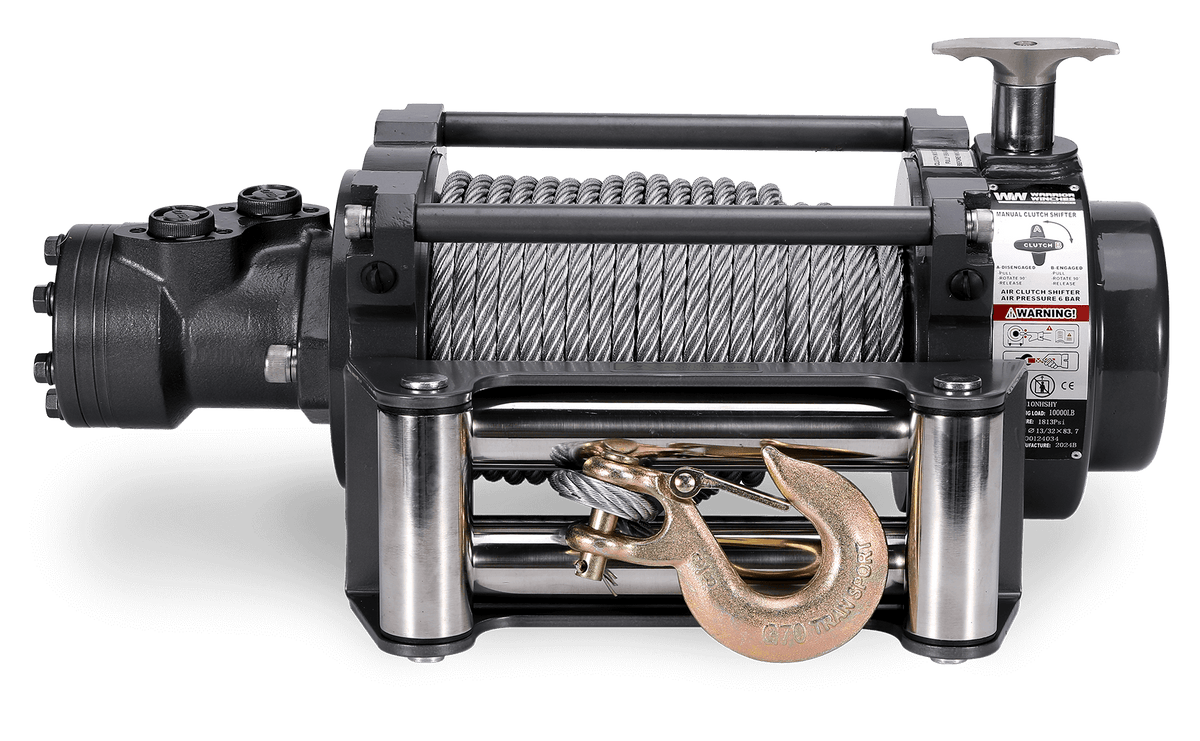

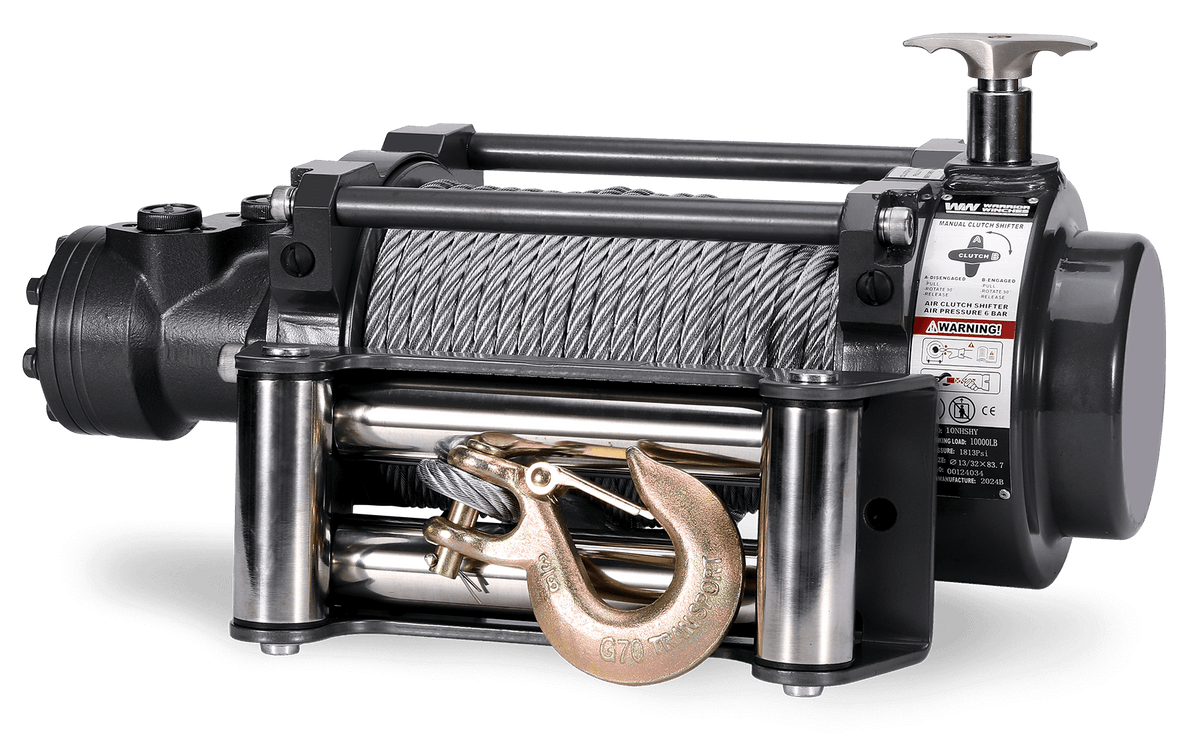

Warrior C15000NH Hydraulic Winch
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.
Standard Features:

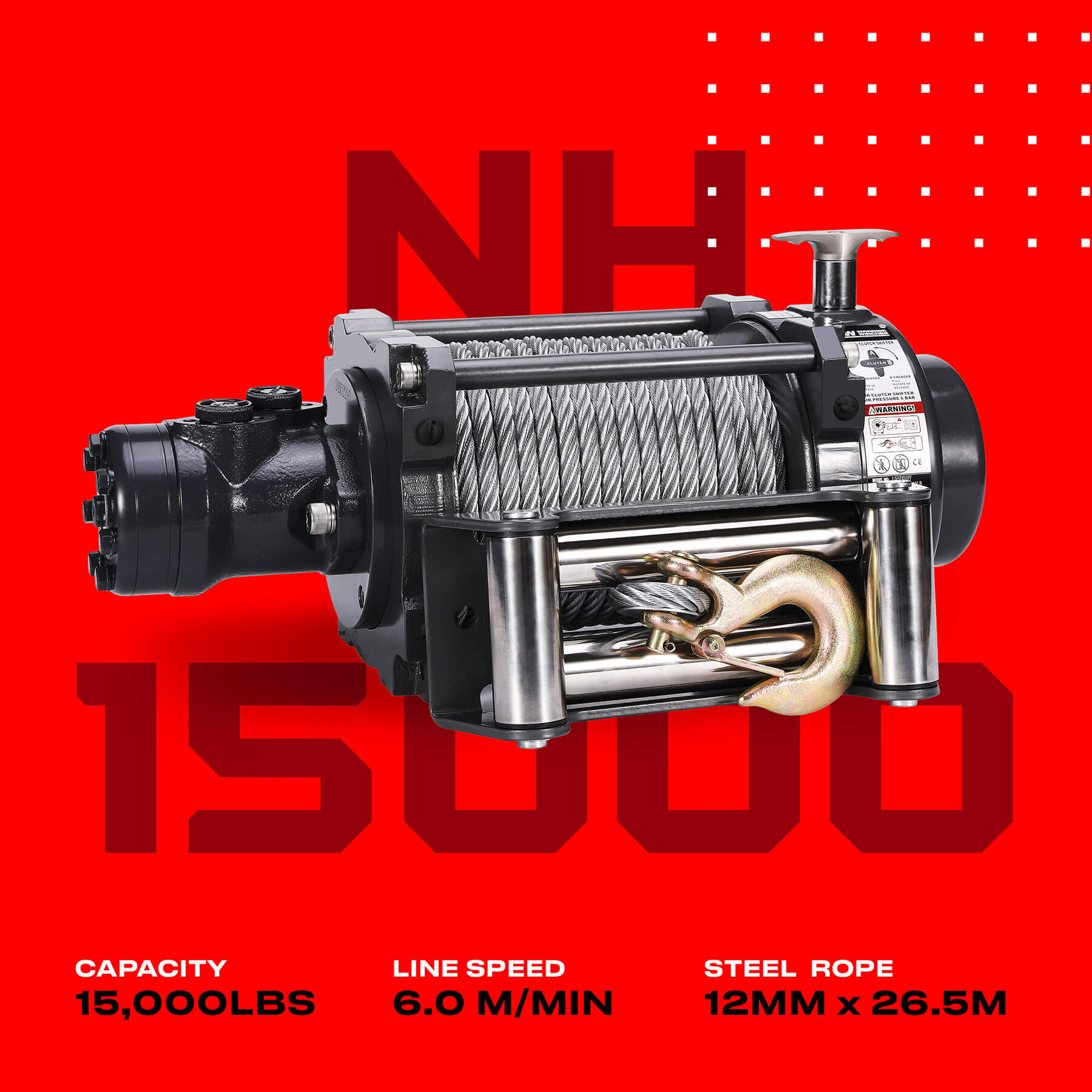

♦ Line Capacity: 15,000lb (6,804kg)
♦ Rope: 26.5m of 12mm Steel Cable with Clevis Hook
♦ Motor: Hydraulic Dis 80ml/r
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 1 Year Standard Return to Base Warranty
Accessories:
♦ Mounting Plate: Available as optional extra
♦ Fairlead: Heavy Duty 4-Way Roller Fairlead
♦ Mounting Bolts: Included for Standard installations
Also Includes:
♦ Instruction Manual
Other Information:
♦ Dimensions: 530mm L x 206mm D x 227mm H (Dimensions given assum electric pack is mounted remotely)
♦ Mounting Bolt Pattern: 254mm x 114.3mm
♦ Approx. Shipping Weight: 65kg
♦ Line Pull - No Load: 2.2 m/min (20 L/Min at 25 Bar)
♦ Line Pull - Full Load: 6.8 m/min (60 L/min at 140 Bar)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
| Rated Line Pull | 15000 lbs (6804 kg) |
|---|---|
| Motor | Hydraulic Dis 80 ml/r |
| Gearing | 33.4:1 |
| Braking Action | Auto in the drum |
| Drum Size - Dia x L | 89 x 217mm (3.5 x 8.54 in) |
| Cable - Dia x L | 12mm x 26.5m (0.47 in x 87 ft) |

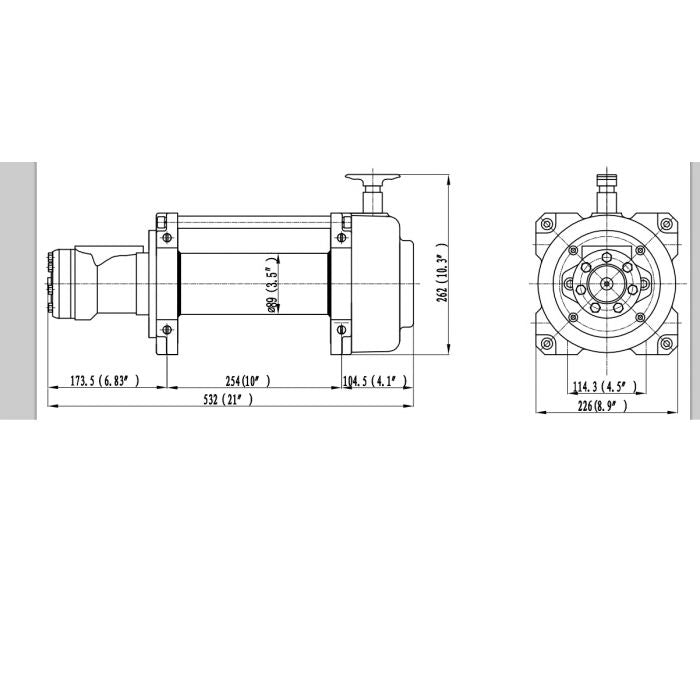

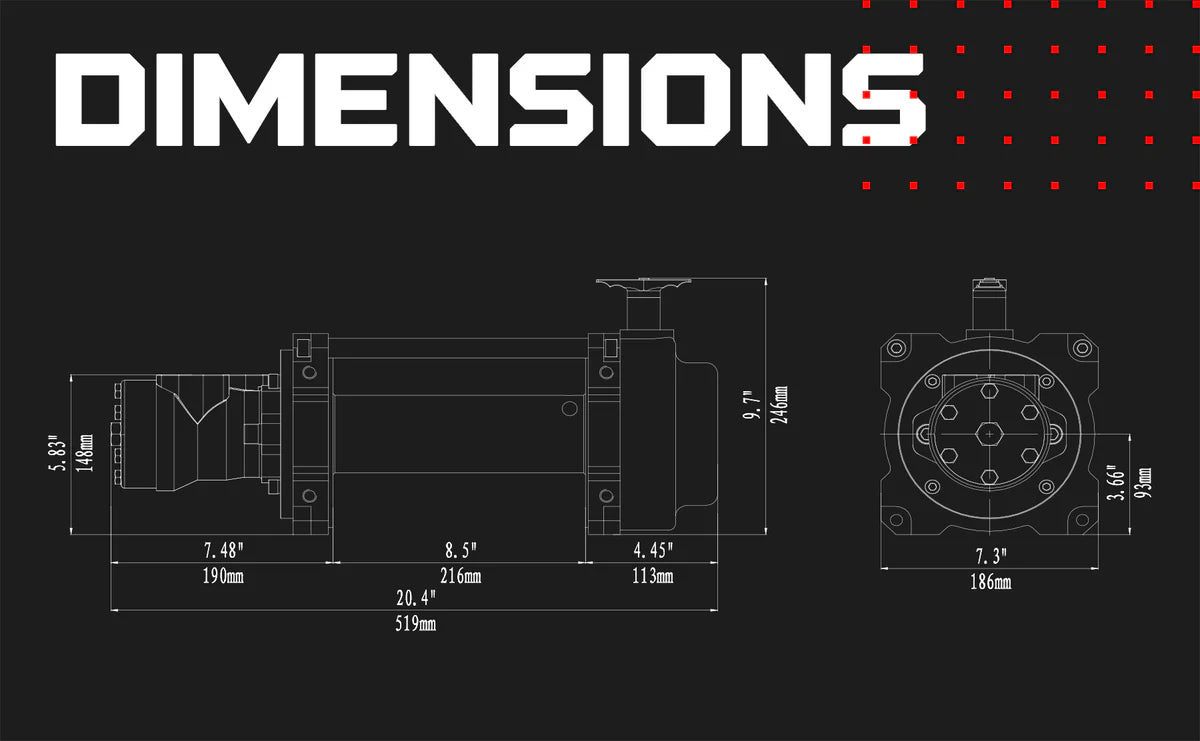

| Dimensions | 554 x 226 x 262mm (21.81 x 8.9 x 10.3 in) |
| Mounting Pattern | 254 x 114.3 mm (10 x 4.5 in) |
| Weight kg | 68.8 kg (152 lbs) |
| Max Flow L/min | 45 |
| Max Pressure Mpa | 12.5 |
| Clutch | Manual |
| Certification | CE Certified |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 15000 (6804) | 18.0 (5.5) |
| 2 | 12120 (5498) | 41.7 (12.4) |
| 3 | 10168 (4612) | 65.9 (20.1) |
| 4 | 8757 (3972) | 86.9 (26.5) |
| Line Pull lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow L/min (G/min) |
Pressure Mpa |
|---|---|---|---|
| 0 | 19.7 (6.0) | 5 | 2.0 |
| 5000 (2268) | 9.8 (3.0) | 10 | 4.3 |
| 10000 (4536) | 6.6 (2.0) | 20 | 8.7 |
| 12000 (5443) | 3.3 (1.0) | 30 | 10.0 |
| 15000 (6804) | 1.6 (0.5) | 60 | 13.0 |
What's in the box:
- 3/8 Hook
- Heavy Duty Roller Fairlead
- Steel rope
