Warrior 1000kg Electric Hoist - 240v
Warrior 1000kg Electric Hoist - 240v
Warrior 1000kg Electric Hoist - 240v
12 Month Warranty
Warrior 1000kg Electric Hoist - 240vWarrior 1000kg Electric Hoist - 240vWarrior 1000kg Electric Hoist - 240v
Warrior Winches 240VEHA1000

Warrior 1000kg Electric Hoist - 240v

| 1 Questions Answered
£263.99
Delivery in 1-2 working days
Pay in 3 interest-free payments of £87.99 with Paypal Logo. Learn more

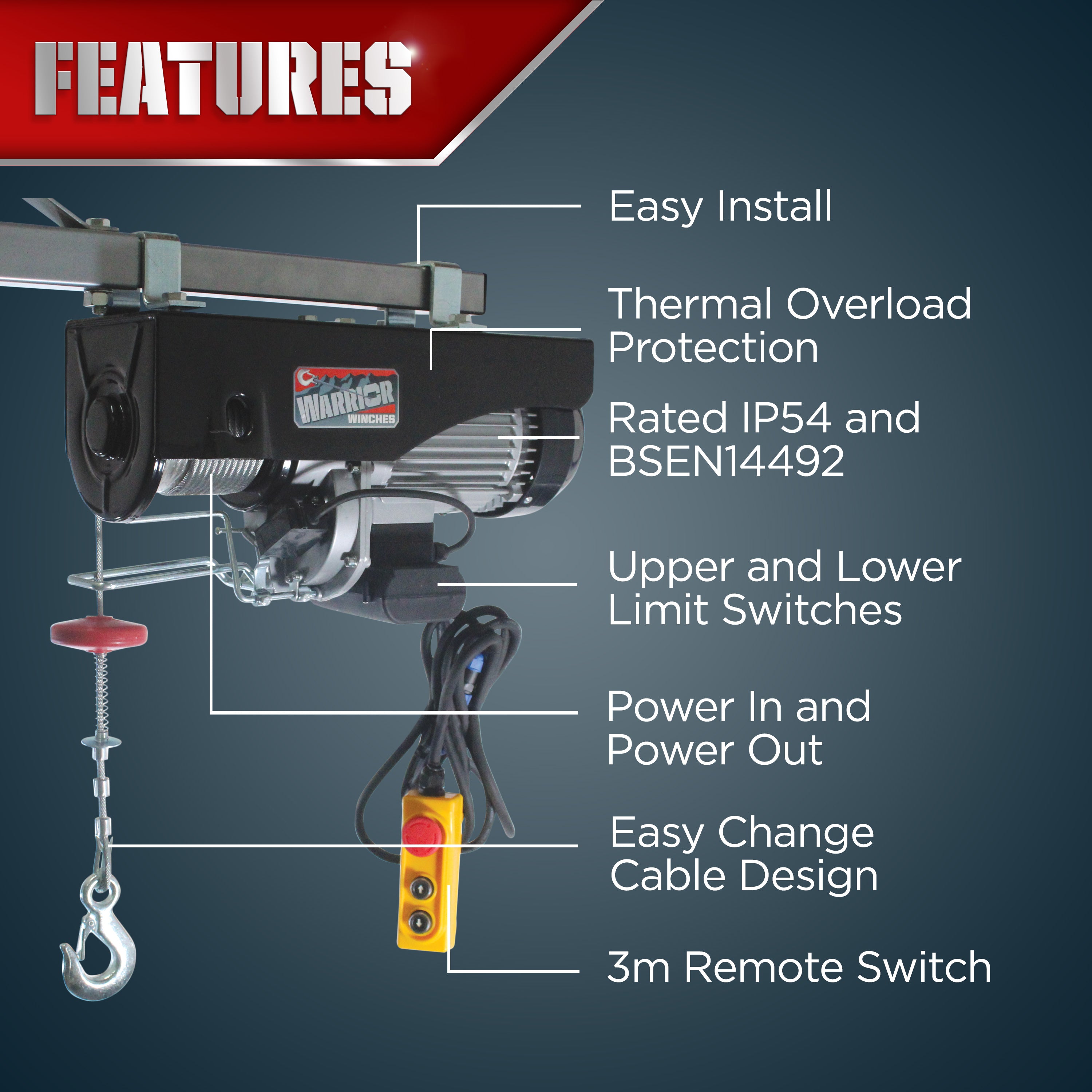

Features

  • Ideal for all manner of lifting applications.
  • Easy to install, with easy change cable design.
  • Remote switch with power in & power out facility.
  • Conforms to part of BS EN14492-1 and BS EN14492-2 standards.
  • Thermal Overload Protection

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

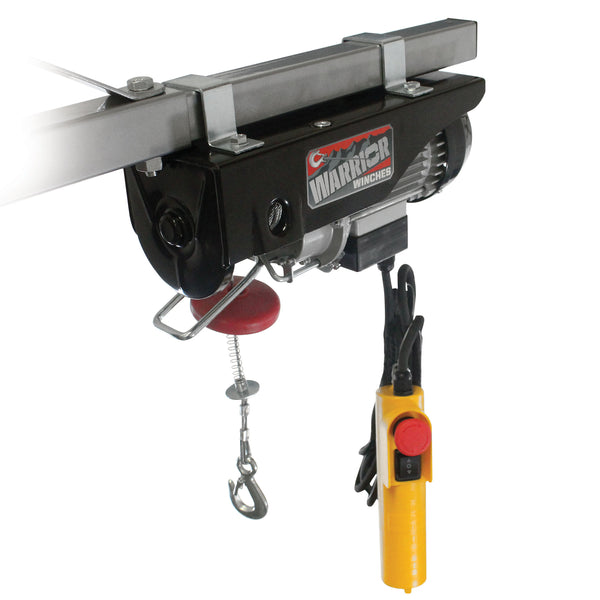

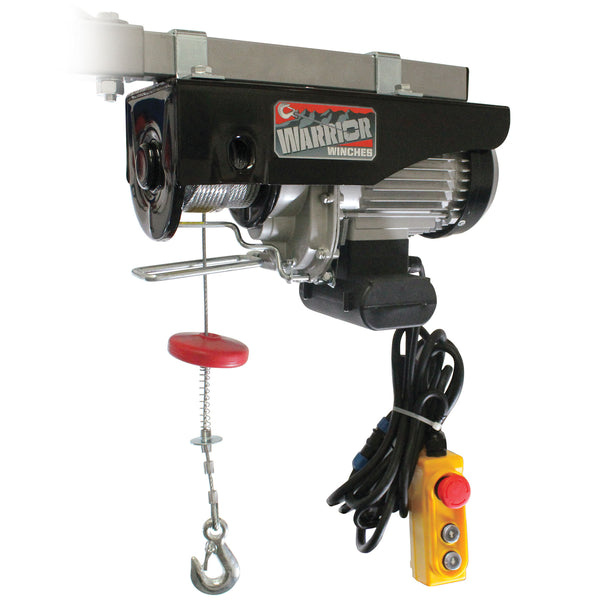

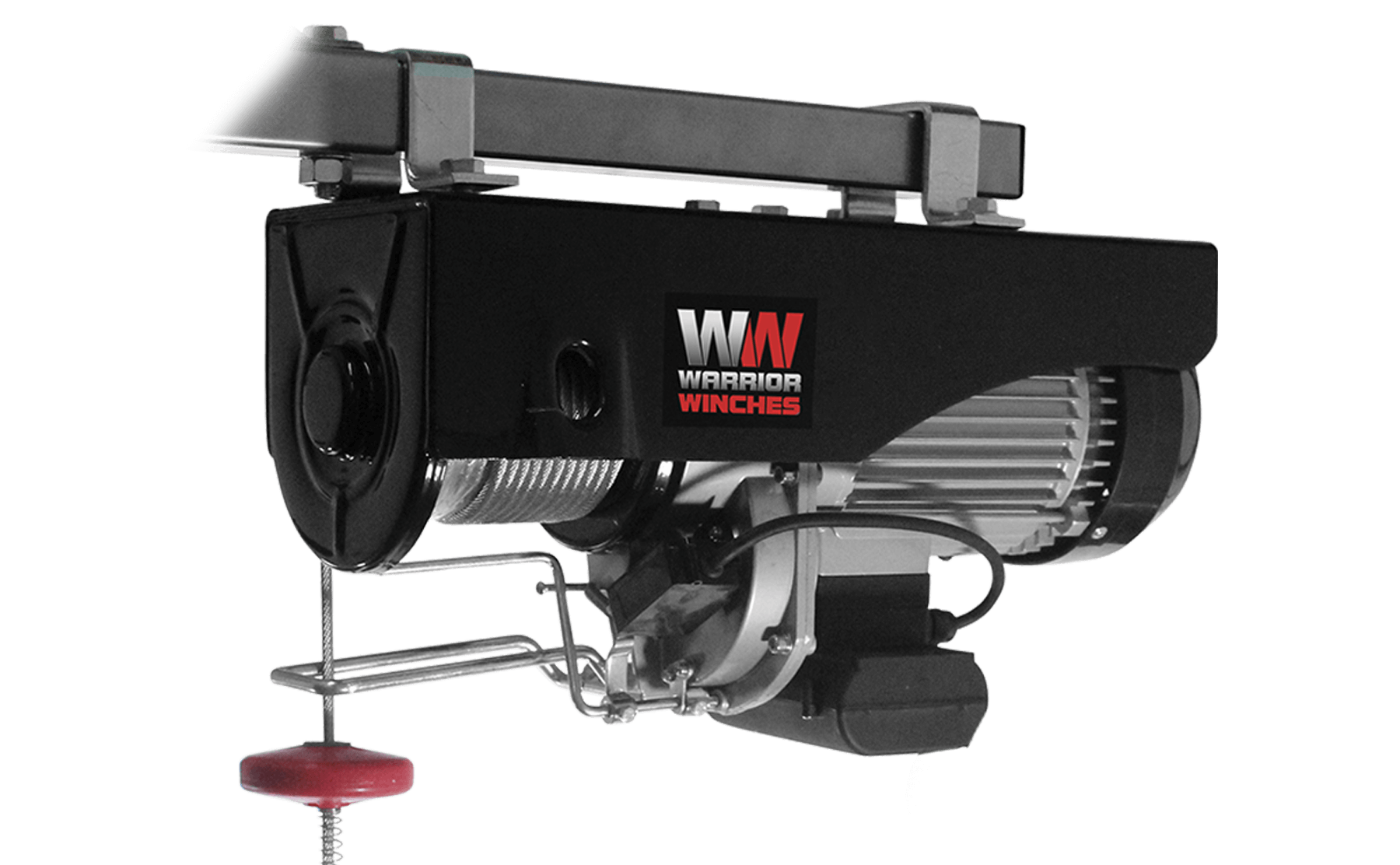

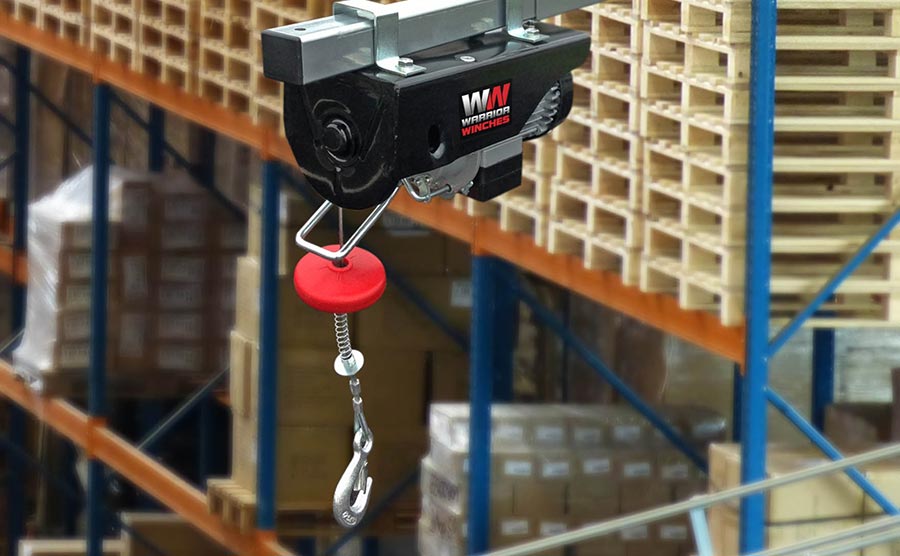

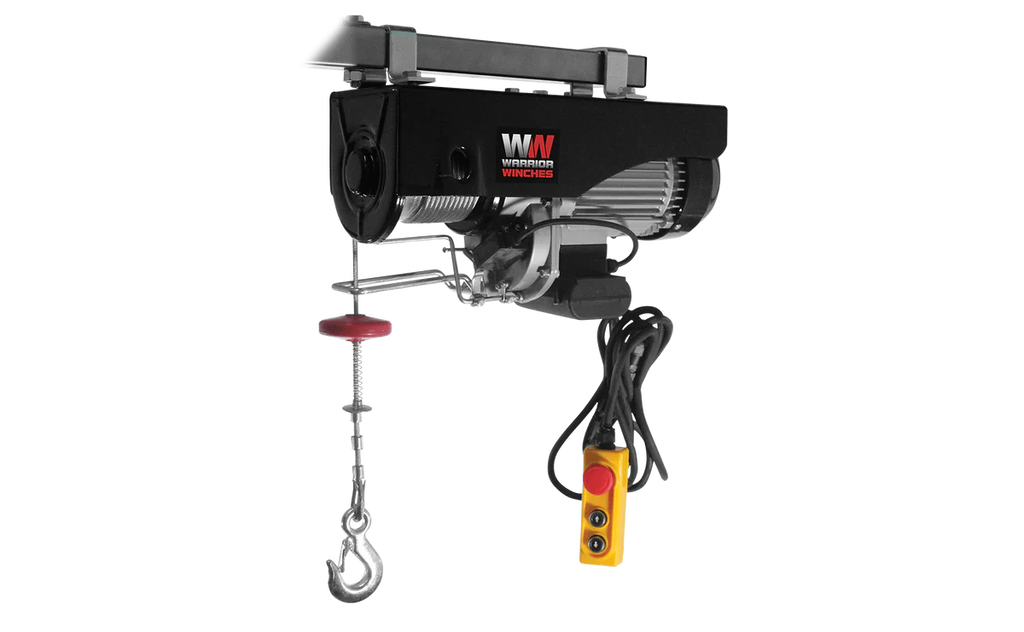

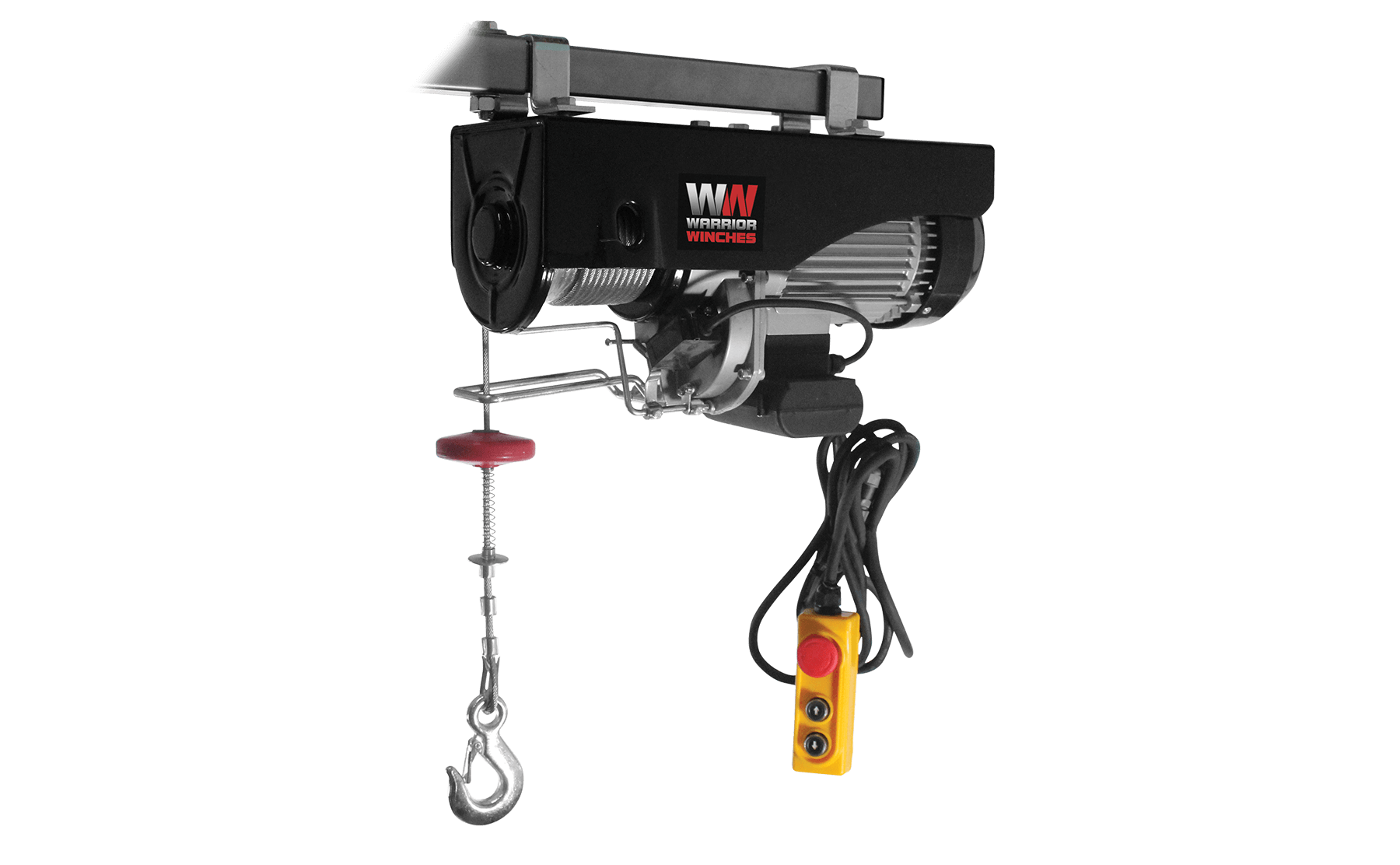

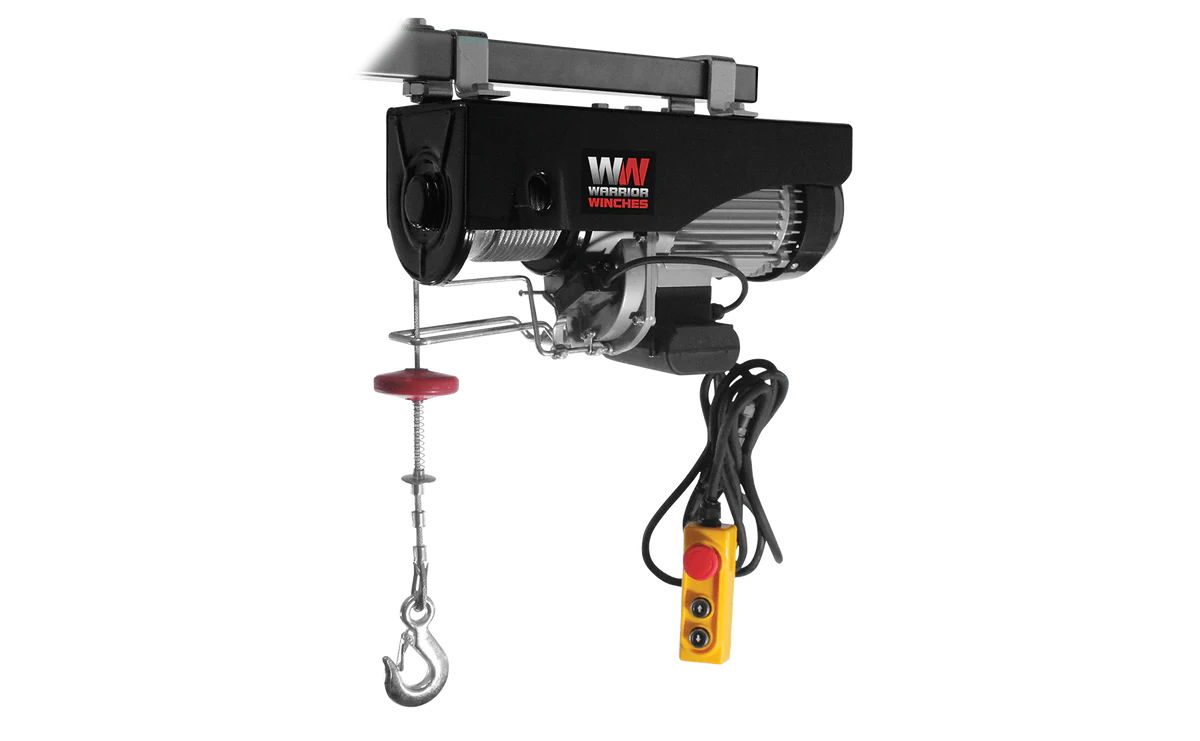

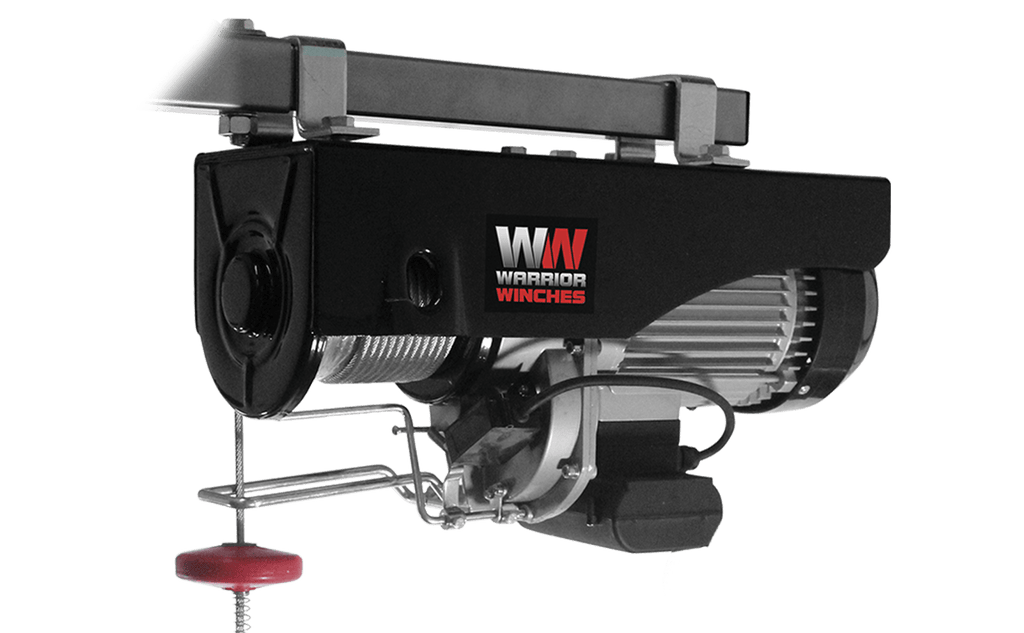

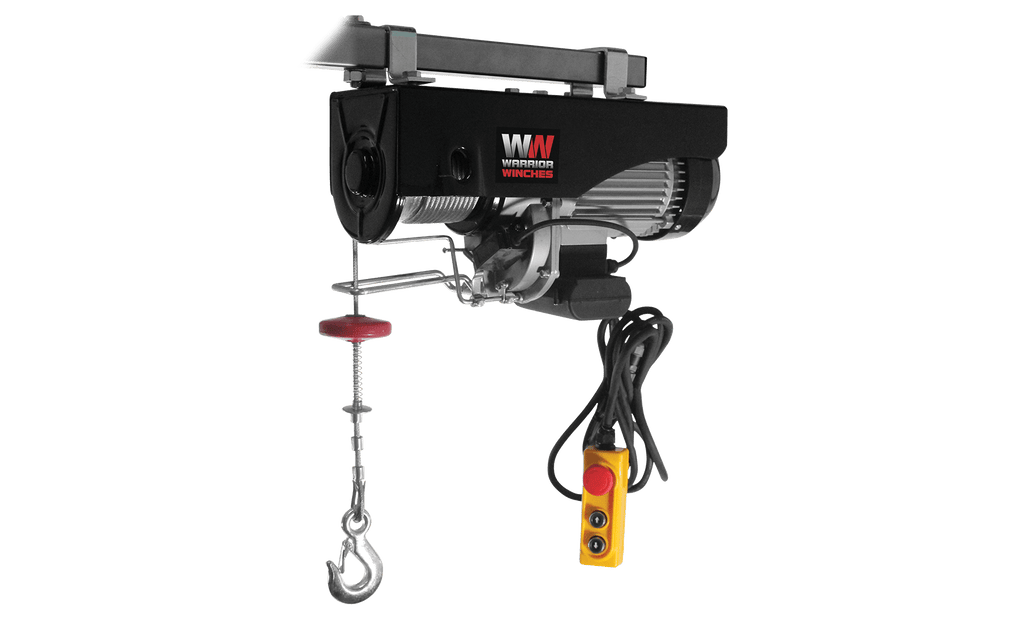

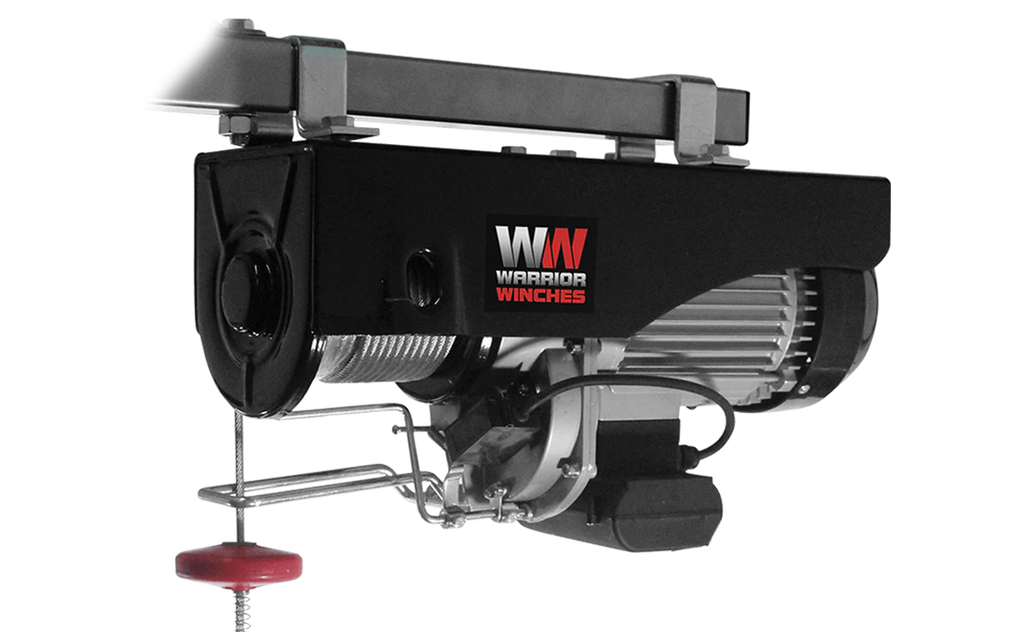

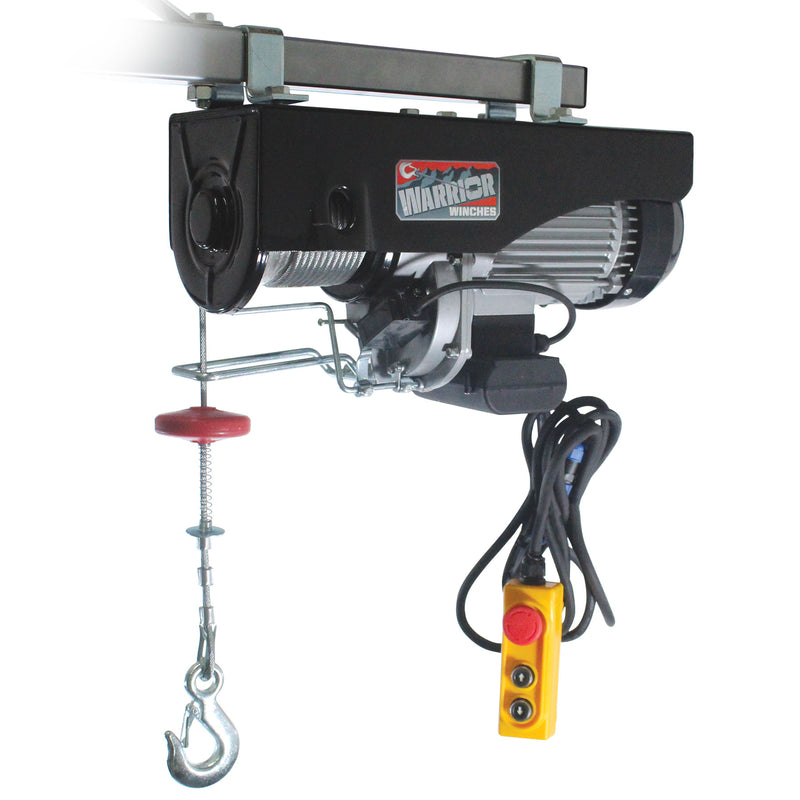

Warrior 1000kg 240v Electric Hoist with Air Socket

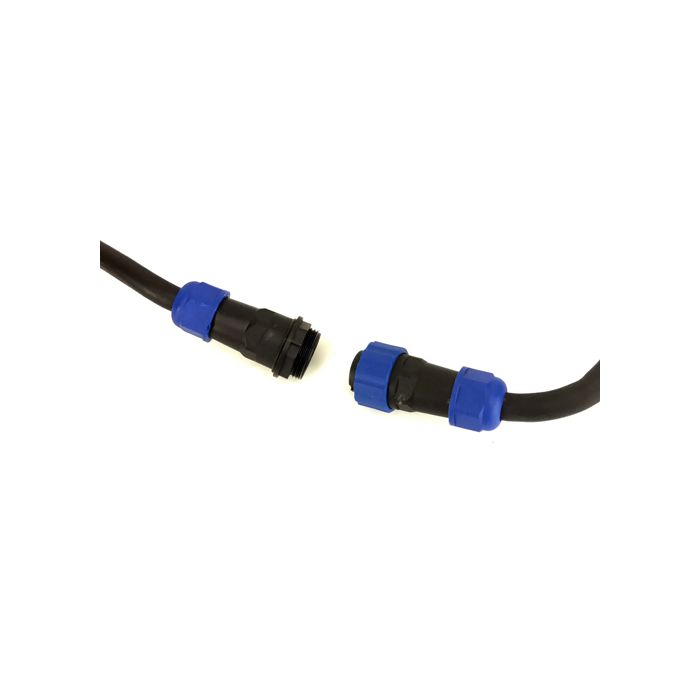

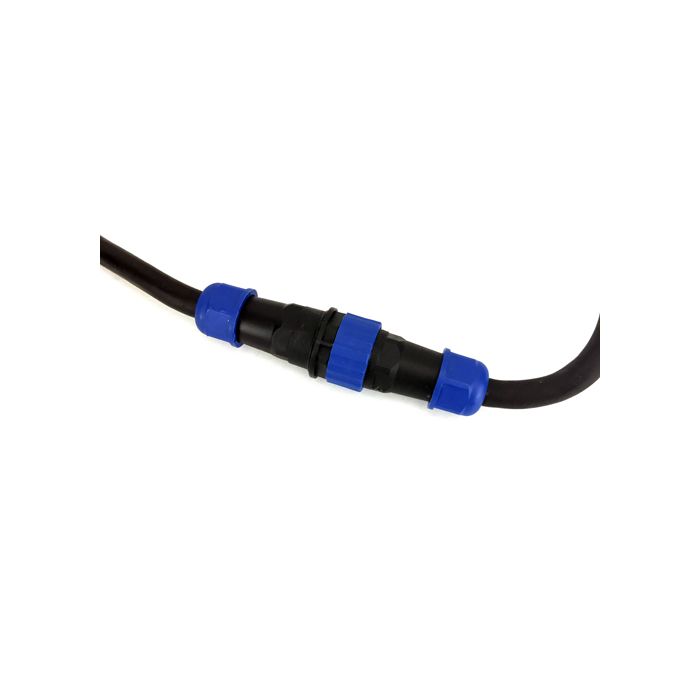

Our compact, general purpose 240v electric hoist is ideal for all manner of lifting and pulling work.  This model is now fitted with a fantastic new quick release air socket on the hand control lead means that the hand control can be quickly and easily unplugged and replaced by an optional wireless control (sold separately).

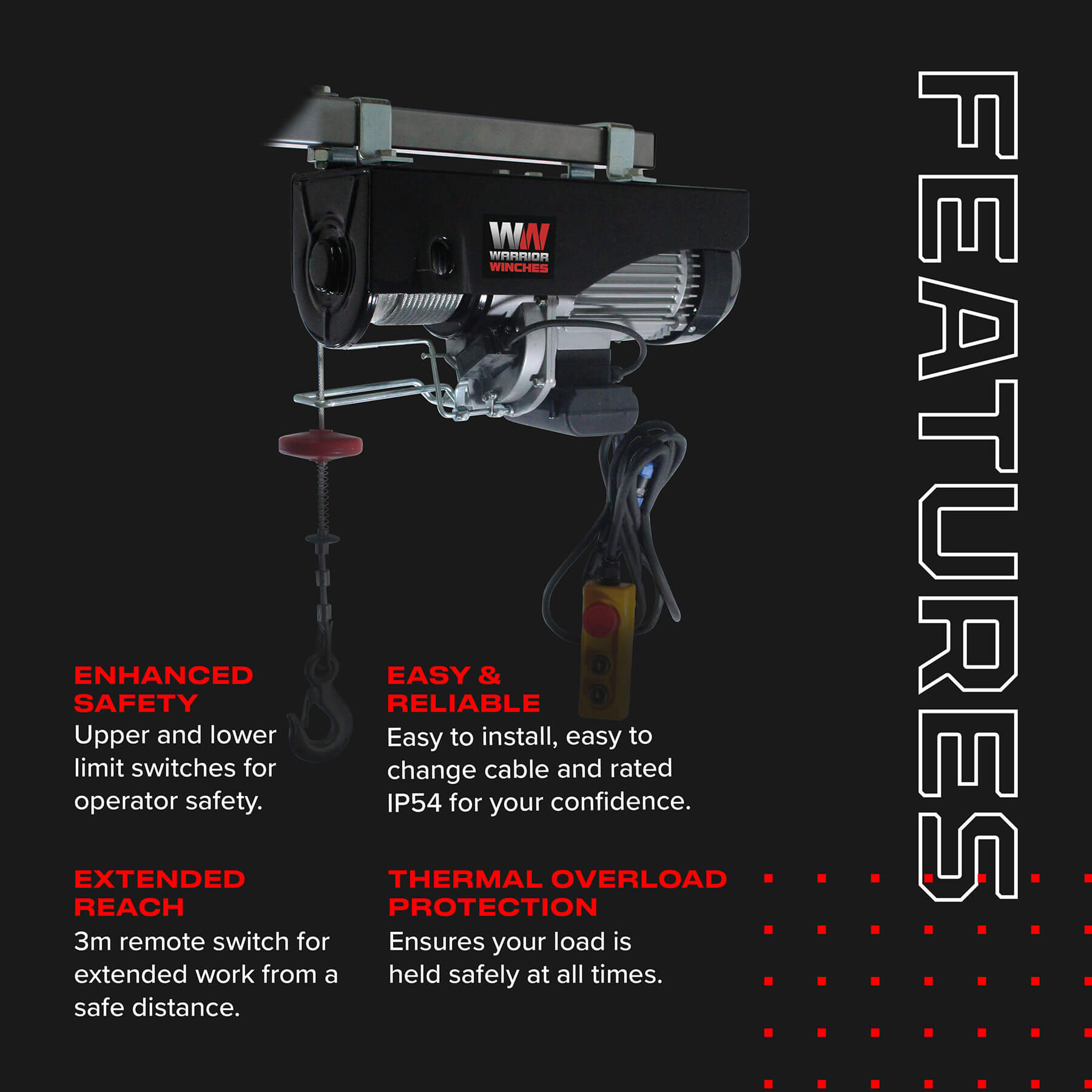

The included mounting enable easy installation onto box section of up to 60mm x 60mm.  This hoist is fitted with a 2.75m long wired hand control with power in & power out facility. Conforms to part of BS EN14492-1 and BS EN14492-2 standard with built in upper and lower limit switches and thermal overload on the motor for added safety.

The duty cycle of this winch is S3 - 20% on a 10 minute cycle.  Simply translated this means that the unit can be used continuously for 2 minutes before an 8 minute cool down period is required.  The load holding break will ensure that your load is held safely during down time.

Standard Features:

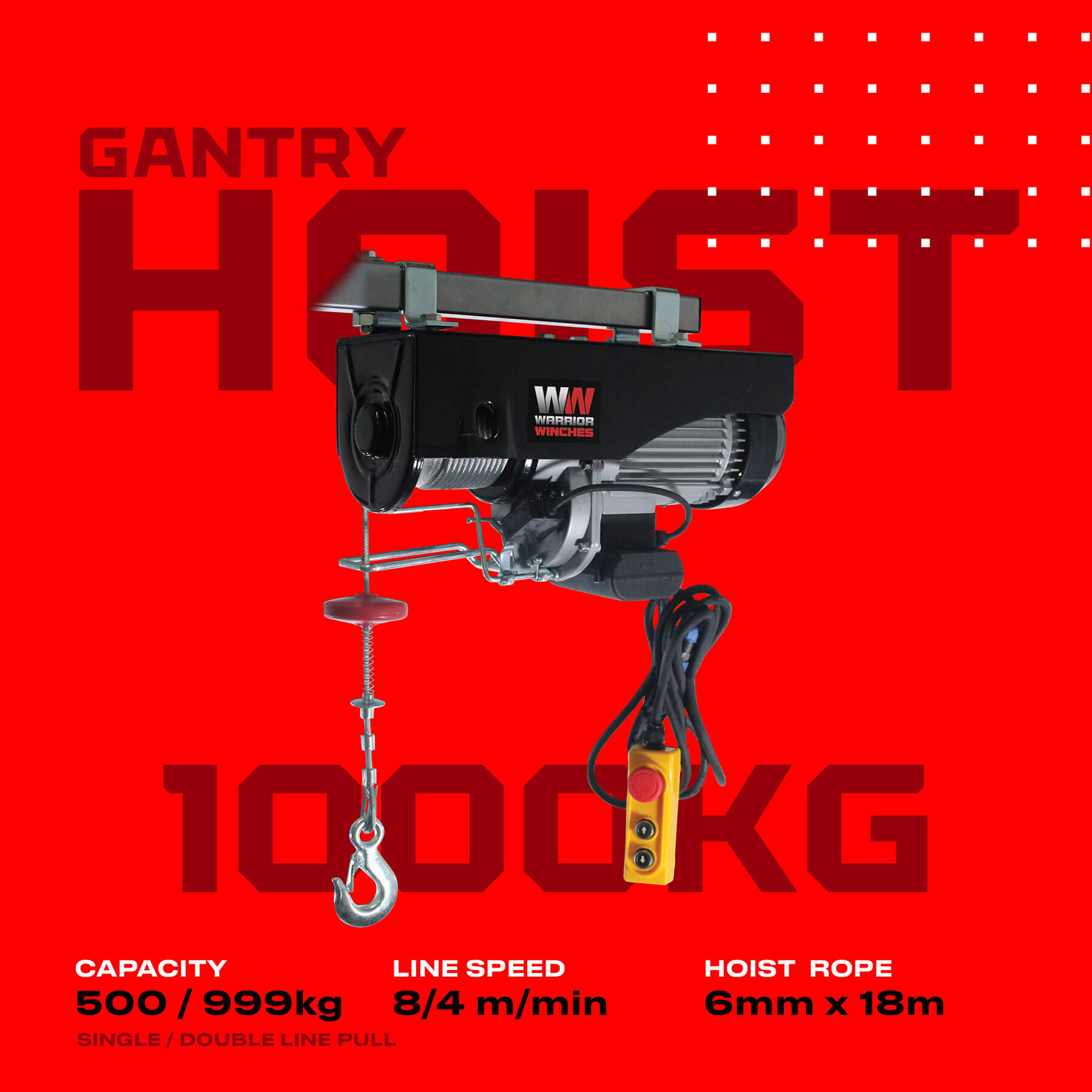

♦ Line Capacity: 500kg single cable, & 1000kg double cable
♦ Lift Height: 18m metres single cable & 9 metres double cable (Using Included Pulley Block)

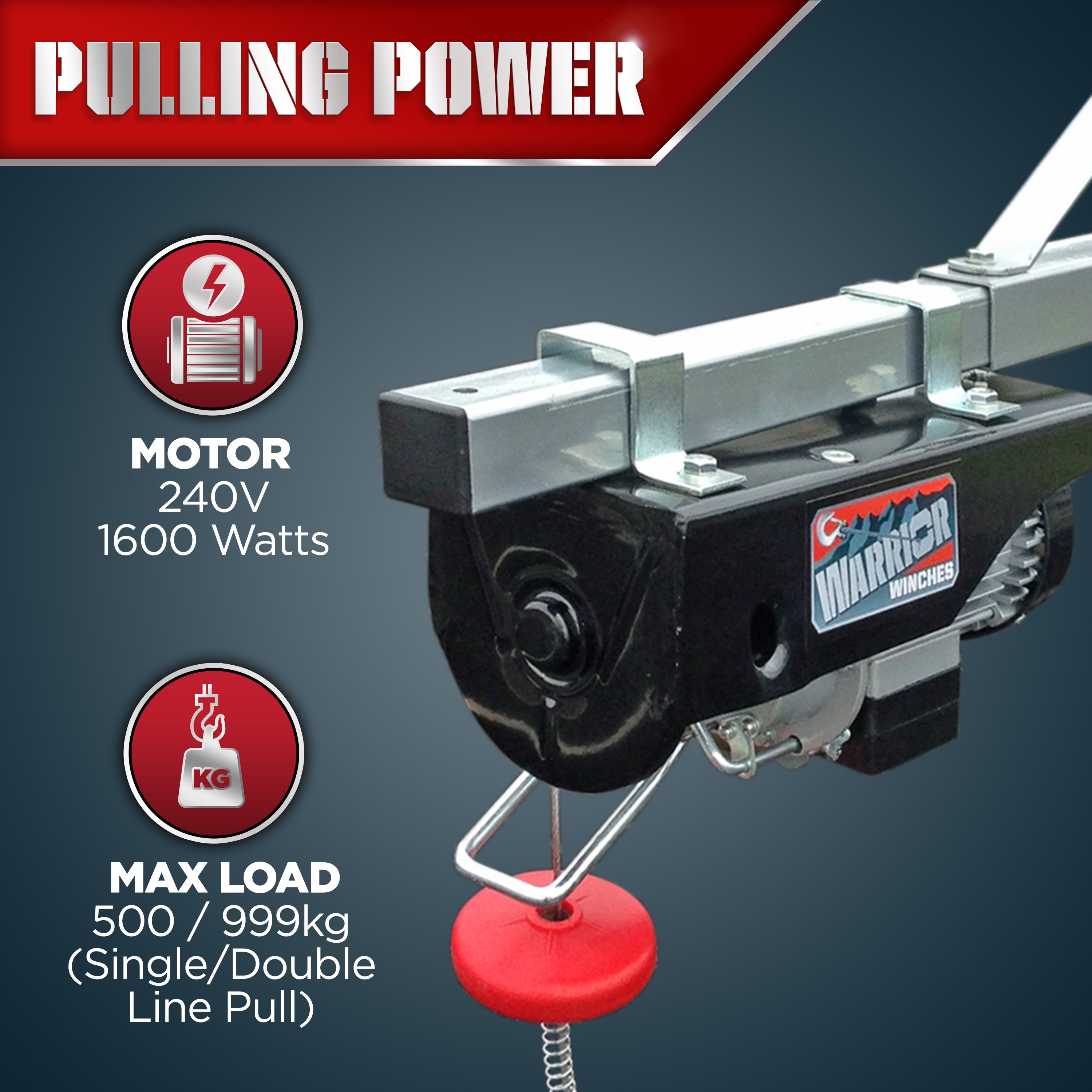

♦ Motor: Reversible 1600W 240v 50Hz Motor - Powers In and Out (Standard UK 3-Pin Plug - Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12 Month Return to Base

Accessories:

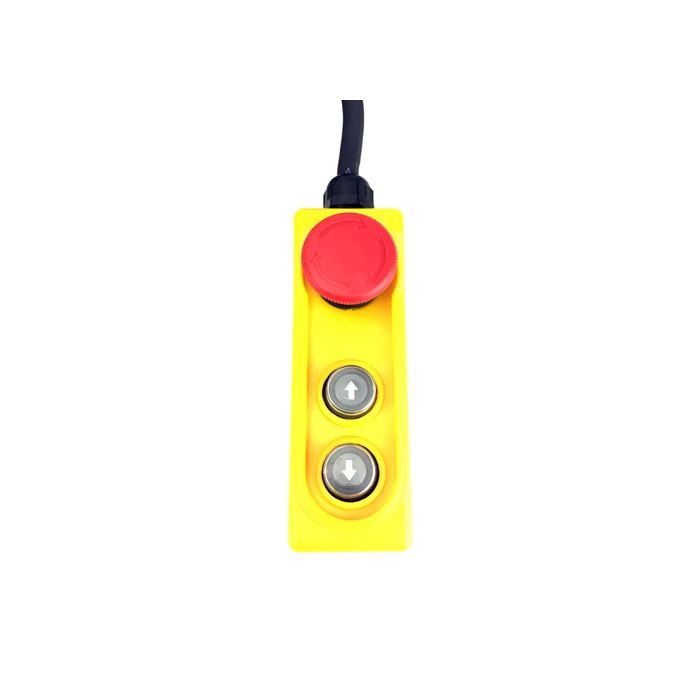

♦ Wired Hand Control: 2.75m Wired Hand Control with Stop Button
♦ Wireless Control: Available as an optional extra
♦ Mountings: Included for Standard 60mm2 Box Section installations

Also Includes:

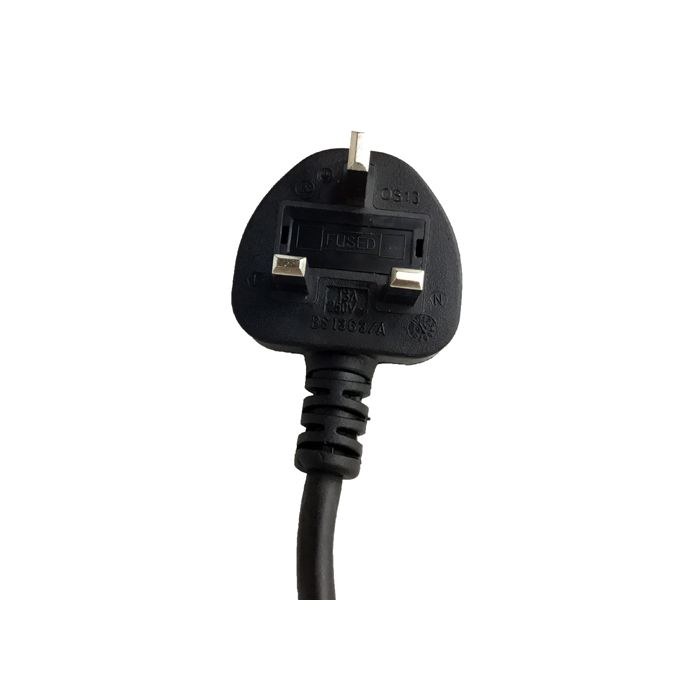

♦ 3-Pin UK Plug on 650mm Flex
♦ Pulley Block for double line operation
♦ Instruction Manual

Other Information:

♦ Dimensions: 490mm L x 170mm D x 260mm H (620mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 33kg

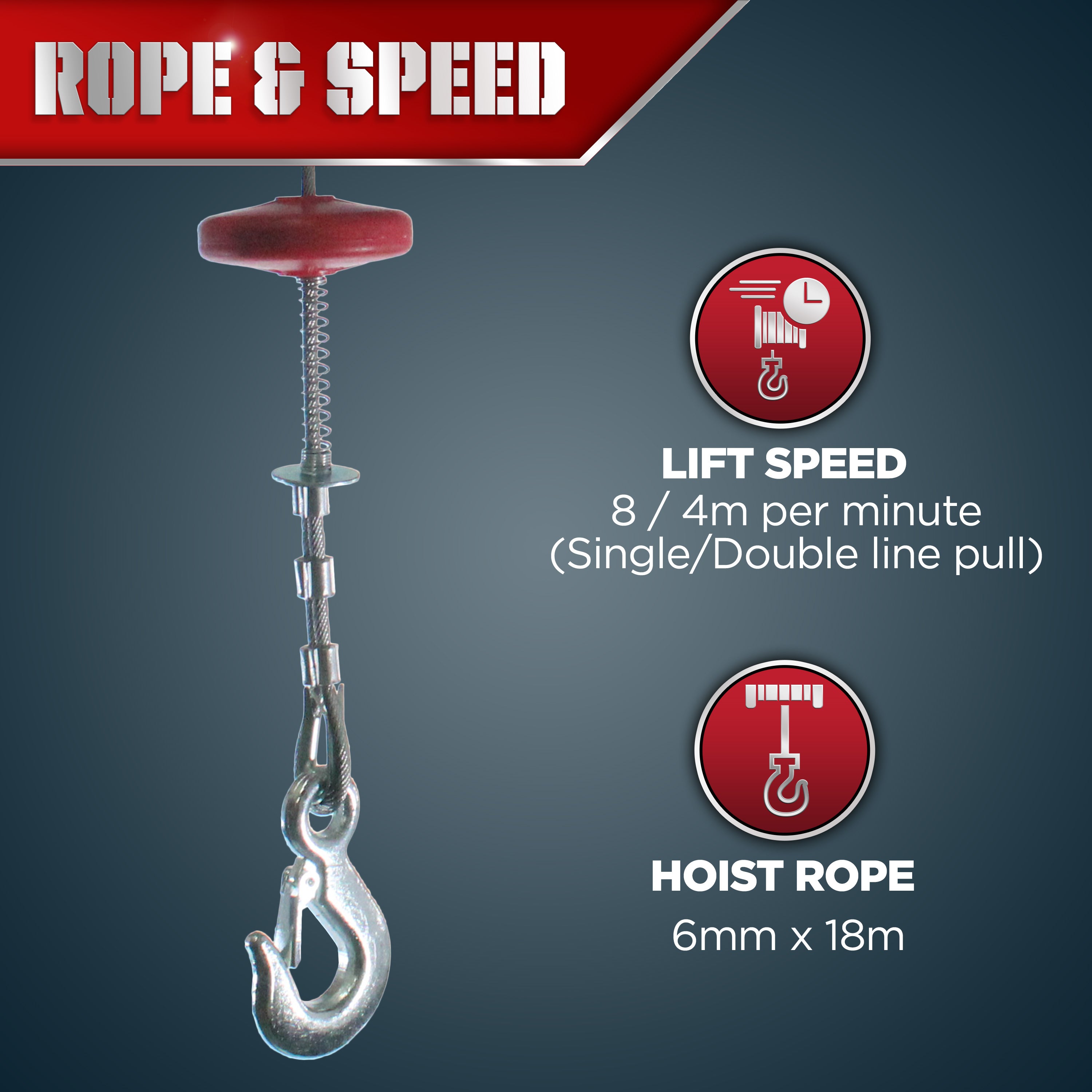

♦ Lifting Speed: 8m/min single cable & 4m/min double cable
♦ Casing Colour:  Black



Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Specifications:

Sku240VEHA1000
EAN5060423981145
Rated Line Pull2205 lbs
Rated Volt240
Max Load1000
Lift Height 12.0 m
12.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1600
Cable MaterialSteel
Cable Size (Diameter x Length)6mm x 18.0m
Limit Safety SwitchIntegrated
Work RateED 20%, 150s/h
Waterproof Rating (IP)IP54
Dimensions480 x 170 x 340 mm
Weight25.0 kg
Warranty1 Year
CertificationCE



What's in the box:

  • Electric Hoist
  • Steel Winch Rope with hook
  • 3m Hand Remote Handset

Downloads:

User Manual Download
Brochure Download

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)



Examples:

Power Station Capacity

Device Power Usage

Estimated Run Time

1200Wh

400W

1200 ÷ 400 = 3 hours

1000Wh

250W

1000 ÷ 250 = 4 hours

500Wh

100W

500 ÷ 100 = 5 hours



Keep in mind:

  • This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
  • Ensure your device power usage is below the max rated watts the power station can ouput.
  • Always allow some buffer in your calculations to account for energy loss or variations in power draw.
  • Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

 Device Average Power Usage
Lamp 10
LED/LCD TV 150
Laptop 100
Desktop Computer 200 - 500
Modem/Router 20
Play Station 165
*This chart is for reference only. Check your device for ACTUAL wattage requirements.

This products has a 1 Year Warranty

All Warrior purchases must be registered with Warrior Winches.

Register your winch here

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product BPE Holdings determines to be defective will be repaired or replaced at BPE Holdings sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes.

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.

Questions & Answers:

Ask a Question

  • How long is the cable

    6mm x 18m (0,23in x 59ft)
