Warrior 10000NH Hydraulic Winch

 0 Reviews  Ask a Question
SKU: 10NHSHY

Sale price£698.99
Sold out (back orders not currently available)

Recommended Accessories

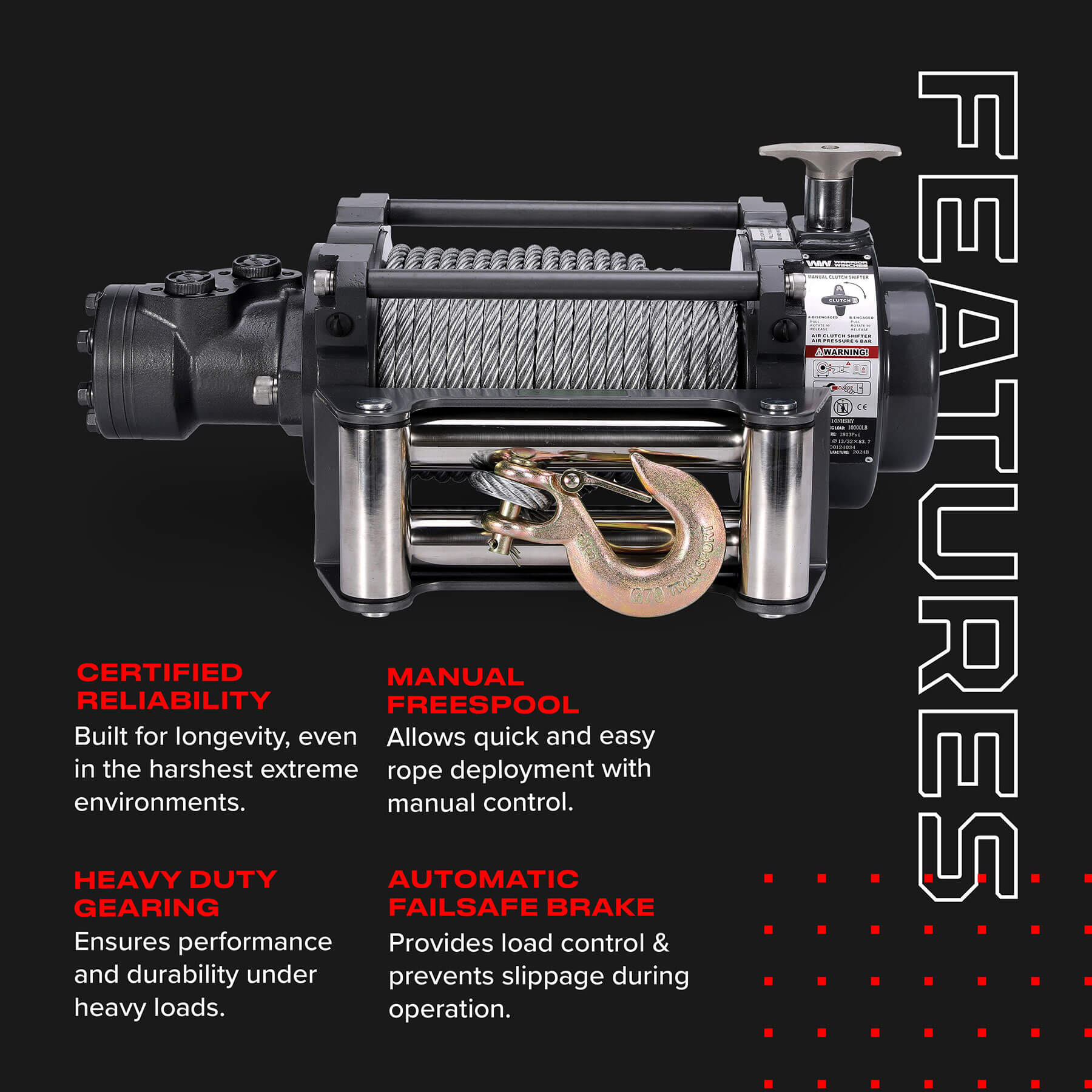

Features

  • Patented Heavy Duty Gearing
  • Integral, Automatic Failsafe Brake
  • Spring Engaged Manual Freespool
  • Stainless Steel Fairlead and Fittings
  • Rugged and compact for Long Life

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

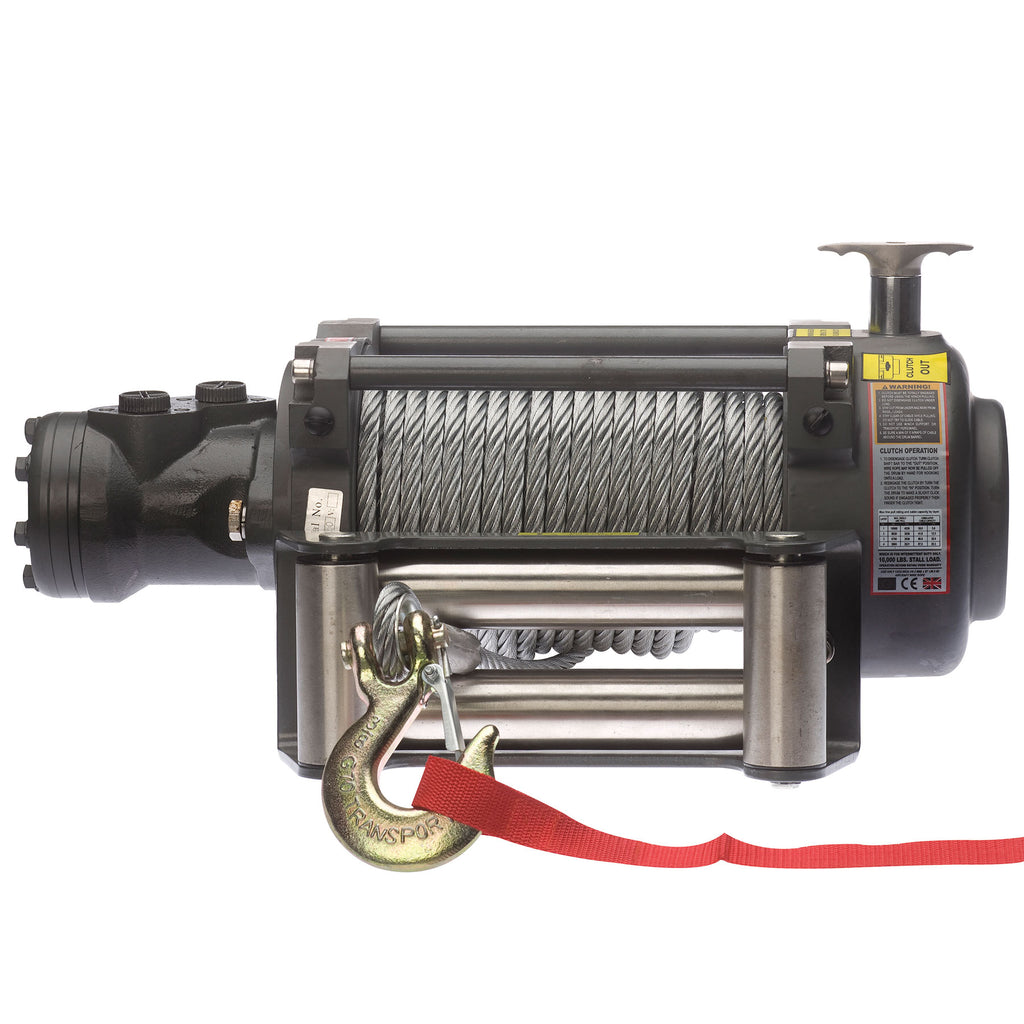

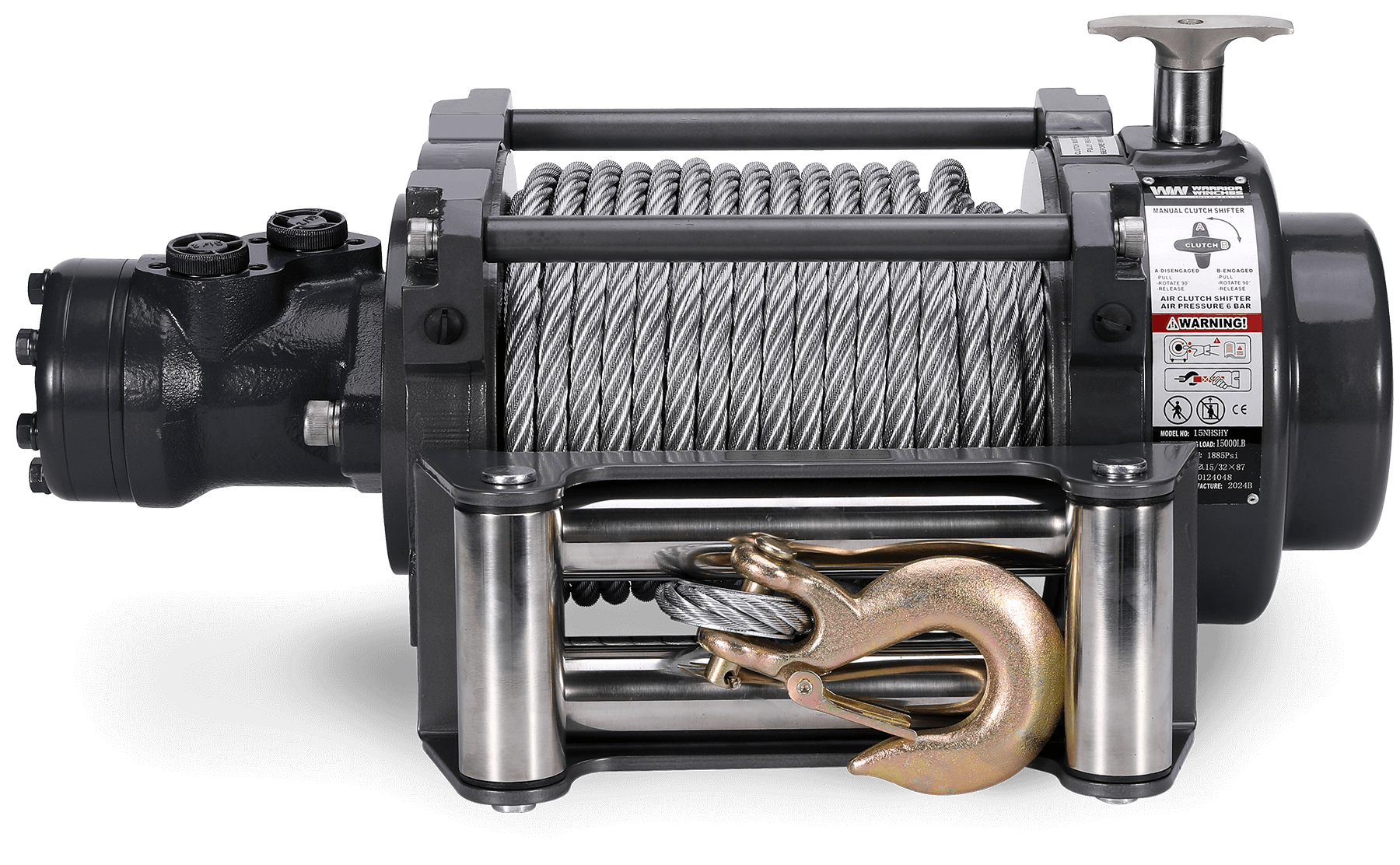

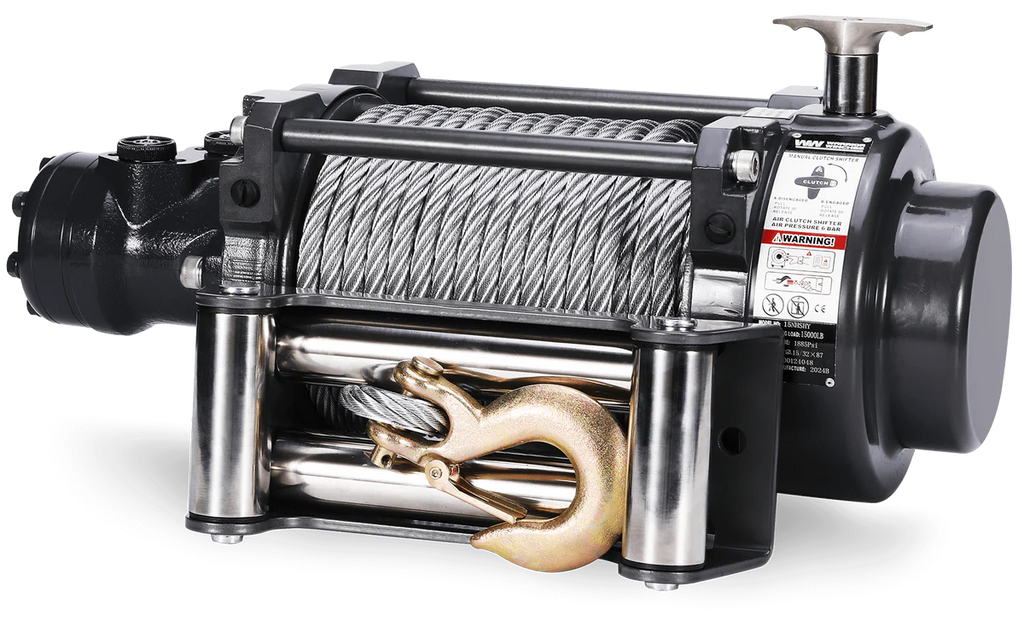

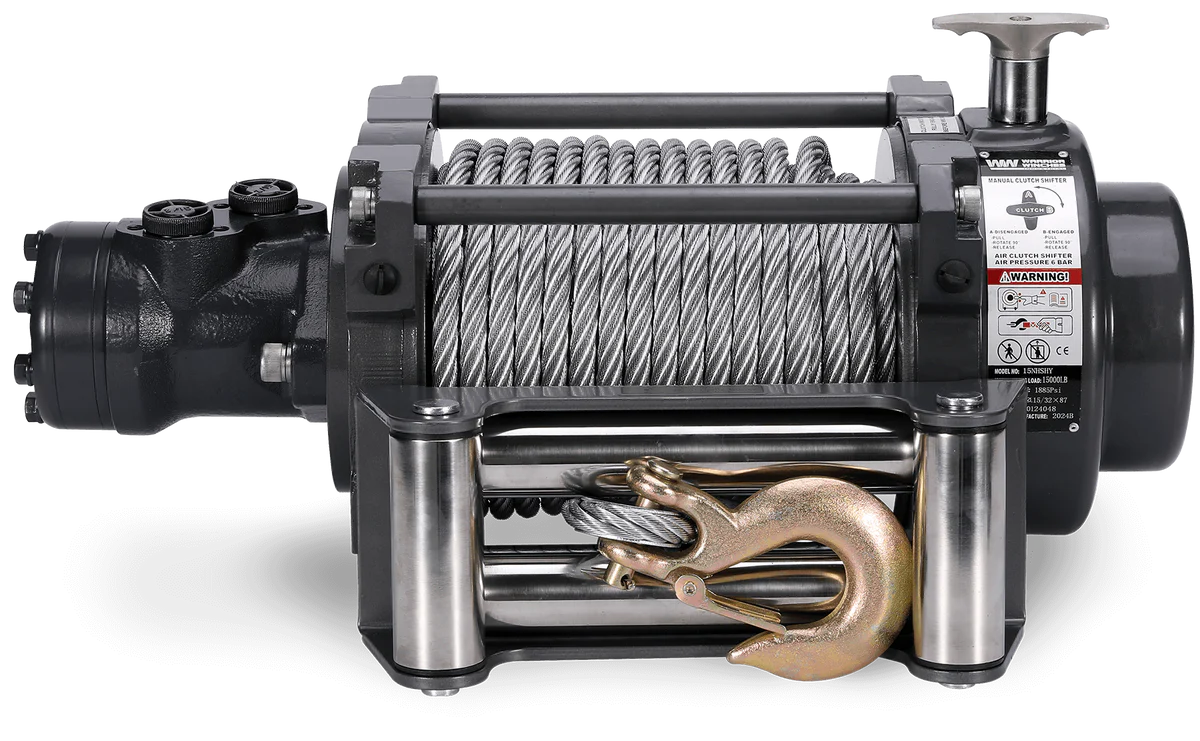

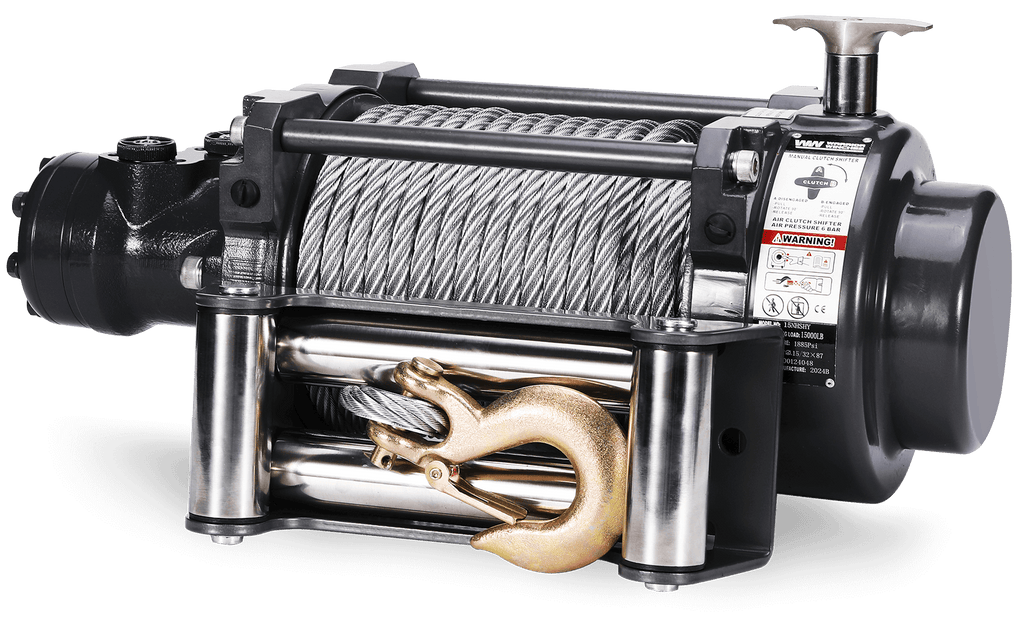

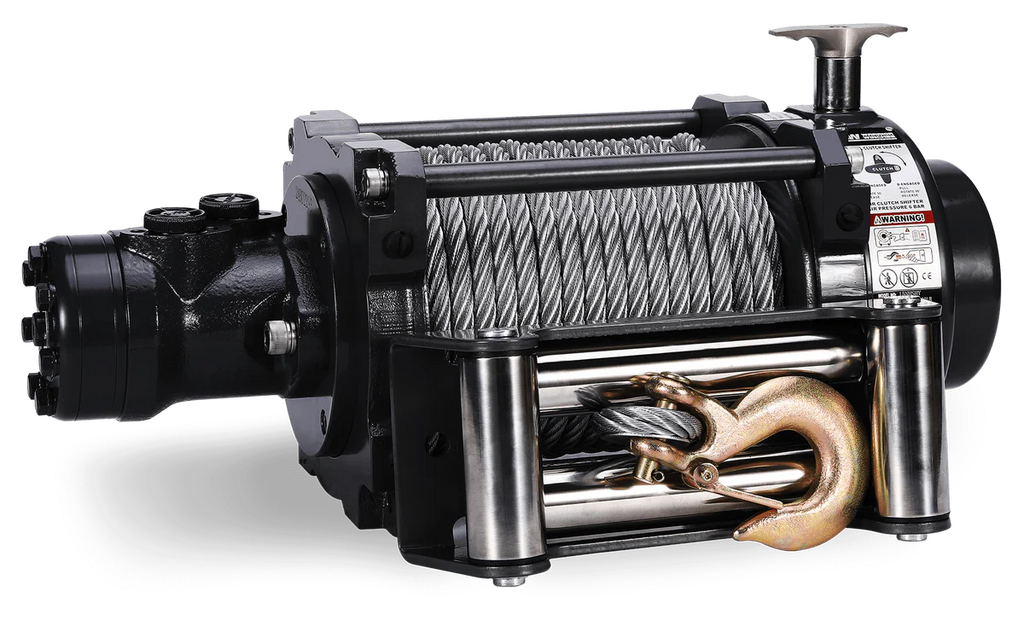

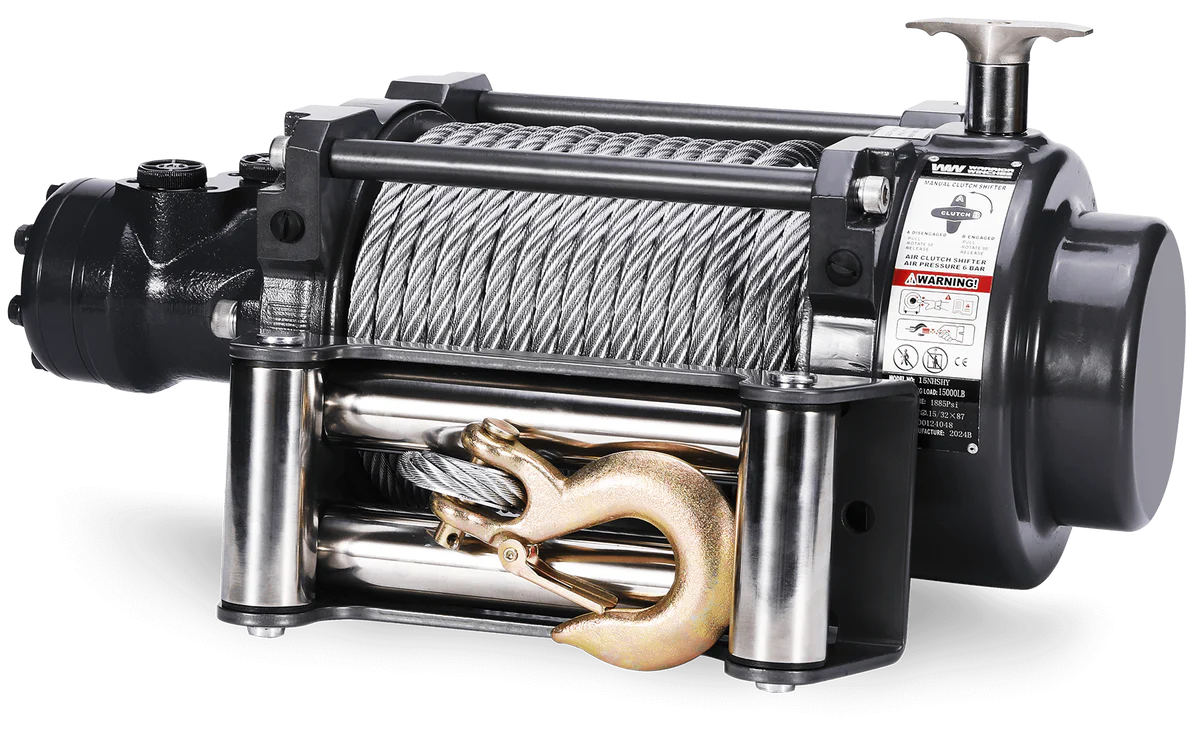

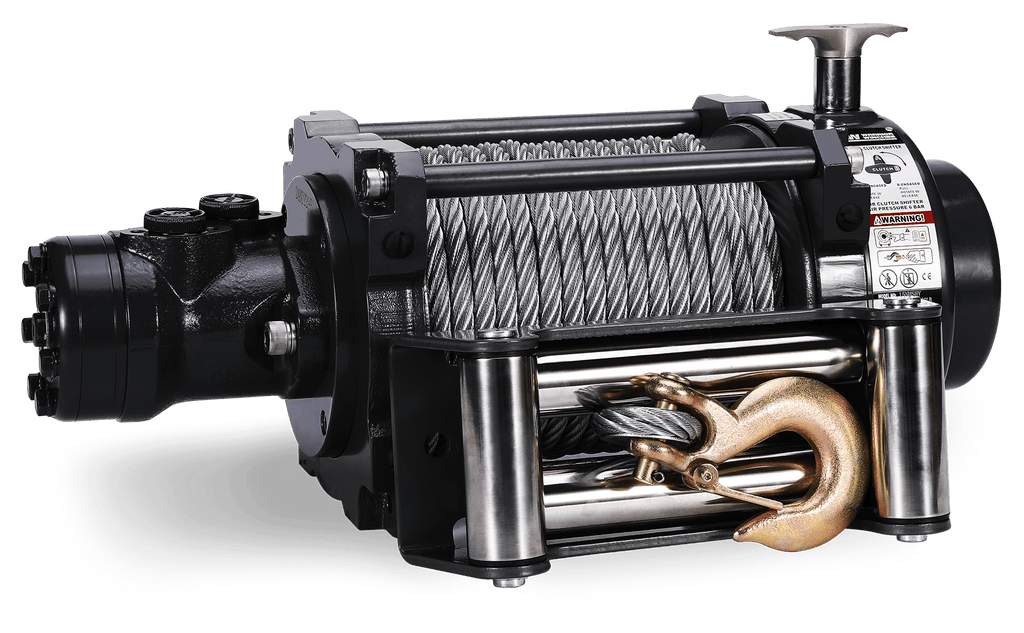

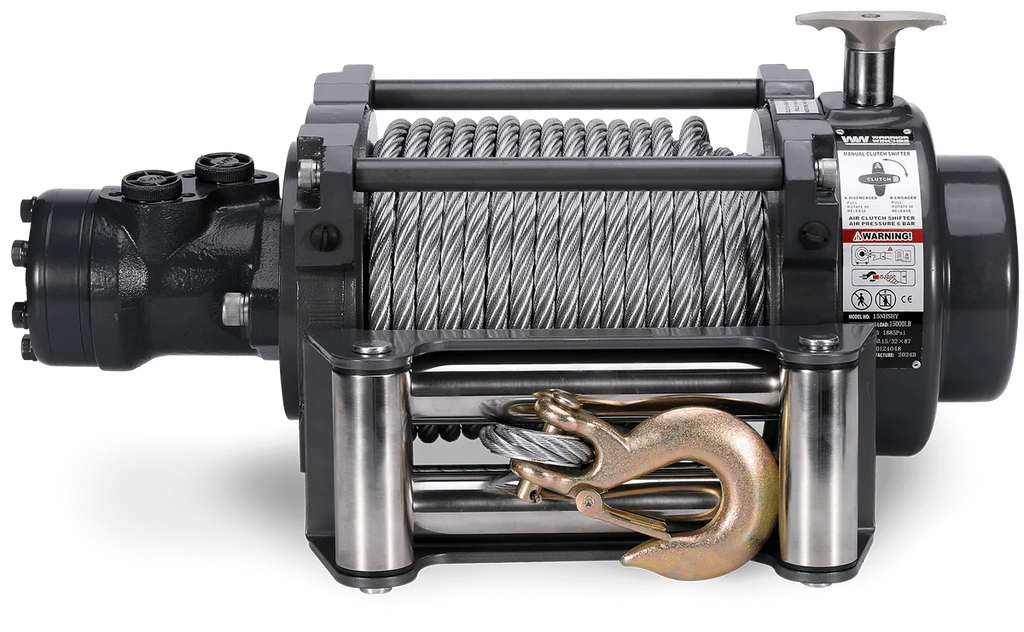

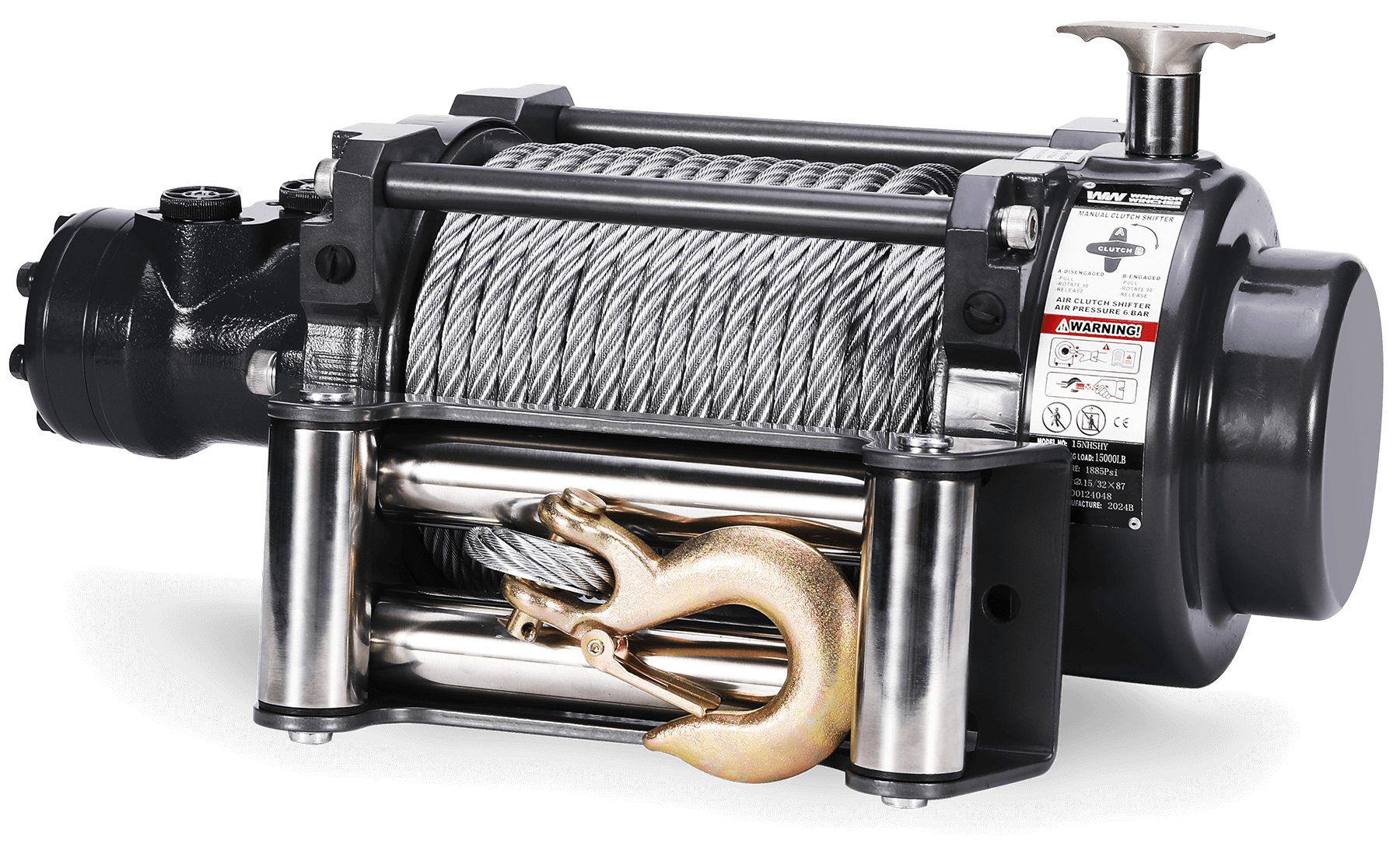

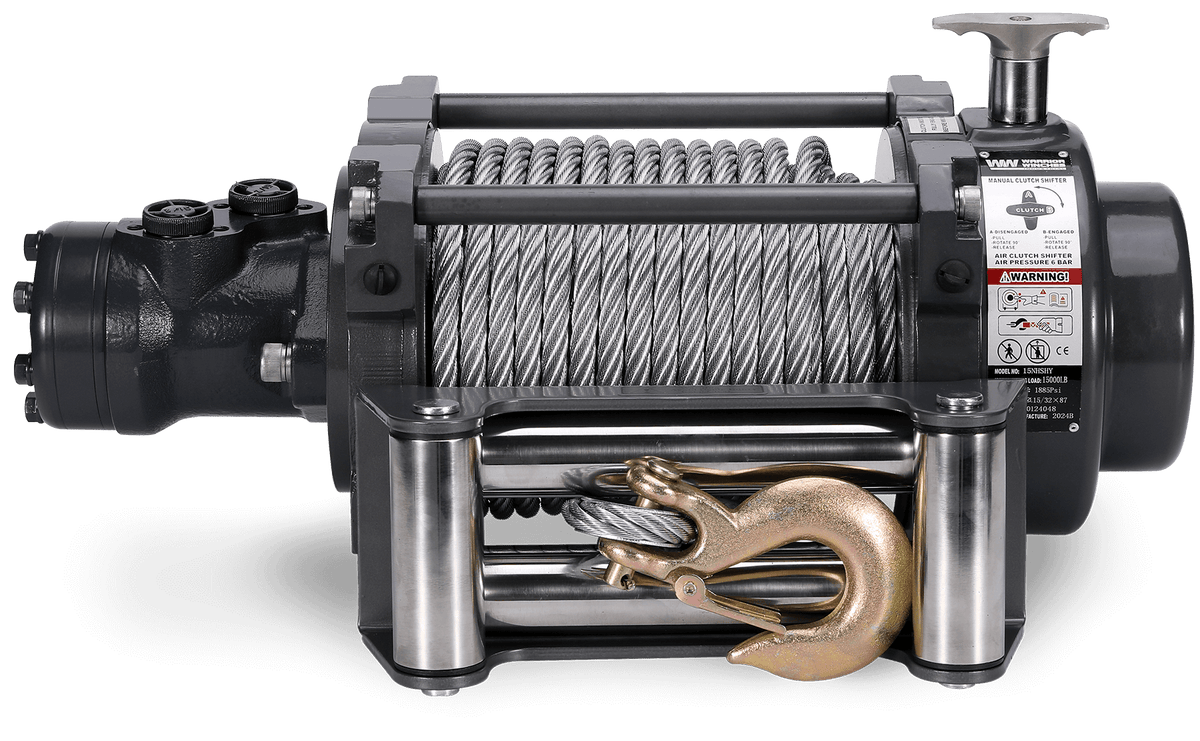

Warrior C10000NH Hydraulic Winch

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures maximum performance over the full load range. Complete with internal brake to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are standard.

Standard Features:

Line Capacity: 10,000lb (4,536kg)
Rope: 26.5m of 10.2mm Steel Cable with Clevis Hook
Motor: Hydraulic Dis 50ml/r
Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 1 Year Standard Return to Base Cover

Accessories:

Mounting Plate: Available as optional extra
Fairlead: Heavy Duty 4-Way Roller Fairlead
Mounting Bolts: Included for Standard installations

Also Includes:

♦ Instruction Manual

Other Information:

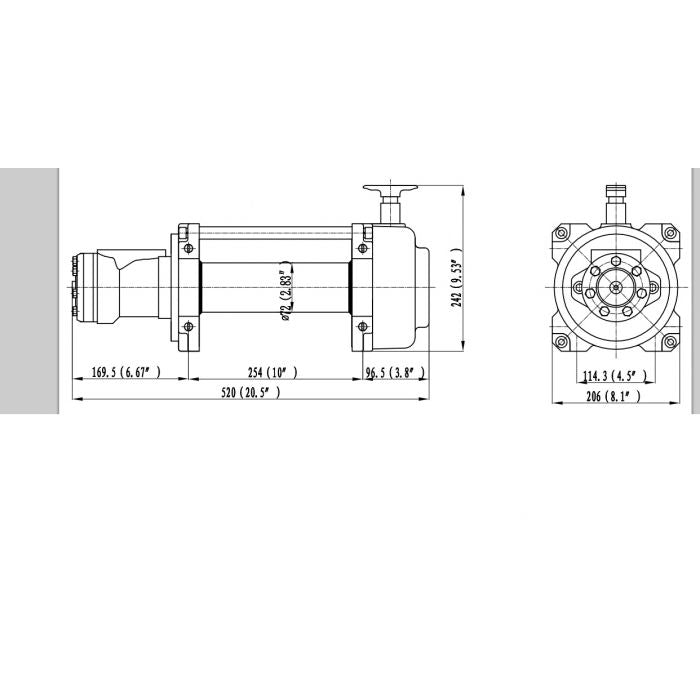

Dimensions: 510mm L x 186mm D x 224mm H (Dimensions given assum electric pack is mounted remotely)
Mounting Bolt Pattern: 254mm x 114.3mm
Approx. Shipping Weight: 55kg
Line Pull - No Load: 2.8 m/min (20 L/Min at 25 Bar)
Line Pull - Full Load:  7.6 m/min (50 L/min at 130 Bar)


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 10000 lbs (4536 kg)
Motor Hydraulic Dis 65 ml/r
Gearing 25.5:1
Braking Action Auto in the drum
Drum Size - Dia x L 72 x 219mm
(2.83 x 8.62 in)
Cable - Dia x L 10.2mm x 25.5m
(0.4 in x 84 ft)

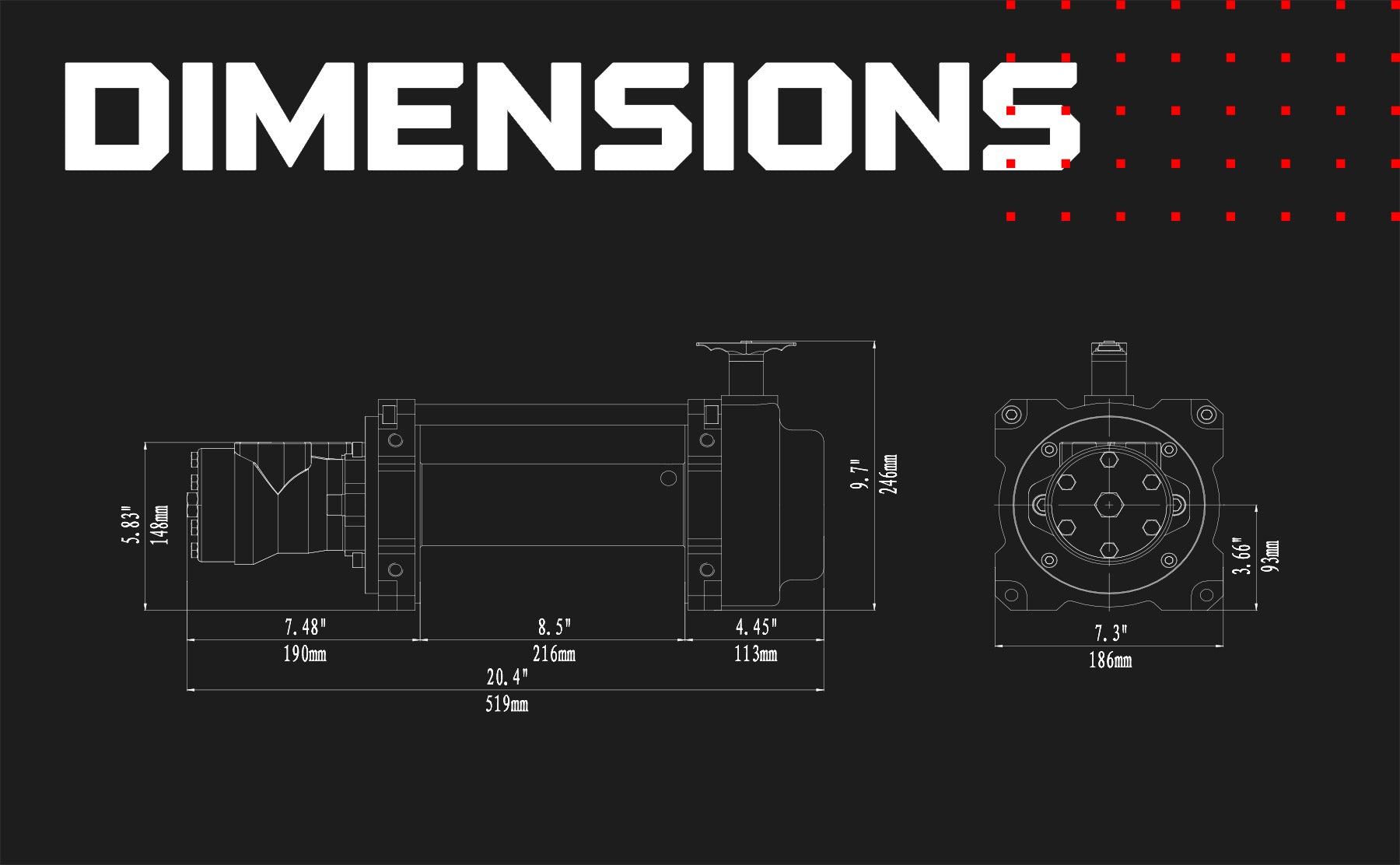

Dimensions 519 x 206 x 246mm
(20.43 x 8.1 x 9.7 in)
Mounting Pattern 254 x 114.3 mm
(10 x 4.5 in)
Weight kg 53 kg (117 lbs)
Max Flow L/min 45
Max Pressure Mpa 12.5
Clutch Manual
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 16.4 (5.0)
2 8012 (3634) 37.2 (11.3)
3 6683 (3031) 60.9 (18.6)
4 5732 (2600) 83.7 (25.5)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 17.4 (5.3) 5 2.0
3000 (1361) 15.1 (4.6) 10 4.5
6000 (2722) 8.9 (2.7) 20 6.8
9000 (4082) 4.6 (1.4) 35 9.0
10000 (4536) 2.3 (0.7) 40 12.5

What's in the box:

  • 3/8 Hook
  • Heavy Duty Roller Fairlead
  • Steel rope
