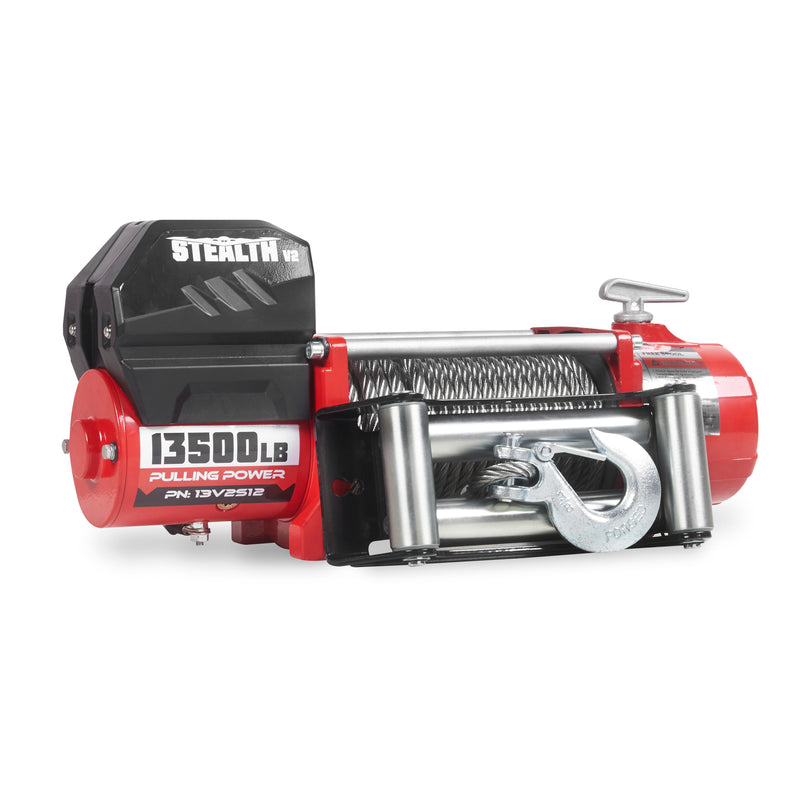

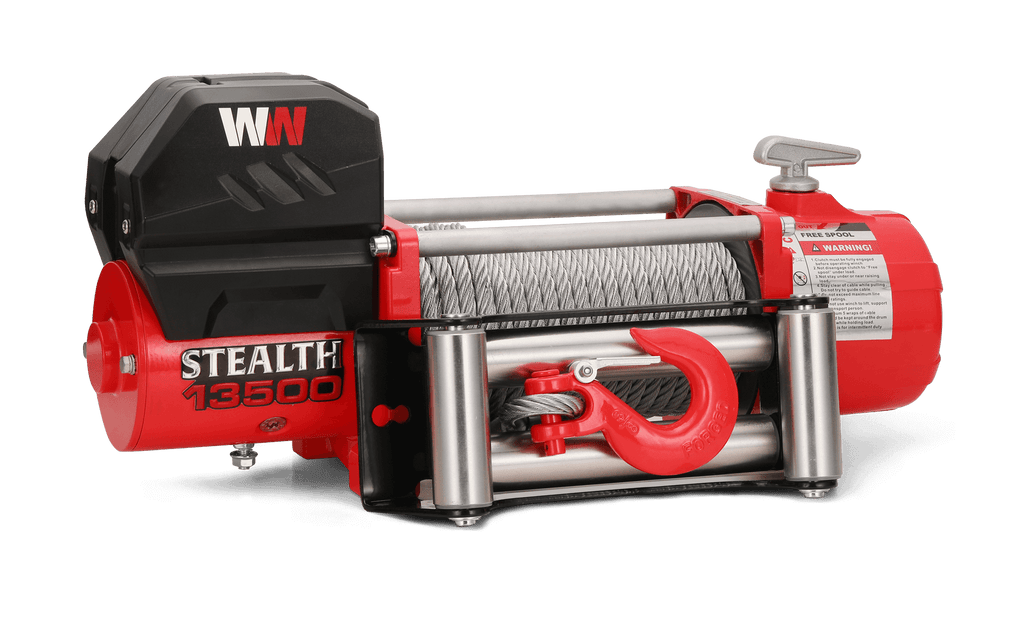

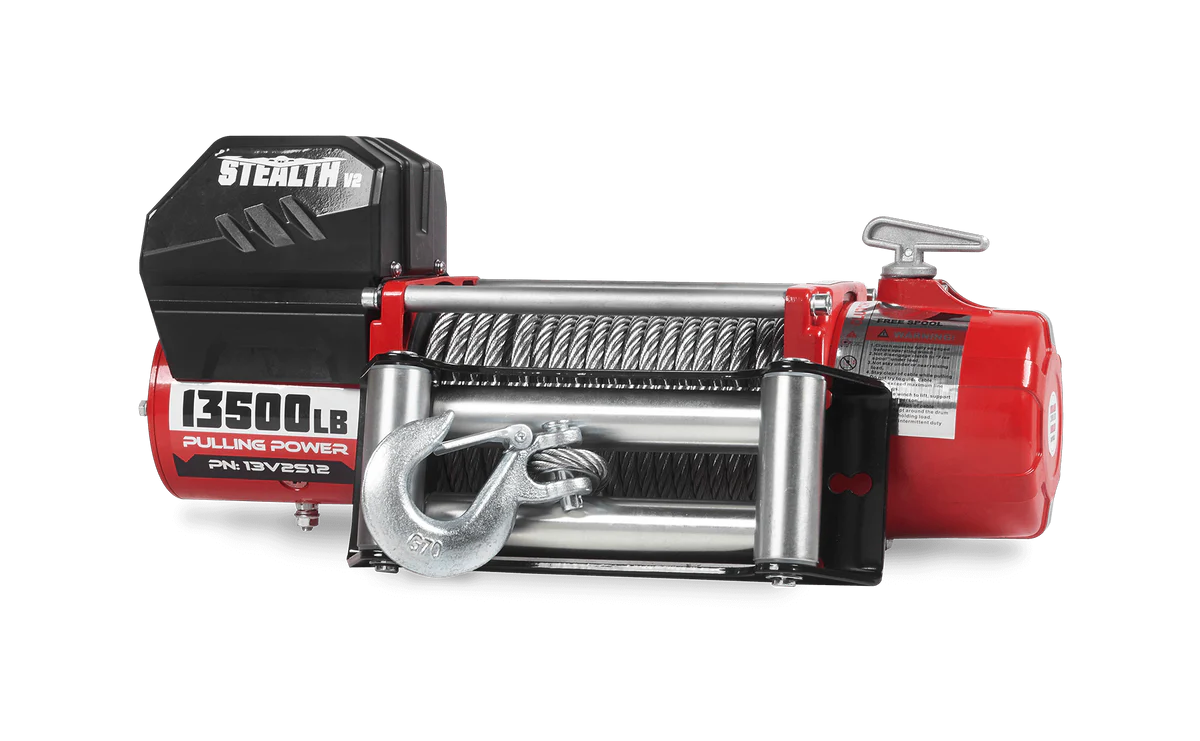

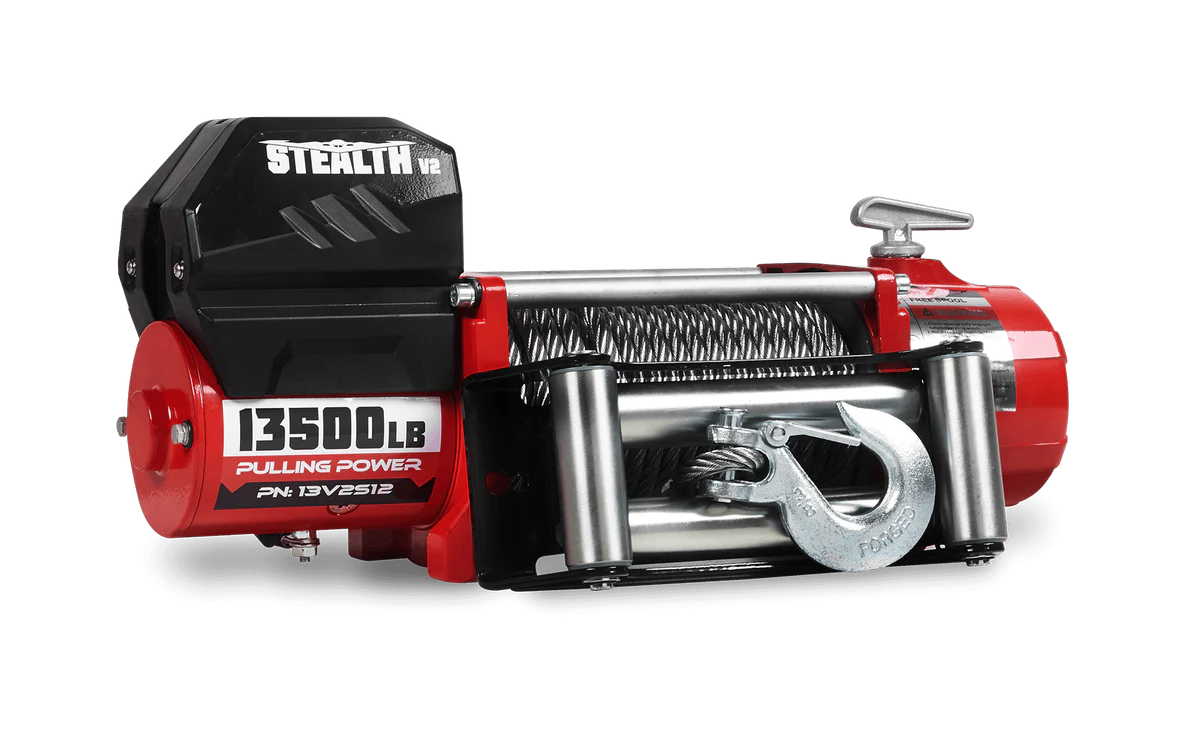

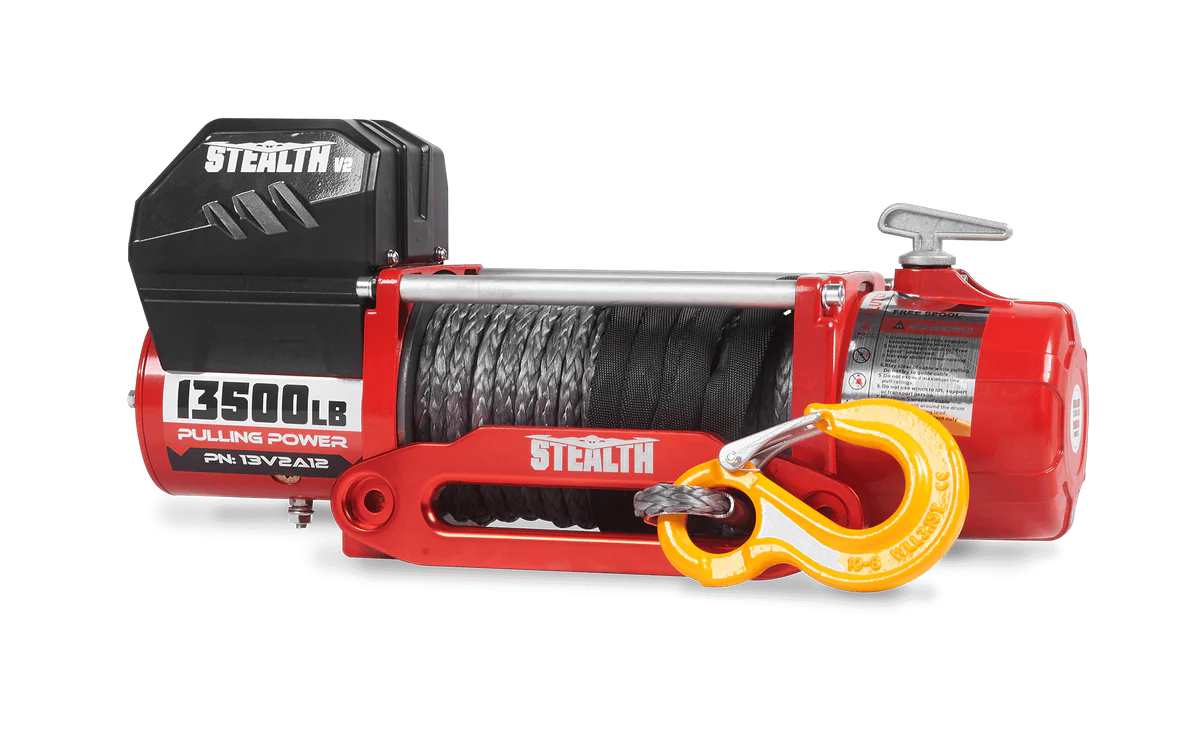

Stealth V2 13500lb Winch

1 Questions Answered
SKU: 13V2S12

12v Steel Rope
Voltage: 12v
Rope: 20m Steel Rope
Sale price£319.99
In stock (Delivery in 1-2 working days)

Recommended Accessories

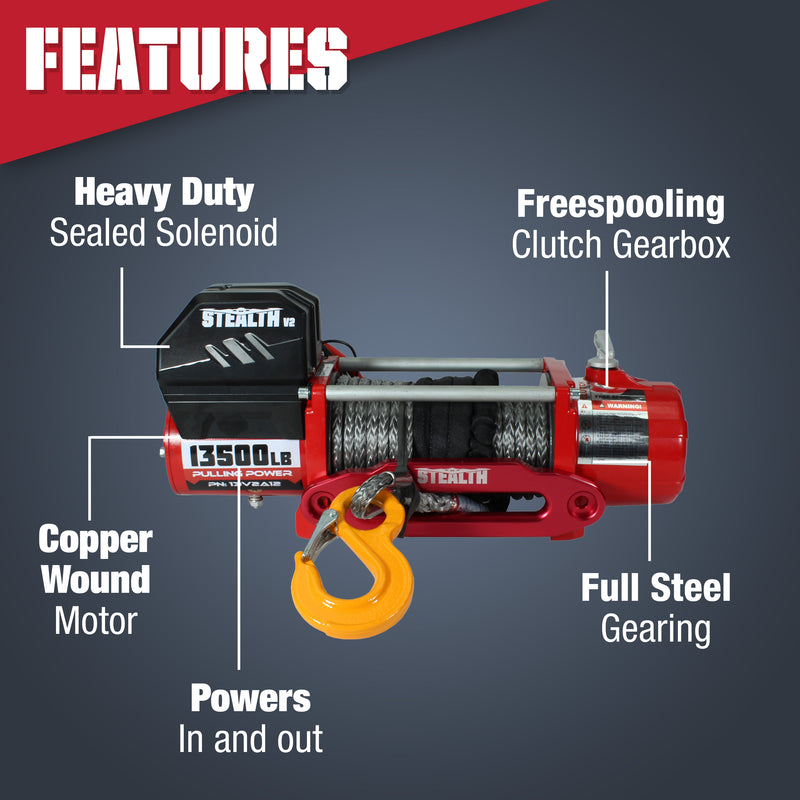

Features

  • SUPER STRONG – Incredible pulling power of 13500lb or over 6000kg!
  • WIRELESS CONTROLS – Includes two wireless remote controls.
  • HARDWEARING – Built with full steel gearing for durability.

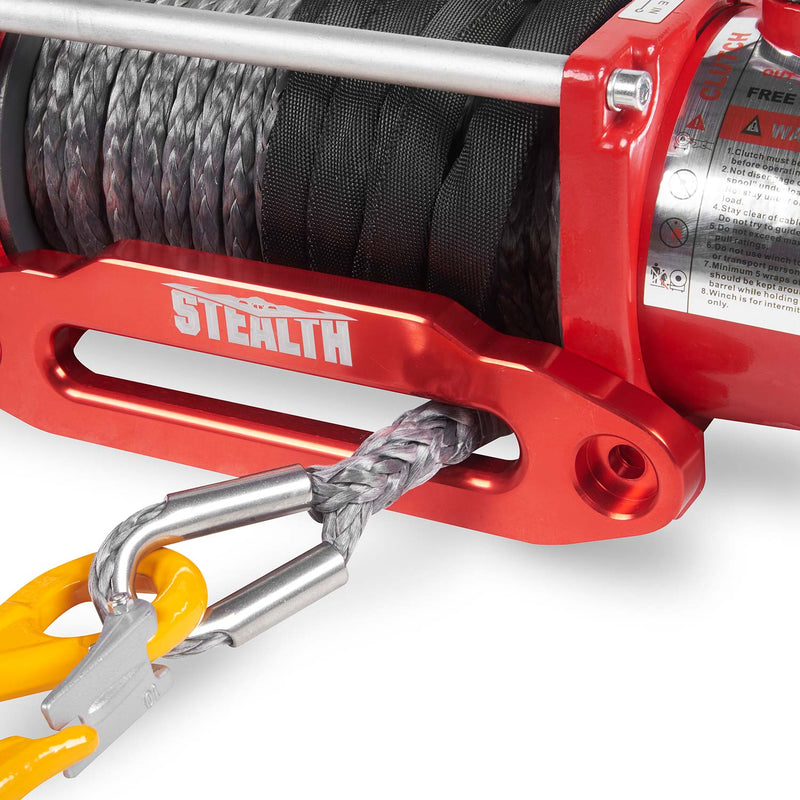

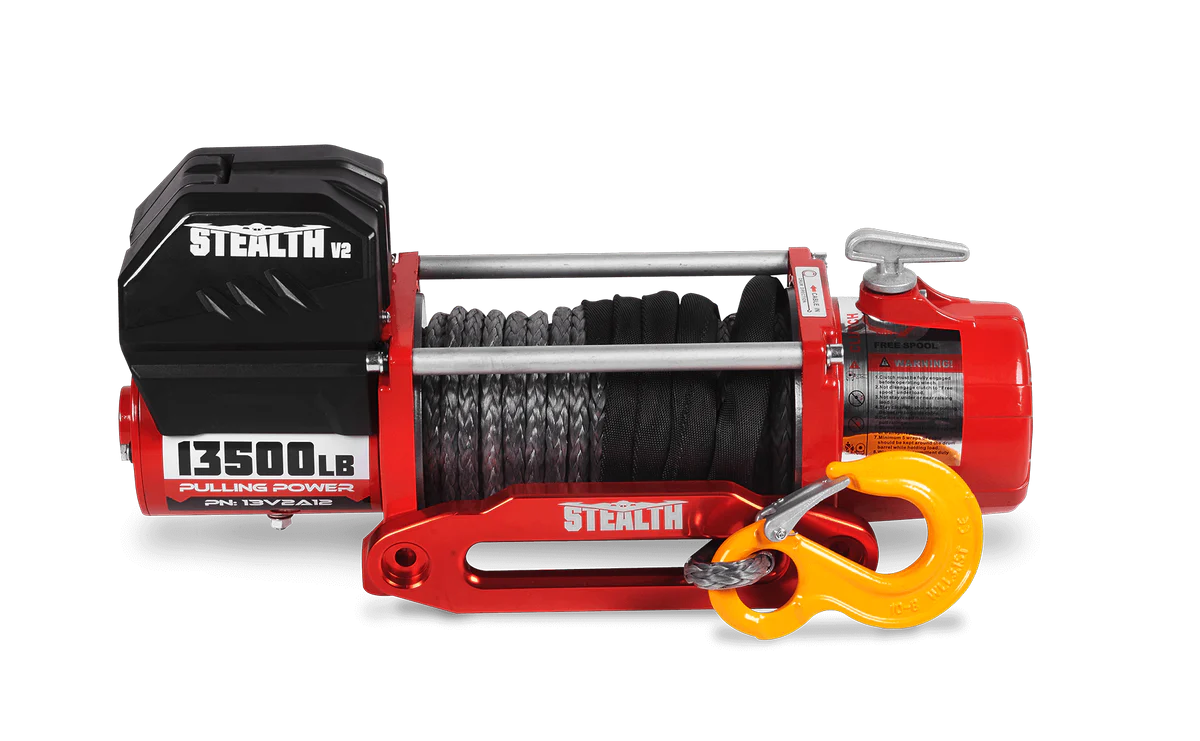

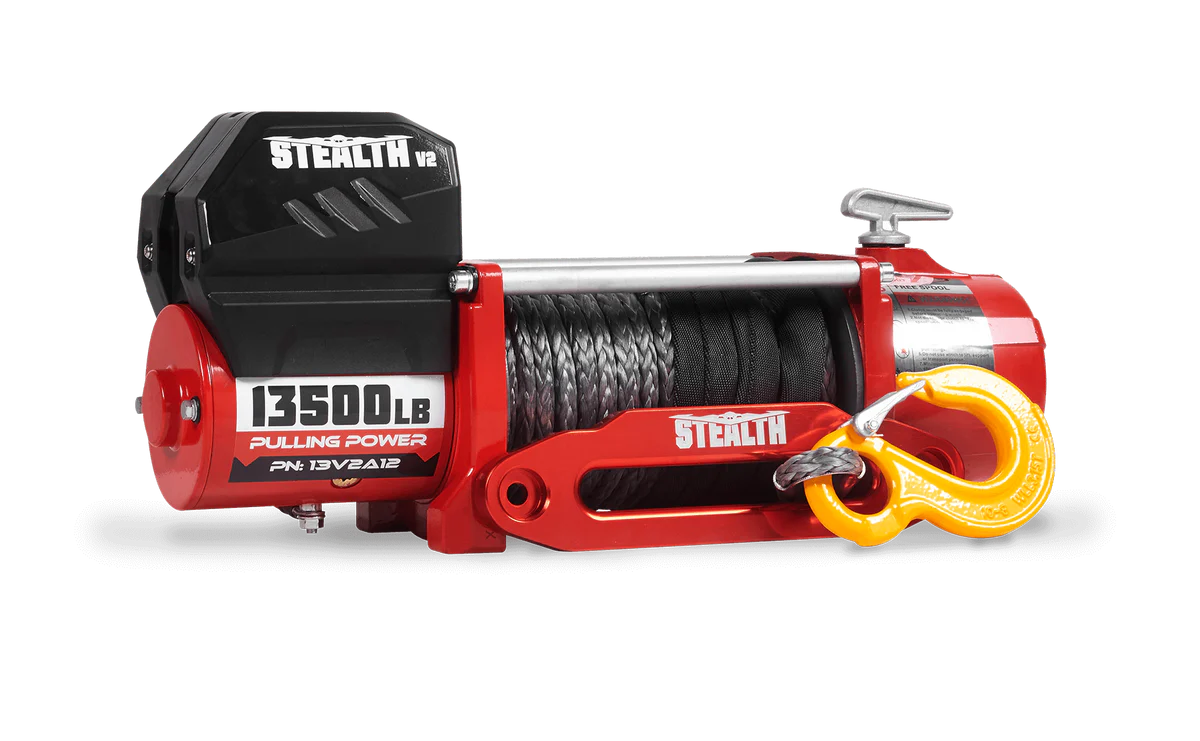

  • SYNTHETIC OR STEEL ROPE – With your choice of a synthetic or steel rope.

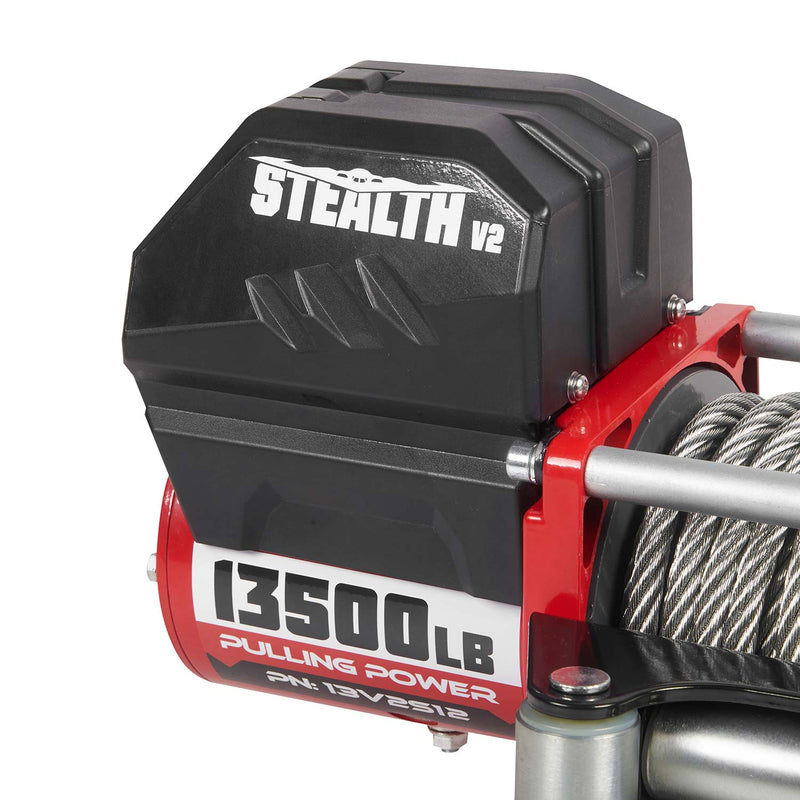

  • HEAVY-DUTY DESIGN – Features a sealed solenoid for long-life.

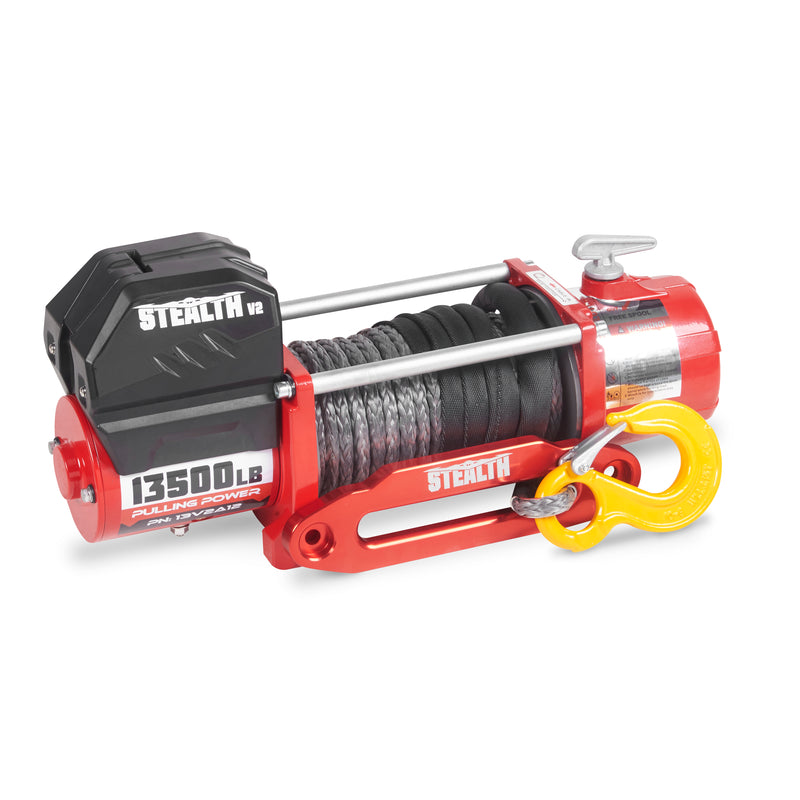

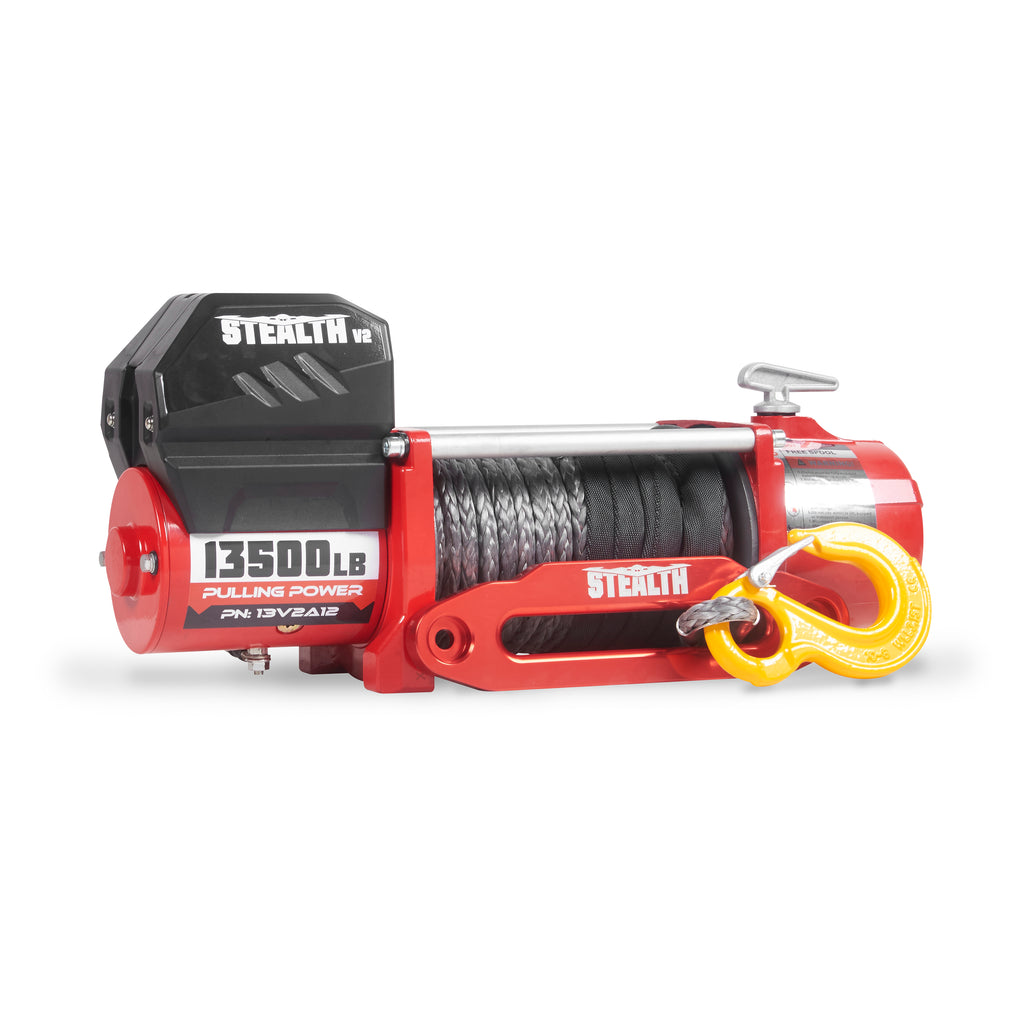

Stealth V2 13500lb Winch

In an ideal world, every recovery truck and 4x4 would already be fitted with a high-power winch. But as that isn’t always the case – we’re here to help. Extending our offering of excellent budget winches that push the limits of both quality and value, the Stealth V2 levels it up with something more series.

Still at a budget price, the Stealth V2 has all the strength and durability you’d need in a heavy-duty, industrial winch. Reinforced with a sealed solenoid and full steel gearing, it’s designed for long-life and reliable power to help you get the job done.

With an incredible line capacity of 13500lb and a line pull of 0.8m per minute at full load – its strength is unbeatable. Giving you a choice of synthetic or steel rope, you can have all the strength without any compromise.

Beyond the hardwearing design, the Stealth V2 is also benefitted by not one but two wireless remotes for smart working.


Standard Features:

Line Capacity: 13,500lb (6,124kg)
Motor: 12v: Reversible 6.1hp (4.6kW) Series Wound Motor - Powers In and Out

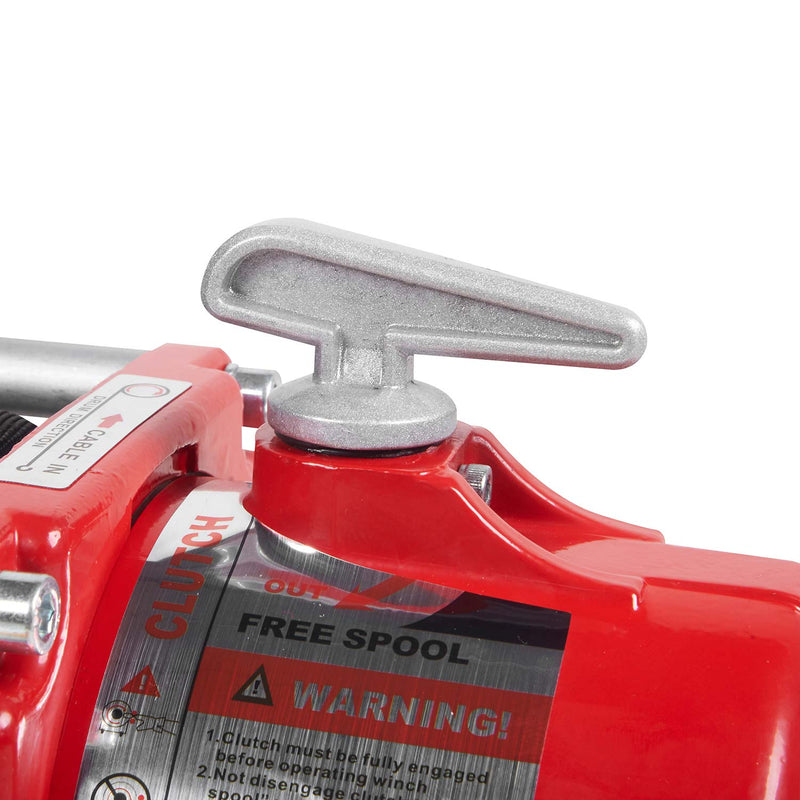

Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: Limited 12 Month Return to Base Warranty*

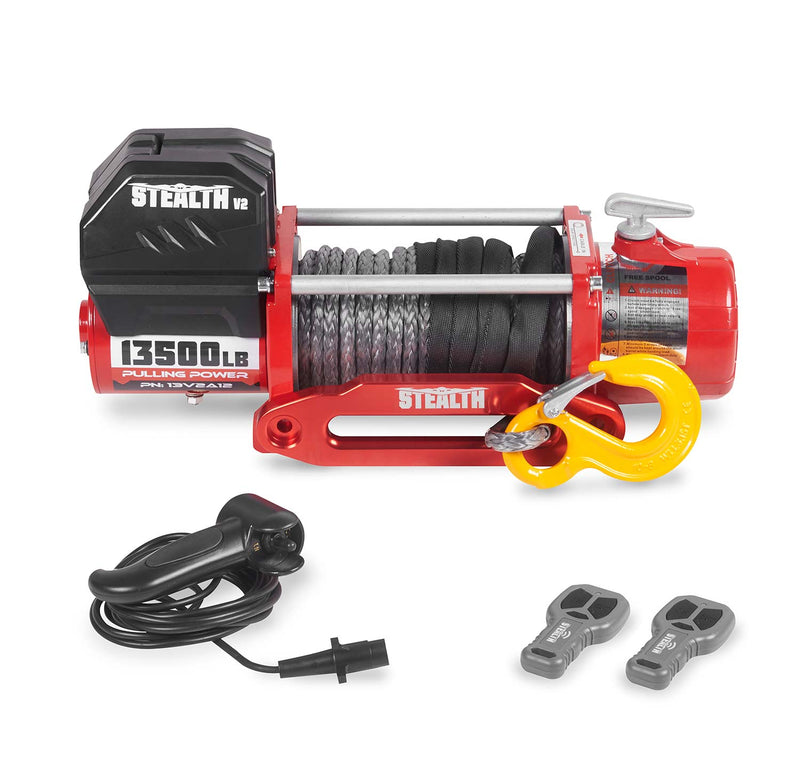

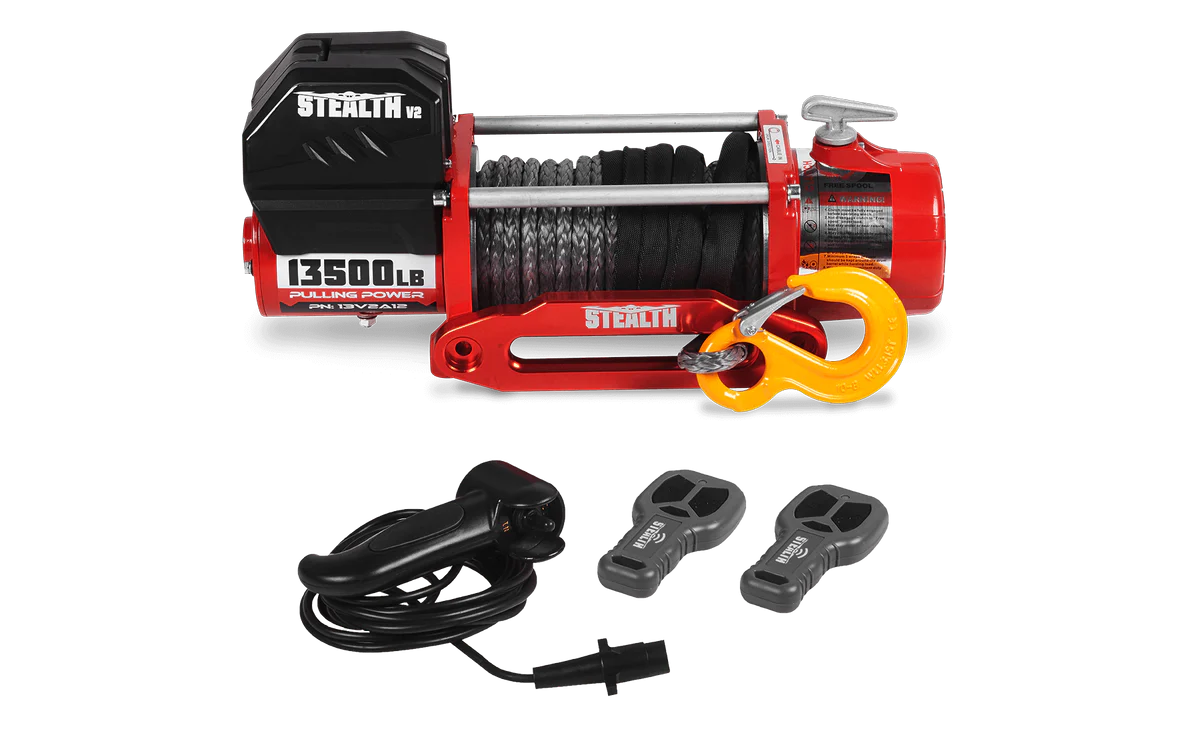

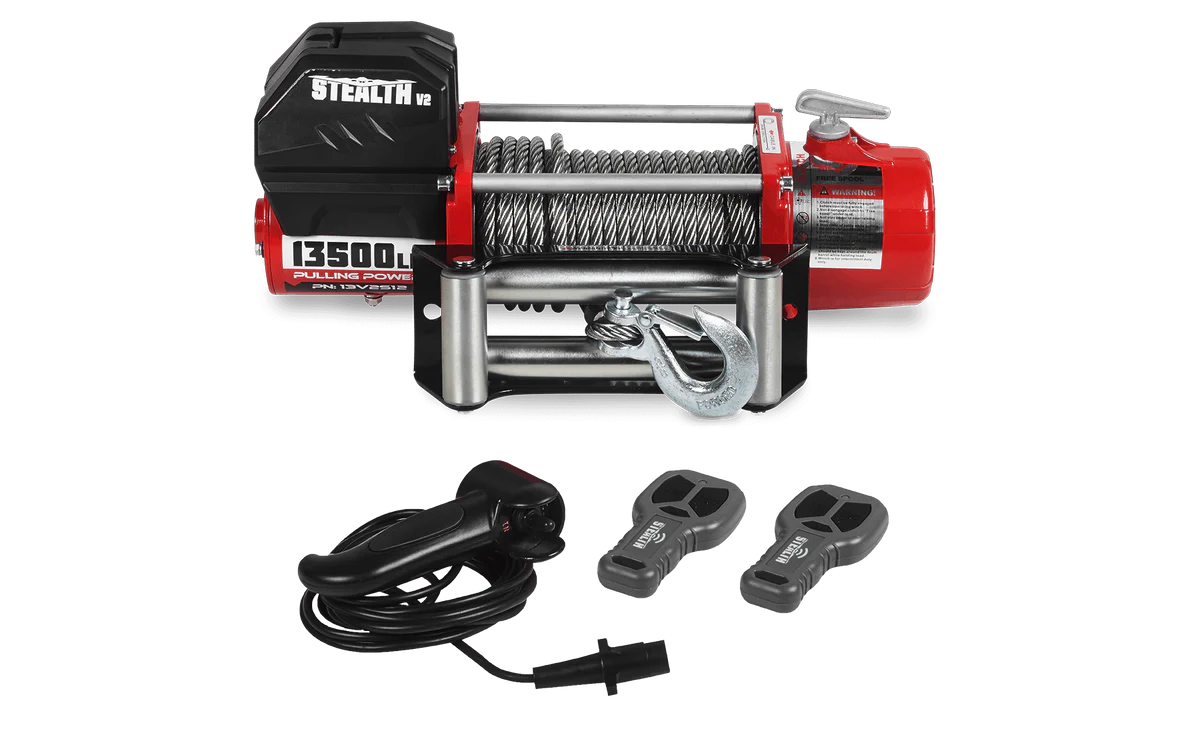

Accessories:

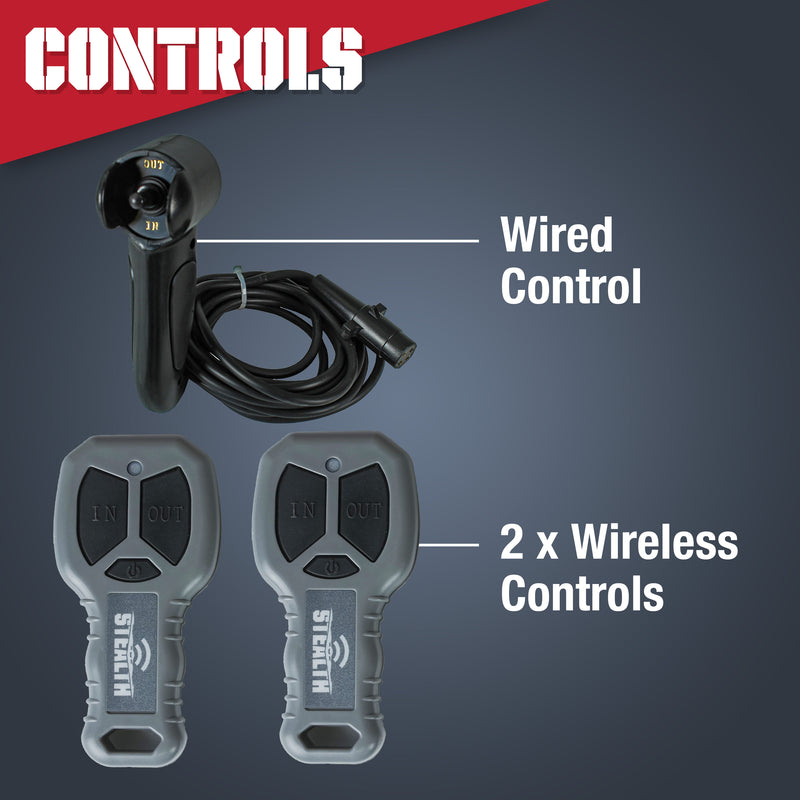

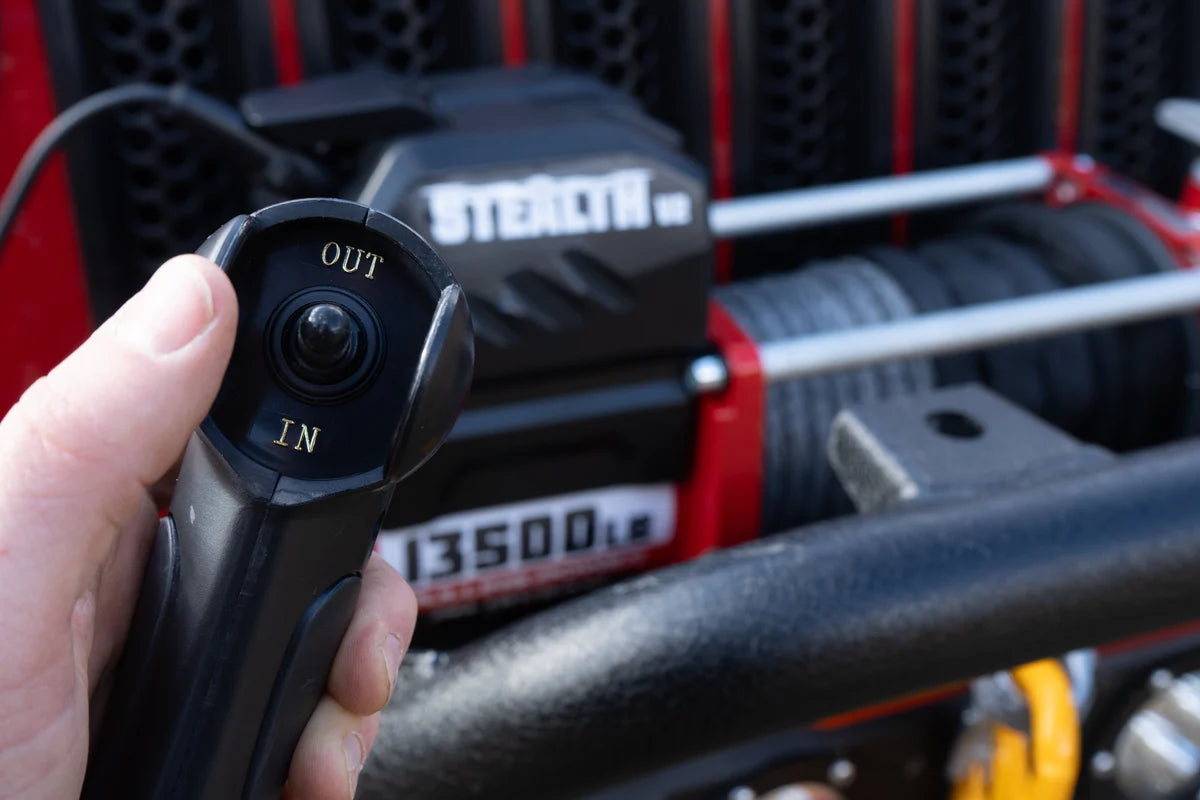

Wired Hand Control: 3.9m Wired Hand Control
Wireless Control: Includes Two Wireless Controls*
Mounting Plate: Available as optional extra
Mounting Bolts: Included for Standard installations
♦ Battery Cables (May need extending dependant on application)
♦ Hand Saver
♦ Instruction Manual

Other Information:

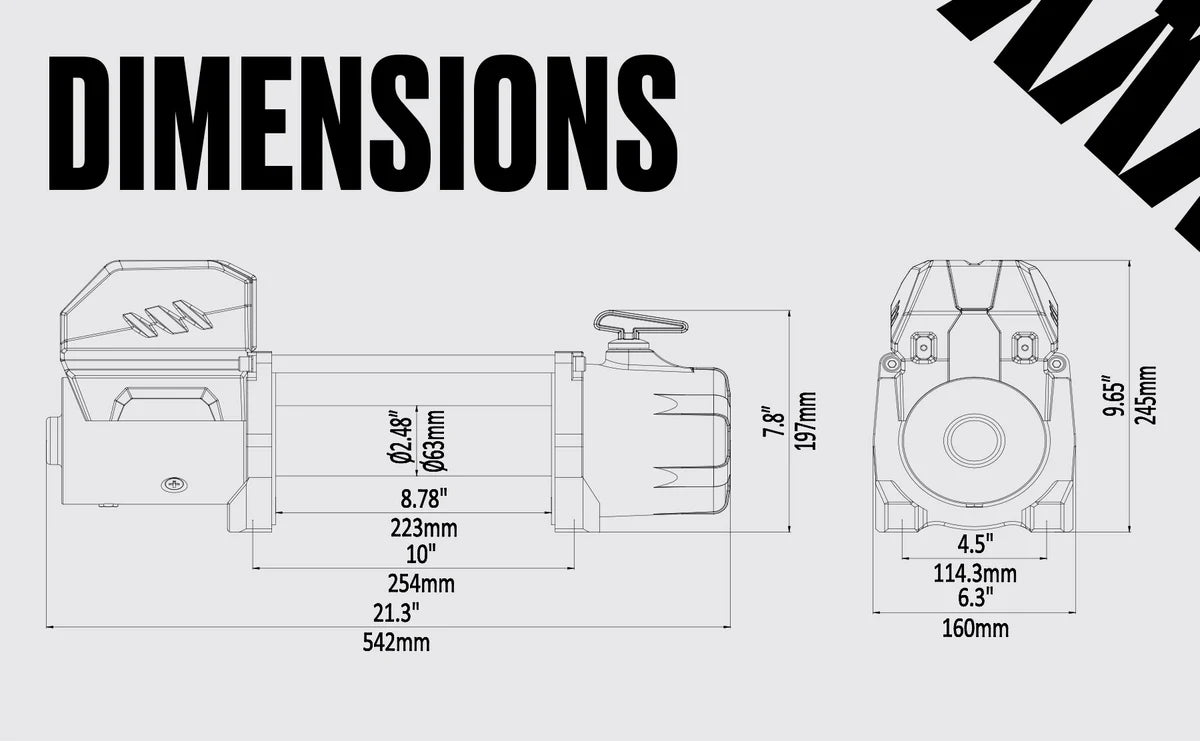

Dimensions: 542mm L x 160mm D x 245mm H
Mounting Bolt Pattern: 254mm x 114.3mm

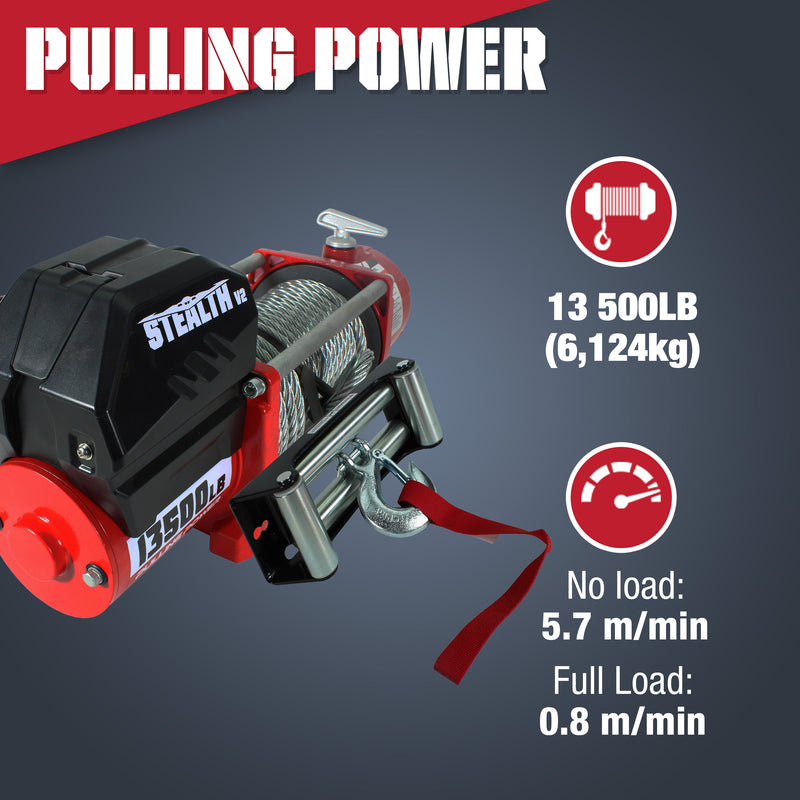

Line Pull - No Load: 5.7 m/min (90 Amps) [12v version]
Line Pull - Full Load:  0.8 m/min (490 Amps) [12v version]

Warranty Statement:

This winch is supplied with a 12 month return to base warranty and is supplied with a wireless remote which suitable for use in Leisure and Non Commercial applications only. Use of the wireless control supplied in commercial and industrial applications is not covered by warranty.  For these applications a professional control such as a Lodar should be fitted.


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 13 500 lbs (6 123 kgs)
Motor 12v : 6.1hp / 4.6kw
24v : 8.7hp / 6.5kw
Gearing 265:1
Drum Size - Dia x L 63 x 223mm

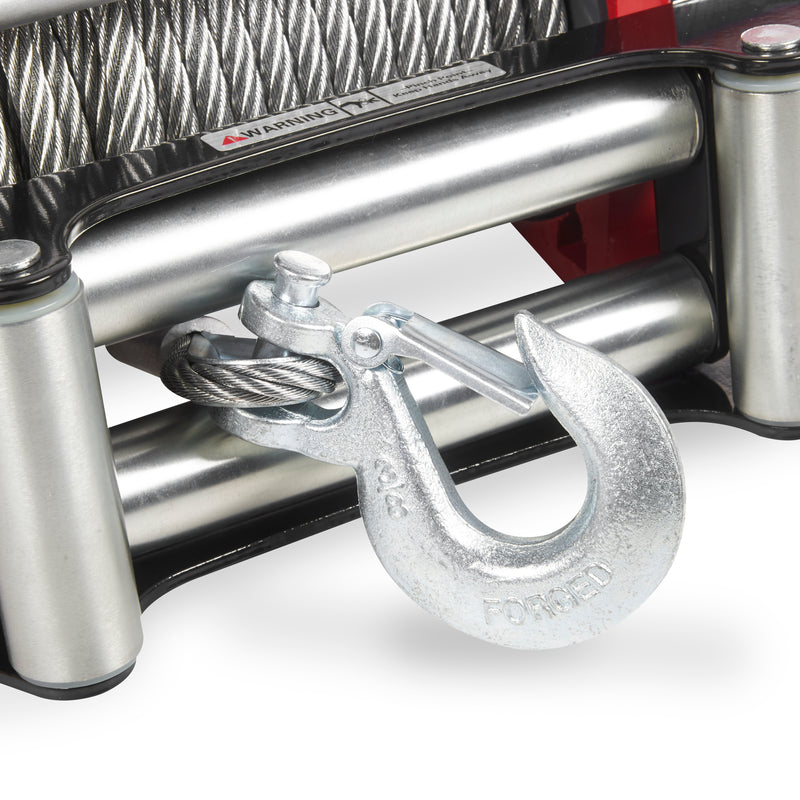

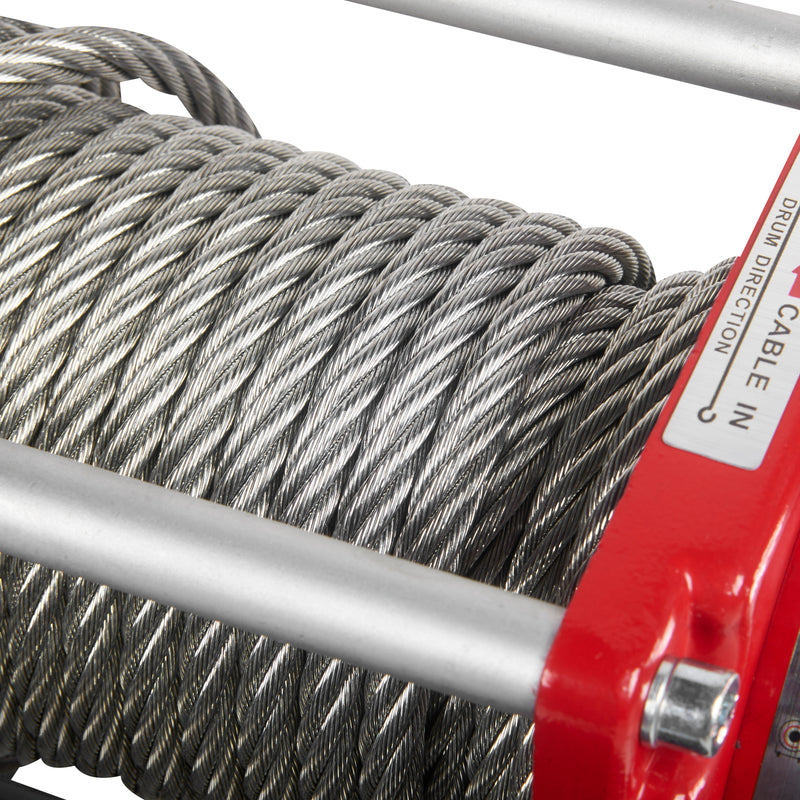

Cable - Dia x L Steel: 10.2mm x 20m

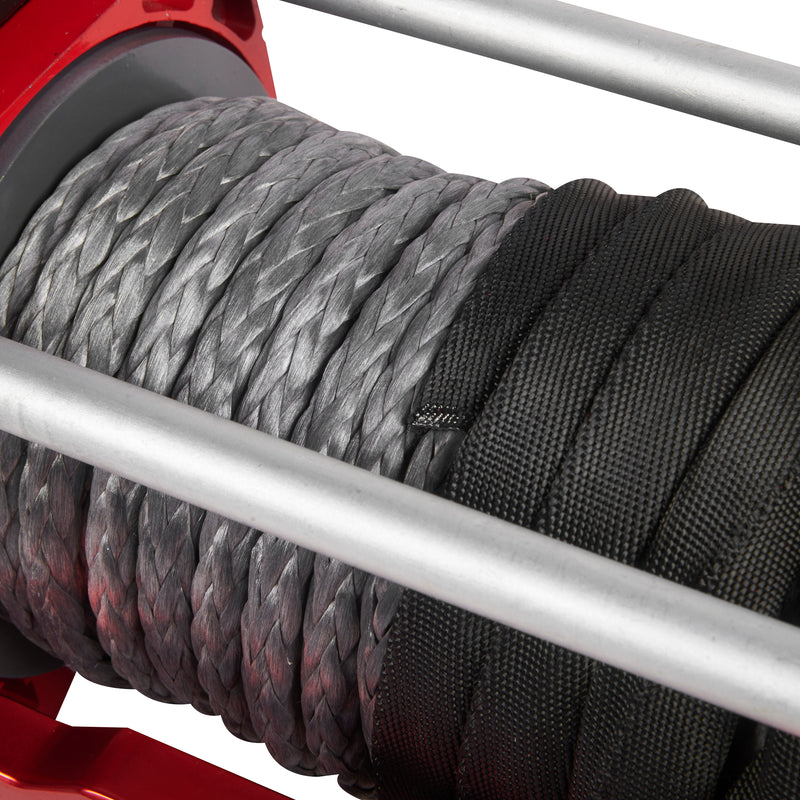

Synth: 10mm x 20m
Dimensions 542 x 160 x 245mm
Mounting Pattern 254 x 114 mm
Weight kg Steel: 35 kg
Synth: 28 kg
Certification CE Certified



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 13 500 (6 123) 16.1 (4.9)
2 10 596 (4 806) 36.4 (11.1)
3 8 720 (3 955) 60.0 (18.3)
4 7 408 (3 360) 65.6 (20.0)


Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 19.7 (6.0) 20.6 (6.3) 72  50
4000 (1818) 10.5 (3.2) 11.5 (3.5) 180 120
8000 (3629)  7.5 (2.3) 8.9 (2.7) 265 180
12000 (5443) 5.2 (1.6) 6.9 (2.1) 360 240
13500 (6123) 3.9 (1.2) 5.2 (1.6) 390 270

Reviews and Q&A

  • What is the duty cycle on the motor on 24 v winch Is it available without wireless remote Is rope 6.5 mm or 8 mm

    Unlike with hoists, there is no published duty cycle for winches.  This is due to the multitude of factors that can effect the performance of the motor.

    The cable on the 13500 winch is 10mm x 20m
