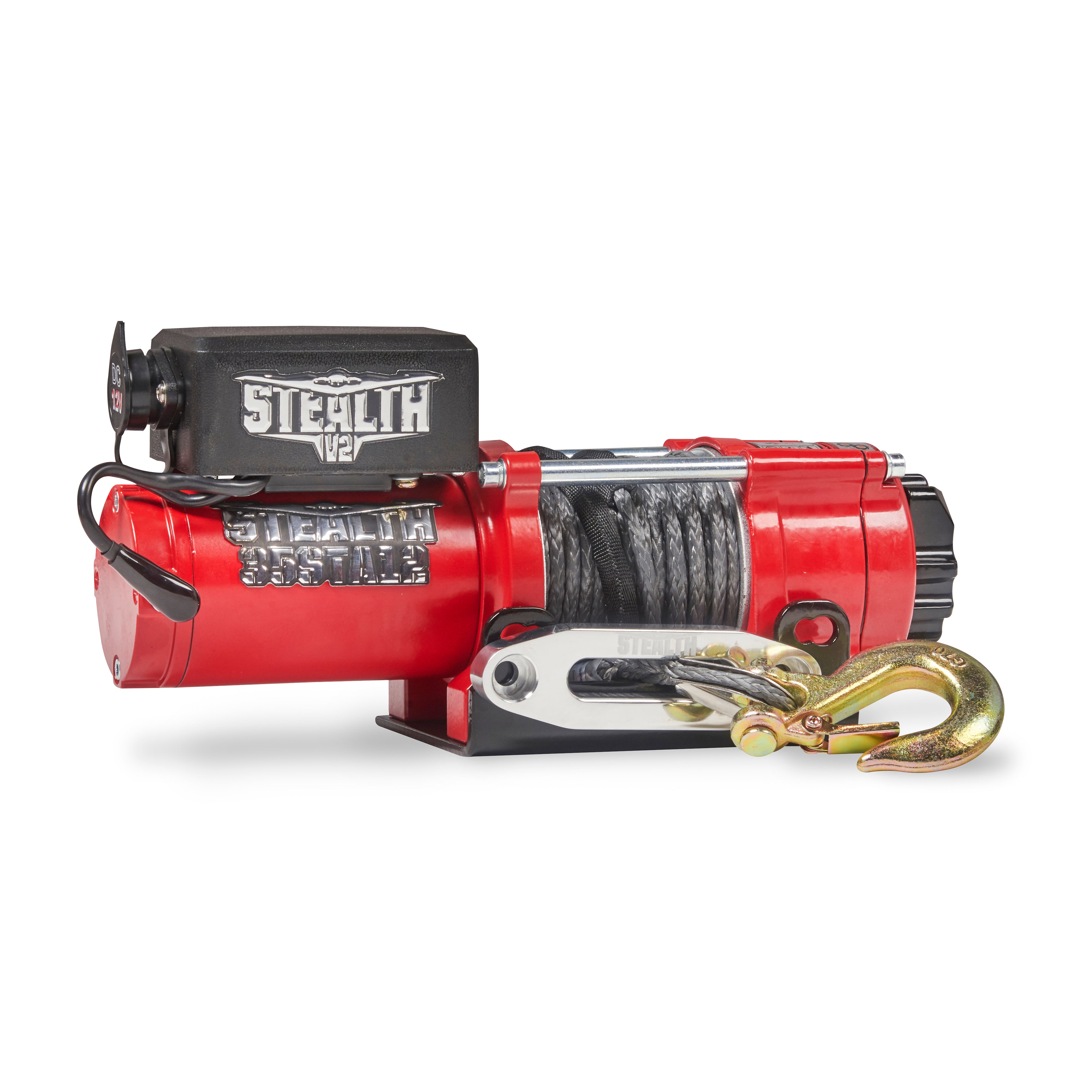

Stealth 3500lb Winch

3 Questions Answered
SKU: 35STA12

12v Synthetic Rope
Rope: 14m Synthetic Rope
Sale price£114.95
In stock (Delivery in 1-2 working days)

Recommended Accessories

Features

  • SUPER STRONG –Pulling power of 3500lb or over 1500kg!
  • HARDWEARING – Built with full steel gearing for durability.
  • SYNTHETIC OR STEEL ROPE – With your choice of a synthetic or steel rope.
  • WIRELESS CONTROLS – Includes two wireless remote controls.
  • HEAVY-DUTY DESIGN – Features a sealed solenoid for long-life.
  • MOUNTING PLATE INCLUDED – Allows a more permanent instalment.

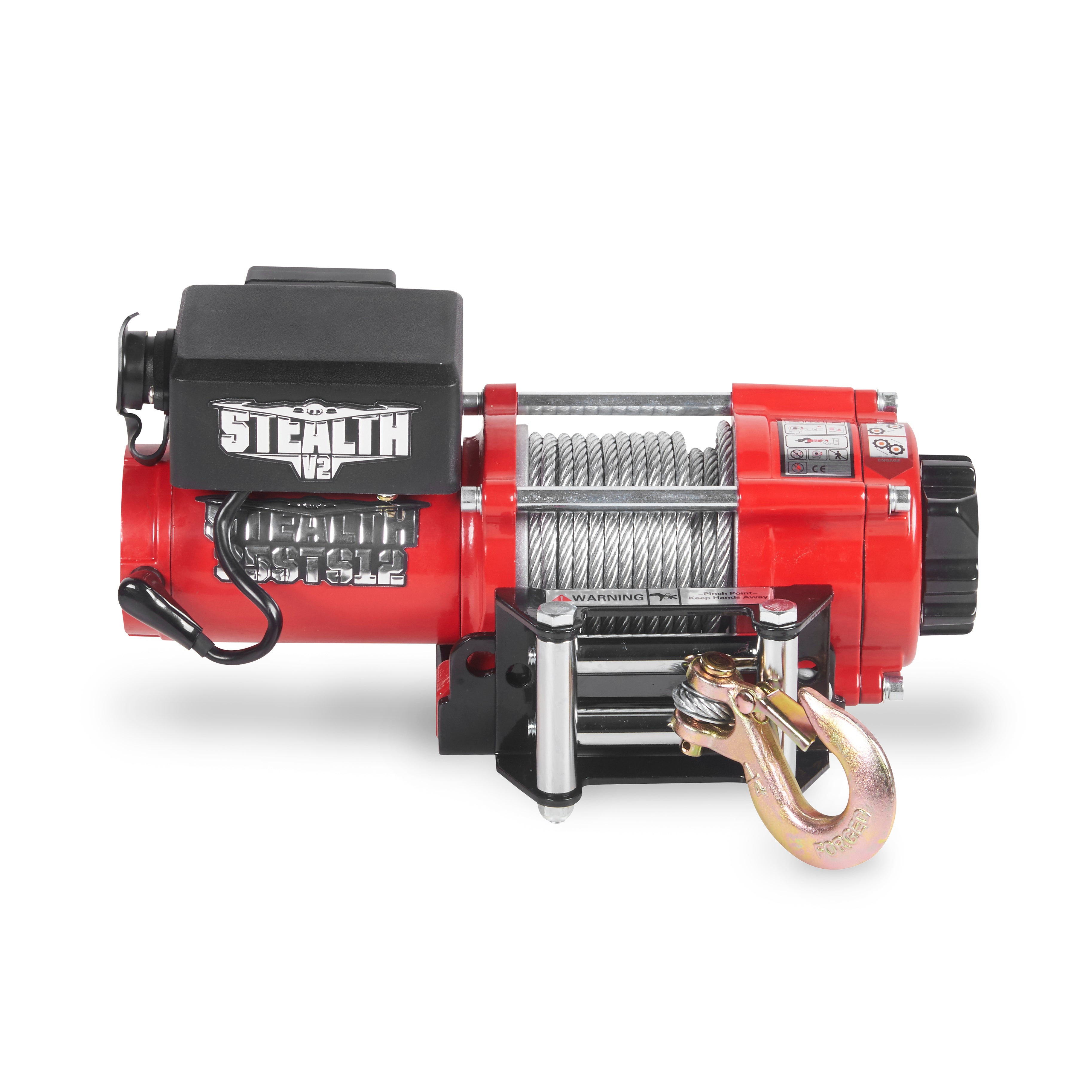

Stealth 3500lb 12v Steel Cable Electric Winch

Since their launch, Stealth winches have been known for being the best budget option for 3.5t recovery and 4x4 use. Now extended far beyond that, the Stealth 3500lb winch gives you all the power in a smaller package, ideas for a broader range of uses such as utility, ATV, boat trailers and beyond.

Designed for long-lasting power, the hard-wearing designed is reinforced with a sealed solenoid, full steel gearing and features a powerful coper wound motor. Including two wireless remotes, the heavy-duty design is matched by smart additions to get the job done easily.

With a line capacity of 3500lb or 1588kg, the line pull of 1.4m per minute at full load will have the work done in no time.

Standard Features:

Line Capacity: 3,500lb (1,588kg)

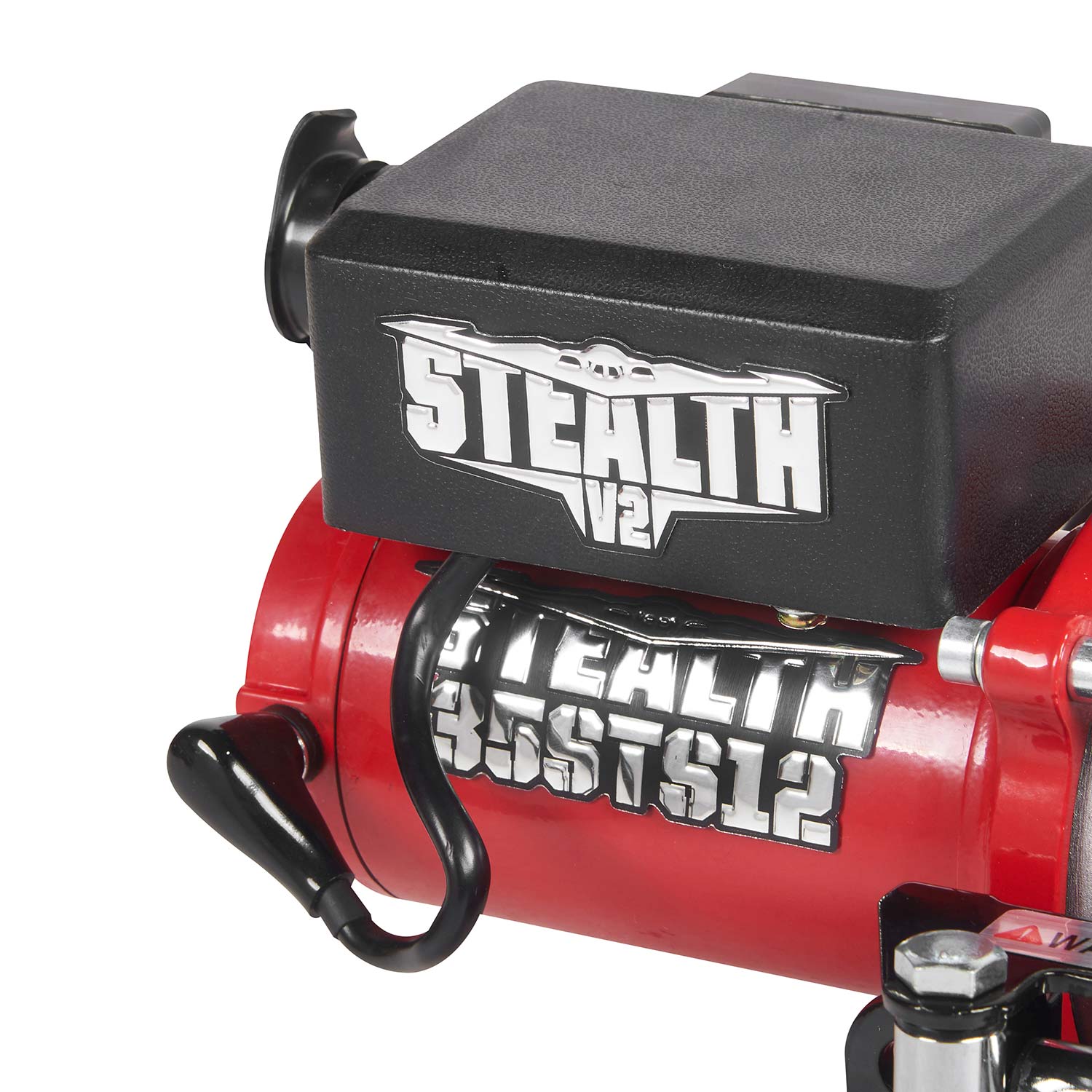

Motor: Reversible 1.3hp 12v Permanent Magnet Motor - Powers In and Out

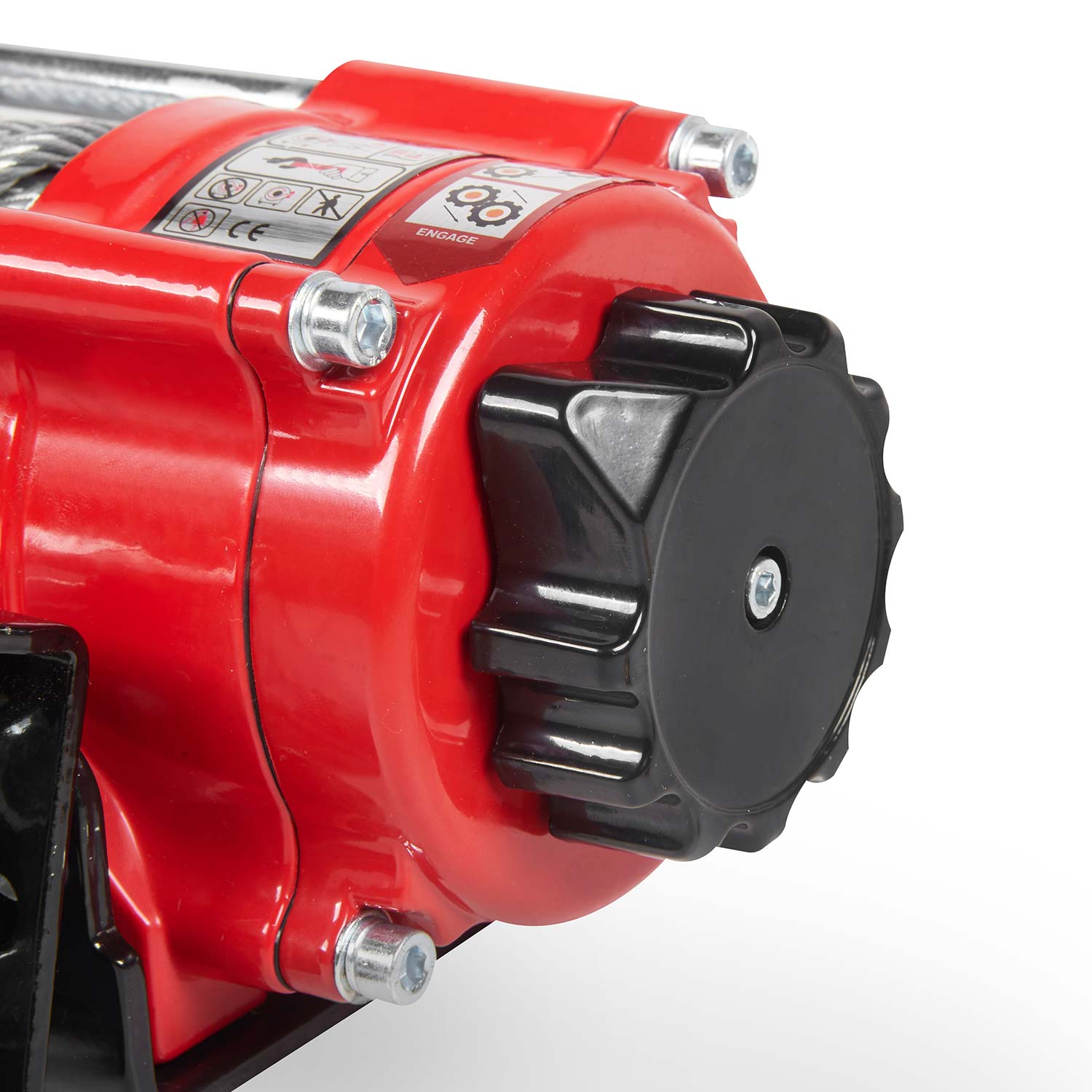

Gearbox: Freespooling Clutch - Allows cable to be unwound manually
Warranty: 12 Month Return to Base

Accessories:

Wired Hand Control: Includes Wired Hand Control
Wireless Control: Included - with TWO Handsets
Mounting Plate: Included for flat mount applications
Mounting Bolts: Included for Standard installations
♦ Heavy Duty Battery Cables (May need extending dependant on application)
♦ Instruction Manual

Other Information:

Dimensions: 348mm L x 116mm D x 165mm H

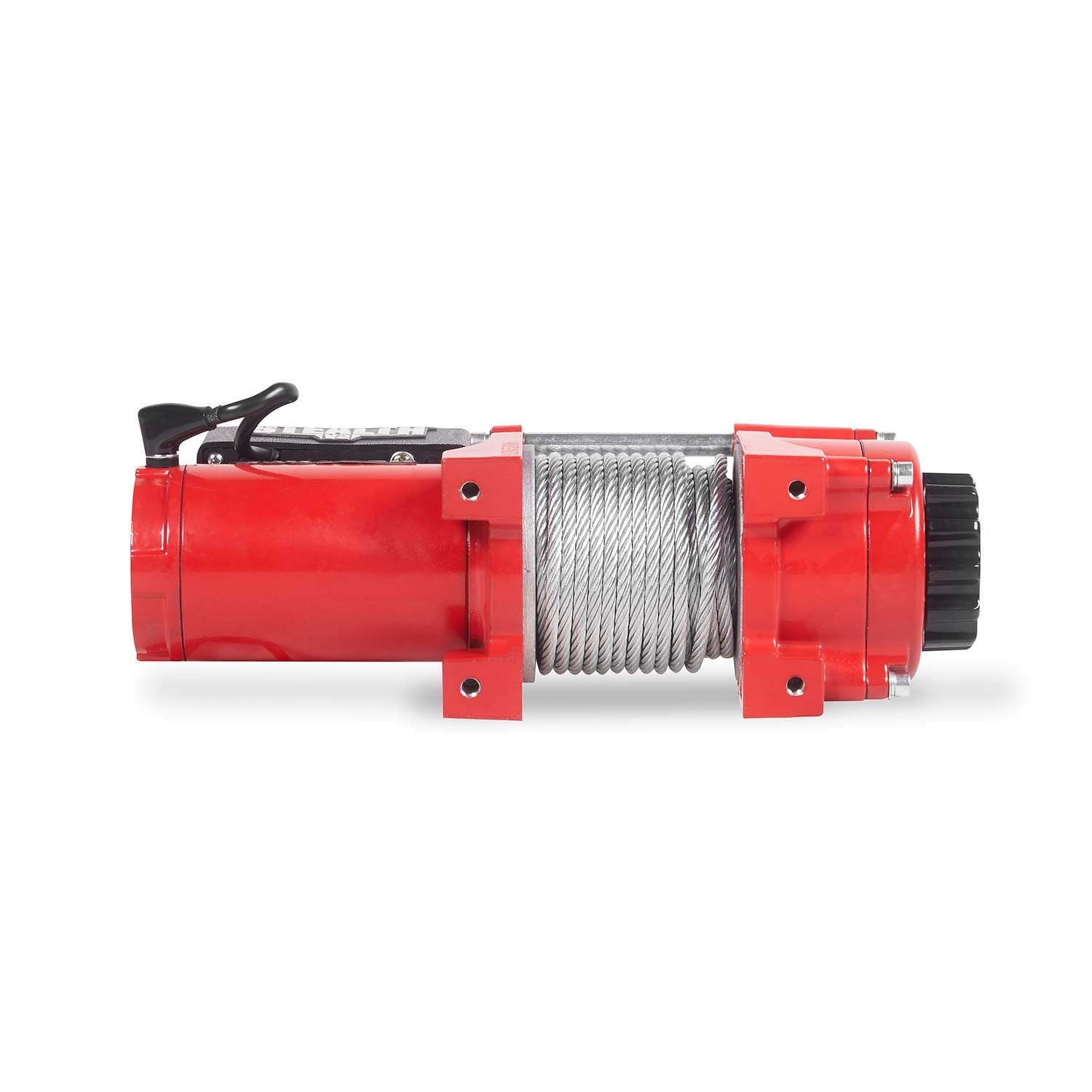

Mounting Bolt Pattern: 79.5mm (2 central bolts front to back)
Approx. Shipping Weight: 10kg
Line Pull - No Load: 3.1 m/min (20 Amps)
Line Pull - Full Load: 1.4 m/min (200 Amps)


Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull 3500 lbs (1588 kg)
Motor 12v : 1.3hp

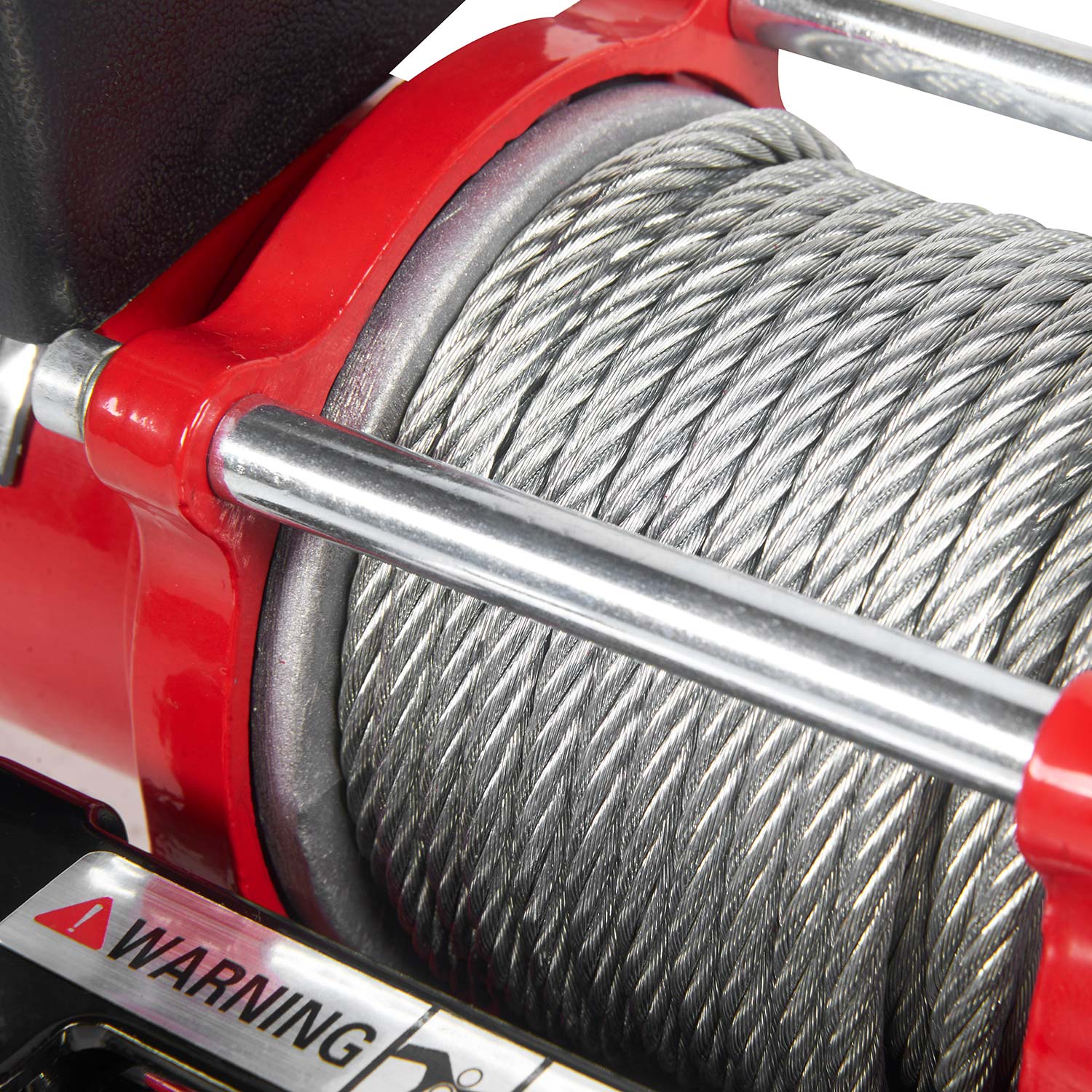

Cable - Dia x L Steel: 5.4mm x 12.8m
Synthetic: 5mm x 14m
Dimensions 348 x 116 x 165mm
Mounting Pattern 79.5mm (2 central bolts front to back)
Weight kg Steel: 10 kg
Synthetic: 9.5 kg



Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 10.2 (3.1) 20
3500 (1588) 4.6 (1.4) 200

Reviews and Q&A

  • how long is the steel rope on this 3500 please

    Hello,

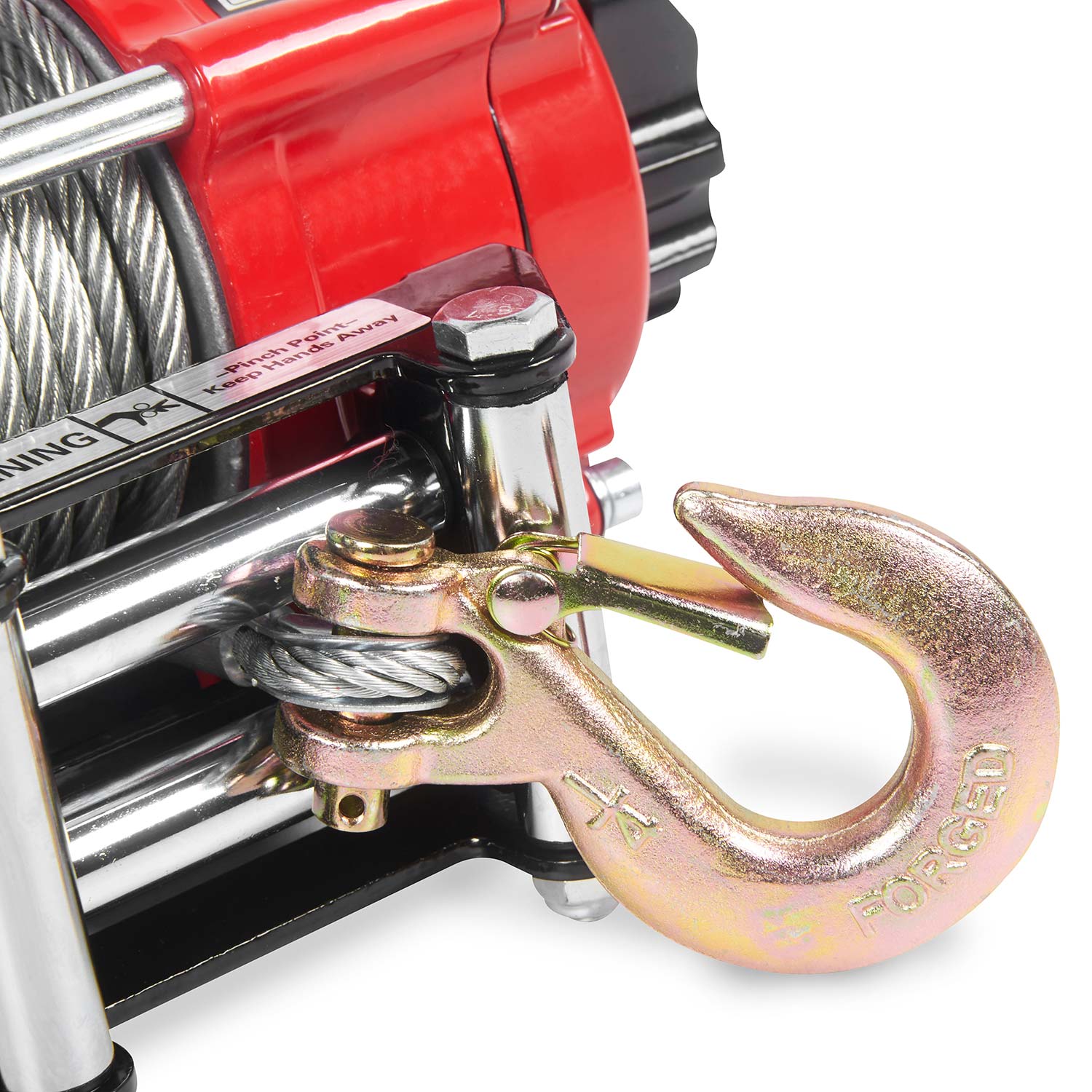

    ♦ Rope: 12.8m of 5.4mm Steel Cable with Clevis Hook and Handsaver Strap

  • Can you advise if the winch can be secured without bolting it to a fixed point. My intention is to fix it via ratchet straps to secured D-rings inside the van. Thanks

    The stealth would require permanent mounting.

    The trojan on our site would be a more suitable option

  • Hi could you tell me what the length of the power cable is as I may need to extend them also could you let me know what cable diameter and amp rating I would need to buy to extend many thanks

    The power cable is approx 1.6m long and is 16mm2.

    If extending up to 4 or 5 metres you would be ok using 16mm cable, above that we would suggest moving up to 35mm2 to avoid issues with amp draw.
