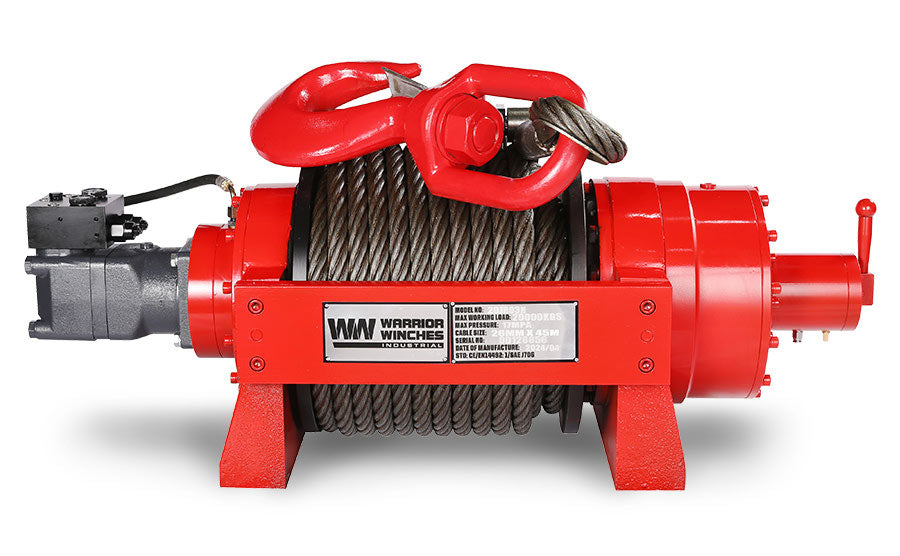

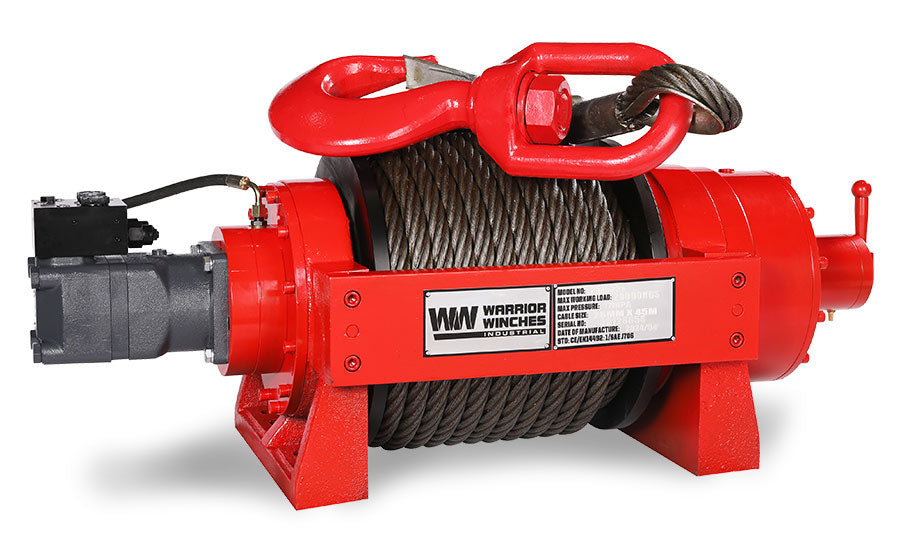

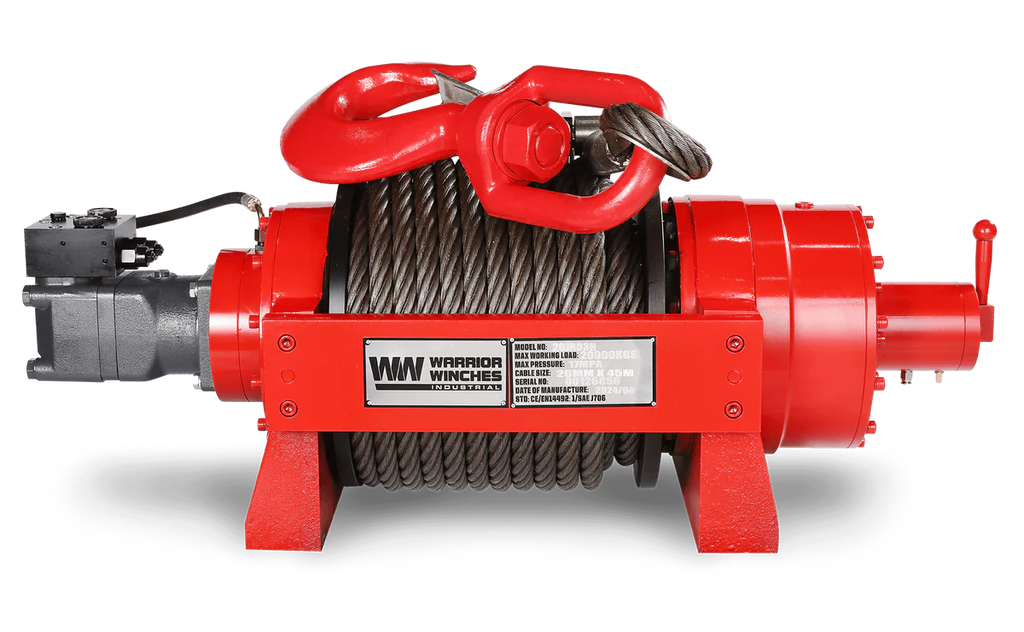

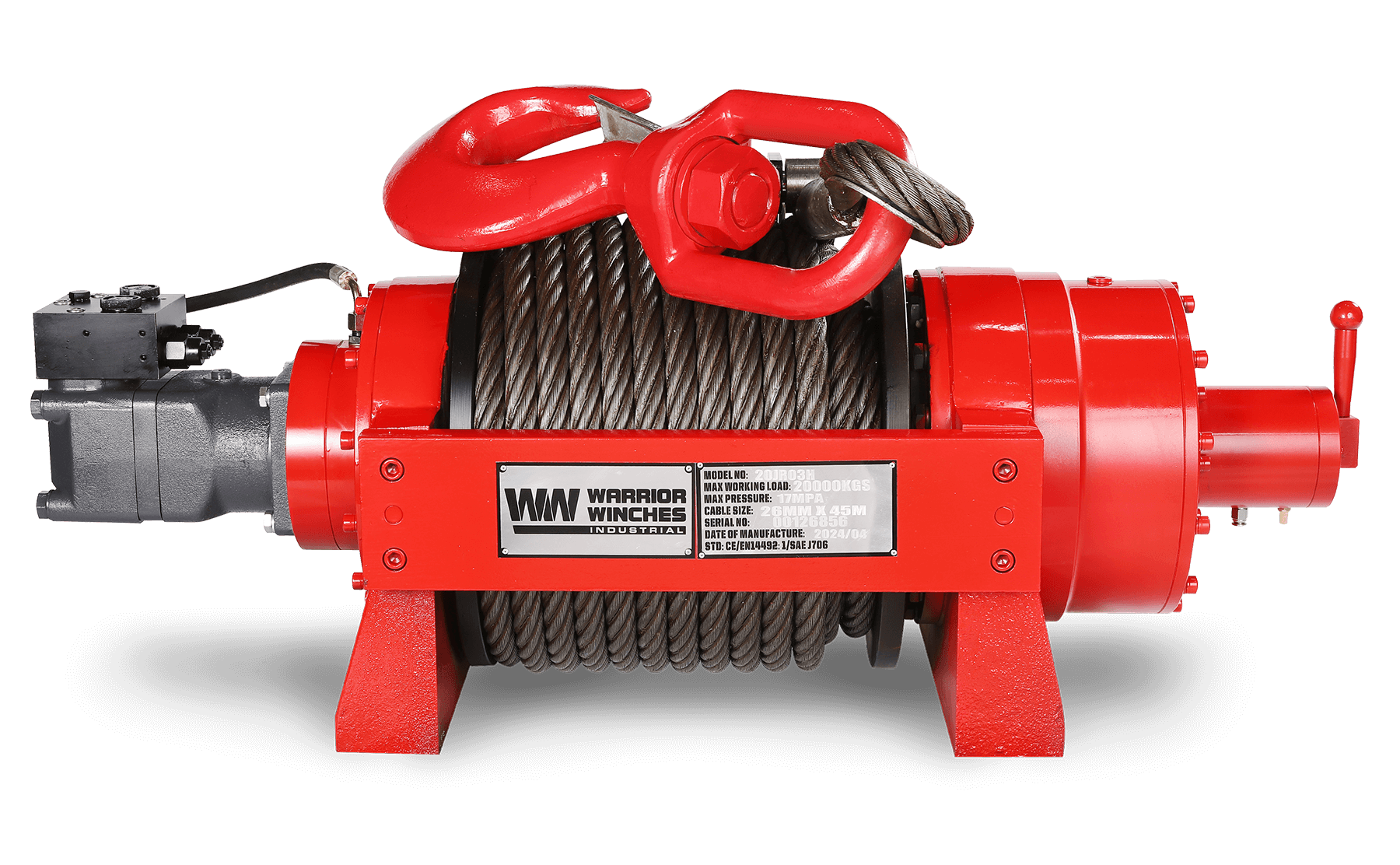

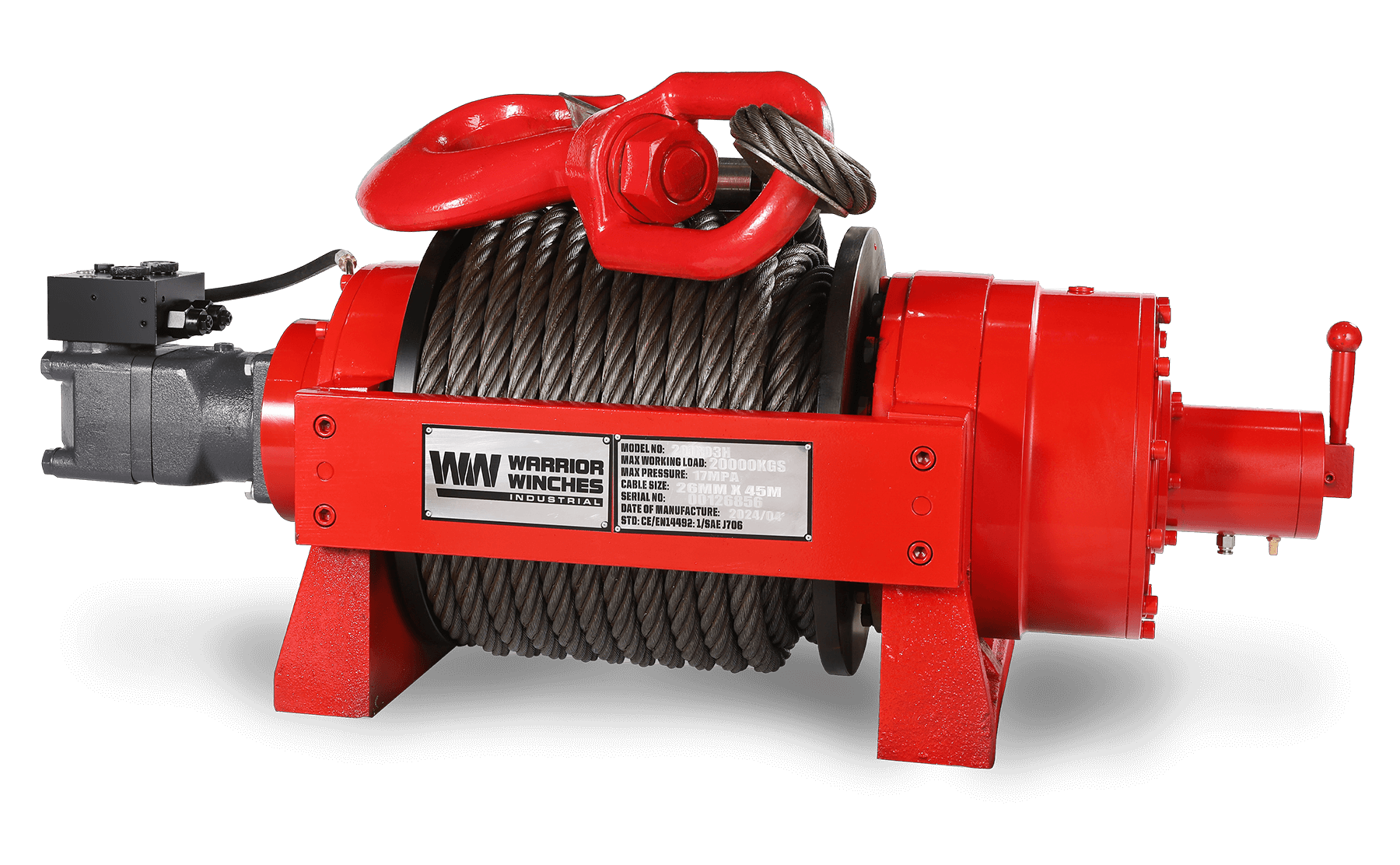

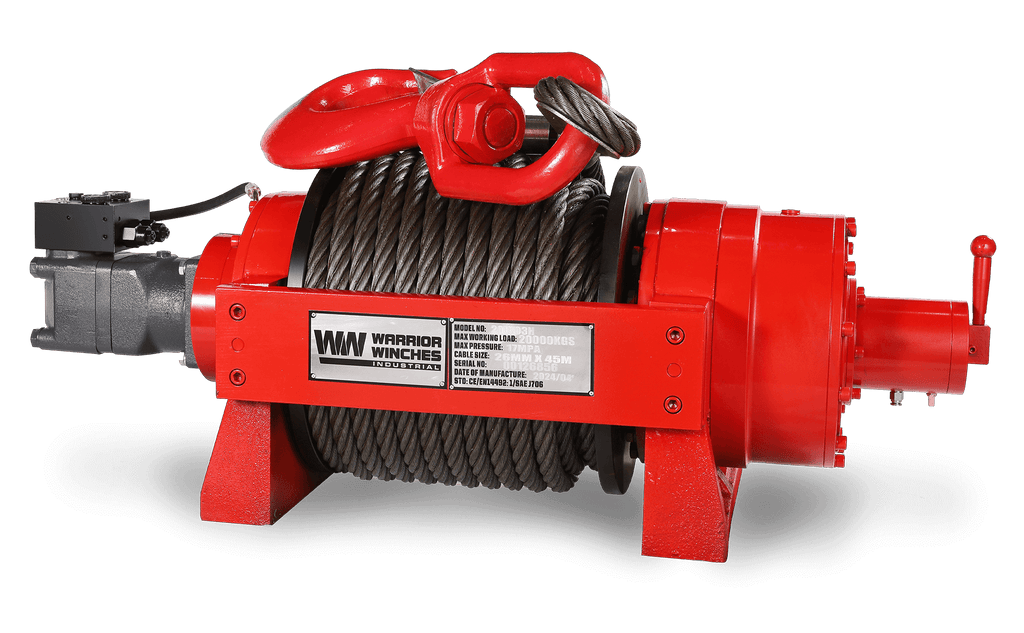

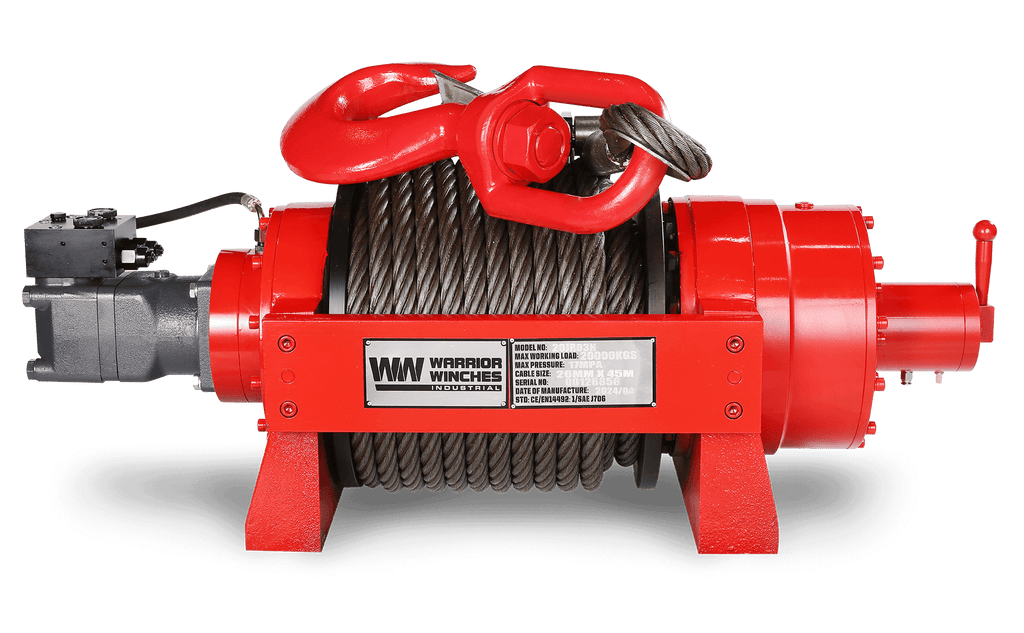

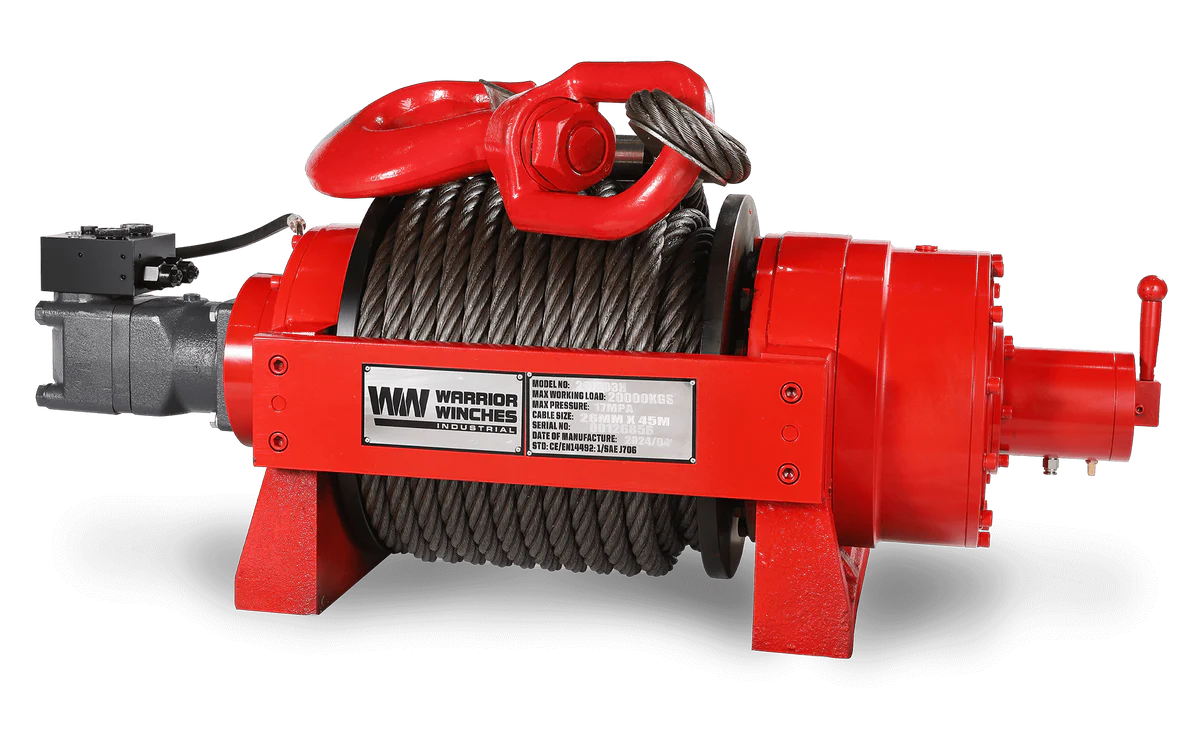

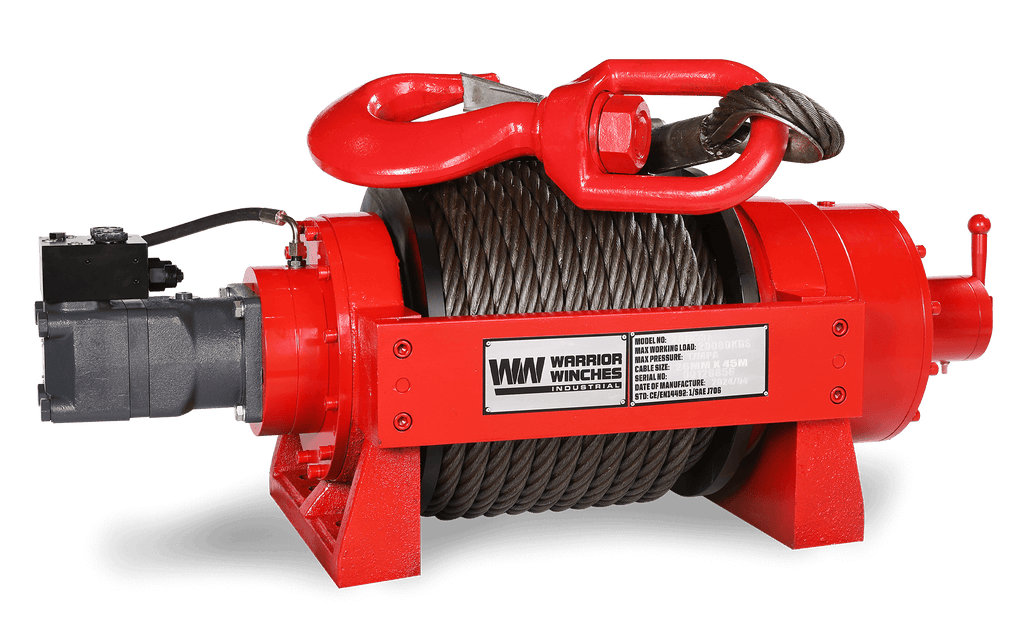

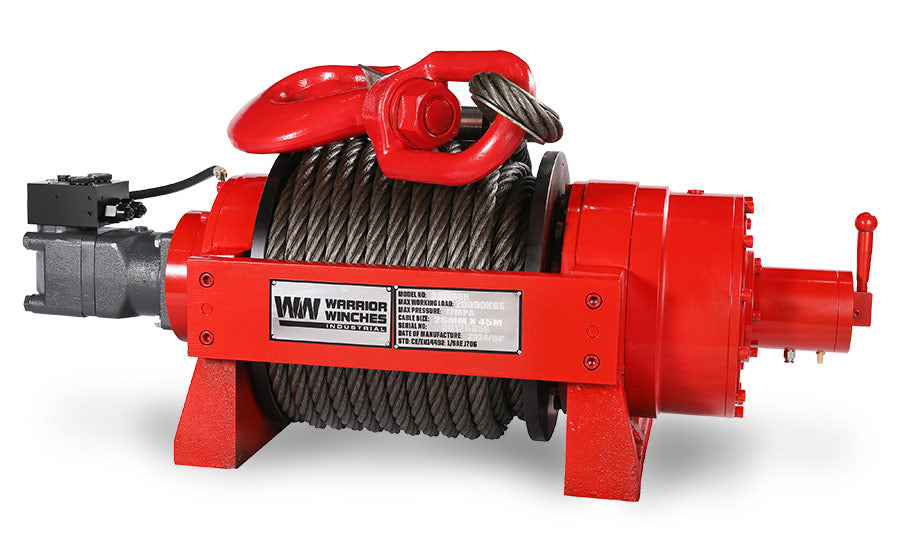

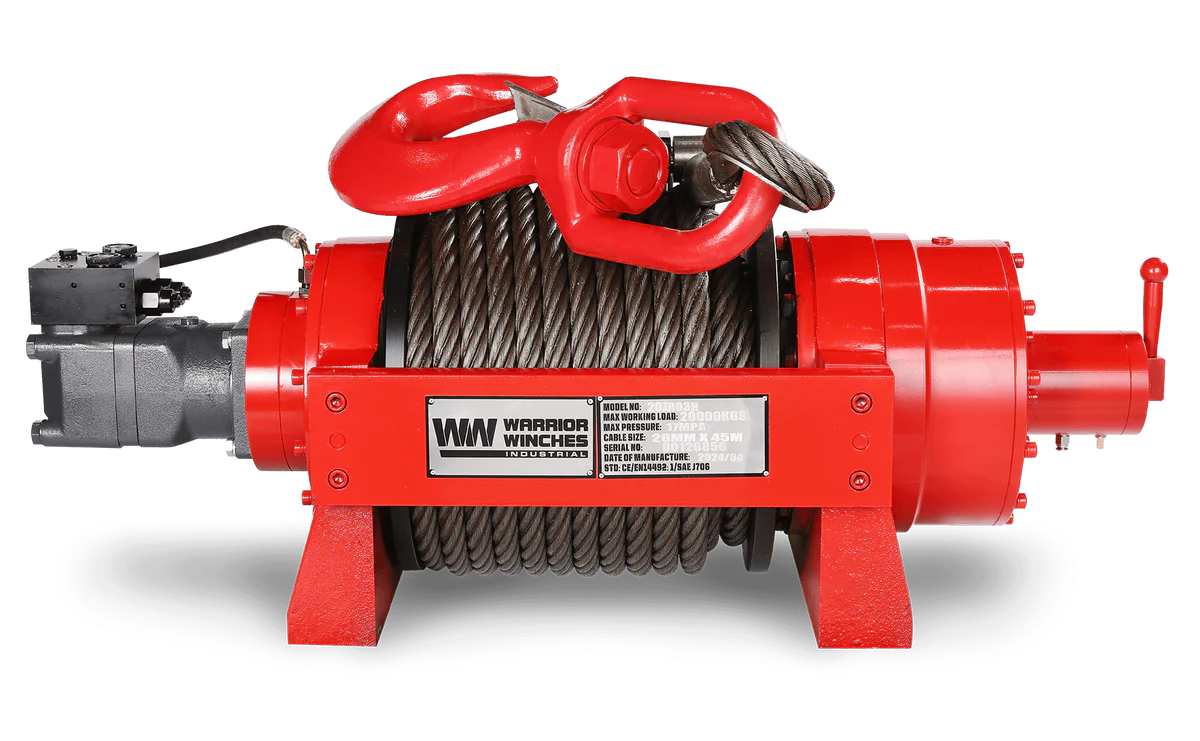

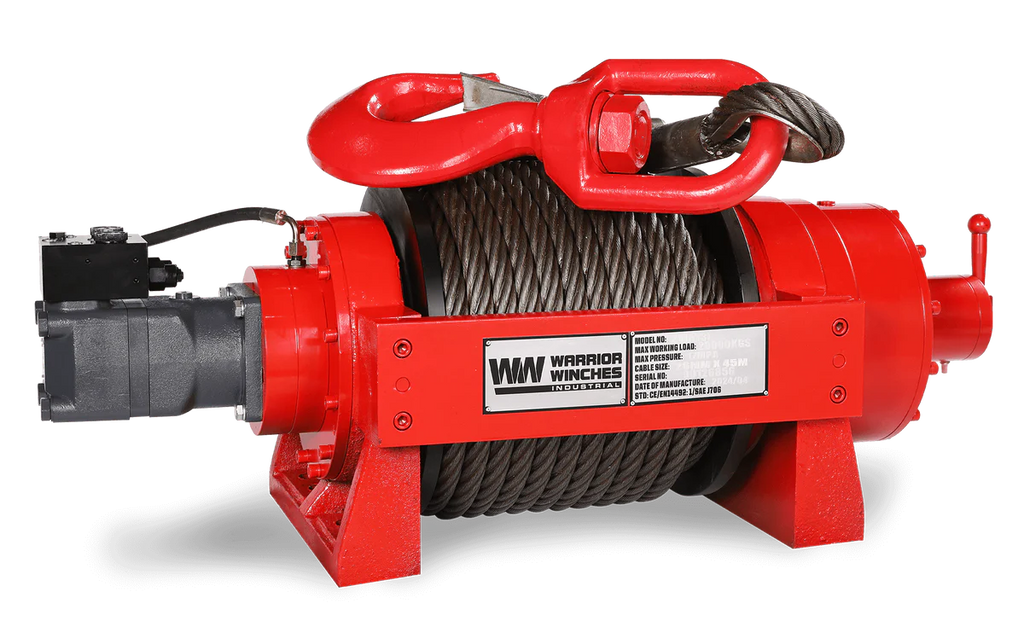

JR20 44,000lb (20 Ton) Industrial Hydraulic Winch

 0 Reviews |    Ask a Question
SKU: 20JR03H

Price:
Sale price£14,599.99
In stock (Delivery in 1-2 working days)

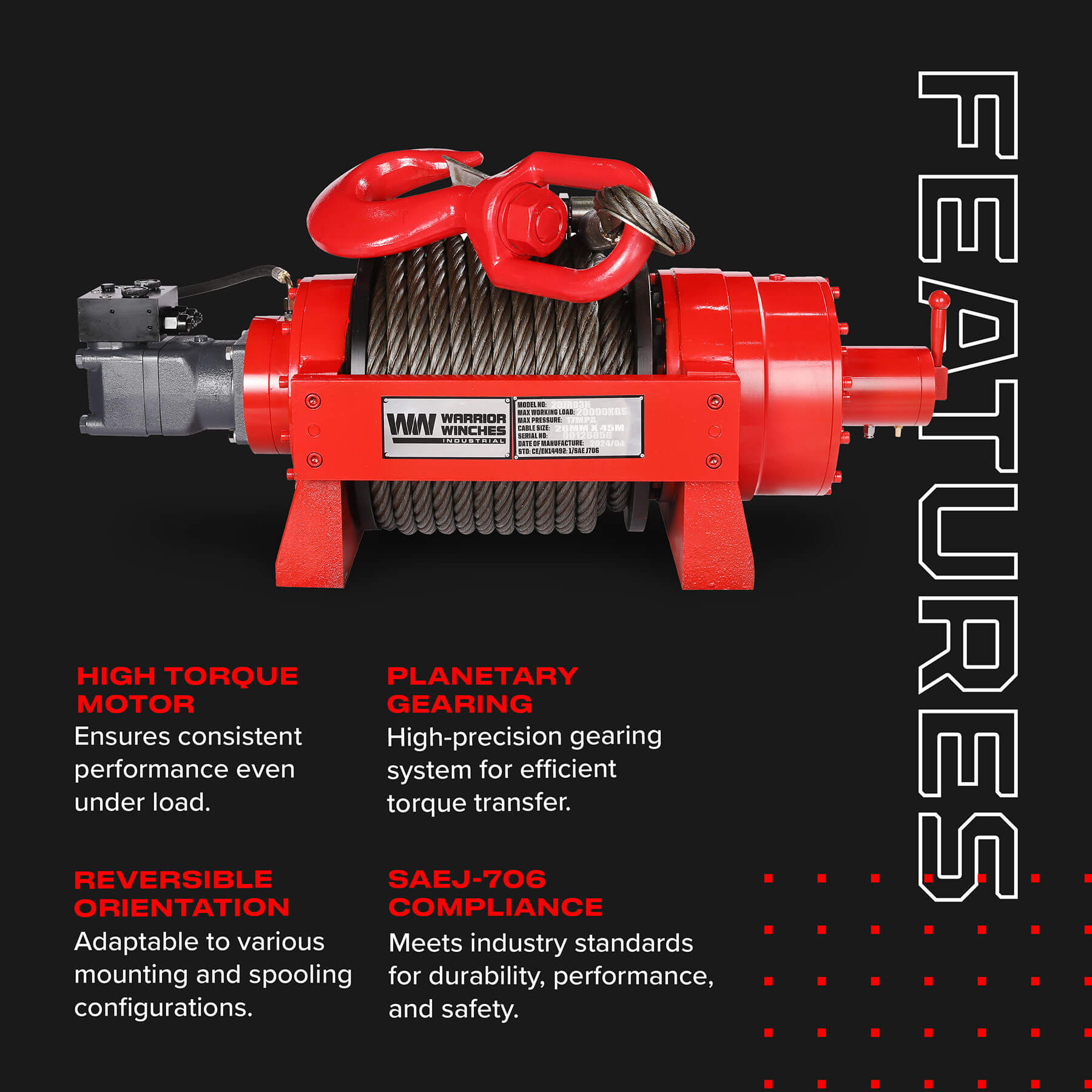

Features

  • Full Float Heavy Duty Planetary Gearing
  • Multi Disc Friction Brake
  • High Torque Industrial Motor
  • Air and Manual Clutch Operation (included)
  • Balance Valve as Standard
  • SAEJ-706 Standard Compliant
  • Reversable Orientation - These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Durable and space-efficient, the JR series stands as a robust line of hydraulic winches meticulously engineered and proven for the most demanding tasks. These winches range in capacity from 13 tonnes to 30 tonnes, and they are carefully crafted to adhere to the SAEJ-706 Standard.

Combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009.

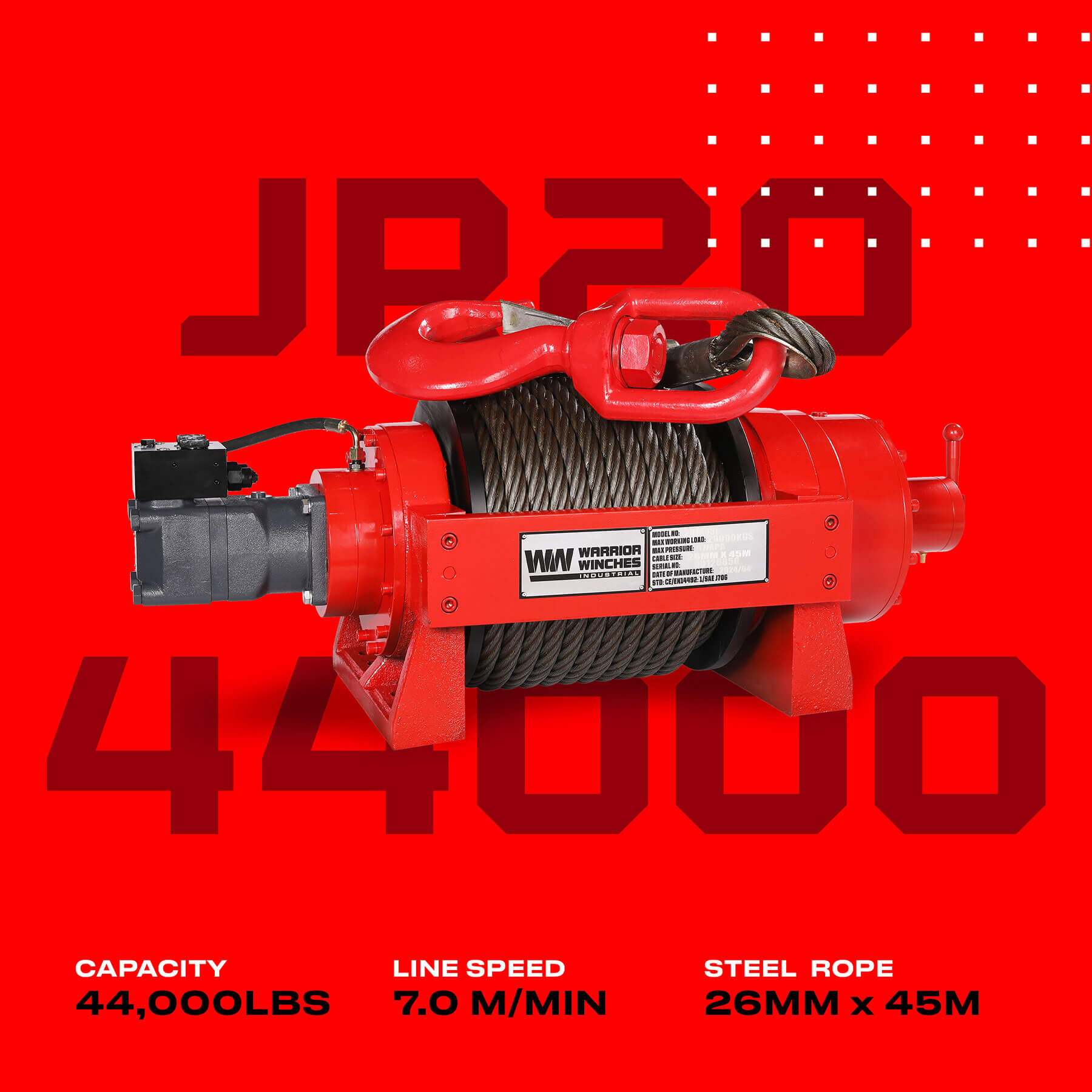

Rated Line Pull 44000 lbs
Gearing 36:1
Clutch Air Clutch
Braking Action Wet-type Hydraulic
Drum Size (Dia x L) Ø8.27 “ × 13.39 “ (Ø210mm×340 mm)
Cable Material Steel
Cable – Dia x L Ø1.02 “×147FT(Ø26mm×45m)
Mounting Pattern 20.94” × 6.3 × 11.02”
532mm ×160 × 280mm
8- M24

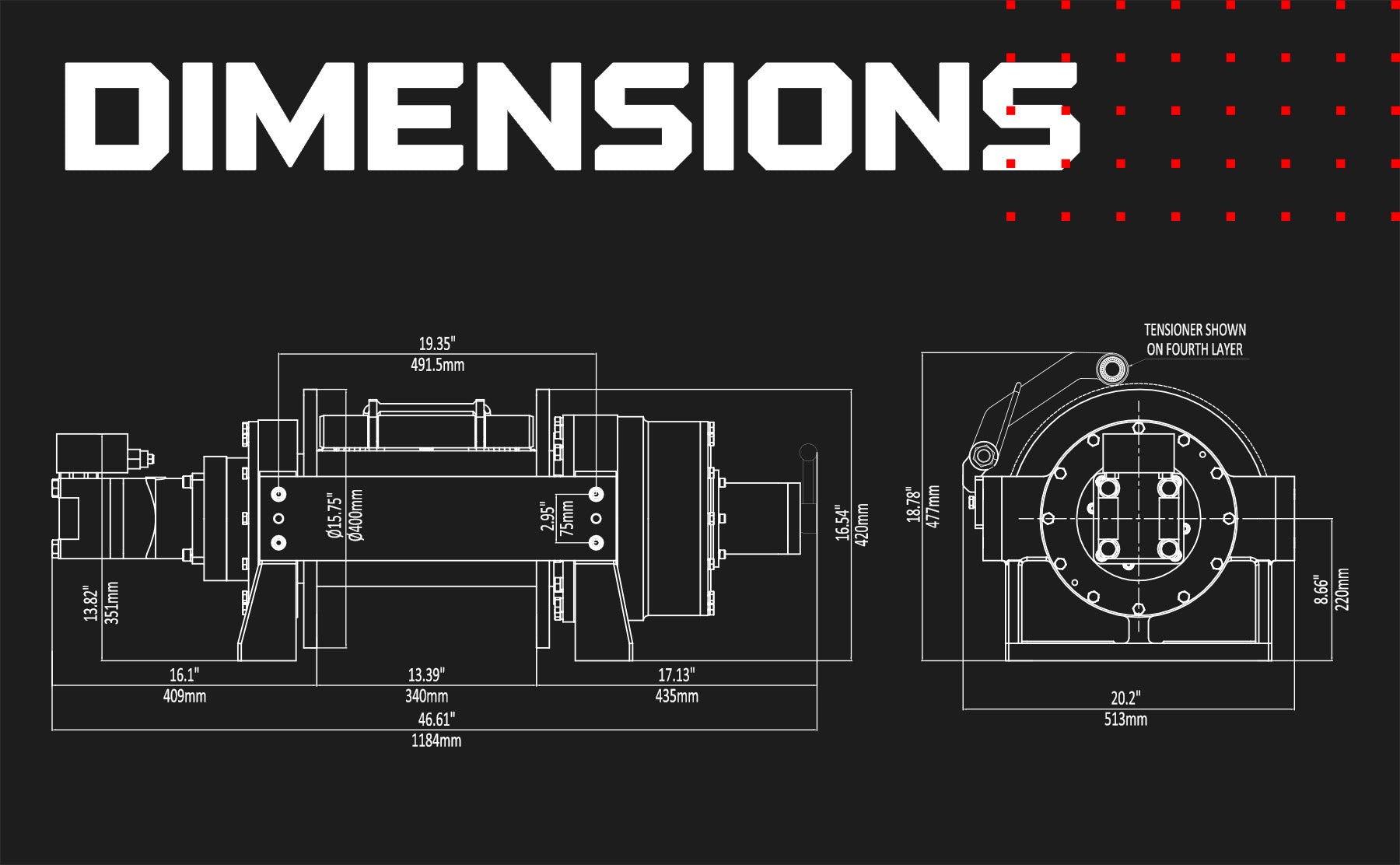

Dimensions 46.61” × 20.2” × 16.54”
1184mm × 513mm × 420mm
Weight 1135 lbs (515 kg)
Max Flow 31.7 G/min (120 L/min)
Max Pressure 3500 psi (241 Bar)
Certification SAEJ-706



Line pull lbs (kgs) Pressure Mpa(Psi)
0 7.5 (1087.8)
22000(10000) 10 (1045.4)
33000(15000) 15 (2175.6)
44000(20000) 20 (2900.8)
Flow G/min (L/min) Line speed ft/min(m/min)
5.3 (20) 3.3 (1.0)
13.2 (50) 8.9 (2.7)
22.5 (85) 15.4 (4.7)
31.7 (120) 23.0 (7.0)
Layer of wire rope Rated line pull lbs(kgs) Total rope on drum ft (m)
1 44000 (20000) 28.9 (8.8)
2 36128 (16388) 64 (19.5)
3 30600 (13882) 105 (32.0)
4 26543 (12040) 147 (45.0)

What's in the box:

  • JR Hydraulic Winch
  • Steel Rope and Heavy Duty Hook
  • Manual/Air Clutch

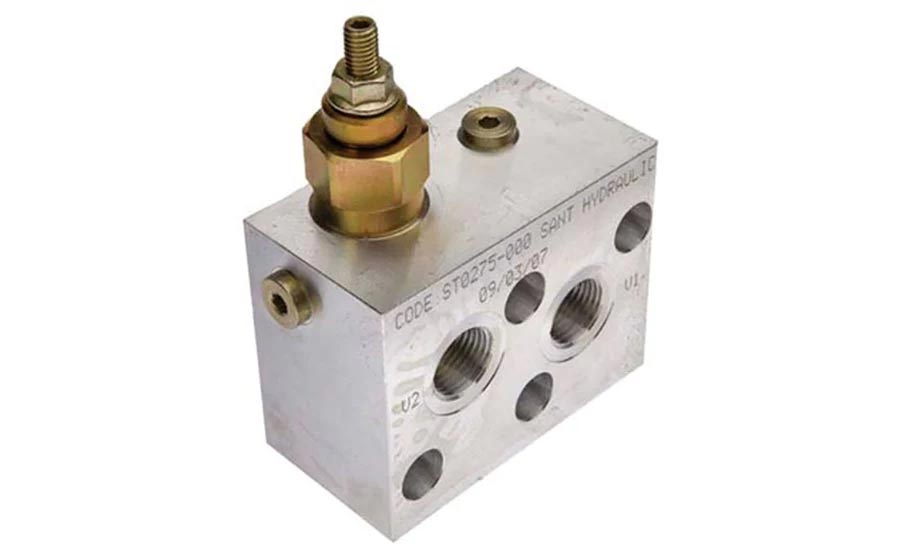

  • Balance Valve

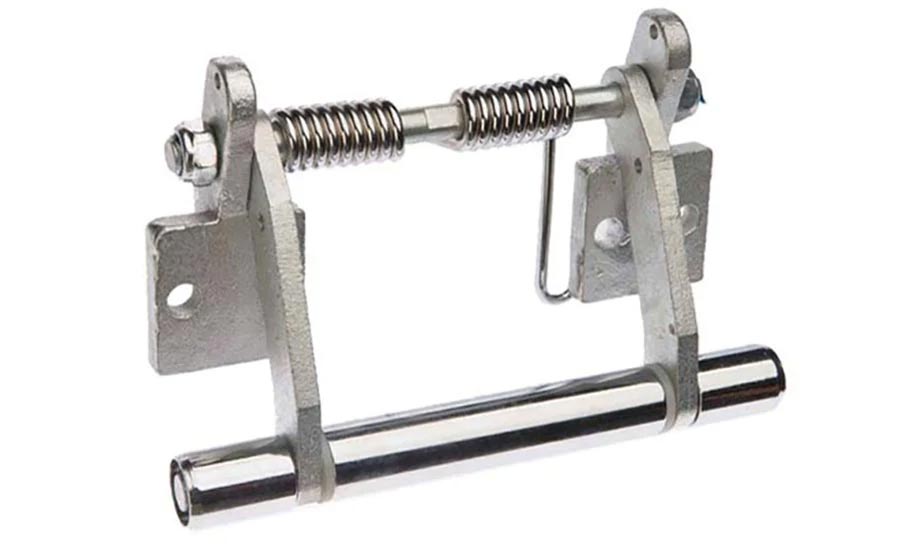

  • Tensioner
  • Operating Manual
User Manual Download
Brochure Download
