Rated Line Pull Lbs (Kg) | 12500 lbs (5669kg) |
Motor Type | 12V: Input:5.0kw/6.7hp; Output:2.4kw/3.2hp |
Gearing | 196:1 |
Clutch | Manual |
Braking Action | Patented ratchet |
Drum Size (Dia x L) | Ø2.48 “×8.54 “ (Ø63mm×217 mm) |
Cable Material | Synthetic |
Cable – Dia x L | Synth: Ø0.39”×82 ‘ (Ø10mm×25m) |
Mounting Pattern | 10”x 4.5” (254mmx114.3mm) (4-M10) |

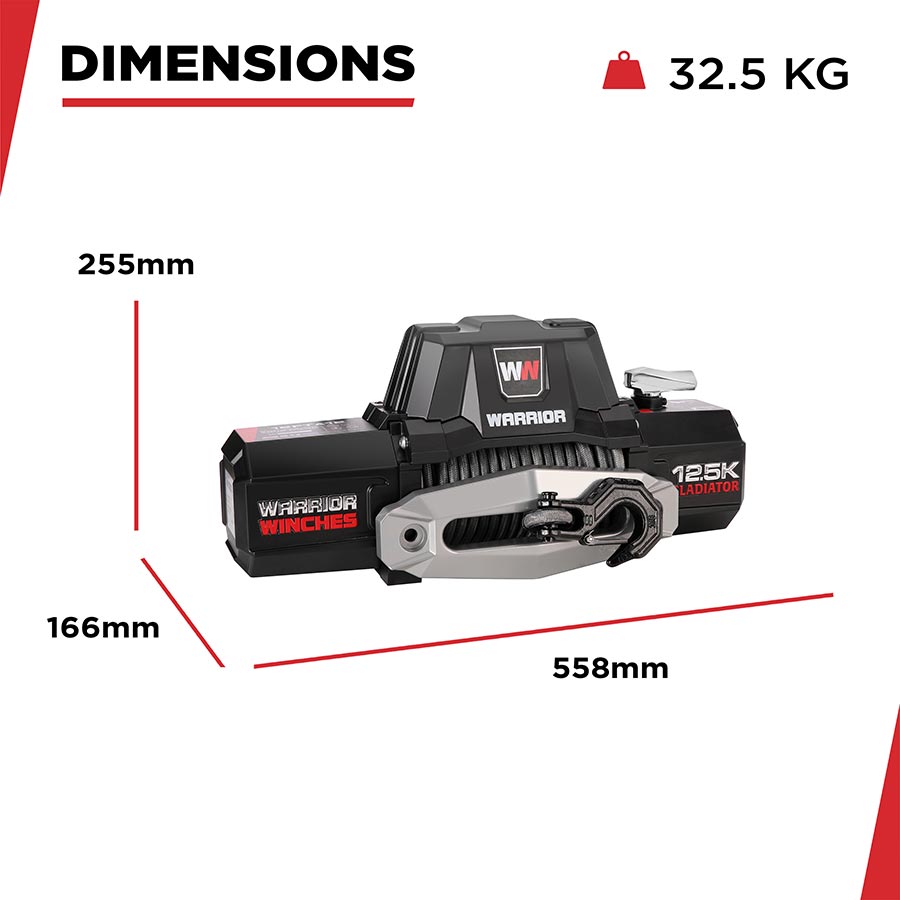

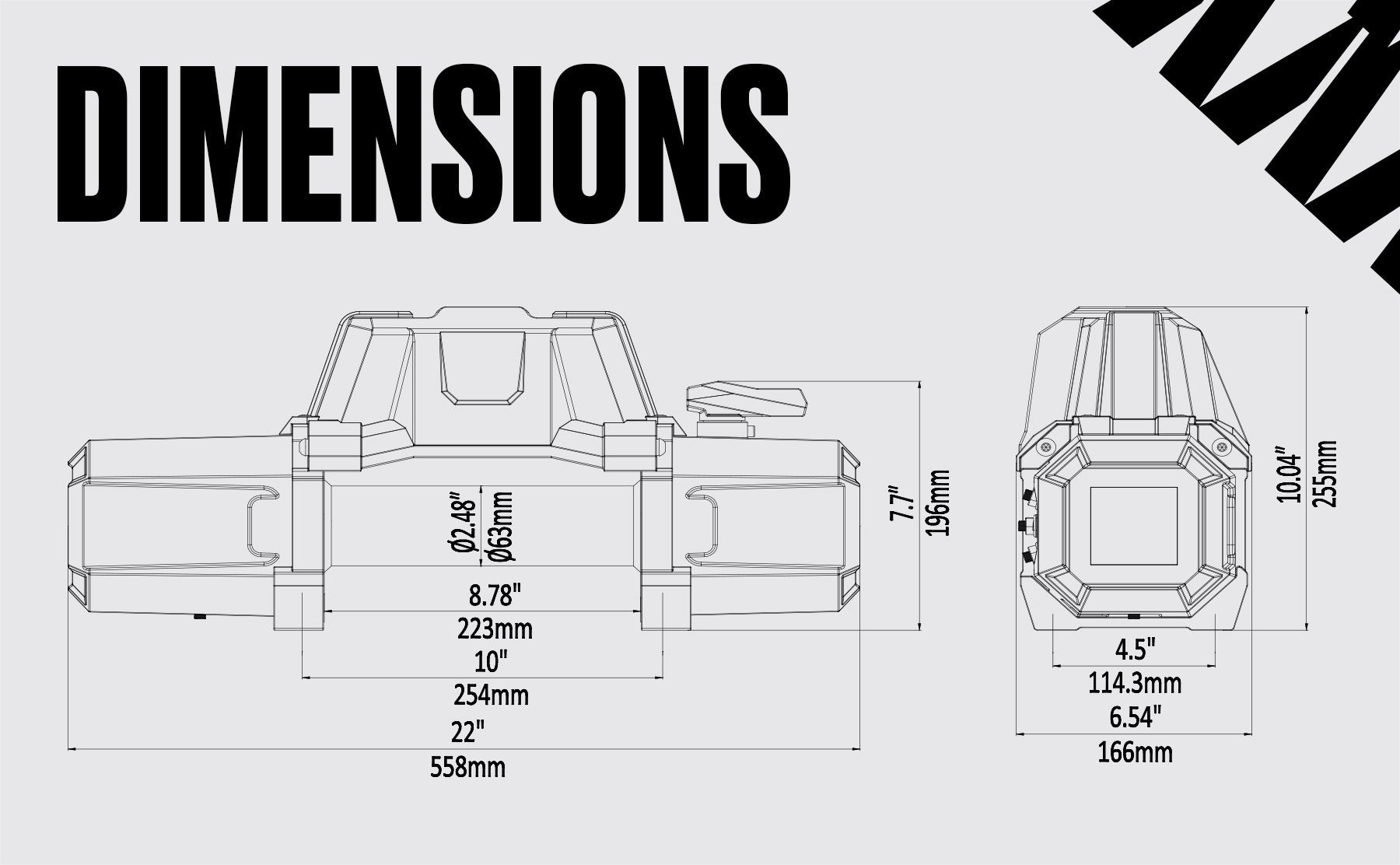

Dimensions | 22”×6.5”×10” (558 mm ×166mm ×255mm) |
Net Weight Lbs (Kg) | Synth: 70.5 Lbs (32Kg) |
Certification | CE |
Layer of Rope/Cable | Line Pull: lbs (kgs) | Rope on drum ft(m) |
---|---|---|
1 | 12500(5670) | 15.1(4.6) |
2 | 9775(4434) | 34.1(10.4) |
3 | 8000(3629) | 57.7(17.6) |
4 | 6800(3084) | 82(25) |

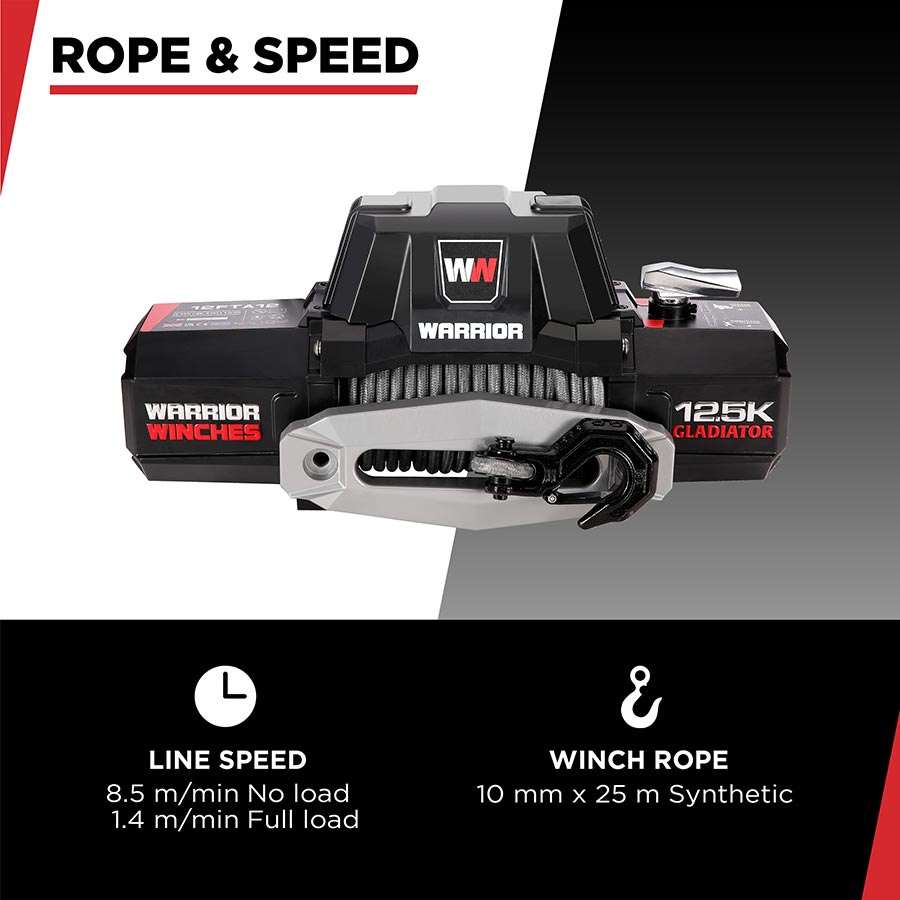

Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Amp Draw 12v |
---|---|---|
0 | 27.9(8.5) | 45 |
6000(2722) | 11.5(3.5) | 200 |
8000(3629) | 8.2(2.5) | 240 |
10000(4536) | 5.9(1.8) | 300 |
12500(5670) | 4.2(1.3) | 380 |

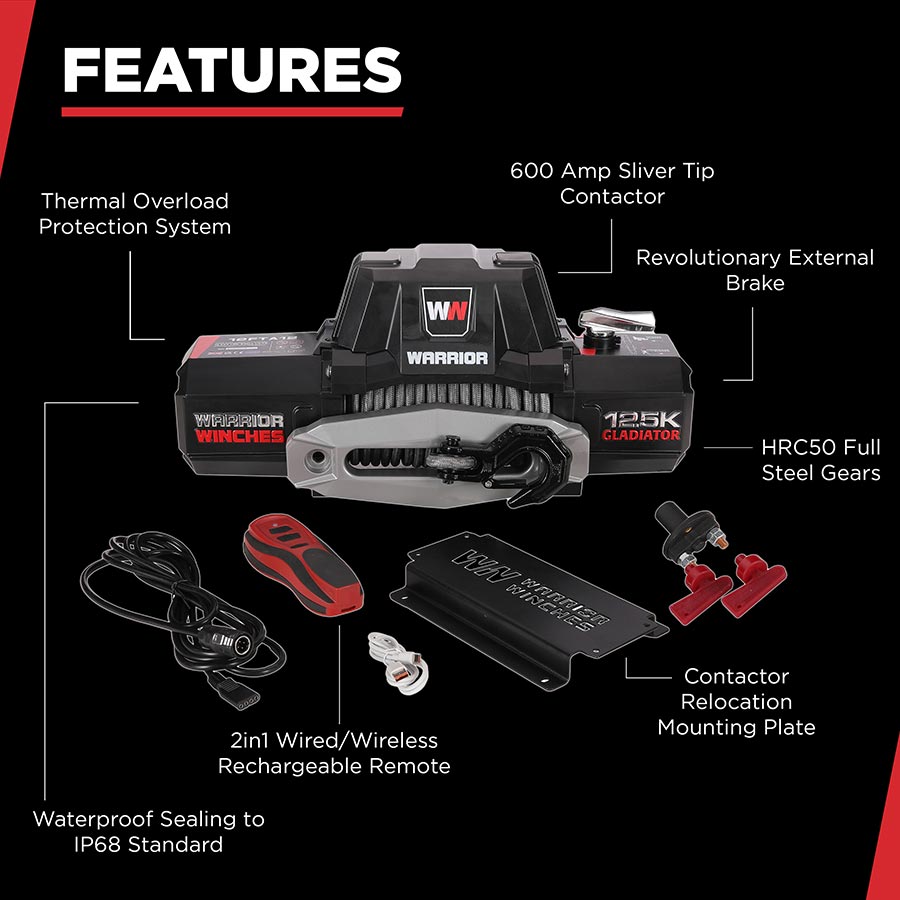

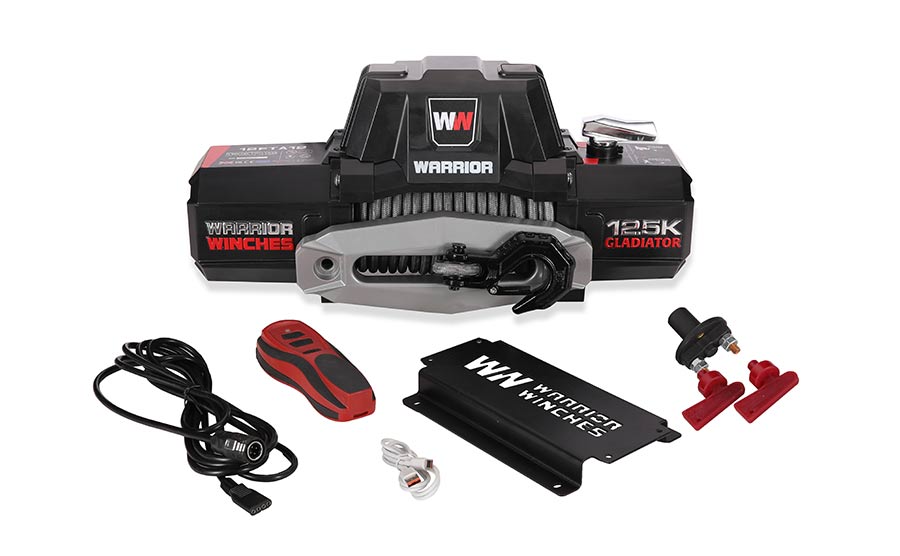

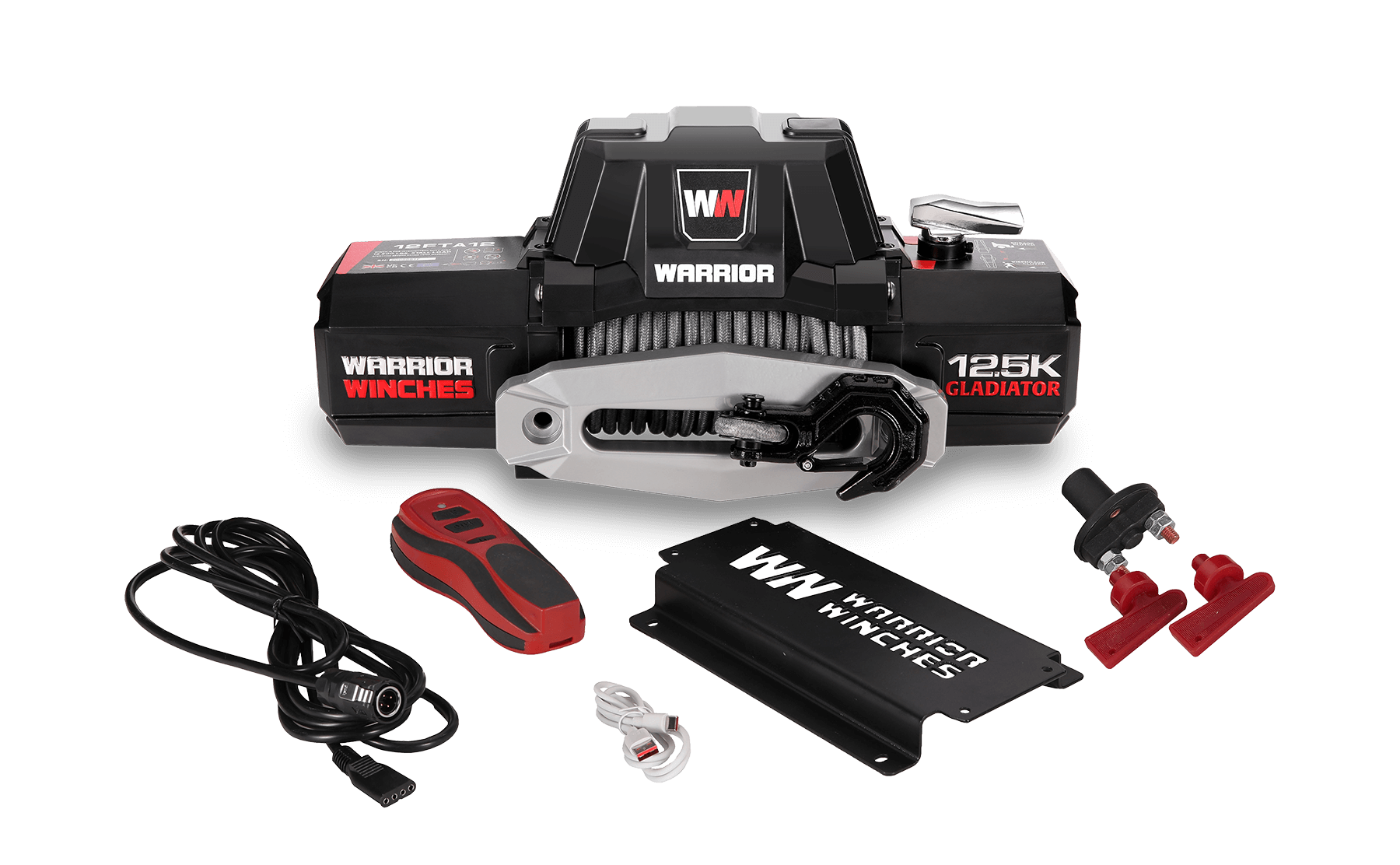

What's in the box:

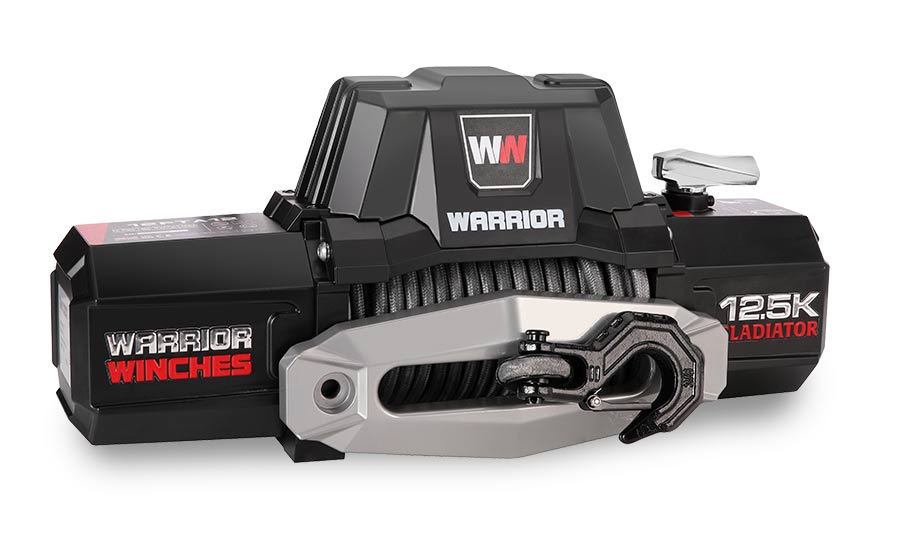

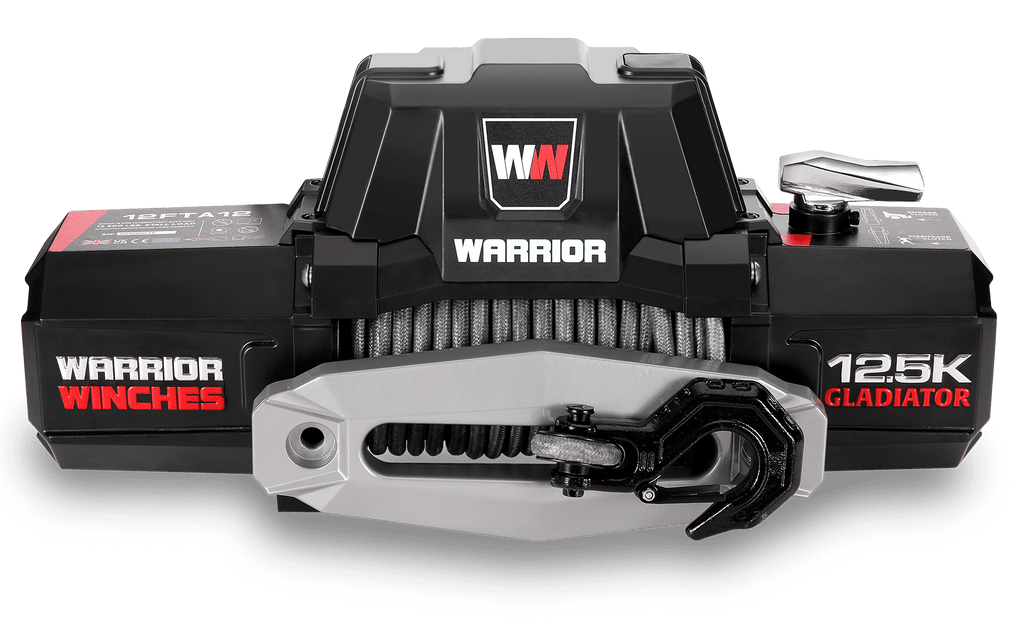

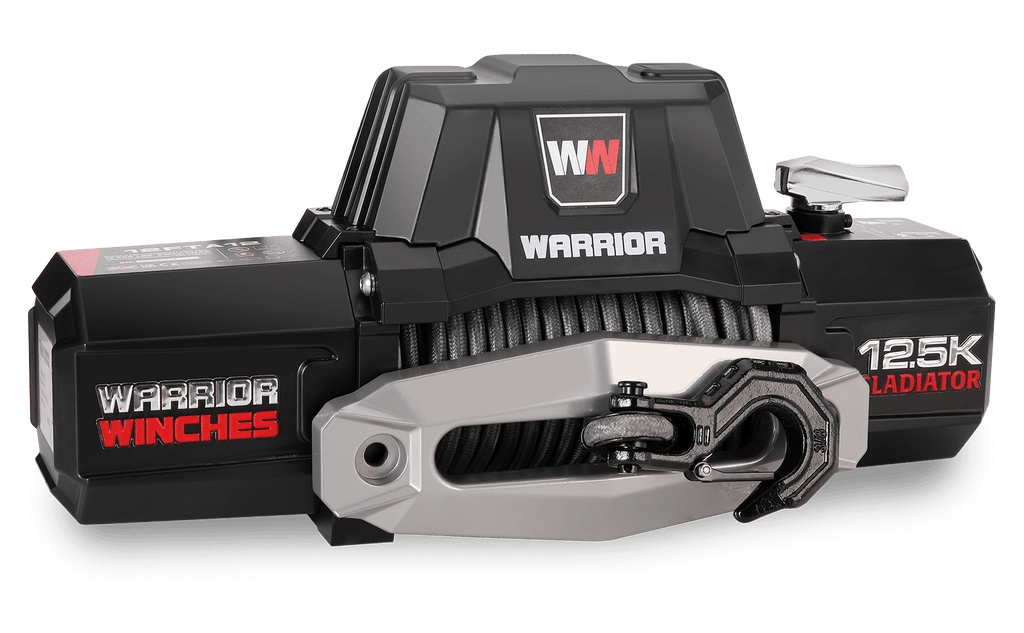

- Gladiator Winch

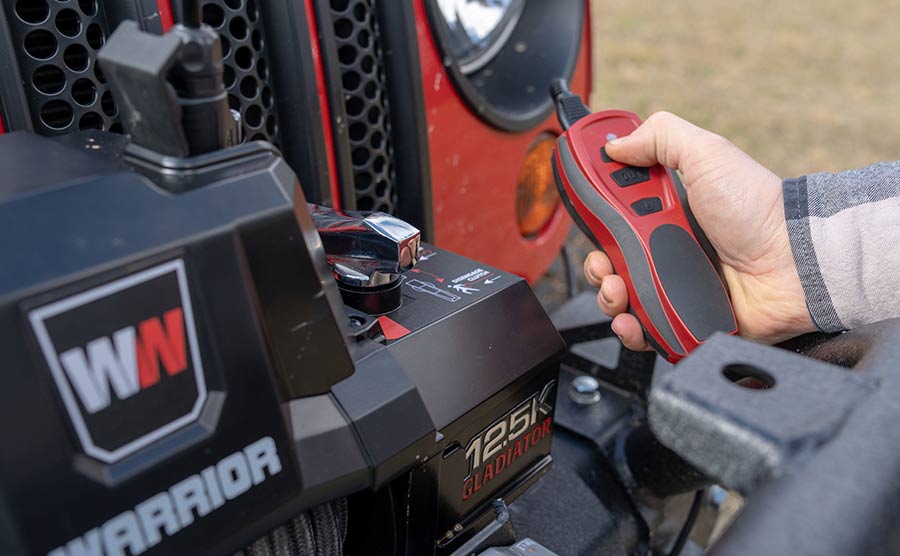

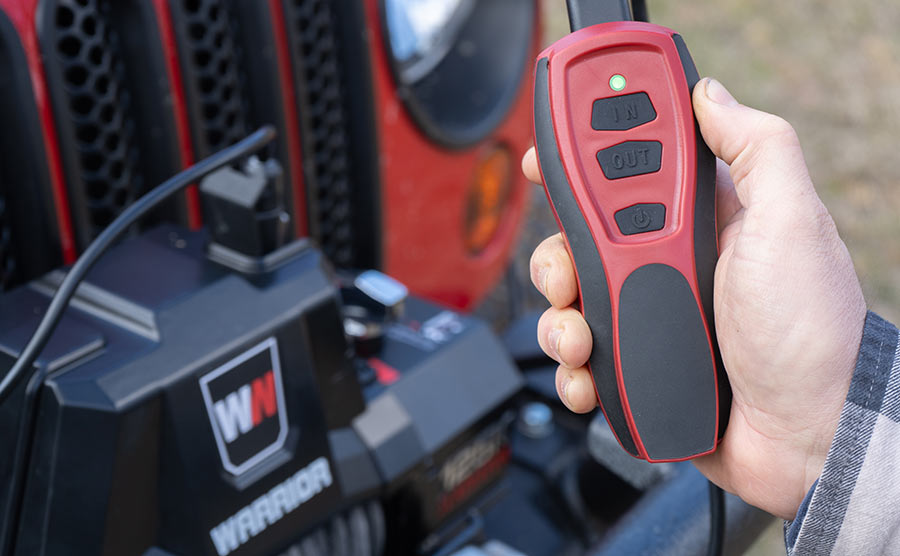

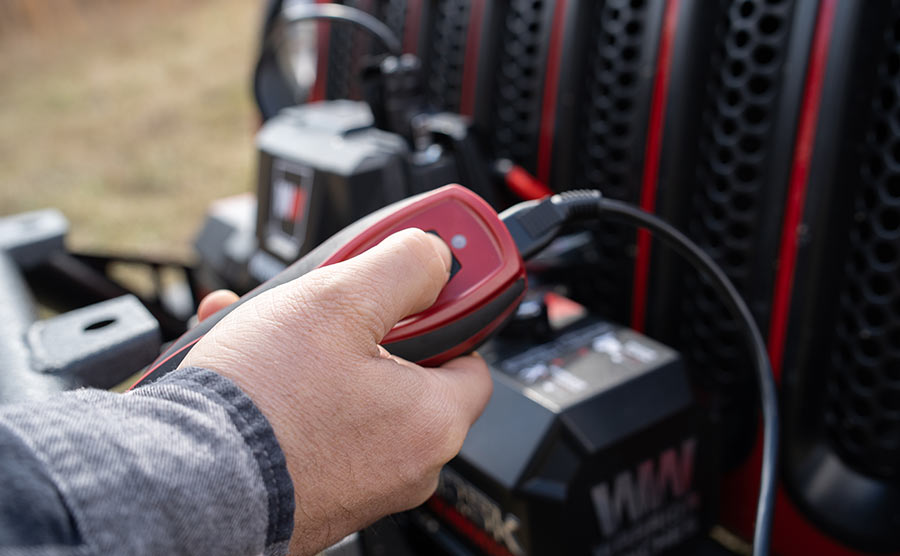

- 2in1 Rechargeable Remote (Wired and wireless)
- Aluminum Hawse Fairlead
- Armortek Extreme Synthetic Rope
- Removable Heavy Duty Hook
- Heavy Duty Battery Leads
- Control Box Relocation Plate
- Isolation Switch
- Stainless Steel Mounting Hardware (nuts/bolts)
