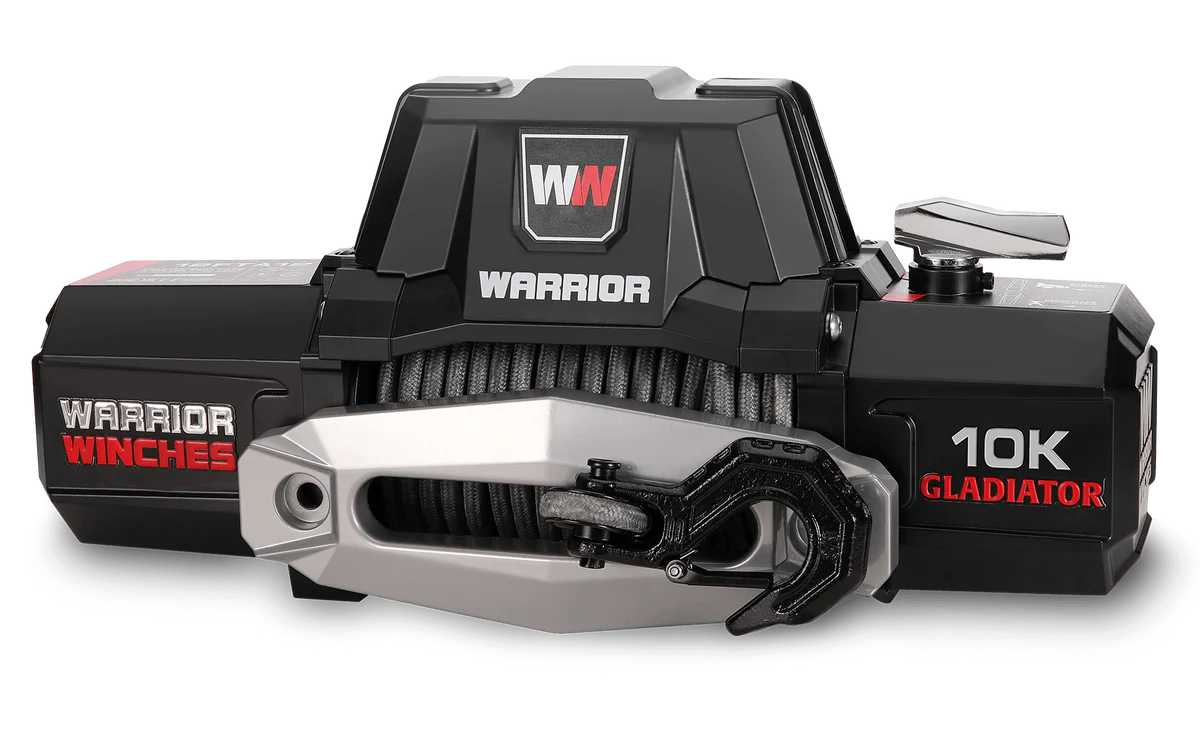

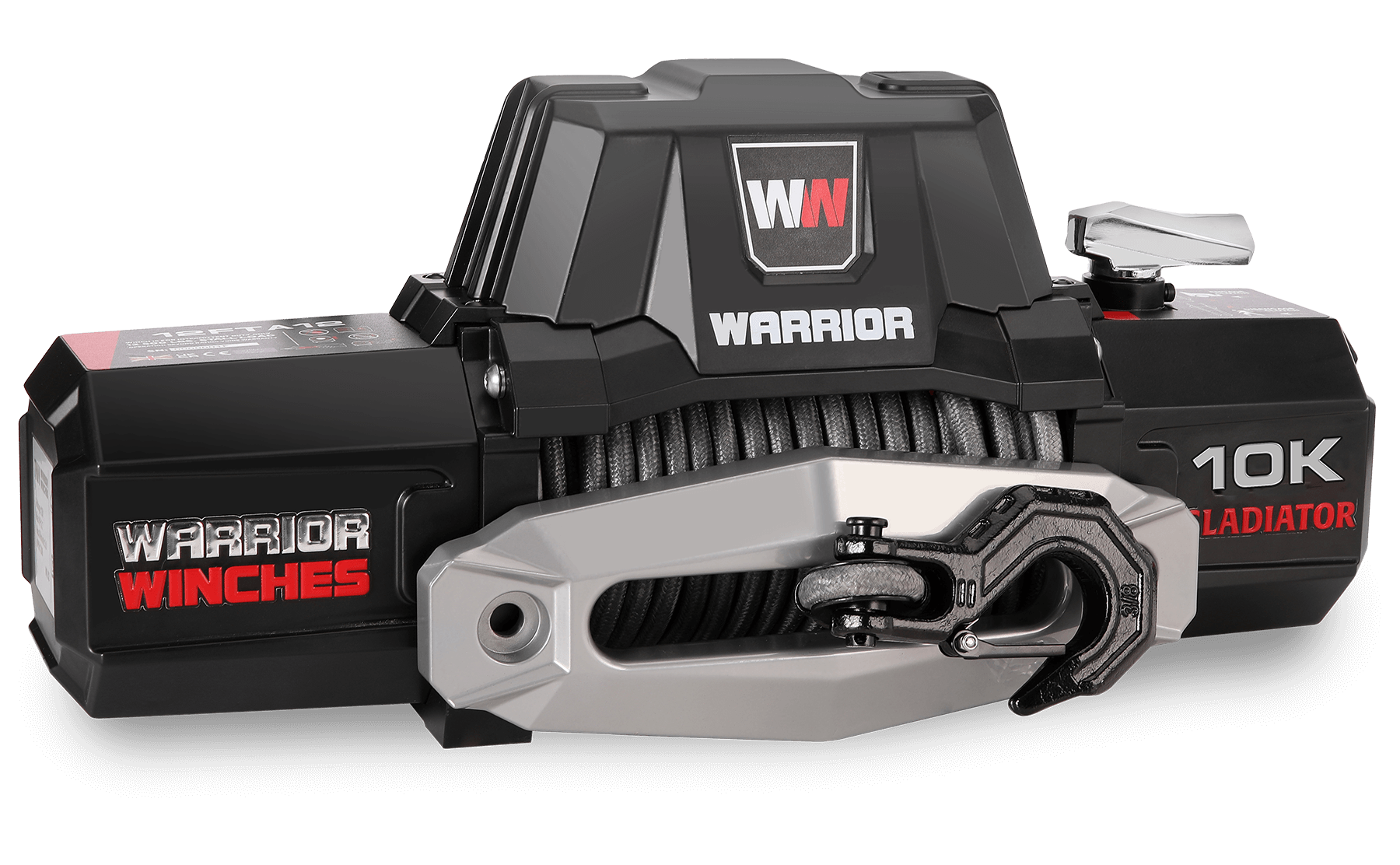

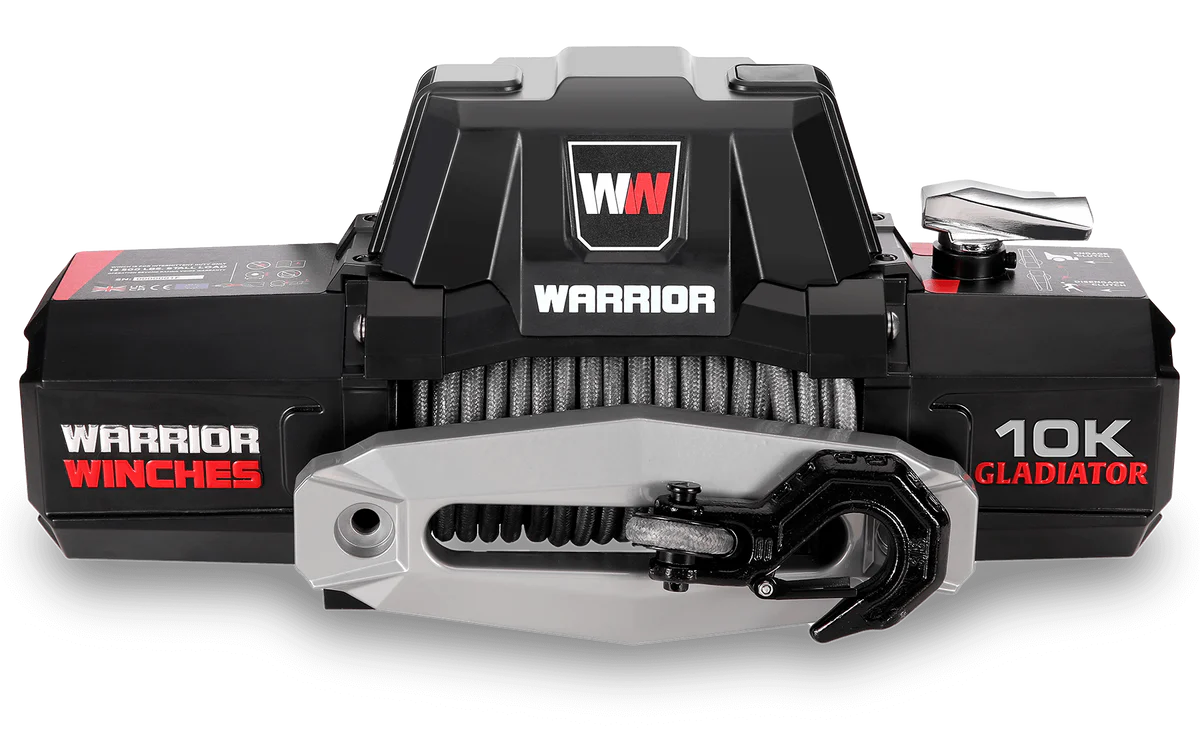

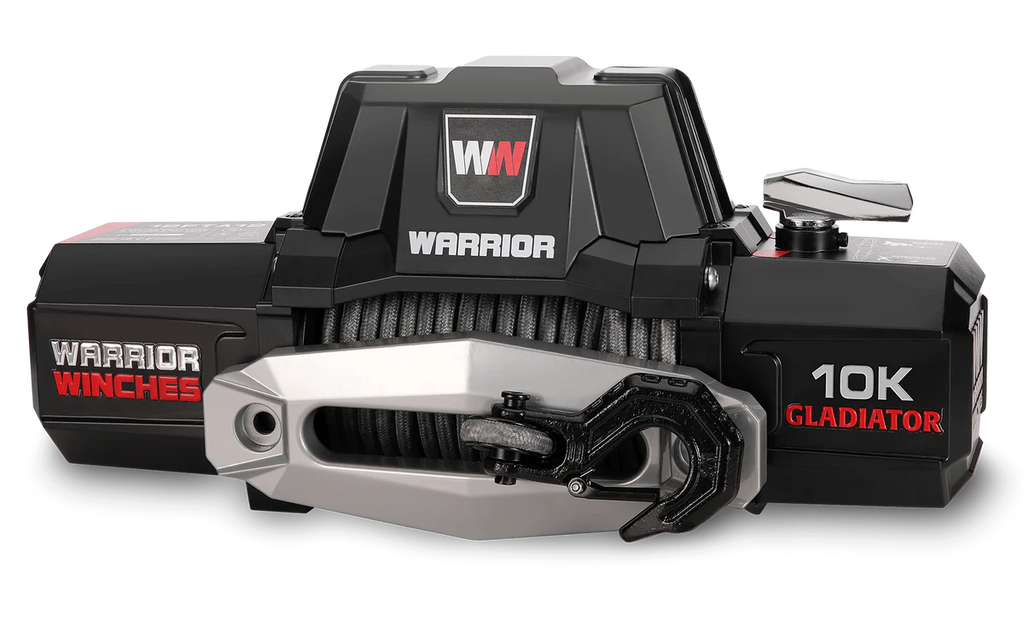

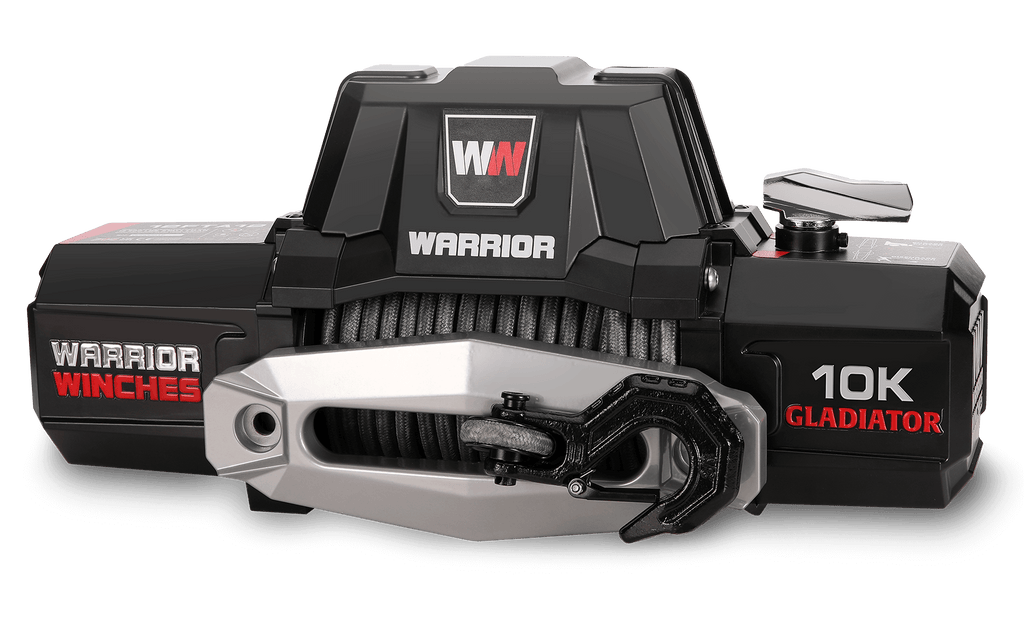

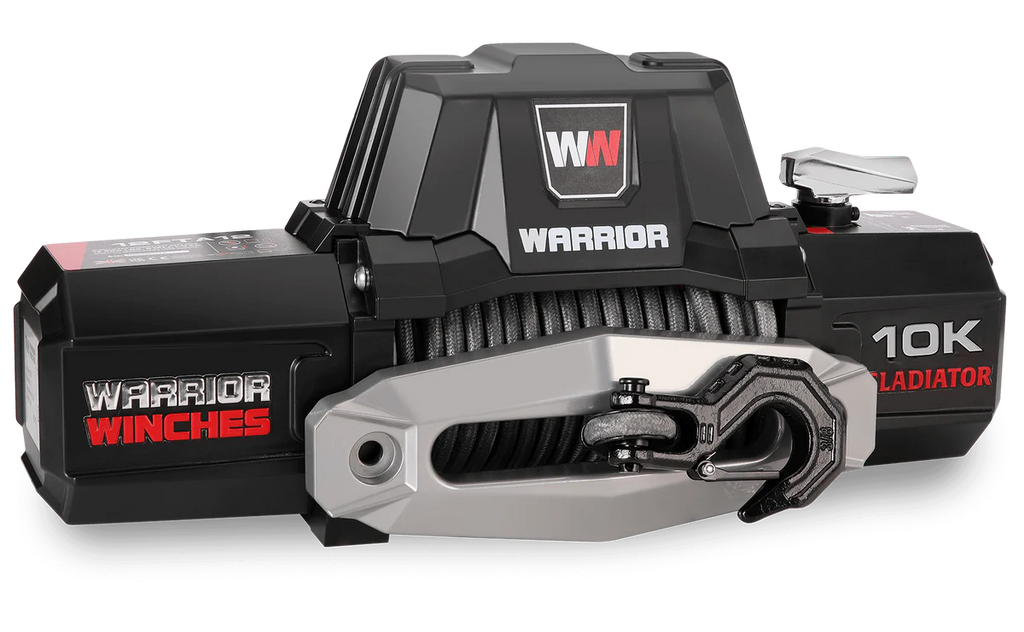

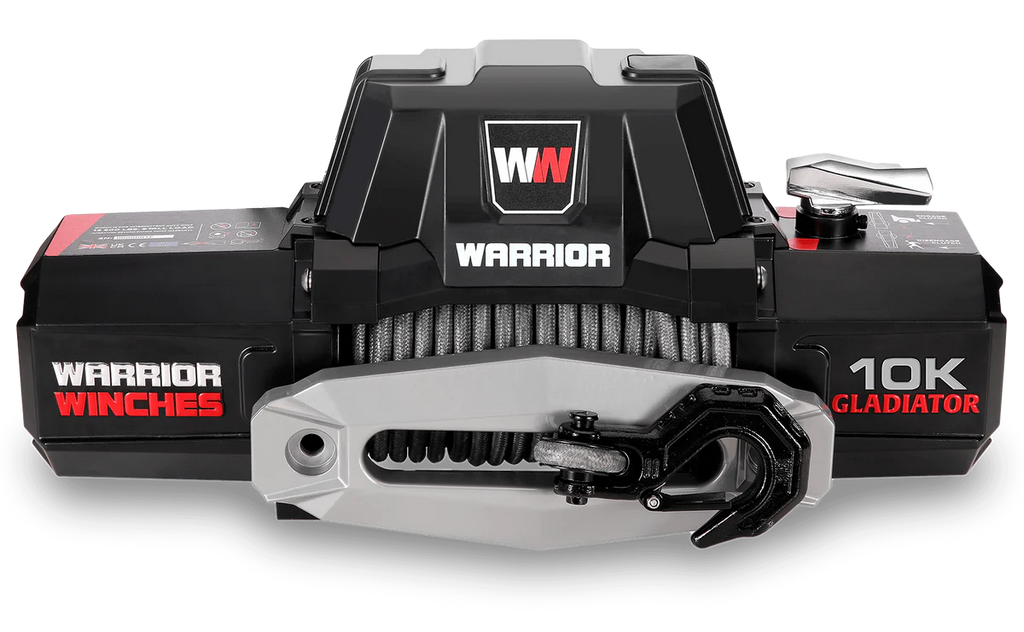

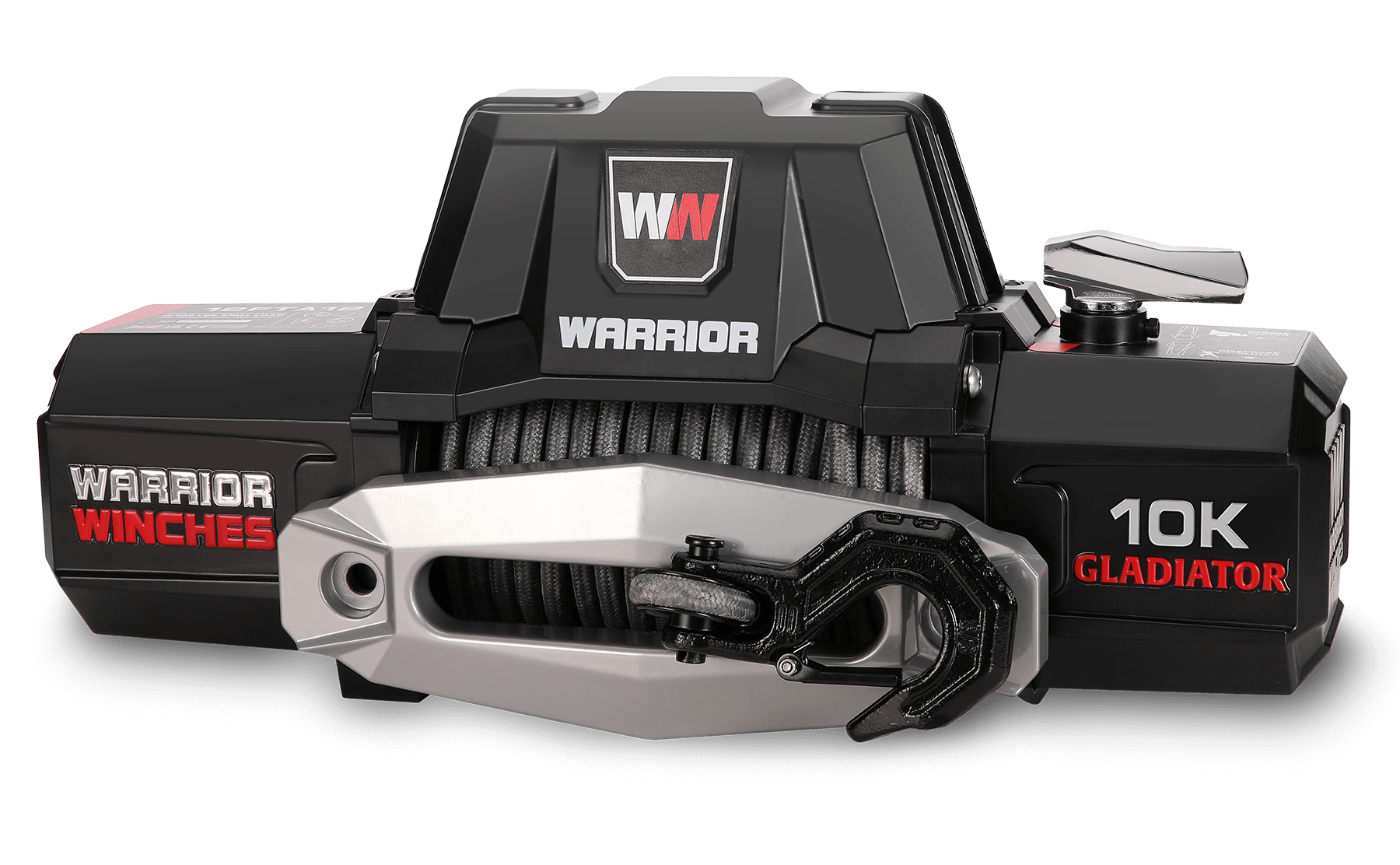

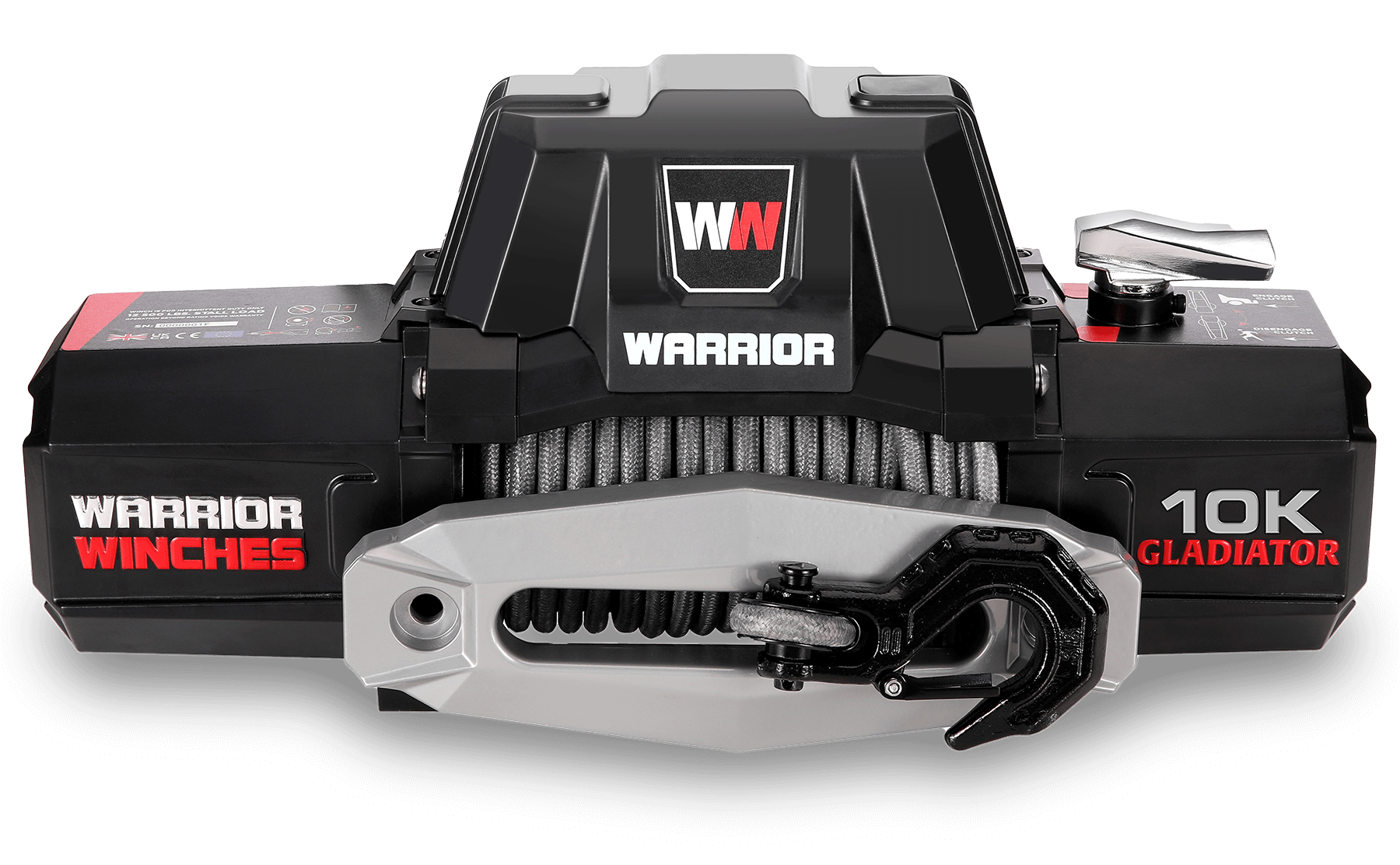

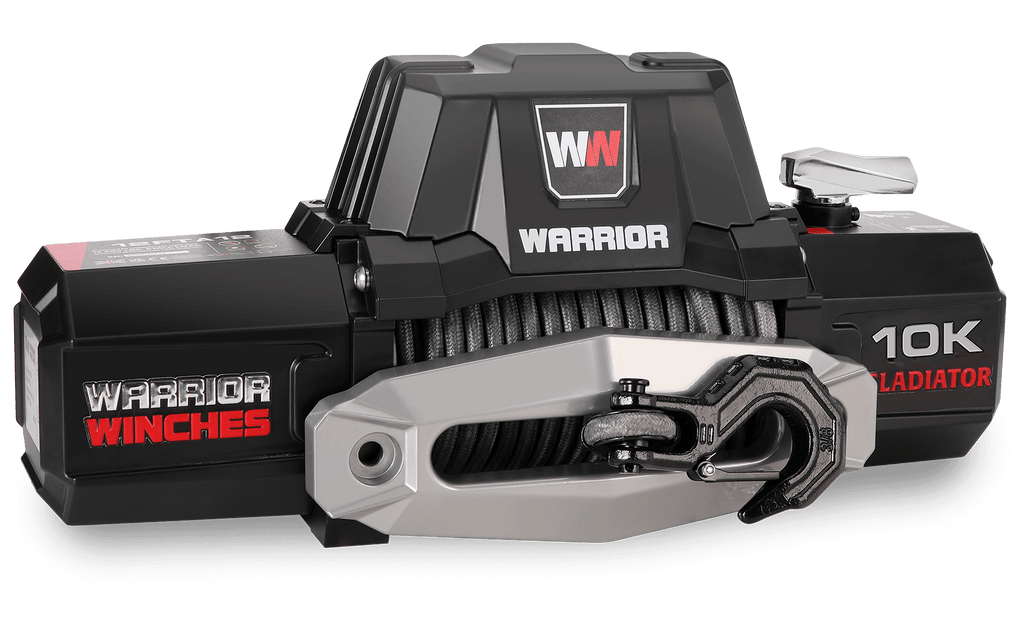

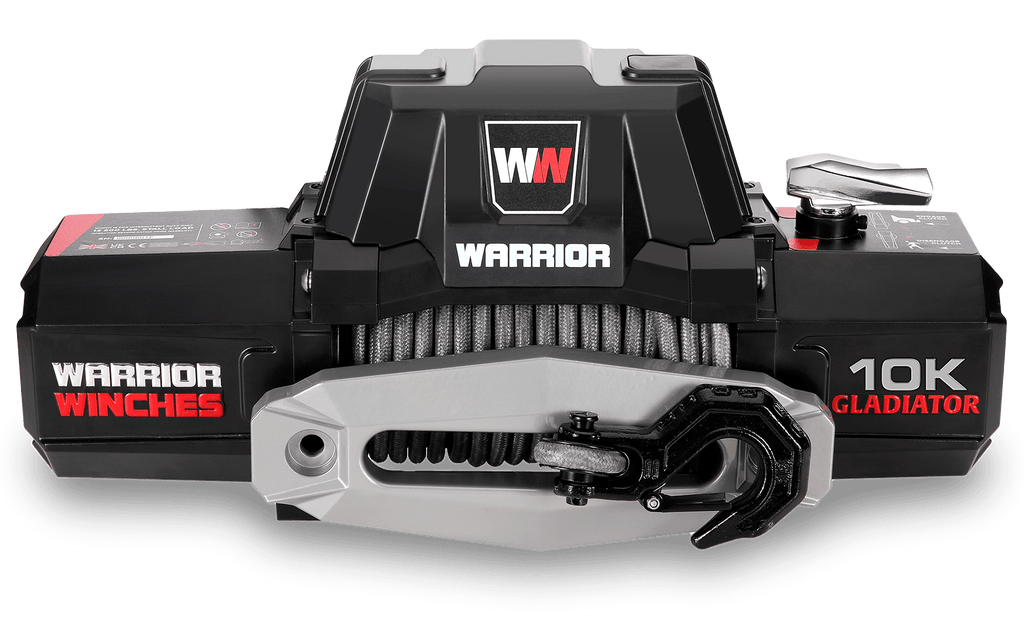

Gladiator F-Type 10000 Electric Winch - 12v Synthetic Rope

 0 Reviews Warranty: 7 Years
£849.99
Sold out

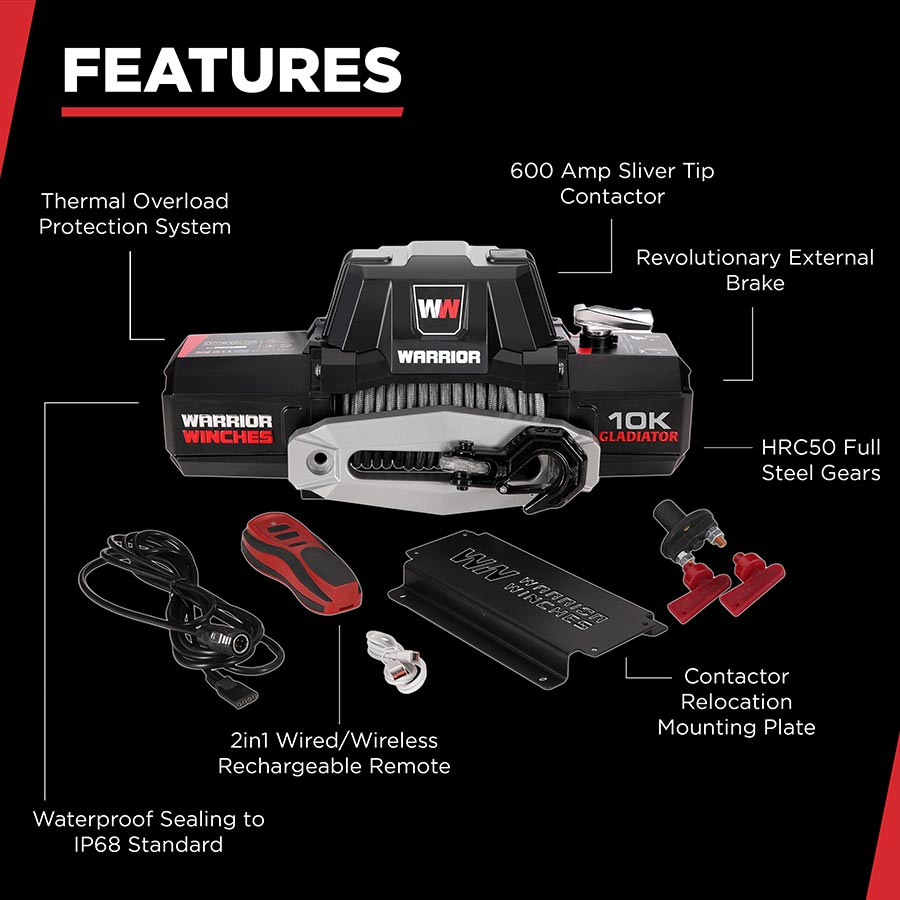

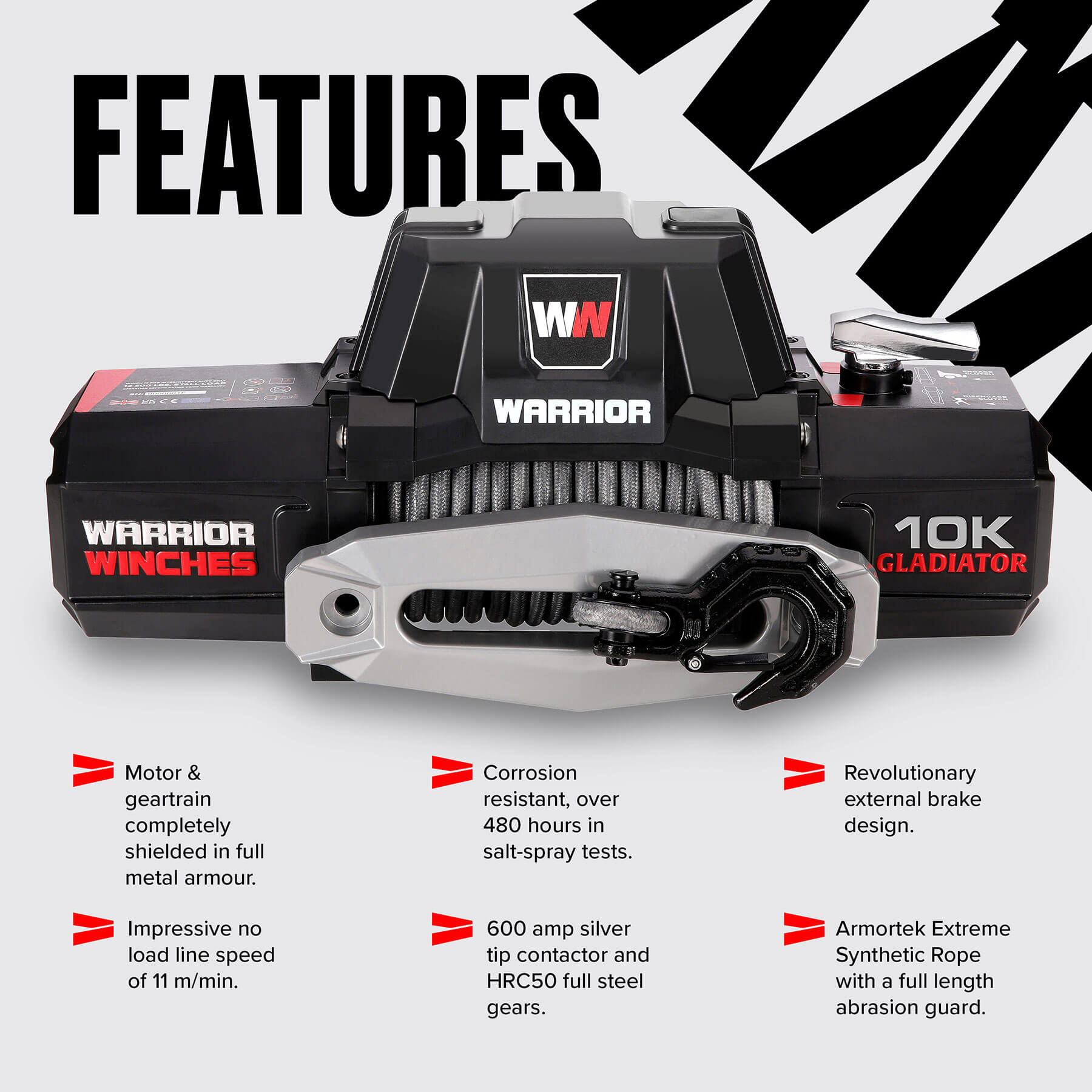

Features

  • Durable Construction: Full metal armour for the motor and geartrain, plus an aluminium control pack cover and stainless steel hardware, ensure maximum protection and 480+ hours of salt-spray resistance.

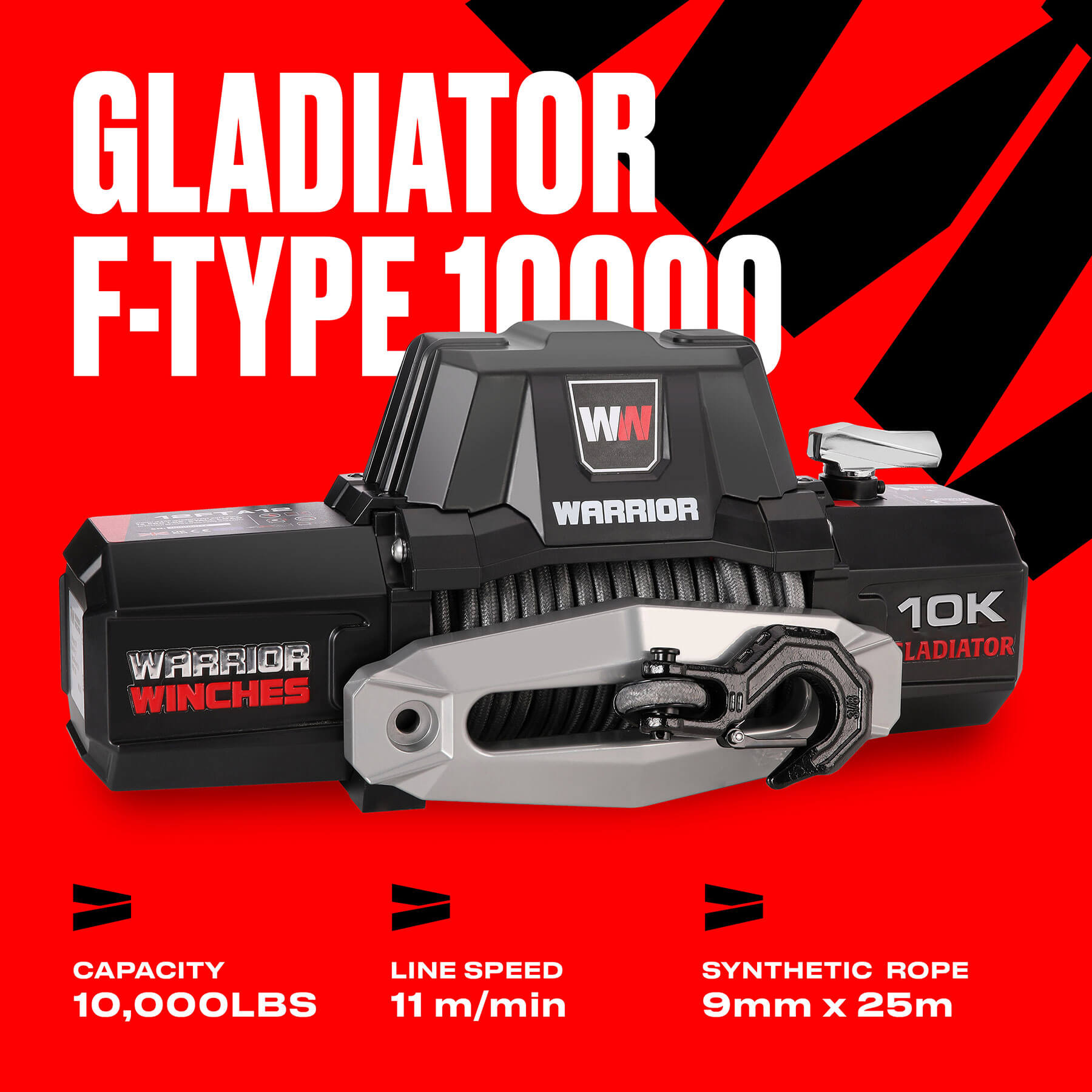

  • High Performance: The powerful motor and geartrain offer impressive pulling capacity with low amp draw and a fast no-load line speed of 11m/min, while the 600 amp Silver Tip Contactor boosts electrical efficiency.
  • Advanced Rope & Brake System: Includes Armortek Extreme Synthetic Winch Rope and a Revolutionary External Brake Design to reduce stress on the rope, prolonging its life and enhancing performance.
  • Thermal & Waterproof Protection: Thermal Overload Protection safeguards against damage, and the IP68-rated waterproof sealing keeps the winch operational in extreme conditions.
  • User Convenience & Longevity: Comes with a 2-in-1 wired/wireless rechargeable remote, durable mounting plate, and large steel winch drum that reduces wear on the synthetic rope for long-lasting performance.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Complete Your Setup

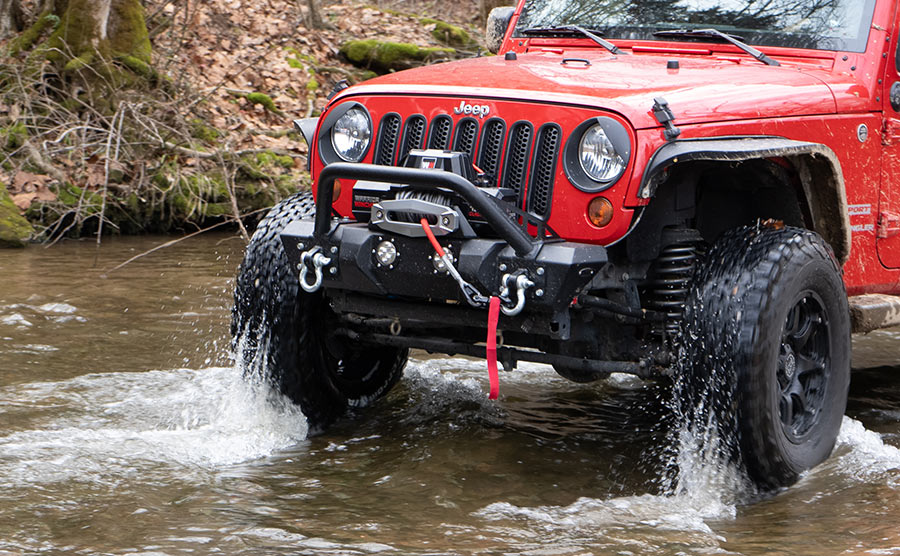

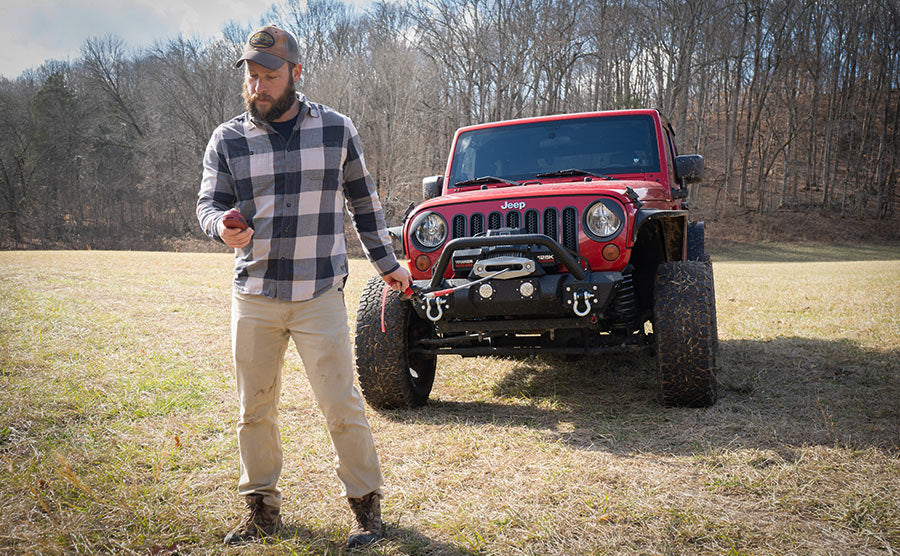

The Gladiator 12v 10000 lbs Electric winch is part of our New Premium Winch Range perfectly suited for offroad, trailers, trucks, Jeeps, SUVs, 4x4 and small recovery.

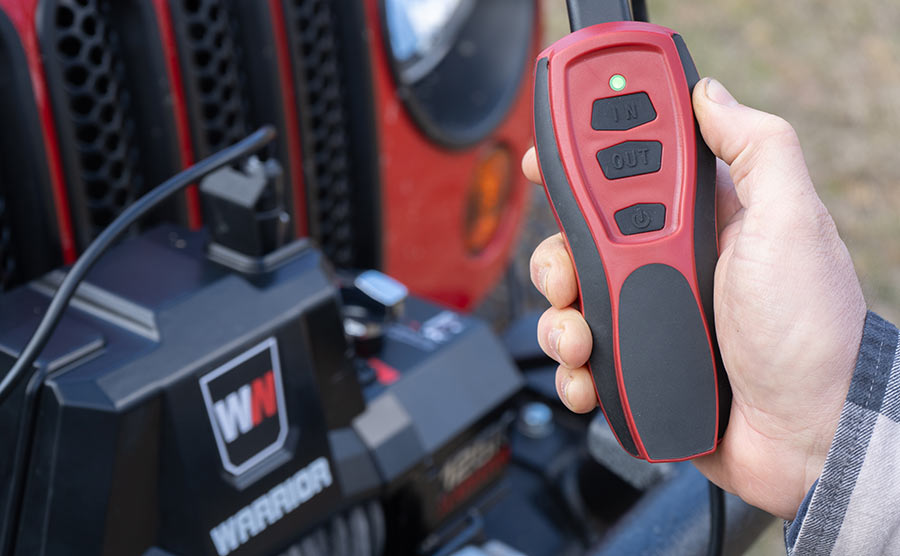

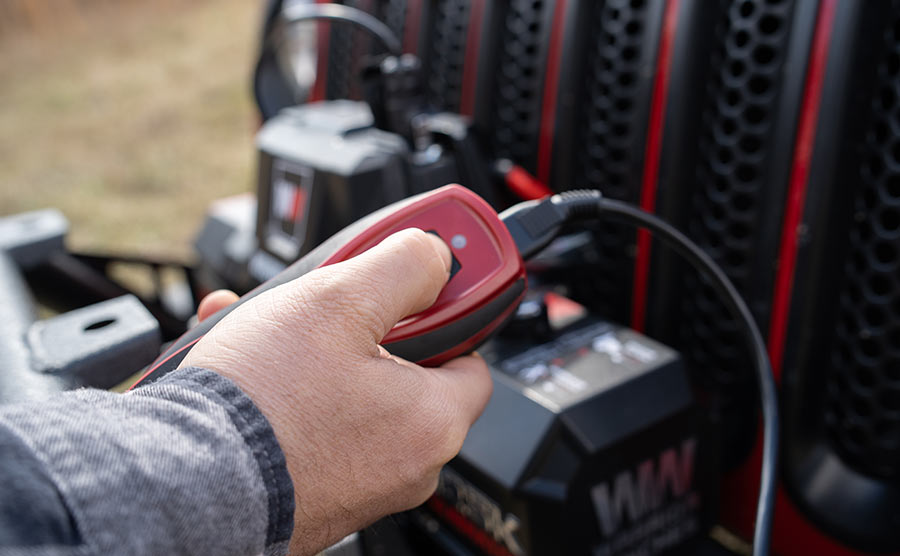

Warrior’s Gladiator winches continue to redefine winching with unmatched durability, performance, and style. A built in 2in1 wired/wireless rechargeable remote system makes winching easy from up to 50ft (15m) away.  The Thermal Overload Protection System means no fear of overheating and damage when winching in extreme environments and during long, hard pulls.

Our Revolutionary External Brake Design keeps heat away from the drum, putting less strain and wear and tear on your winch rope whilst our HRC50 Full Steel Gears offer superior durability and high efficiency for sustained pulling power.

Extensive IP68 Waterproofing together with a Silver Copper Motor with Copper Brush Holders, plus the Durable Coating and Stainless-Steel Mounting Hardware provides superior corrosion resistance.

Specifications:

Sku10FTA12
EAN5060966746188
Rated Line Pull10000 lbs
Motor Type12V: Input: 6.1hp / 4.6kW; Output: 3.0hp / 2.2kW
Rated Volt12
ClutchManual
Gearing196:1
Gearing SystemPlanetary
Braking ActionPatented ratchet

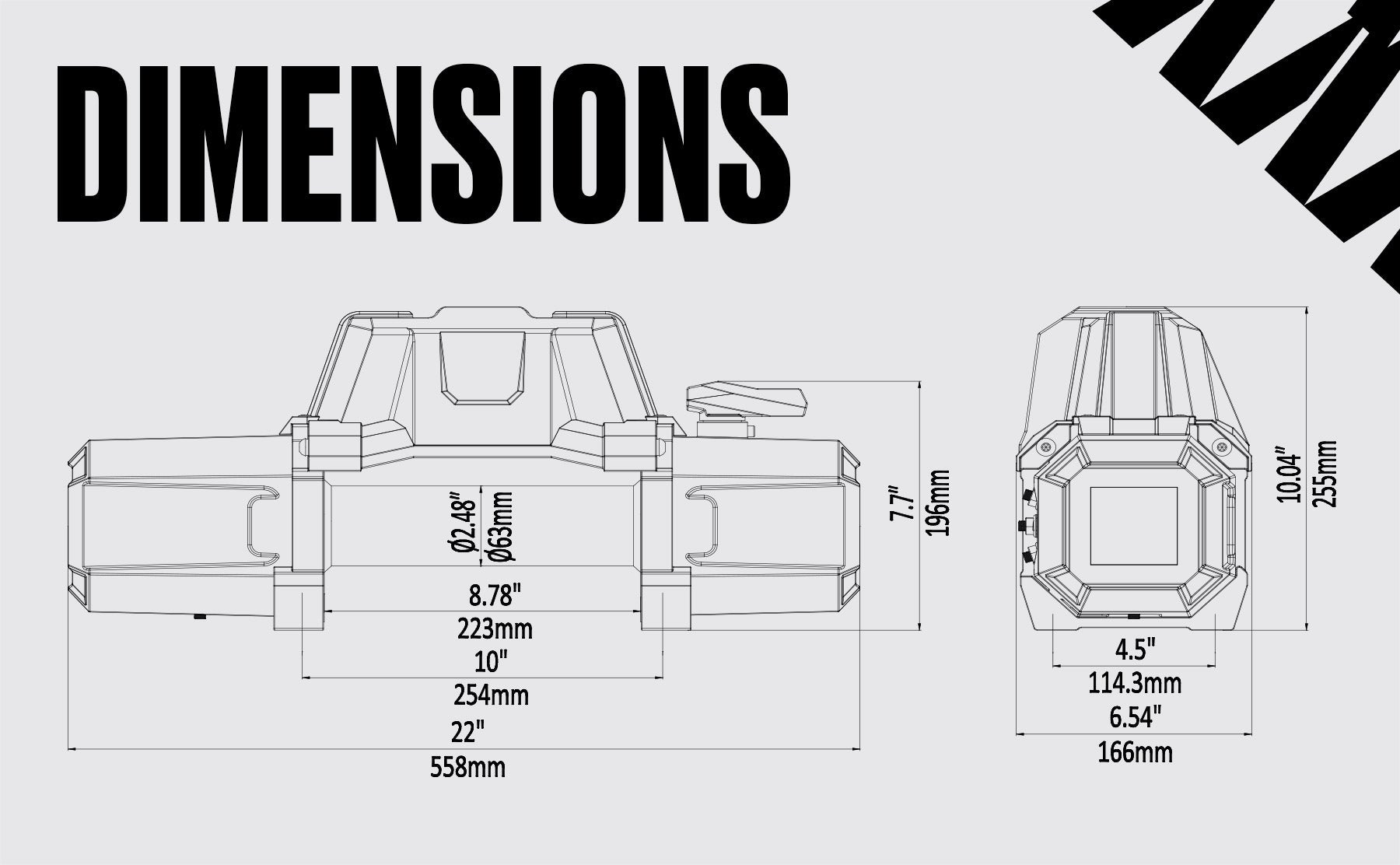

Drum Size (Diameter x Length)63 x 217 mm
Controls2in1 Rechargeable Wired/Wireless Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length)9mm x 25.0m
Find replacement Armortek Synthetic Rope
FairleadHawse
Mounting Pattern254mm x 114.3mm
Waterproof Rating (IP)68

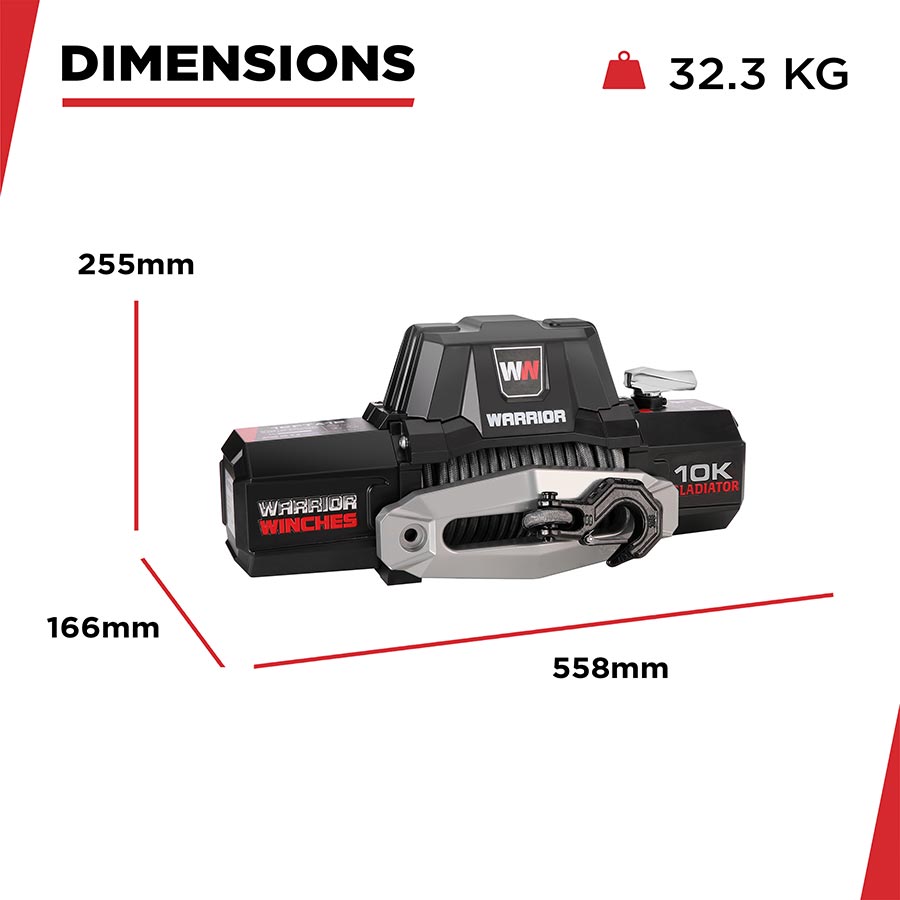

Dimensions558 x 166 x 255 mm
Weight32.3 kg
Warranty7 Year



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 10000 (4536)18 (5.5)
2 7900 (3583)39.4 (12)
3 6600 (2993)64 (19.5)
4 5600 (2540)82 (25)
Line Pull
lbs (kgs)

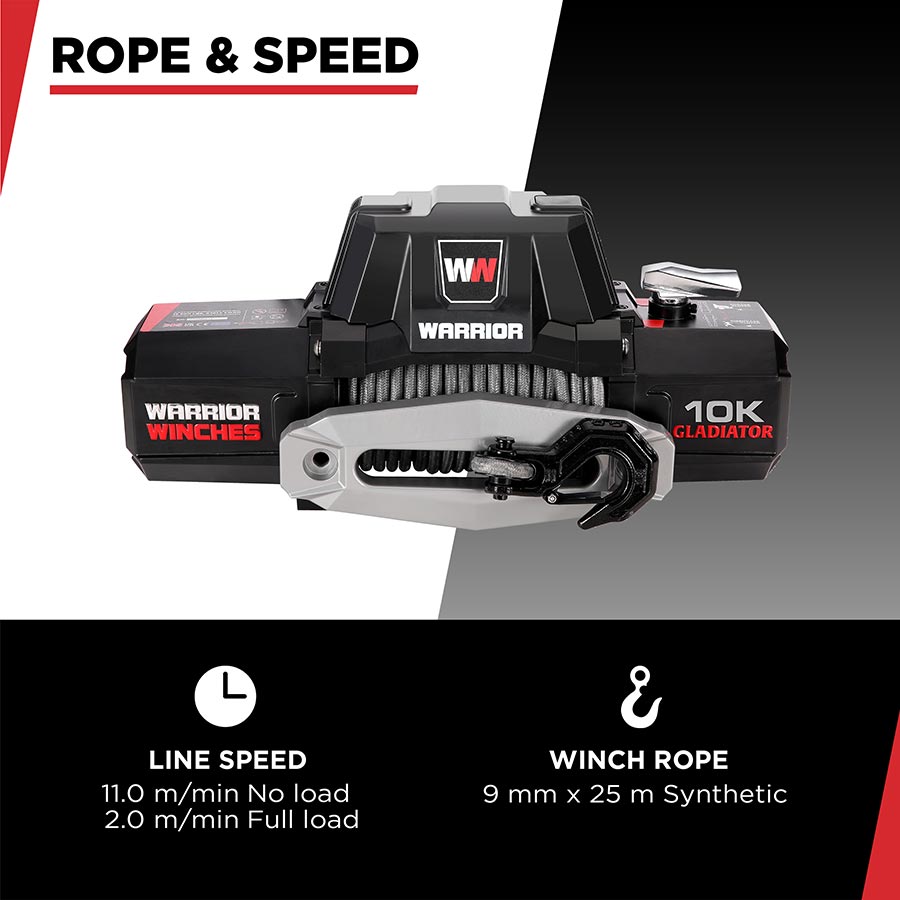

Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 36 (11.0) 50
3000 (1360) 15.4 (4.7) 150
6000 (2722) 10.5 (3.2) 260
8000 (3629) 8.2 (2.5) 300
10000 (4536) 6.5 (2.0) 355

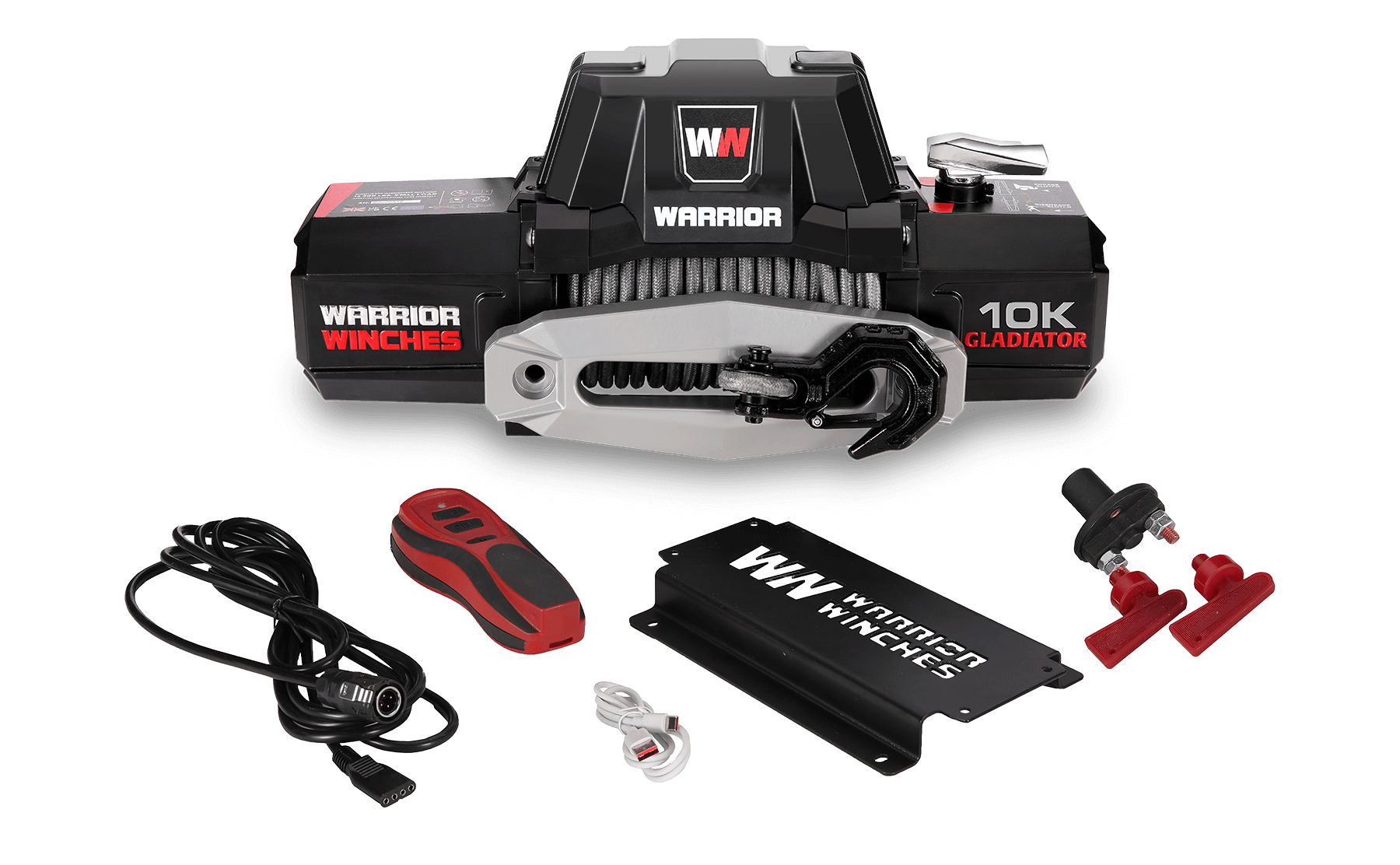

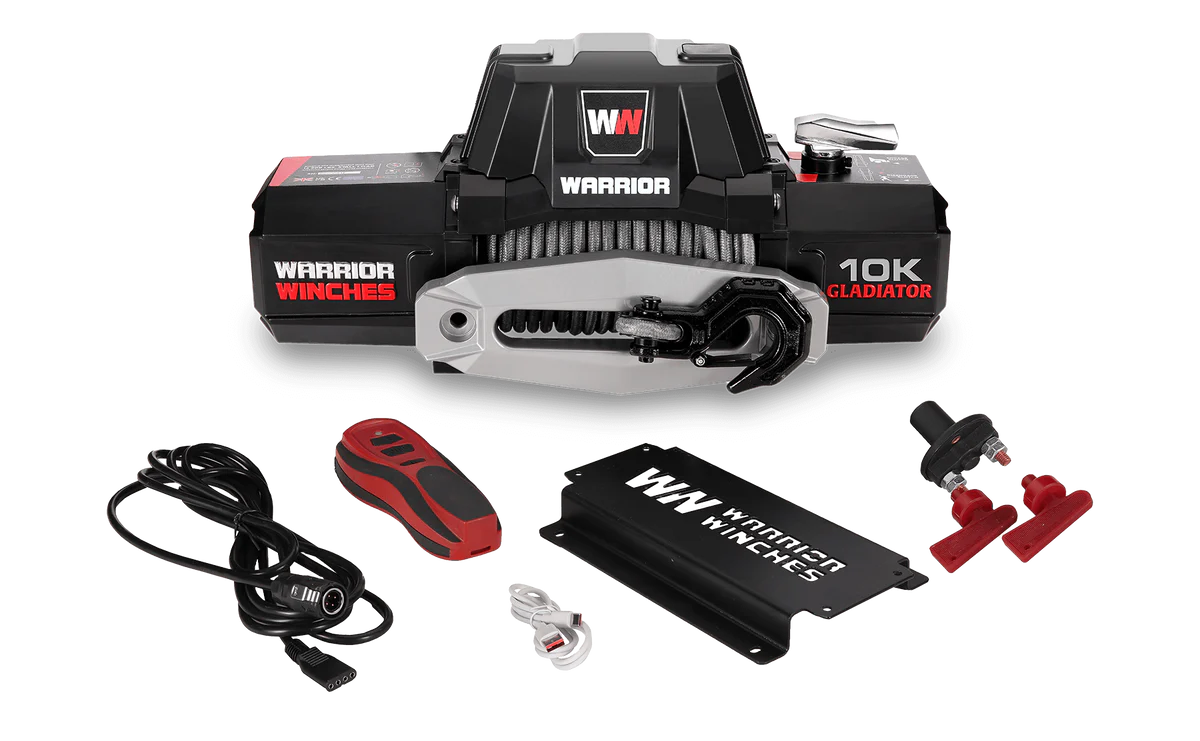

What's in the box:

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Aluminum Hawse Fairlead
  • Armortek Extreme Synthetic Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Control Box Relocation Plate
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)

Downloads:

User Manual Download
Brochure Download

This winch has a 7 Year Warranty


All Warrior purchases must be registered with Warrior Winches.

Register your winch here


BPE Solutions North America are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samurai range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 7-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

  • Cosmetic defects such as paint, decals, ,
  • Worn parts due to improper use.
  • Steel ropes
  • Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.
  • Any Accessory part including roller fairleads, hooks and mounting plates.
  • Failures due to acts of God and other force majeure events beyond the manufacturer’s control
  • Problems caused by parts that are not original WARRIOR WINCH parts
  • Alteration or modification(s) made by any party other than the
  • Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
  • Any third party equipment
  • Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
