Name: Premium 12v Solenoid - 4500lb to 25000lb Winches
Brand: Warrior Winches
SKU: CON012
Price: 64.99 GBP
Availability: InStock

Premium 12v Solenoid - 4500lb to 25000lb Winches

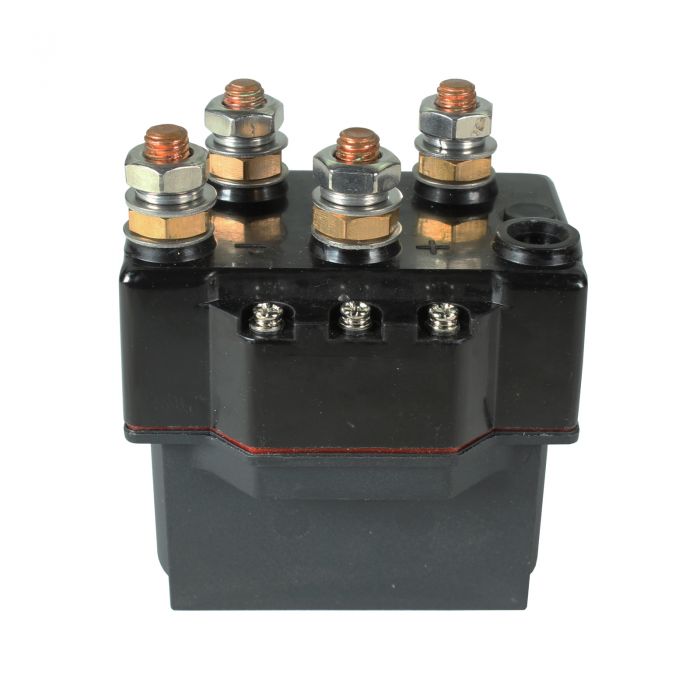

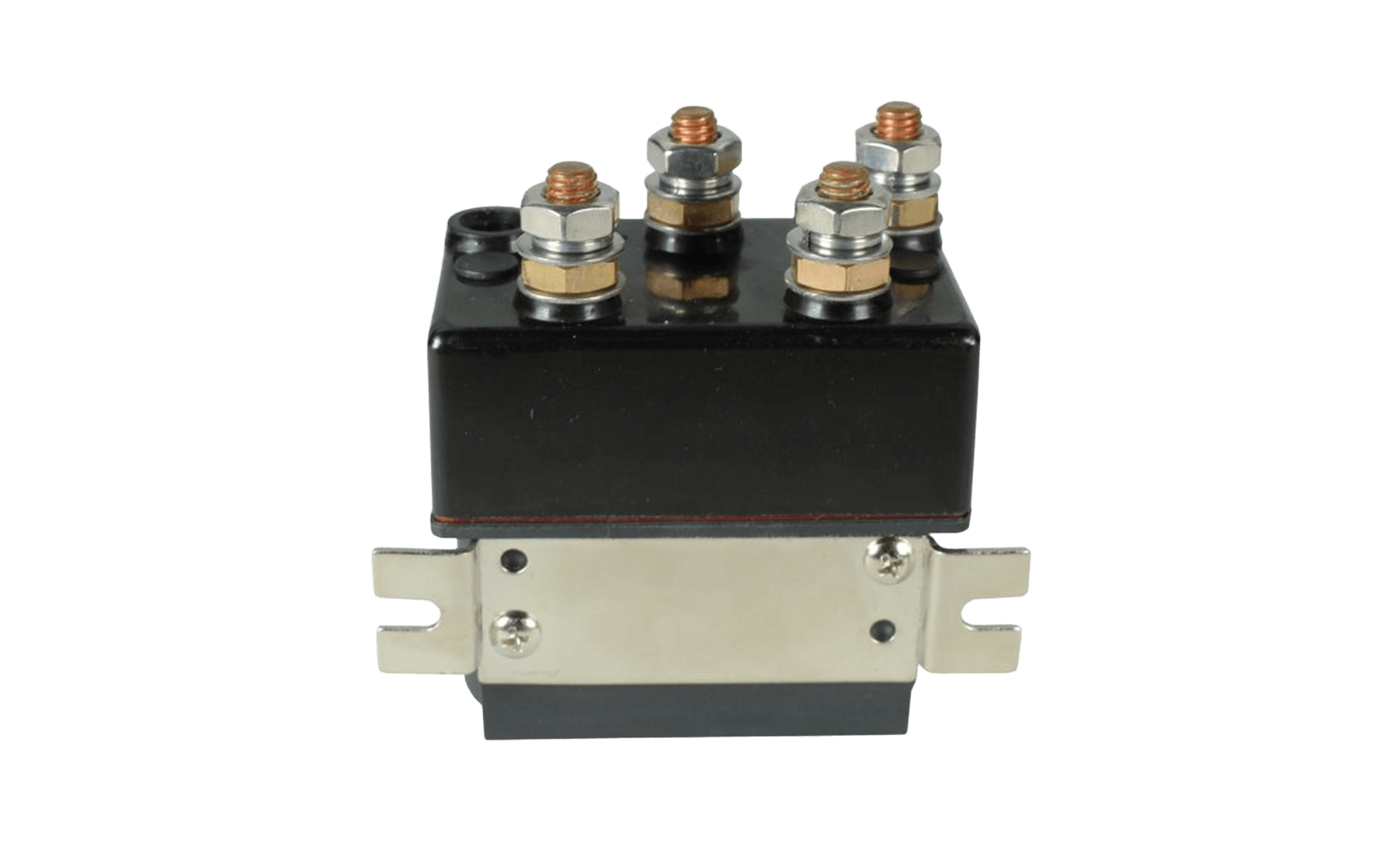

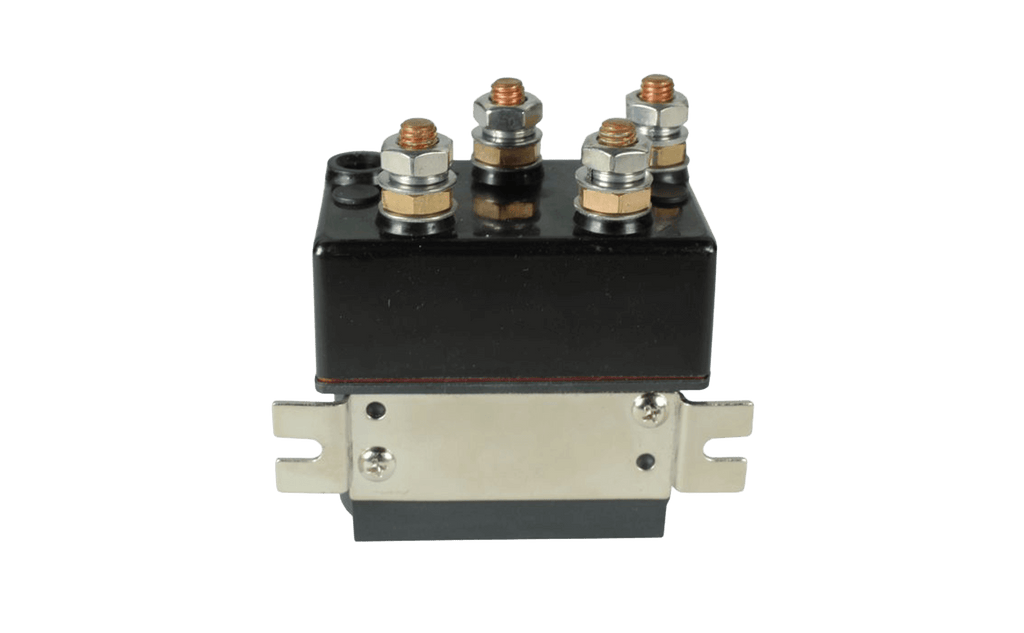

Premium 600 Amp Heavy Duty 12v Solenoid Block

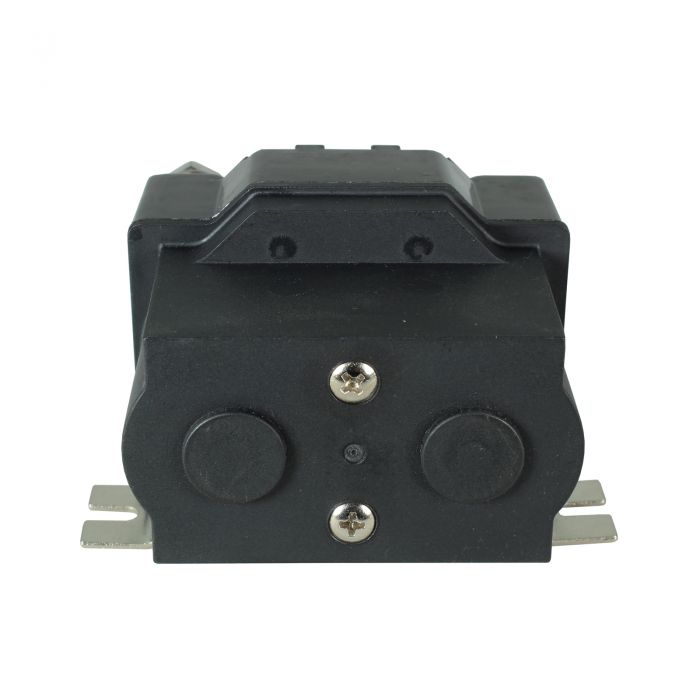

Premium 600 Amp Heavy Duty 12v Solenoid Blockv

Features

Official Warrior Winches part/accessory.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

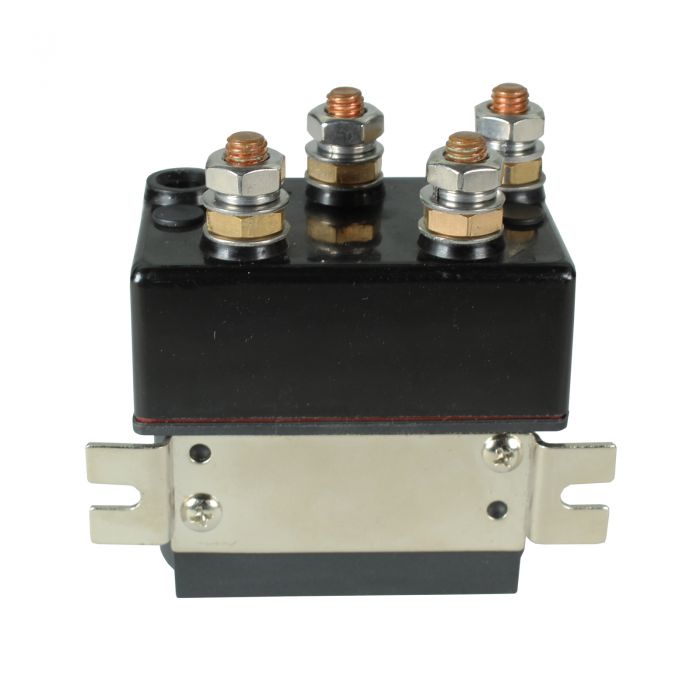

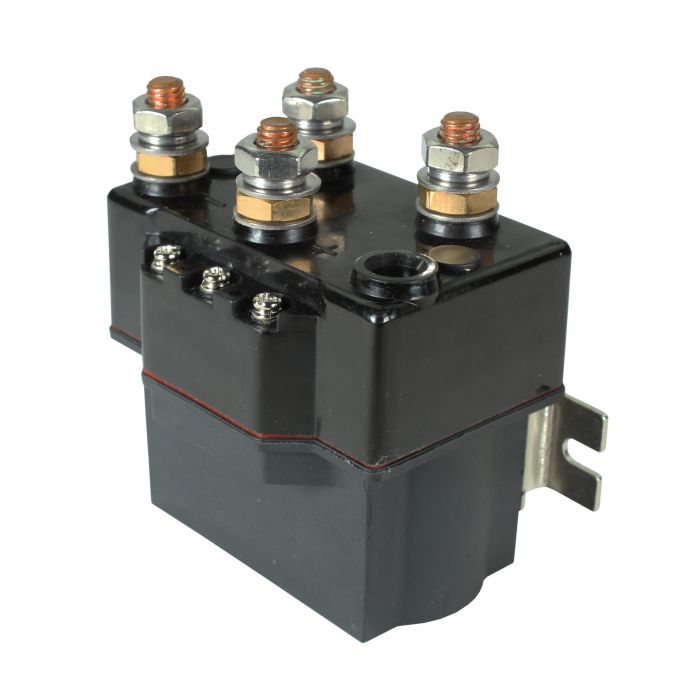

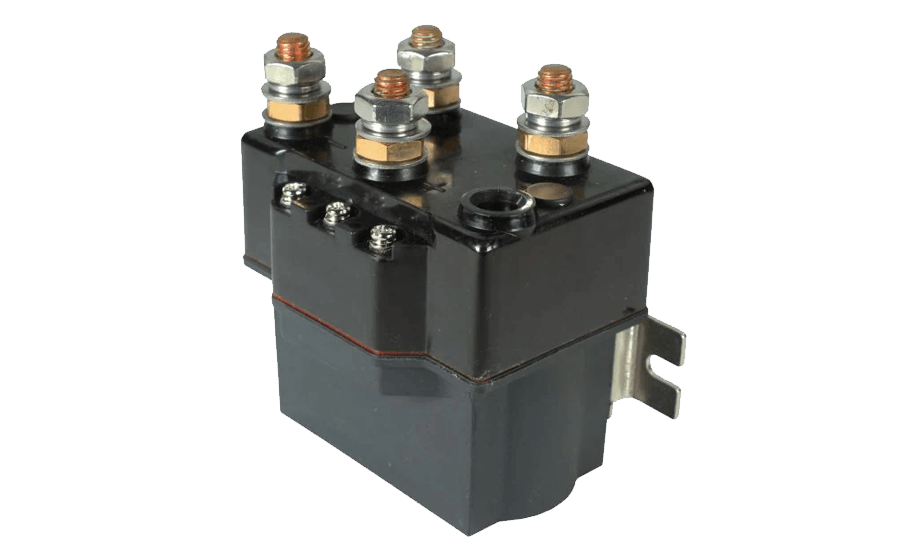

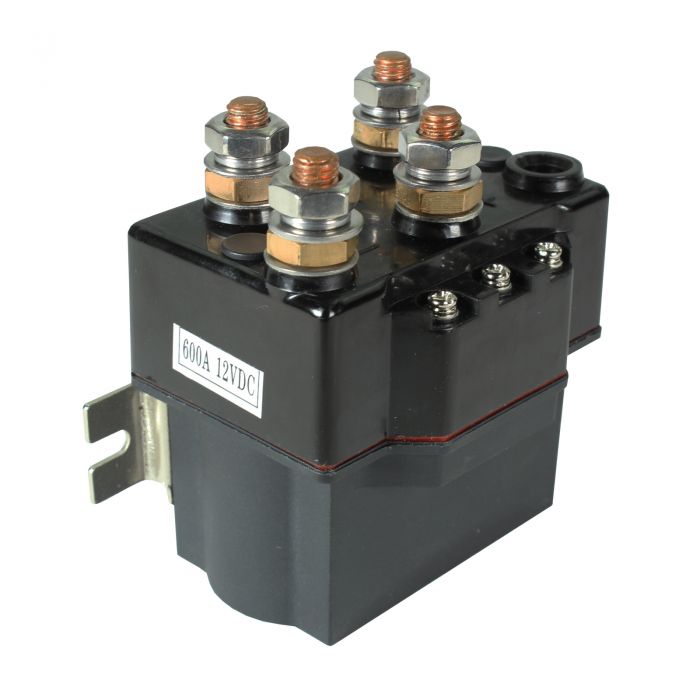

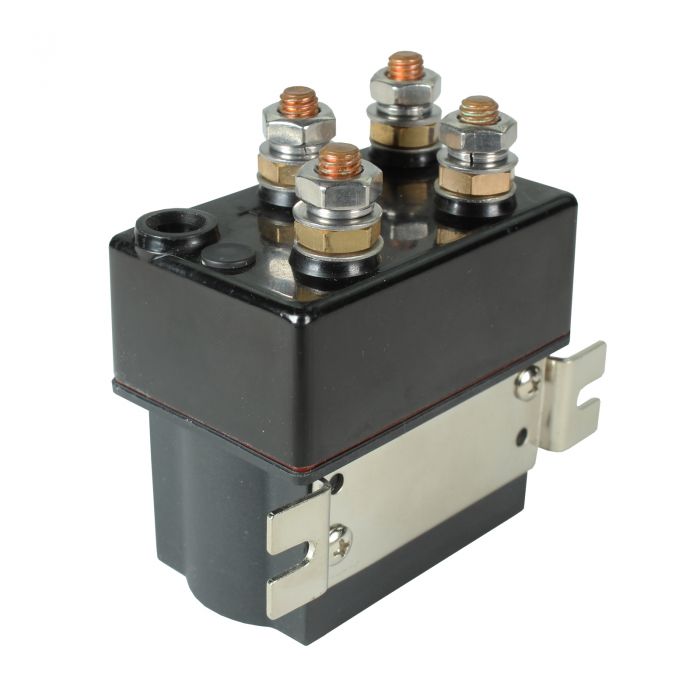

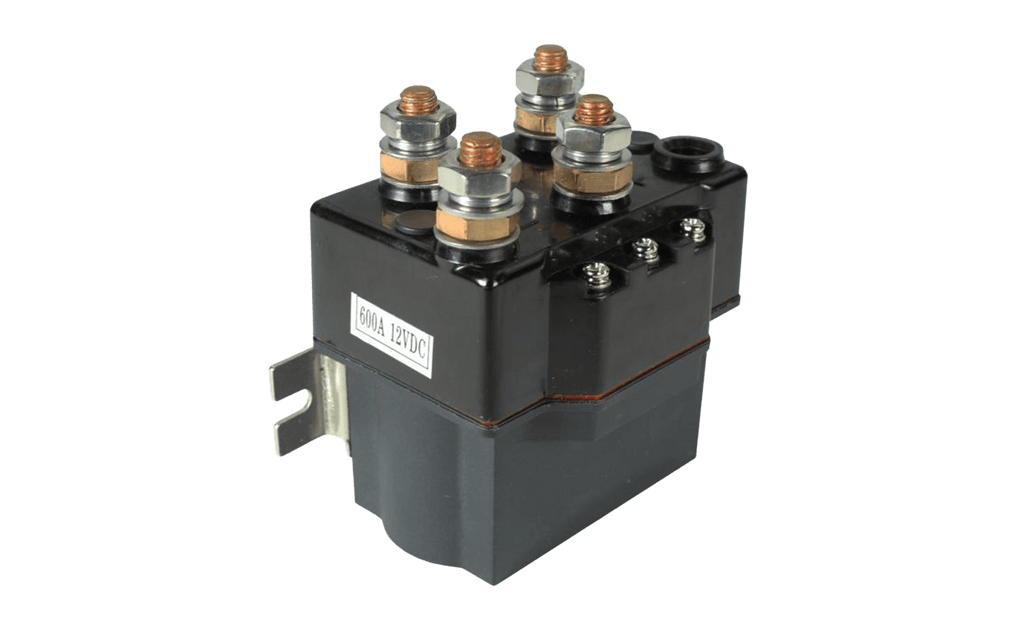

Premium 600 Amp Heavy Duty 12v Solenoid Block

These heavy duty Albright style sealed 600 amp 12v solenoid blocks are much more reliable than the old individual solenoids. These solenoids can be fitted to most solenoid operated winches that are on the market and can also be used as a direct replacement for Albright solenoids. These are wireless remote compatible and works with both series wound and permanent magnet motors.

Applications:

Max Amps = 600 A
Voltage = 12v
Winches From 4500lb(2000kg) to 25,000lb(11339kg)
Wireless Remote Compatible
Series Wound and Permanent Magnet Motors

Dimensions:

Overall Height = 95mm
Main Body Height = 75mm
Overall Width = 85mm
Overall Depth = 60mm
Terminal Height = 20mm
Terminal Size = M10

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)

Examples:

Power Station Capacity	Device Power Usage	Estimated Run Time
1200Wh	400W	1200 ÷ 400 = 3 hours
1000Wh	250W	1000 ÷ 250 = 4 hours
500Wh	100W	500 ÷ 100 = 5 hours

Keep in mind:

This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
Ensure your device power usage is below the max rated watts the power station can ouput.
Always allow some buffer in your calculations to account for energy loss or variations in power draw.
Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

Device	Average Power Usage
Lamp	10
LED/LCD TV	150
Laptop	100
Desktop Computer	200 - 500
Modem/Router	20
Play Station	165

*This chart is for reference only. Check your device for ACTUAL wattage requirements.

Questions & Answers:

Ask a Question

Hixi have a stealth winch on my landrover 13500lb 12v would this solenoid work with it ? CON012

If you have Red Stealth (The V2 model) then this solenoid will fit. For Black Stealth (The V1 model) you would still use this solenoid but it would need to be rewired.
