12v Solenoid - Up to 4500lb Winches

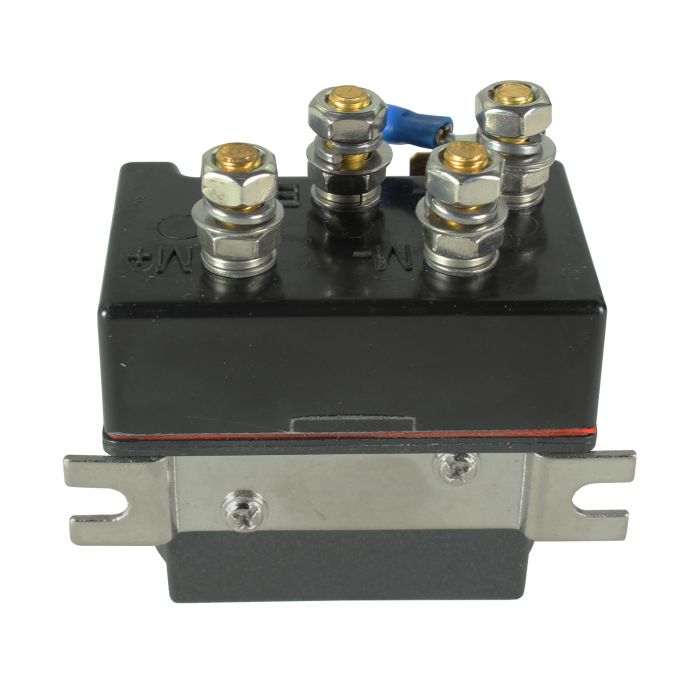

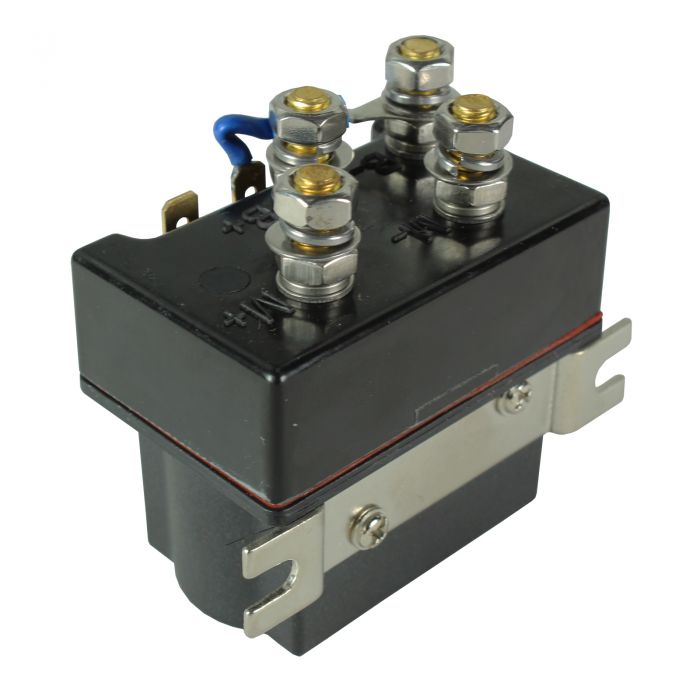

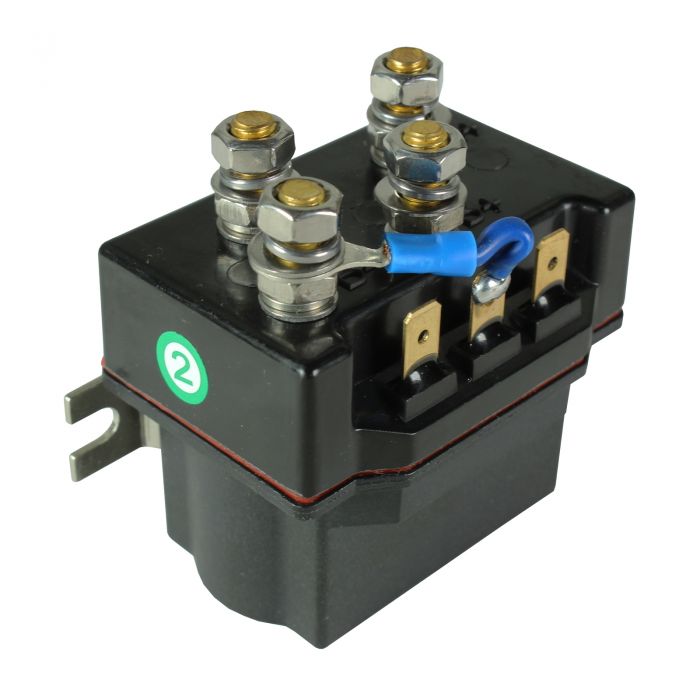

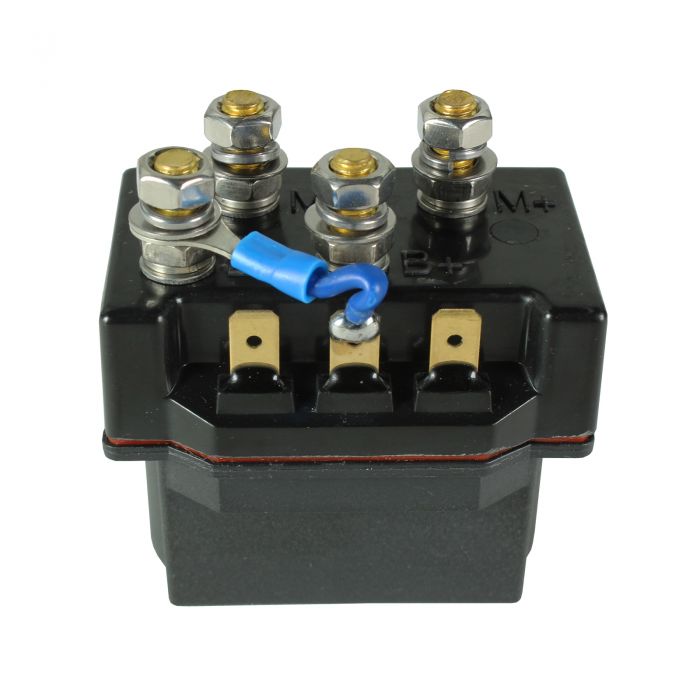

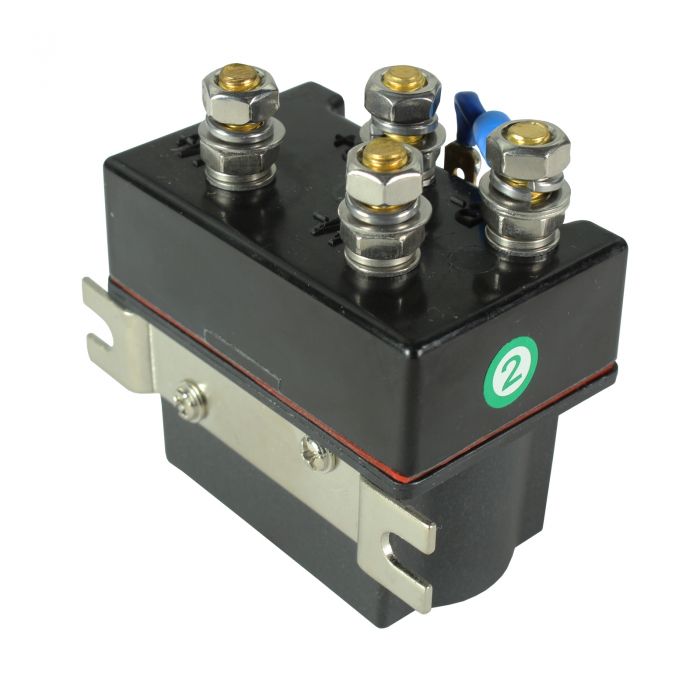

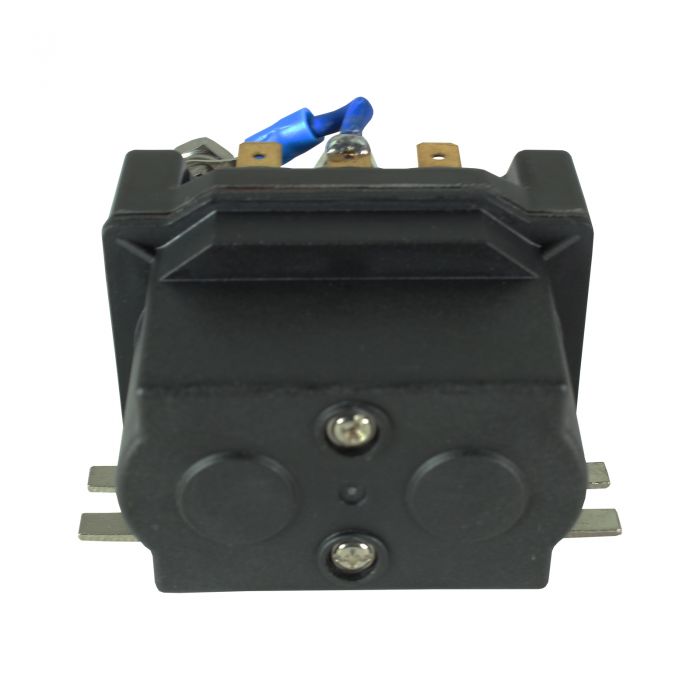

These heavy duty Albright style sealed 200 amp 12v solenoid blocks are much more reliable than the old individual solenoids. These solenoids can be fitted to most solenoid operated winches that are on the market and can also be used as a direct replacement for Albright solenoids. These are wireless remote compatible and works with both series wound (blue link wire needs to be removed) and permanent magnet motors.
Applications:
- Max Amps = 200 A
- Voltage = 12v
- Winches Up To 4500lb(2000kg)
- Wireless Remote Compatable
- Series Wound and Permanent Magnet Motors
Dimensions:
- Overall Height = 70mm
- Main Body Height = 55mm
- Overall Width = 65mm
- Overall Depth = 45mm
- Terminal Height = 15mm
- Terminal Size = M6
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
