Name: Stealth Branded Wireless Control System
Brand: Warrior Winches
SKU: ST1224
Price: 28.79 GBP
Availability: InStock

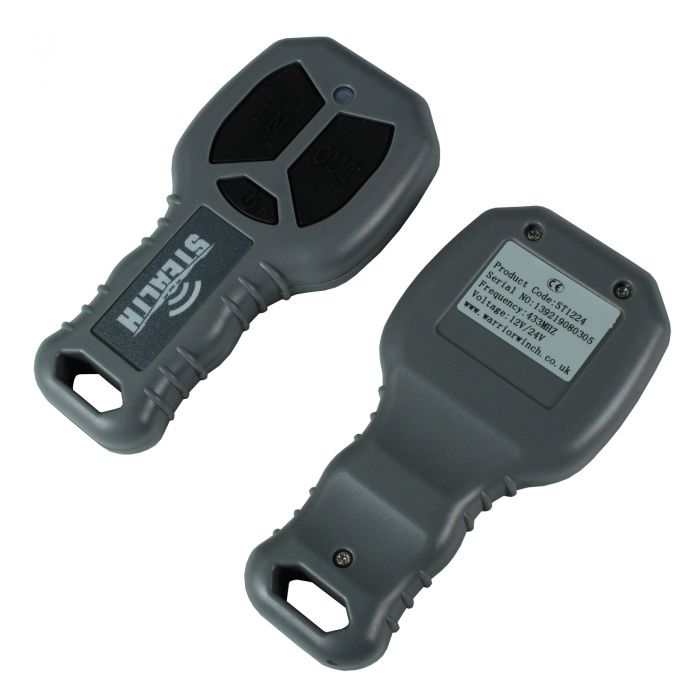

Stealth Branded Wireless Control System complete overview

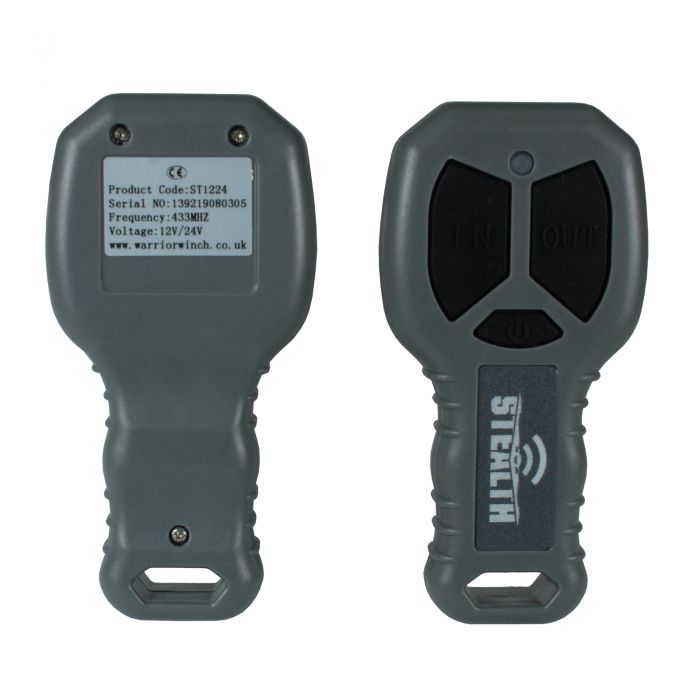

Stealth Branded Wireless Control System handset close up

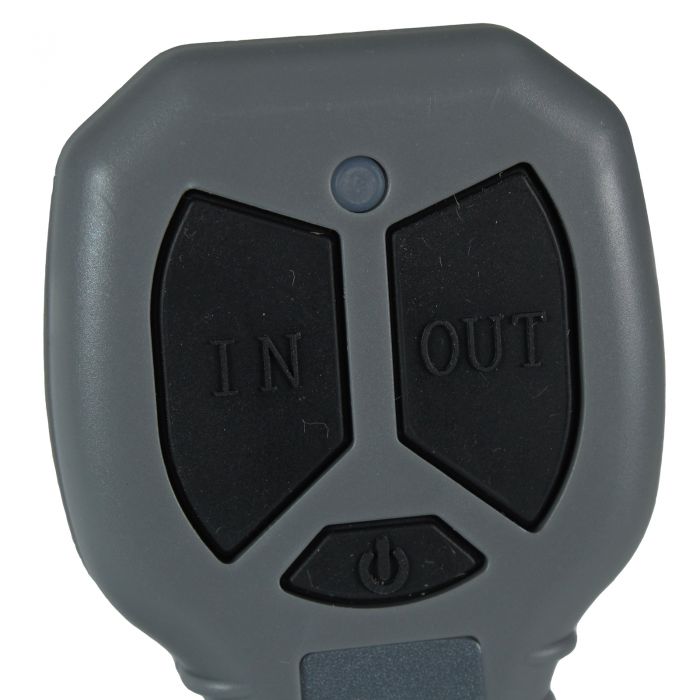

Stealth Branded Wireless Control System in out buttons

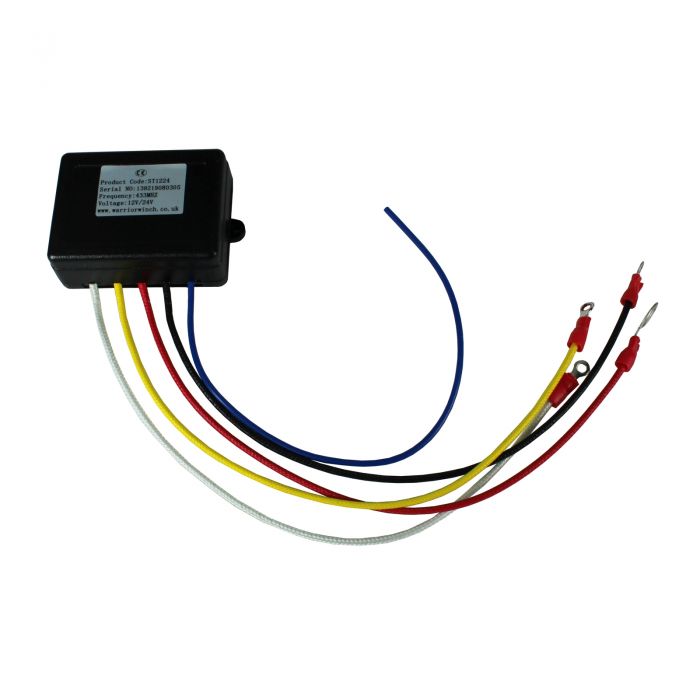

Stealth Branded Wireless Control System receiver box

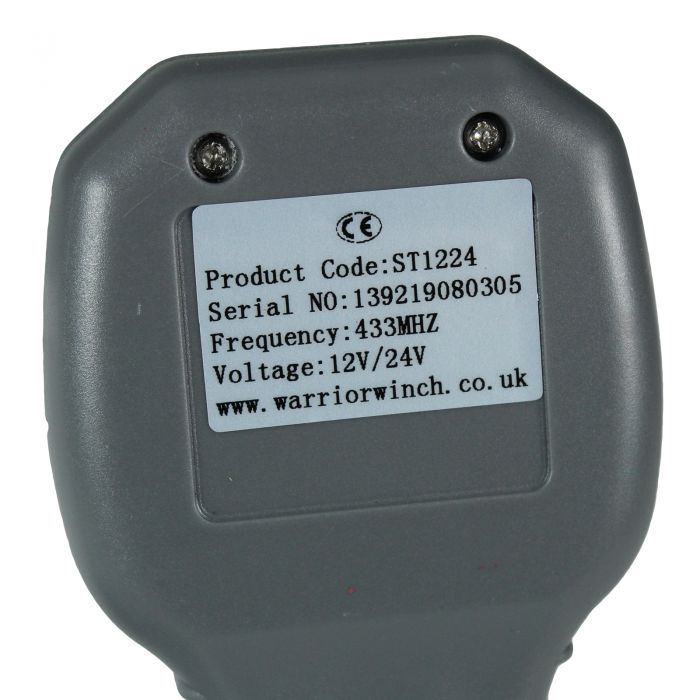

Stealth Branded Wireless Control System info label

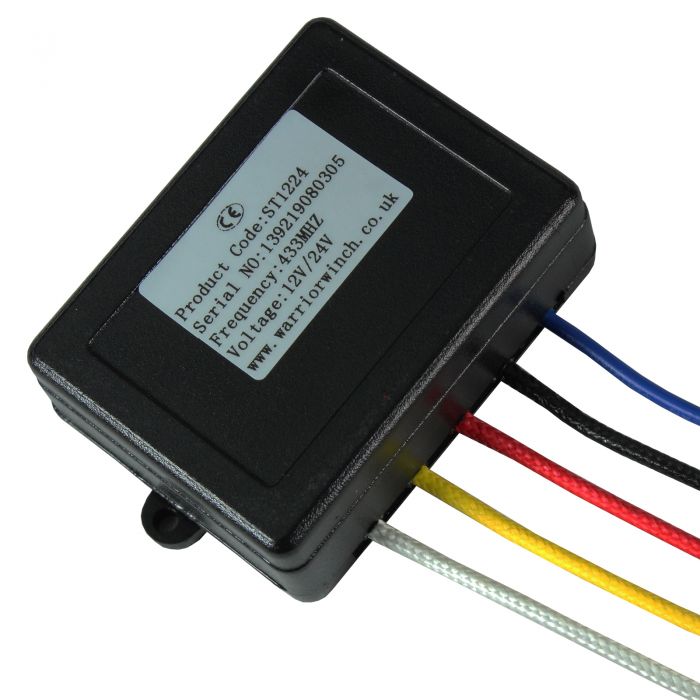

Stealth Branded Wireless Control System receiver close up

Features

Official Warrior Winches part/accessory.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Stealth Wireless remote control system is compatible with both 12v and 24v winches and has a range of up to 100 feet depending on local conditions. This allows you to move around whilst carrying out winching making it both easier and safer. It comes with an on/off button and an LED indicator allowing you to avoid unintentional activation. The simple wiring on this unit allows it to be easily retro fitted to most types of 12v and 24v solenoid controlled winches.

Lost or broken a handset? With most budget controls this means replacing the whole system, which is more expensive and takes up valuable time and effort. With the Stealth remote this is not a problem! Rather than having to replace the whole system, simply purchase a replacement handset and pair it with the existing receiver. This feature alone makes the Stealth Wireless control stand out from the crowd!

Dimensions:

♦ Hand Control = 112mm x 57mm x 19mm
♦ Control Box = 70mm x 45mm x 24mm
♦ Control Box Wires = 220mm

Colour Code:

♦ Red: Live
♦ Black: Earth
♦ White and Yellow: Switched Lives (winch in/out)
♦ Blue: Aerial (Left Unconnected)

Pairing Instructions:

1. Disconnect the power supply to the winch and receiver
2. Turn off the wireless control handset
3. Hold Both the In & Out buttons on the handset
4. Whilst holding the In and Out buttons, turn on the on the handset
5. The LED on the handset will now be flashing
6. Whilst still holding the In & Out Buttons connect the power supply to the winch and receiver
7 When paired, the solenoid will respond with a momentary activation
8. Release buttons on the handset. Your handset is now paired.

Notes:

♦ Only two handsets can be paired at a time, pairing a new handset will unpair the oldest handset registered to the receiver, you may have to re-pair your second handset.
♦ This instruction only works with the wireless control system with Product Code ST1224

Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

How to Estimate Power Usage

To get an idea of how long a device can run on a Portable Power Station, you can use a simple calculation. Please note, this is only an estimate, as real-world usage can vary based on efficiency and other factors.

Estimated Usage Time (in hours) = Power Station Capacity (Wh) ÷ Device Power Usage (W)

Examples:

Power Station Capacity	Device Power Usage	Estimated Run Time
1200Wh	400W	1200 ÷ 400 = 3 hours
1000Wh	250W	1000 ÷ 250 = 4 hours
500Wh	100W	500 ÷ 100 = 5 hours

Keep in mind:

This is a rough estimate - actual performance may be shorter or longer depending on real usage conditions.
Ensure your device power usage is below the max rated watts the power station can ouput.
Always allow some buffer in your calculations to account for energy loss or variations in power draw.
Some Power Stations can use Expansion Batteries to extend their capacity.

Wattage Reference Guide*

Device	Average Power Usage
Lamp	10
LED/LCD TV	150
Laptop	100
Desktop Computer	200 - 500
Modem/Router	20
Play Station	165

*This chart is for reference only. Check your device for ACTUAL wattage requirements.

Questions & Answers:

Ask a Question

The Remote won't connect to the winch. Have changed the battery in the handsets.

Most transmitter (handset) faults can be rectified by checking that batteries are both installed correctly, or other common causes are transmitter battery low, main power supply low, low voltage to the receiver or interference between transmitter and receiver.

If you have 2.4G wireless remote set then transmitters can be paired separately again, to pair a transmitter to receiver please follow these steps
See below in RED and also as follows.

It is also in the instructions manual under No. 7 Pairing.

To pair all you need to do is:
1. Turn off the power to the receiver
2. Turn off power to transmitter (handset)
3. Turn on power to transmitter (handset)
4. Press and hold IN & OUT buttons continuously
5. Turn on power to receiver
6. Release IN & OUT buttons (should get a sold red light on transmitter)
7. (If you don’t) Press green button on transmitter (handset)
8. Then press either IN or OUT to move winch.
9. Pairing complete
If transmitter and receiver still has a fault or will not pair the transmitter or the whole set should be replaced.
looking at changing my winch remotes. currently have 2 really generic winch remotes which the casings are broken. used on a 13,500lb winchmax 12v winch. im wanting to know if these stealth branded winch remotes will work as a replacement, im assumning all the wiring is the same so i should be able to just swap it out and all good ??

The majority of our wireless controls are univeral and should work with most solenoid using winches yes.
