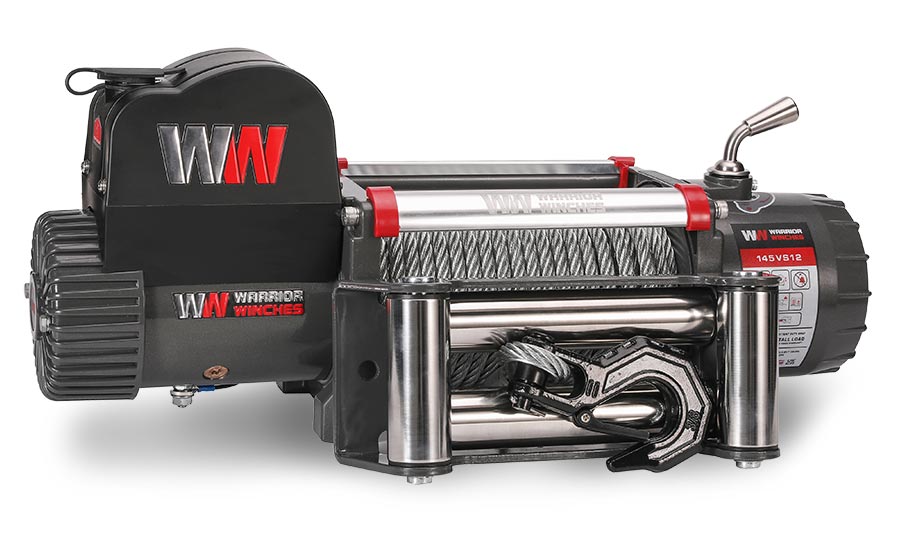

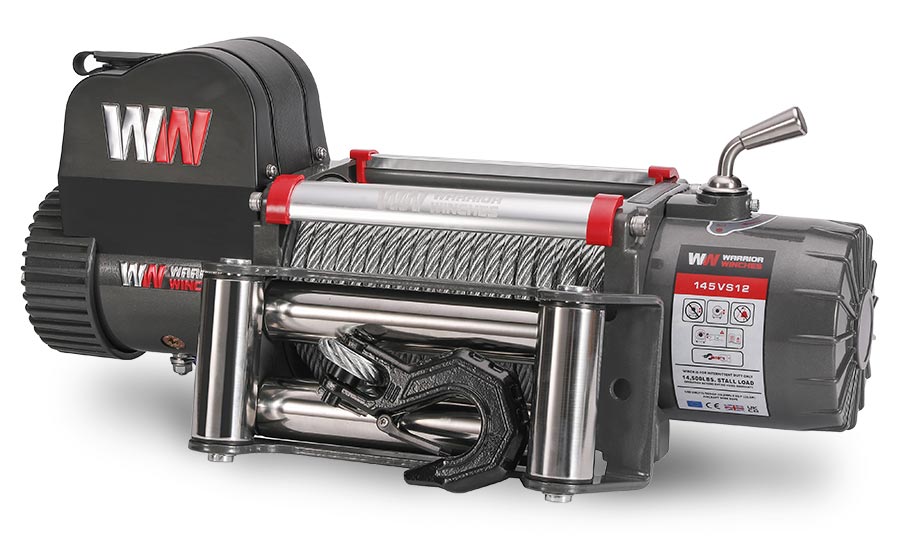

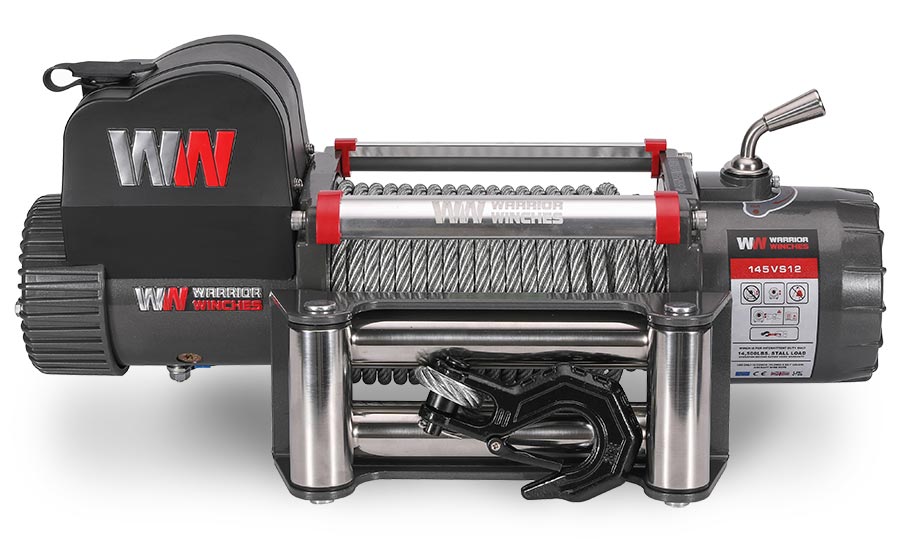

Warrior Samurai V2 Next Gen 14500lb Winch - 24v Steel Rope

| Ask a Question SKU: 145VS24

Price:
Sale price£608.99
Sold out
You may also like:

Features

  • REVOLUTIONARY DESIGN – Premium winch now upgraded to V2 with an external brake.
  • HEAVY DUTY – Removable heavy-duty hook, chip-resistant powder finish, and a hard-wearing design.
  • LINE CAPACITY – 14,500LB (6577KG), ideal for recovery and 4x4 applications.
  • BRASS FITTINGS – Solid brass contacts direct to the motor for efficient running

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Warrior 14500lb Samurai V2 Next Generation Winch - 24v Steel Rope

Since their launch, the Warrior Samurai winches have been their premium offerings. Now upgraded to V2, the high speculation winch has only got better, making it ideal for reliable recovery and 4x4 applications. With an incredible line capacity of 14,500LB or 6577KG, this heavy-duty winch will get the job done with ease.

The stand-out feature of this upgraded winch is the addition of a revolutionary new external braking system. Unlike standard winch brakes, the V2 Samurai brake is at the end of the gearbox rather than inside the drum. Making it even faster with a lower amp draw and higher capacity for load holding and lowering – the benefits are numerous.

It also features a high-quality reversible 8.3hp 24v series wound motor with brass contacts going direct to the motor for efficient running. Also boasting a heavy-duty waterproof solenoid, double sealed drum, and full steel planetary gearing that runs quietly to keep the peace.

With a line pull of 1m/min (480 Amps) at full load, you can get the job done quickly and easily. Backed up with a limited lifetime warranty and 3 years of electrical cover; trust in Warrior power.

Standard Features:

  • Line Capacity: 14500lb (5400kg)
  • Motor: Reversible 8.3hp 24v series wound motor - Powers In and Out
  • Gearbox: Freespooling Clutch - Allows cable to be unwound manually
  • Warranty: Limited Lifetime Warranty with 3-Year Electrical Cover

Accessories:

  • Wired Hand Control: 3m Wired Hand Control
  • Mounting Plate: Available as an optional extra
  • Mounting Bolts: Included for Standard installations
  • 1.5m Heavy Duty Battery Cables (May need extending depending on application)
  • Battery Isolation Switch (Failure to fit will invalidate warranty)
  • Instruction Manual

Other Information:

  • Dimensions: 593mm L x 160mm D x 248mm H
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Line Pull - No Load: 9.5 m/min (60 Amps)
  • Line Pull - Full Load: 1.4 m/min (380 Amps)

CE Certified




Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.

Rated Line Pull14500 lbs
Motor Type 24V:Input:8.3hp/6.2Kw Output:4.4hp/3.3kW
Gearing253:1
ClutchManual
Braking ActionExternal Brake
Drum Size (Dia x L)63 x 223 mm
Cable MaterialSteel
Cable – Dia x LSteel: 10.2mm x 25.5m
Mounting Pattern254 x 114 mm
Dimensions593 x 160 x 248 mm
Weight43kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 14500 (6577)
2 11519 (5224)
3 9556 (4334)
4 8163 (3702)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 31.16(9.5) 39.3 (12.0) 60 50
6000 (2728) 12.46 (3.8) 13.8 (4.2) 200 140
10000 (4545) 5.57 (1.7) 8.2 (2.5) 310 190
12000 (5443) 4.92 (1.5) 5.9 (1.8) 380 230
14500 (6577) 3.28 (1.0) 4.26 (1.3) 430 260

What's in the box:

  • 3.8m Remote Handset
  • Built in Wireless Remote (12v Model Only)
  • Removable Heavy Duty Hook
  • Heavy Duty Stainless Steel Roller
  • Steel Rope
  • Isolation Switch
  • Heavy Duty Battery Leads
  • Stainless Steel Mounting Hardware
User Manual Download
Brochure Download
