Warrior 12.5 kVa Diesel Generator 3 Phase

 0 Reviews  Ask a Question
SKU: LDG12S3

Sale price£4,039.99 inc vat
In stock (Ships in 10-14 days)

Recommended Accessories

Features

  • Diesel powered Warrior quality 296cc engine - 3 Phase Ready
  • 12.5 kVa Warrior Generator with 11000 maxium watts, 10000 running watts
  • 60 Litre tank could easily achieve up to 24 hours running at around 50% load
  • Low oil shut-off sensor, this generator has a 3L oil capacity
  • Muliple outlets including 1 x 32A 415v / 2 x 16A 240v outlet
  • 68 dBA noise level at 7 metres (See Noise Level Information)
  • Enclosed by a soundproof canopy coated with a chip resistant matt finish
  • Fitted with ATS input switch (See optional Diesel Automatic Transfer Switch)
  • Brushed copper alternator that produces a steady motor speed
  • Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

This new and improved Warrior model boasts increased engine power, with a brushed copper alternator within that produces a steady motor speed.

It features a Automatic Voltage Regulator (AVR) control system to monitor the output and protect the unit against voltage fluctuations, providing a smoother sine wave.

Enclosed by a soundproof canopy, coated with a chip resistant matt finish, the durable heavy-duty industrial frame provides full protection and aids portability. This silent enclosure has the added benefit of a key start facility and smooth running is further enhanced by the addition of anti-vibration mountings.

A fully fueled 60 litre tank could easily achieve up to 24 hours running at around 50% load, making this Warrior generator ideal for all sorts of applications such as domestic supply, construction, catering and industrial use with for example power tools & lighting units. As a standby generator it is the perfect product during power cuts and outages, and is even supplied with an Automatic Transfer Switch (ATS) Input Port compatible with our ATS Panel to automatically start up the Generator when loss of power is detected & stop it when the mains supply is restored.

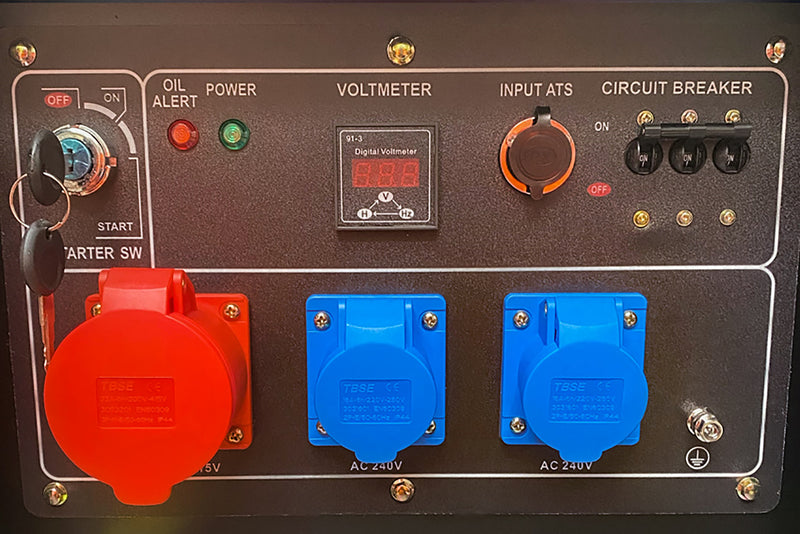

Fitted with 12v battery charging outlet and with 415v Three Phase and 240v Single Phase output sockets as standard as well as ATS Input Port for ATS panel 190102000010.

All data supplied on this item is referring to balanced load, if using unbalanced loads you need to check data on equipment.

Please note: When running single phase off a three phase generator you will only receive approx 30-35% of the full output power as your socket is only running off one of the three phases available.

kVa 12.5
Max Watts 11000
Rated Watts 10000
AC Load 1 x 32A 415v / 2 x 16A 240v
Phase Three
Power Factor 0.8
RPM 3000
Engine 296
Fuel Capacity 60 Litres
Oil 10W-30
Oil Capacity 3 Litres
Start Type Electric
Low Oil Shutoff Automatic
Choke Type Automatic
Noise Level @ 7m 68 dBA
Dimensions L*W*H
(Fully Assembled)
116 x 65 x 89 cm
Weight 295 kg (650.4 lbs)
Operation at 50% >24 hours
Overload Protection Yes
AVR Yes
Fuel Gauge Yes
Voltmeter Yes
Wheels Included
Certification CE,ISO9001-2000,GS,TUV
Warranty 2 Year Limited Warranty

What's in the box:

  • Warrior 12.5 kVa Diesel Generator 3 Phase
  • Operating manual

Wattage Reference Guide*

HOME RUNNING STARTING
Microwave 1000 0
Coffee Maker 1500 0
Lamp 100 0
LED/LCD TV 150 0
Laptop 800 0
Modem/Router 20 0
RECREATION RUNNING STARTING
Slow Cooker 200 200
Blender 300 650
Fan 200 0
LED/LCD TV 150 0
Radio 100 0
Game Consol 1500 0
ON THE JOB RUNNING STARTING
Drill 600 900
Air Compressor 1600 4500
Circular Saw 1200 2000
Hand Sander 600 1200
Work Light 1000 0
Paint Sprayer 600 600
OUTDOORS RUNNING STARTING
Lawn Mower 1200 2400
String Trimmer 350 875
Hedge Trimmer 450 1200
Edger 950 2400
Chainsaw 1200 2400
Pressure Washer 1200 2400
EMERGENCY RUNNING STARTING
Refridgerator 700 2200
Sump Pump 1/2 hp 800 1300
Well Pump 1/2 hp 1000 2100
Furnace 1/4 hp 600 1000
Water Heater 4000 0
Window AC 1800 2800

How to calculate:

RUNNING WATTS NEEDED

Total running watts of ALL items to be powered by the generator at the SAME TIME.

STARTING WATTS NEEDED

Add highest SINGLE starting Watt to the total RUNNING WATTS needed above.

*This chart is for reference only. Check your device for ACTUAL wattage requirements.
